Overview
Machine location:
Europe
Stock number:
PF 40888
Manufacturer:
Atlas Copco
Model:
CM 760D
Year of manufacture:
2008

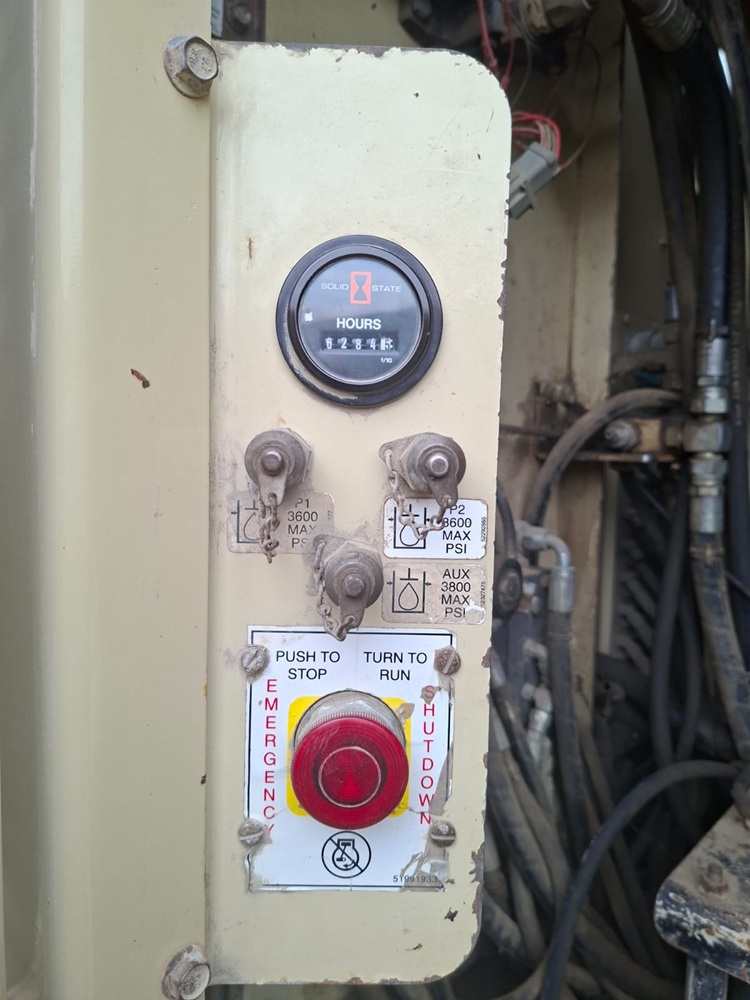

Working hours:
6284
Key Features:
Key features
- Working Hours: 6284
- Max boom swing: 45 right / 20 left
- Guide movement: vertical 50 up / 20 down
- Guide extension: 4 ft (1.2 m)
- Pipe size: 4 m drills, 3.5″ & 4″ string options
- Torque: 3,000 ft-lb (4,067 Nm)
- Speed: 25-150 rpm (variable)
- Operating weight: 49,000 lb (22,230 kg)
- Drilling depth: 90 ft (27.4 m) standard; 103 ft (31.4 m) with extended rod changer configuration (7 + 1)
- Tramming (travel) speed: 2 mph (3.2 km/h)
- Gradability: 30 (60%)
- Ground clearance: 17″ (432 mm)

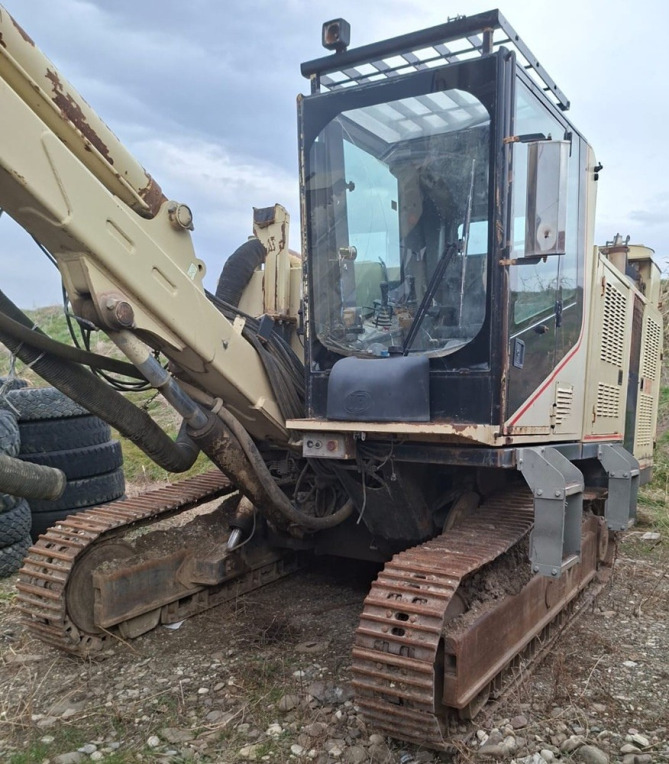

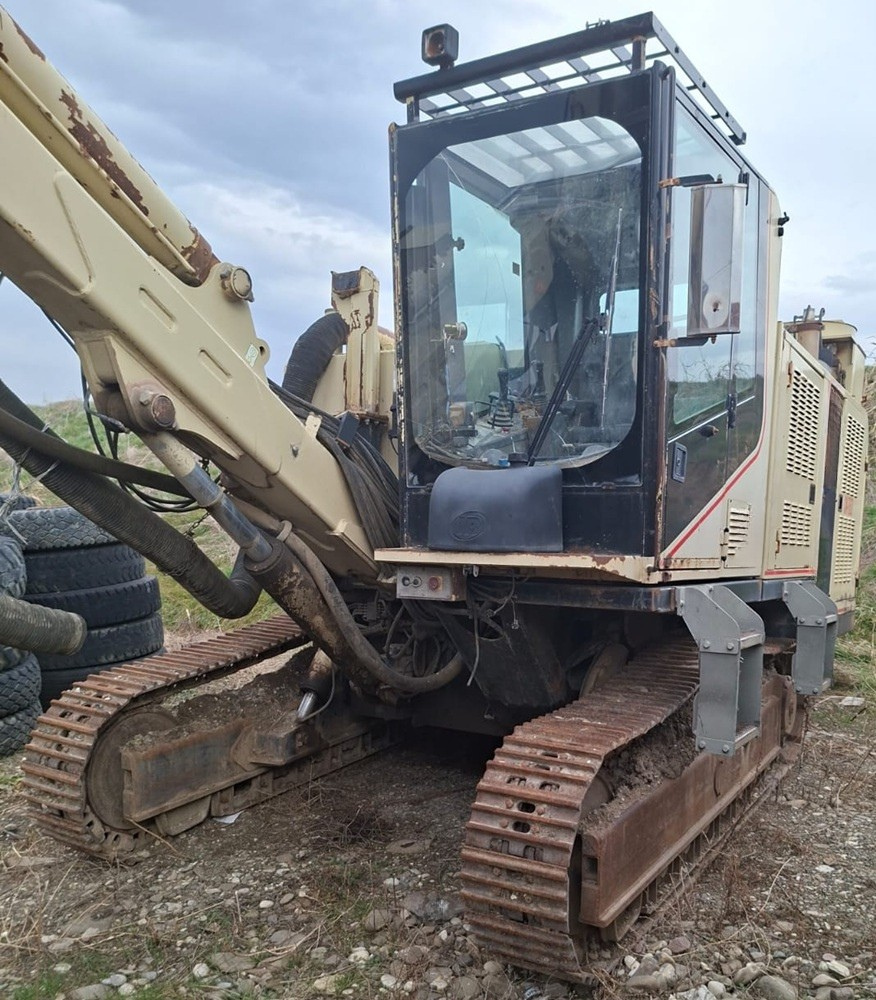

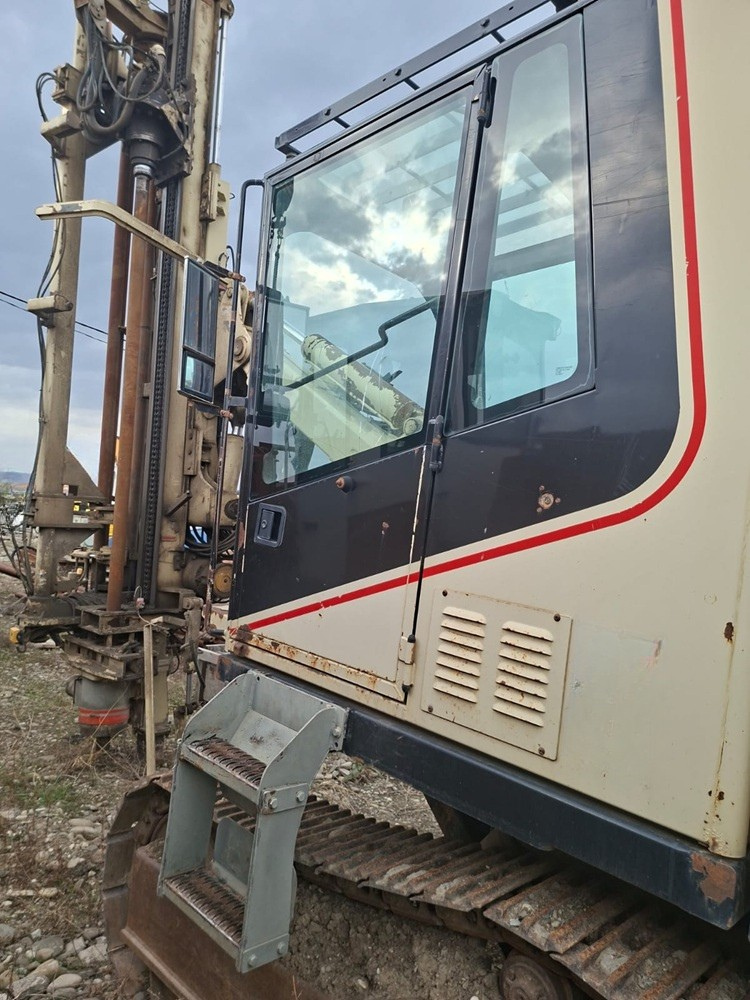

- Certified FOPS/ROPS protective cab with A/C and heat

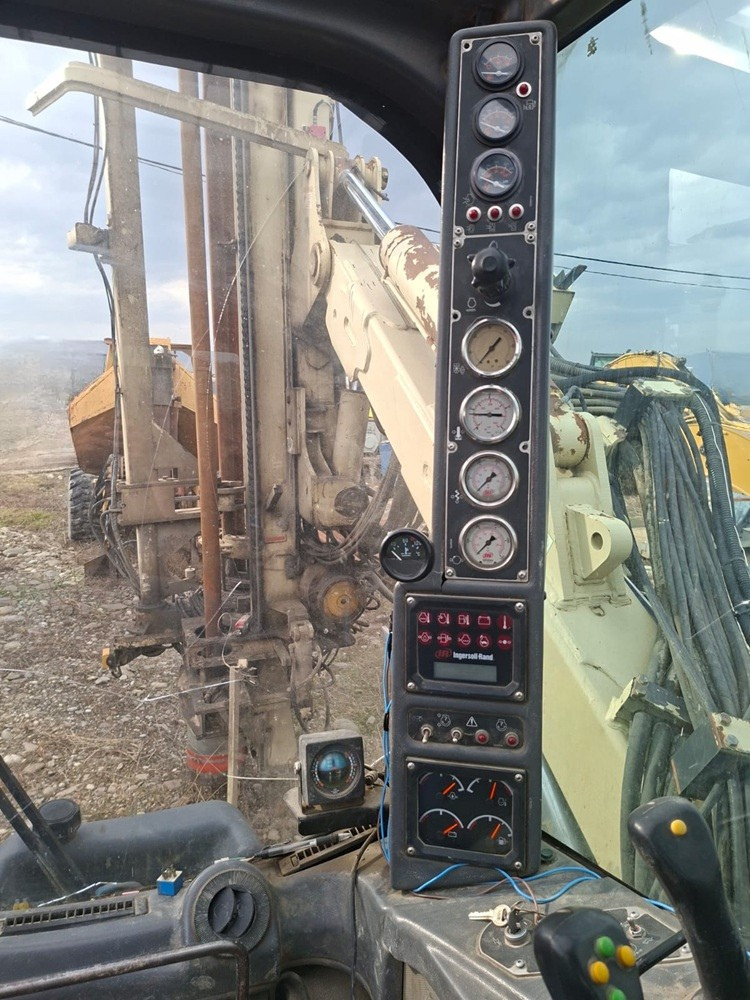

- Pilot hydraulic controls for drilling and tramming

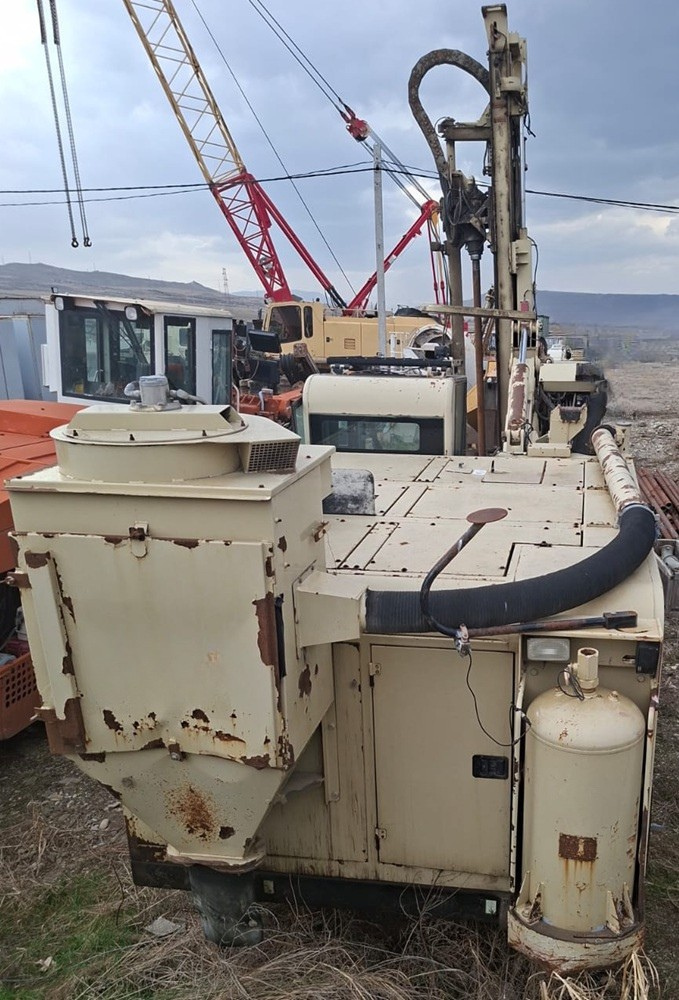

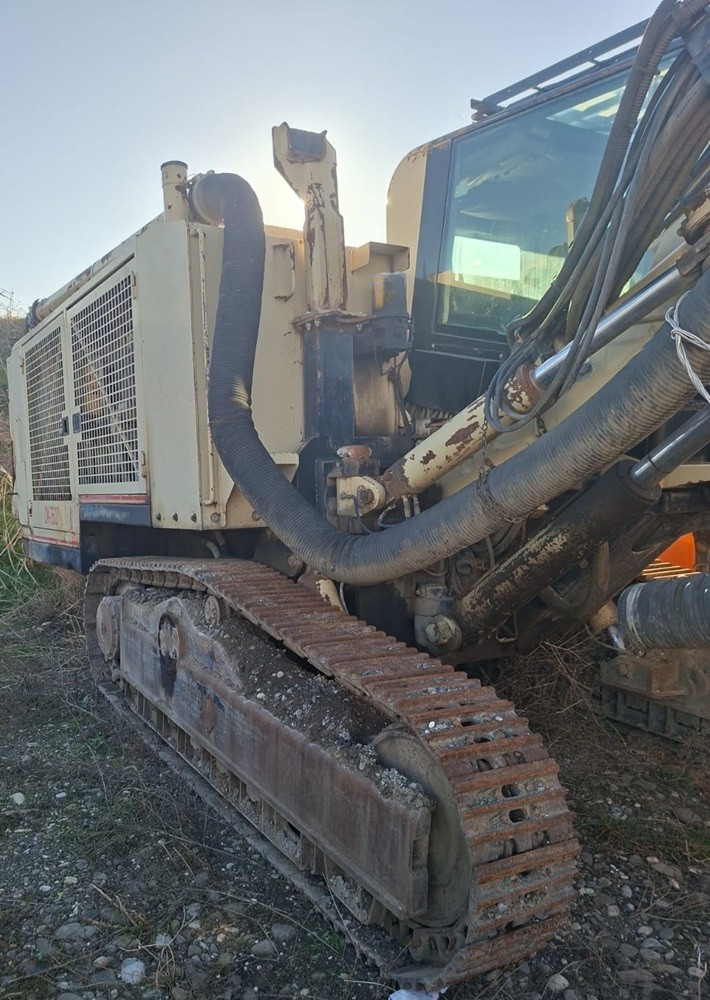

- Dust collection system, pre-separator and retractable dust hood
- Rod changer capacity: 6 + 1 (7 + 1 with 3.5″ pipe)
- Noise level: 80 dBA inside cab
- Operating time: full 8-hour shift without refuel in most cases
- 22 000 kg (shipping/operating weight)
- Drilling rig length: 33′5″,
- Width: 8′2″
- Height: 12′4″ (typical)
