Overview
Machine location:
United States
Stock number:
PF 40944
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Casagrande
Model:
C9
Year of manufacture:
2015
Key features

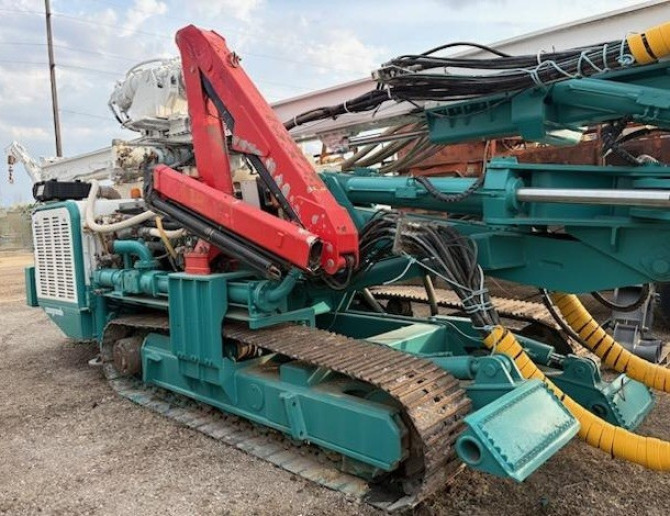

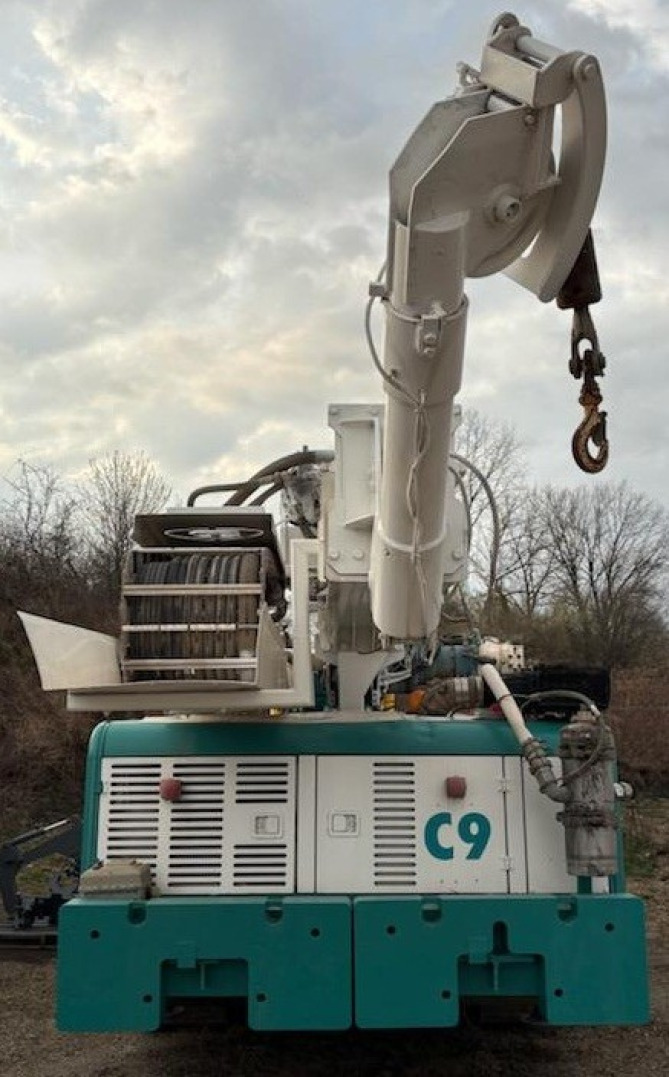

- Micropiling/anchoring rig
- Cummins QSB 6.7 engine (EU stage 4 – US EPA Tier 4F): 194kW
- Mast/stroke length: 12,025/10,060mm
- Max crow/extraction force: 150kN

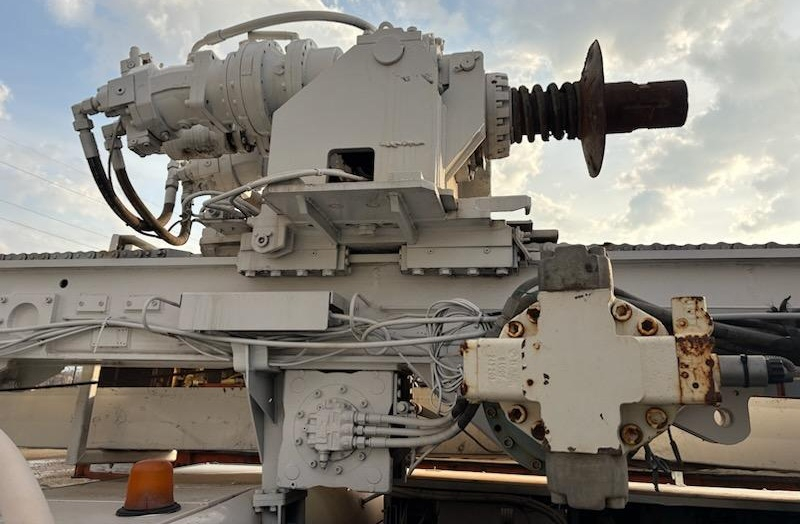

- Double rotary head: T3000 (max torque 30kNm, max drill speed 160rpm), T20EP (max torque 15.2kNm, max drill speed 400rpm)

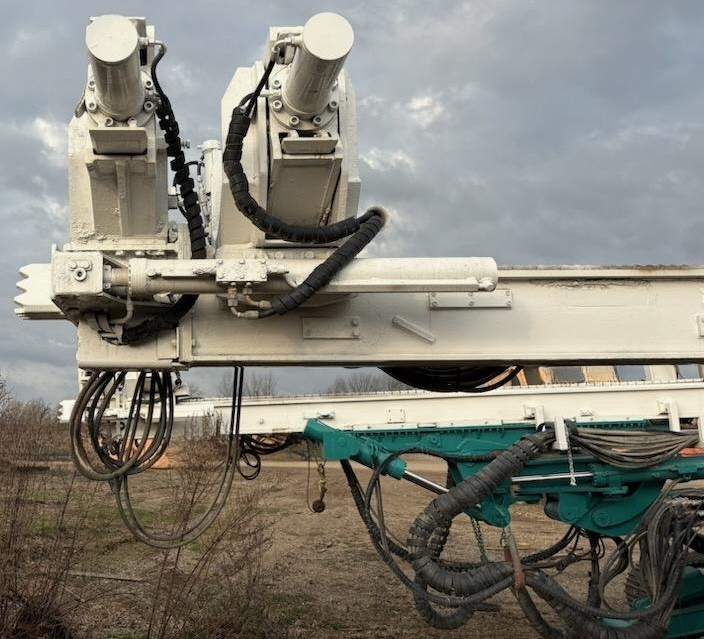

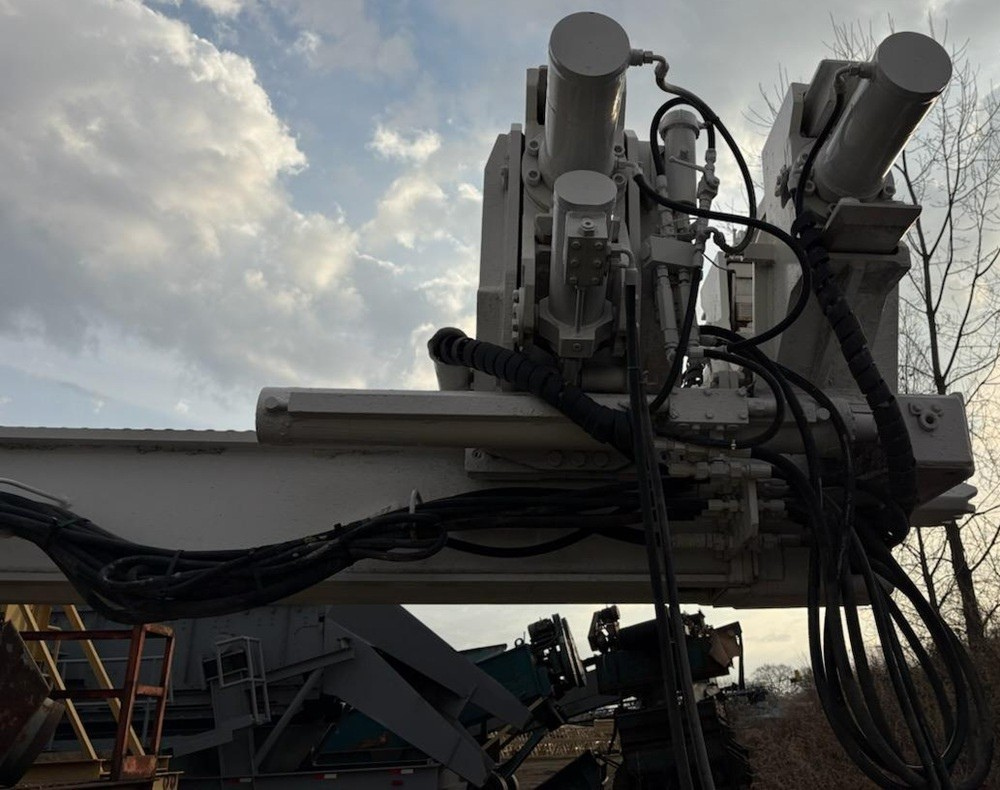

- M6-M6s-C double hydraulic clamps: range 152-508mm, clamp force 250kNm, break out torque 67.5kNm, extraction force 200kN
- Set of inserts 203-300mm diameter for M5/M5S clamps
- 405mm diameter centering device for M5-M5S-C clamps
- Reduction 219mm diameter for 405mm centering device on M5-M5S-C clamps

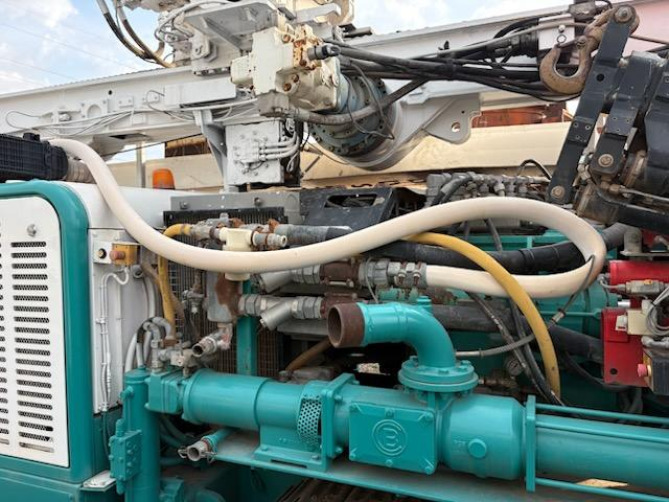

- Triplex foam pump type G40 – working pressure 50bar, flow 30L/min
- Screw pump for water flushing type NG600L
