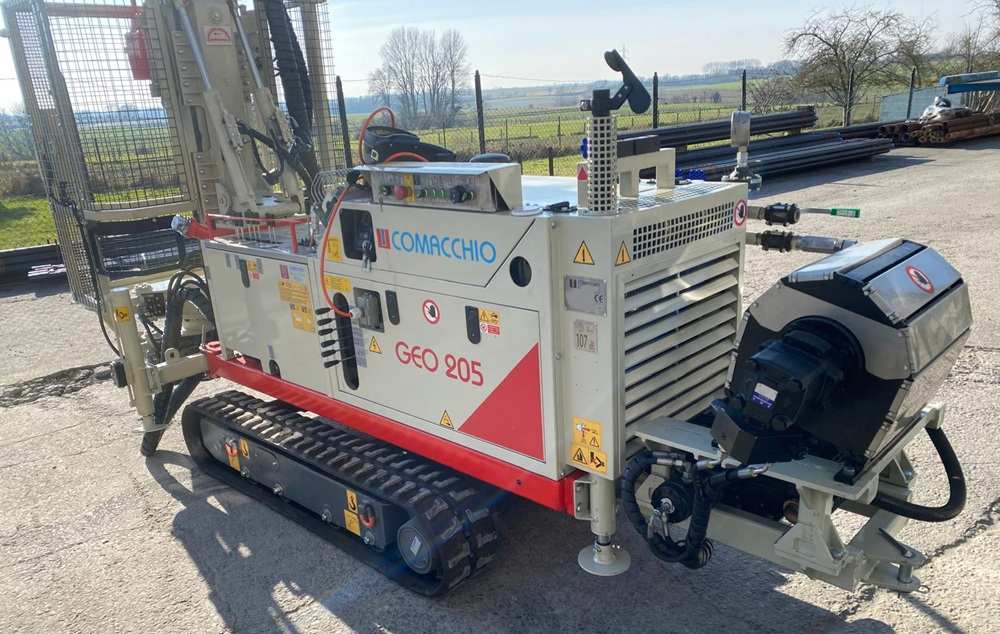

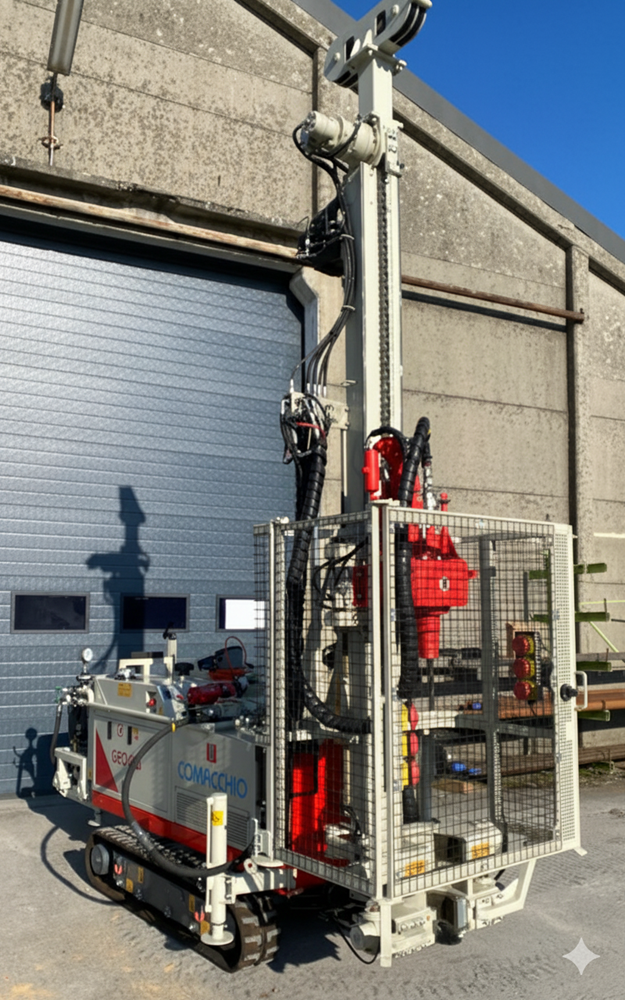

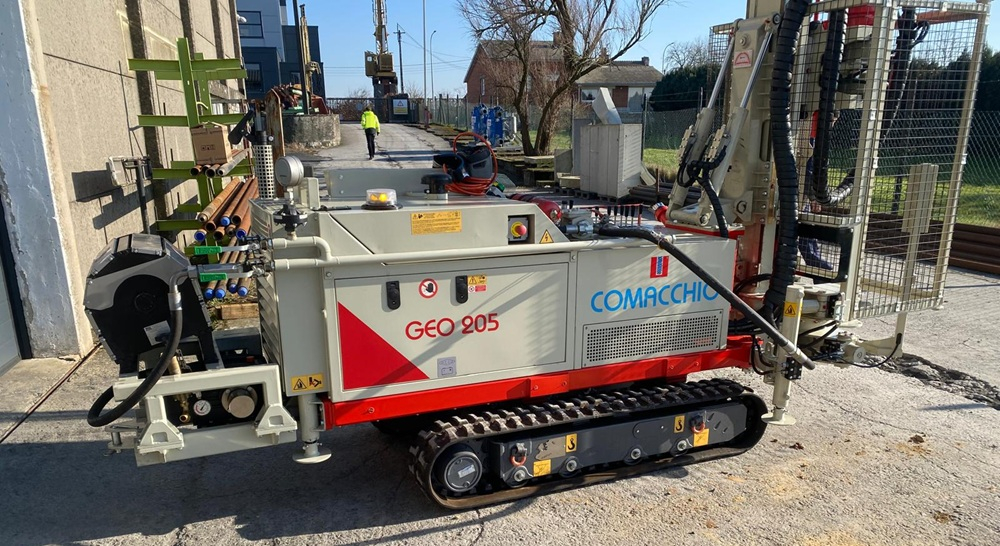

Overview
Machine location:
Europe
Stock number:
PF 40529
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2021
Working hours:
0
Key Features:
Key features
- Geotechnical drilling rig with 10 idling working hours
- Never used
- Tracked undercarriage
- Chassis
- Hydraulic power pack
- Made with a square section steel tube in steel type S275JR EN 10027-1, complete with:
- Two hydraulic jacks fixed on the rear side
- Two hydraulic jacks on the front side mounted on pivoting arm
- Mast raise cylinder
- Mast slide cylinder stroke 700 mm
- Rotary head carriage
- Rotation unit
- Hydraulic power pack
- Fluid line
- Line of 1” suitable for max operating pressure of 88 bar

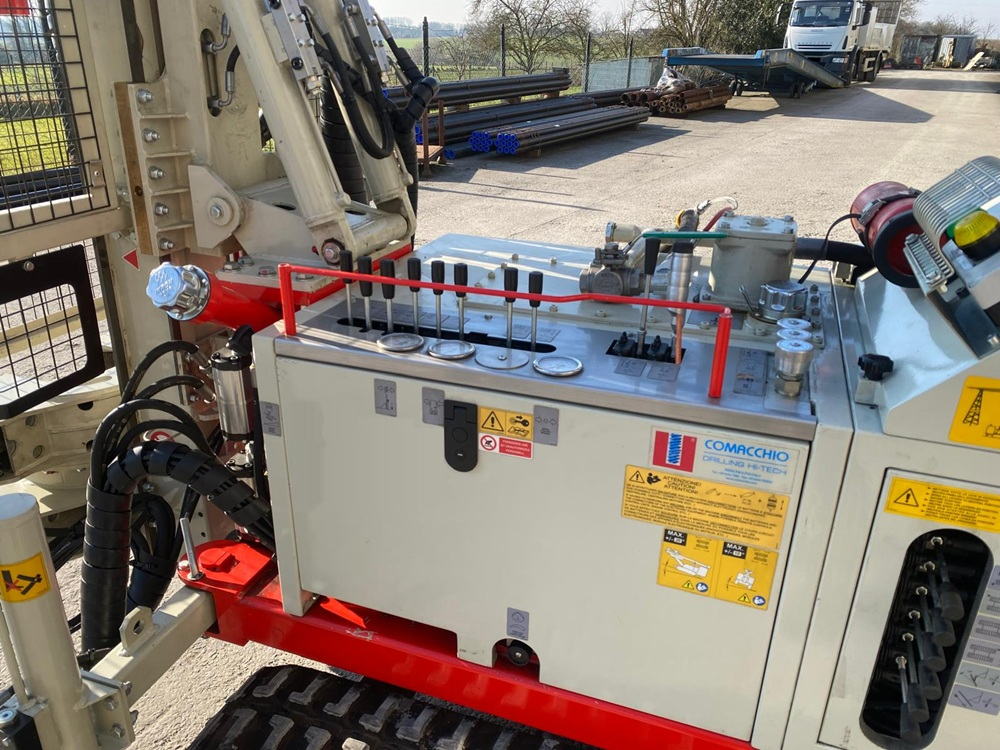

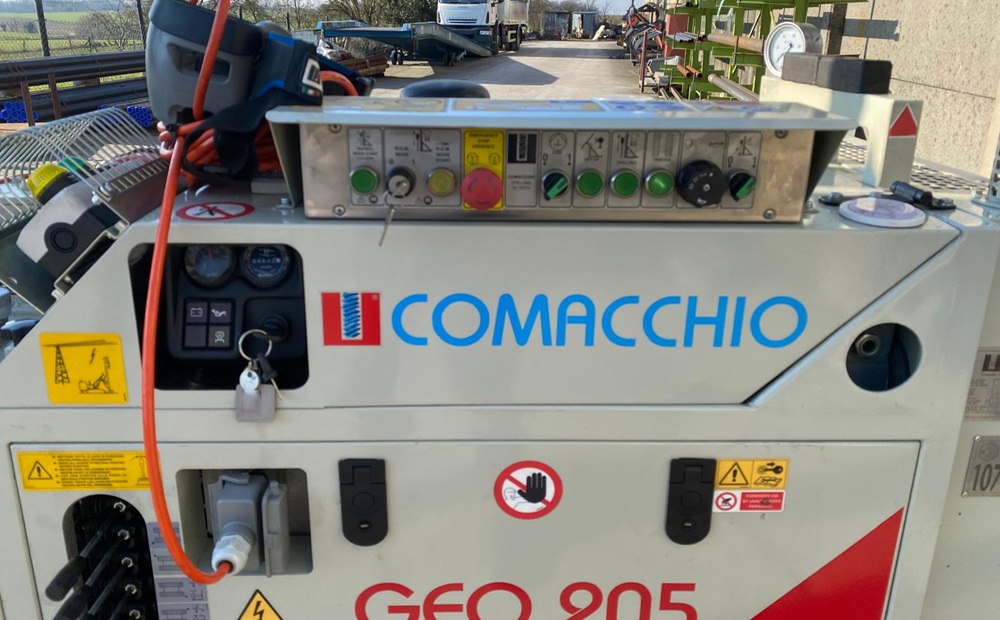

- Controls:
- Diesel engine ignition and protection panel
- Fixed control panel including the set-up functions
- Fixed control panel including the drilling function
- Remote electric proportional console for tracks
- Documentation:
- 2 copies of Spare Parts manuals
- 2 copies of Use and Maintenance manuals, hydraulic schematic and electrical diagrams
- 2 CDs including the complete technical file, engine documentation and accessories documentation
- CE certified
- Manufactured in compliance with EN 16228-1 and EN 16228-2 including:
- - Safety devices and warning labels on the machine
- - Safety protection cage on the mast with interlocking system
- - Restricted Operating Mode system (ROM)
- - Identification plate with CE marking
- - CE Conformity Declaration
- The safety cage dimensions can vary according to the machine configuration and may exceed the undercarriage and/or machine body width.
- Hydraulic power pack:
- Located on the rear side of the machine, it consists of the following main components:
- Diesel engine KUBOTA V1505-T-E3B
- 4-cylinder Turbocharged water cooler,
- Displacement 1,498 Lt
- Power 33 Kw (44 HP) at 3000 rpm
- Exhaust emissions according to 97/68/EC Step 3A – EPA Non Road Tier 4 Interim
- Electric circuit 12V
- Quadruple gear pump
- 1st section: Rotary head rotation- tracks and Fast feed
- 2nd section: Percussion
- 3rd section: Water / flush pump
- 4th section: Auxiliary and feed – retract
- - 20 um filter mounted on the return line.
- - Oil cooler combinate with the engine cooler
- - 130 Lt. capacity hydraulic oil tank.
- - 30 Lt. Capacity fuel tank.
- - Oil level and temperature indicator
- - Fuel level indicator
- Fix width undercarriage
- Rubber type, operated by two planetary moto reducer complete with negative brake and motion control valve
- Max. climbing ability 36 %
- Max. speed 1,3 Km/h
- Track wheel base 1.380 mm
- Undercarriage width 1.100 mm
- Pad width 230 mm
- Mast in a single element, made with a rectangular section steel tube in steel type S355JR EN 10027-1 with the slide rails in hard steel type C45 EN 10083-1 draft
- Feeding system by hydraulic moto reducer and single roller chain
- Nominal Feed force: 2.500 daN
- Nominal Retract force: 2.500 daN
- Feed stroke: 2.430 mm
- Total feed length: 3.660 mm
- Rotary head carriage with hydraulic off-hole slidramatic
- Made in welded steel plate in steel type S275JR EN 10027-1 complete with:
- 2 guiding sliding blocks and four vertical rollers
- 4 eccentric rollers vertically orientated
- Hydraulic off-hole slidramatic via an hydraulic cylinder (Mounting plate excluded)
- Mounting plate for rotary head carriage with ‘slidramatic’
- Mounting plate for rotary head R350

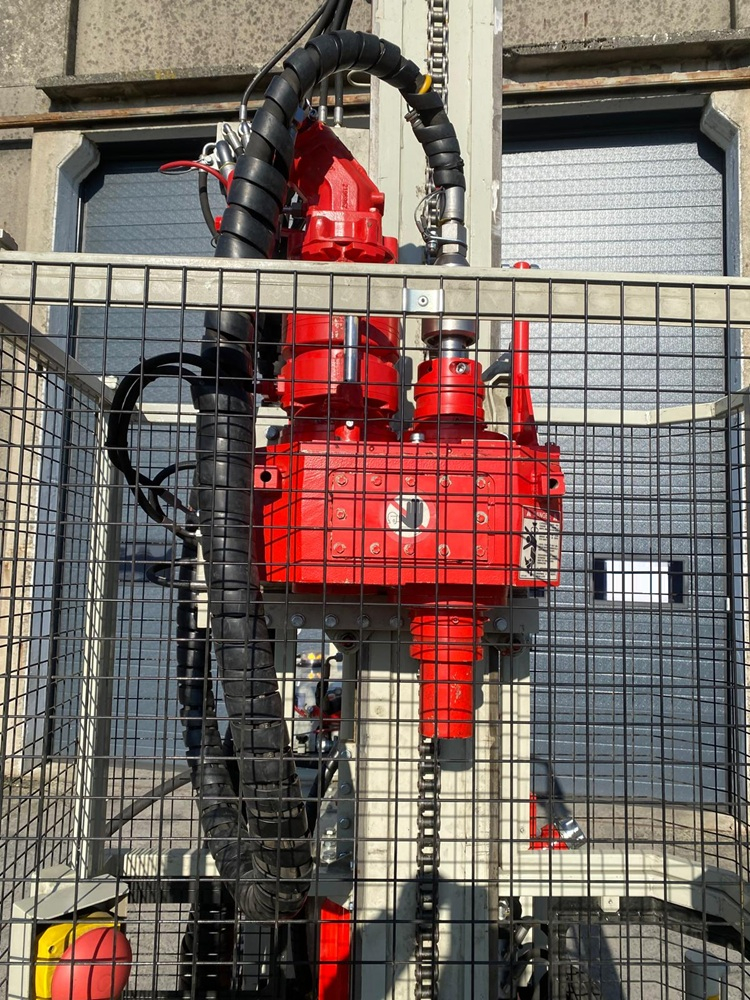

- Rotary head R350
- Consisting of a two-speed gear change box operated by a two speed planetary gear reducer and an axial pistons hydraulic motor.
- Gear change system: mechanical
- A2FM 32 Motor with 4:1 Gear Reduction
- Output Torque: 4 daNm (40 Nm)
- Maximum Continuous Speed: 345 rpm
- Maximum Peak Speed: 580 rpm
- Floating spindle kit for R350
- Floating spindle kit (rubber type shock absorber) with thread connection 2” 3/8 API
- REG female and connection for injection swivel CTA 10, 1”
- Air-water swivel (Top mounted)
- Type CTA 10 – Connection 1” BSP
- Hydraulic rod holder and combined rod breaker
- - Clamping force: 180 Bar - 130 KN
- - Breaking torque: 1.500 daN*m
- - Clamping range: 45-220 mm only in combination with rotary head R350/R400
- Valve for clamping force regulation

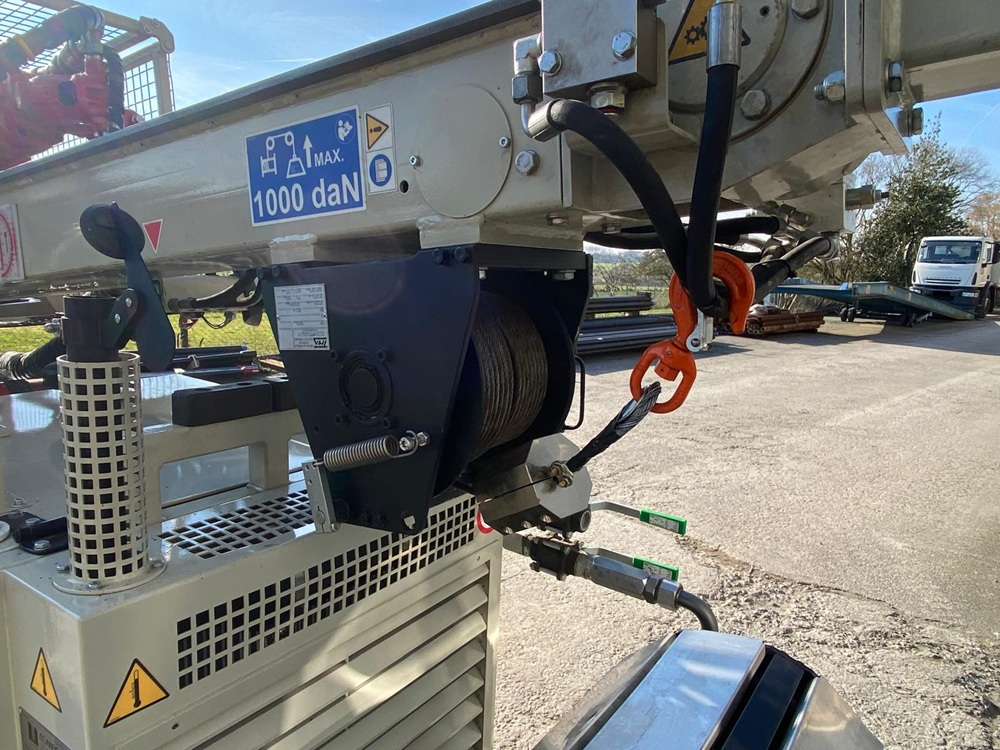

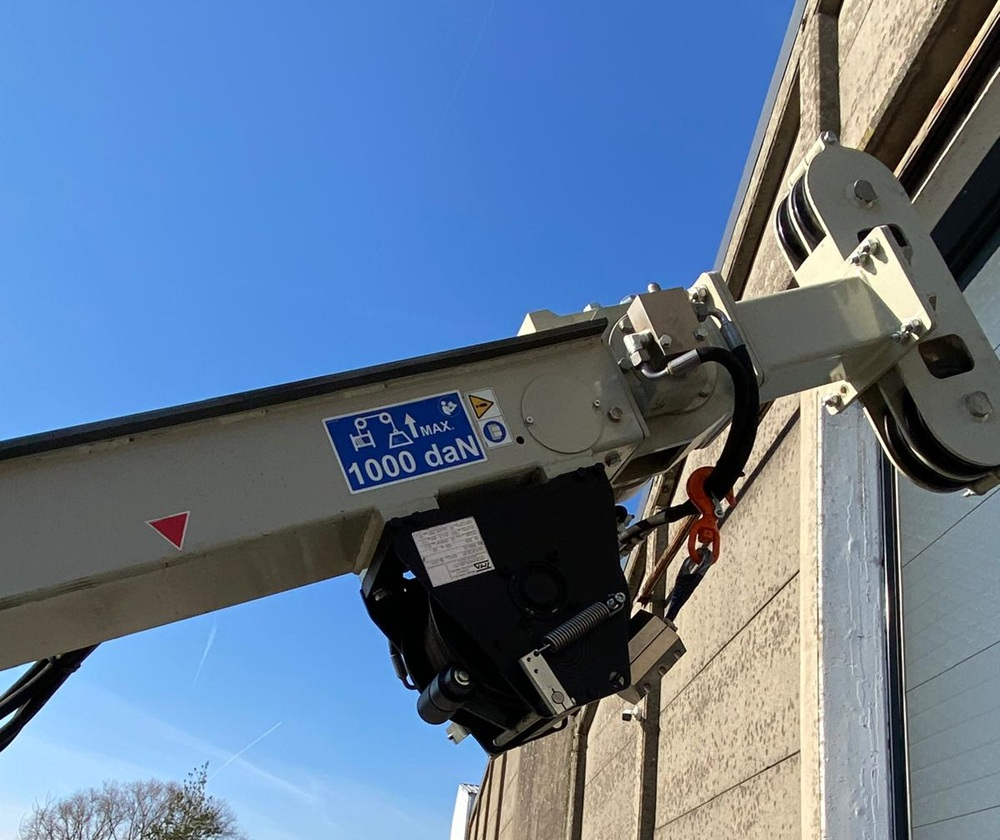

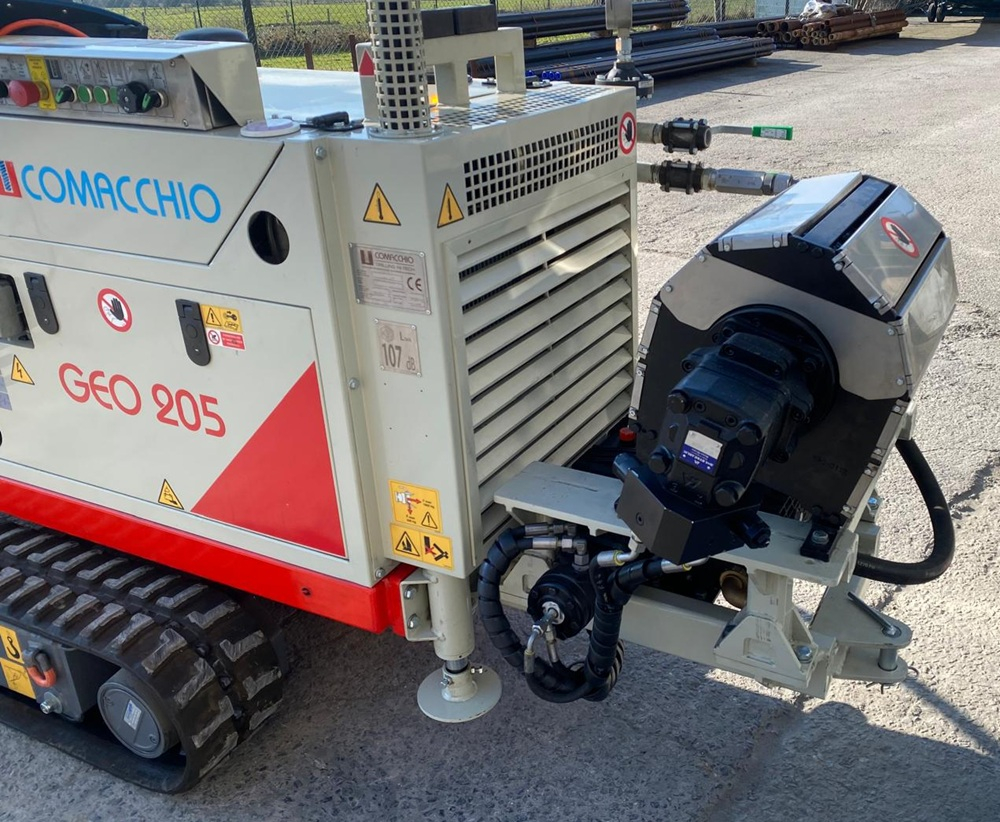

- 1000 kg hydraulic winch (including crown block, rope L. 20 mt and hook)
- Max. line pull 1.000 kg, rope capacity 48 mt, rope speed 40 mt/min, rope diameter 8 mm

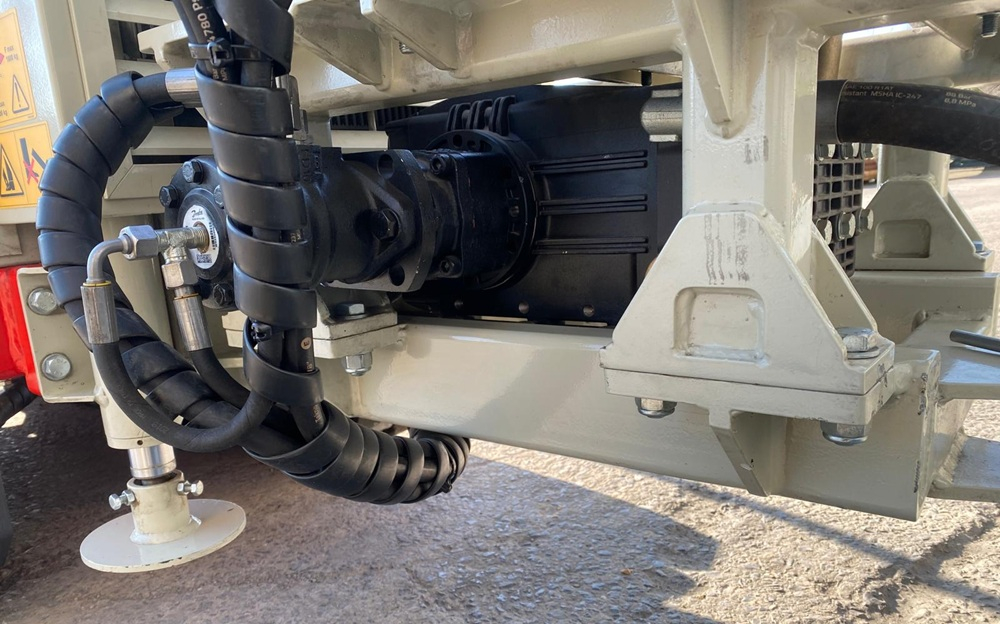

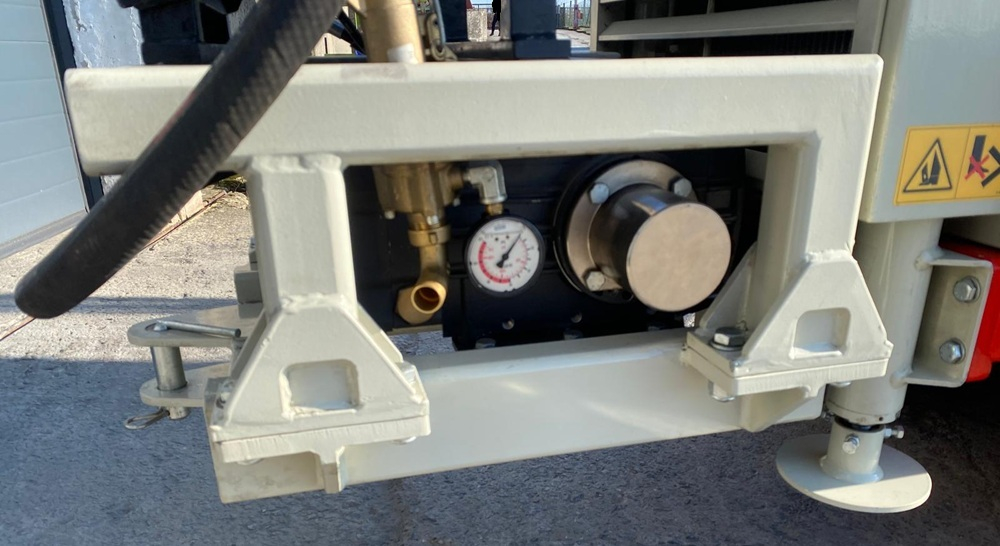

- Foam/water pump GAMMA 85
- Hydraulic setting for the operation of the GAMMA pump, operated by an hydraulic motor: Max delivery 85 Lt/min – Max pressure 60 bar
