Overview
Stock number:
PF 40159
Manufacturer:
Atlas Copco
Model:

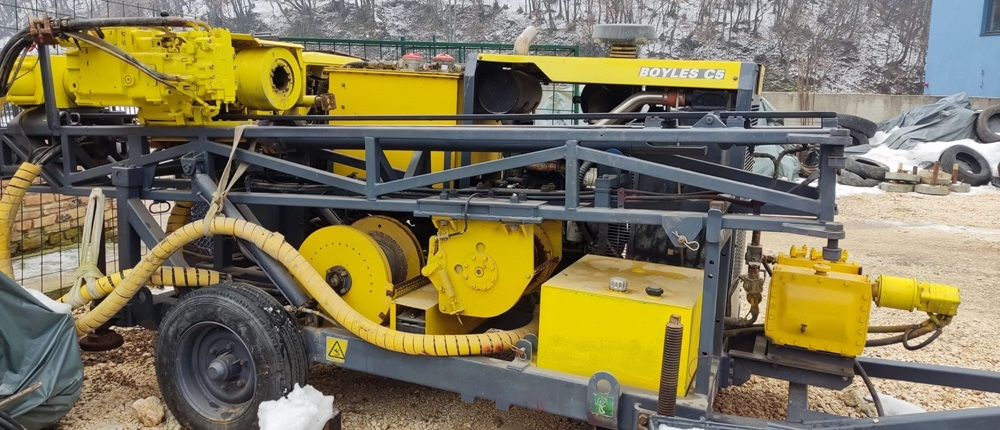

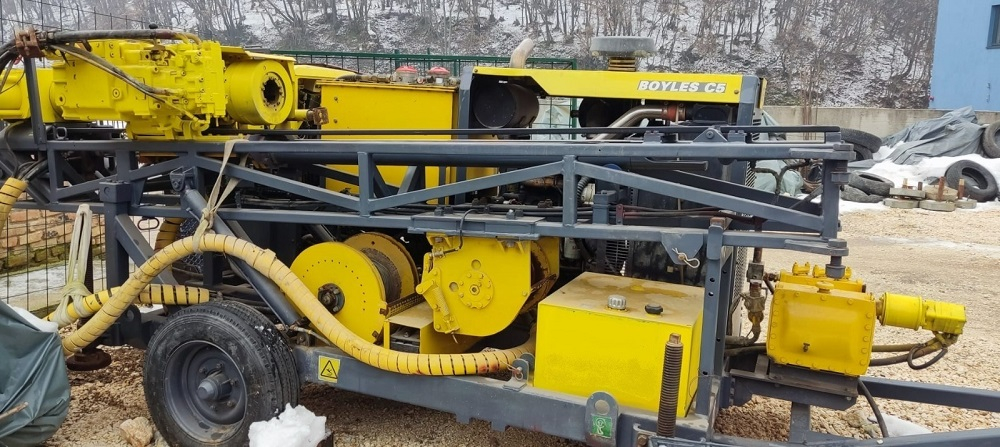

Boyles C5
Year of manufacture:
2017
Working hours:
1000
Key features

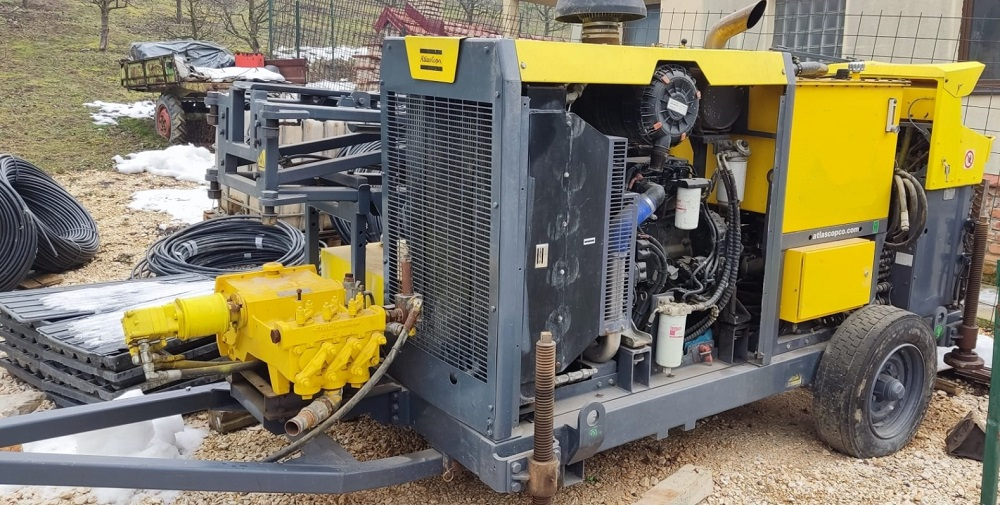

- 1000 Hours, Deutz Diesel BF4M1013 Tier II - 117 kW

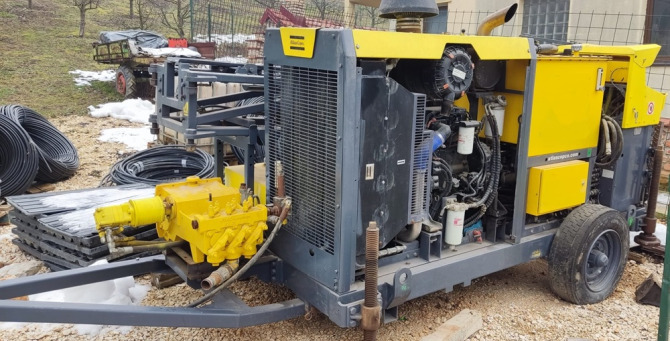

- Trailer undercarriage with 4 mechanical support legs
- Pump 1 25 MPa - 182 l/min
- Pump 2 20 Mpa - 135 l/min
- Service Pump 21.5 Mpa - 39 l/min

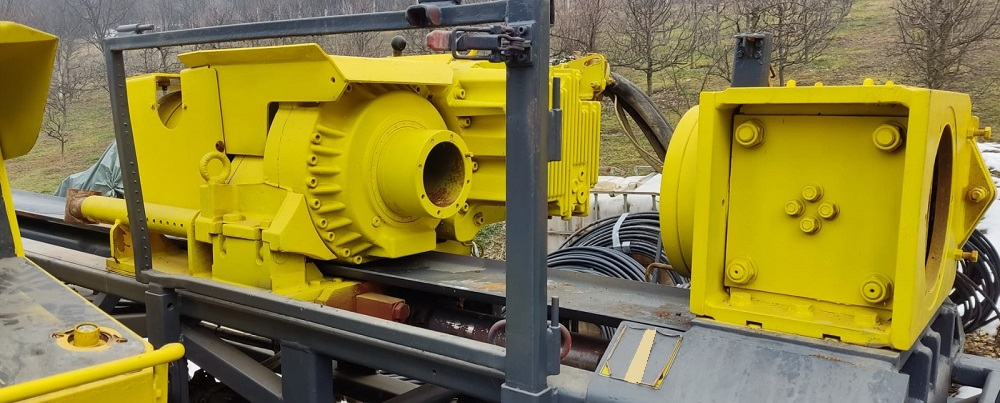

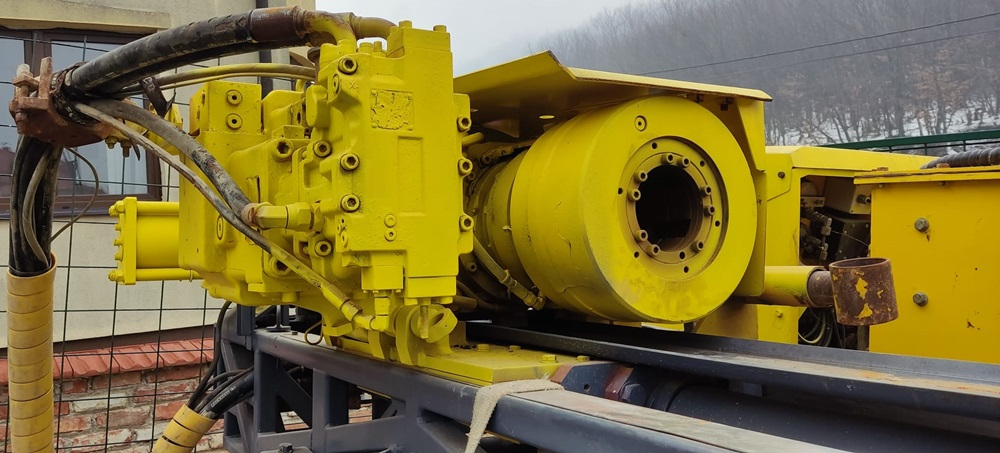

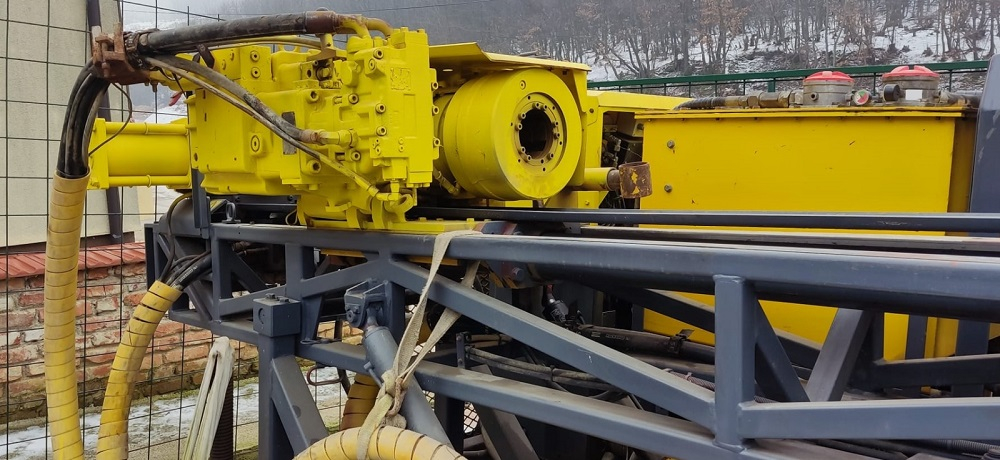

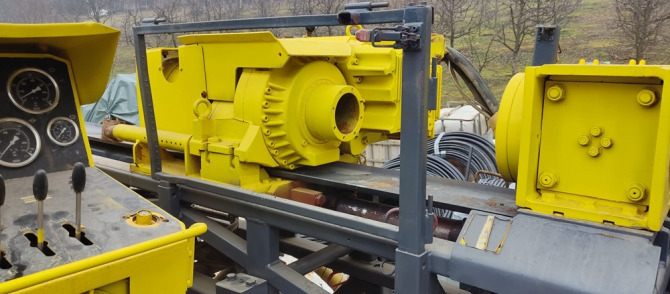

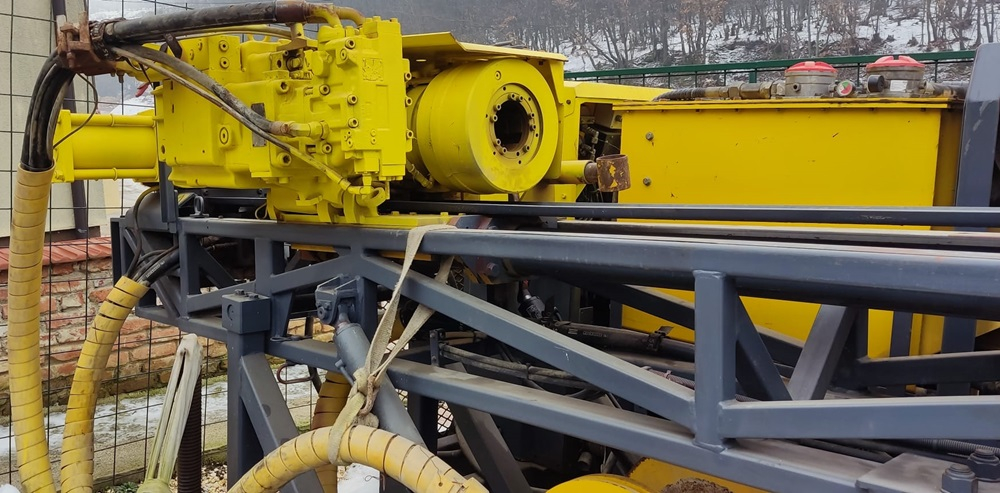

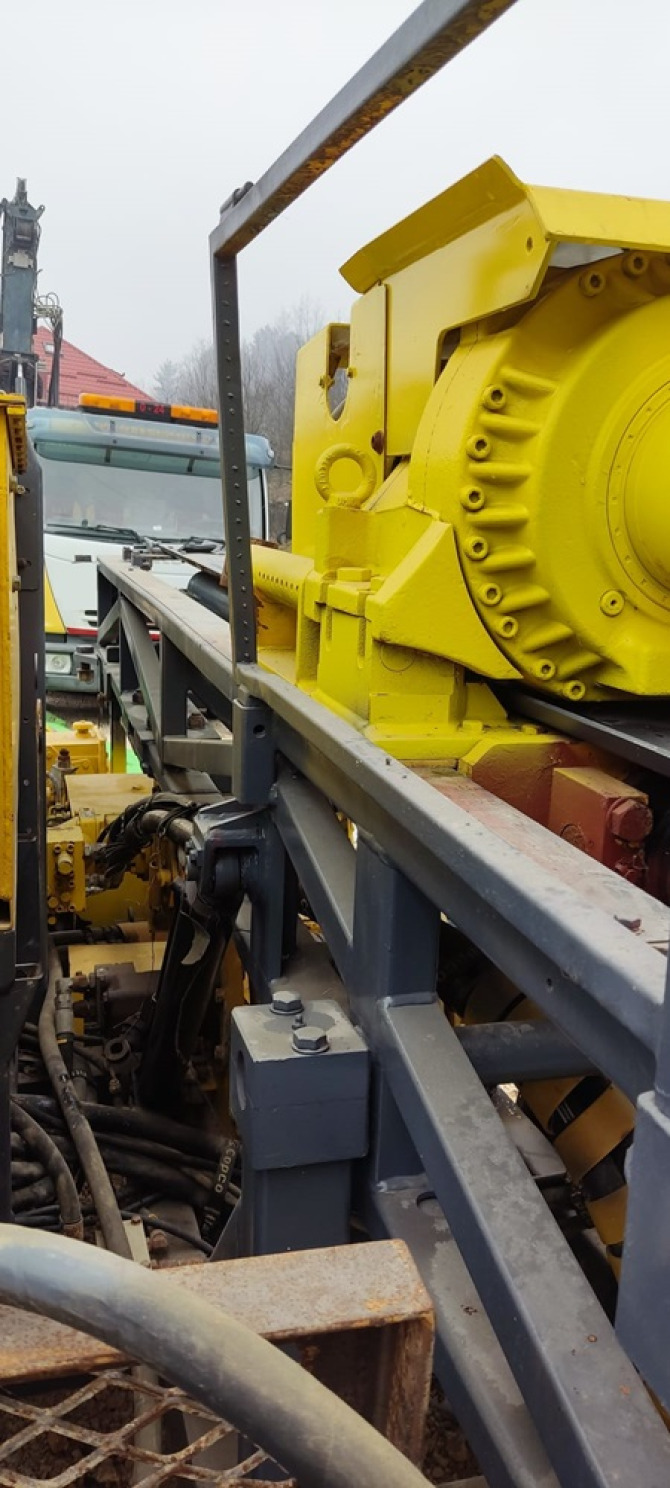

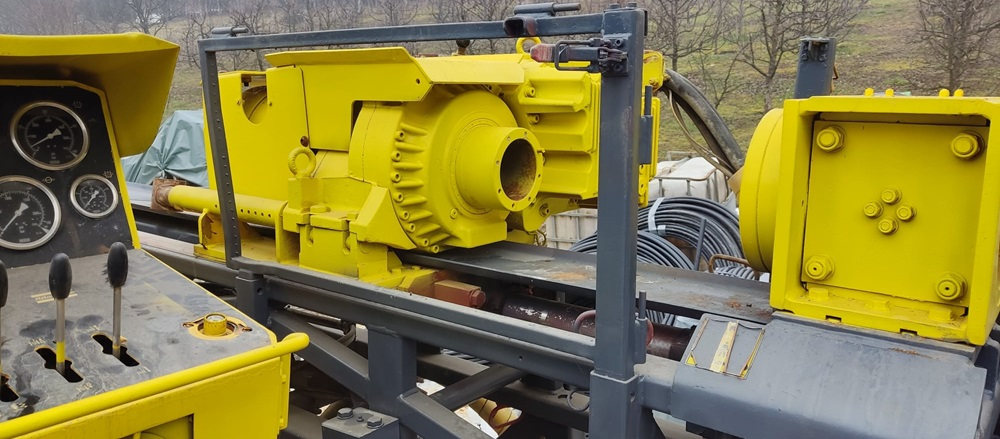

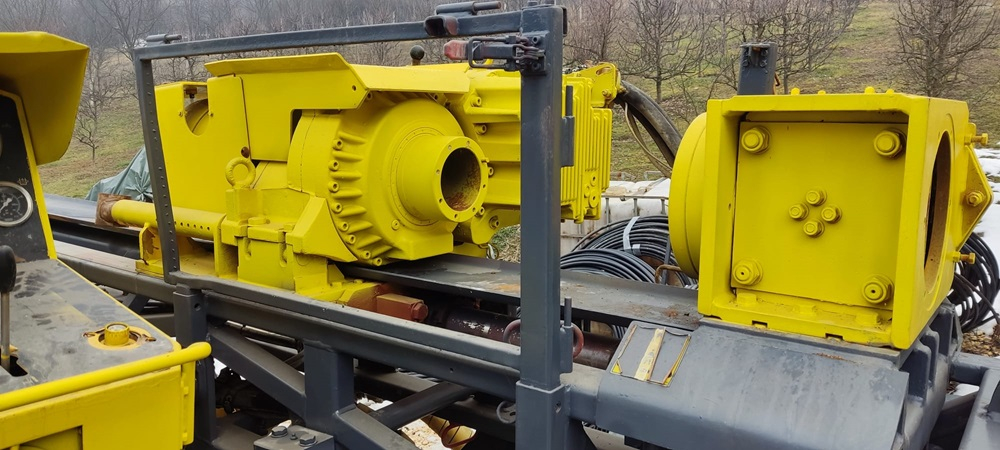

- Roatary unit Duraheaf 6M
- Max torque 5393 Nm
- Max speed 1300 rpm
- Inner spindle diameter 124 mm
- Feed travel length 2 m
- Feed force 59,6 kN
- Extraction force 107 kN
- Drilling angles 40 - 90 degrees
- Max length of drill pipe 6,09 m

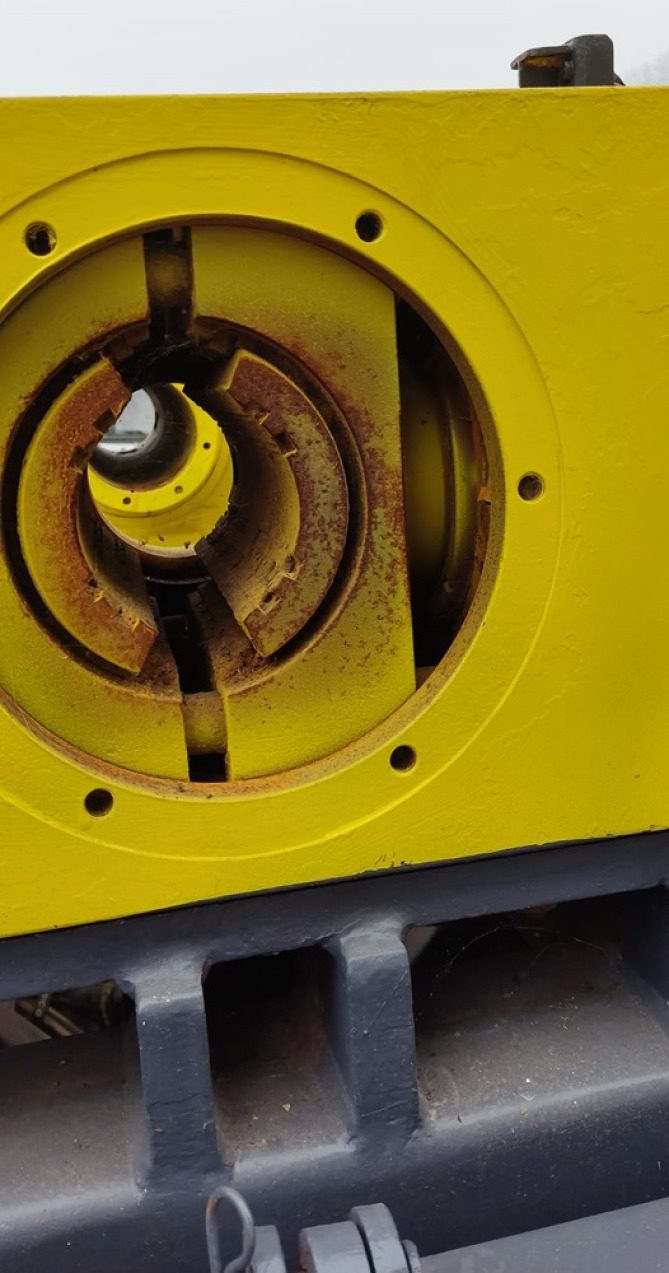

- Hydraulic jaw max diameter 210 mm
- Hydraulic jaw max gripping diameter 177 mm
- Hydraulic jaw max holding weight 13,000 kg
- Drilling capacities: B wireline 1,000 m
- N wireline 800 m, H wireline 500 m

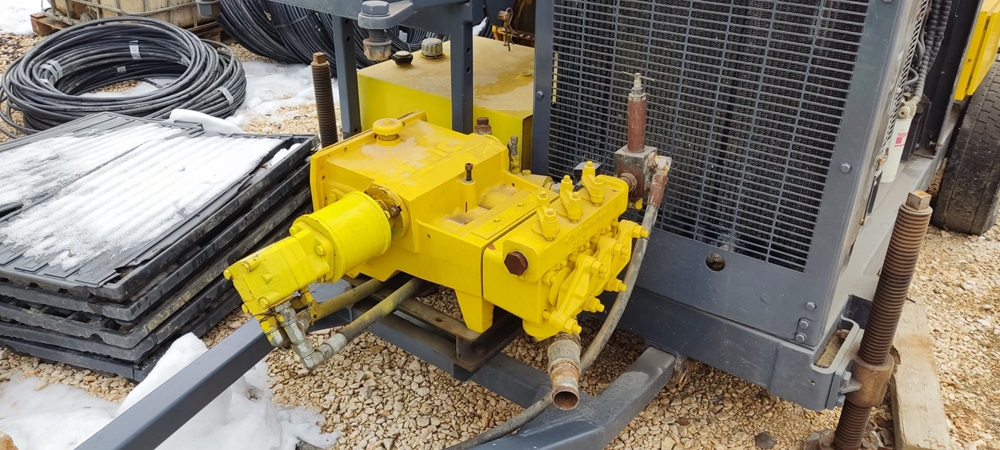

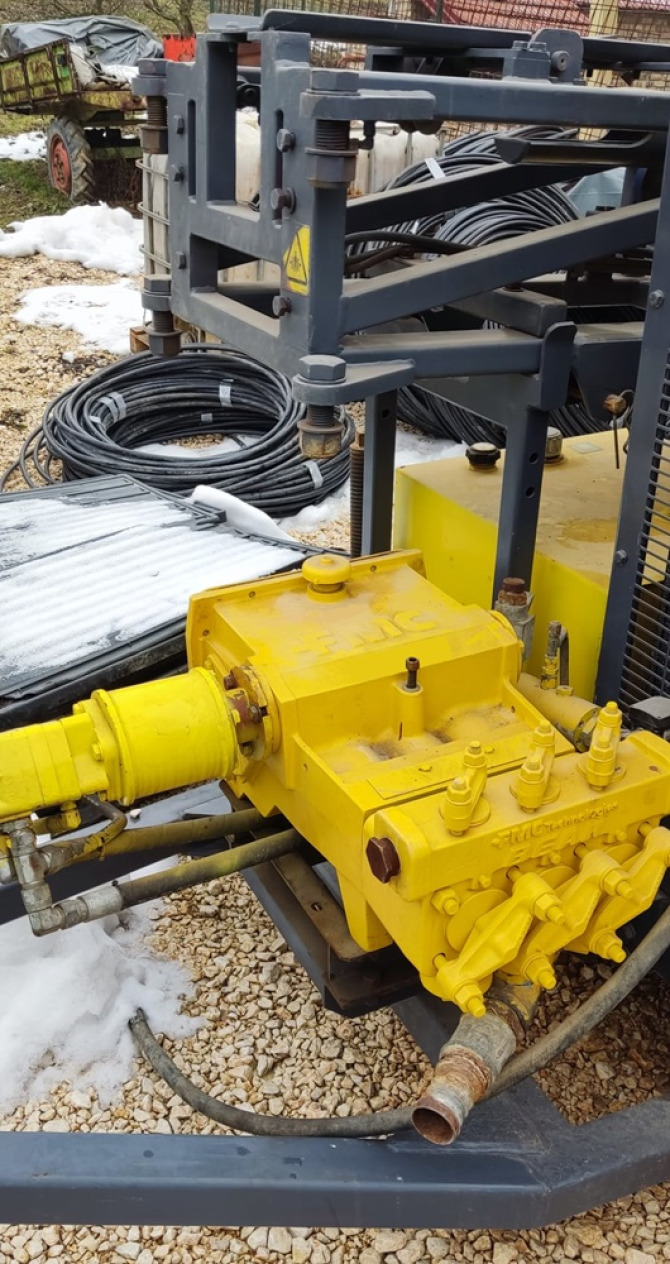

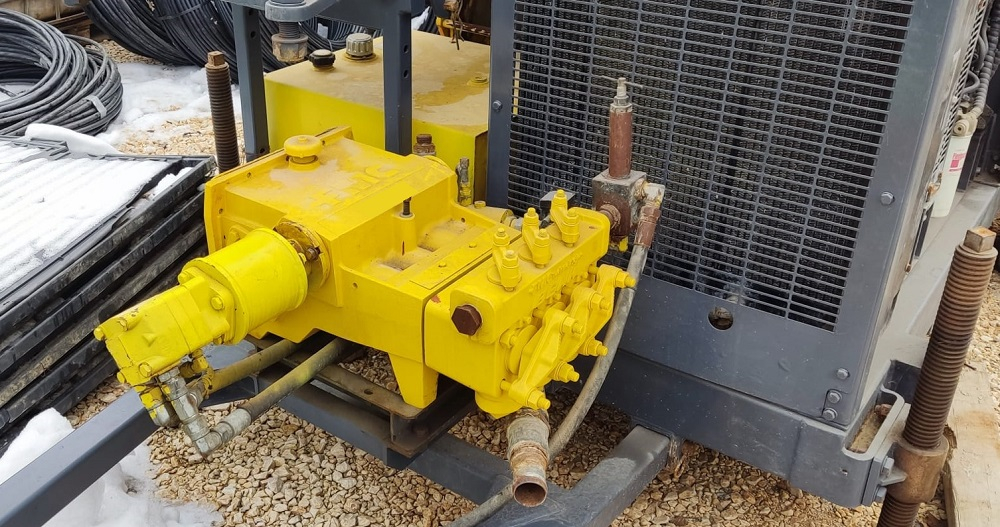

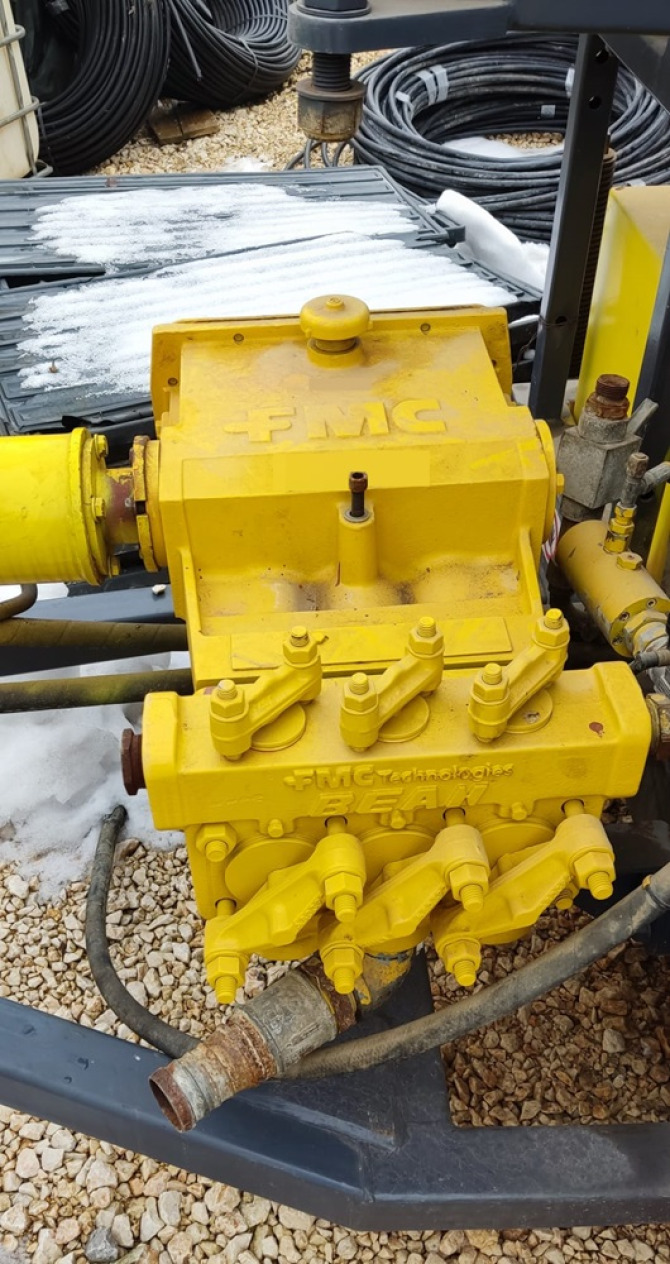

- P wireline 300 m, Pump Trido 140 - 140 l/min / 7 Mpa
