Overview
Machine location:
Europe
Stock number:
PF 41036
Manufacturer:
Atlas Copco
Model:
CT14
Year of manufacture:
2008
Working hours:
10800
Key features

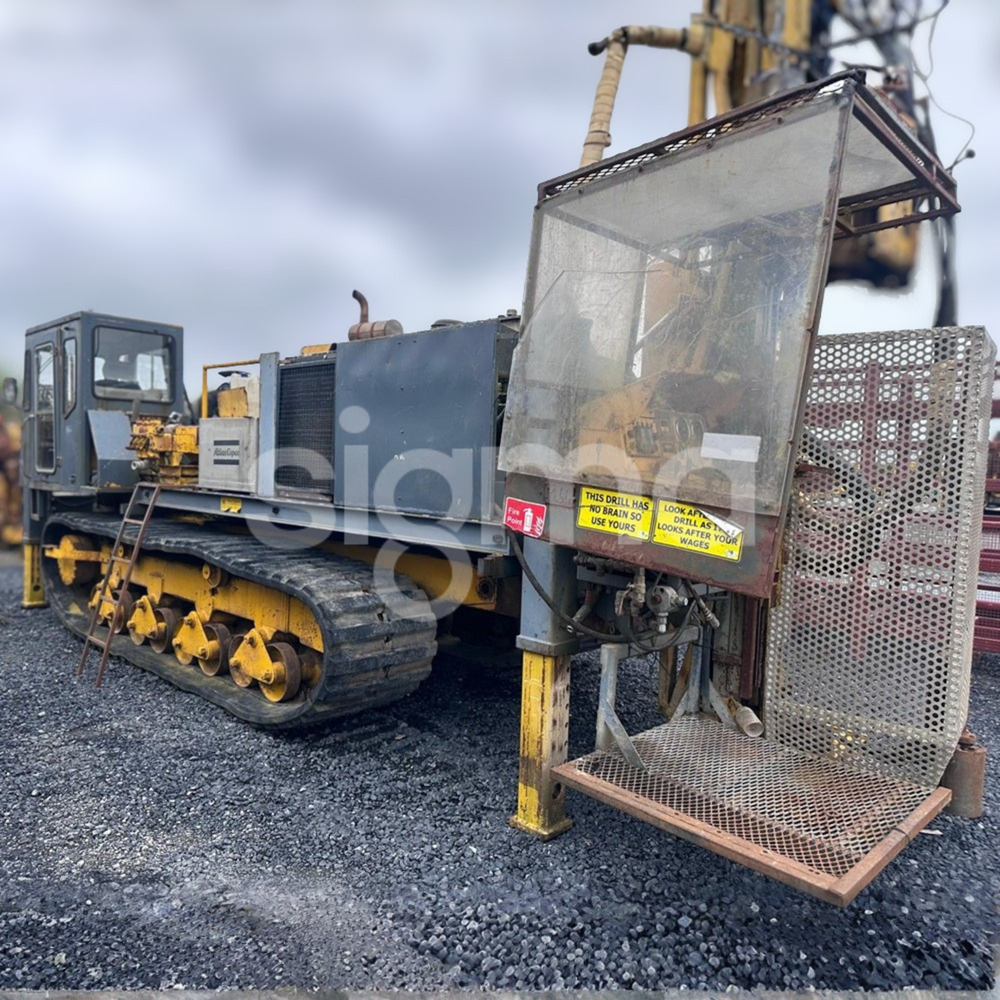

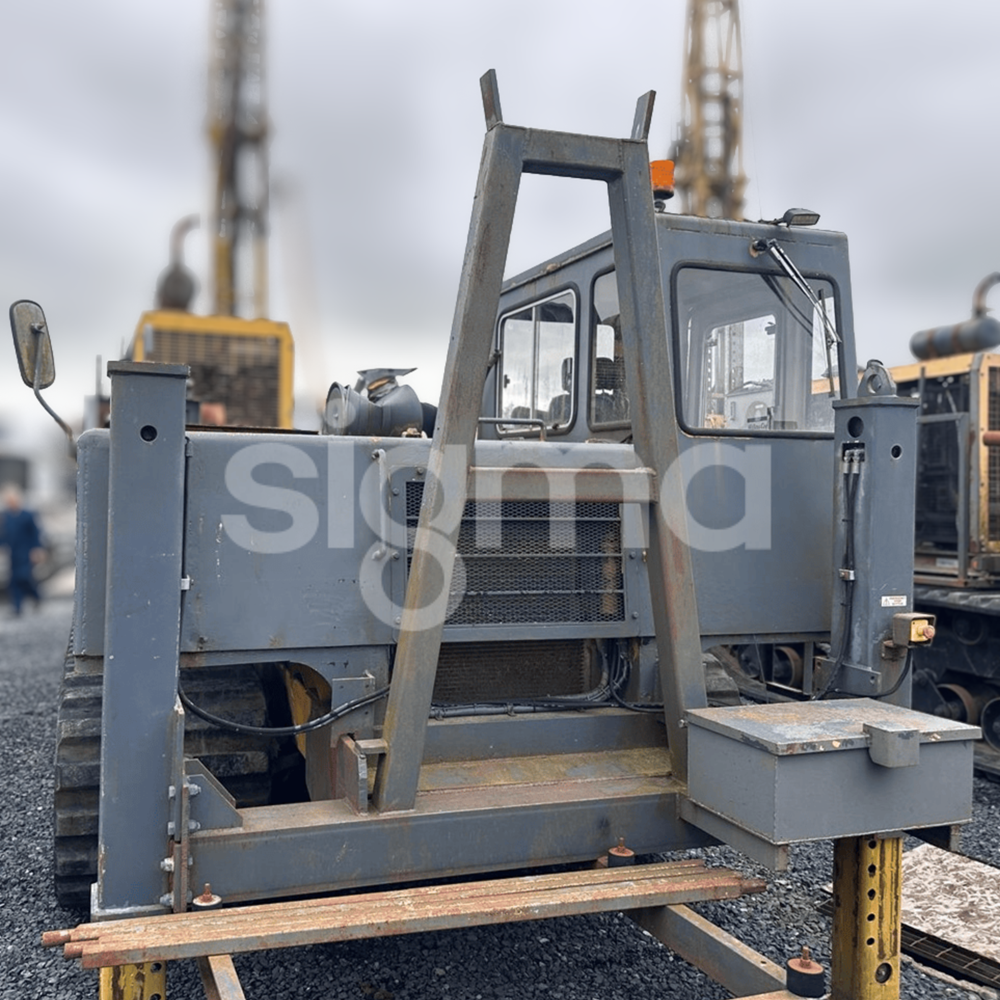

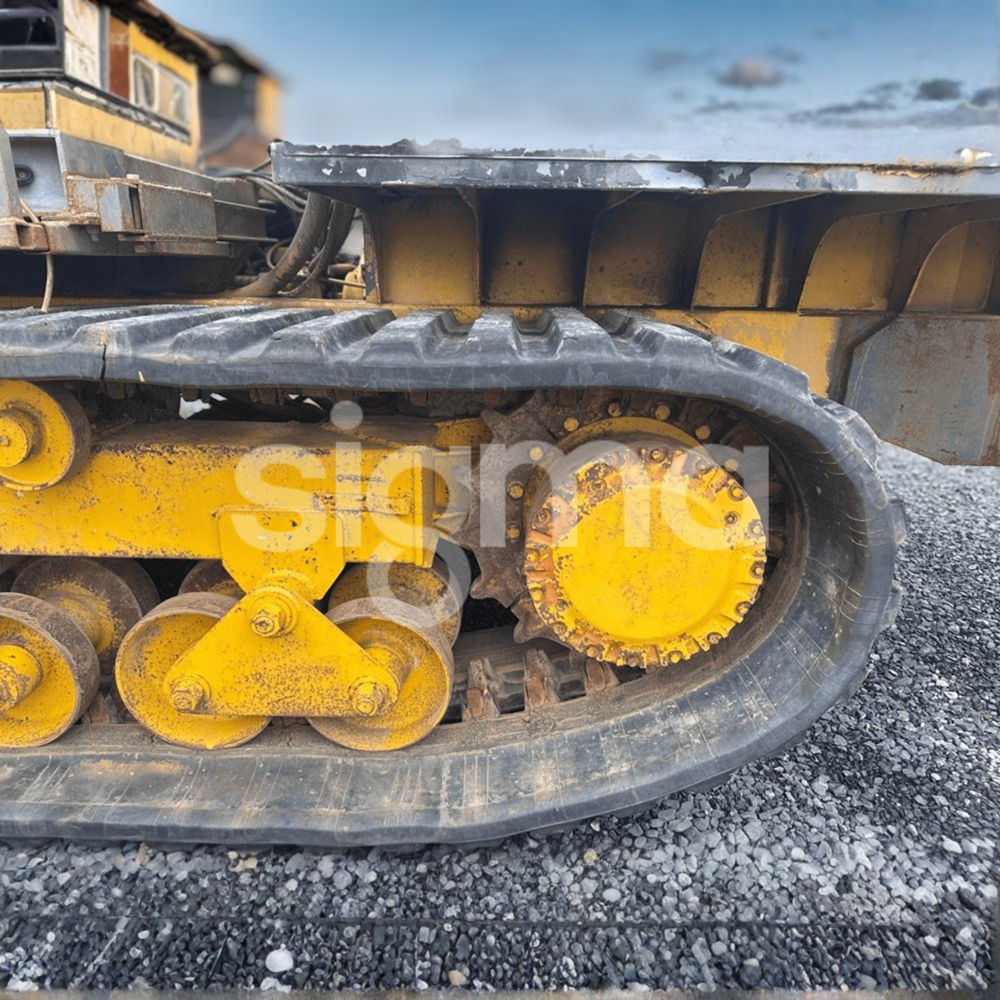

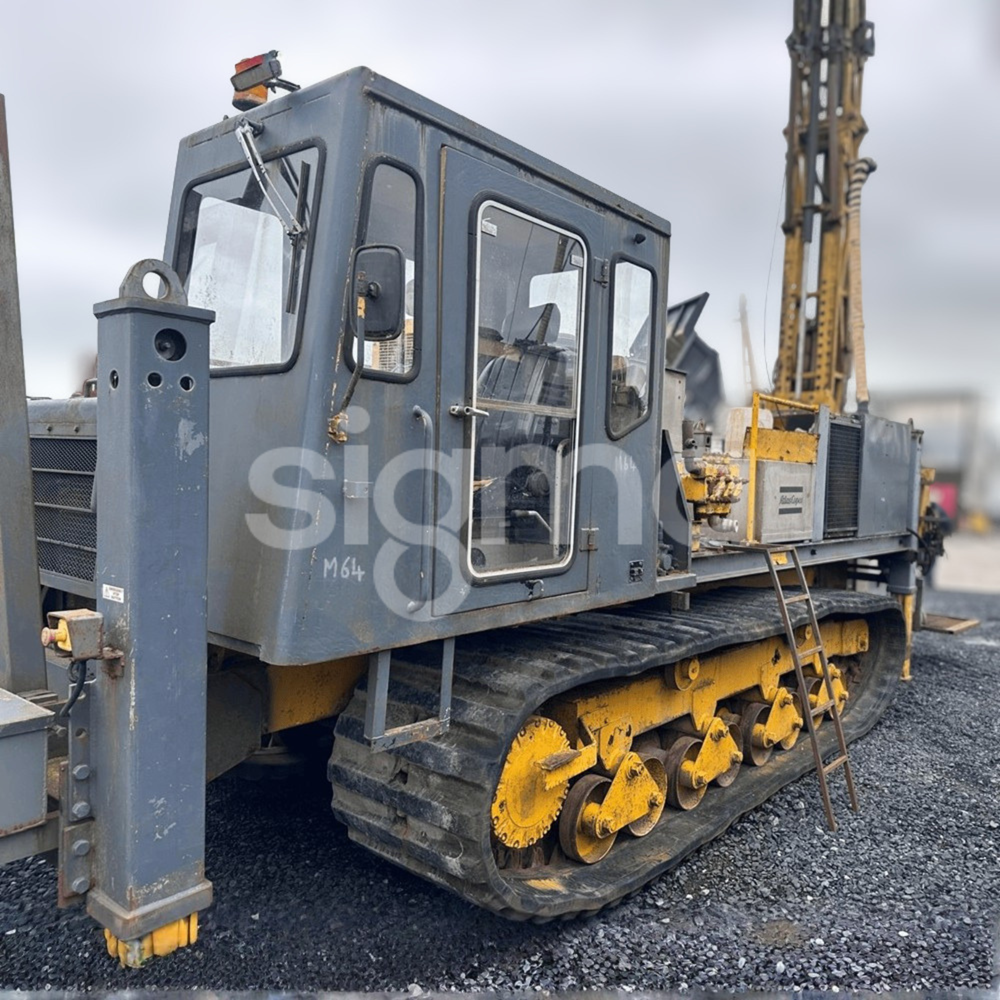

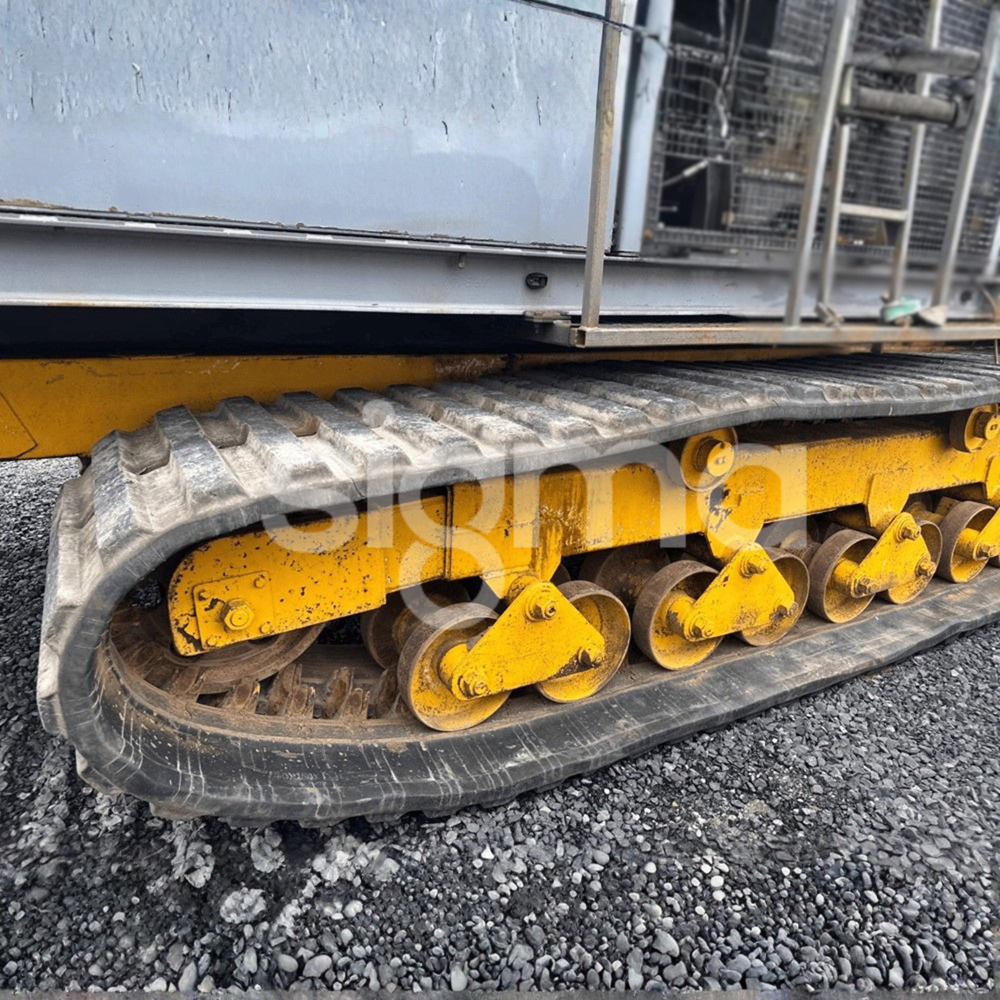

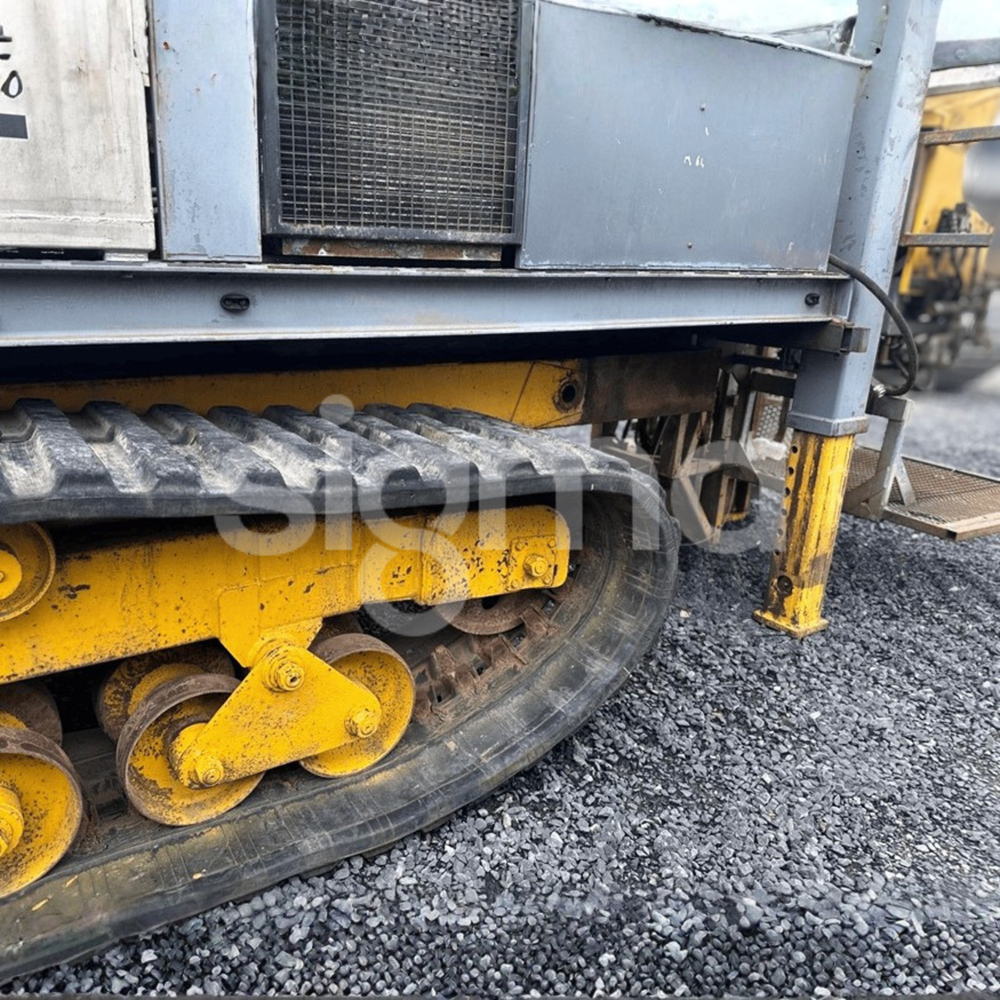

- Exploration drill mounted to a Marooka tracked base
- 10,800 working hours
- B wireline 1540m
- N wireline 1200m
- H wireline 800m
- P wireline 475m
- Main hoist
- Single line capacity: Bare drum 80kN
- Wireline
- Capacity 1830m of 4.76mm, 975m of 6.35mm,
- Line pull bare drum: 11.9kN,
- Full drum: 3kN

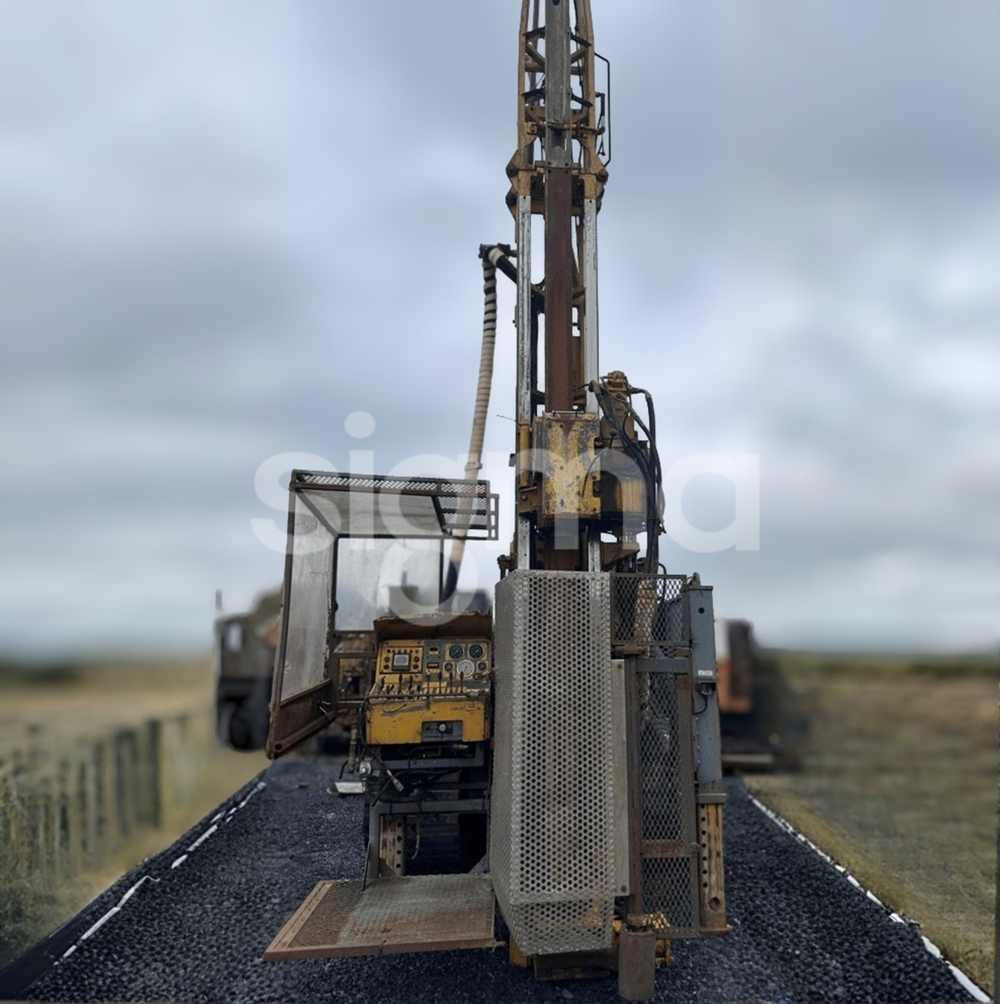

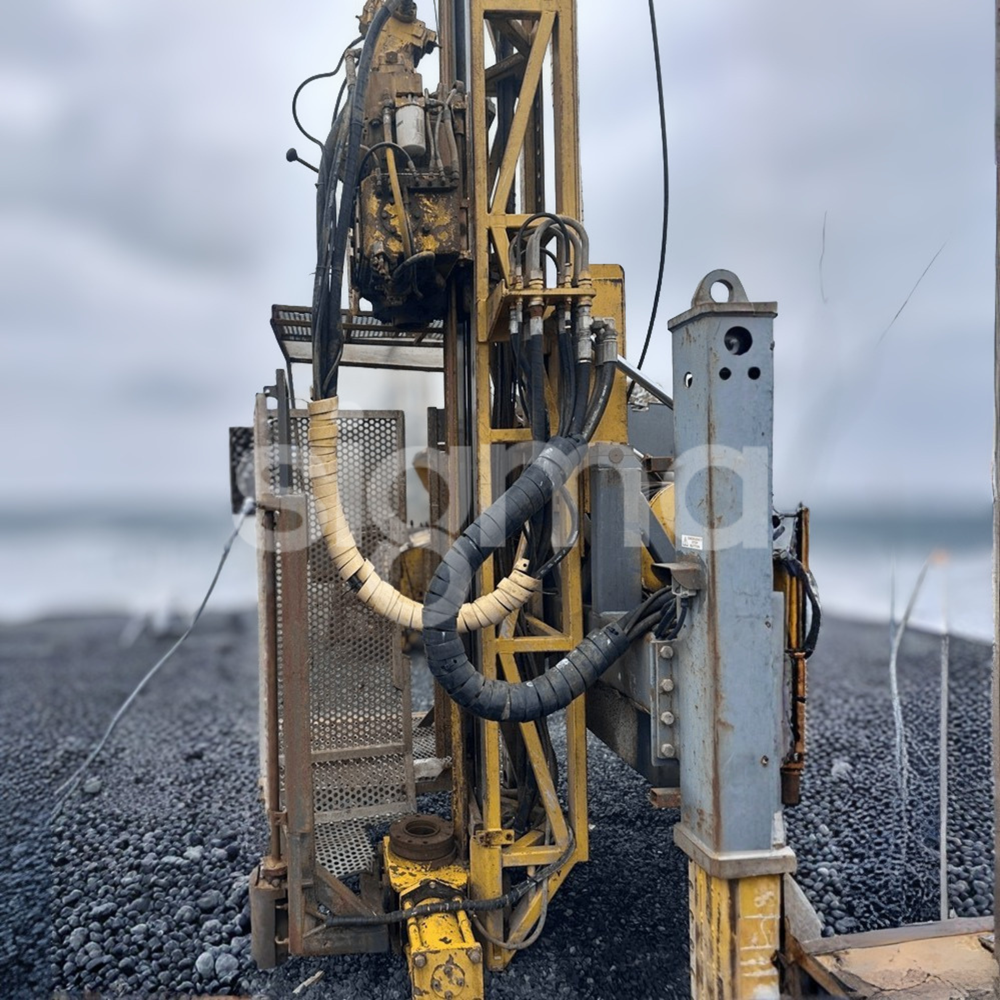

- Mast and feed system
- Feed travel: 3.5m thrust 59.6kN
- Pull: 138kN
- Drilling angle: 45 to 90 degrees

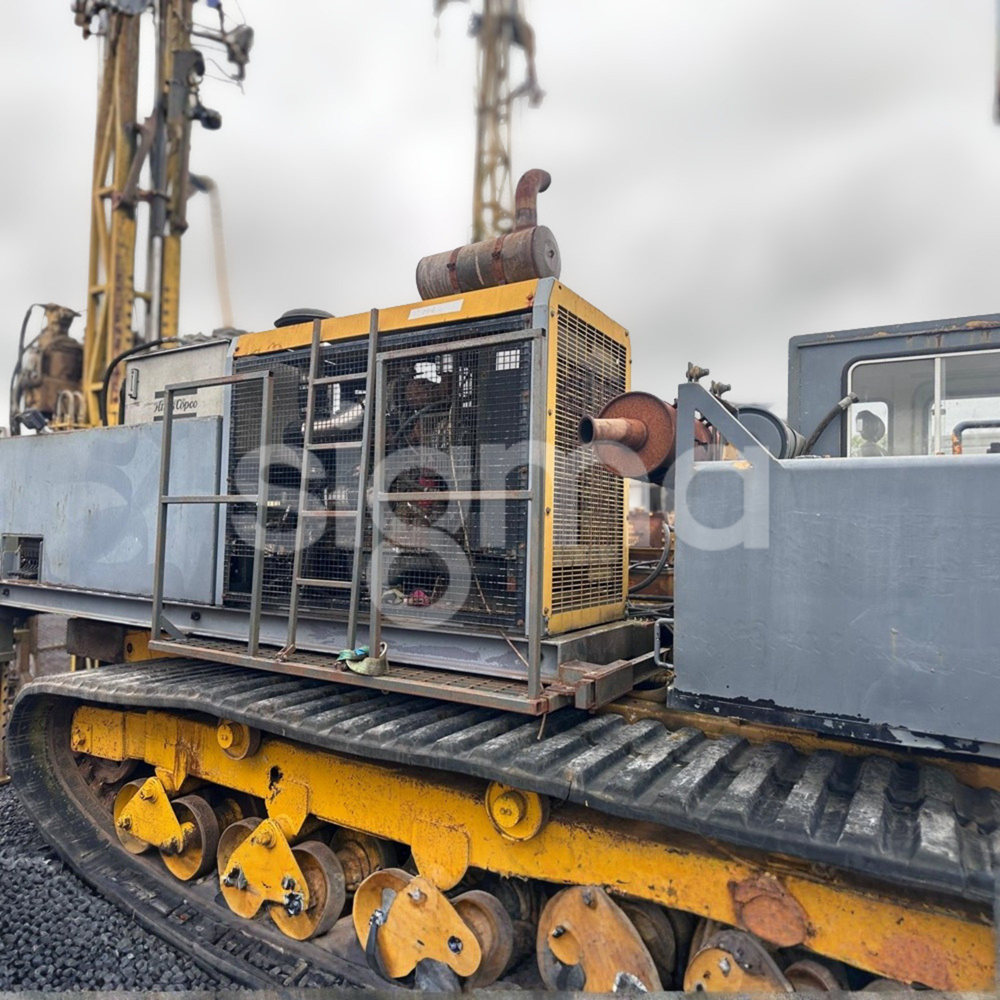

- Power unit
- Cummins QSB 6.7 tier 3, 153kW

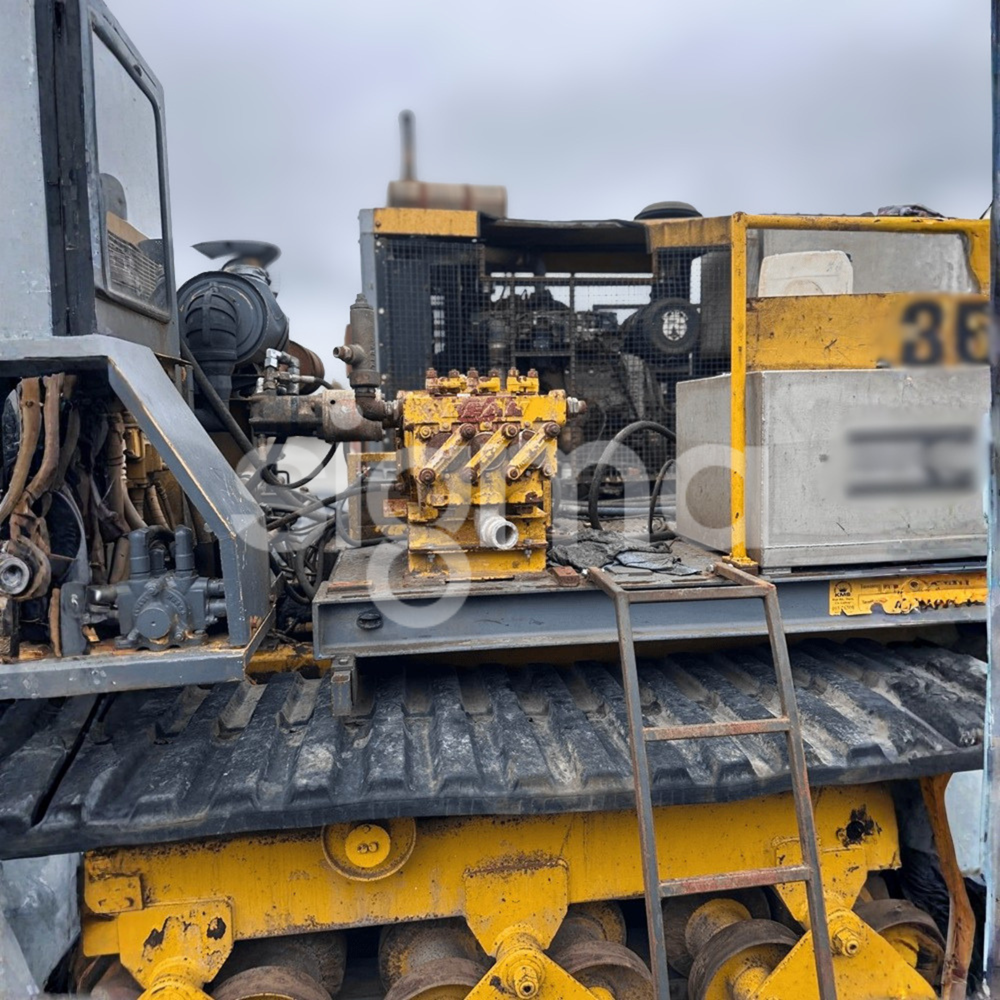

- Hydraulic system
- Primary pump: 28MPa-242l/min
- Secondary pump: 20MPa – 122 L/min
- Auxiliary pump: 21.5MPa – 47L/min
- Chuck assembly
- Max inside diameter: 117mm
- Holding capacity: 18,143kg
- Rod holder
- Max inside diameter: 210mm
- Holding capacity: 13,000kg
