Overview
Machine location:
Europe
Stock number:
PF 41056
Manufacturer:
Atlas Copco
Model:
CT14
Year of manufacture:
2008
Working hours:
16800
Key features

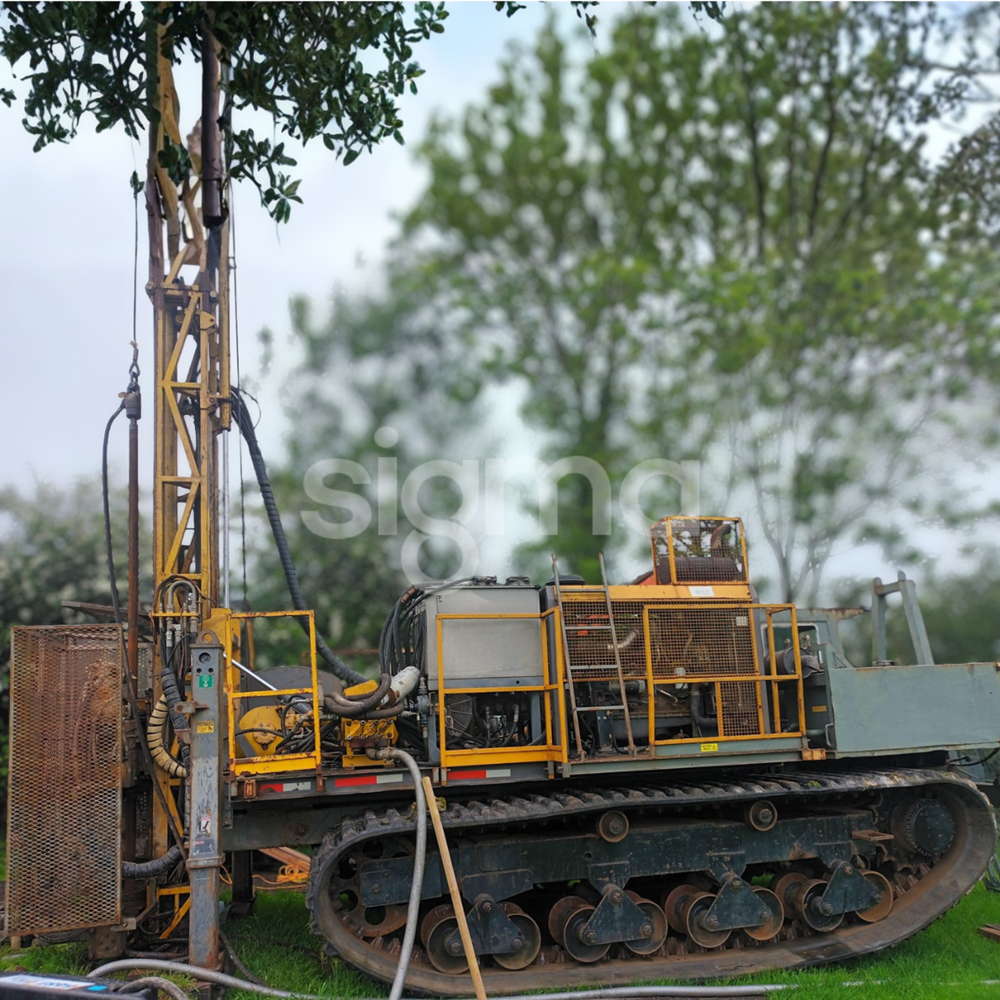

- Exploration drill mounted to a Marooka tracked base
- 16,800 working hours
- B wireline 1540m
- N wireline 1200m
- H wireline 800m
- P wireline 475m
- Main hoist
- Single line capacity: Bare drum 80kN
- Wireline
- Capacity 1830m of 4.76mm, 975m of 6.35mm
- Line pull bare drum: 11.9kN
- Full drum: 3kN
- Mast and feed system
- Feed travel: 3.5m
- Thrust: 59.6kN,
- Pull: 138kN,
- Drilling angle: 45 to 90 degrees
- Power unit: Cummins QSB 6.7 tier 3, 153kW
- Hydraulic system
- Primary pump: 28MPa-242l/min,
- Secondary pump 20MPa: 122 L/min
- Auxiliary pump 21.5MPa: 47L/min
- Chuck assembly
- Max inside diameter: 117mm
- Holding capacity: 18,143kg
- Rod holder
- Max inside diameter: 2010mm
- Holding capacity: 13,000kg
