Overview
Machine location:
Europe
Stock number:
PF 41058
Manufacturer:
Atlas Copco
Model:
Mustang 5-P4D
Year of manufacture:
2009
Working hours:
6500
Key features

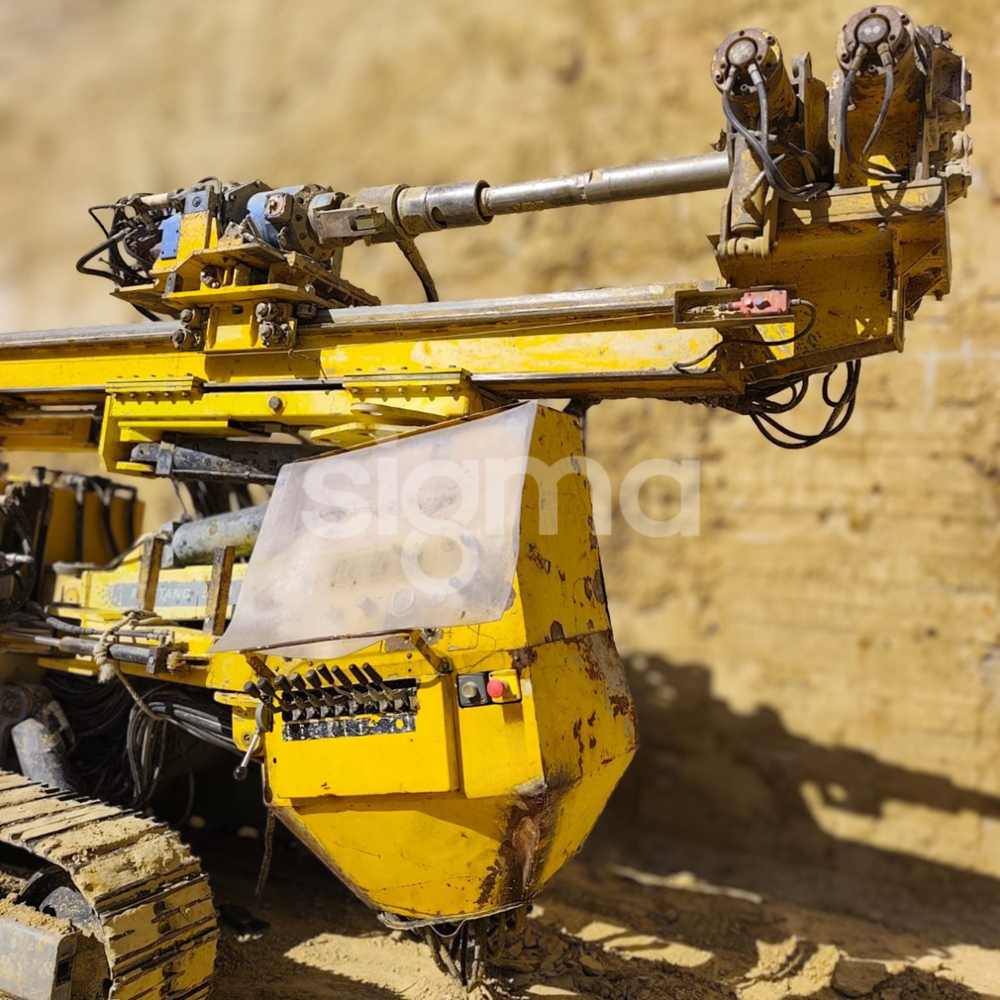

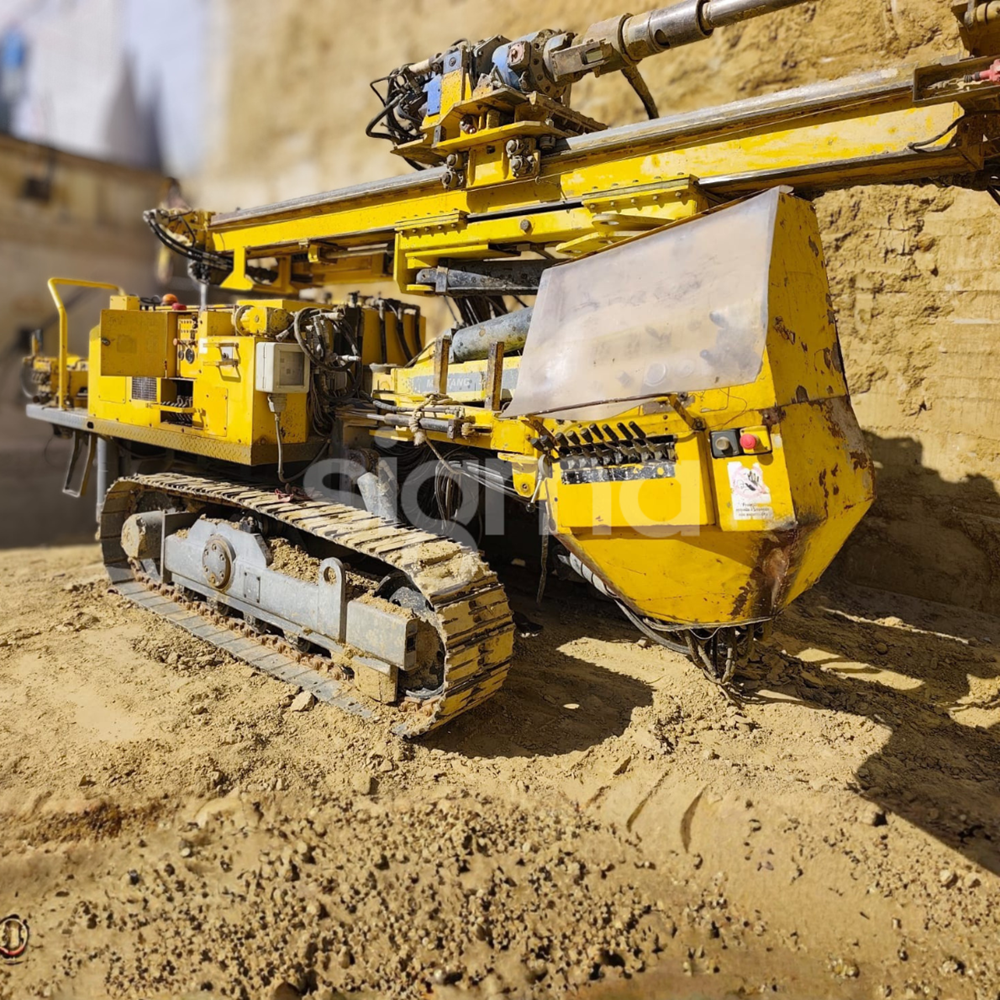

- Micropiling, anchoring & Jet grouting rig with 6500 working hours
- Krupp HB50A rotary & hydraulic percussion head
- Max torque: 12.98kNm
- Max impact energy: 835Nm
- Max casing diameter: 219mm
- Retraction force: 205kN
- S15FH winch
- Cable dia: 10mm
- Length: 20m
- Max pulling force: 20kN
- Trido 80 water pump
- Flow 80L/min
- 40bar max pressure
- Triplex C35 foam pump
- 20L/min
- Max pressure: 35bar

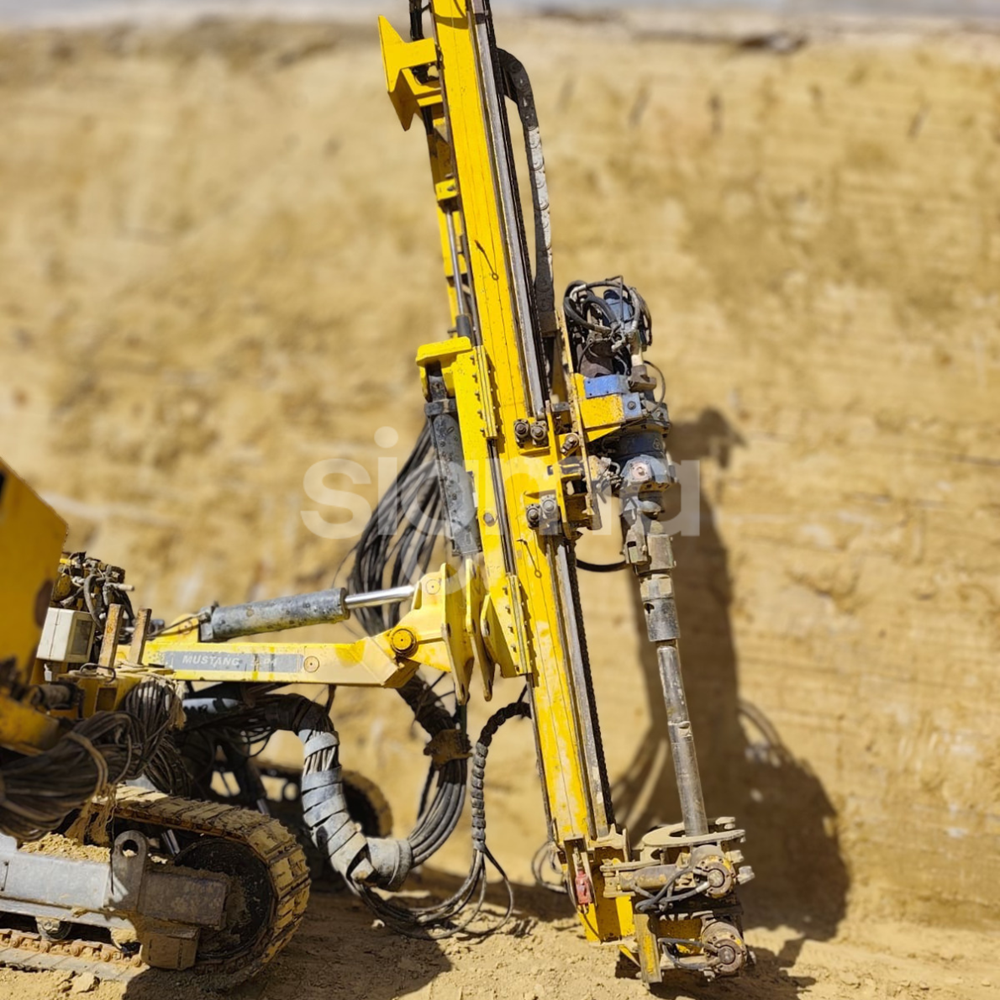

- Mast
- Drill stroke: 4200mm
- Pulldown/back: 49kN

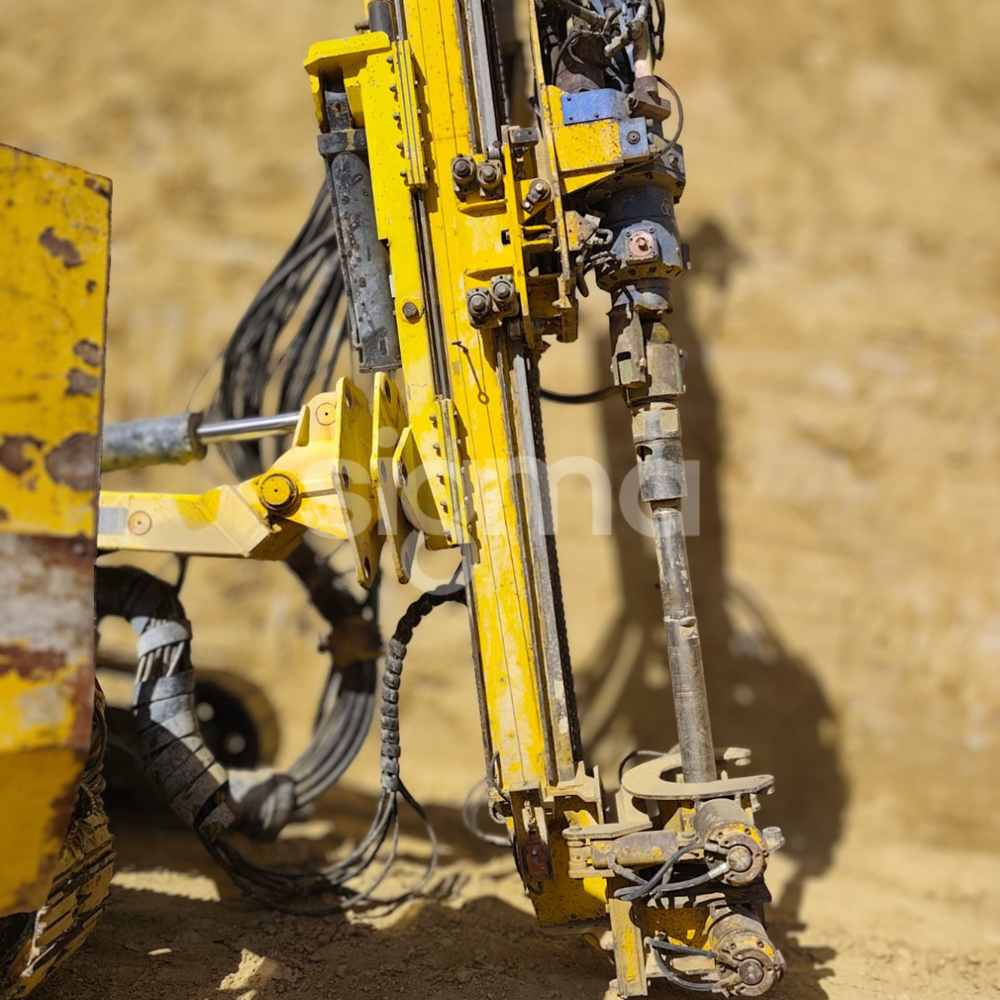

- Clamps
- Range: 50-300mm
- Clamp force: 125kN
- Breakout torque: 35kNm
- Jet grouting kit for max depth: 18m
- Transport dimensions
- L: 6890mm
- W: 2280mm
- H: 3100mm
- Weight: 13,700kg
