Overview
Stock number:
PF 39859
Categories:
Underground and Tunnelling Rigs
Manufacturer:
Atlas Copco
Model:
Pit Viper 271
Year of manufacture:
2006
Key features

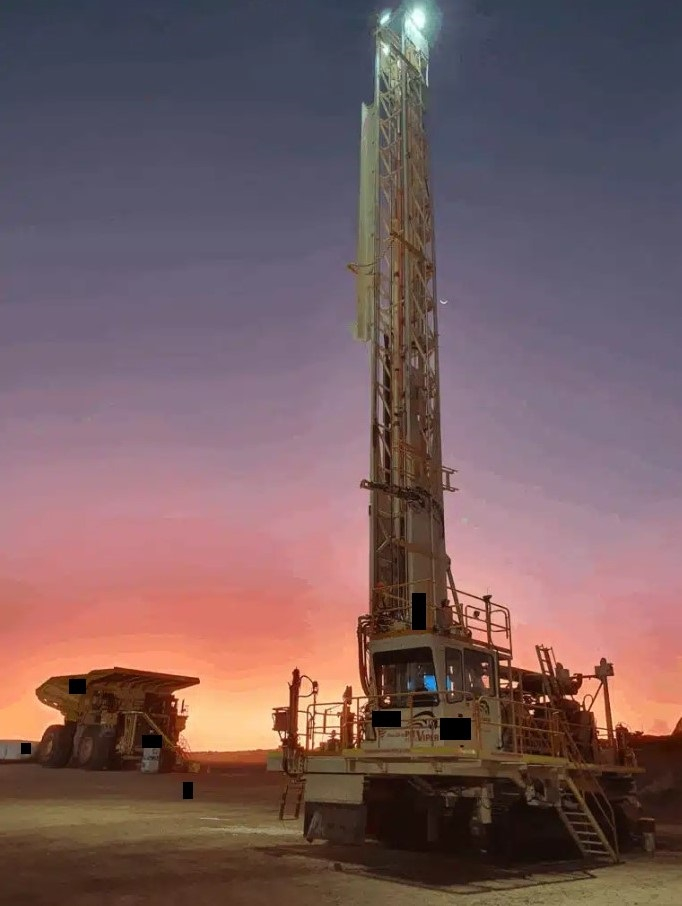

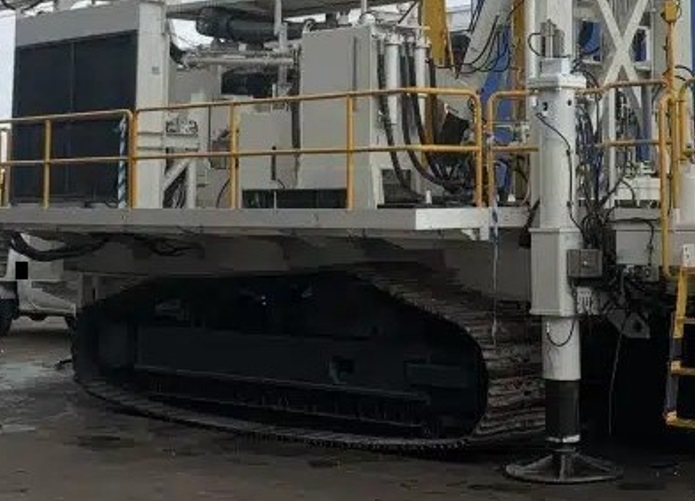

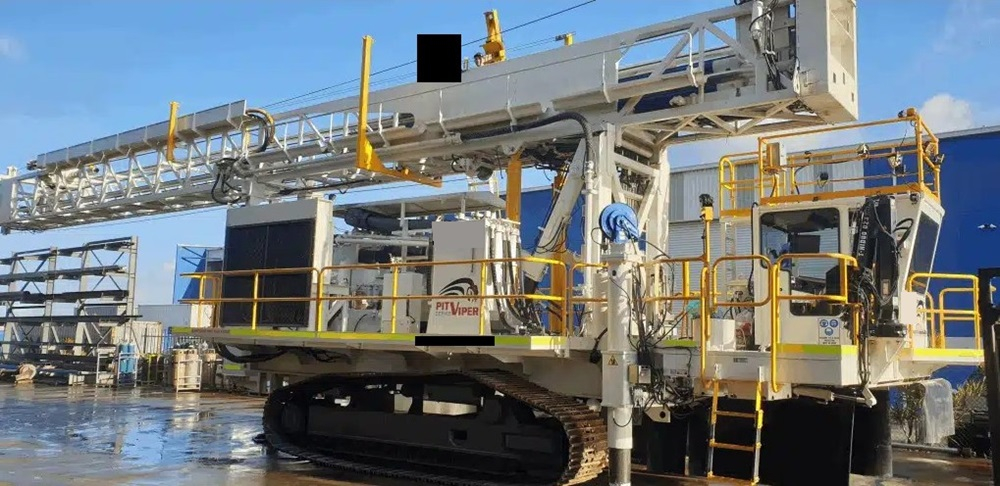

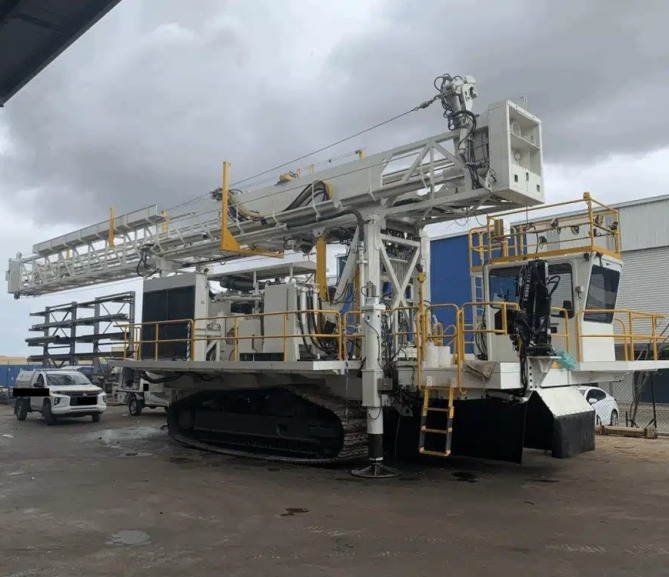

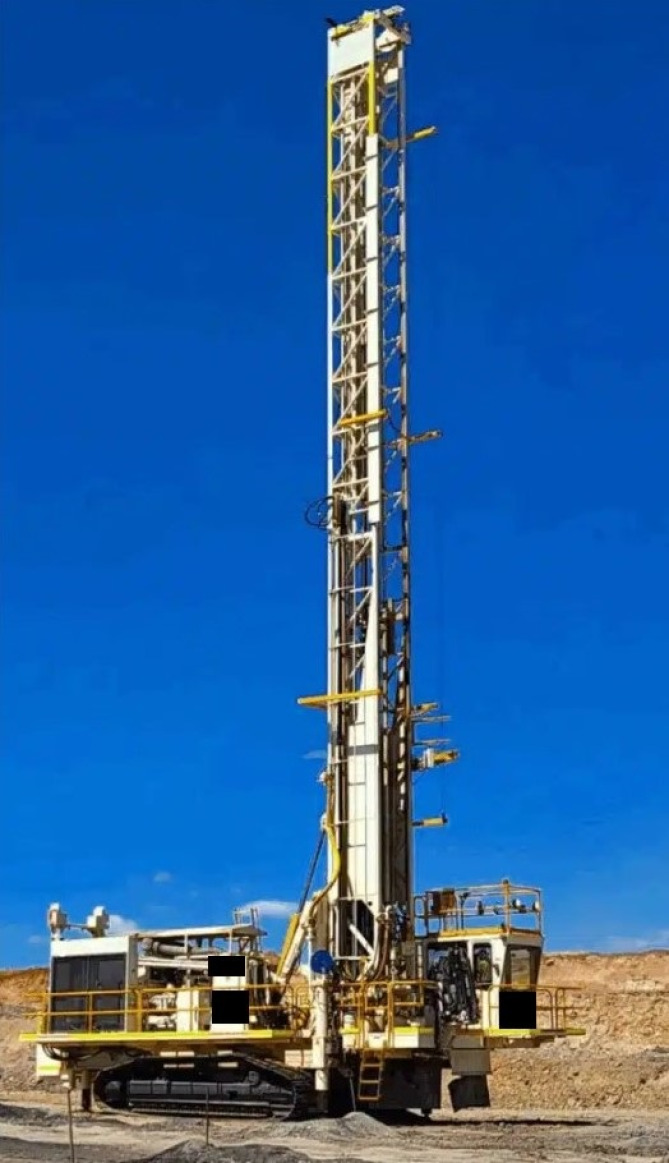

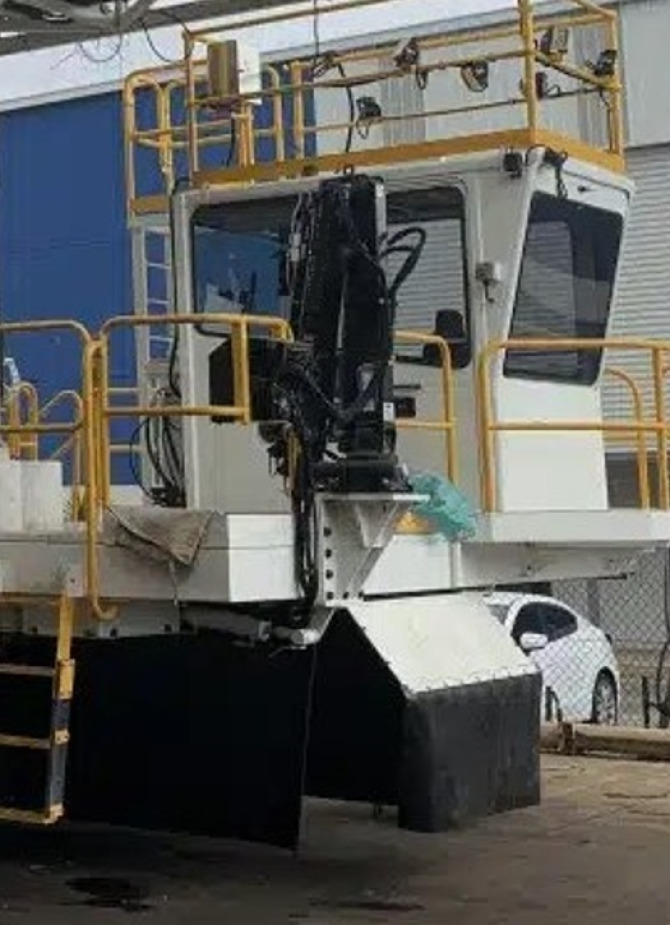

- Rotary Blasthole Track Mounted Drill Rig rebuilt in 2021
- Rotary tricone and down the hole drilling of 171mm to 270mm
- Engine: Cummins QSK19
- Pull Down Capacity: 0 311 kN
- Pullback Capacity: 0 156 kN
- Feed Speed: 38.4 m/min
- Retract Speed: 48.2 m/min
- Carousel Capacity: 2x 7.6 m Drill Pipe
- Max. Hole Depth: 32 m
- Single Pass Depth: 16.8 m
- Carousel can hold 2 x 7.6m pipes
- Rotary head Speed range Variable 0 150 RPM with Torque 0 11,796 Nm
