Overview
Machine location:
Europe
Stock number:
PF 41120
Categories:
Underground and Tunnelling Rigs
Manufacturer:
Atlas Copco
Model:
X3EC
Year of manufacture:
2018
Working hours:
5017
Key features

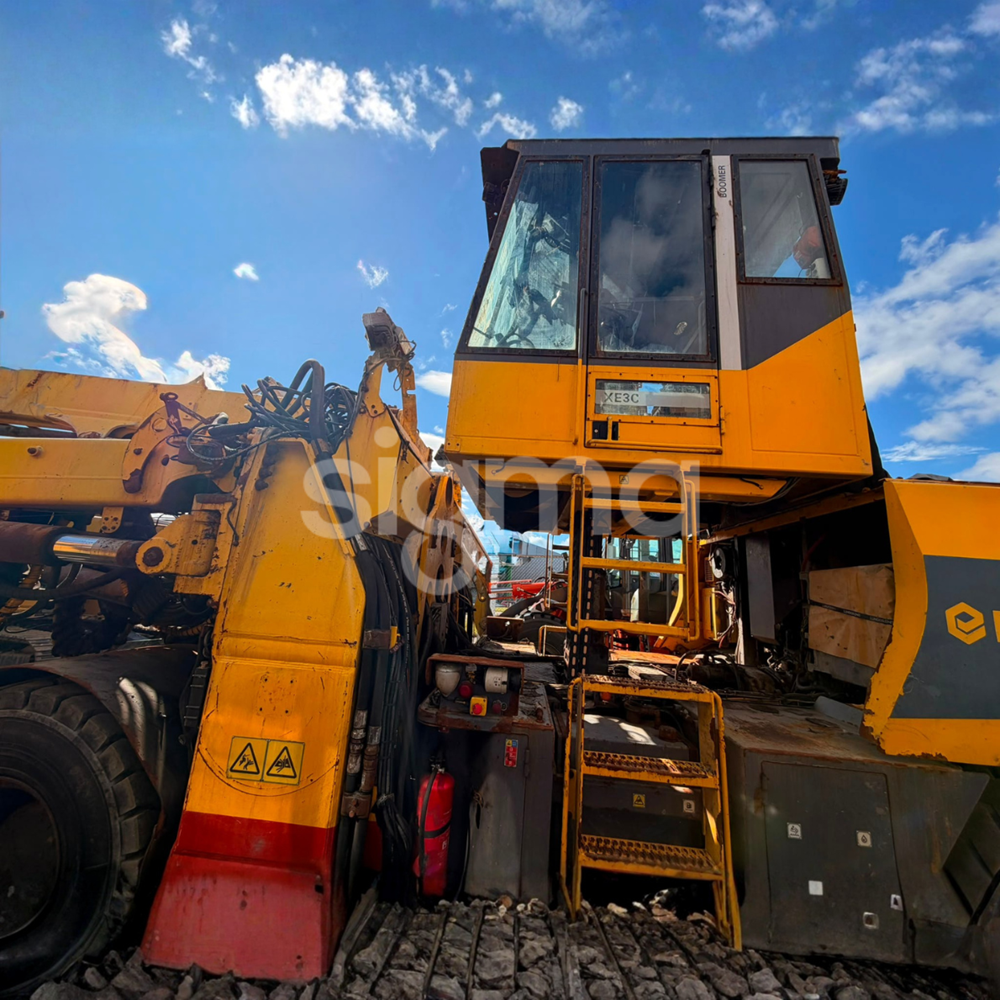

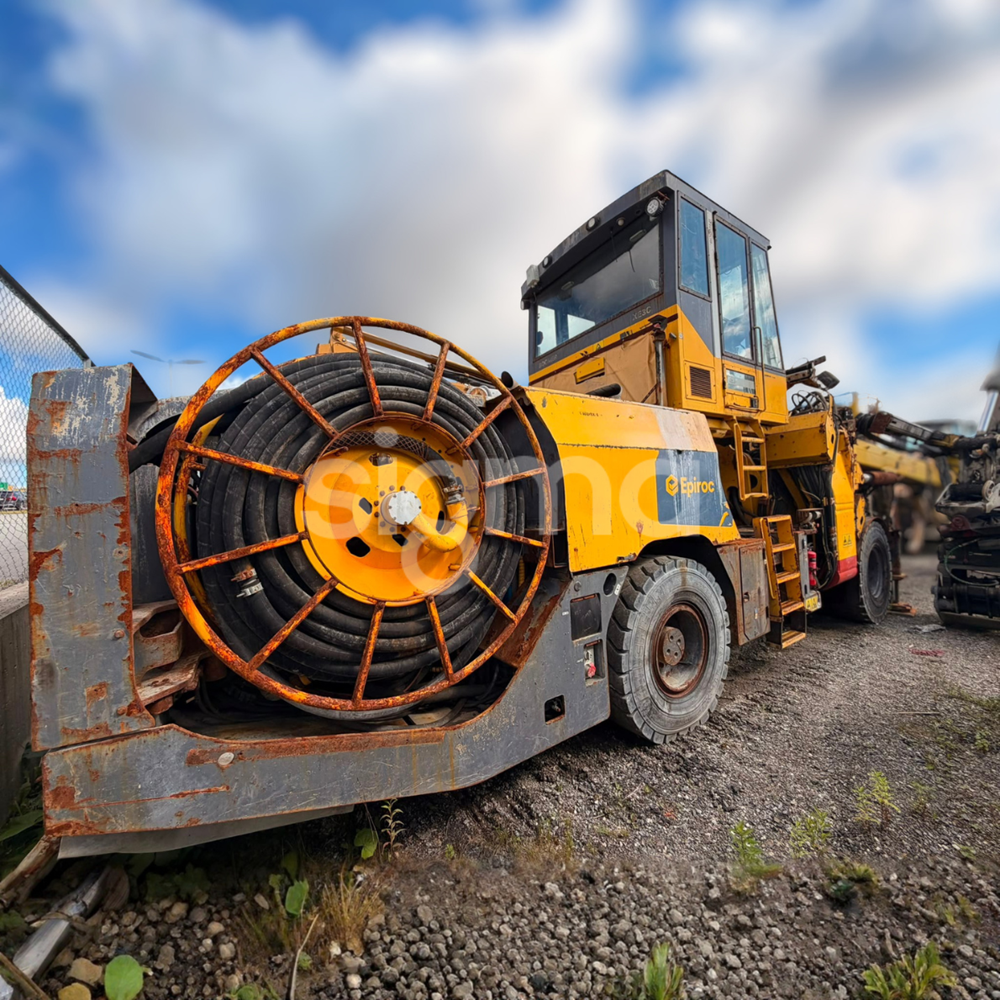

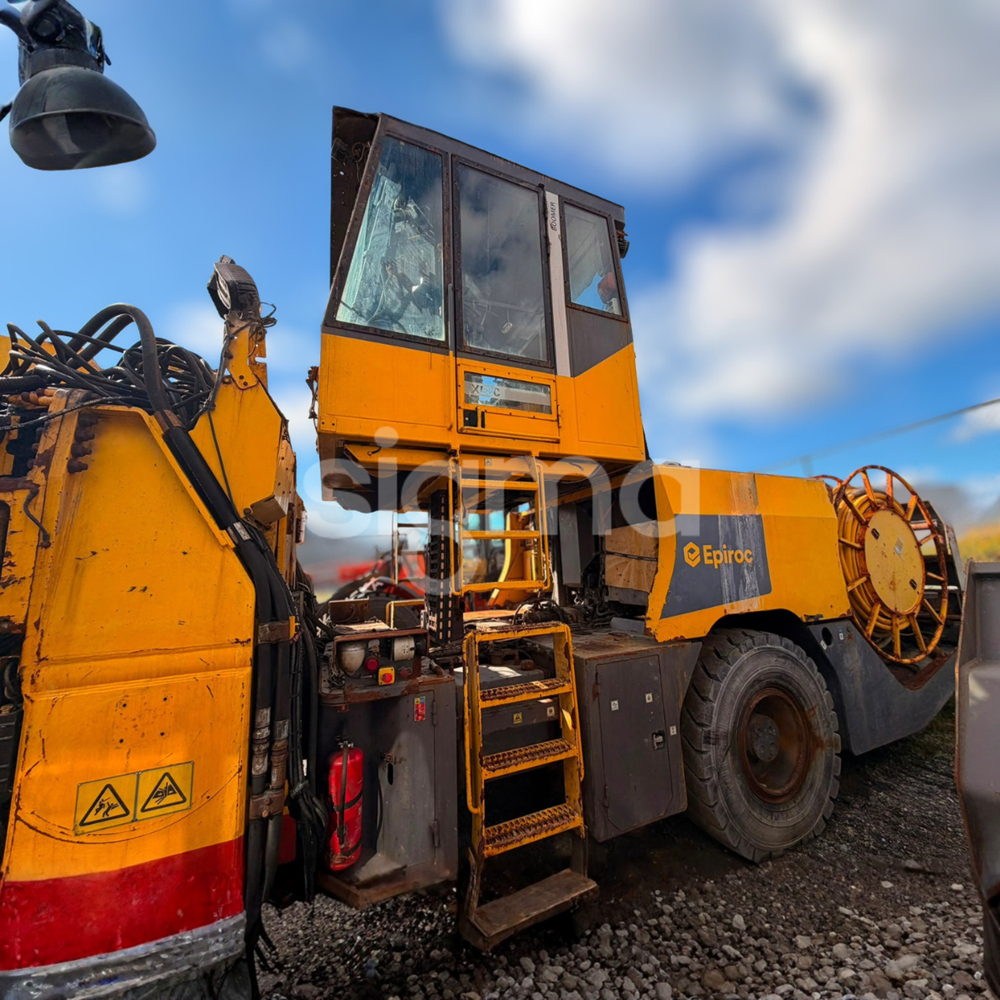

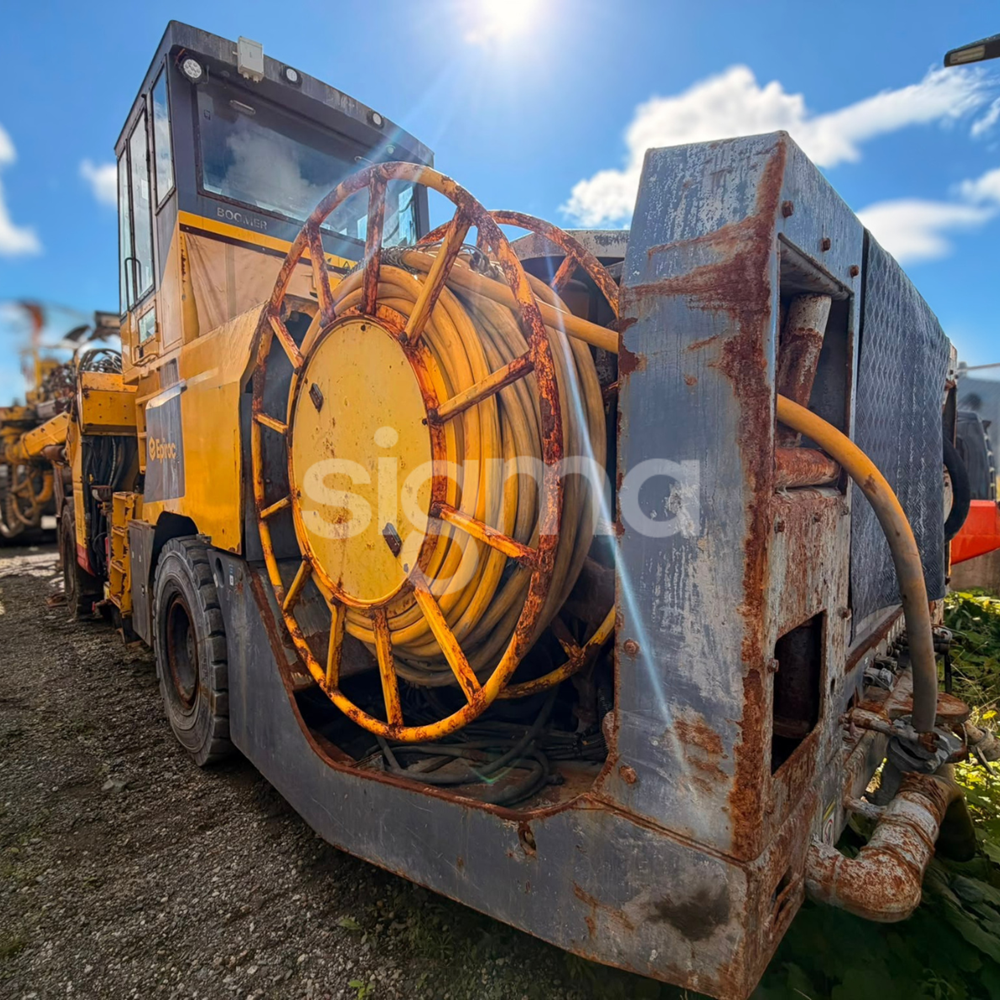

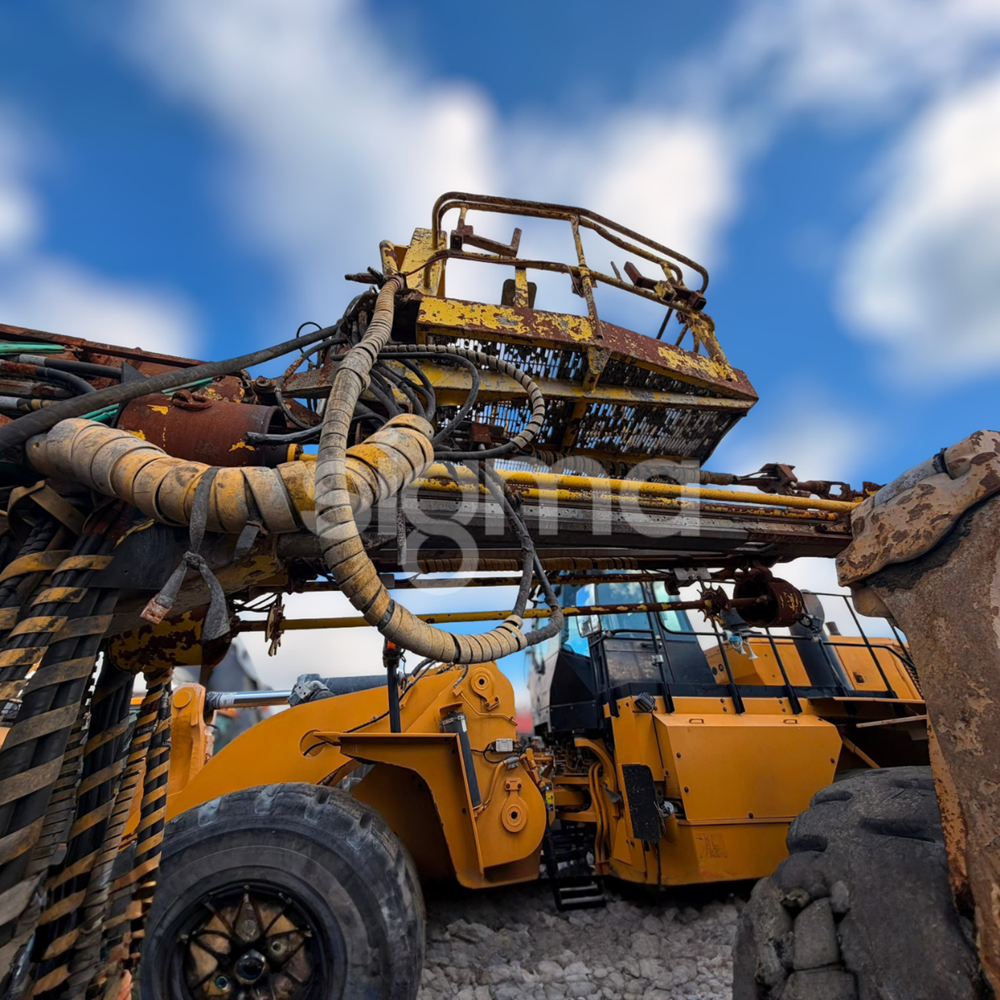

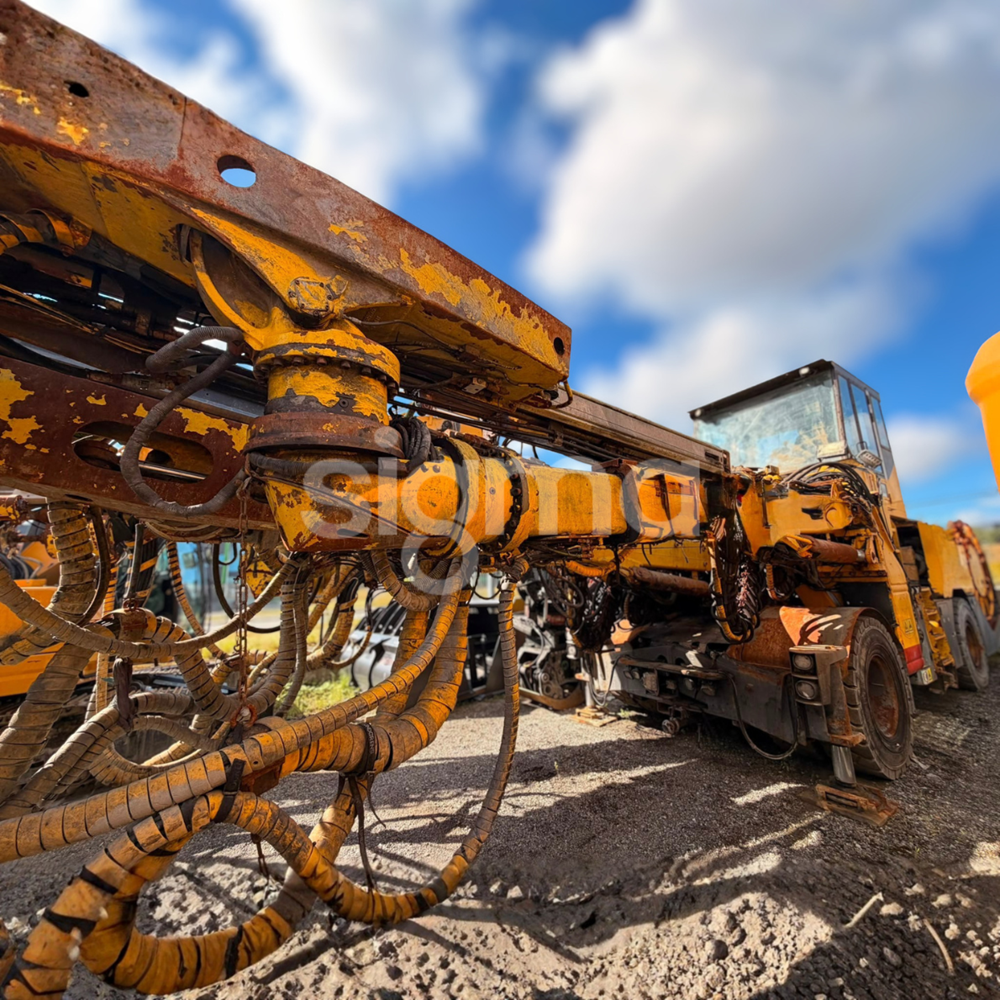

2018 Epiroc Boomer XE3 C three-boom tunnelling rig with 5,017 engine hours and Track 5 data.

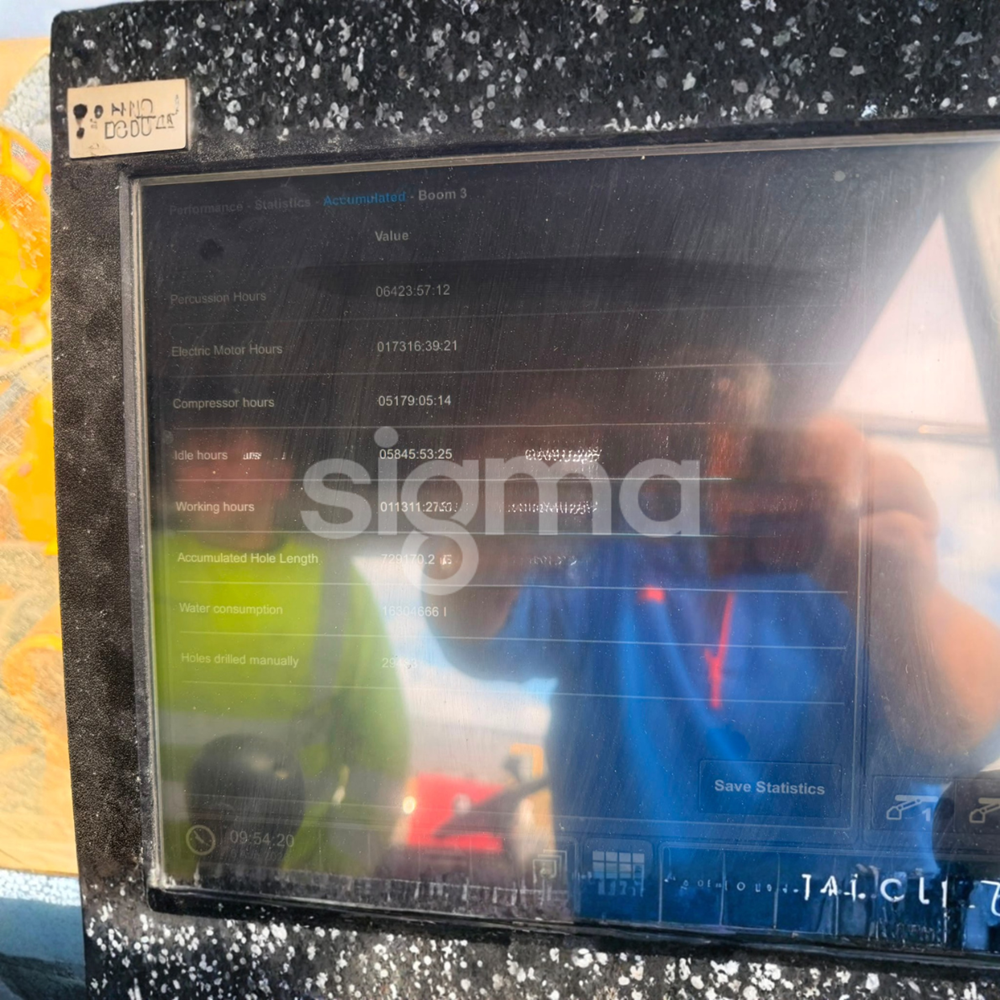

Fitted with three COP 3038 rock drills, 20 ft feeds, central lubrication and a 1,000 V electrical system. Impact hours are 6,294 on Boom 1, 6,578 on Boom 2 and 6,423 on Boom 3.
Machine specs

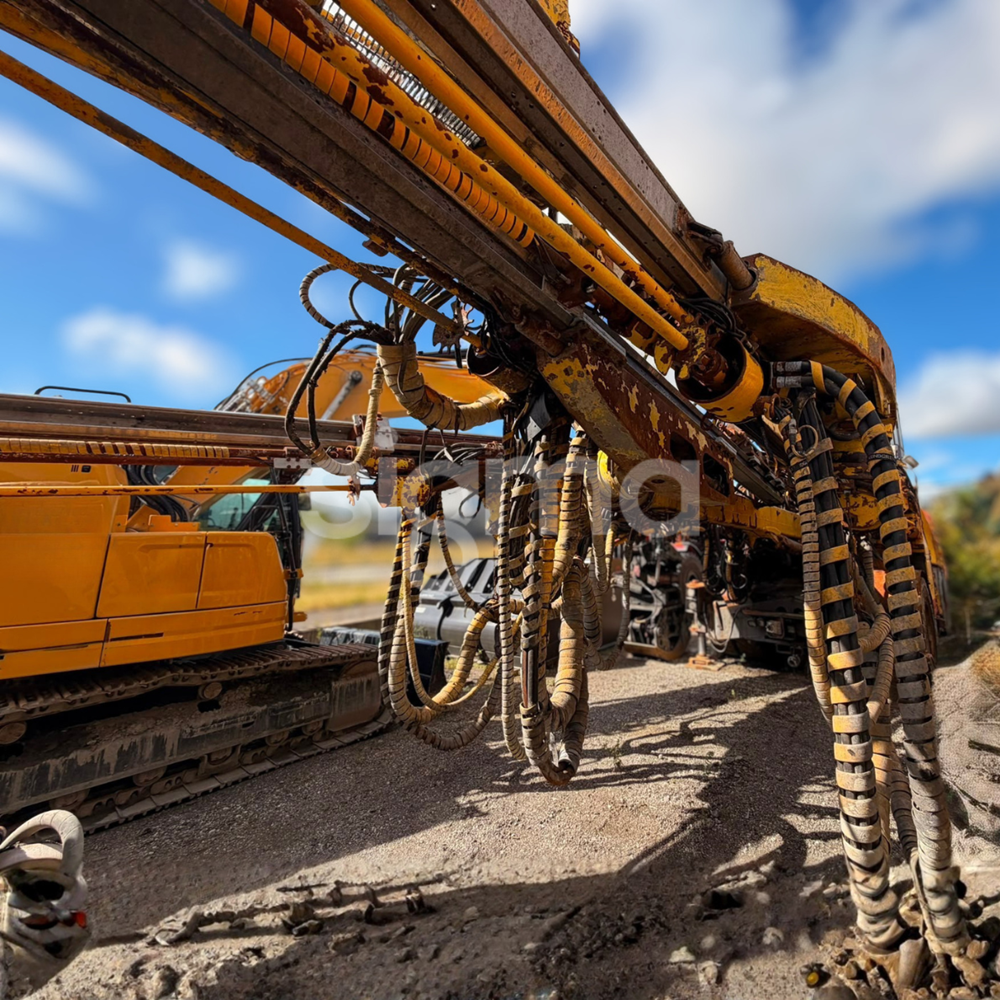

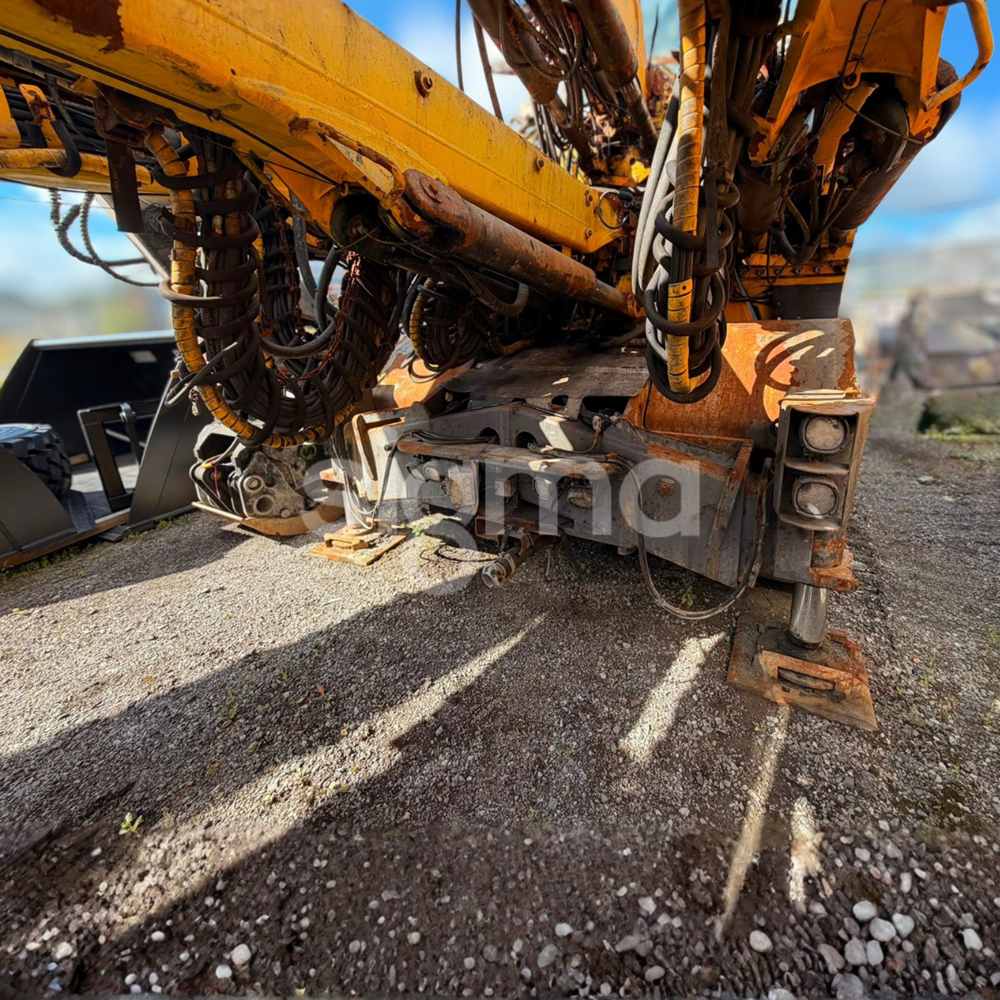

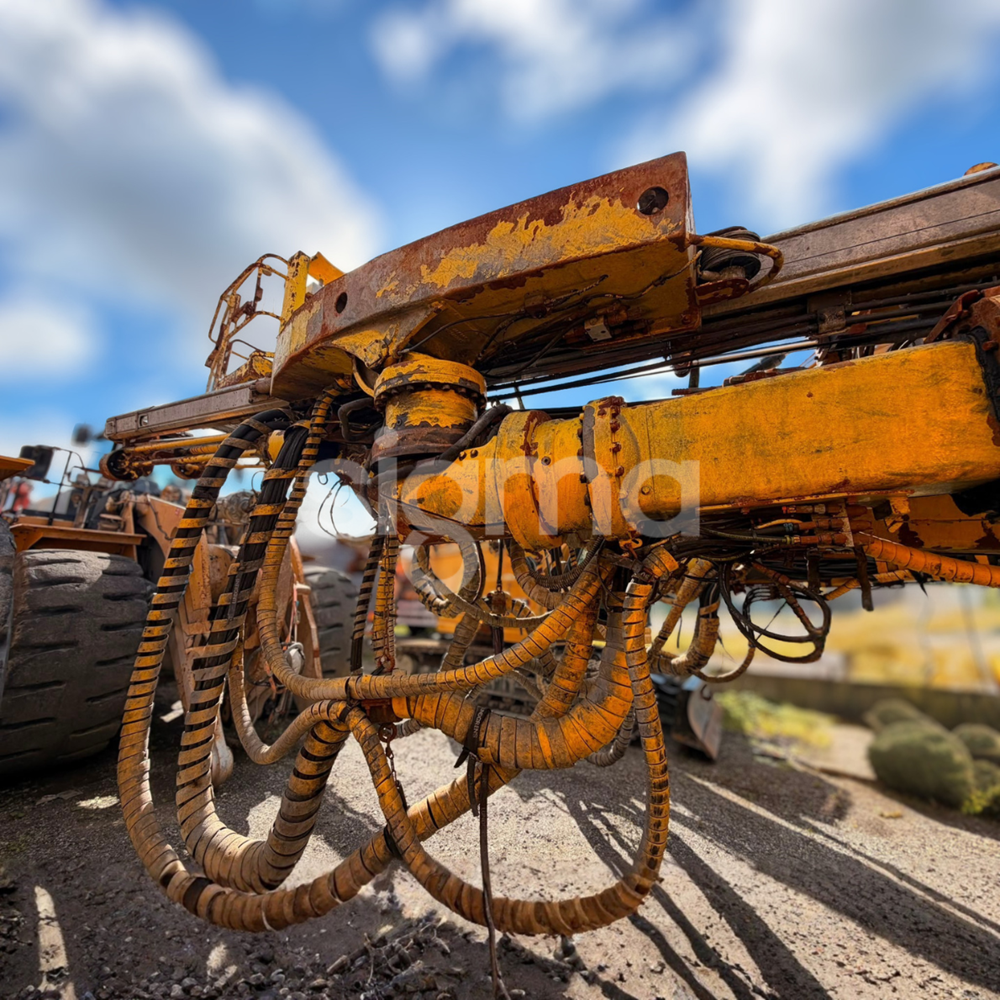

Booms
- Model: BUT 45 L
- Number of booms: 3
- Coverage area: Up to 198 m²
- Boom 1 impact hours: 6,294
- Boom 2 impact hours: 6,578
- Boom 3 impact hours: 6,423
Drilling system
- Rock drills: COP 3038
- Impact power: 30 kW
- Impact rate: 102 Hz
- Rotation speed: 0–380 rpm
- Minimum hole diameter: 45 mm

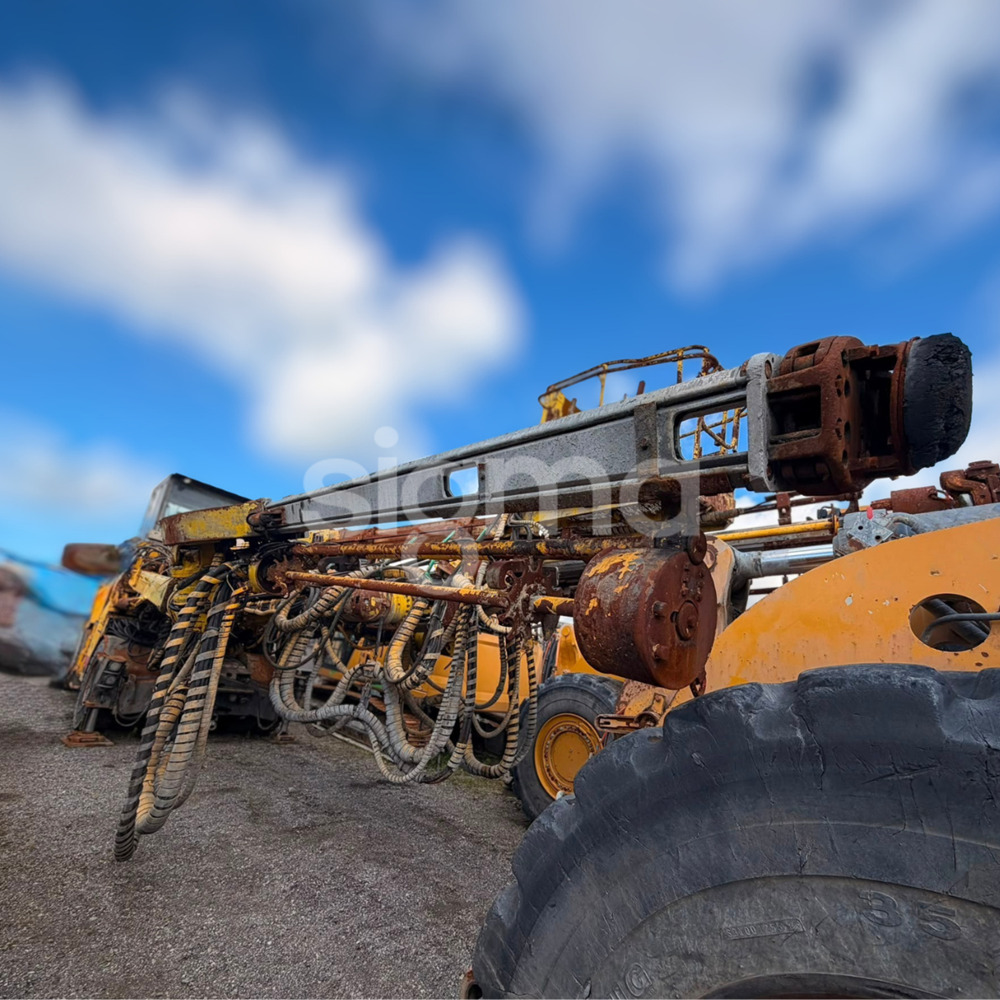

- Feed type: BMH 6920, 20 ft
- Maximum hole depth: 5,843 mm

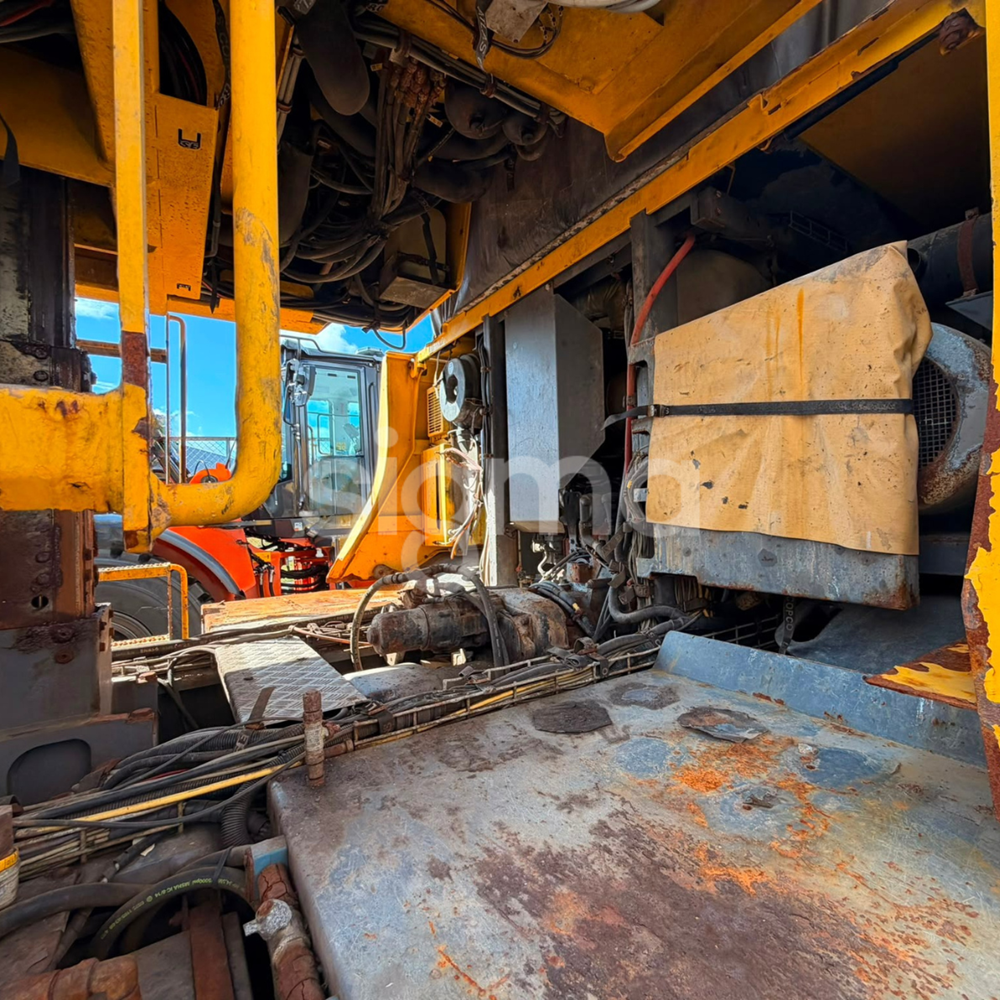

Carrier

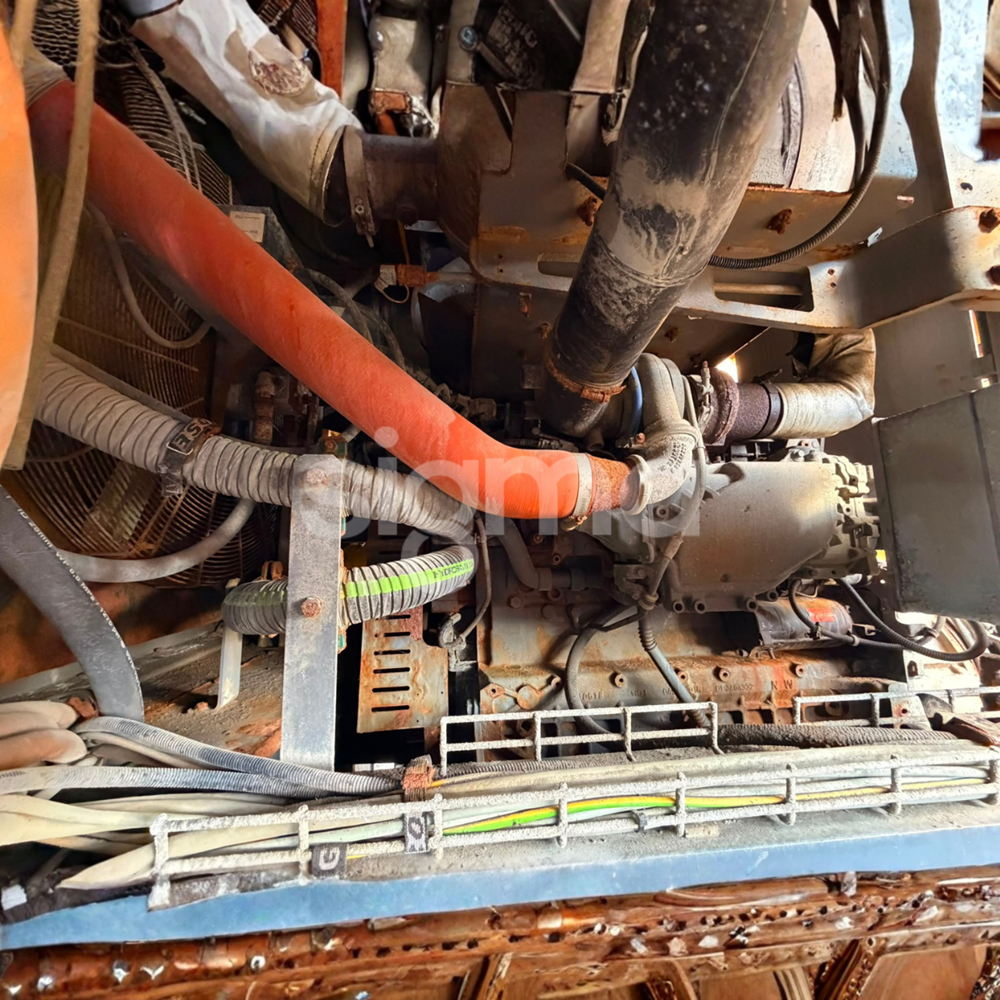

- Engine make: Deutz
- Model: TCD 2013 L06
- Power: 173 kW (232 HP)
- Fuel tank: 150 l
Tramming performance
- Travel speed on flat ground: Over 15 km/h
- Travel speed on a 1:8 incline: Over 5 km/h
- Gradeability: 1:4

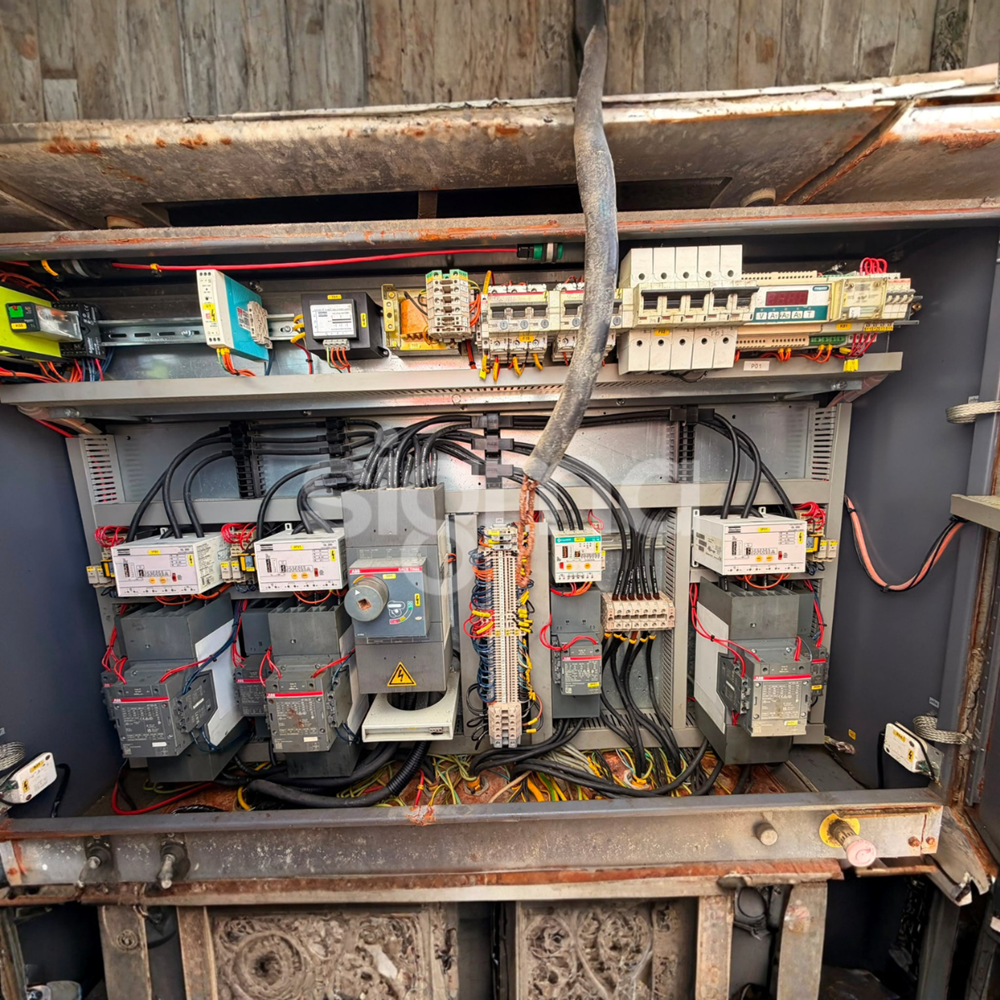

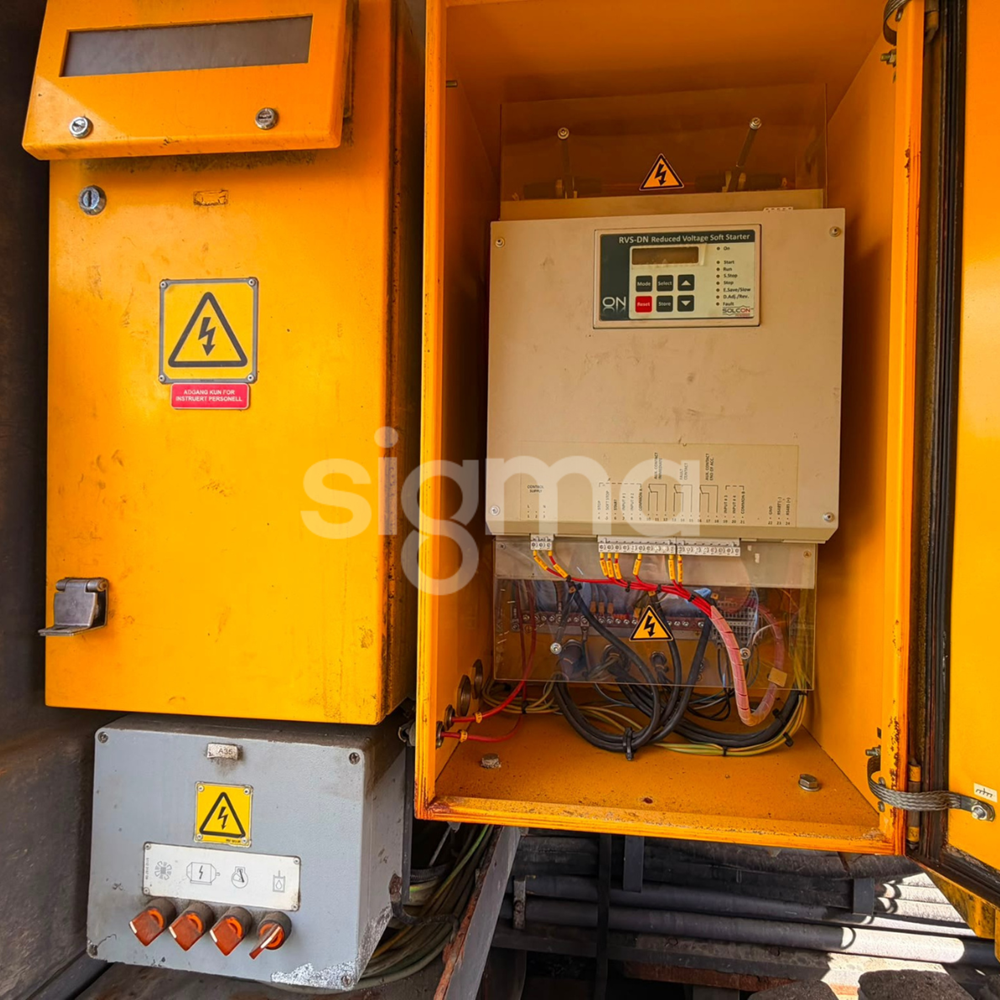

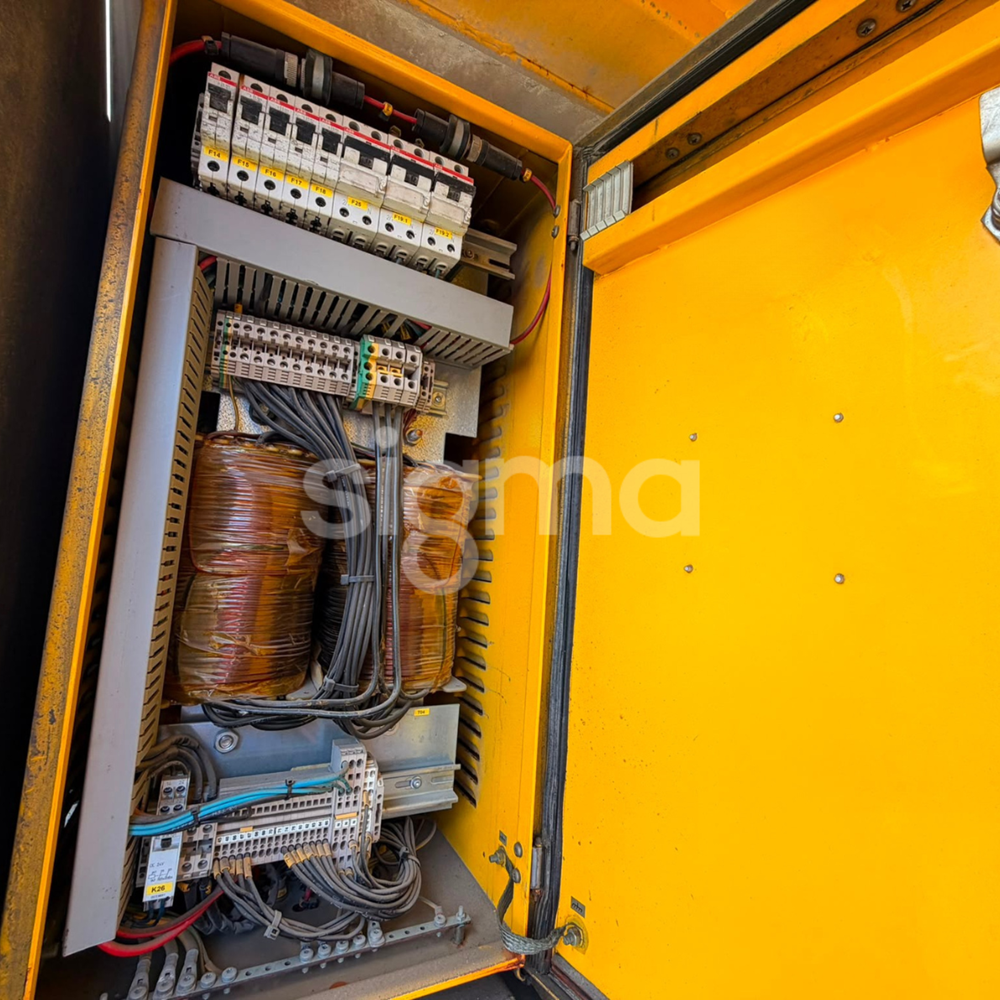

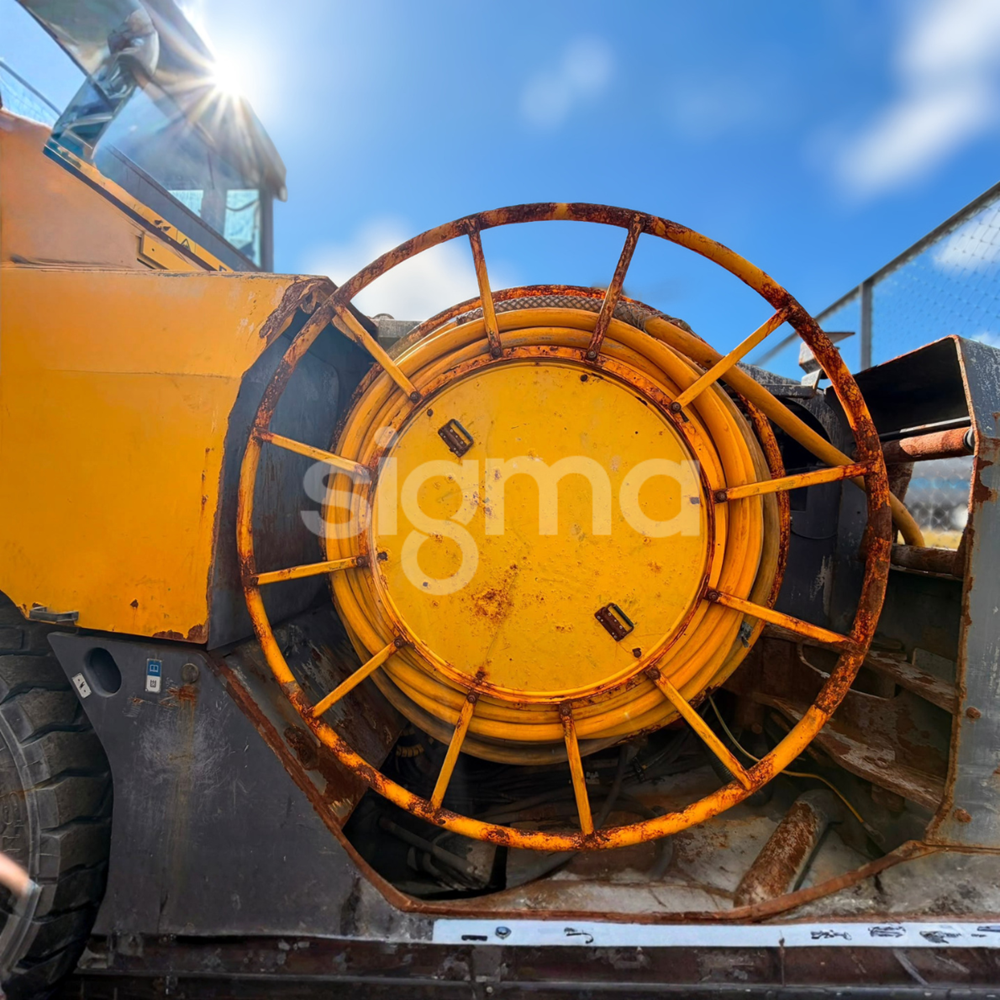

Electrical system
- Total installed power: 293 kW
- Main motors: 3 × 95 kW
- Operating voltage:1,000 V
- Frequency: 50–60 Hz
Compressor and water system

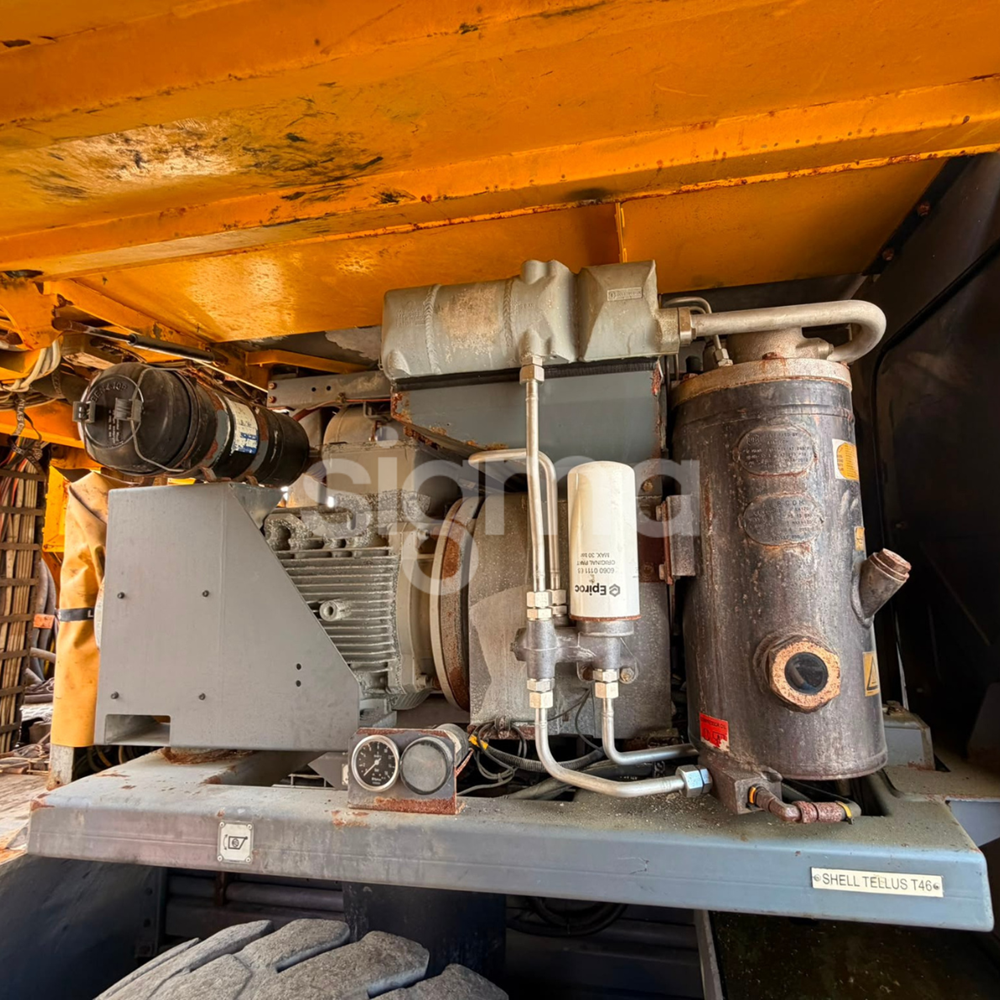

- Compressor: Atlas Copco GAR 5
- Compressor capacity: 26 l/s at 9 bar
- Water booster pump: Johnson
- Maximum pump capacity: 750 l/min at 30 bar
Dimensions and weight
- Length:17,455 mm
- Width: 2,926 mm
- Height with cabin: 3,664 mm
- Height with cabin raised: 4,764 mm
- Gross weight: 43,100 kg
