Overview
Machine location:
Europe
Stock number:
PF 41119
Categories:
Underground and Tunnelling Rigs
Manufacturer:
Atlas Copco
Model:
XE3C
Year of manufacture:
2012

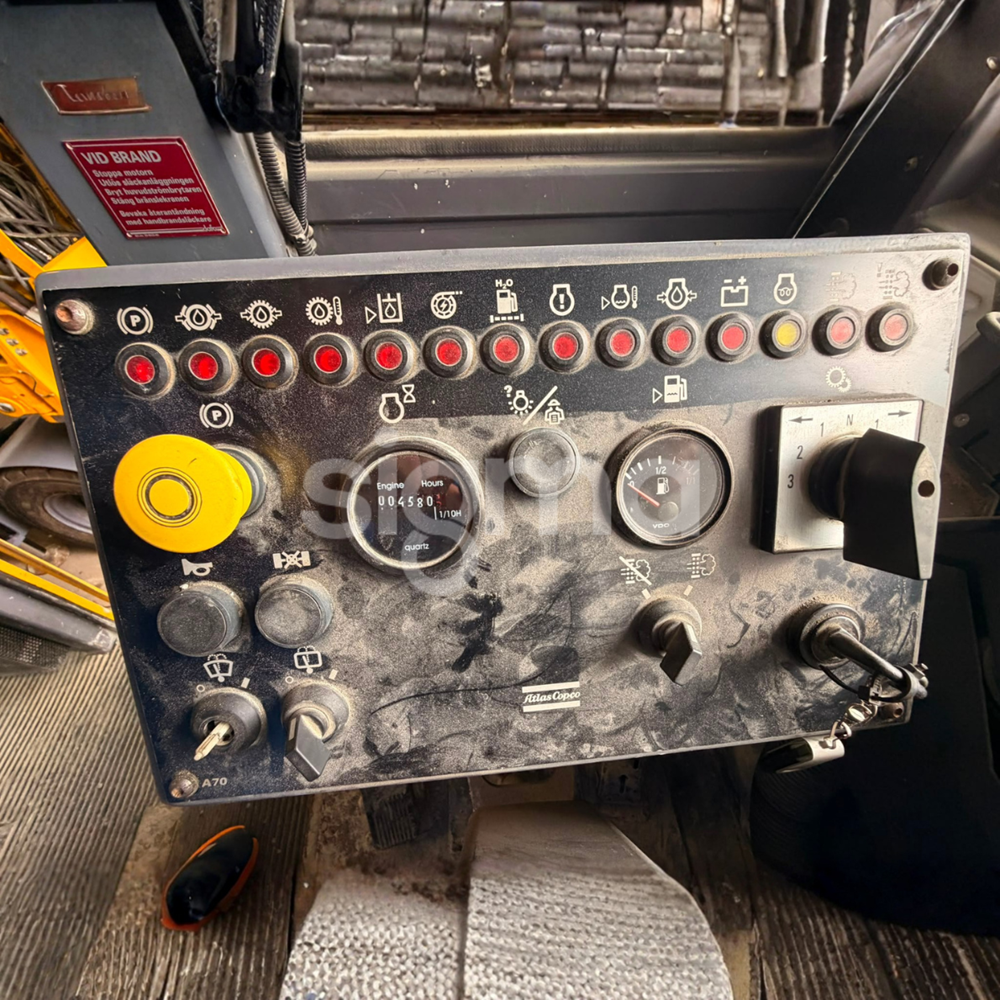

Working hours:
4580
Key features
2012 Atlas Copco/Epiroc Boomer XE3C three-boom tunnelling rig with 4,580 engine hours and Track 4 data.
Fitted with three COP 3038 rock drills, 18 ft feeds, central lubrication and a 1,000 V electrical system. Impact hours are 5,580 on Boom 1, 4,631 on Boom 2 and 4,612 on Boom 3.
Machine specs

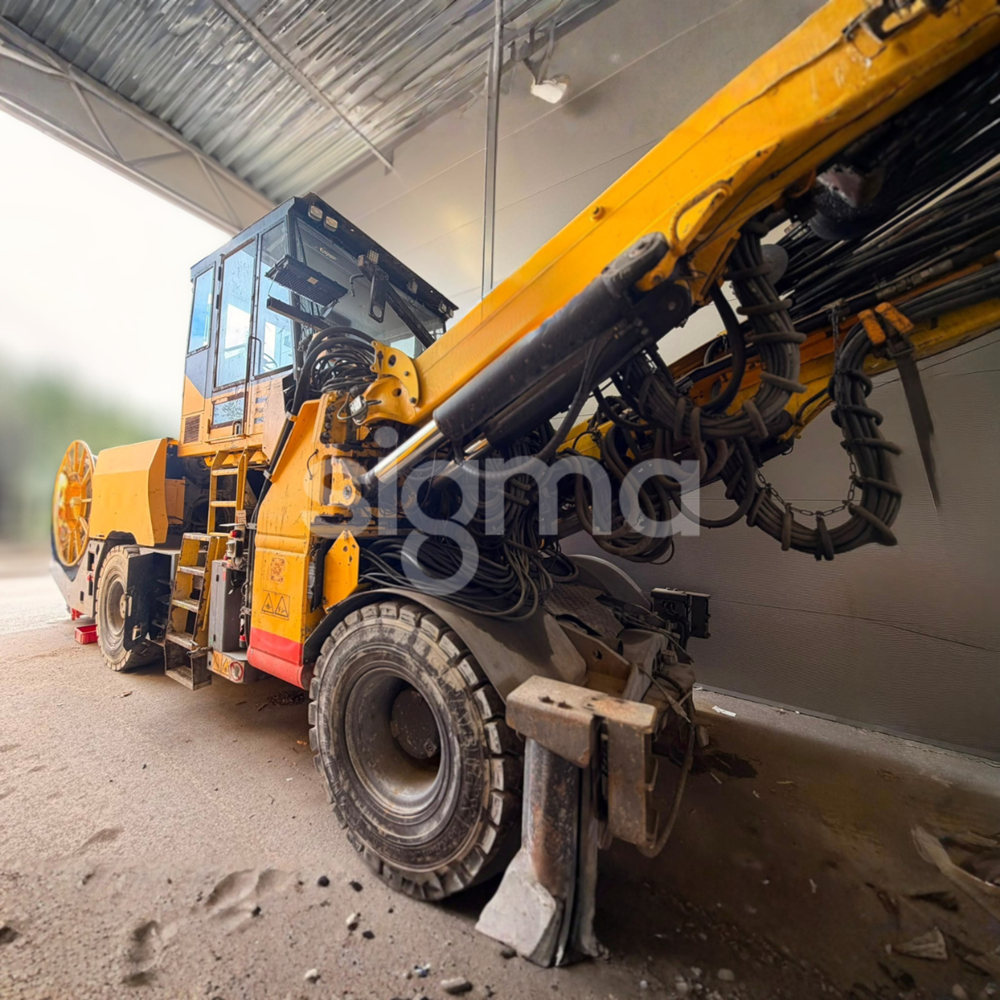

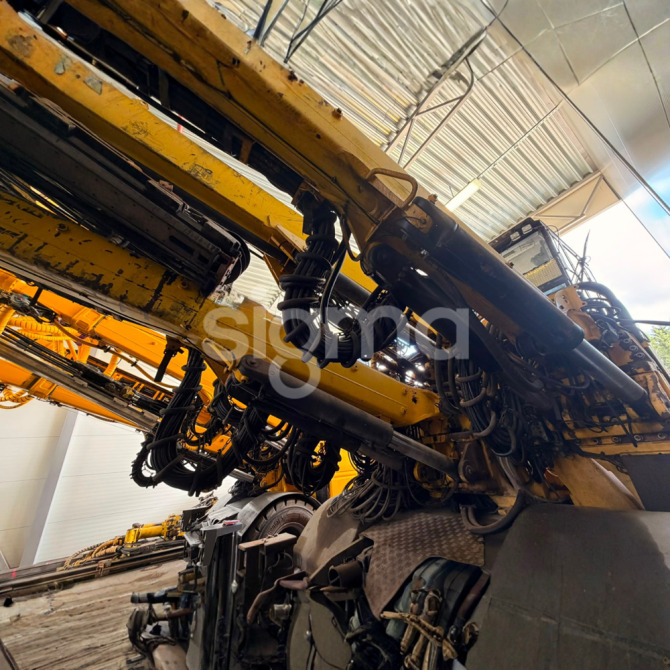

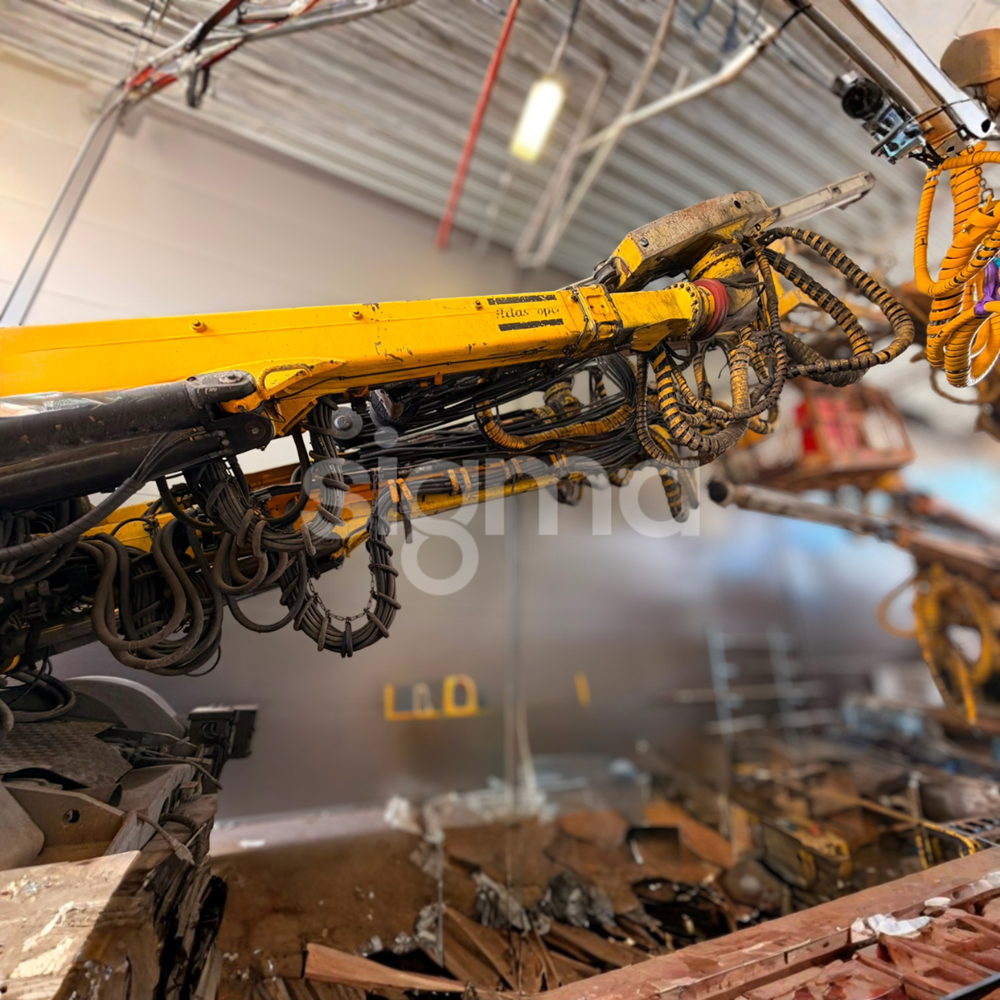

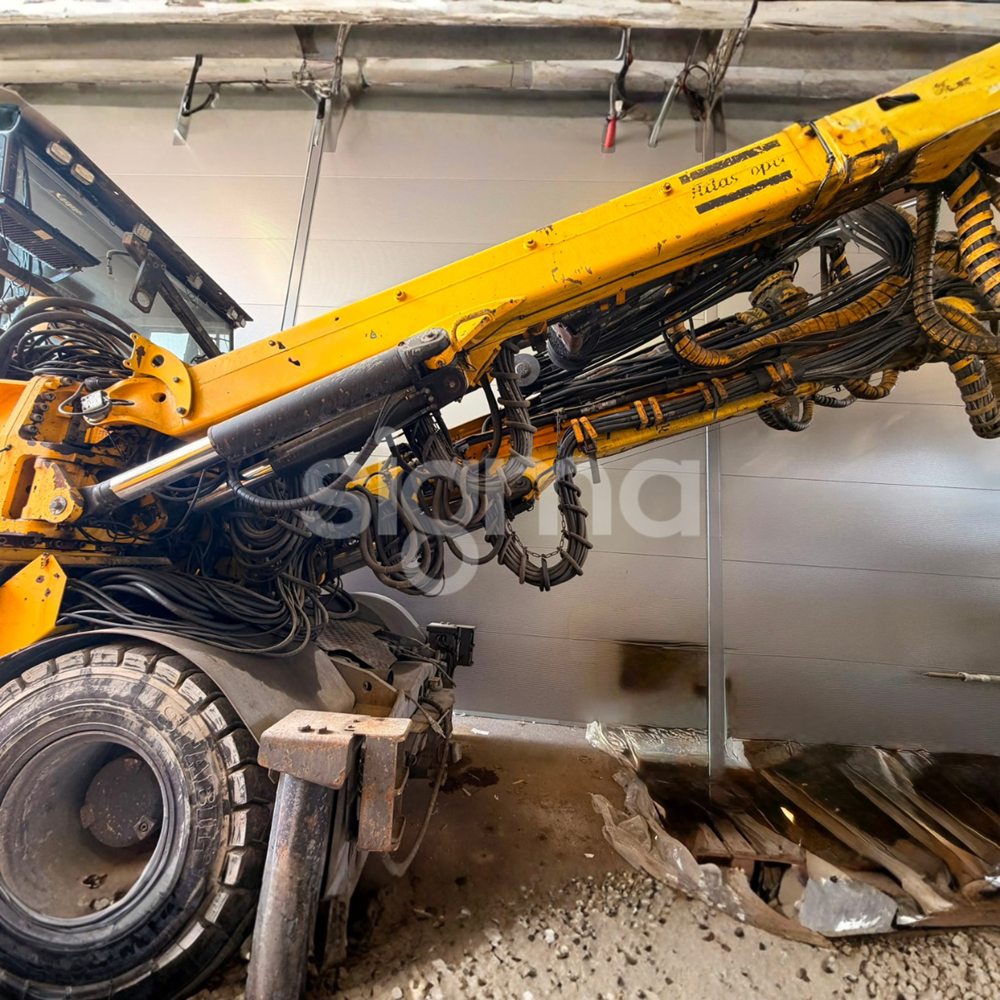

Booms
- Model: BUT 45 L
- Number of booms: 3
- Coverage area: Up to 198 m²
- Boom extension: 2,500 mm
- Feed extension: 1,800 mm
- Boom 1: 5,580 hours
- Boom 2: 4,631 hours
- Boom 3: 4,612 hours
Drilling system
- Rock drills: COP 3038
- Impact power: 30 kW
- Impact rate: 102 Hz
- Rotation speed: 0–380 rpm
- Minimum hole diameter: 45 mm
- Feed type: BMH 6914
- Maximum hole depth: 4,043 mm

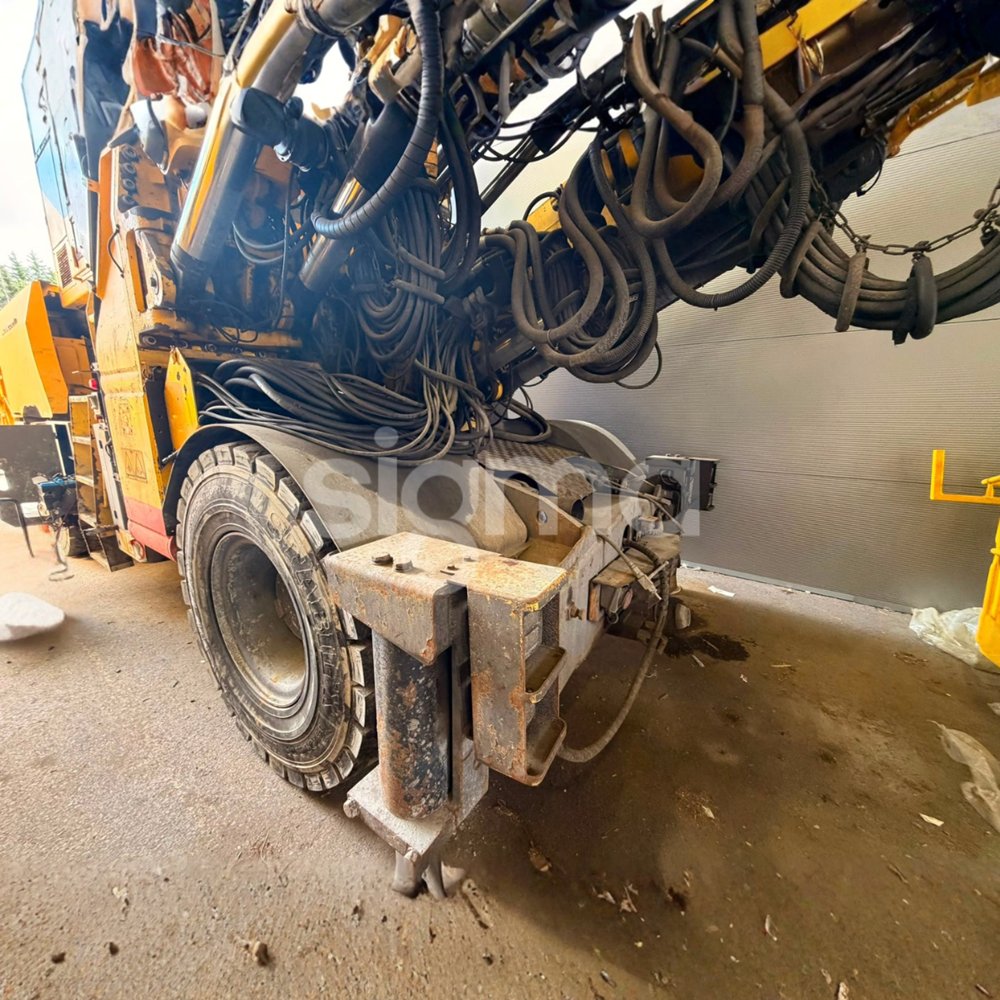

Carrier
- Engine make: Deutz
- Model: TCD 2013 L06
- Power: 173 kW (232 HP)
- Fuel tank: 150 l
Tramming performance
- Travel speed on flat ground: Over 15 km/h
- Travel speed on a 1:8 incline: Over 5 km/h
- Gradeability: 1:4

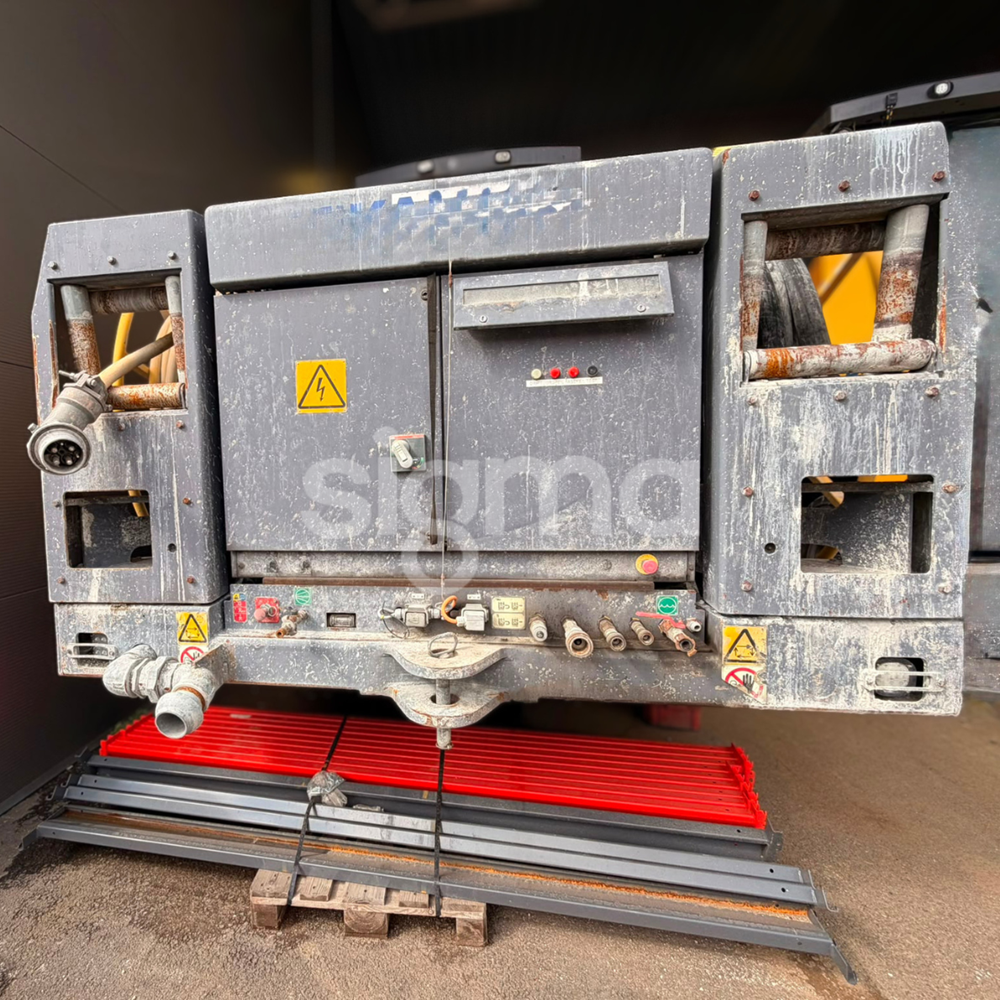

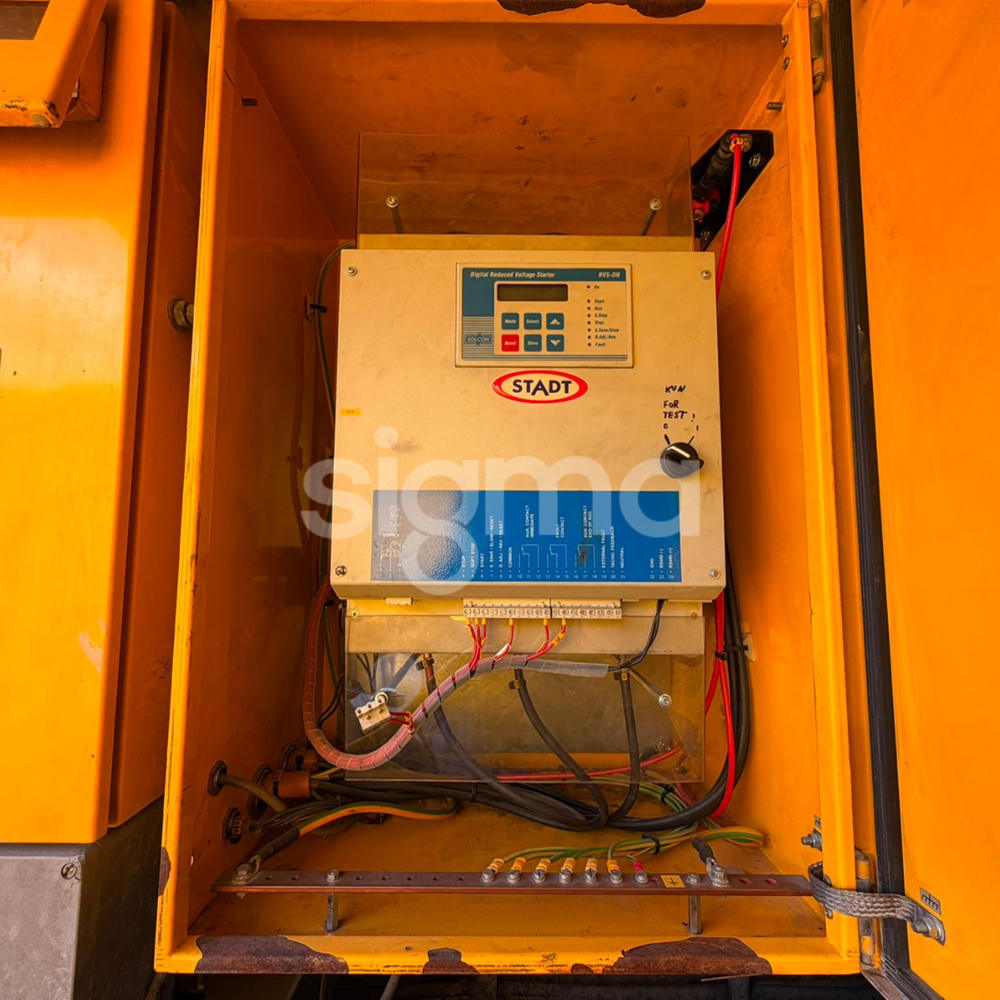

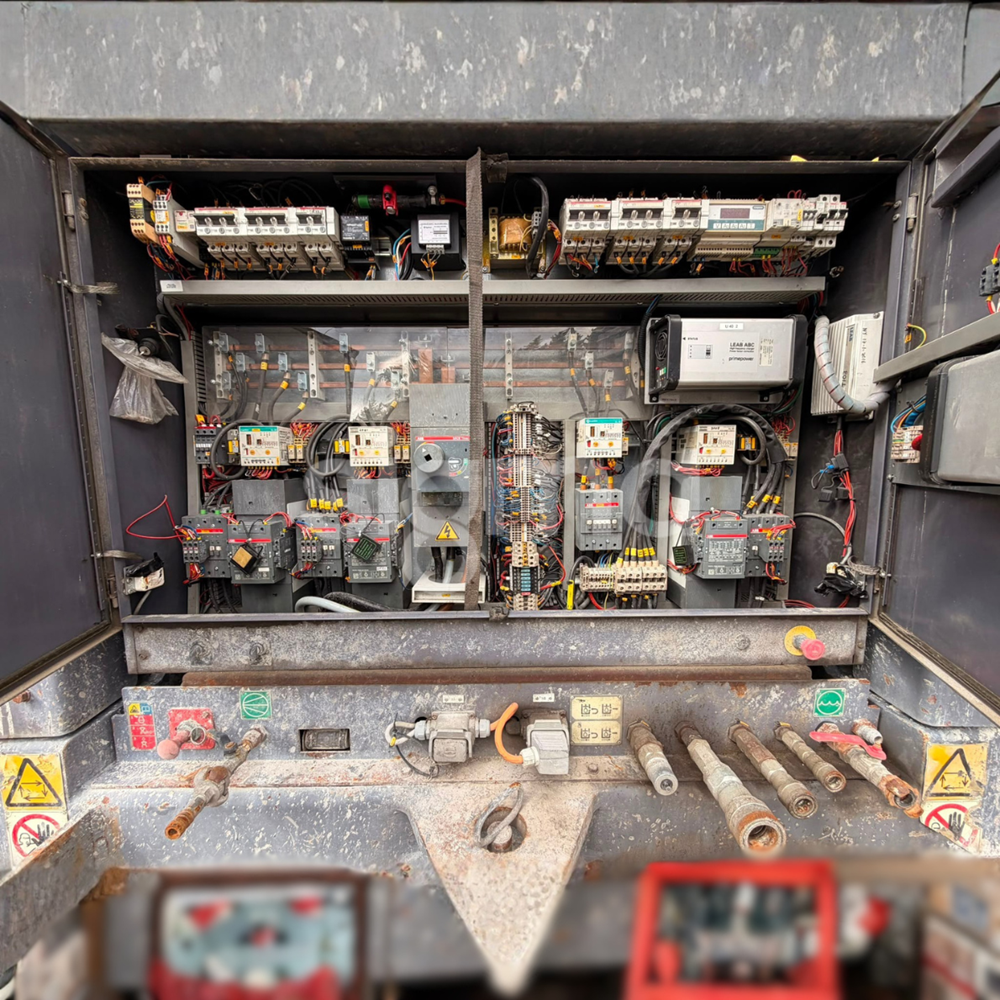

Electrical system
- Total installed power: 293 kW
- Main motors: 3 × 95 kW
- Operating voltage:1,000 V
- Frequency: 50–60 Hz

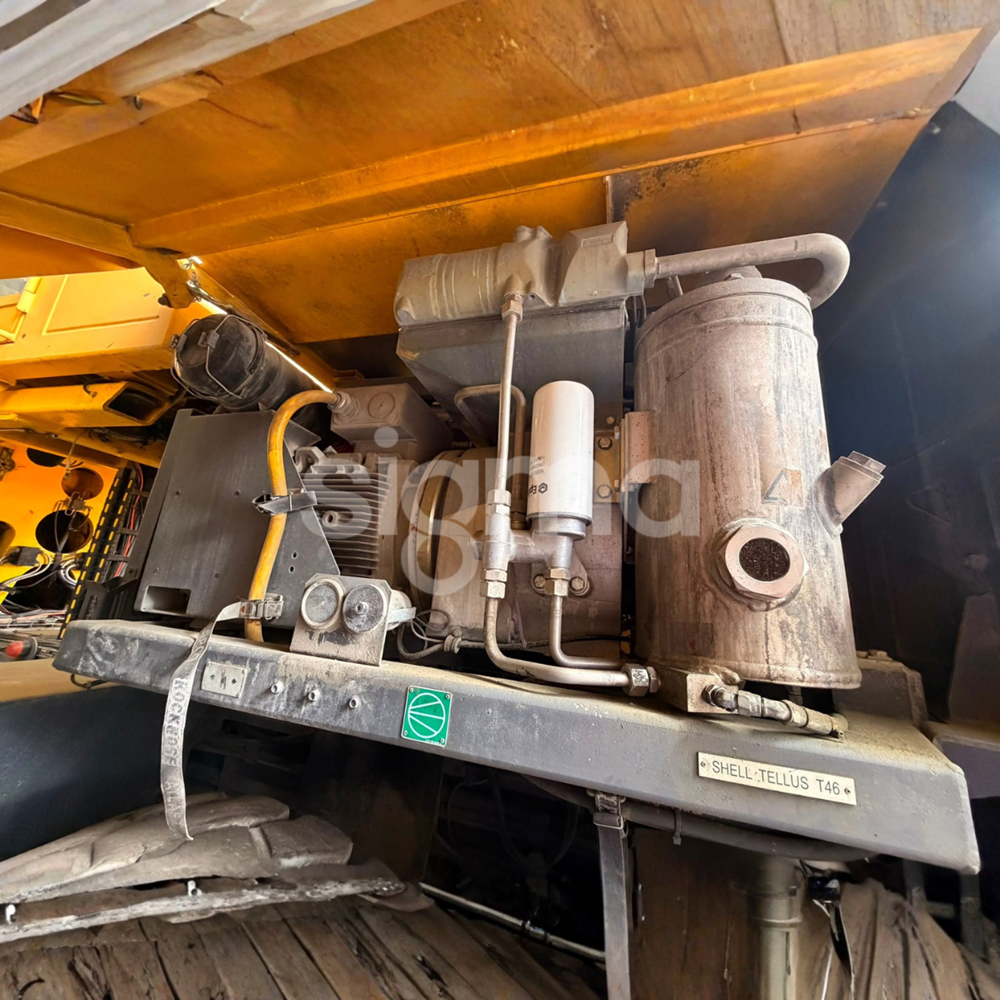

Compressor and water system
- Compressor: Atlas Copco GAR 5
- Compressor capacity: 26 l/s at 9 bar
- Water booster pump: Johnson
- Maximum pump capacity: 750 l/min at 30 bar
Dimensions and weight
- Length:17,455 mm
- Width: 2,926 mm
- Height with cabin: 3,664 mm
- Height with cabin raised: 4,764 mm
- Gross weight: 43,100 kg
