Overview
Machine location:
United States
Stock number:
PF 41094
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Bauer
Model:
BG15 H
Year of manufacture:
2019
Working hours:
1700
Key features
- Rotary drilling rig with just 1,700 operating hours

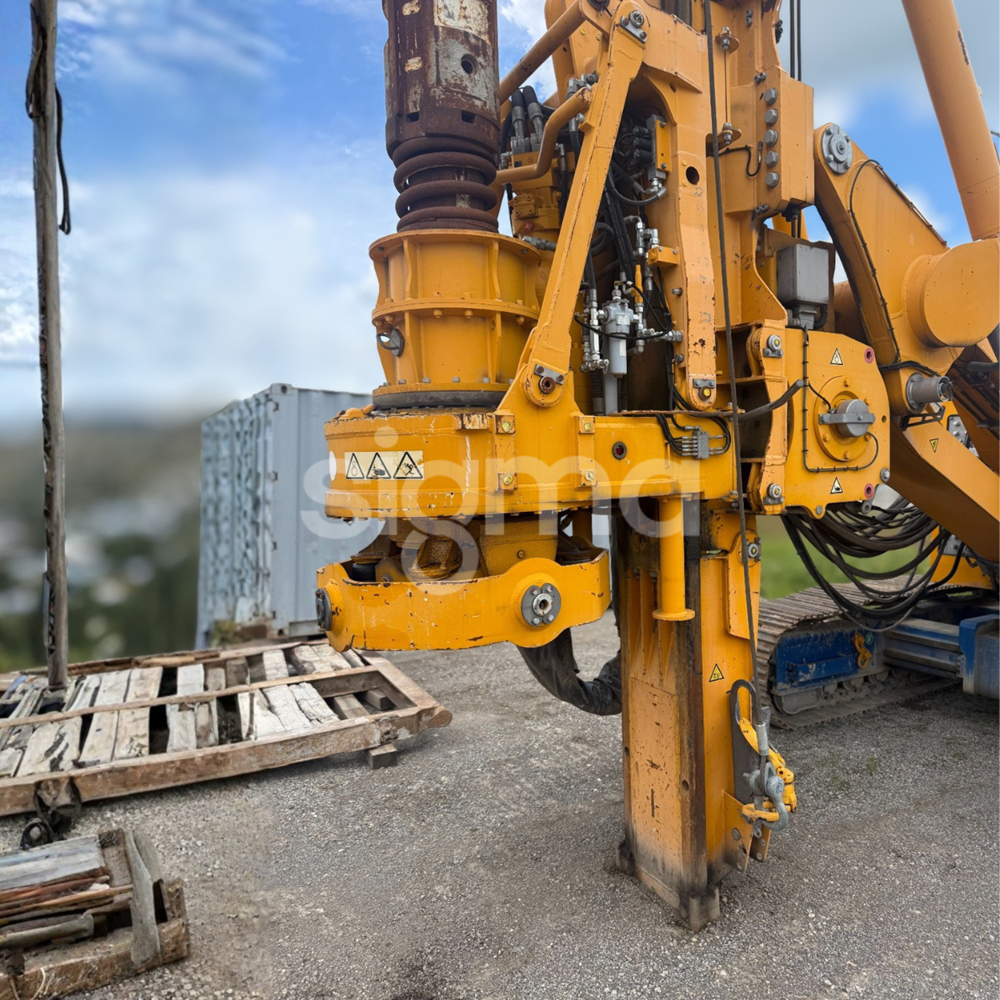

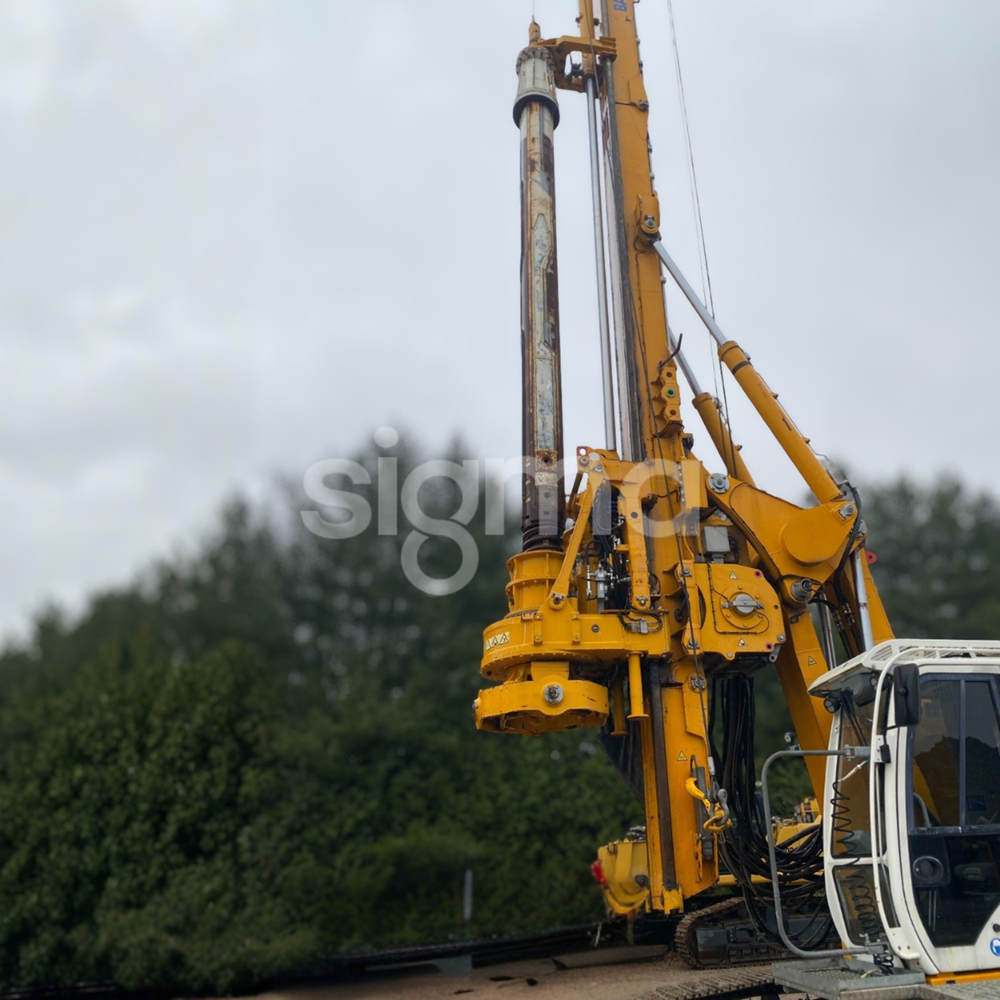

- Rotary head:
- Max torque: 145 kNm
- Rotation speed: 32 rpm
- Drilling performance:
- Max pile diameter: 1,500 mm
- Max pile depth: 18m
- Croud force(Down/UP): 120 / 250 kN

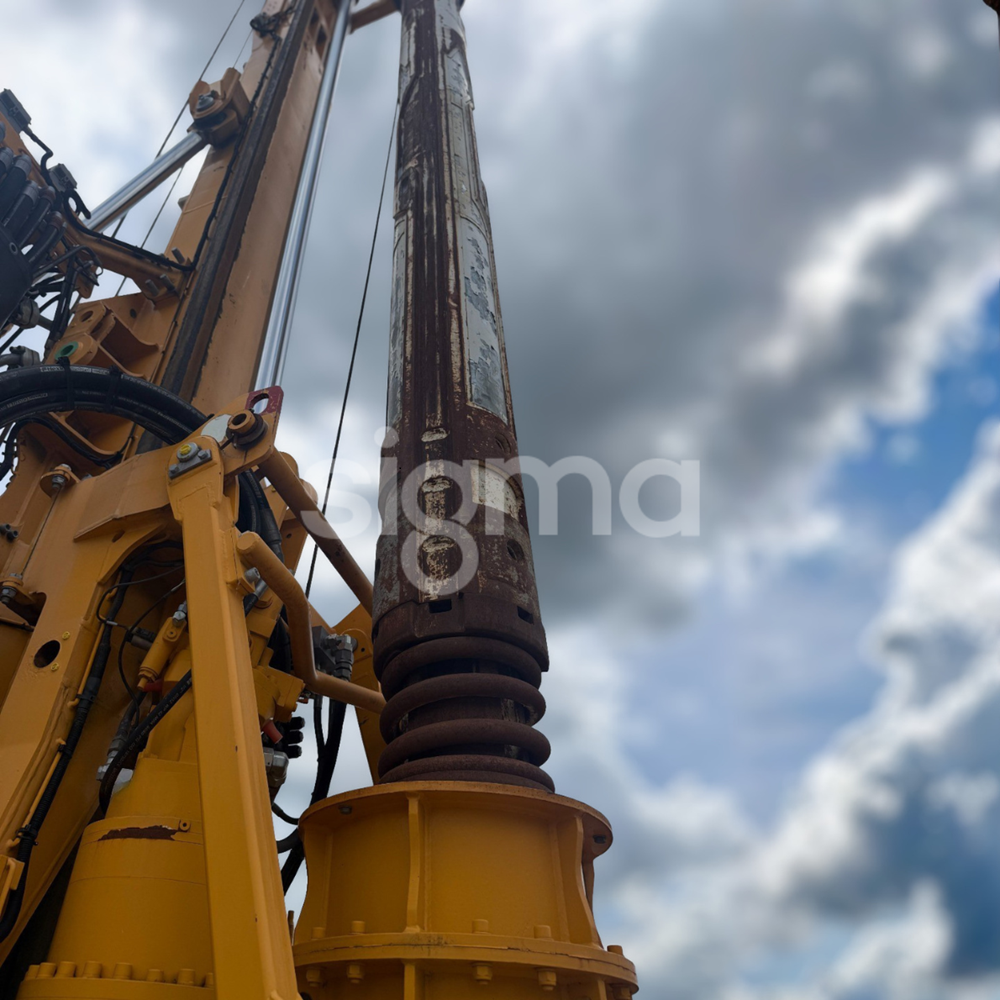

- Kelly bar: BK 170/343/3/18

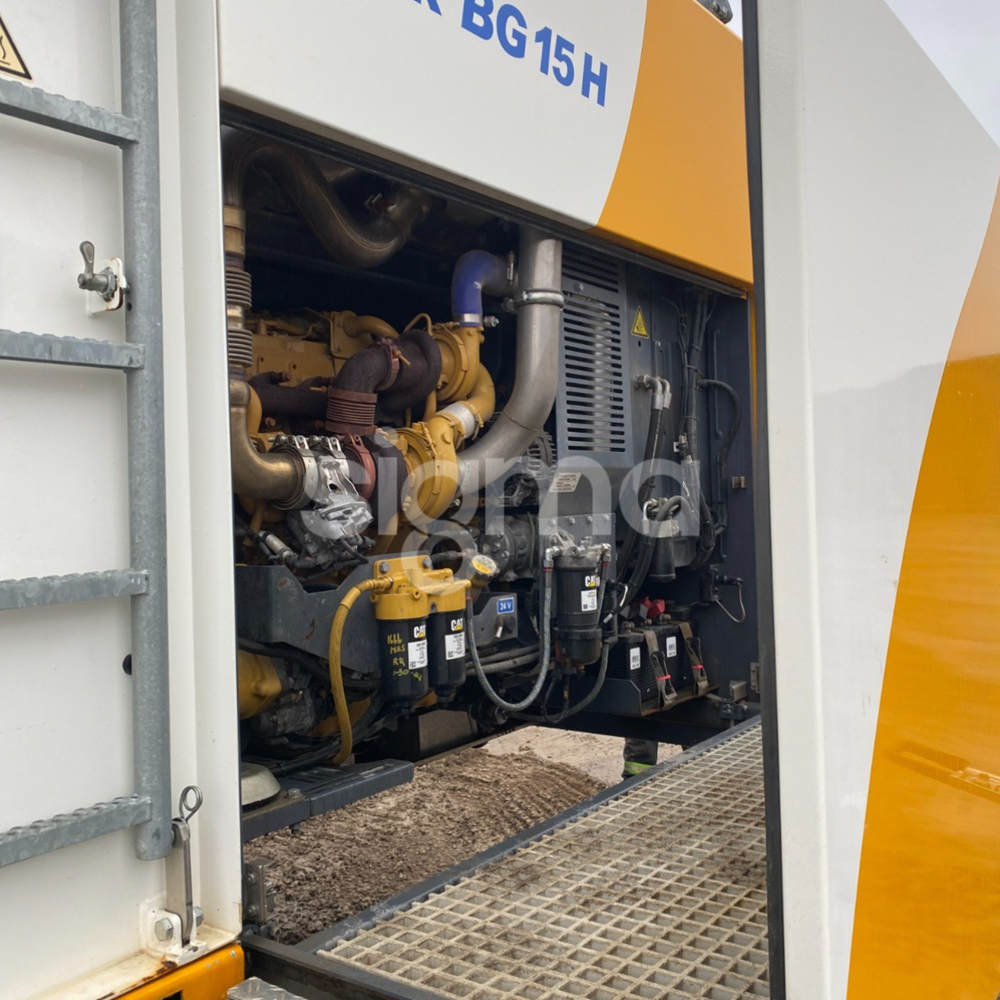

- Engine:
- Cat C7.1
- 186 kW (250 HP) @ 1,800 rpm
- 540l fuel tank
- Winches:
- Main winch:
- Line pull: 175 kN
- Rope diameter: 22 mm
- Max speed: 80 m/min
- Auxiliary winch:
- Line pull: 54 kN
- Rope diameter: 16 mm
- Max speed: 28 m/min
- Main winch:
- Transport Dimensions and weight
- Length: 17,320 mm
- Width: 2,500mm
- Height: 3,290 mm

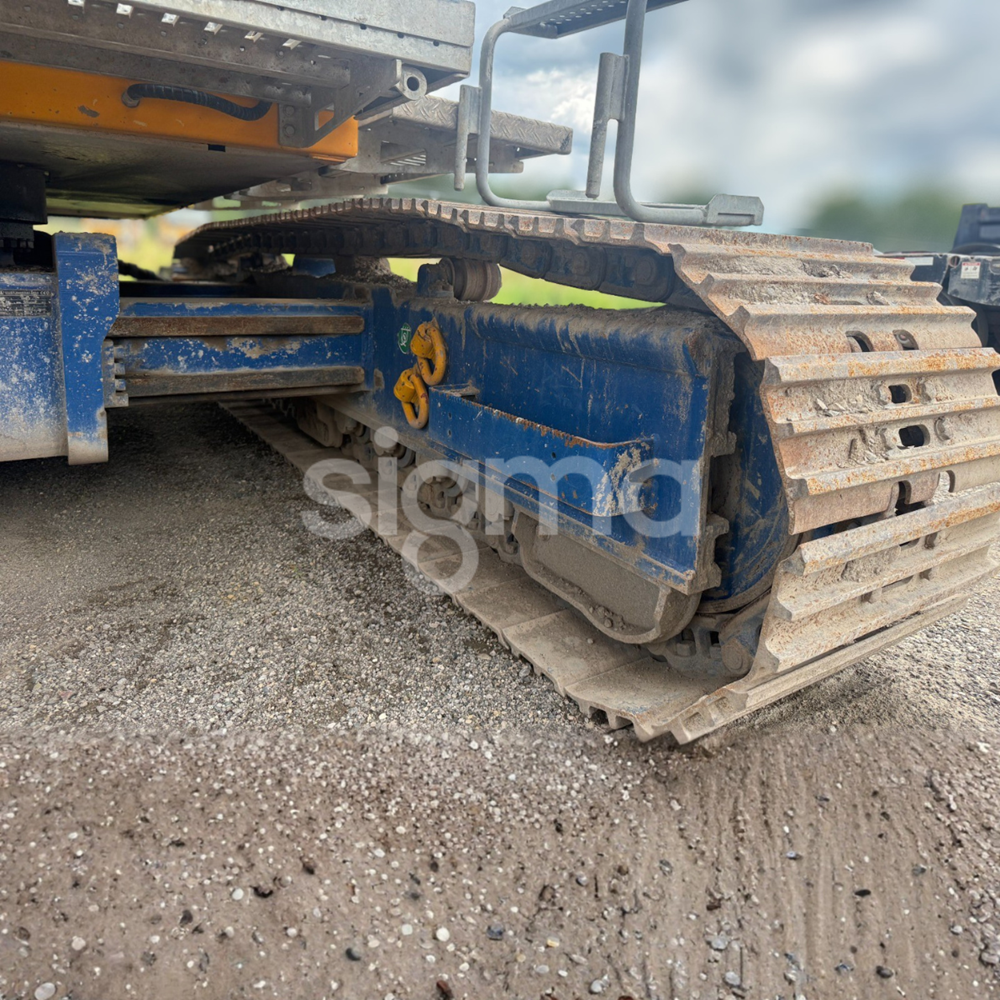

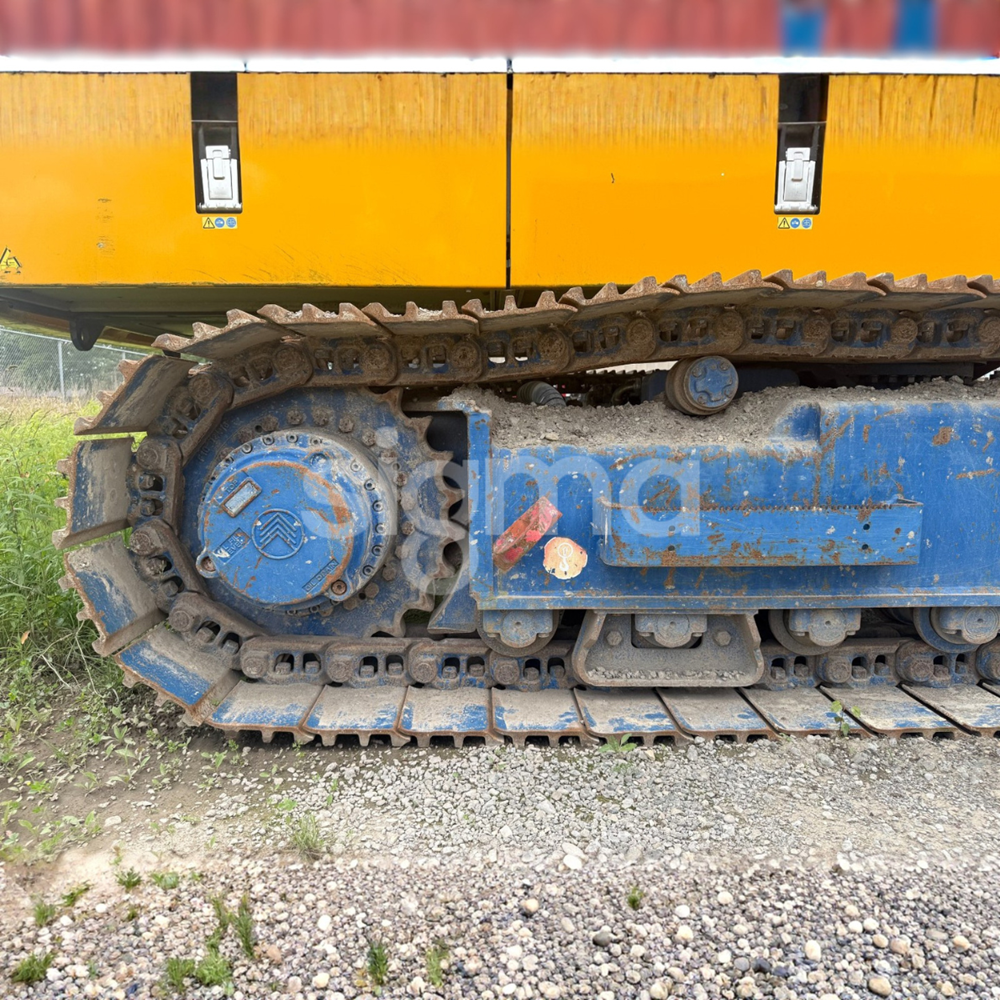

- Track shoe width: 600 mm
- Weight: 45 t
