Overview
Machine location:
United States
Stock number:
PF 40925
Categories:
Rotary Bored Piling Rigs
Manufacturer:
Bauer
Model:
BG33H
Year of manufacture:
2019
Working hours:
4445
Key features

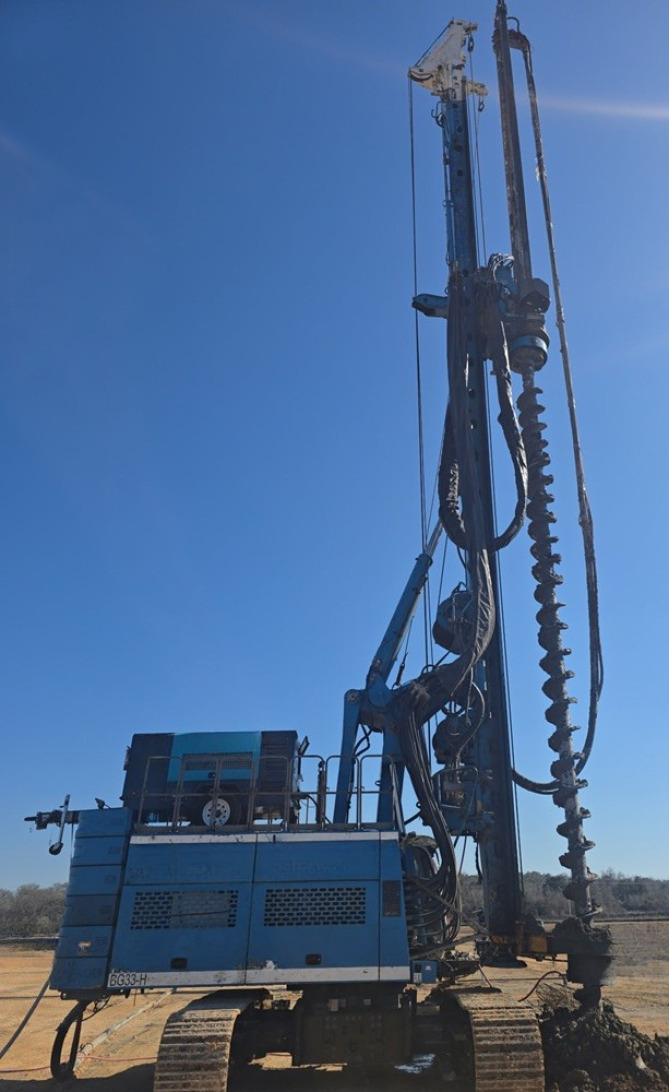

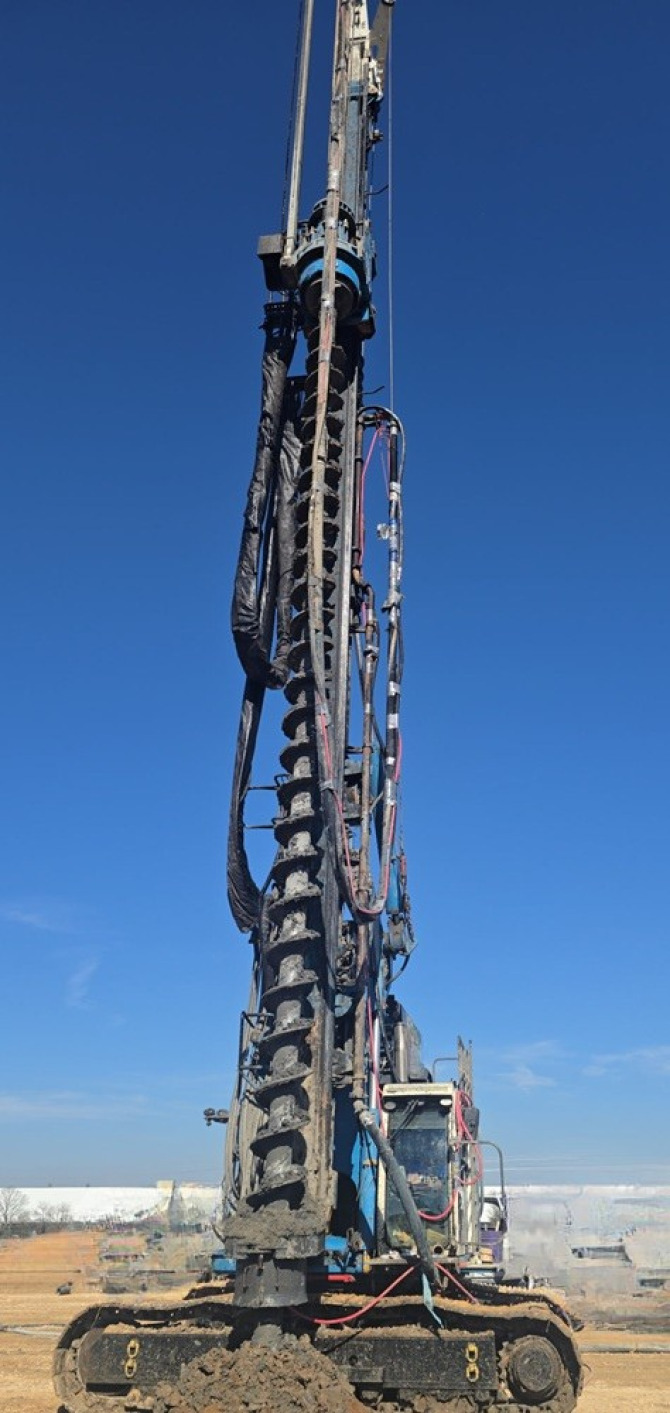

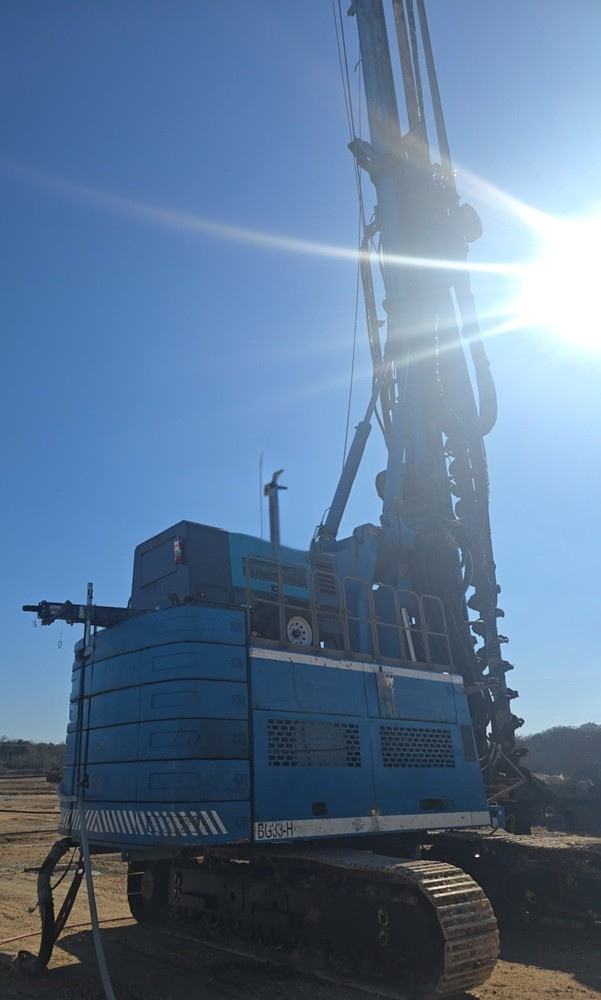

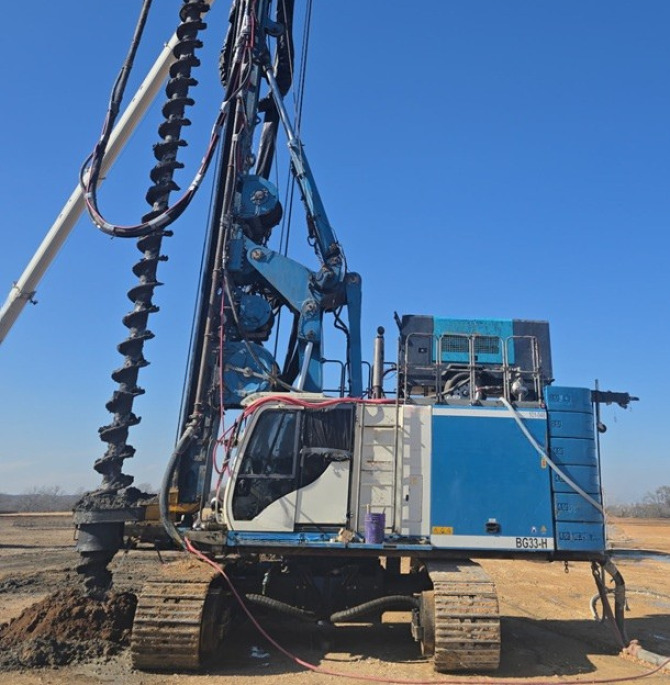

- Bauer BG33H premium line
- 4445 hours (in daily use)
- BT 85 base carrier
- UW 100 undercarriage
- CAT C13 engine – 354kW EU stage 5, EPA/Carb Tier 4 final
- CE Certified
- B-Tronic pile data logging system
- 3 circuit hydraulic system – hydraulic pressure: 350bar
- Triple grouse track shoes: 800mm
- Crowd winch: 330kN line pull
- Main winch: 250kN
- Auxiliary winch: 80kN
- KDK 300K rotary drive – max torque 300kNm, max drill speed 51rpm
- Kelly drive adaptor KA 670/419 with blue springs and round cardiac joint
- Casing oscillator connection – Oscillator connection for undercarriage UW 100
- BK280/419/4/48 interlocking kelly bar
- Pull/push force: 330/330kN
