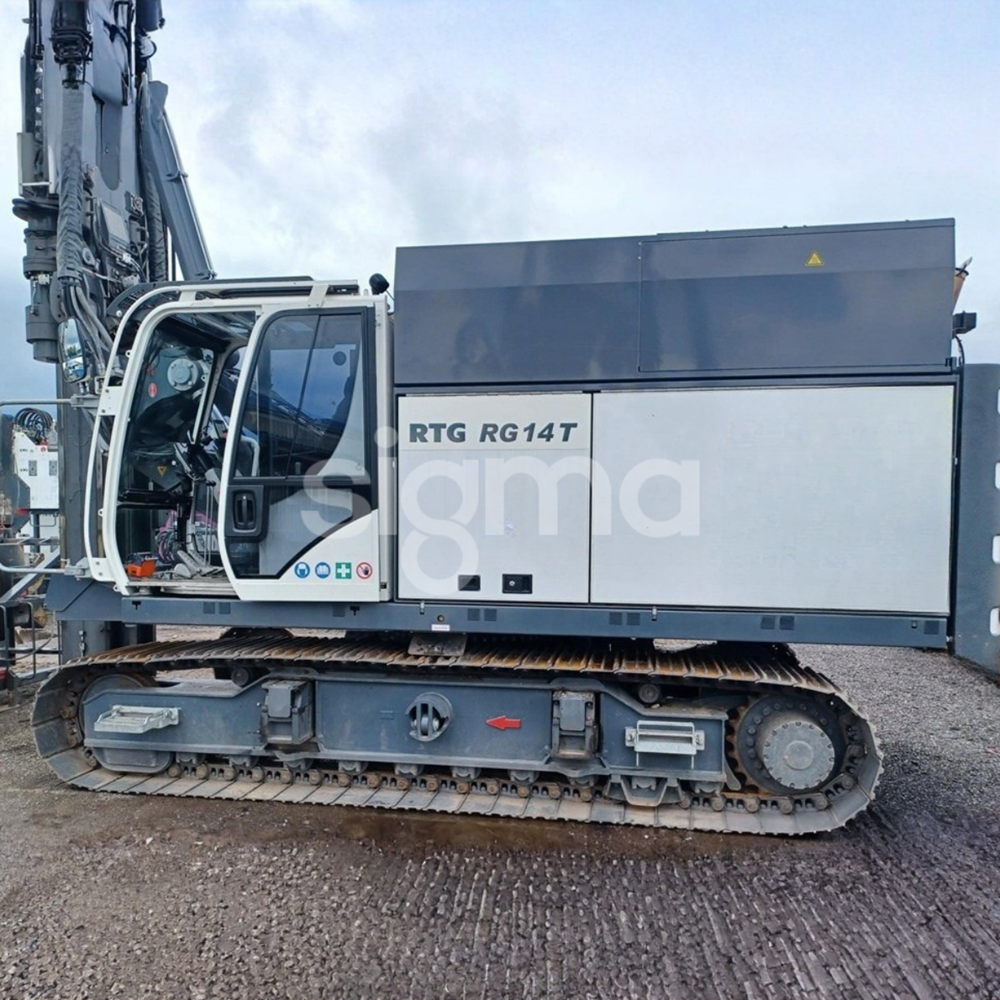

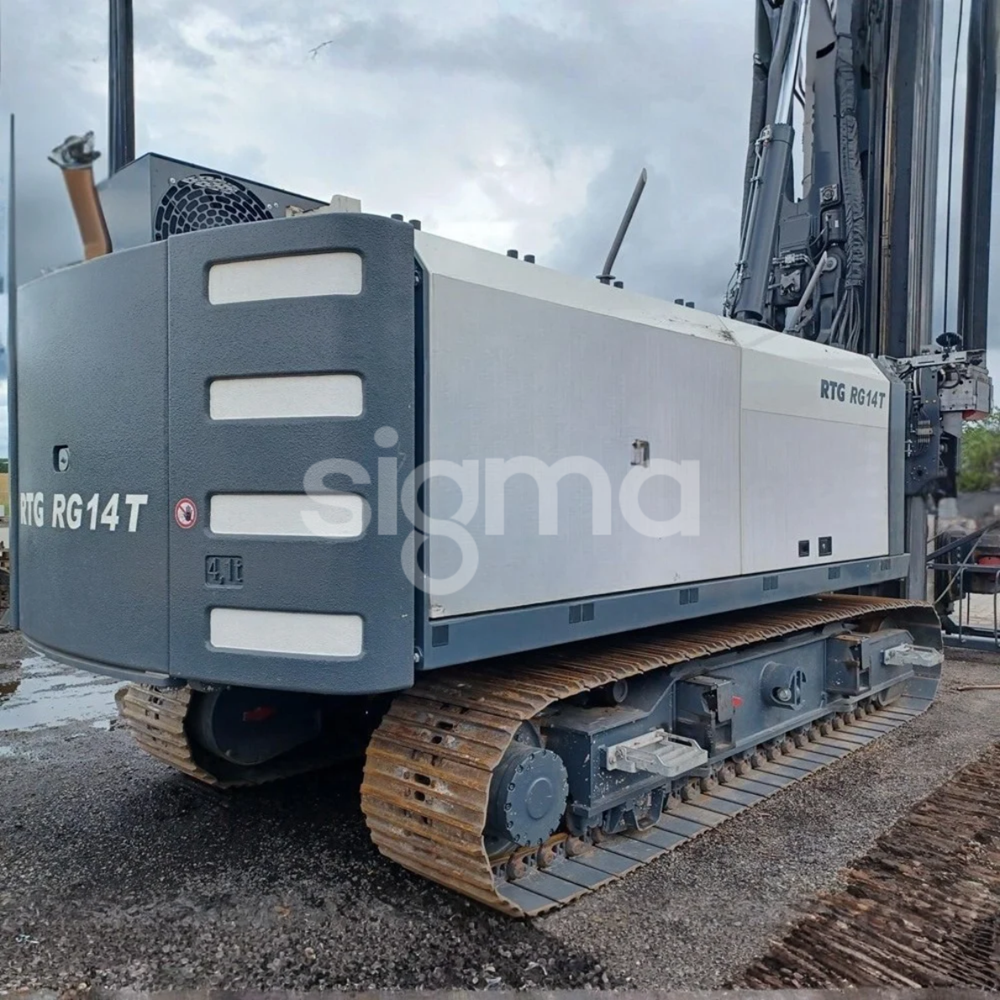

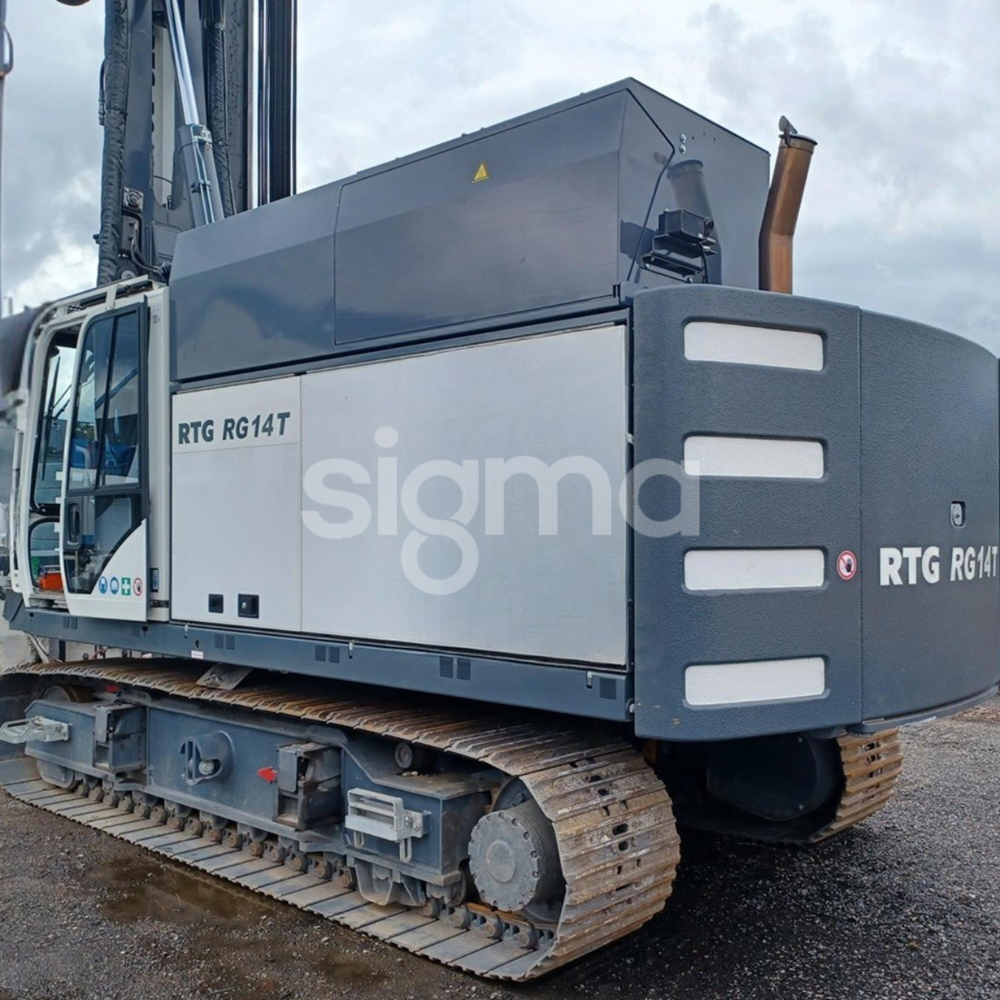

Bauer RG 14 T

Working hours: 834

Engine

Engine make & model: CAT C13-B

Engine power (HP): 496 HP @ 1,800 rpm

Emission standard: stage 5

Fuel tank capacity (L): 600

Hydraulic System

Main pumps (type & flow): 2 x 325L

Max operating pressure: 350 BAR

Hydraulic tank capacity: 780 L

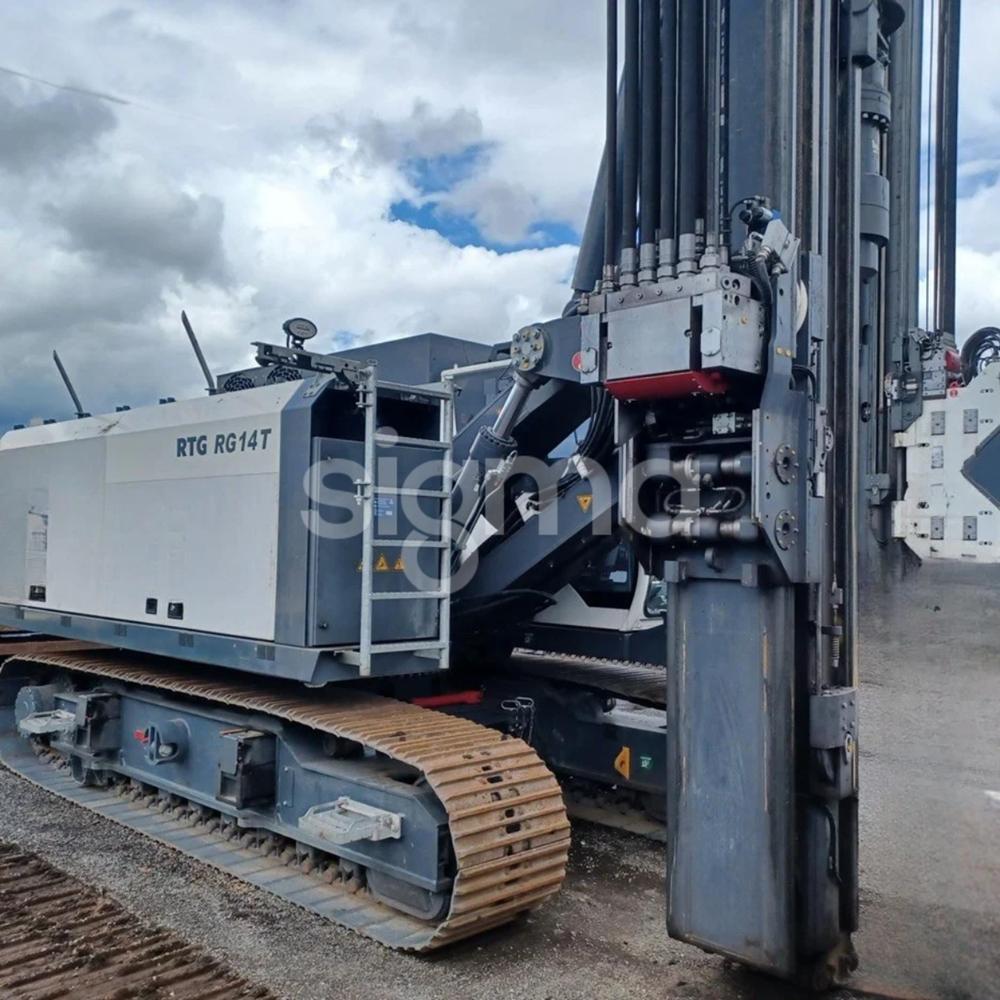

Vibro hammer make & model: RTG MR 85 AVM

Max centrifugal force: 850 kN

Eccentric moment:

Standard mode: 13.0 kgm

Amplitude mode: 19.0 kgm

Speed mode: 9.0 kgm

Clamp type: MRZ 85 hydraulic clamp

Power pack: Integrated

Leader type: Vibro / Universal

Leader length:  14m total stroke

Tilting Capability

Longitudinal & transverse hydraulic inclination

Mast rotation ±100°

Locking at 0°, ±45°, ±90°

Auxiliary winch capacity: 6 t

Pile handling device:  MRZ 85 clamp

Undercarriage

Undercarriage type: Telescopic crawler undercarriage (Tele 27/330)

Track shoe width: 700mm

Counterweight: 4.1 t + 0.3 t console

Dimensions and Weight

Working width: 3,300 mm

Transport width: 2,200 mm

Transport height: 3,300mm

Transport length: 11,900 mm
