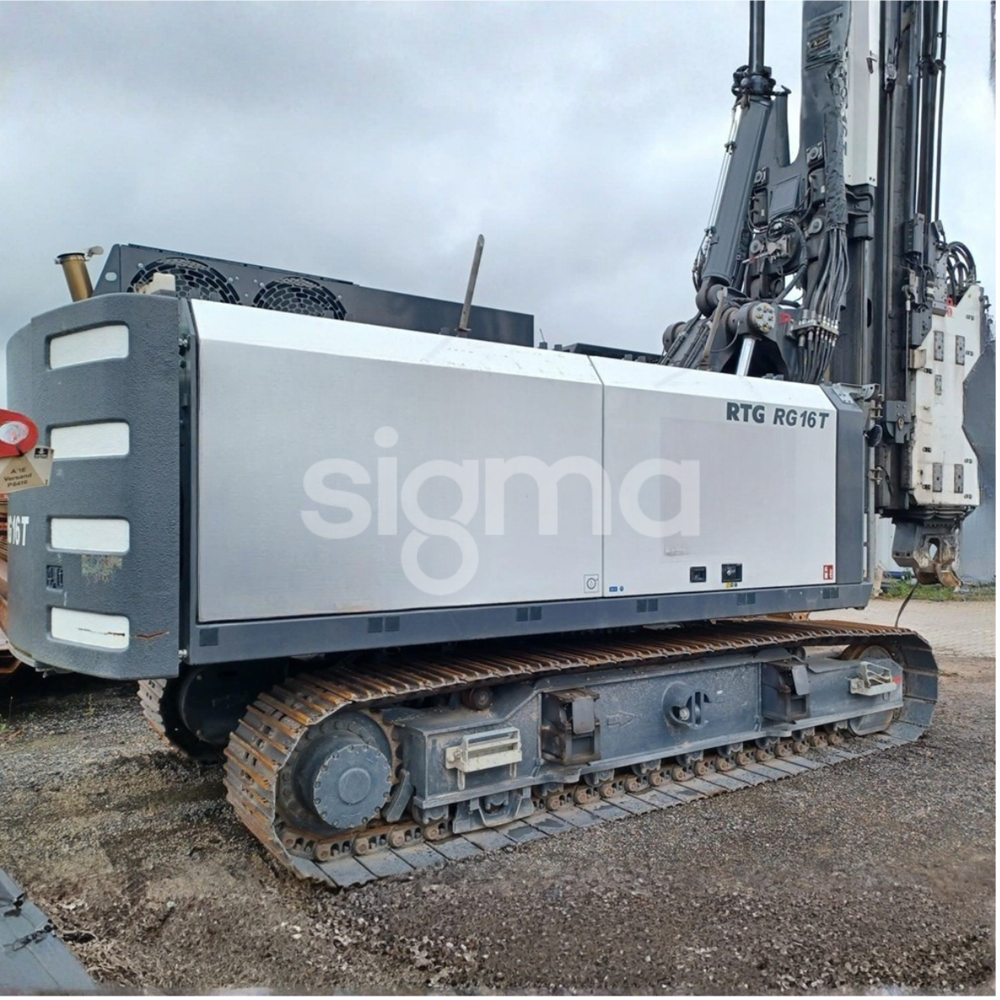

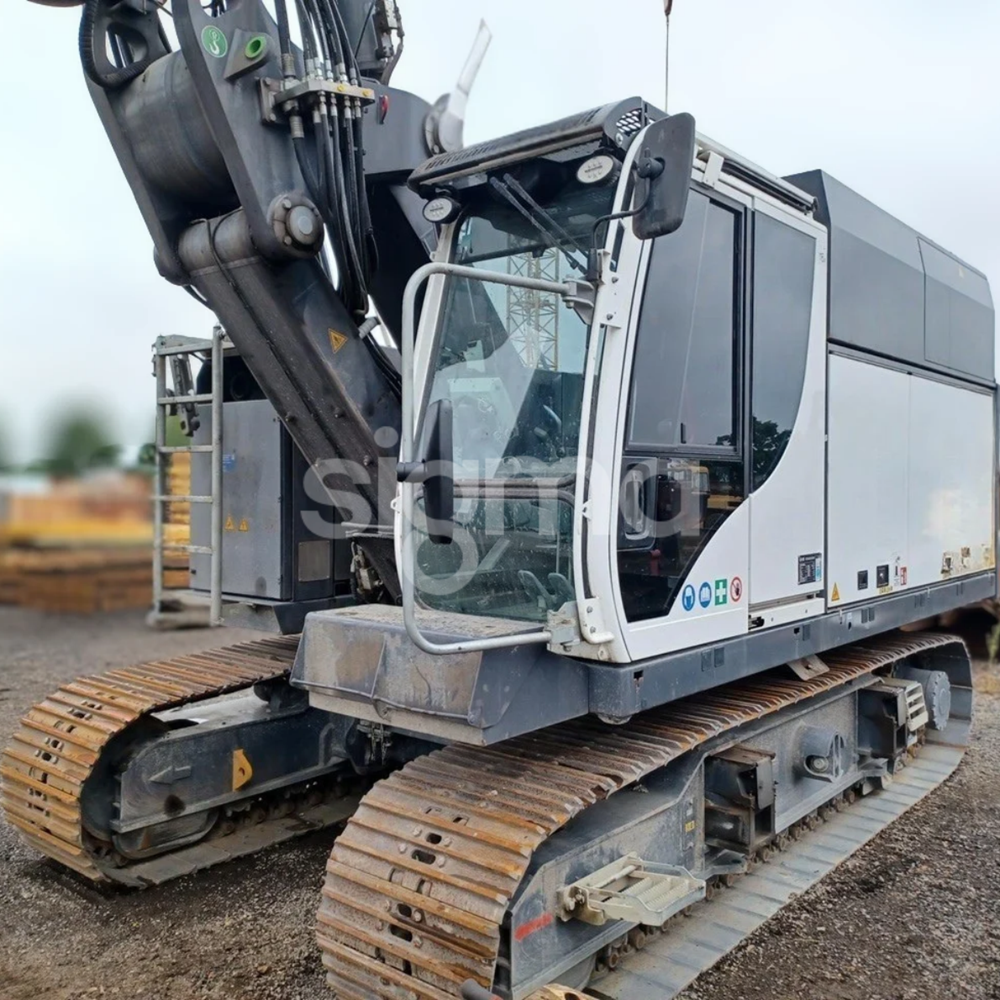

Overview
Machine location:
Europe
Stock number:
PF 41218
Categories:
Hammer Piling Rigs
Manufacturer:
Bauer
Model:

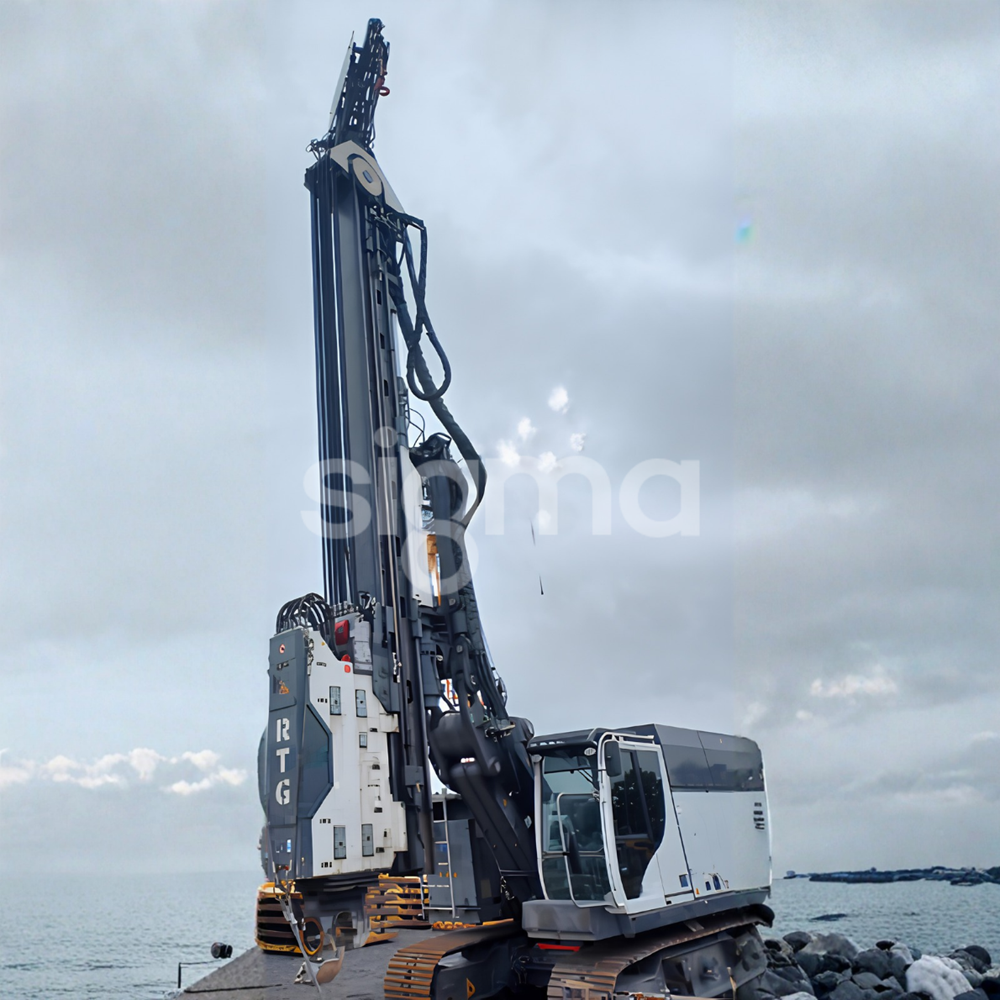

RG 16 T
Year of manufacture:
2022
Working hours:
901
Machine specs
Working hours: 901
Engine
Engine make & model: CAT C13-B
Engine power (HP): 577 HP @ 1,800 rpm
Emission standard: EU Stage 5
Fuel tank capacity (L): 610L
Hydraulic System
Main pumps (type & flow): 2 x 325 L/min
Max operating pressure: 350 Bar
Hydraulic oil tank: 780L

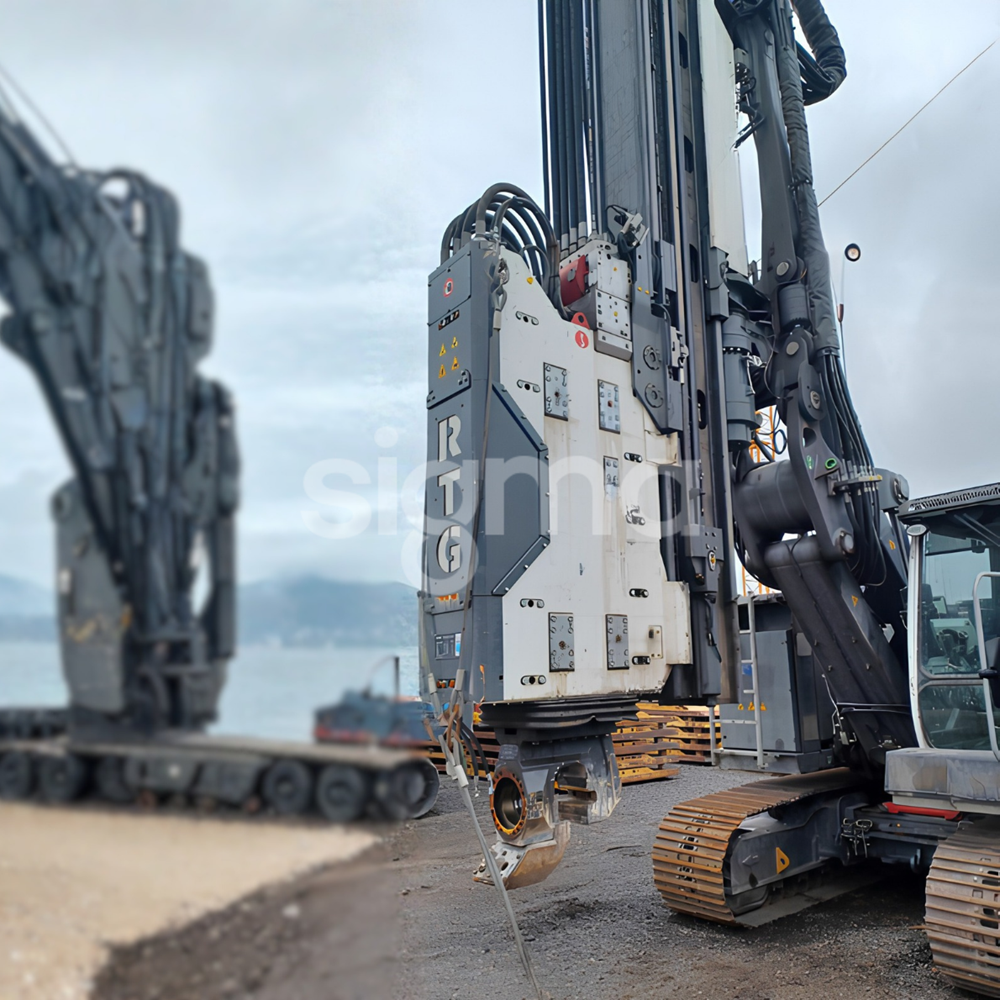

Vibro hammer make & model: Bauer MR 95 AVM
Max centrifugal force:
Standard mode: 870 kN
Amplitude mode: 950 kN
Speed mode: 800 kN
Eccentric moment:
Standard: 15 kgm
Amplitude: 21 kgm
Speed: 11 kgm

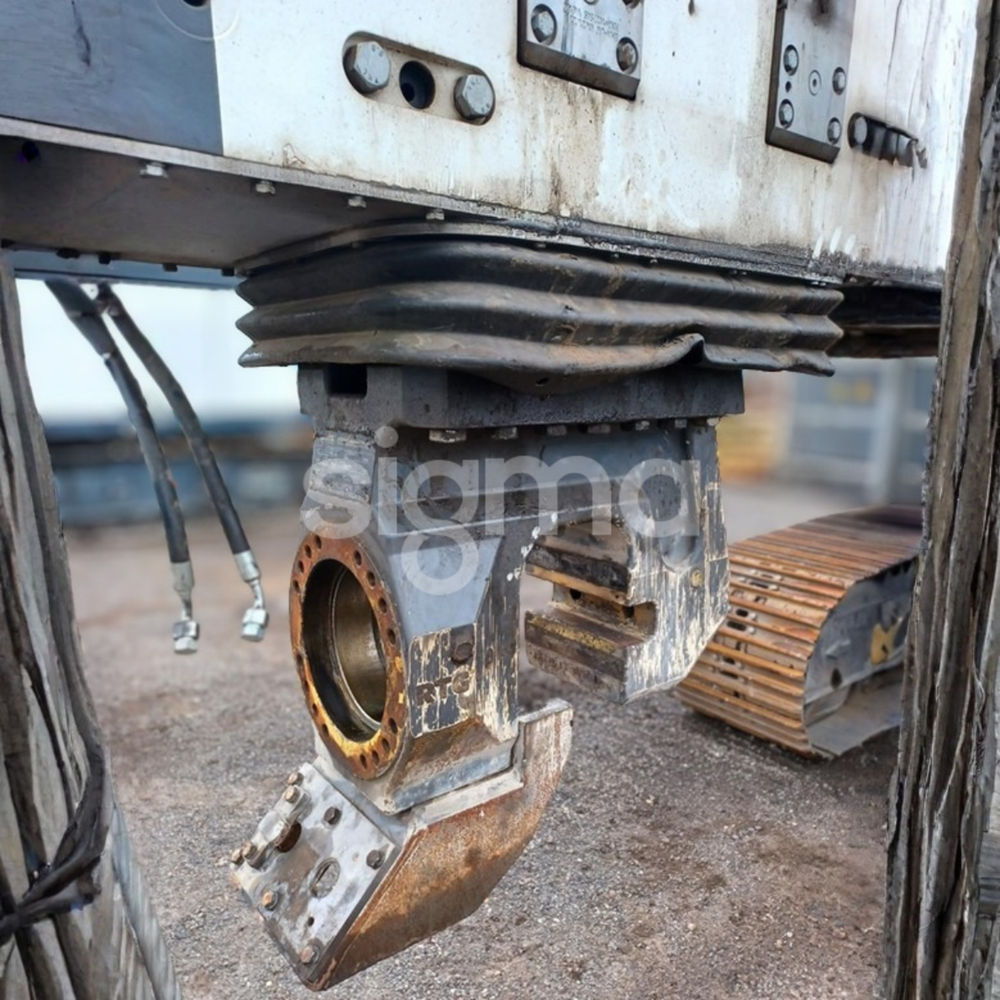

Clamp type: MRZ 106
Power pack: Intergrated

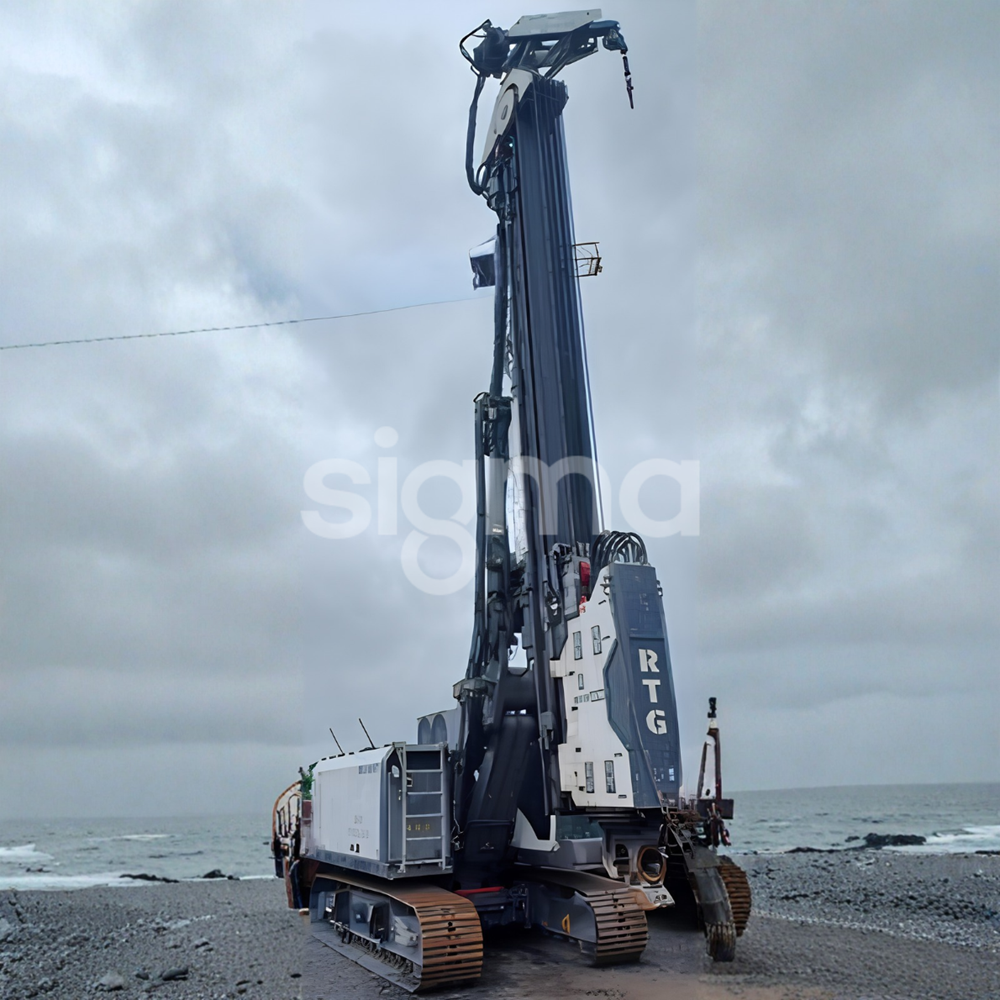

Leader type: Vibro / Universal
Leader length: Total stroke 16.0 m
Tilting capability: Slew range: ±100°
Auxiliary winch capacity: 6t

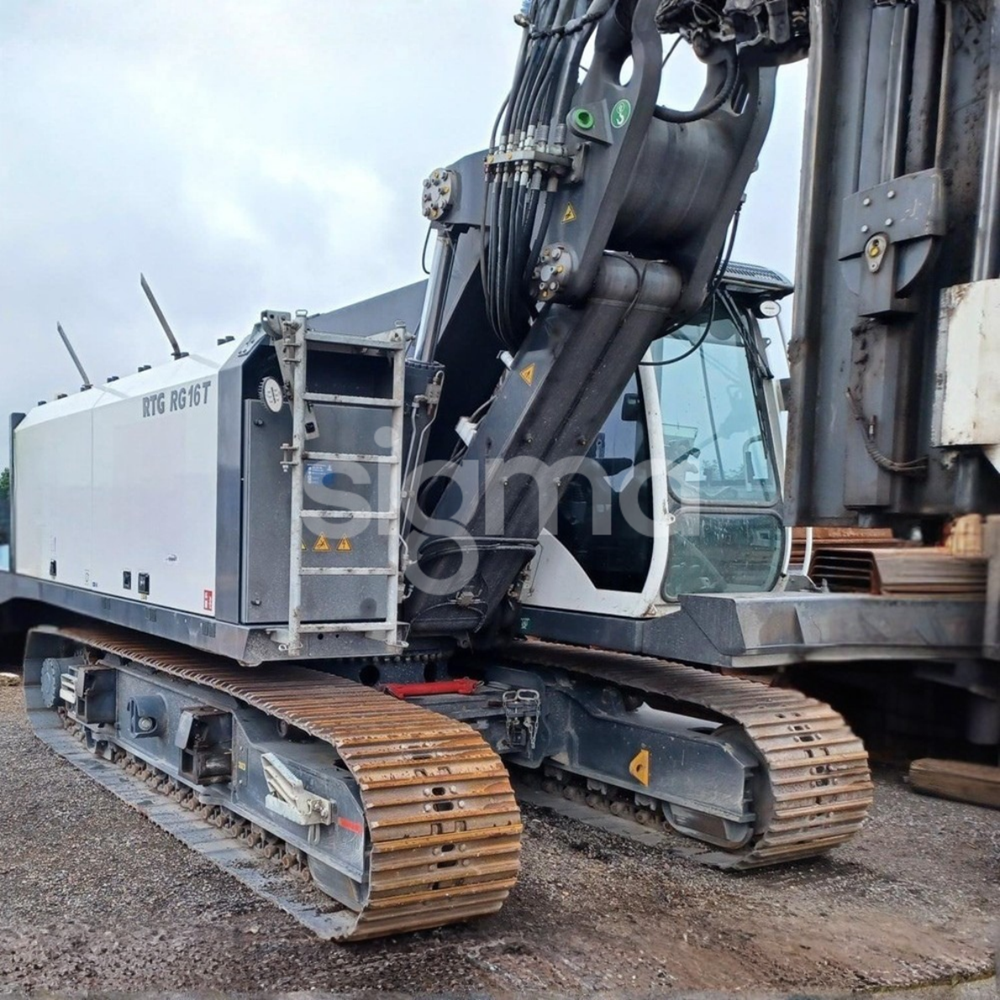

Undercarriage
Undercarriage type: Tele 27/330
Track shoe width: 700mm

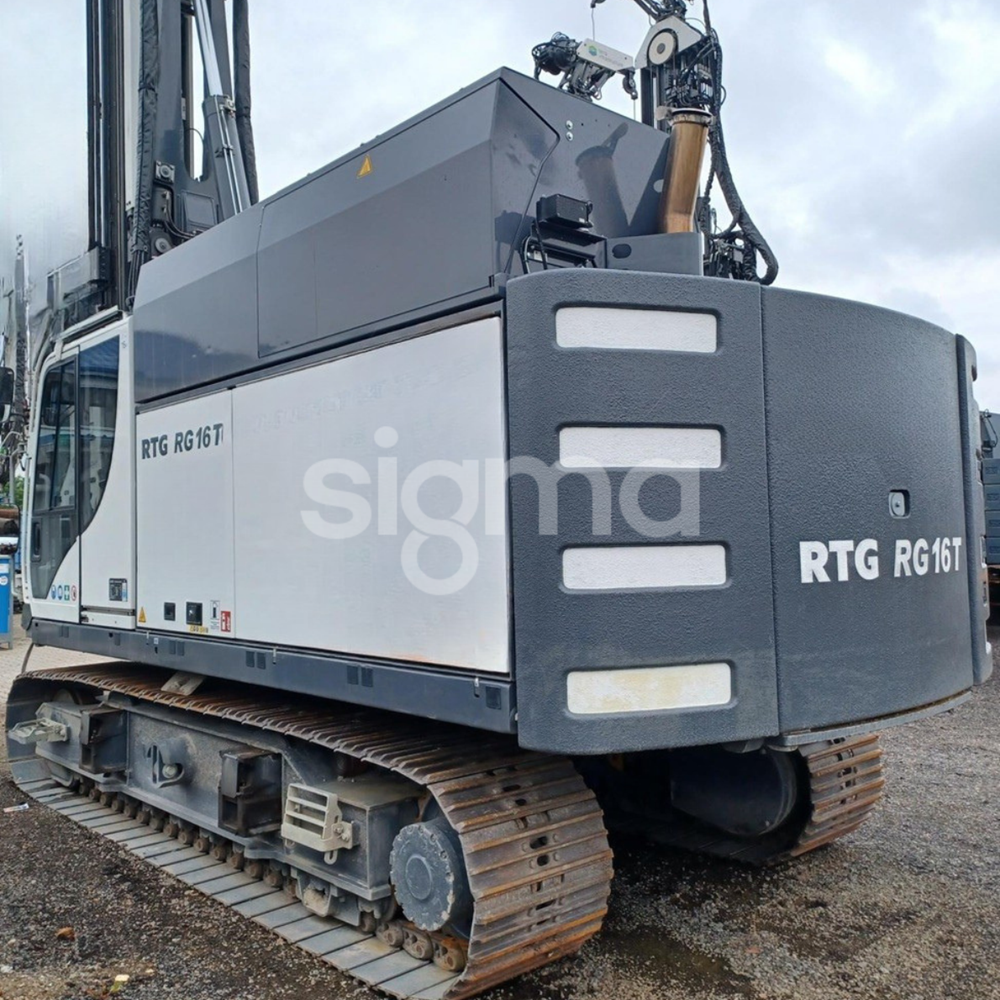

Counterweight: 4.1 t + 1.9 t
Dimensions and Weight
Working width: 4,200
Transport width: 3,000mm
Transport height: 3,250mm
Transport length: 11,900mm
Operating weight: 50.2
