Overview
Machine location:
Europe
Stock number:
PF 41216
Categories:
Hammer Piling Rigs
Manufacturer:

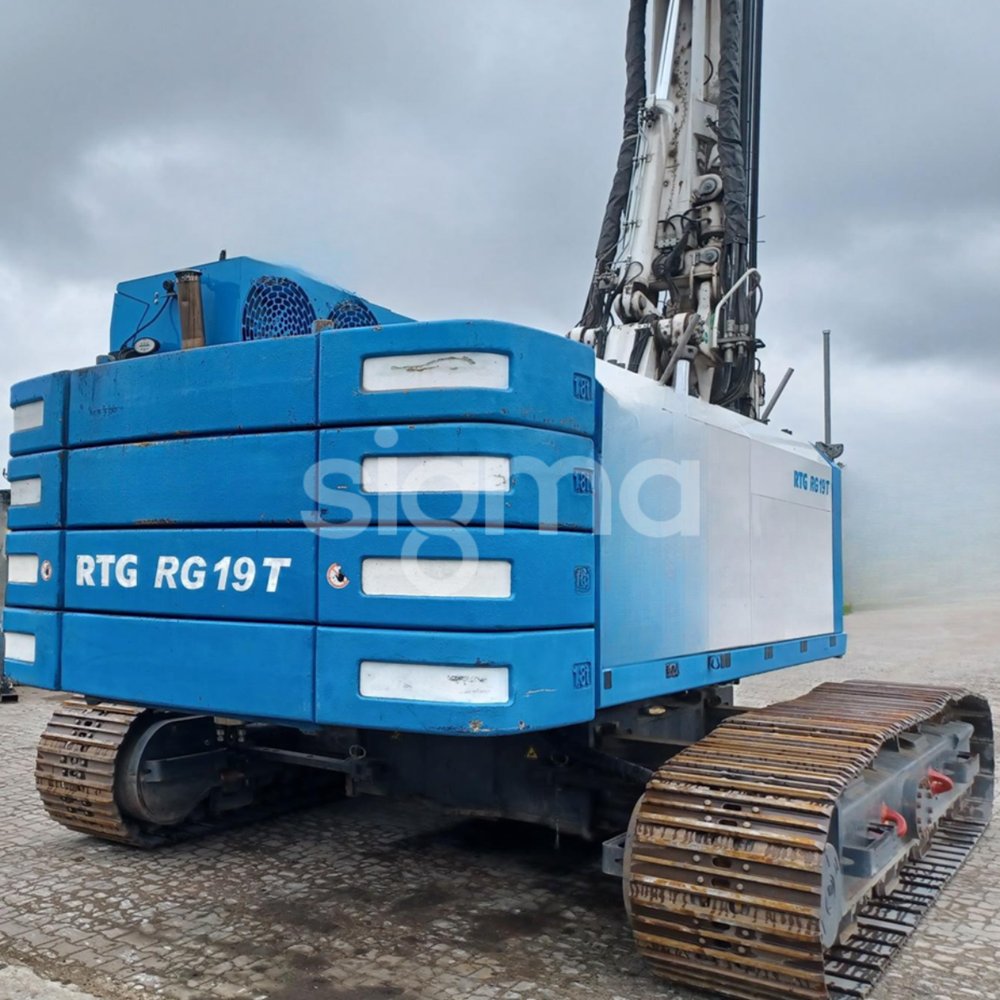

Bauer
Model:

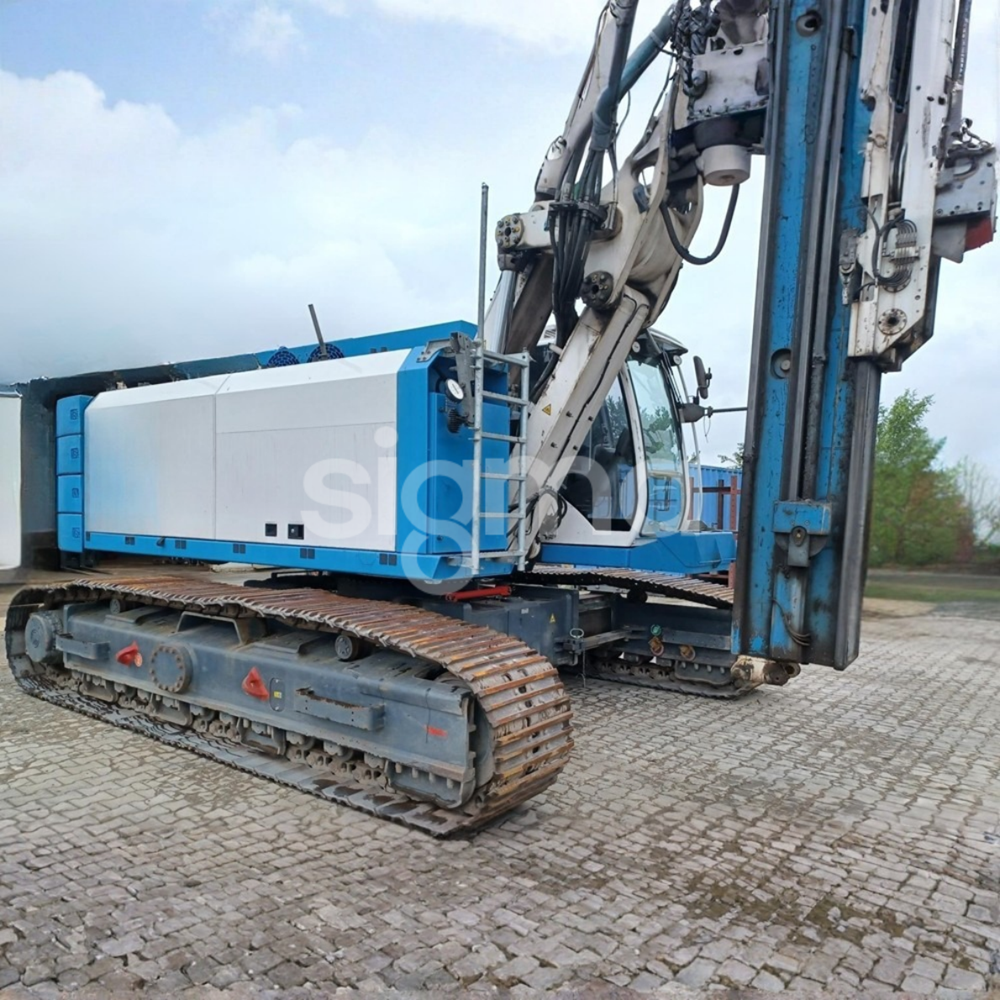

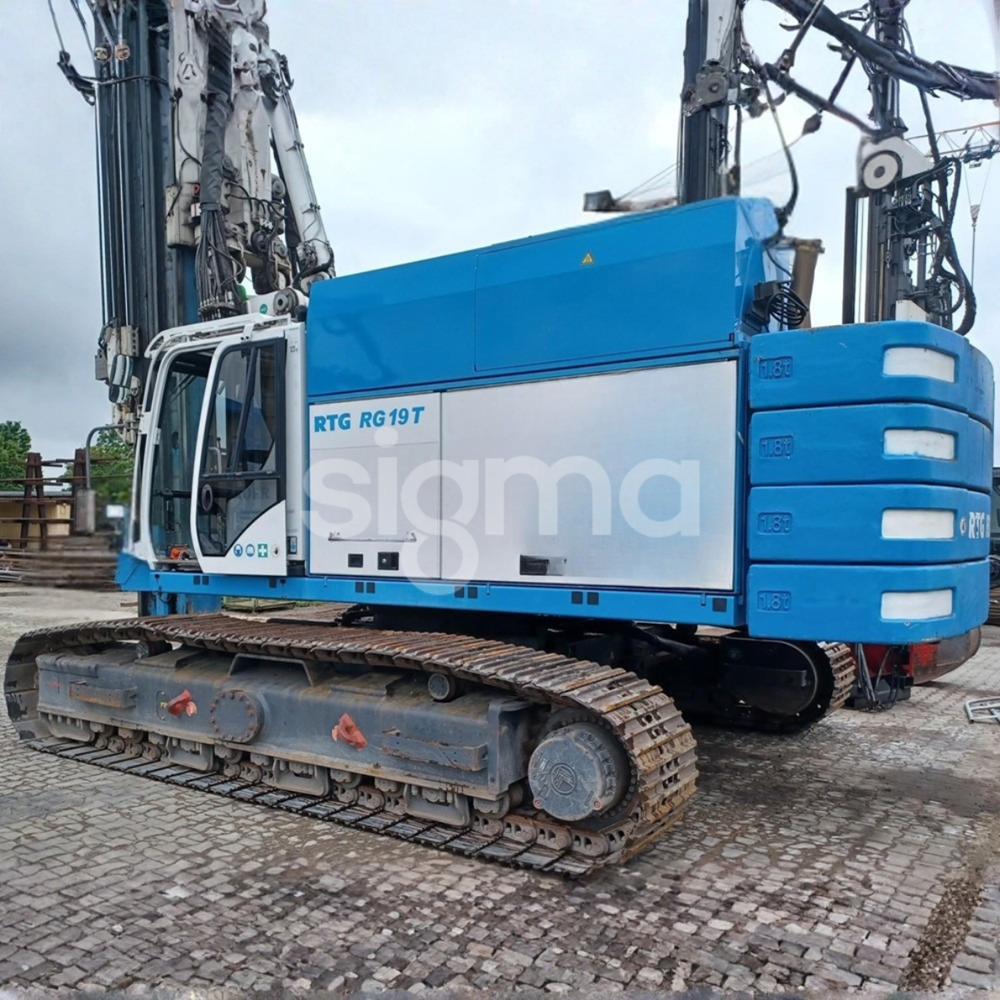

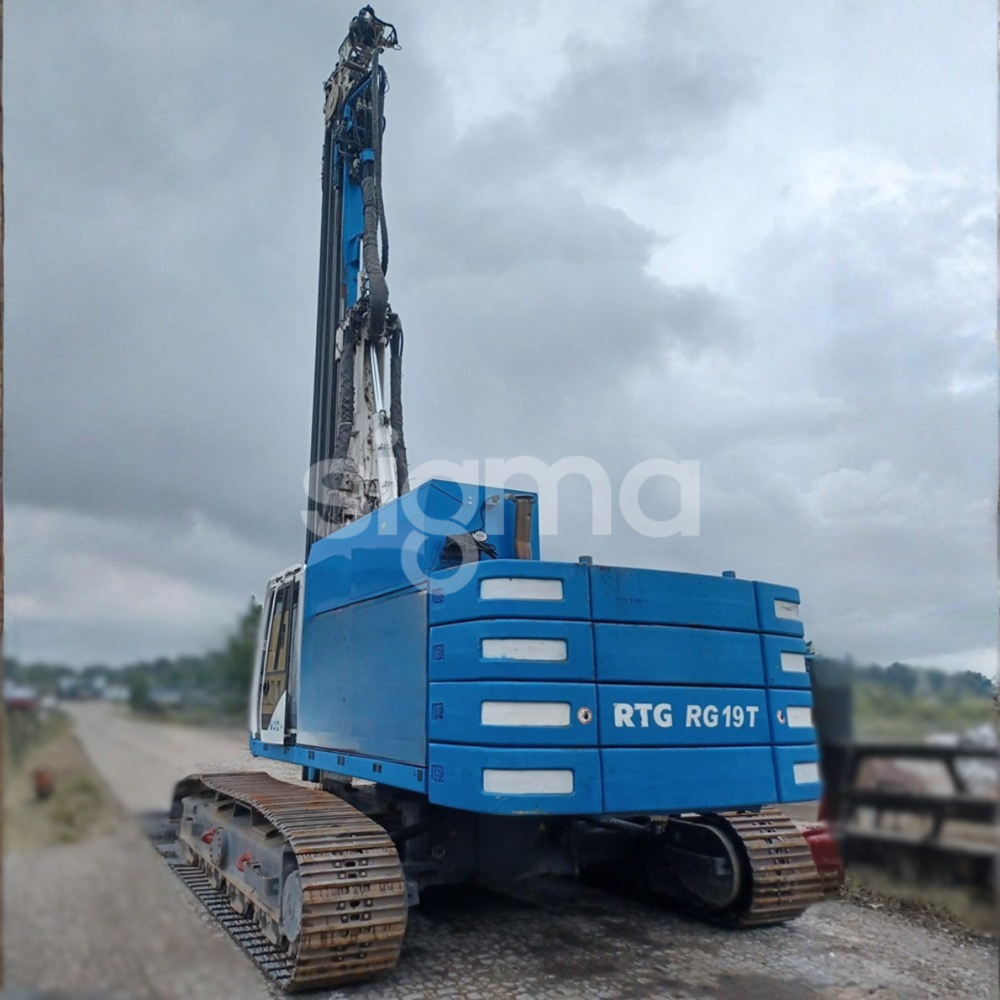

RG 19 T
Year of manufacture:
2018
Working hours:
3306
Machine specs
Working hours: 3306
Engine
- Engine make & model: CAT C18
- Engine power (HP): 755HP @ 1800rpm
- Emission standard: Stage 4
- Fuel tank capacity (L): 730
Hydraulic System
Main pumps (type & flow): 2 x 425L/min
Max operating pressure: 350 bar
Hydraulic oil tank: 980L
Vibro hammer make & model: RTG MR 145 V
Max centrifugal force:1,450 kN
Eccentric moment: 0 – 28.4 kgm
Clamp type: MZR 150 clamp
Max pile length: 19M
Power pack: Integrated

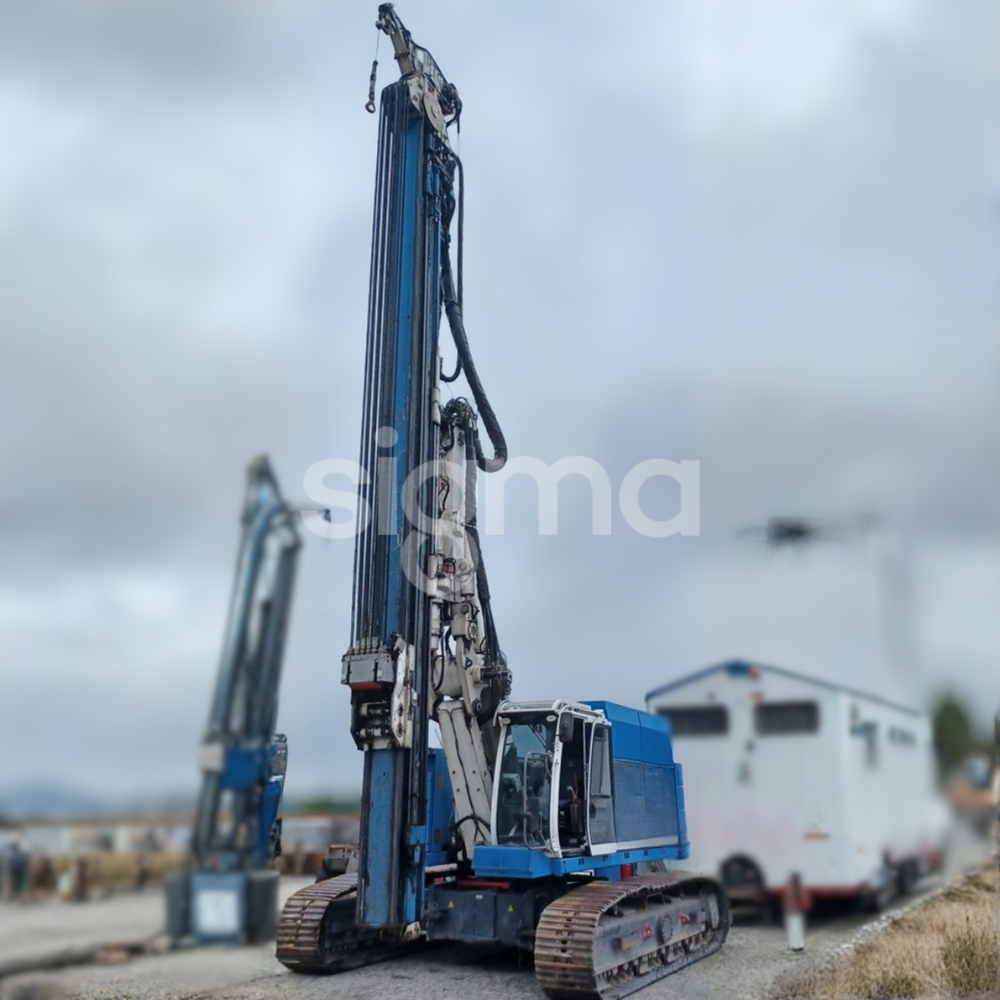

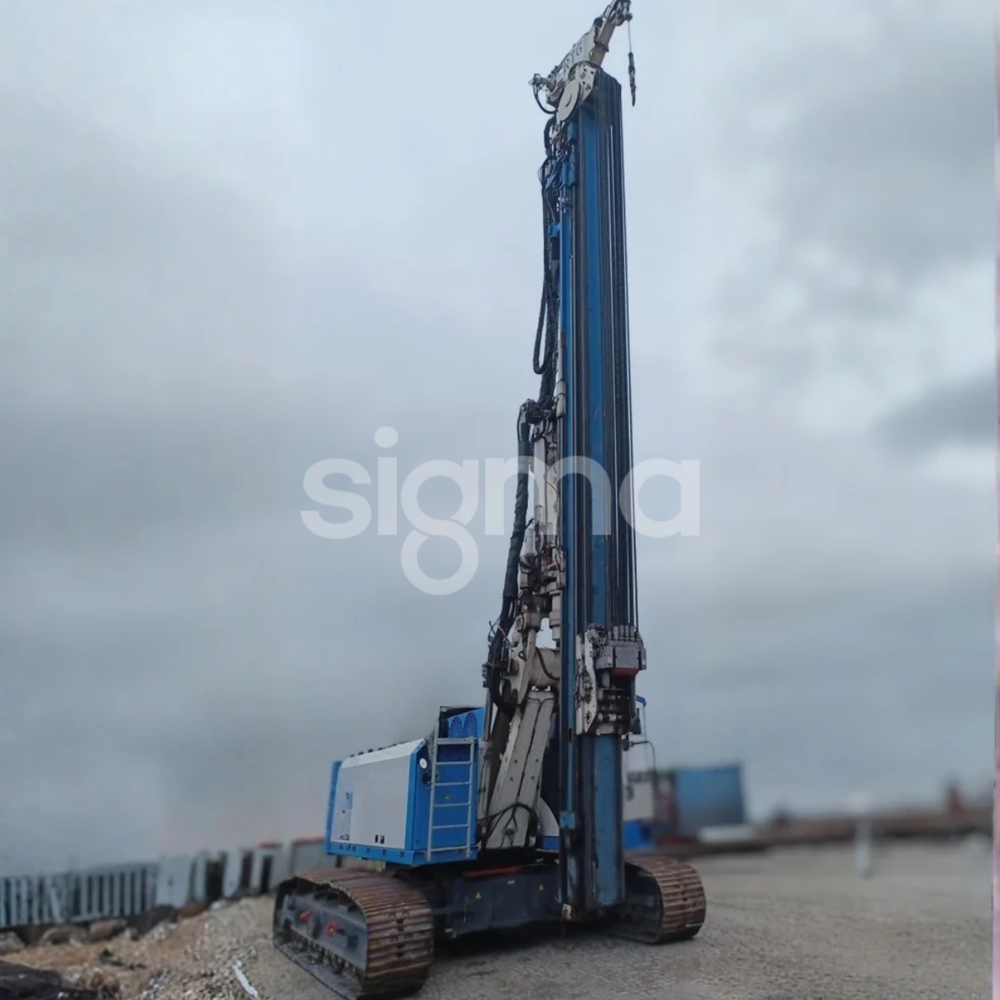

Leader type: Vibro / universal
Leader length: 19.38m total stroke
Tilting capability: ±100° slewing, incl. longitudinal & transverse tilt
Auxiliary winch capacity: 5.5 t
Pile handling device: vibro clamp
Undercarriage
Undercarriage type: UW 70 R (class B6/D7
Track shoe width: 700mm

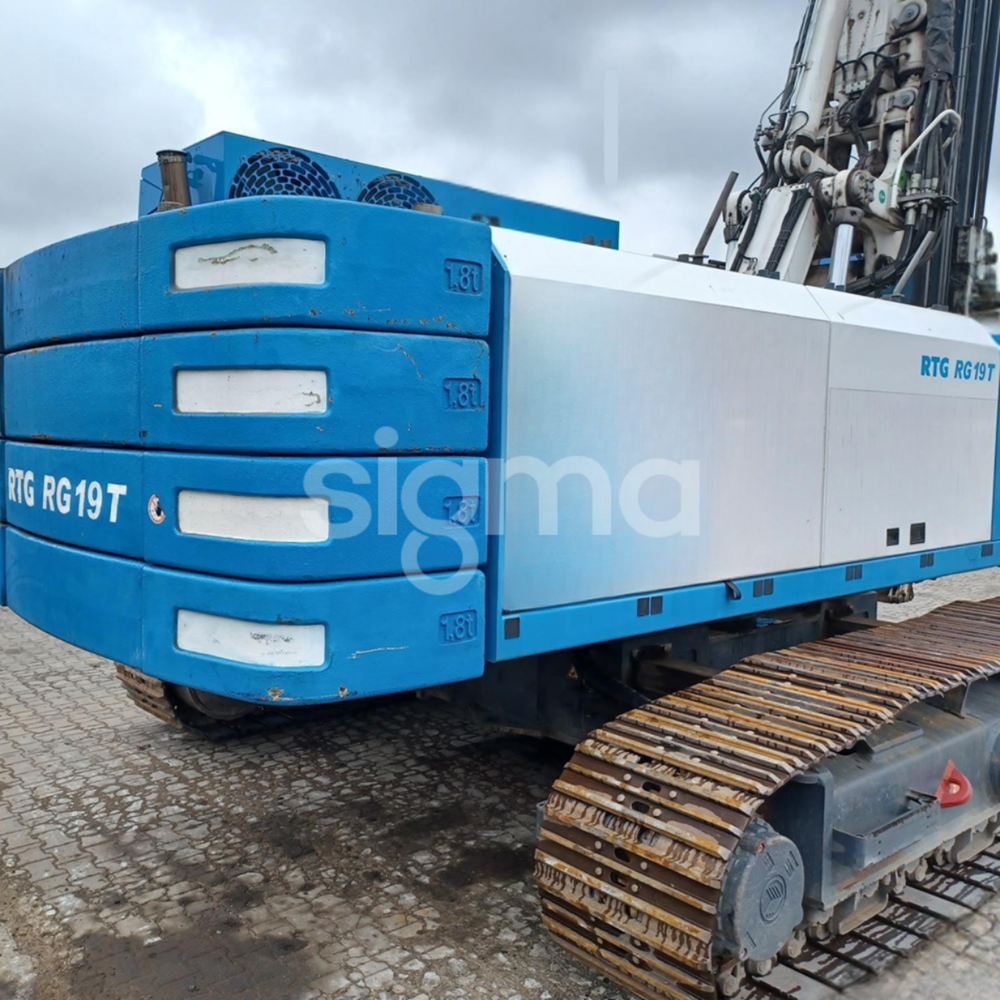

Counterweight: 7.2 t + 0.8 t console
Dimensions & Weight
Working width: 4,500mm
Transport width: 3,000mm
Transport height: 3,400
Transport length: 12,200mm
Operating weight: 95 - 100 depending on config
