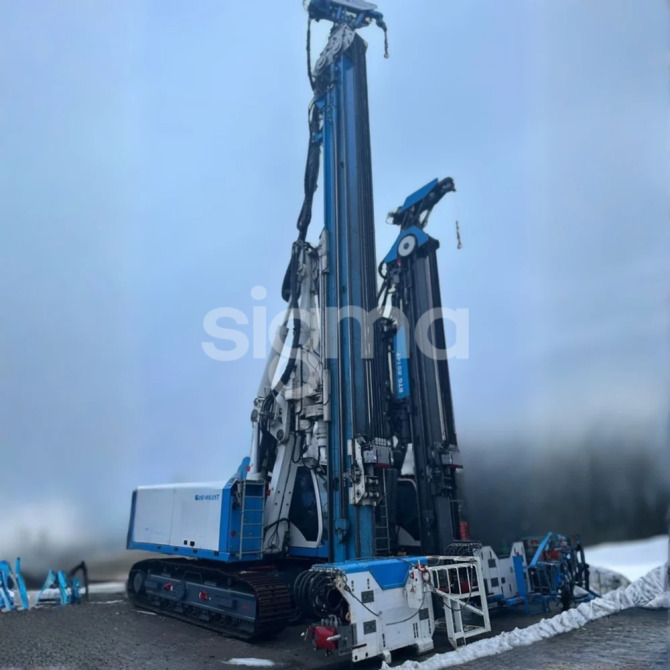

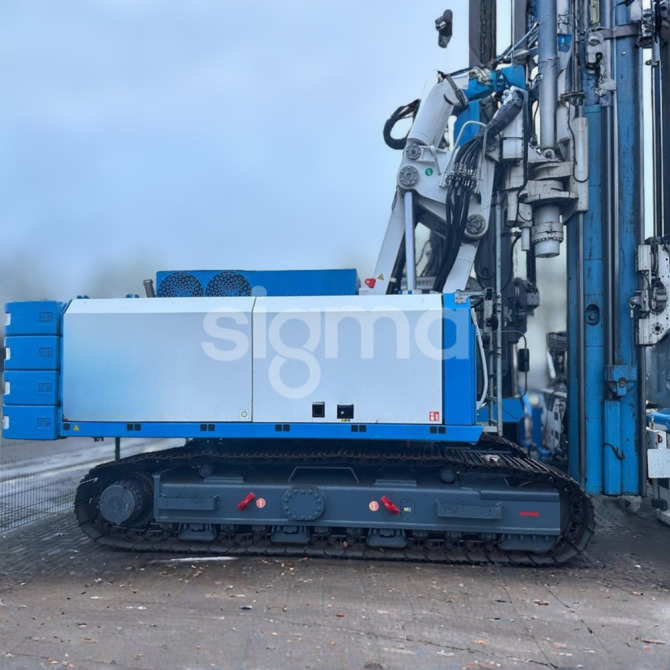

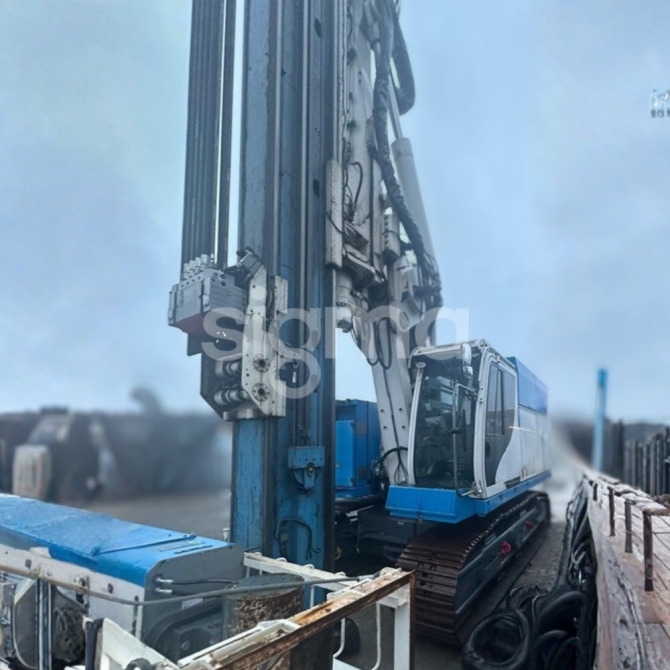

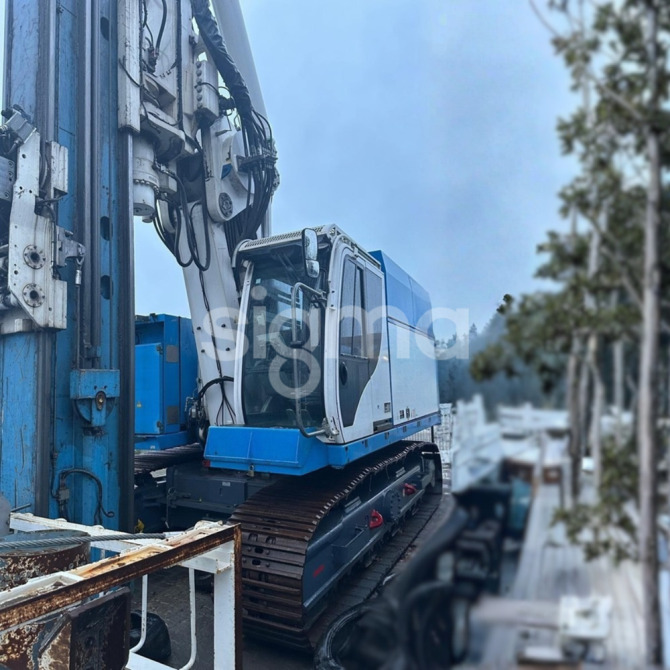

Bauer RG 21 T

Engine power (HP): 755@ 1,800 rpm

Emission standard: Tier 4

Fuel tank capacity (L): 730

Hydraulic System

Main pumps (type & flow): 2 x 425l

Max operating pressure: 350 bar

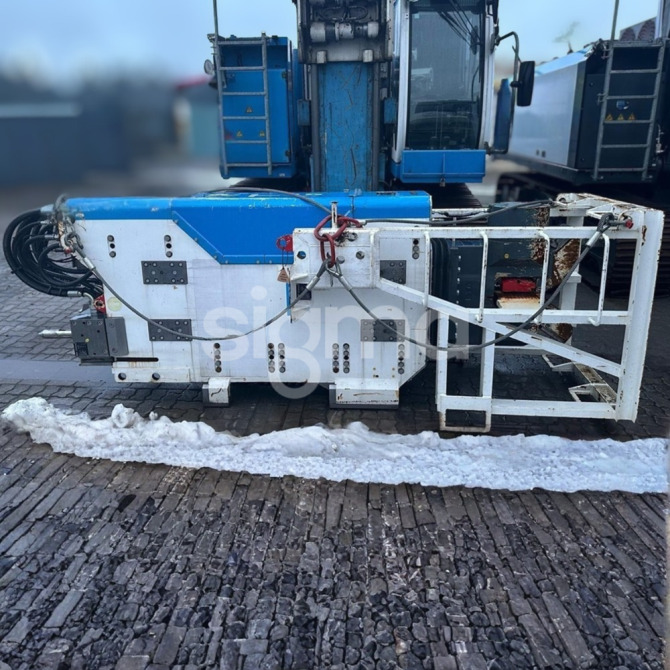

Vibro hammer make & model: RTG MR 150 AVM

Max centrifugal force: 1,500 kN

Eccentric Moment

Standard mode: 21.6 kgm

Amplitude mode: 28.4 kgm

Speed mode: 18.2 kgm

Clamp type: MRZ 150 clamp

Leader type: Vibro / Universal

Leader length: Total stroke 21.44 m

Tilting capability: ±90° slewing, longitudinal & transverse tilt

Auxiliary winch capacity: 5.5 t

Undercarriage type: UW 70 R

Track shoe width: 700 mm

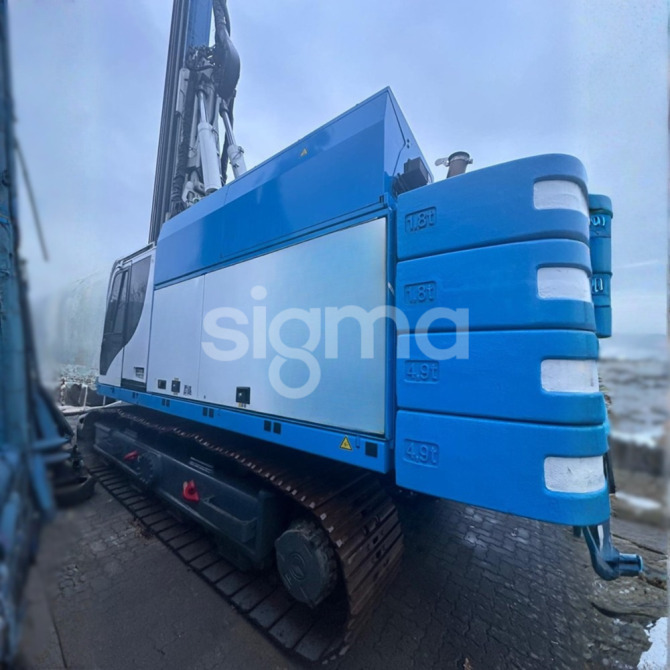

Counterweight

2x 4.9t

2x1.8t

Working width: 3,780 mm

Transport width: 2,280 mm
