Overview
Machine location:
United Kingdom
Stock number:
PF 41225
Categories:
Hammer Piling Rigs
Manufacturer:
BSP
Model:
JX-25-8
Year of manufacture:
2016
Working hours:
5767
Key features

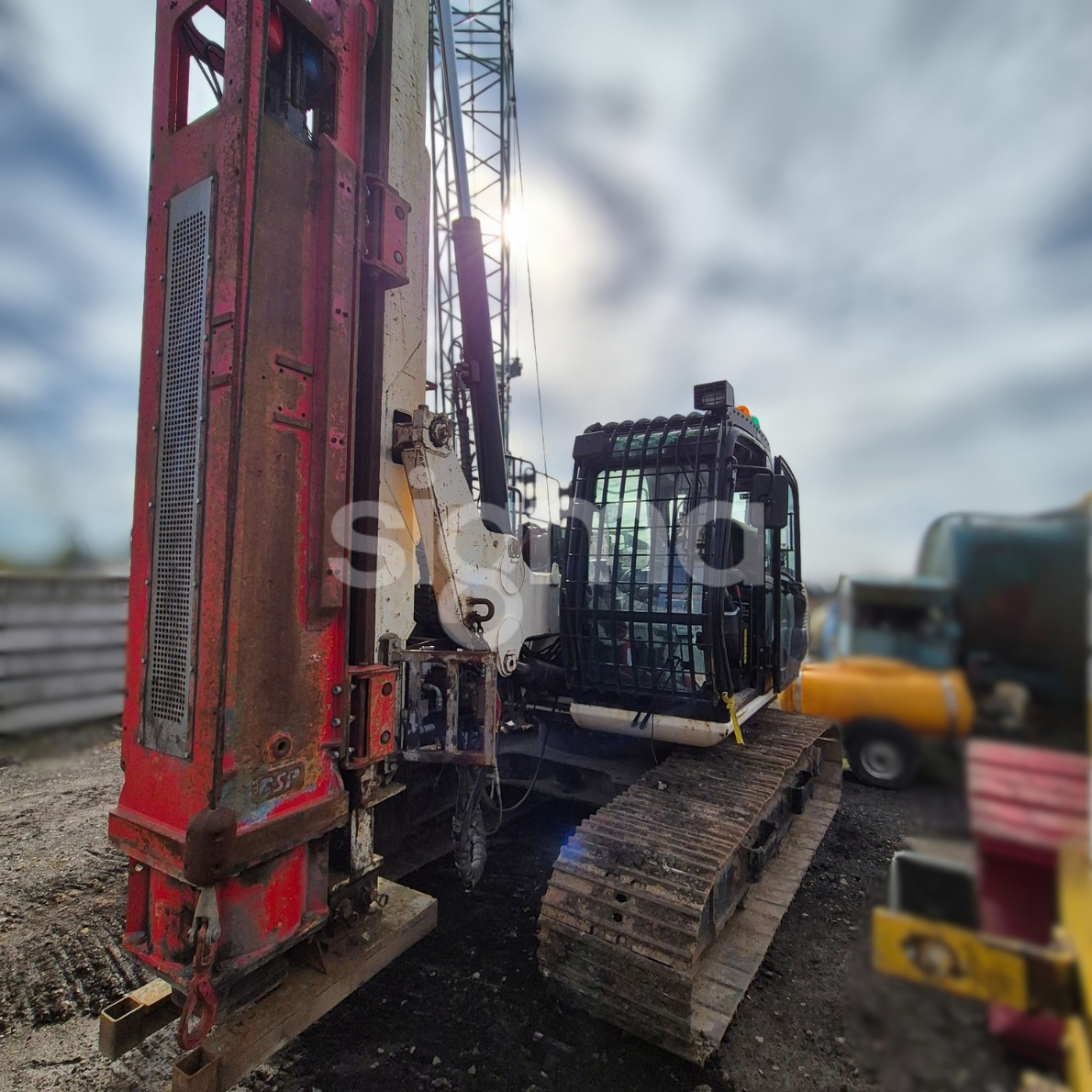

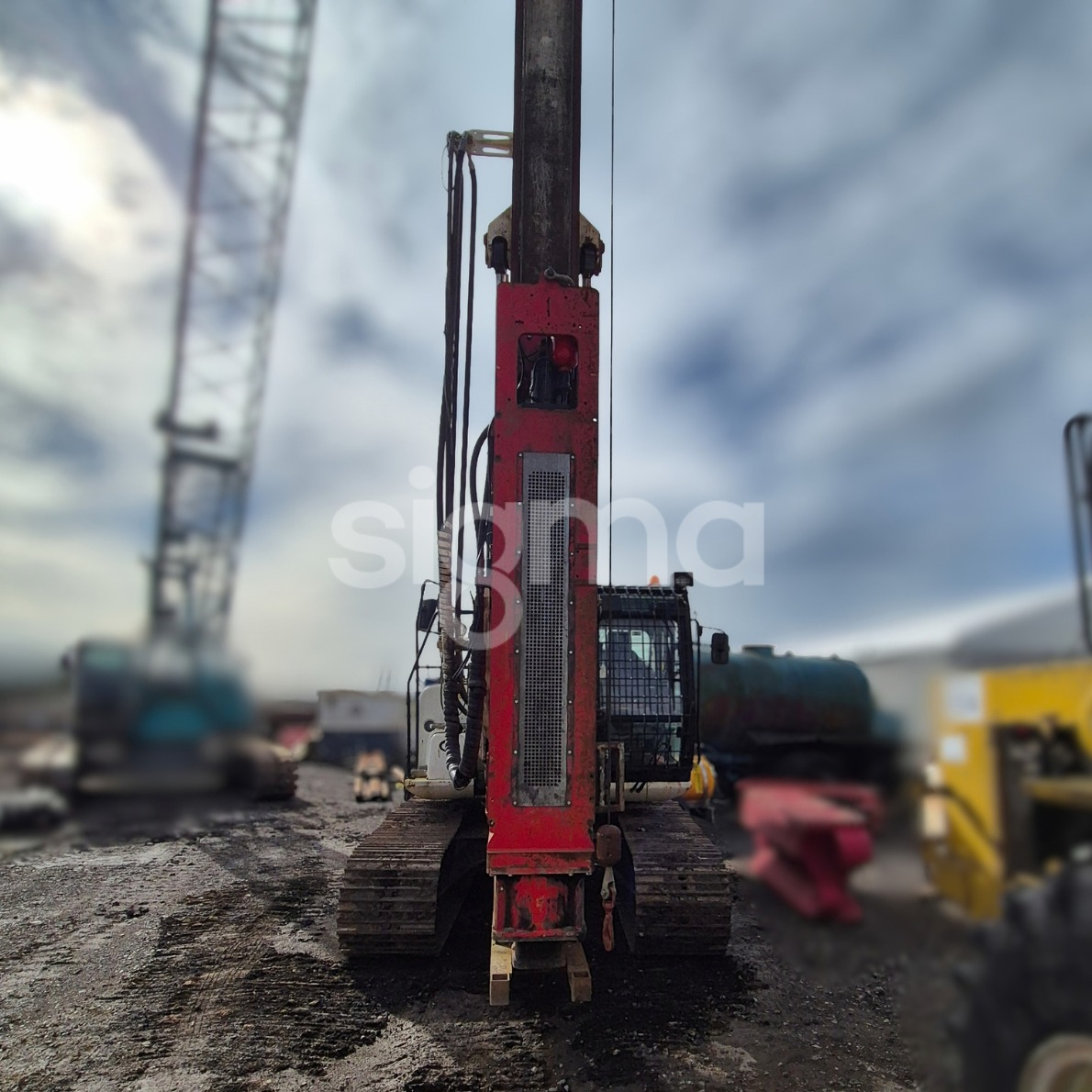

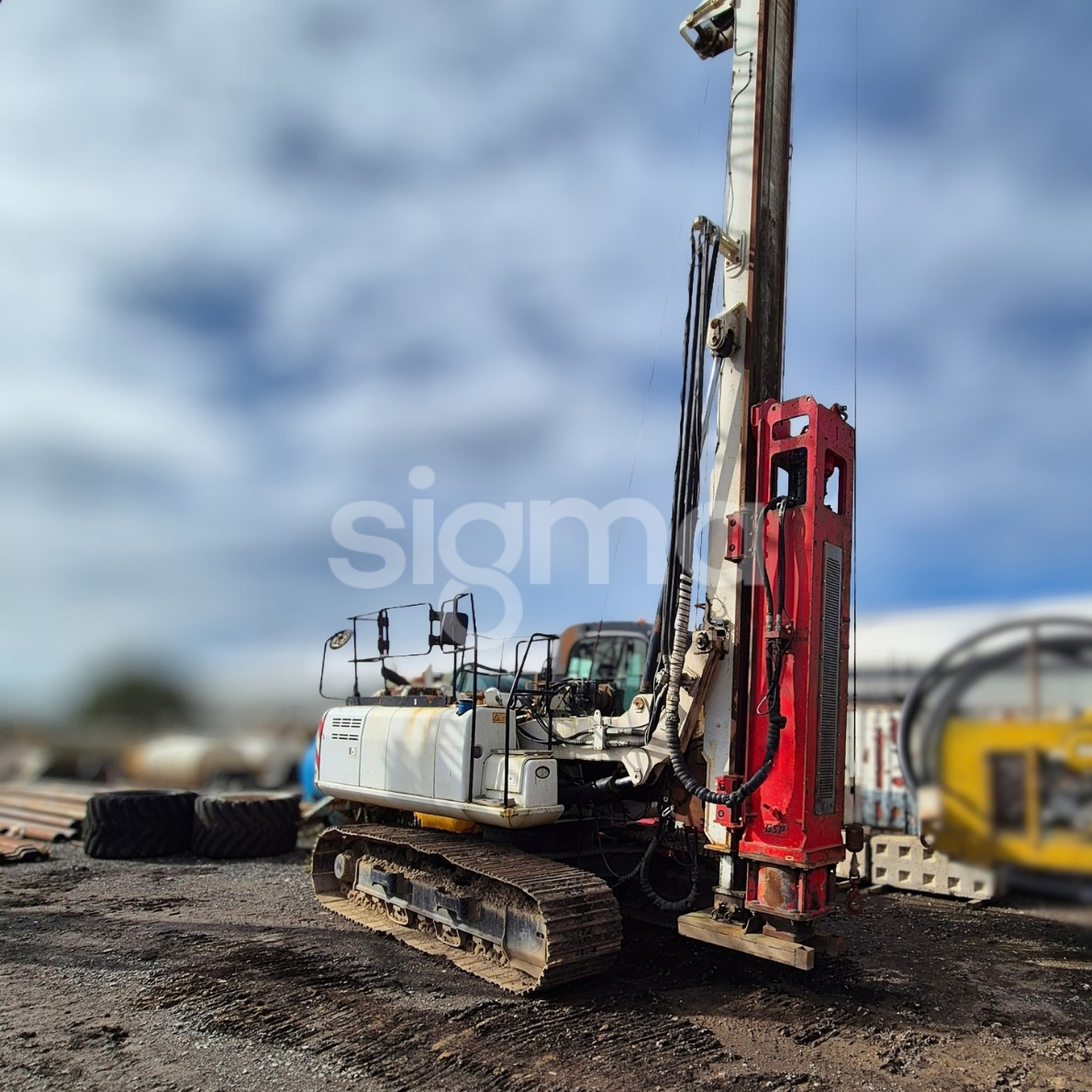

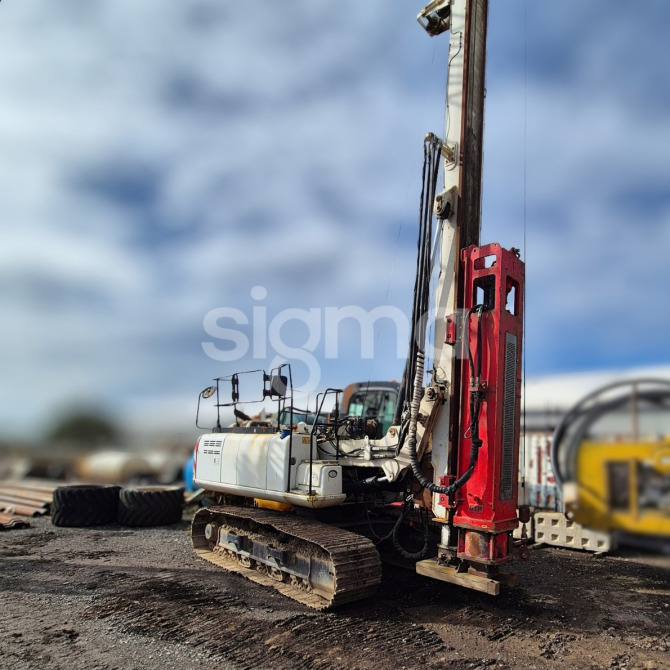

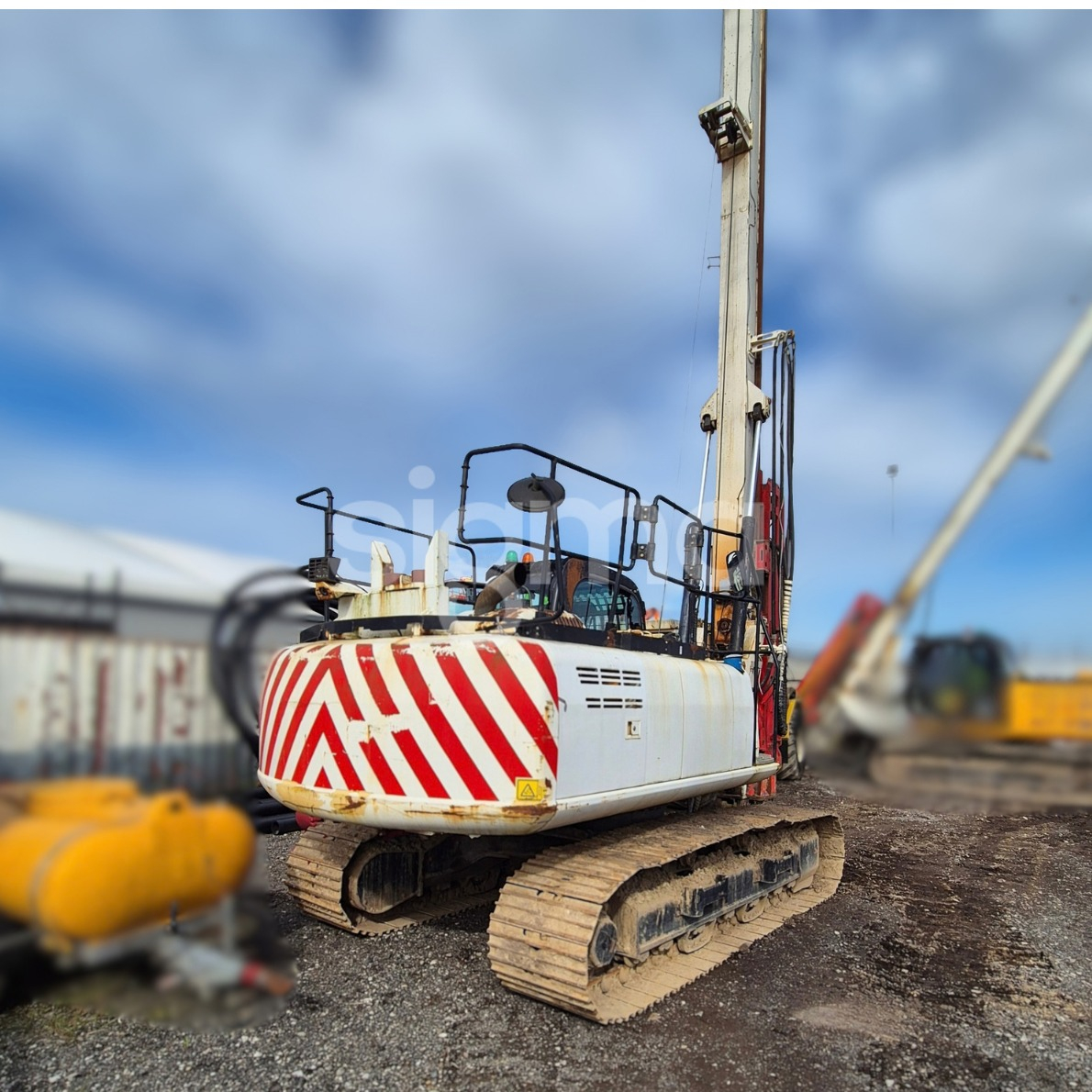

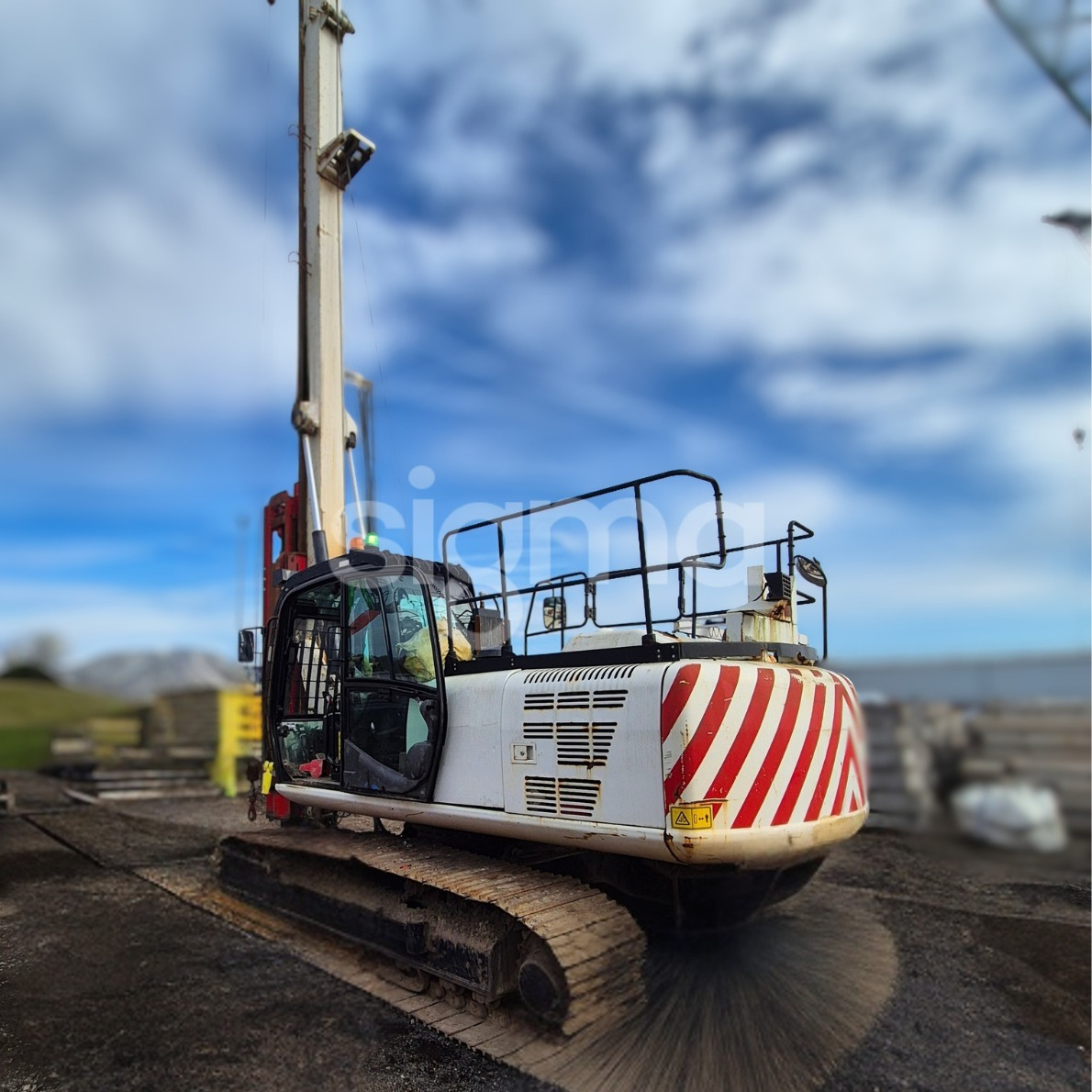

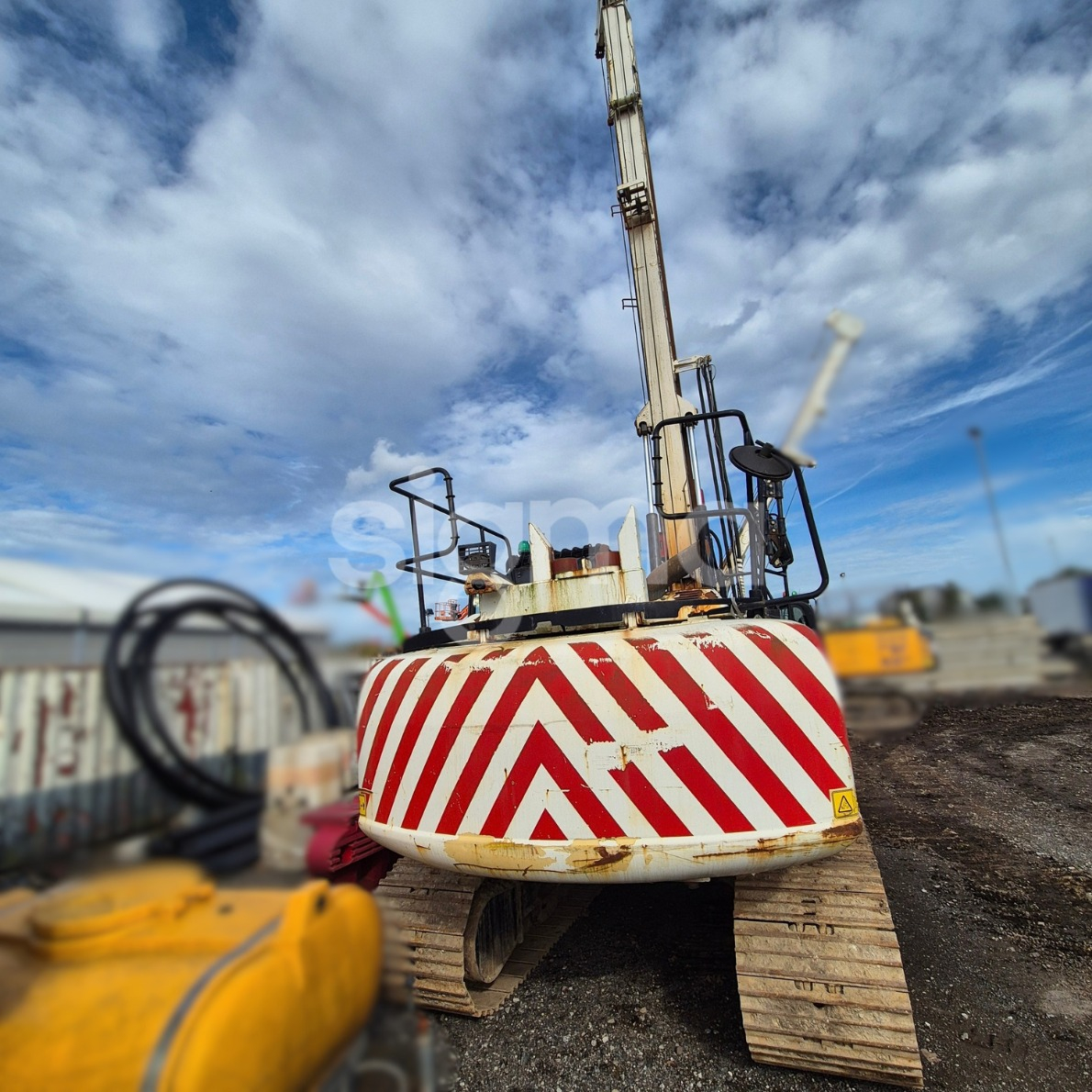

2016 BSP JX-25-8 piling rig with 5,767 working hours, equipped with a BSP DX25 hydraulic impact hammer.
- Steel, timber and concrete pile compatibility
- Fitted pile-driving helmet
- Pile handling / pitching winch
- In-cab piling controls

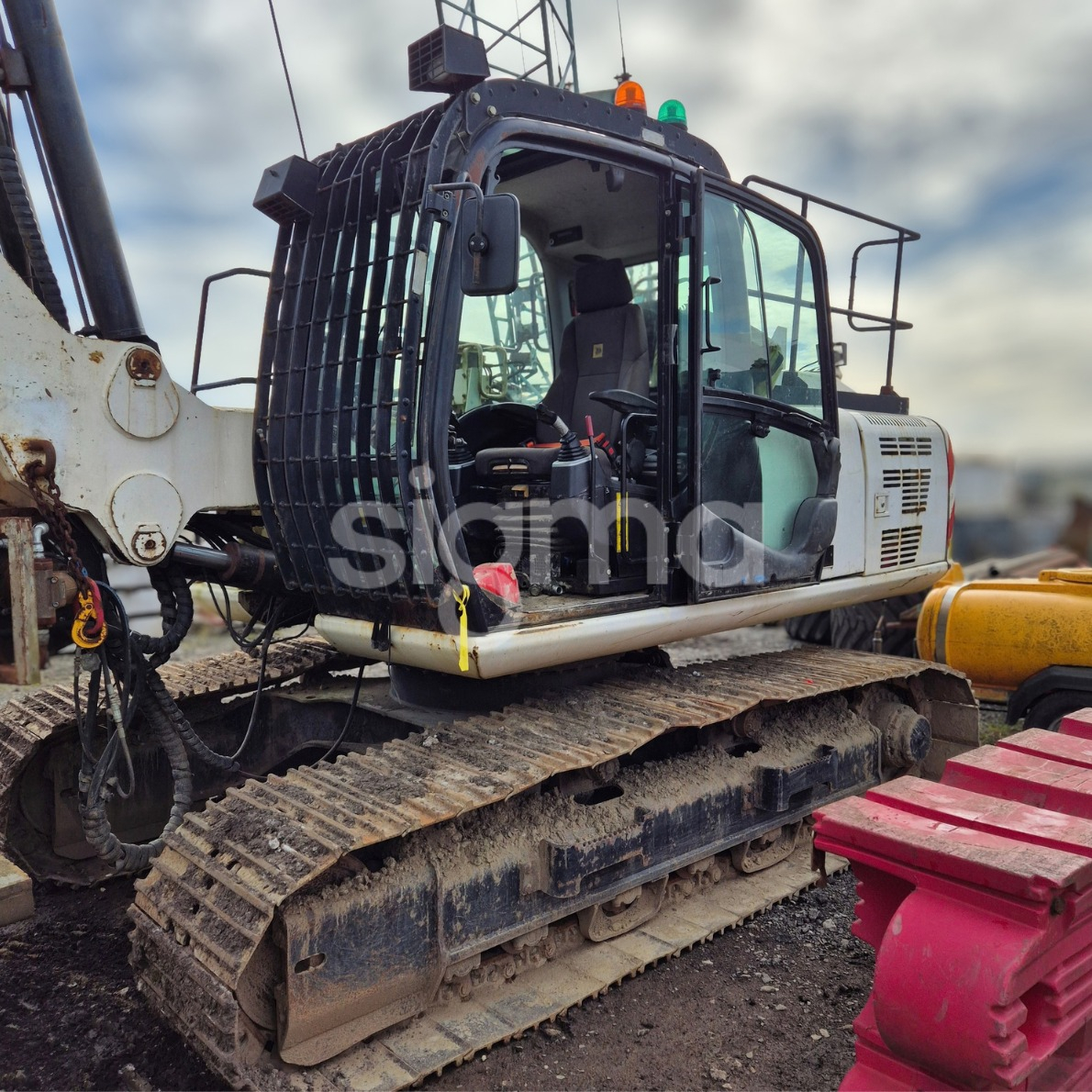

- Protective cab guard and upper handrails
Machine specs
Working hours: 5,767
Piling Configuration
Piling method: Hydraulic impact pile driving
Max pile length (m): 8
Hammer System

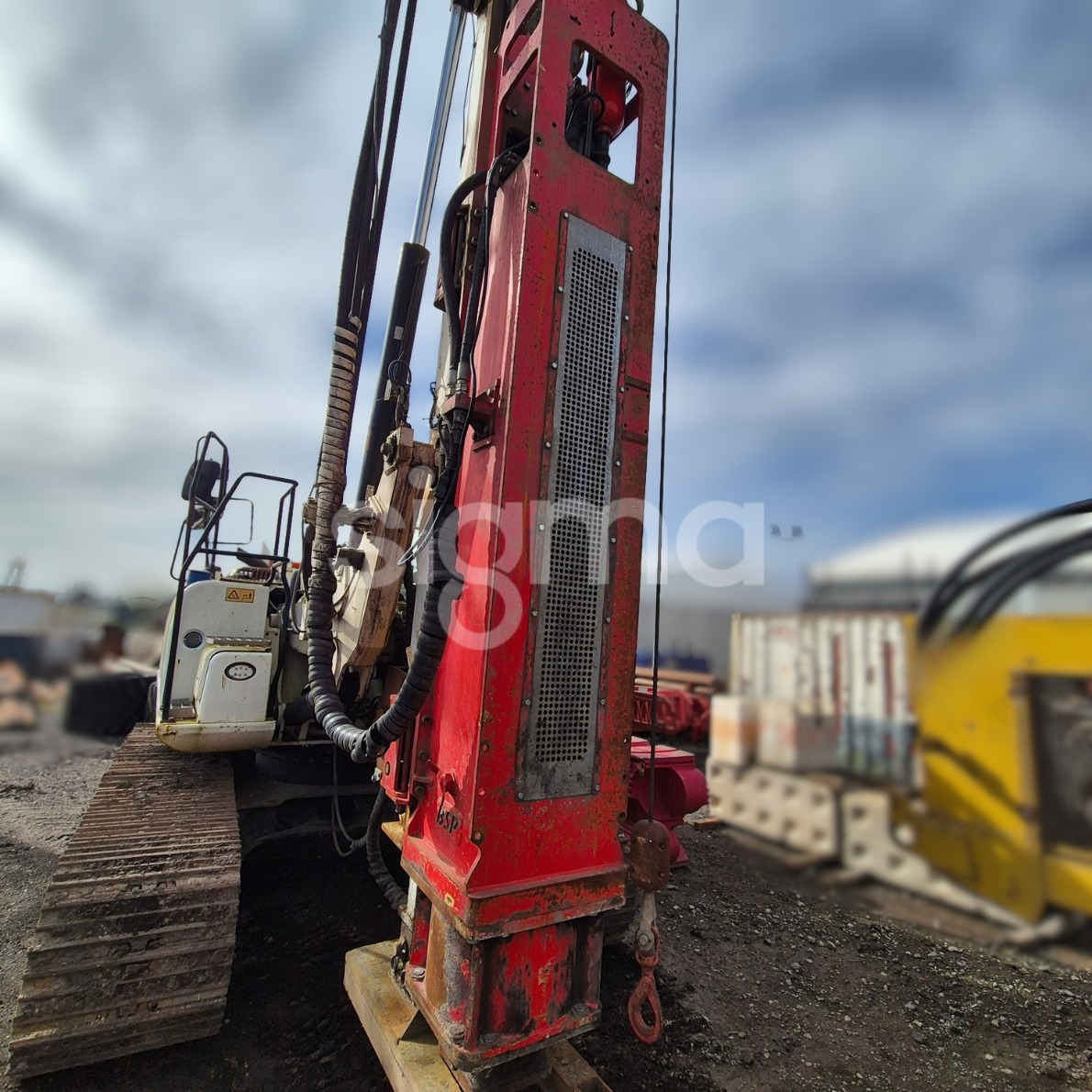

Hammer make & model: BSP DX25
Hammer dropweight (kg): 2,000
Impact energy (kNm): 25
Blow rate (blows/min): 60 at rated energy
Hammer weight (kg): 4,500
Leader / Mast
Leader type: Hydraulically positioned leader
Power Unit
Engine make & model: JCB Ecomax
Engine power (kW / HP): 129 kW
Control & Operator Environment

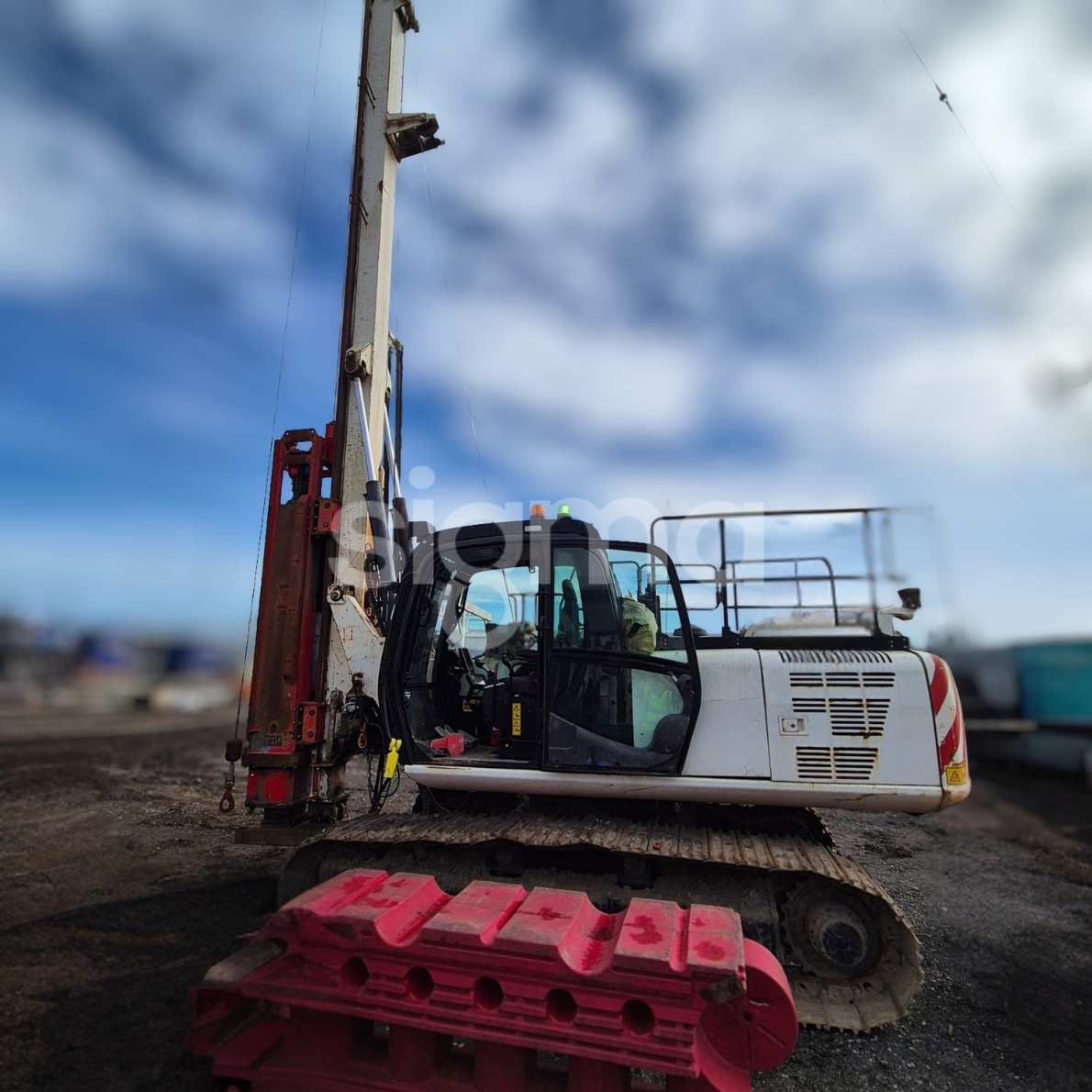

Cab type: Enclosed operator cab
Undercarriage & Mobility

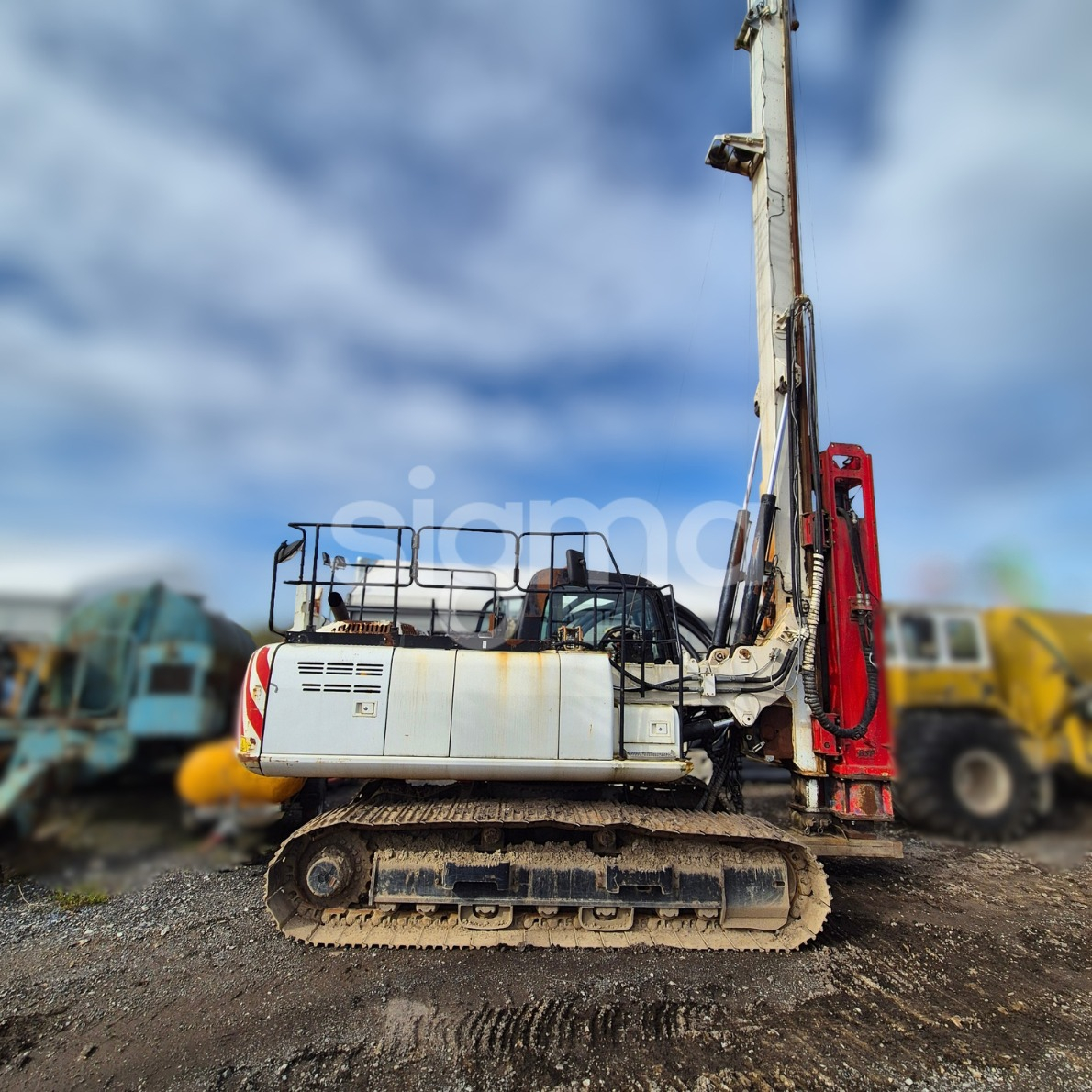

Undercarriage type: Tracked crawler chassis
Track shoe width (mm): 700
Dimensions & Weight
Working height (mm): 13,000
Transport width (mm): 3,100
Transport height (mm): 3,600 including hammer
Transport length (mm): 12,380
Operating weight (kg): 30,300 including hammer and maximum pile
Transport / shipping configuration: Hammer fitted; 28,600 kg transport weight
