Overview
Machine location:
United Kingdom
Stock number:
PF 40983
Categories:
CFA Piling Rigs
Manufacturer:

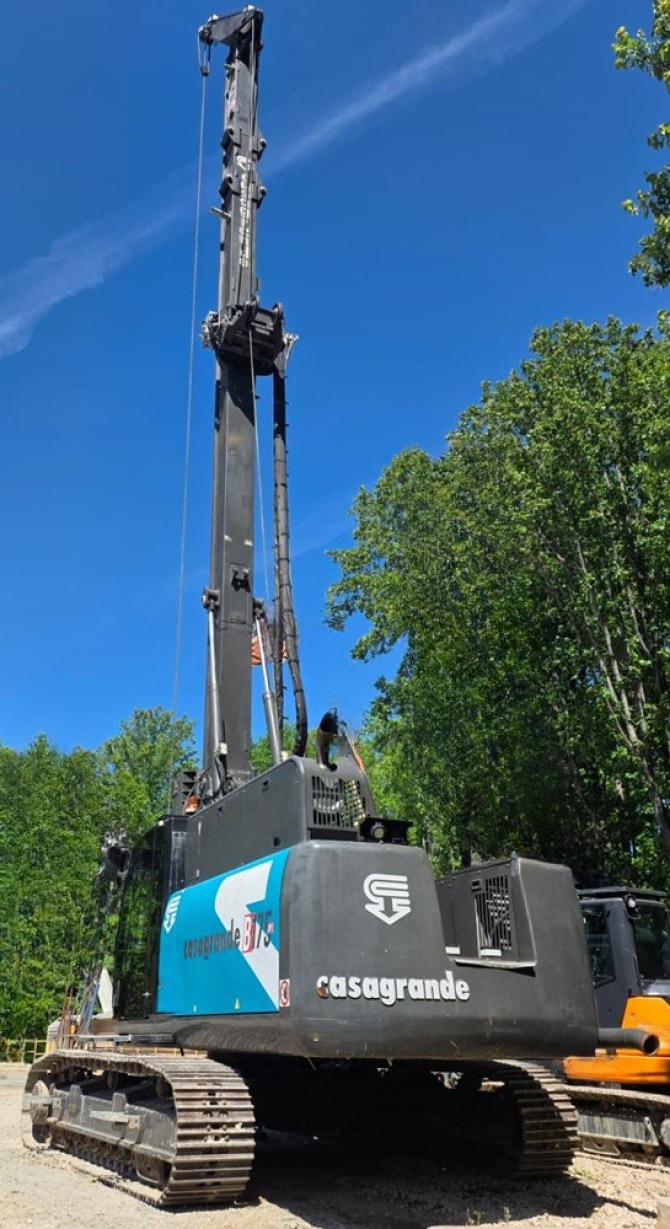

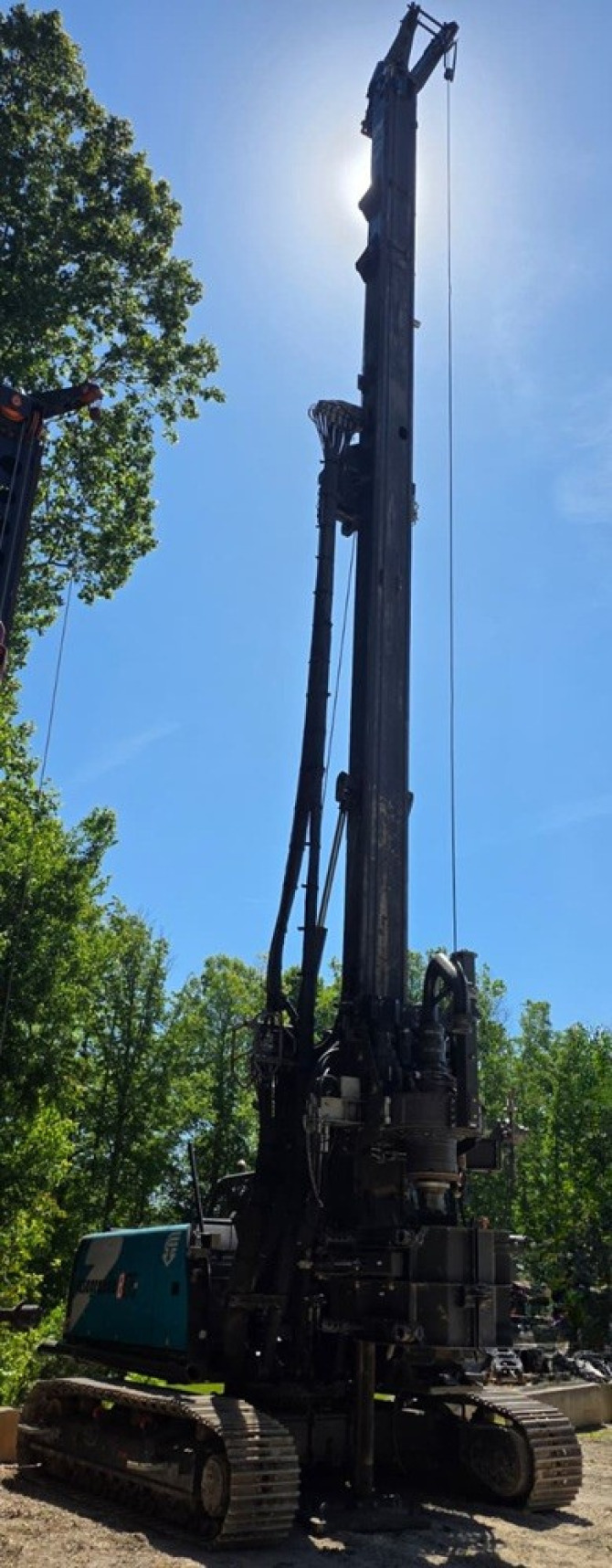

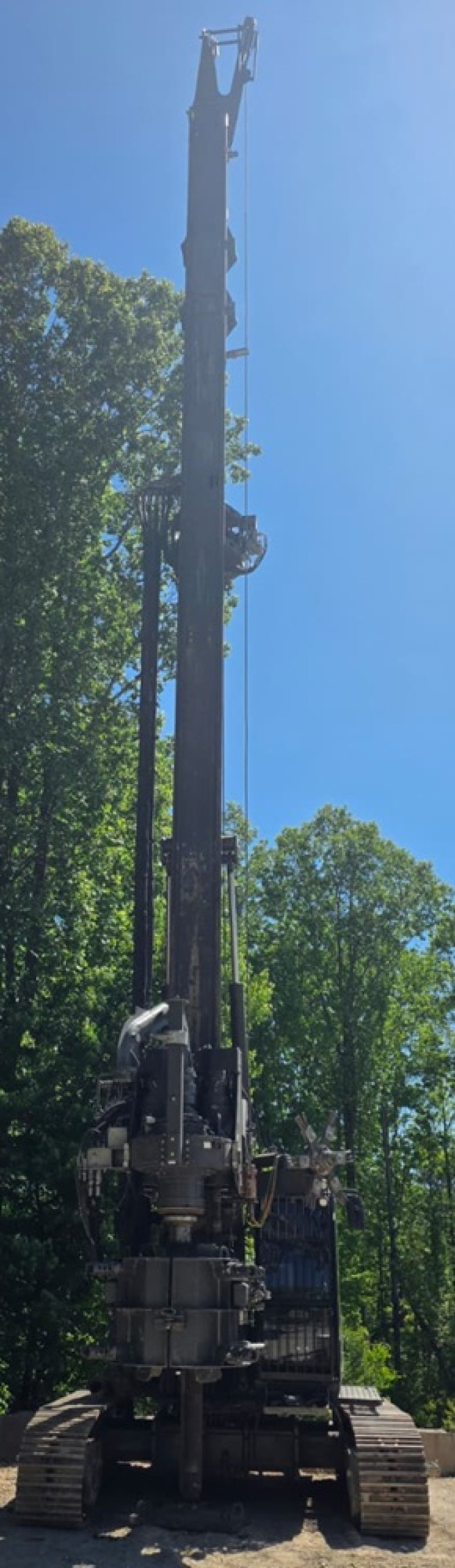

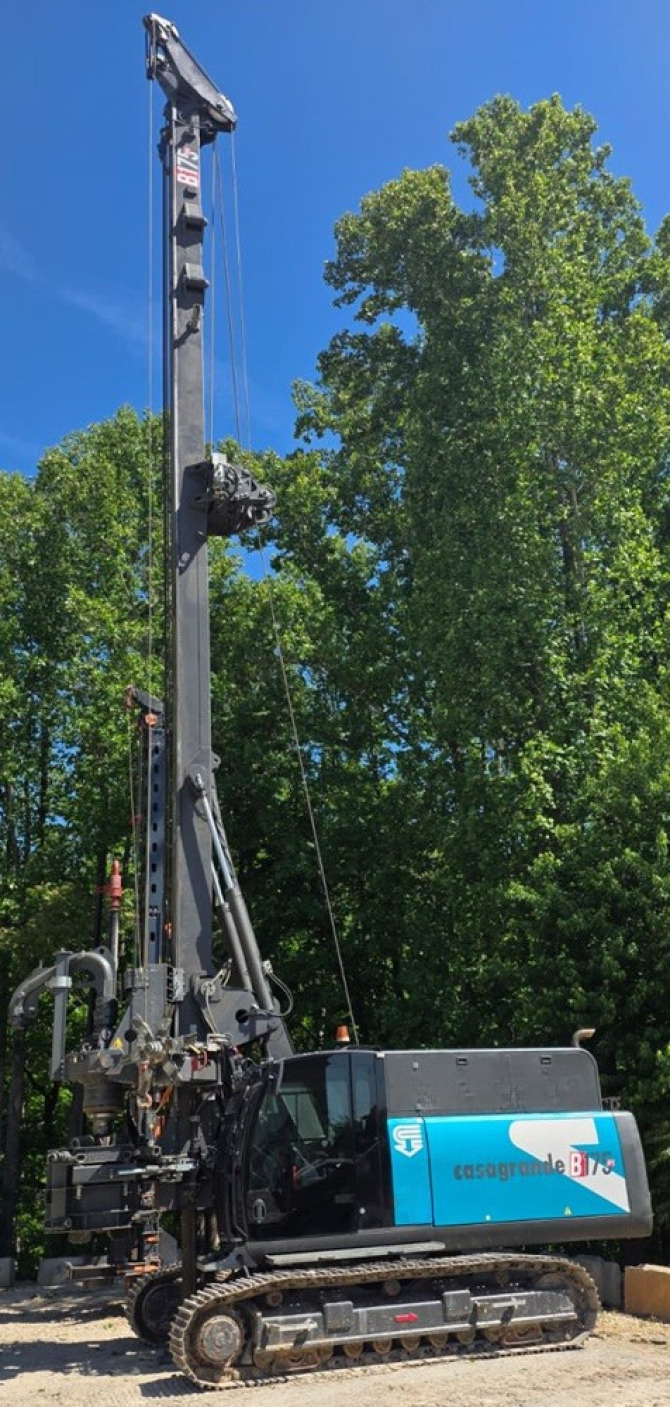

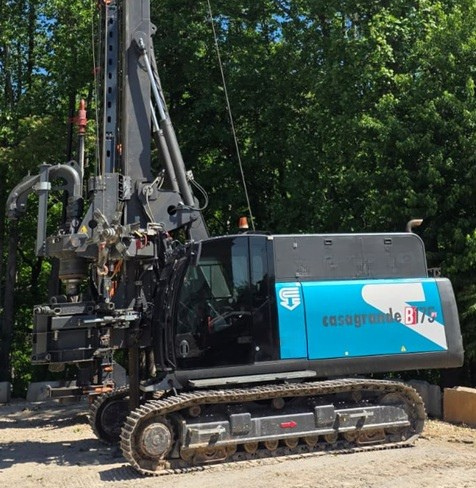

Casagrande
Model:
B175 XP2
Year of manufacture:
2022
Working hours:
2389
Key features
- Multipurpose drilling rig with 2,389 hours.
- Rotary head
- Model: H18
- Max torque: 175 kNm
- Rated torque: 175 kNm
- Rotation speed:
- Max drilling speed: 32 rpm
- Max discharge speed: 130 rpm
- Rotation speed:
- Drilling performance
- Max pile diameter:
- 1,500 mm (Telescopic Kelly)
- 900 mm (CFA)
- Max pile depth:
- 35 m (Kelly bar configuration)
- 21.5 m CFA with auger cleaner
- Max extraction force: 280 kN
- Max pile diameter:

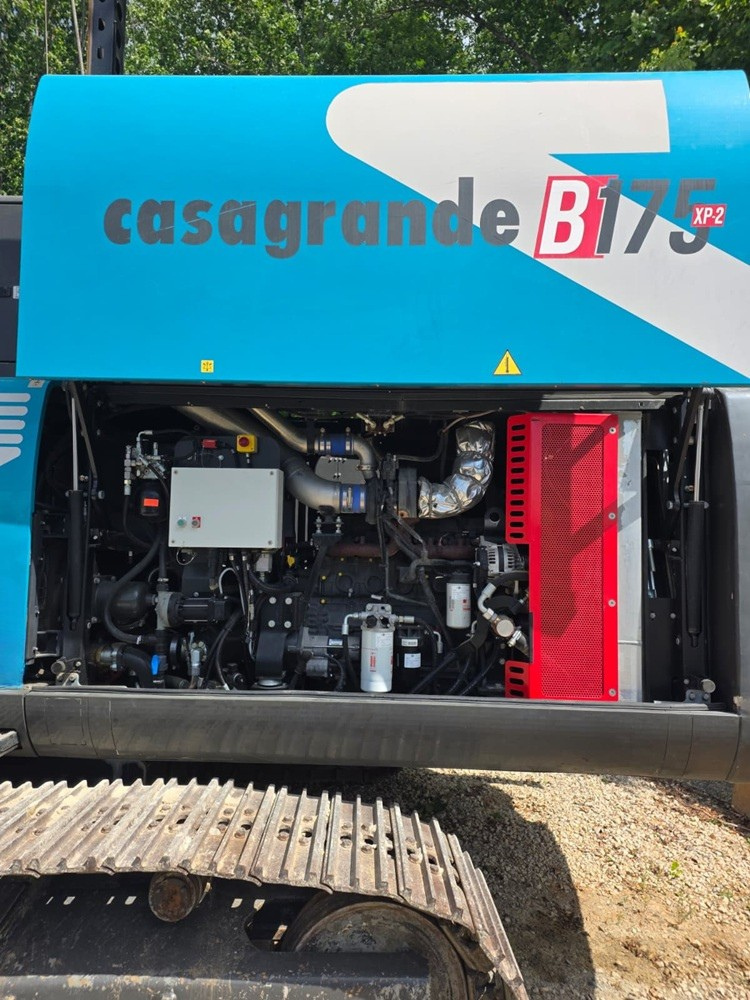

- Engine
- Cummins QSB6.7
- 209 kW (280 HP) @ 2000 rpm
- 280l fuel tank
- EU Stage 4f
- Winches
- Main winch:
- Line pull: 160 kN
- Rope diameter: 24 mm
- Max speed: 72 m/min
- Auxiliary winch:
- Line pull: 70 kN
- Rope diameter: 18 mm
- Max speed: 63 m/min
- Crowd winch:
- Max crowd force: 280 kN
- Max extraction force: 280 kN
- Main winch:
- Hydraulic system
- Pump capacity: 2 × 210 l/min
- Max pressure: 350 bar
- Hydraulic oil tank capacity: 330 litres
- Transport Dimensions and weight
- Length: 16,540 mm
- Width:
- 2,500 mm (closed tracks)
- 3,700 mm (open tracks)
- Height: 3,185 mm
- Track shoe width: 600mm
- Weight: 44,000kg
- CE marked
