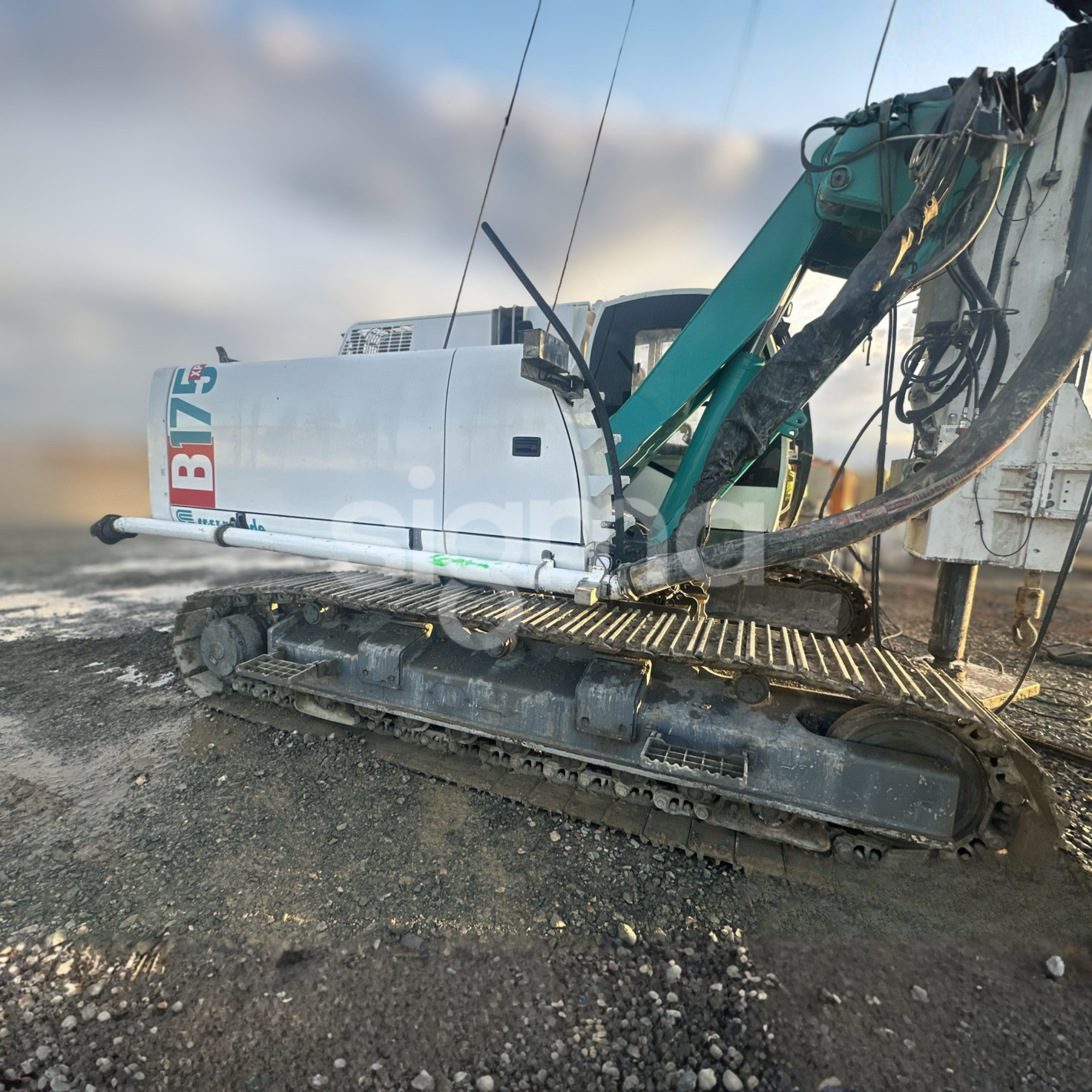

Overview
Machine location:
Europe
Stock number:
PF 40949
Manufacturer:
Casagrande
Model:
B175XP
Year of manufacture:
2018
Working hours:
5700
Key features
- CFA piling rig with 5801 working hours
- Capable of bored piles, CFA & FDP (full displacement piles)
- Cummins engine QSB 6.7: 194kW @ 2200rpm (Stage 4 / Tier 4F)
- Undercarriage: 2500-3700mm (closed-open)
- Rotary head H18
- Max torque: 175kNm with cardan joint
- Winches: 160kN main, 70kN auxiliary
- Pull down winch installed on the rig by Casagrande
- Crowd/extraction force: 280kN
- Stroke: 12,300mm
- 4 x 7.5m interlocking Kelly bar (kelly box 130x130mm, diameter 355mm)
- Rapid CFA – Special adapter for drive sleeve, wedge for jib, female half joint for augers, 1.2m mast extension, swan neck for concrete pipes, short drive sleeve for CFA complete with reaction bar & inner reduction, 6m long drive sleeve for CFA with reaction bar & inner reduction, lower centering guide for CFA-R.
- CE Certified
- 6m cfa kelly extension
- 400, 600 & 800mm cfa guides included
FDP guide included
