Casagrande B175XP

Price on request

Specifications at a glance

Stock number
PF 40998
Year of manufacture
2017
Working hours
9200

Overview

Stock number:

PF 40998

Manufacturer:

Casagrande

Model:

B175XP

Year of manufacture:

2017

Working hours:

9200

Machine specs

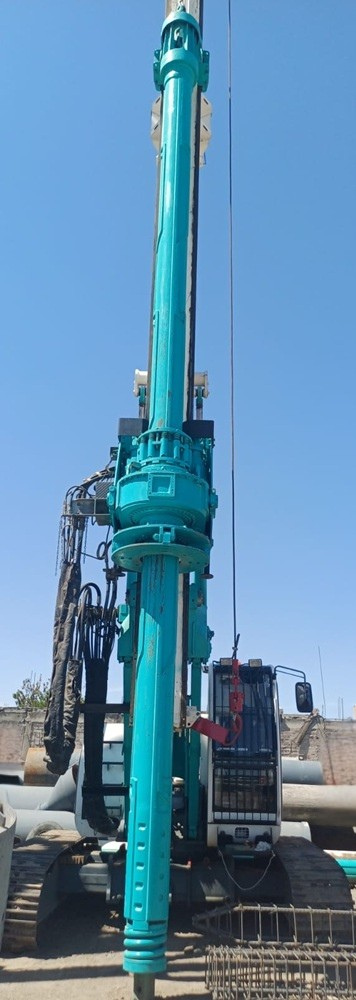

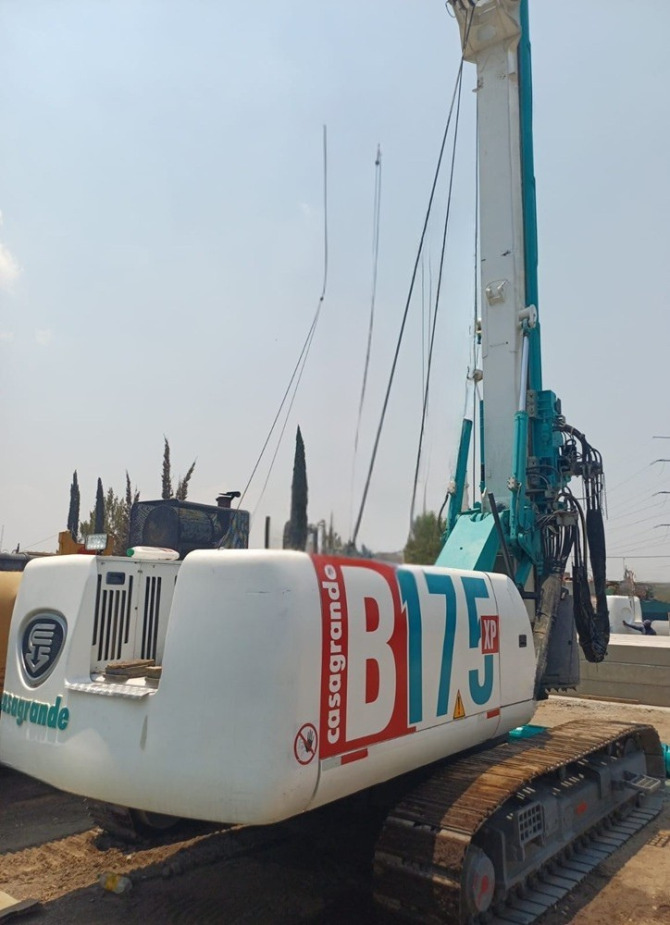

Rotary drilling rig with 9,200 hours

Rotary Head

  • Max torque: 175kN
  • Rotation speed: 32 rpm

 Drilling Performance

  • Max pile diameter: 1,200/800 mm
  • Max pile depth: 57m
  • Max extraction force: 290 kN

Engine

  • Model: Cummins B6.7
  • 209 kW @ 2000 rpm
  • 280l fuel tank

Winches

  • Main winch: 135 kN
  • Aux winch: 60 kN
  • Crowd winch : 290 kN

Hydraulic System

  • Main pump: 2 x 210 l/min
  • Max pressure: 350 Bar
  • Oil tank capacity: 330l

Transport Dimensions and Weight

  • Length:15,400 x 2,530 mm
  • Width: 2,500 mm
  • Height: 3,430 mm
  • Track shoe width: 600mm
  • Weight: 46,000kg
