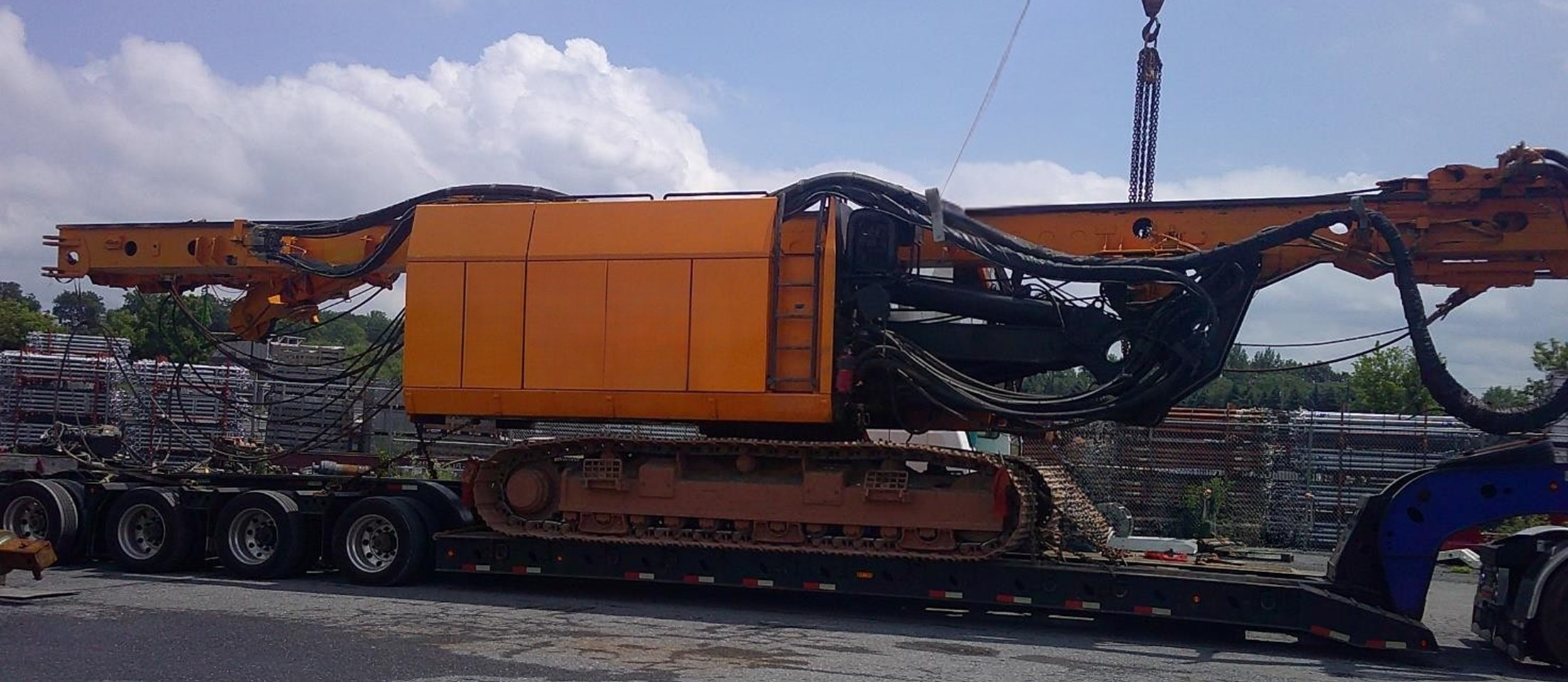

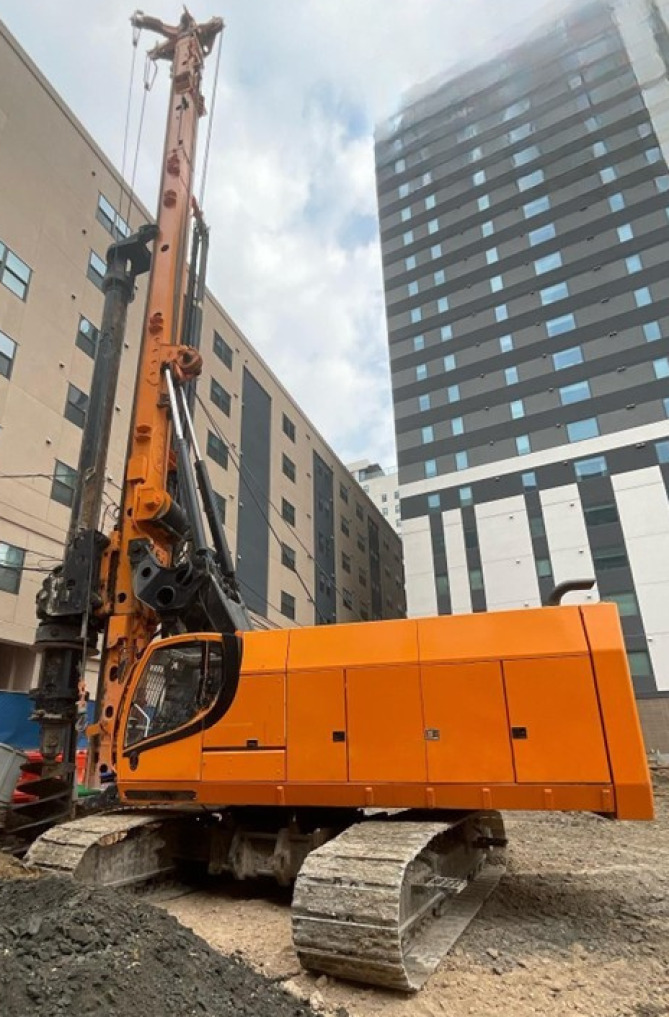

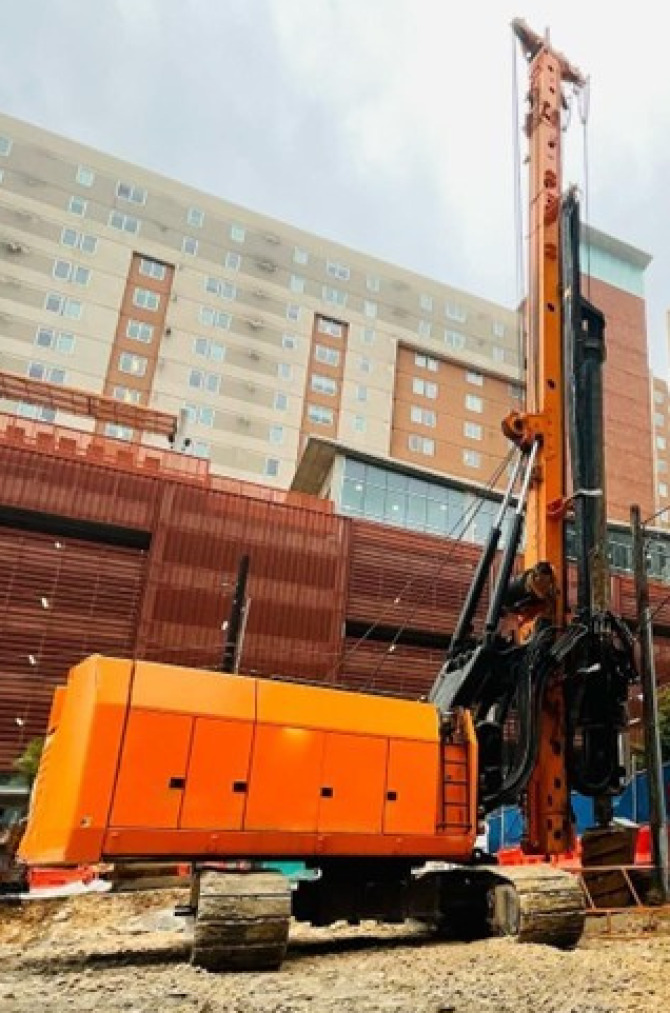

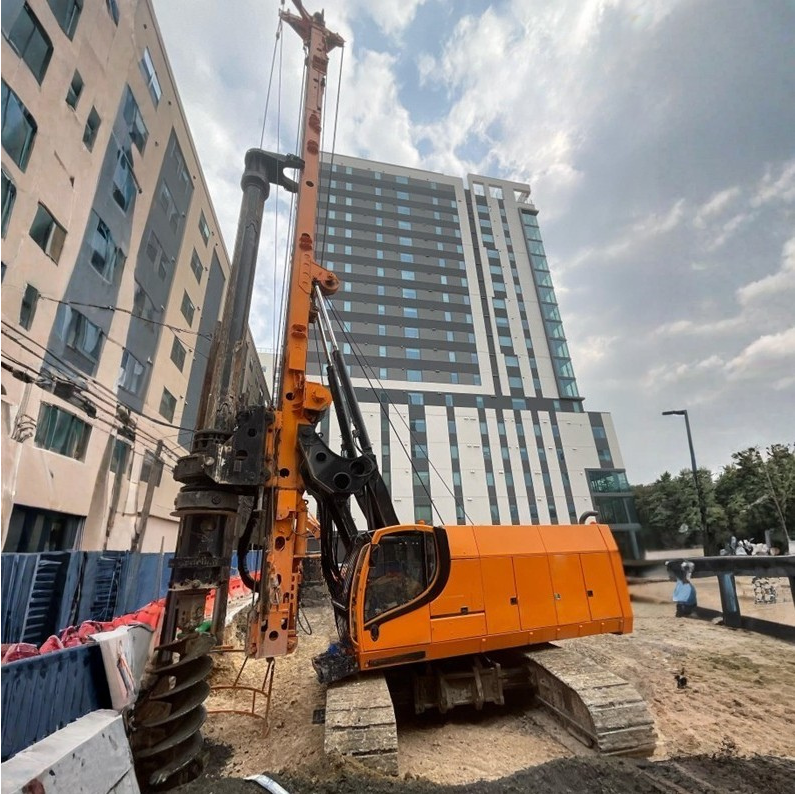

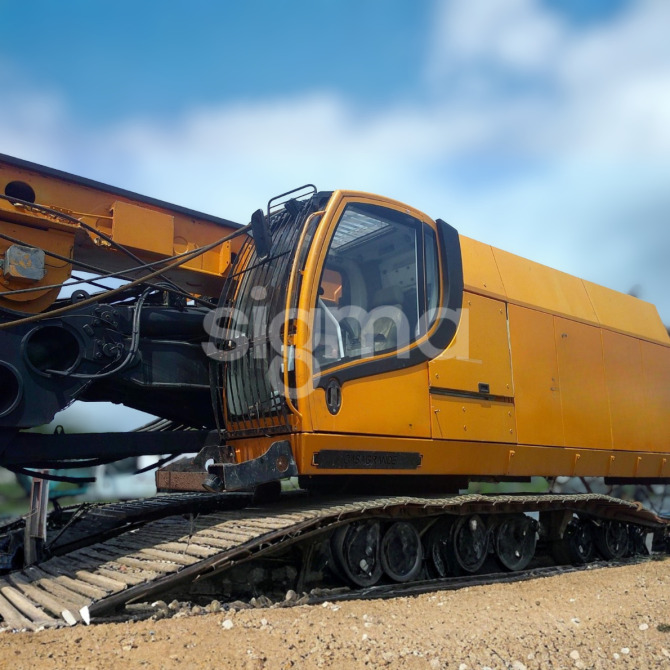

Casagrande B275XP PDW

Rotary bored pile rig with 4750 working hours

Undercarriage: 3000 - 4500 mm

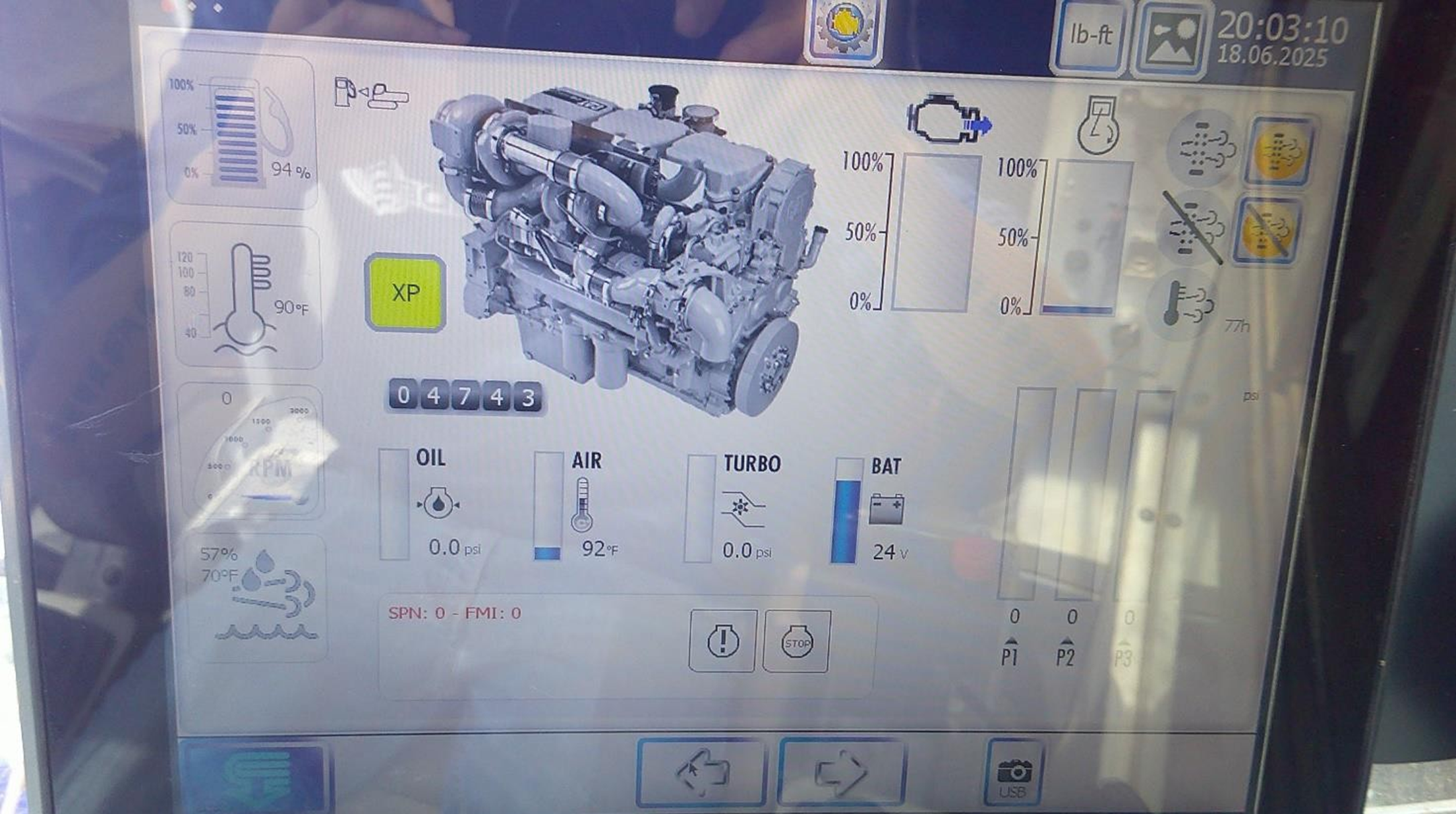

Diesel Engine: Cummins QSG 12 336 kW @ 2200 rpm – US EPA Tier 4F , EU stage 4

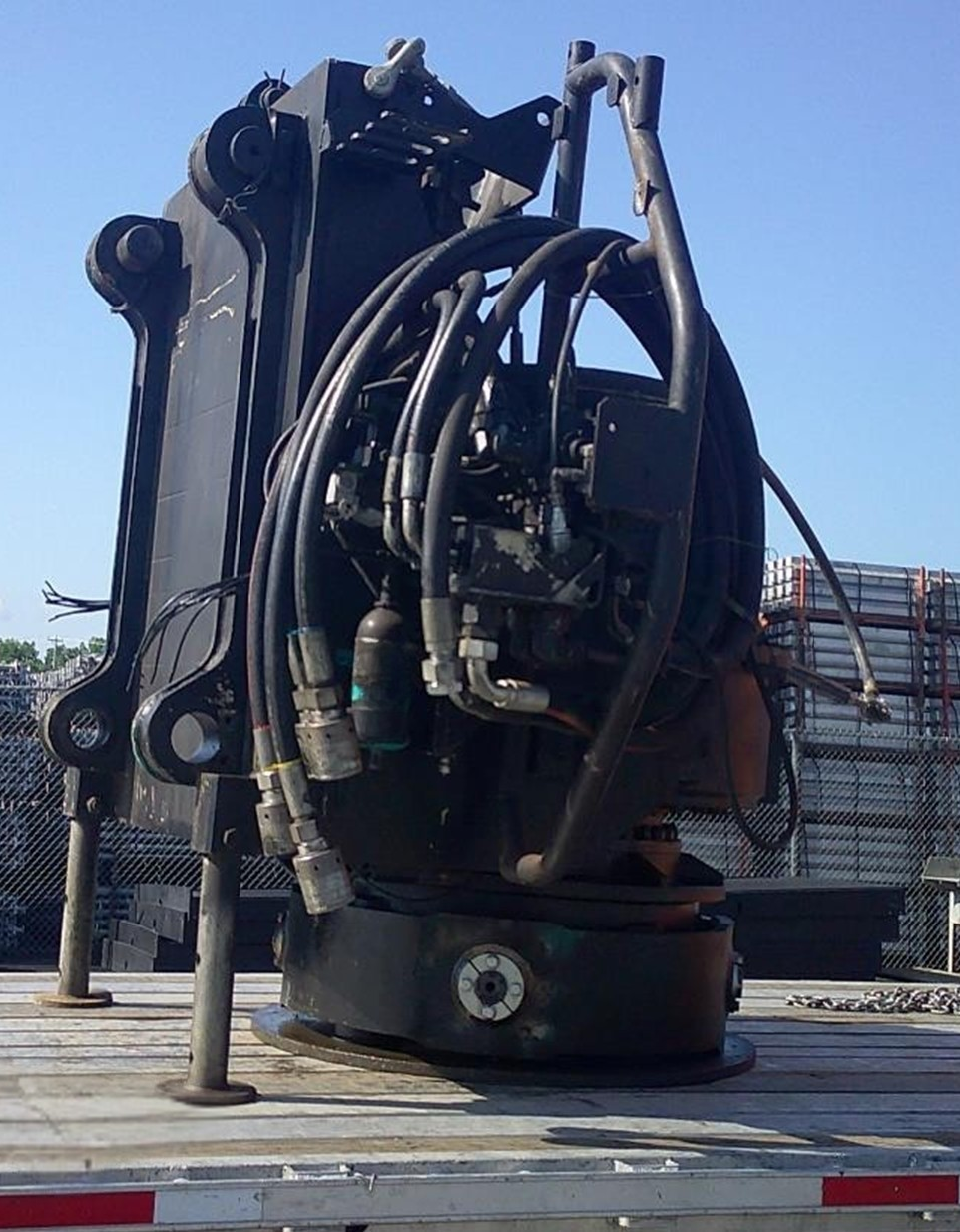

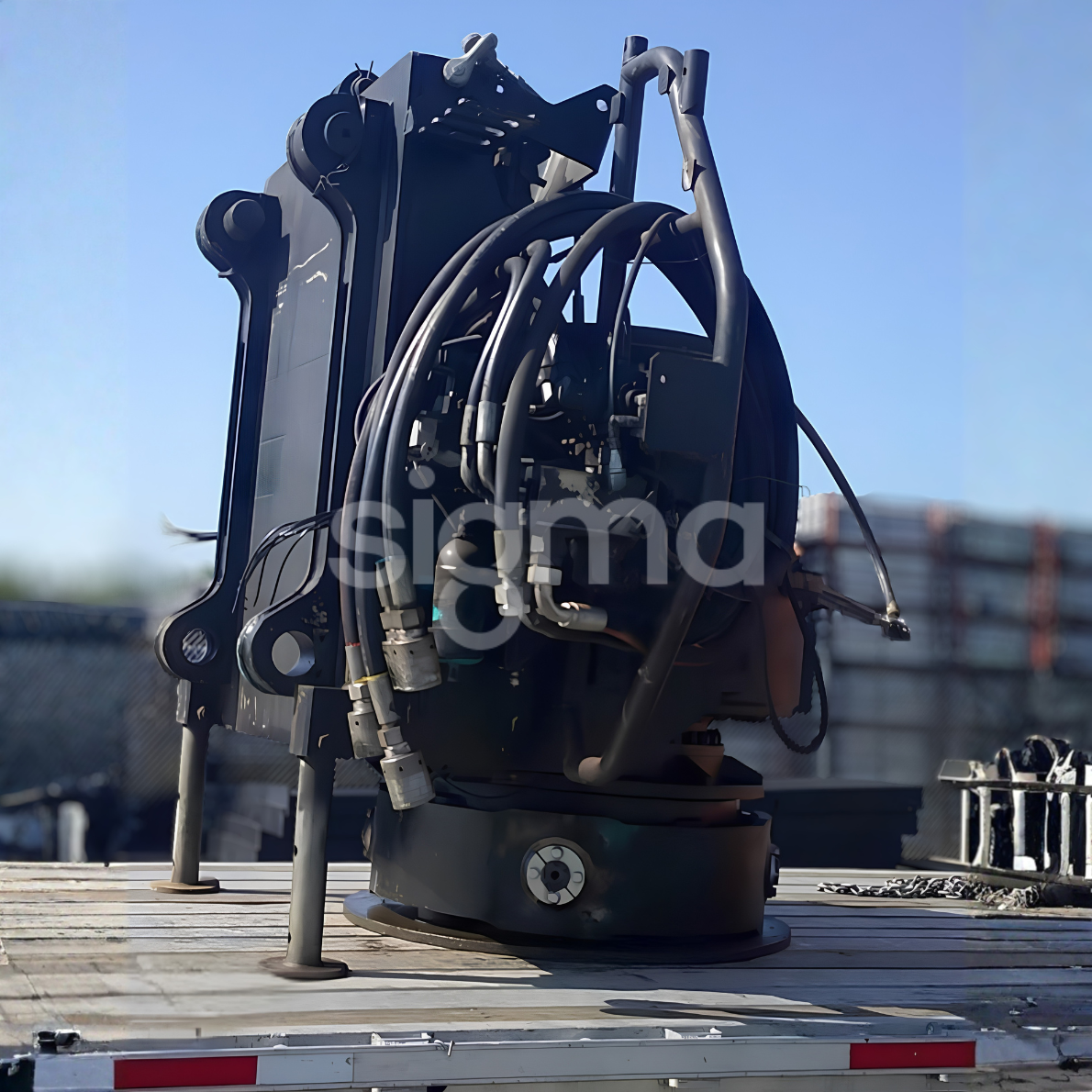

Rotary Head: H30.30

Max torque: 275 kNm complete with dumper and lower stricking plate

Winches: Main 270 kN, auxiliary 92 kN

Pull-Down winch: Crowd/Extraction Force 400 kN, Stroke 15.000 mm

Kelly bars (dia. 508) 4 x 9,5 interlocking type (kelly box 200x200 mm), for a depth of 33 m, complete with upper guide.

Max diameter under mast: 3400mm

CE marked
