Overview
Stock number:
PF 41082
Manufacturer:
Casagrande
Model:
B300 XP-2
Year of manufacture:
2019
Working hours:
3600
Key features
- Multipurpose drilling rig with 3,600 hours

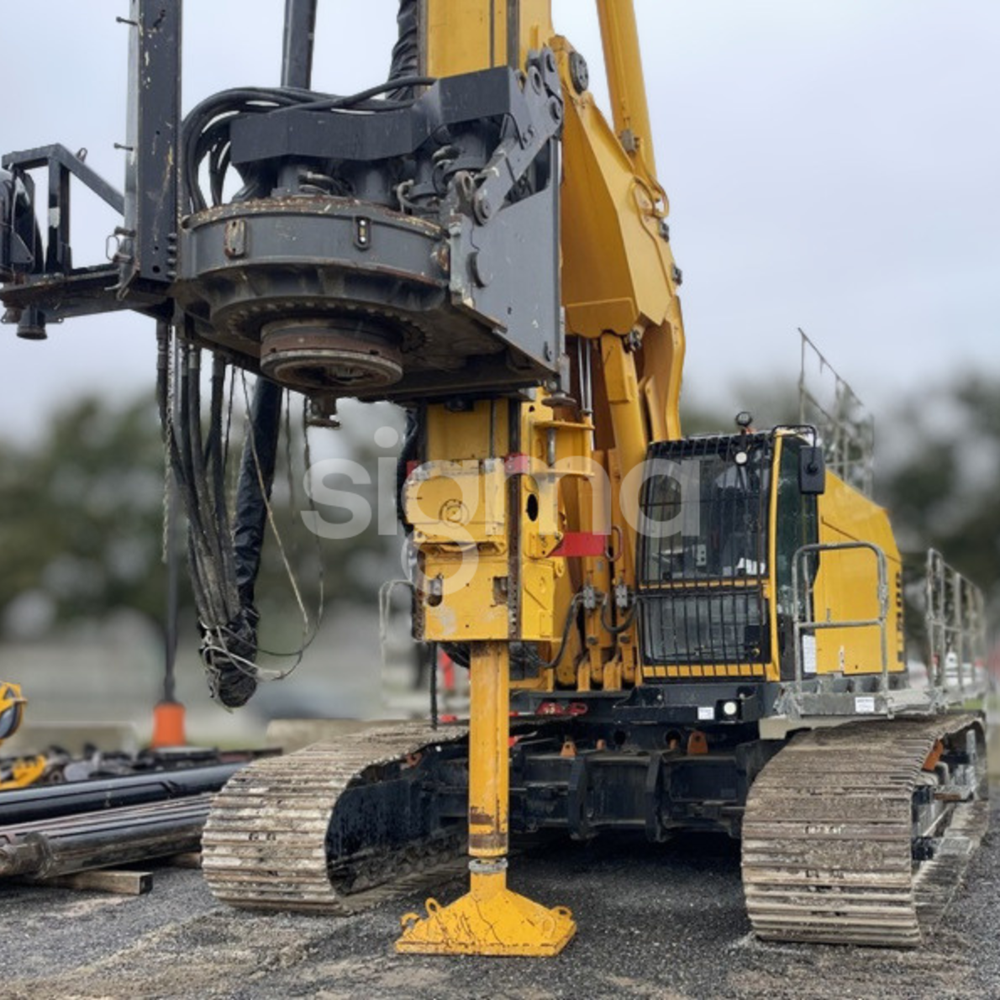

- Rotary head
- Model: H30
- Max torque: 300 kNm
- Max drilling speed: 29 rpm
- Max discharge speed: 120 rpm
- Drilling performance
- Max pile diameter:
- Bored piles: 2,000 mm
- CFA: 1,200 mm
- Max pile depth:
- Bored piles: 50 (4x12.5)
- CFA: 31.8
- Engine
- Cummins X15
- 472 kW (280 HP) @ 1,800 rpm
- 730l fuel tank
- EU Stage V – US Tier 4
- Winches
- Main winch:
- Effective line pull: 270 kN
- Rope diameter: 32 mm
- Max speed: 94 m/min
- Auxiliary winch:
- Effective line pull: 120 kN
- Rope diameter: 24 mm
- Max speed: 67 m/min
- Crowd winch:
- Max crowd force: 525 kN
- Max extraction force: 525 kN
- Main winch:
- Hydraulic system
- Pump capacity: 2 x 405 + 309 + 134 l/min
- Max pressure: 350 bar
- Hydraulic oil tank capacity: 1,000 litres
- Transport Dimensions and weight
- Length: 18,000 mm
- Width: 3,000 mm
- Height: 3,805 mm
- Track shoe width: 900mm
- Weight: 69,700kg
- Attachments
- CFA kit included:
- Swan neck
- Concrete piping
- Rapid CFA cathead
- Auger cleaner
- Various size auger guides
- CFA kit included:
- Extra mast for long displacement + guides
- 4x12.5m Kelly bar
