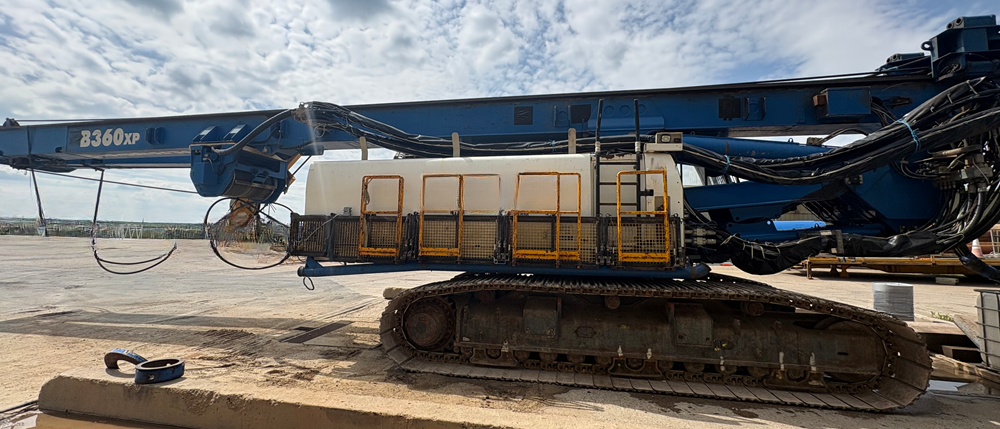

Overview
Machine location:
United Kingdom
Stock number:
PF 41025
Manufacturer:
Casagrande
Model:

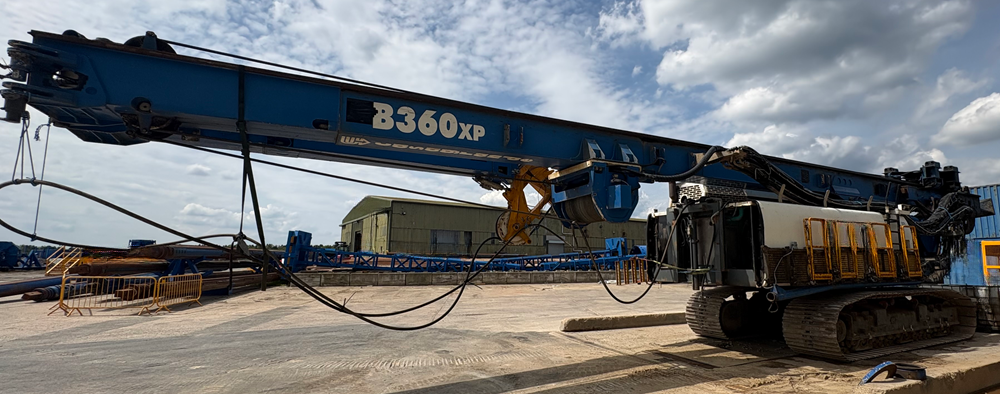

B360XP
Year of manufacture:
2015

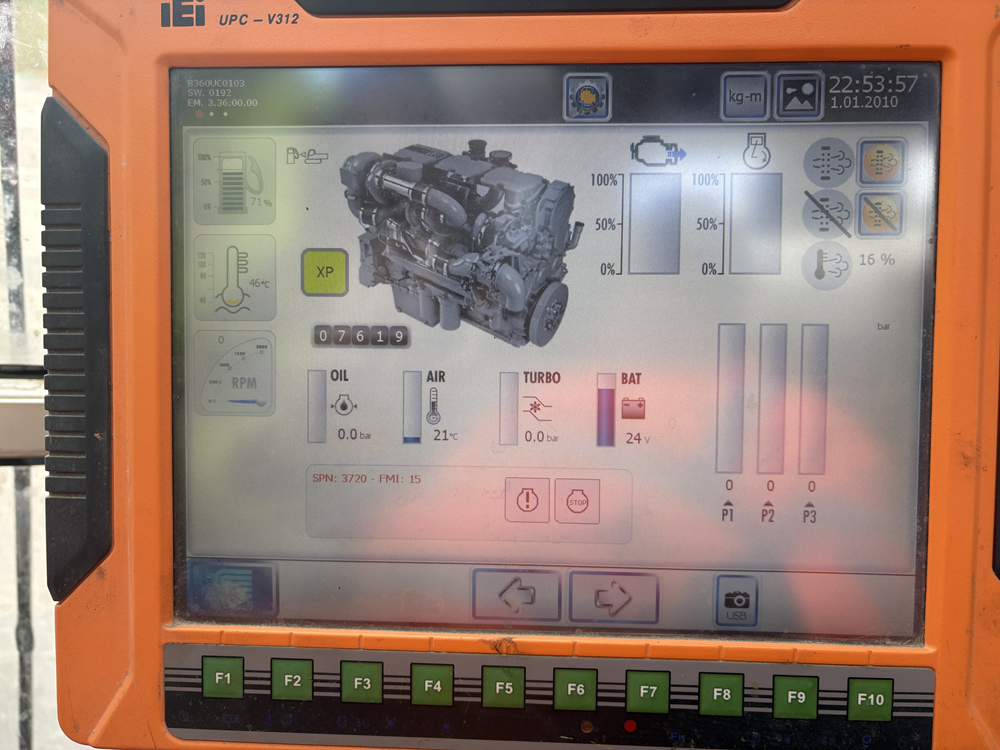

Working hours:
7619
Key features

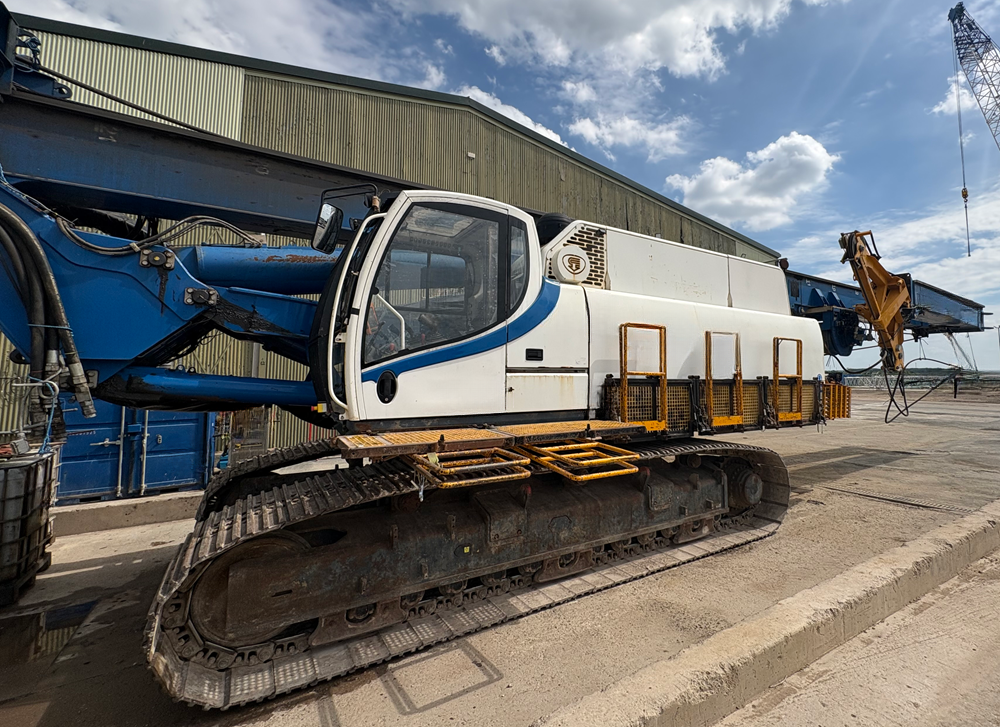

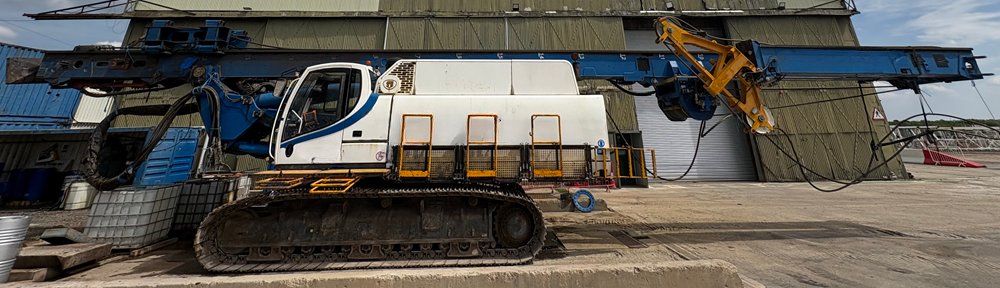

- Multipurpose piling rig with 7619 working hours
- Capable of LDP & CFA piling

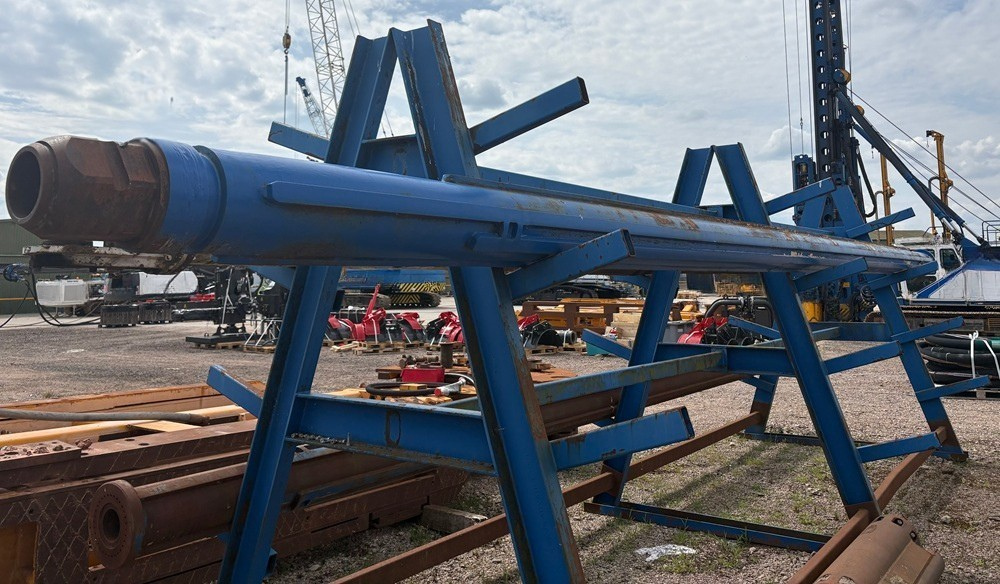

- KB0073 – 4 part locking HD kelly bar – Closed/open (m) 16.5/61m, weight 16,000kg

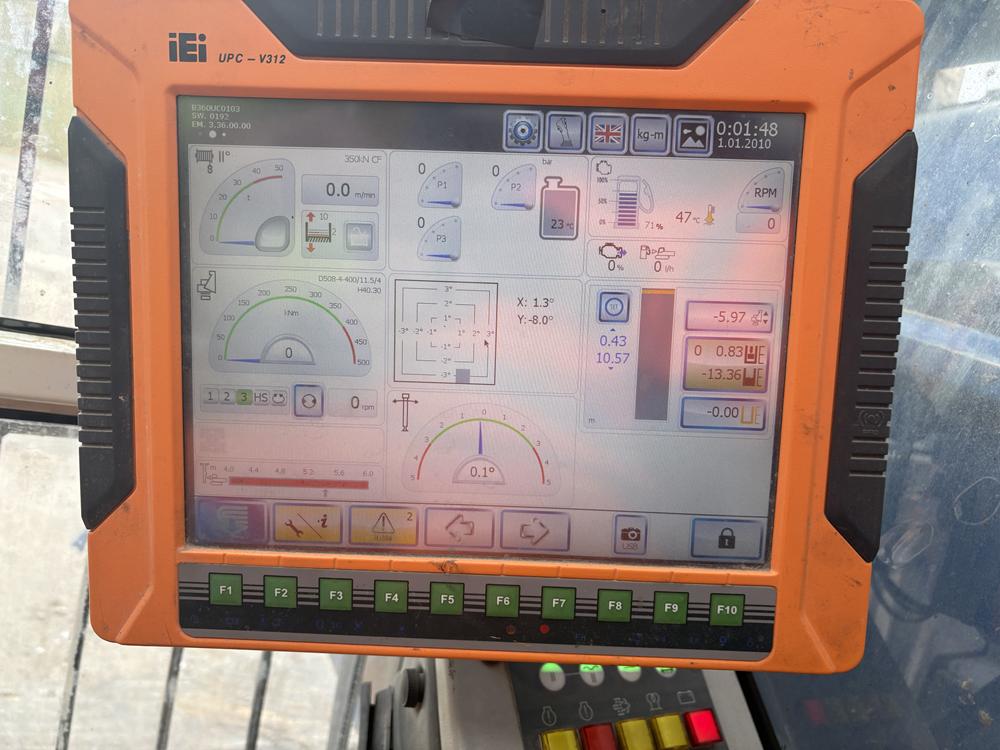

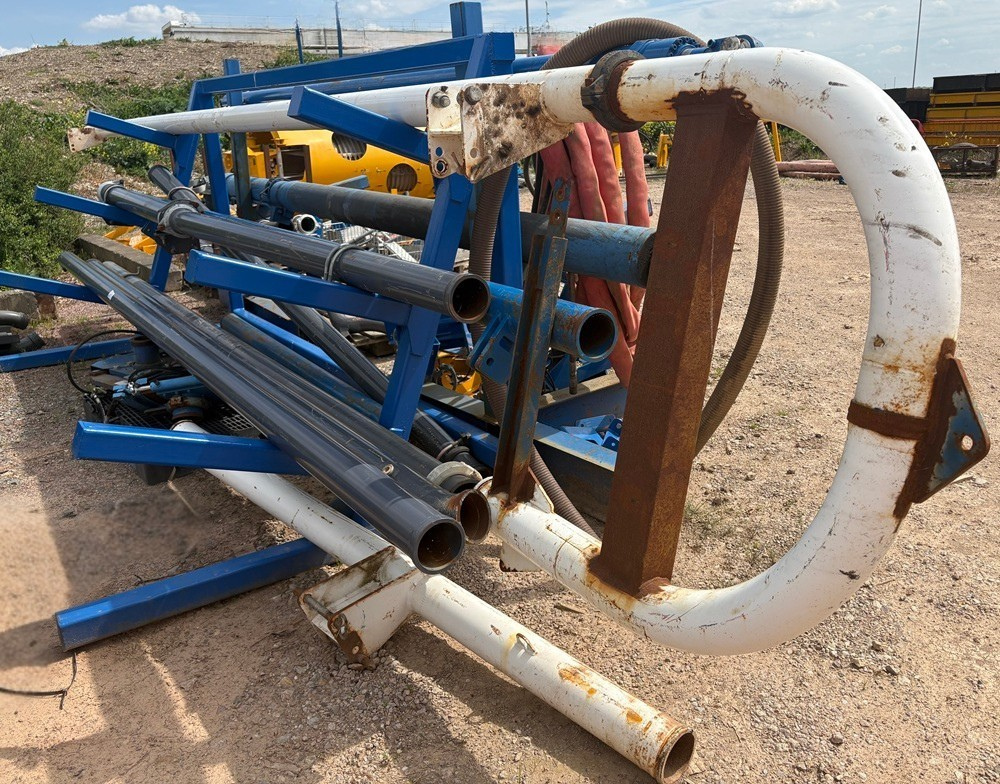

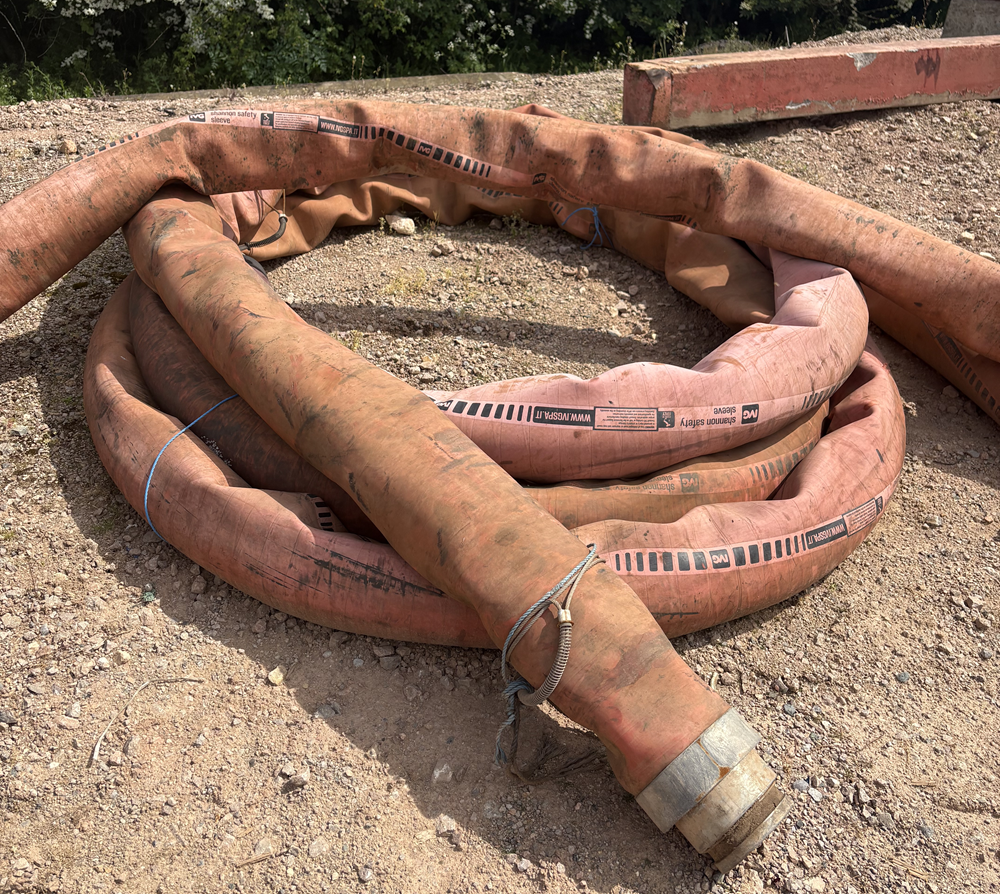

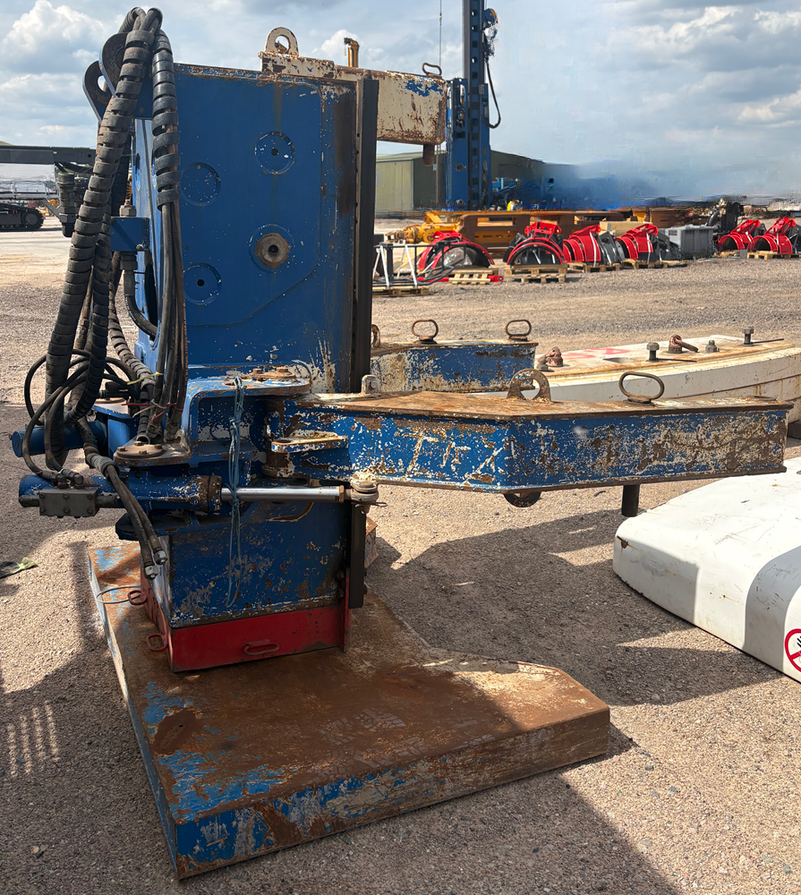

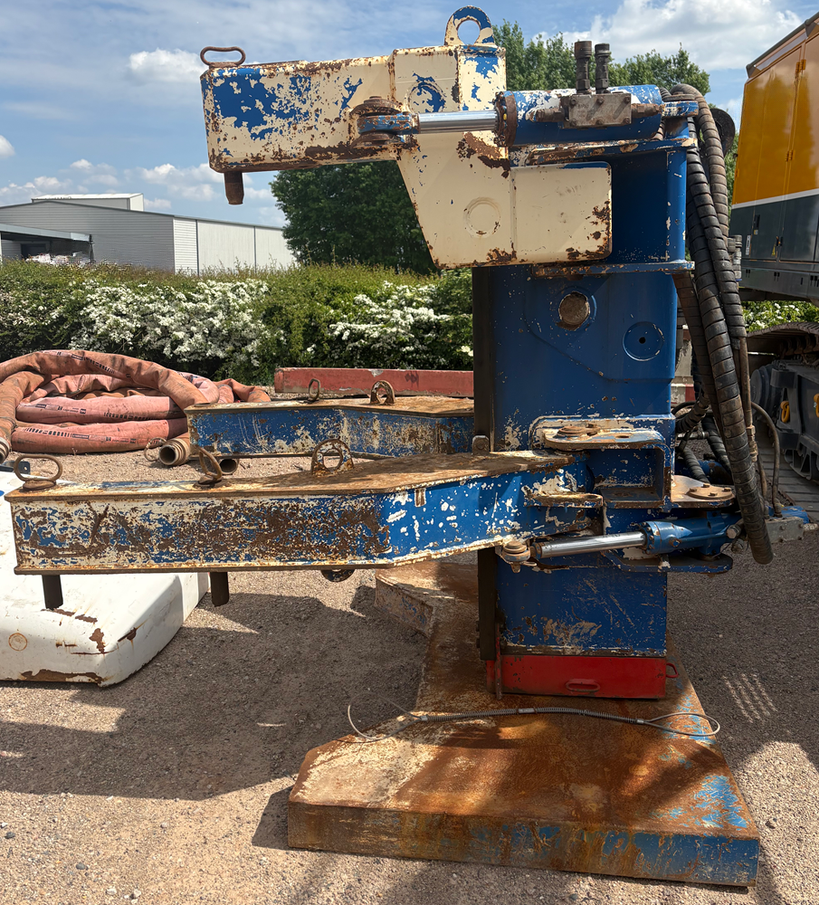

- Full CFA kit – 8m kelly extension, auger cleaner, Jean Lutz pile data logging system
- H40 rotary head – max torque 400kNm, max drill speed 25rpm
- CAT C15 engine – EU stage 3b/US Tier 4i (412kW)
- CFA - max depth/diameter – 34m/1200mm
- Bored piles max diameter under mast – 4200mm

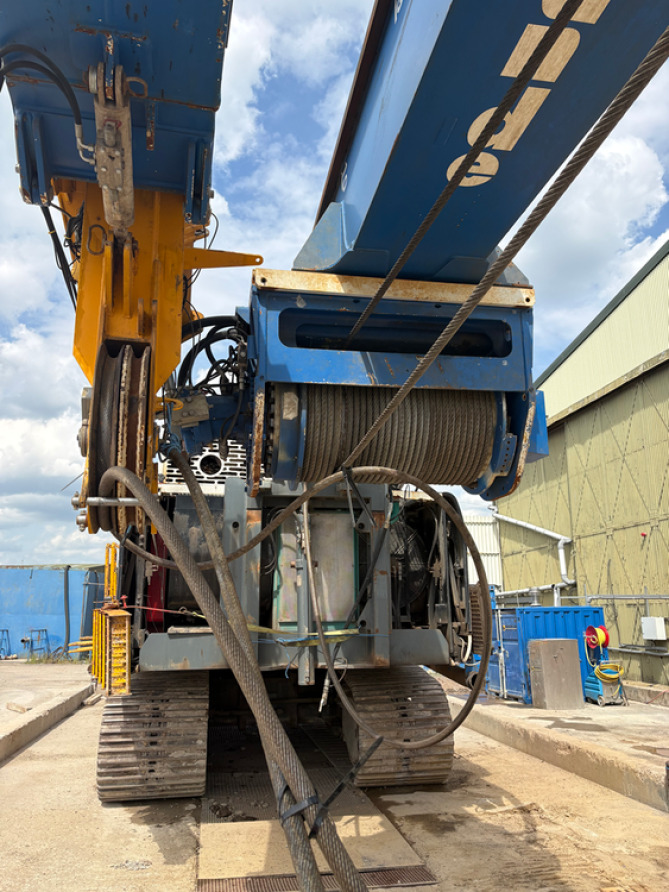

- Main winch – line pull on 1st layer nominal 320kN , Max line speed 60m/min, rope diameter 32mm
- Auxiliary winch – Line pull on 1sta layer nominal 140kN
- Pull down winch – extraction/crowd force nominal 600/600kN, extraction/crowd force effective 600/600kN, stroke 19m
- CE marked
