Overview
Machine location:
United States
Stock number:
PF 41039
Categories:

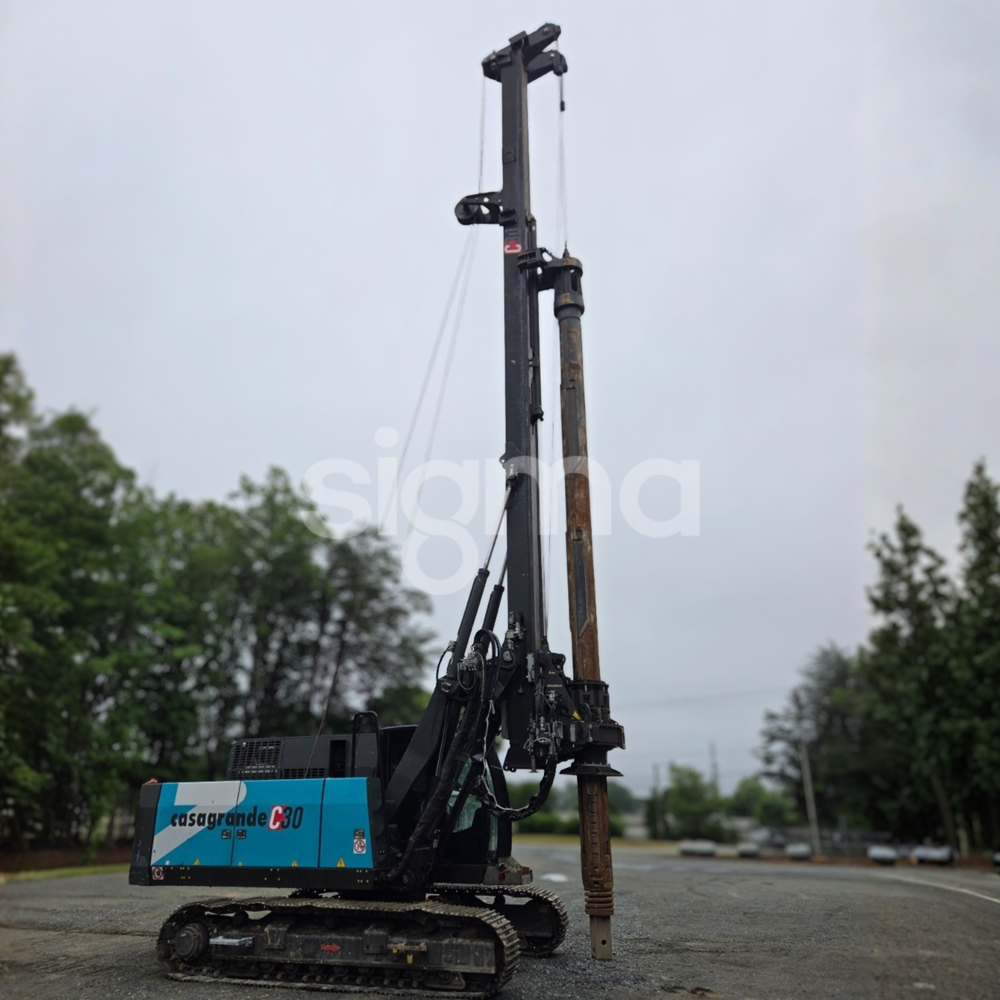

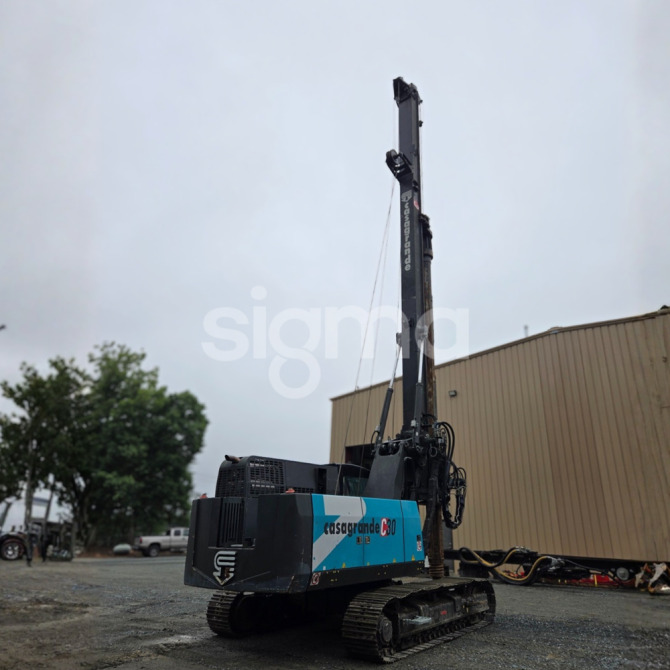

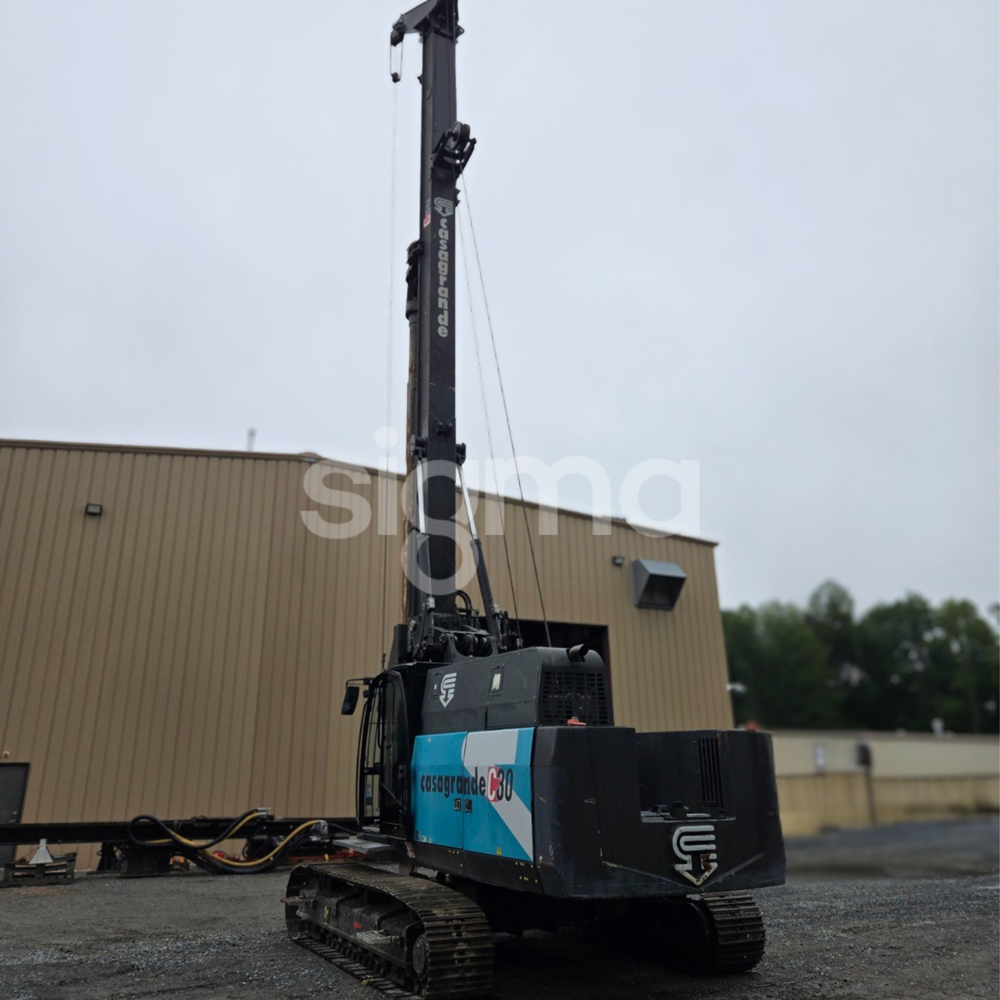

Rotary Bored Piling Rigs
Manufacturer:
Casagrande
Model:
C30
Year of manufacture:
2019
Working hours:
1963
Key features
- Rotary drilling rig with 1,963 working hours

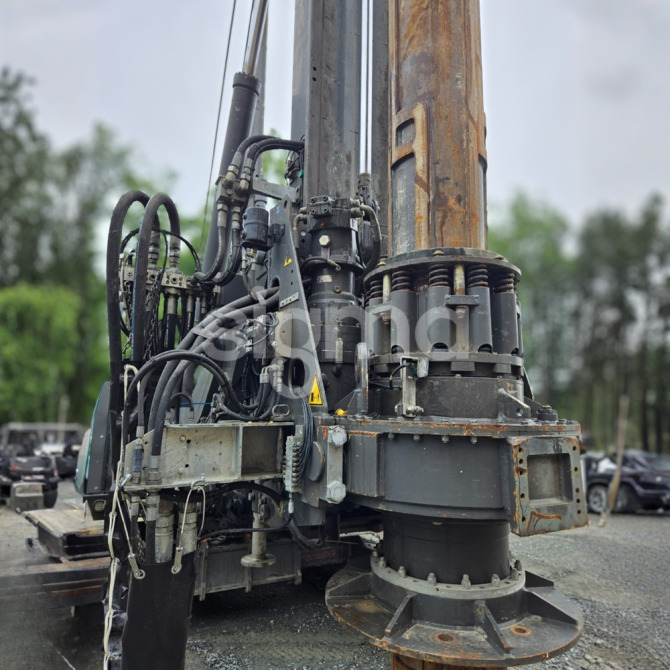

- Rotary head
- Max torque: 125 kNm
- Rotation speed: 33 rpm
- Spin off speed: 130 rpm
- Stroke: 3,500 mm
- Drilling performance
- Max pile diameter: 1,250 mm
- Max pile depth: 34m
- Max extraction force: 140 kN

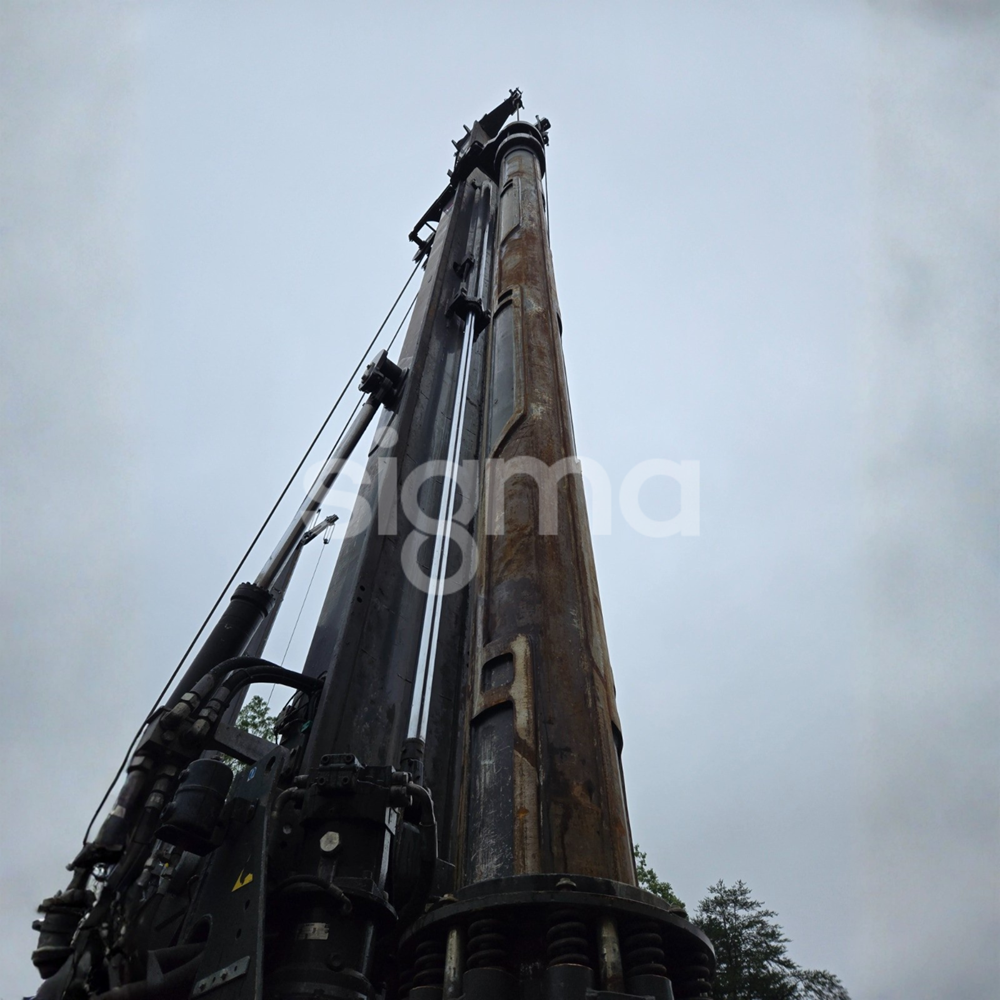

- Kelly bar: 4 x 8.5 interlocking bar
- Engine
- Make: Cummins
- Model: QSB 6.7
- Power: 168 kW (225 HP) @ 2200 rpm
- Fuel tank: 280 L
- Engine Stage: EU Stage IV / EPA Tier 4 Final

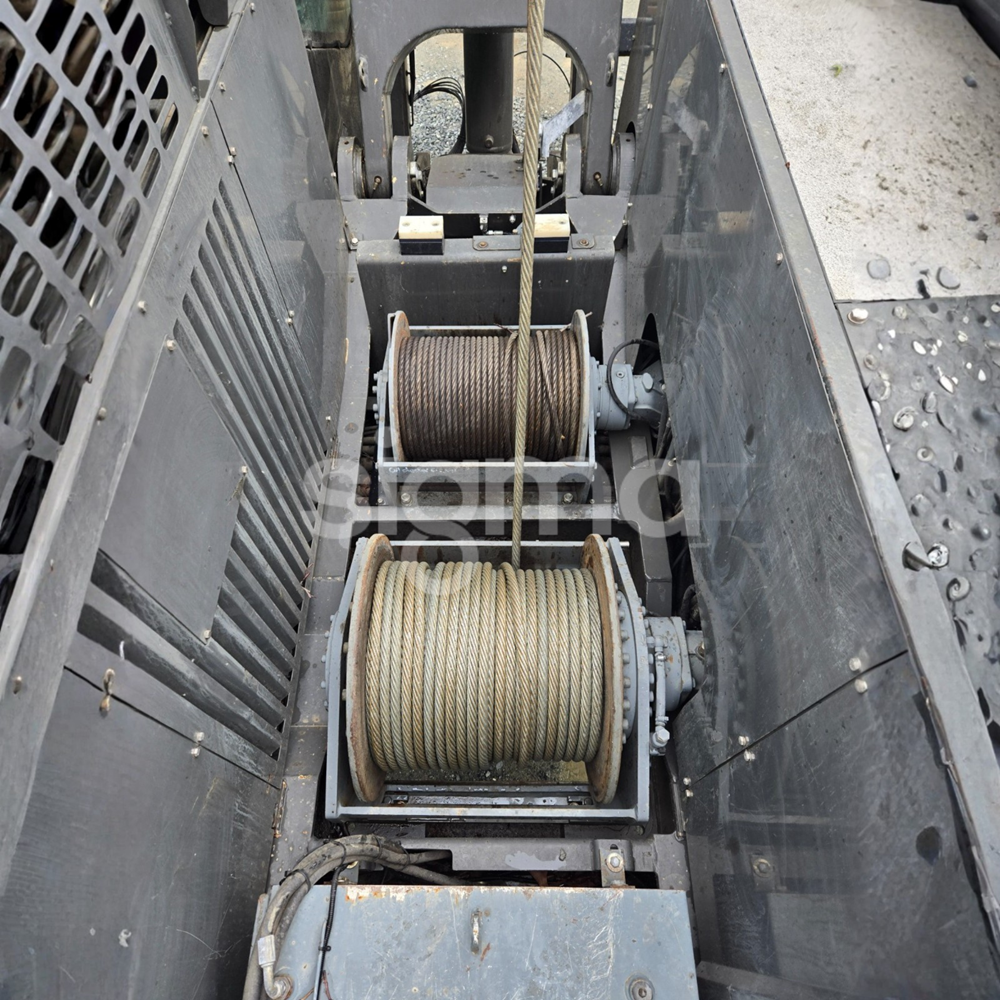

- Winches
- Main winch:
- Nominal line pull: 150 kNm
- Rope diameter: 22 mm
- Max speed on third layer: 78 m/min
- Service winch:
- Nominal line pull: 70 kNm
- Rope diameter: 16 mm
- Max speed: 73 m/min.
- Main winch:
- Hydraulic system
- Pump capacity: 420 (2 x 210) l/min
- Max pressure: 350 bar
- Transport Dimensions and weight
- Length: 12,800 mm mast
- Width: 2,500 mm closed / 3,700 mm open
- Height: 3,360 mm
- Weight: 35,000–38,500 kg
