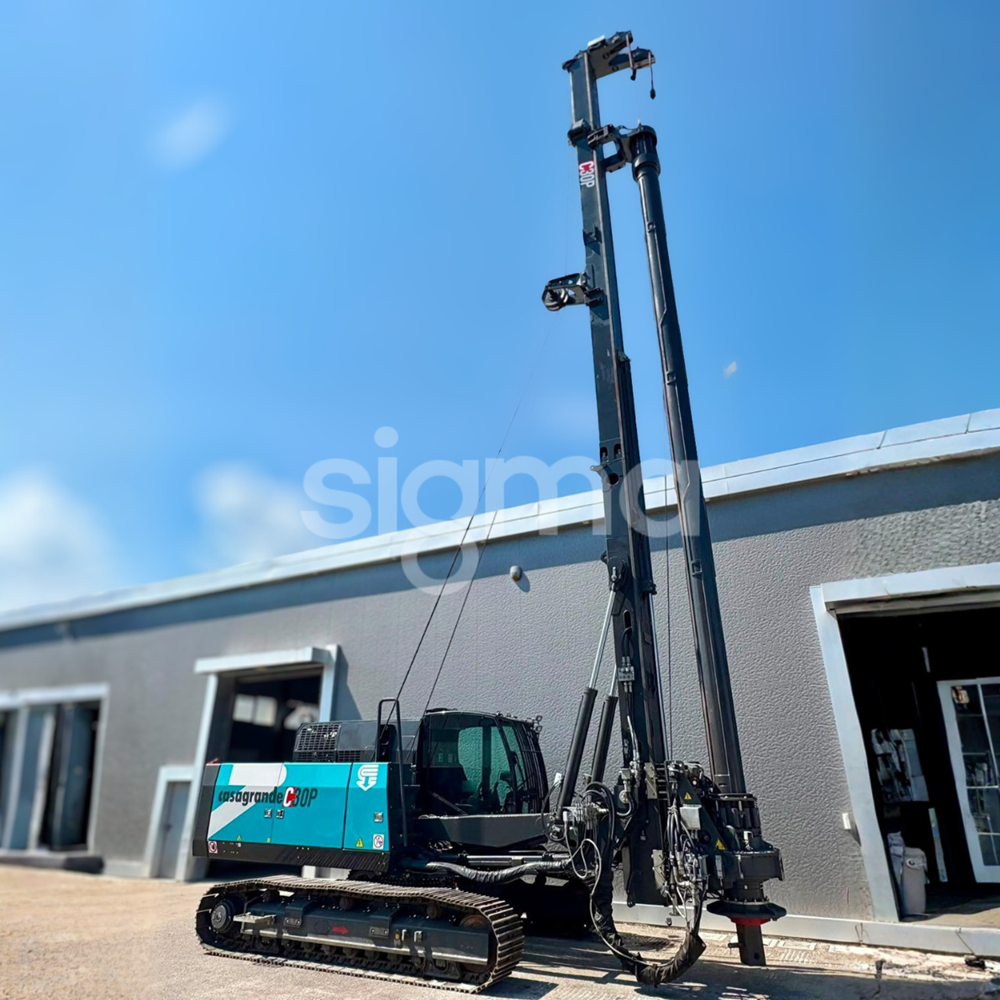

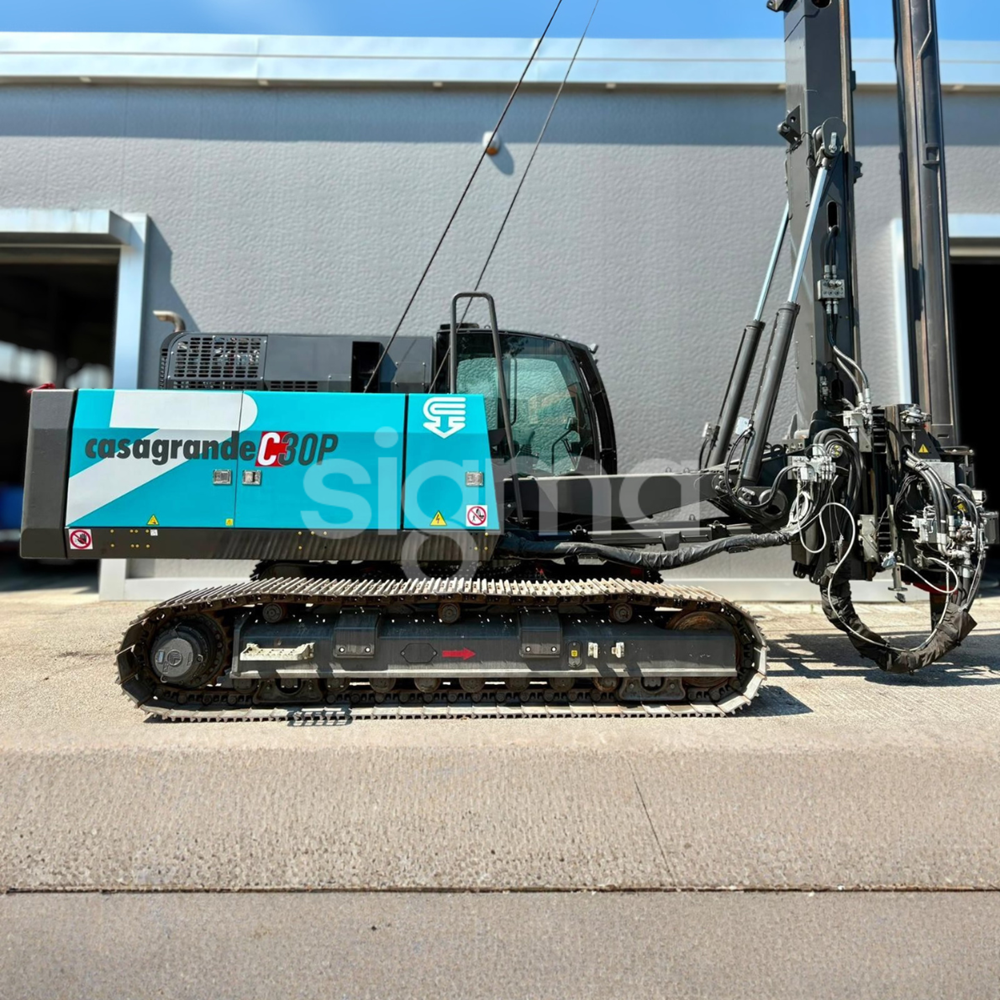

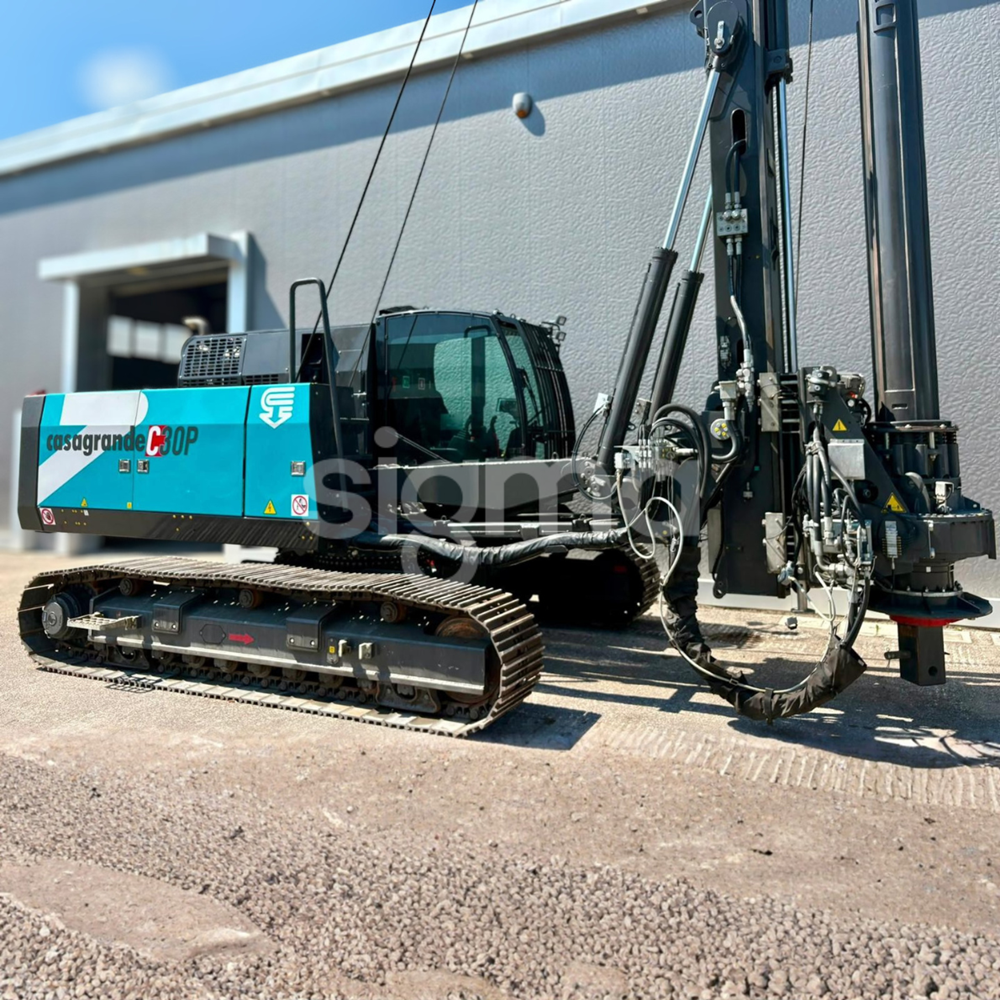

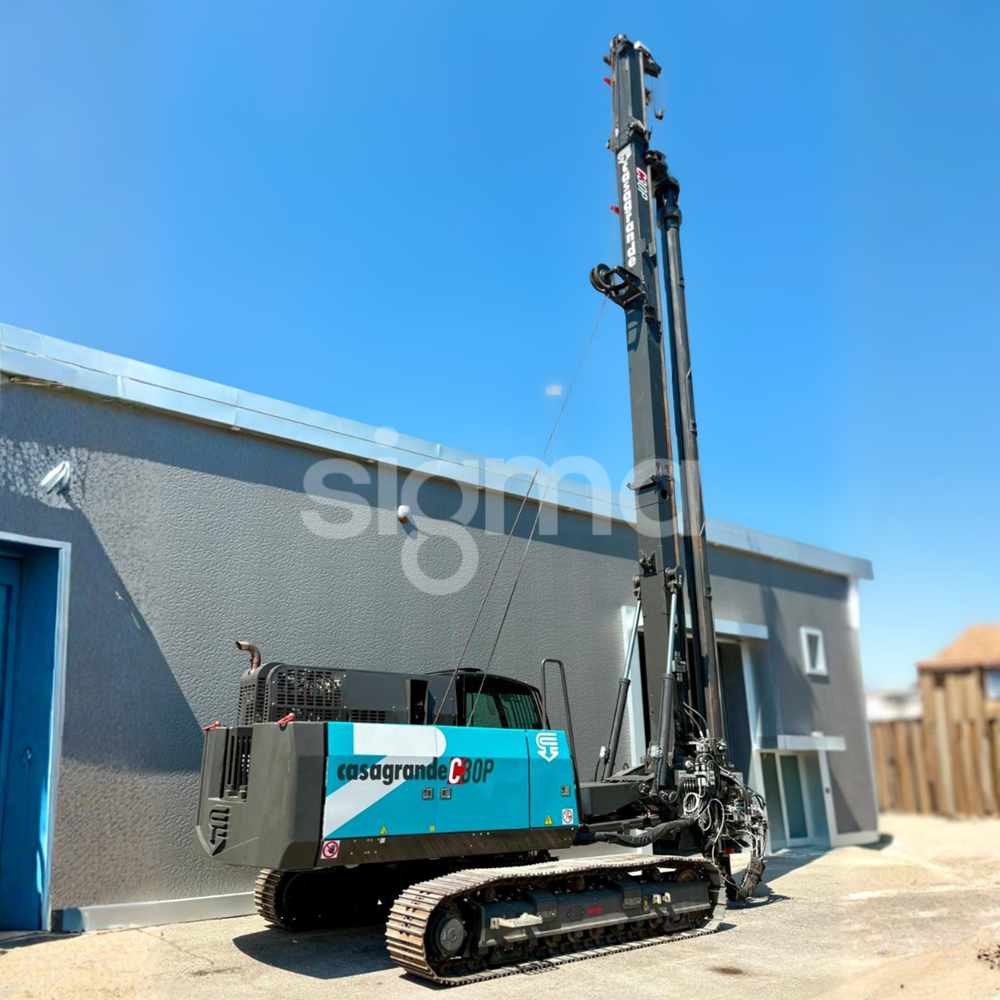

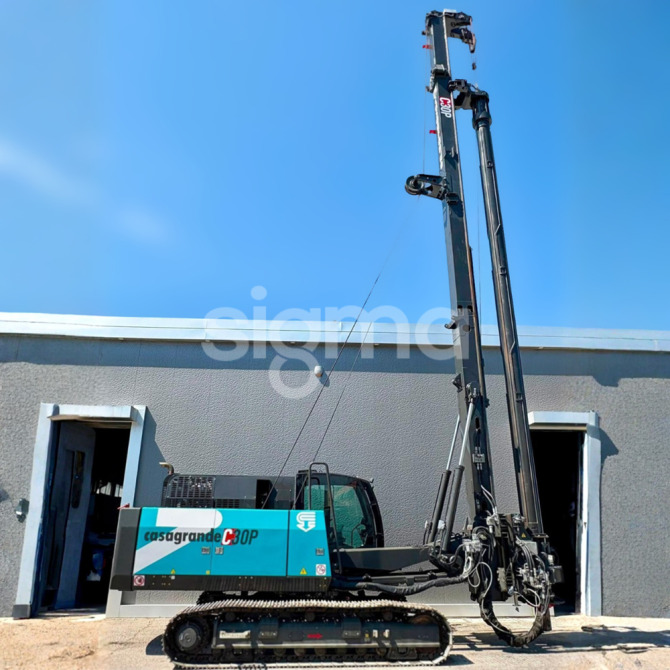

Casagrande C30P

Rotary drilling rig with 800 working hours

Rotary head

• Max torque: 125 kNm
• Rotation speed: 33 rpm
• Spin off speed: 130 rpm
• Stroke: 3,500 mm

Drilling performance

• Max pile diameter: 1,250 mm
• Max pile depth: 42.3m
• Max extraction force: 140 kN
• Kelly bar: 4 x 10.5 interlocking bar

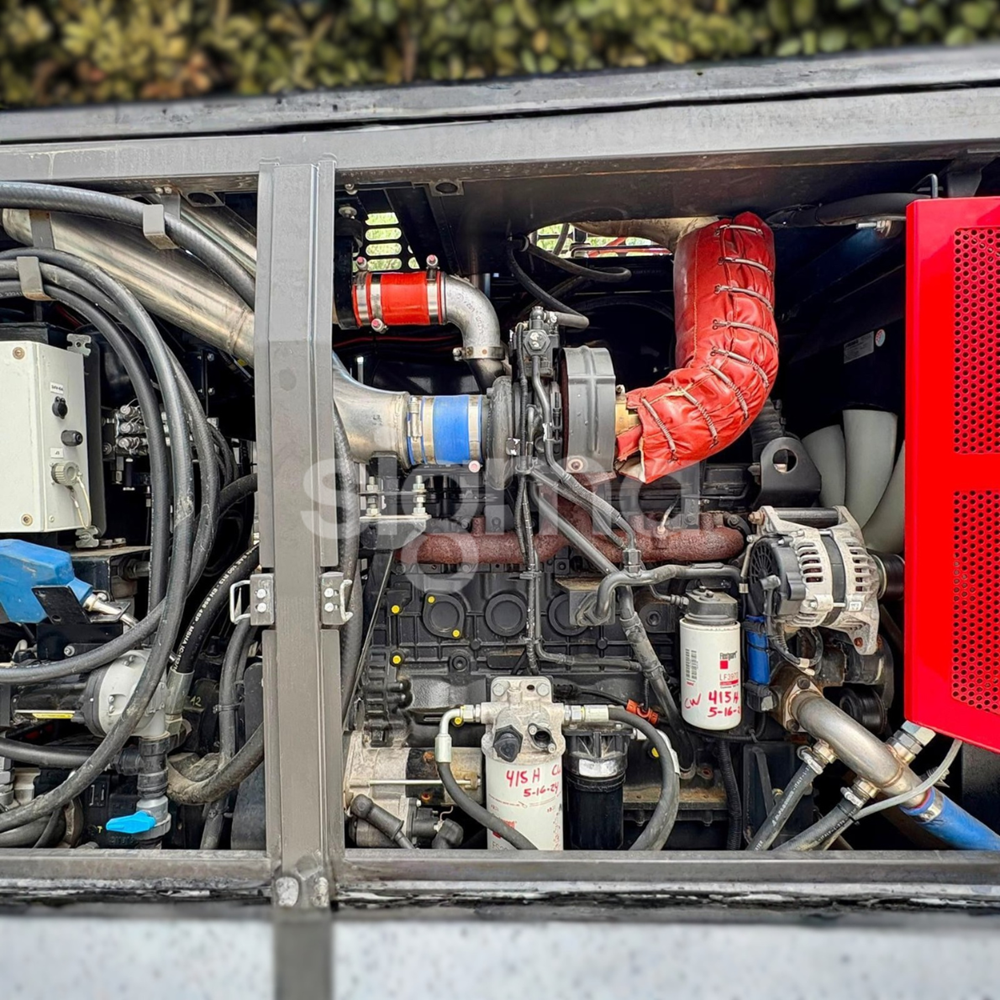

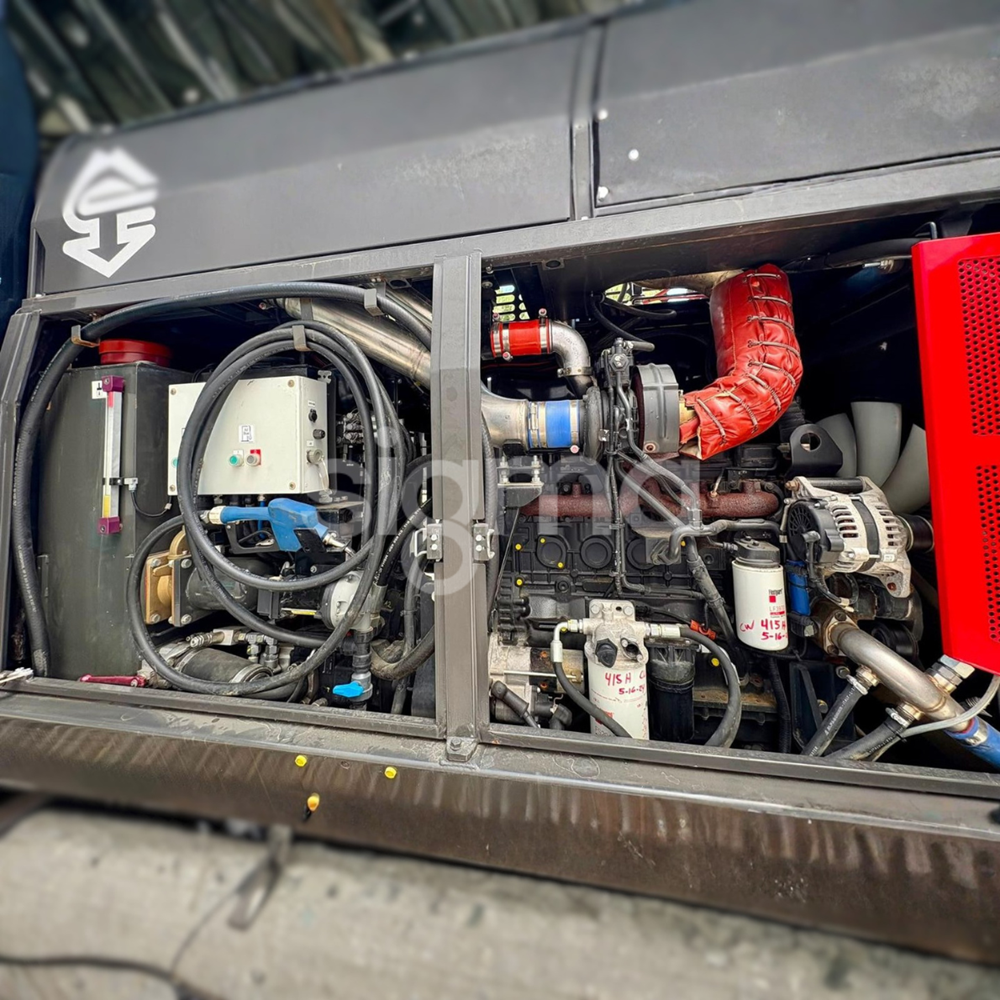

Engine

• Make: Cummins
• Model: QSB 6.7
• Power: 168 kW (225 HP) @ 2200 rpm
• Fuel tank: 280 L
• Engine Stage: EU Stage IV / EPA Tier 4 Final

Winches

Main winch

• Nominal line pull: 150 kNm
• Rope diameter: 22 mm
• Max speed on third layer: 78 m/min

Service winch

• Nominal line pull: 70 kNm
• Rope diameter: 16 mm
• Max speed: 73 m/min.

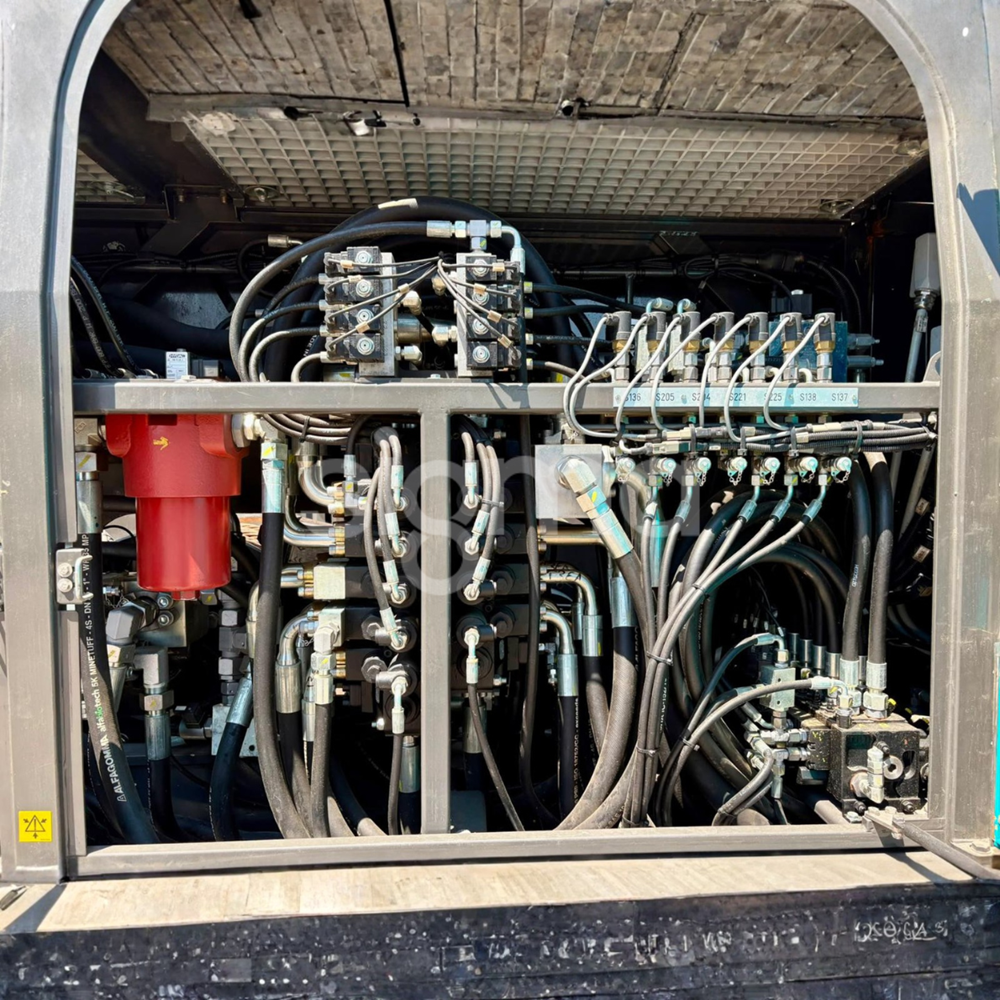

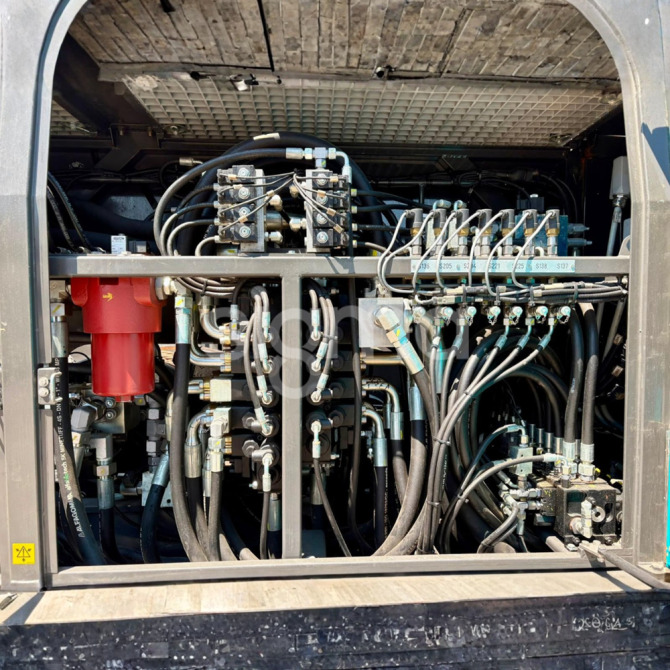

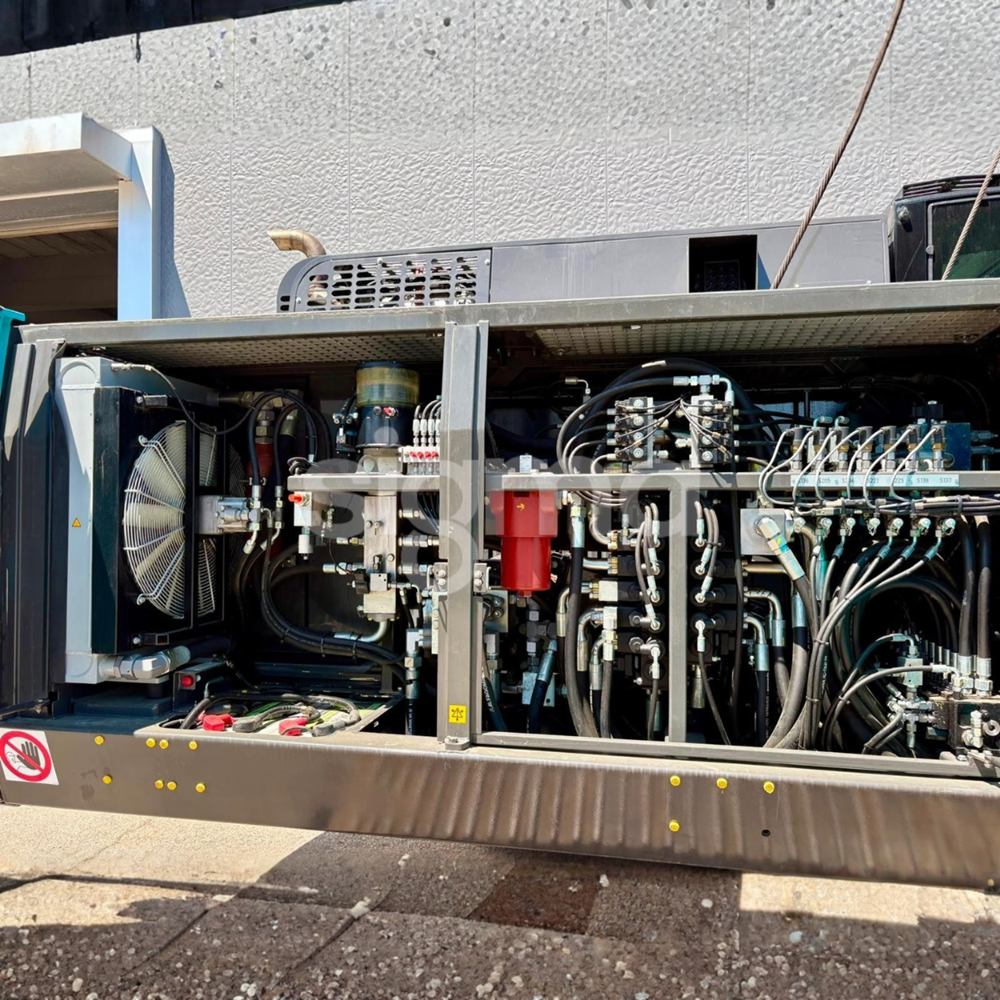

Hydraulic system

• Pump capacity: 420 (2 x 210) l/min
• Max pressure: 350 bar

Transport Dimensions and weight

• Length: 12,800 mm mast
• Width: 2,500 mm closed / 3,700 mm open
• Height: 3,360 mm
• Weight: 35,000–38,500 kg
