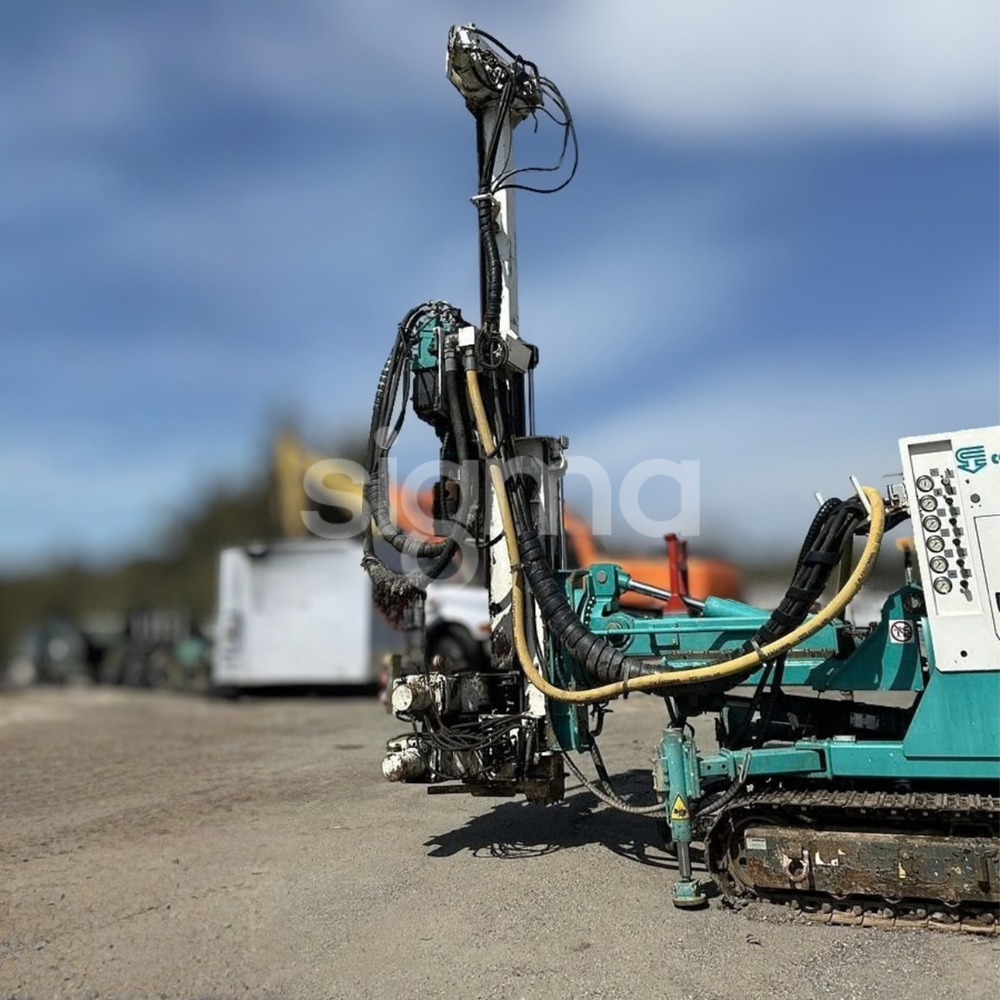

Casagrande C5R XP-2

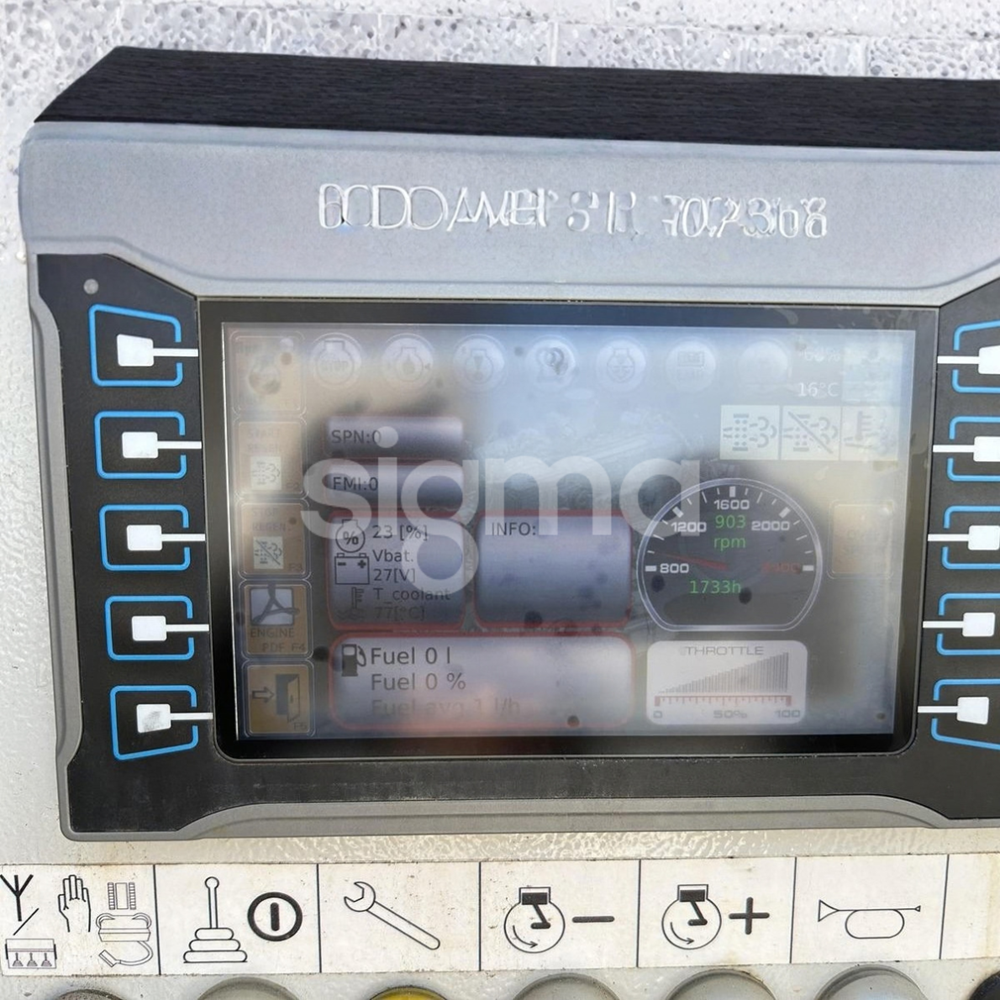

Working hours: 1,733

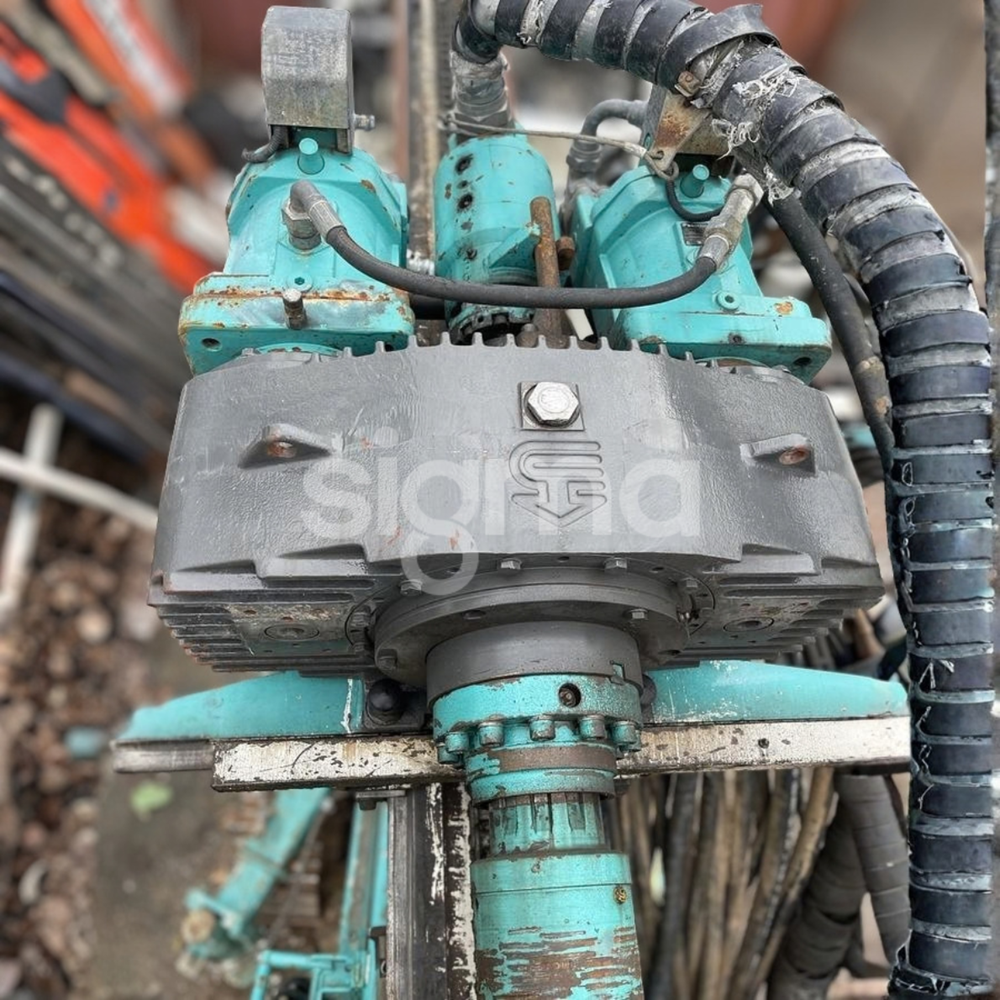

Drilling Capacity

• Max drilling diameter: 405mm
• Max torque: 12,170 Nm
• Max rotation speed: 500 rpm
• Max pull force: 50 kN
• Max push force:  60 kN

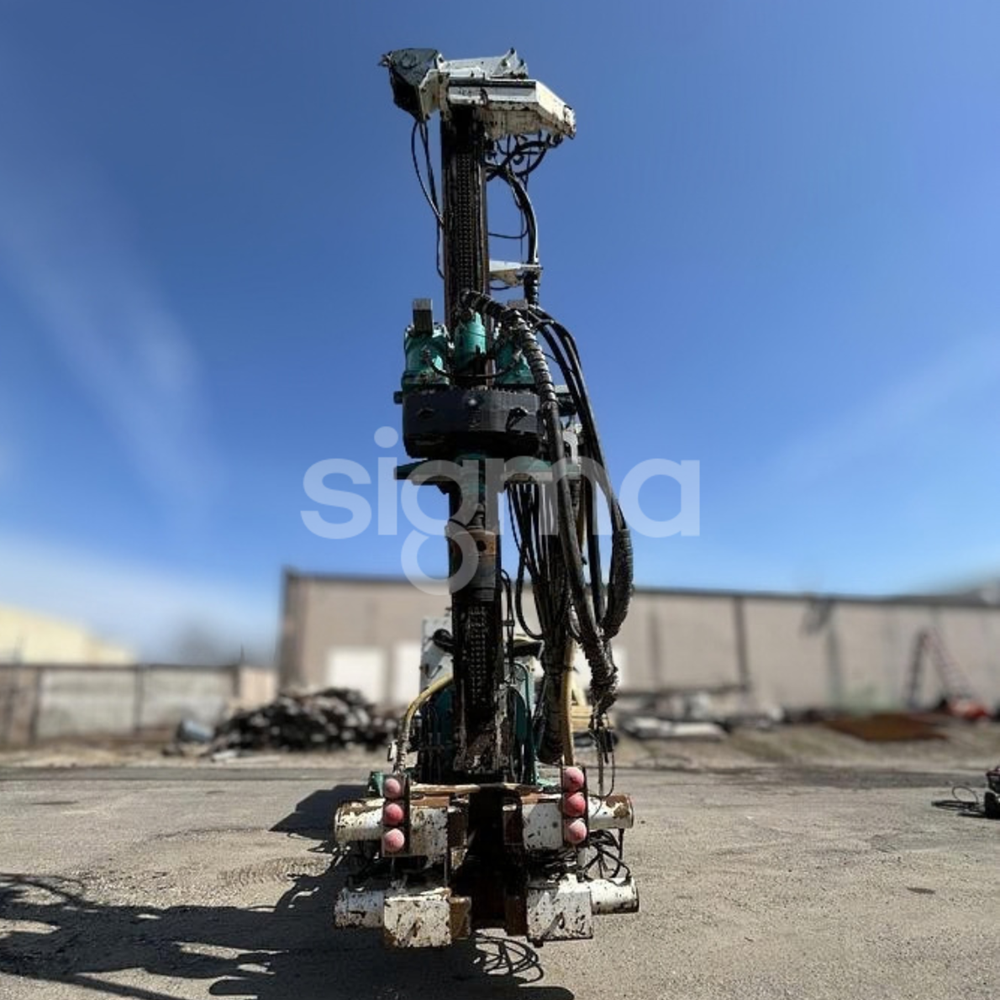

Mast & Feed System

• Mast model: 5200 MR
• Mast stroke: 3700mm
• Mast inclination: ± 95°
• Feed system type: chain feed

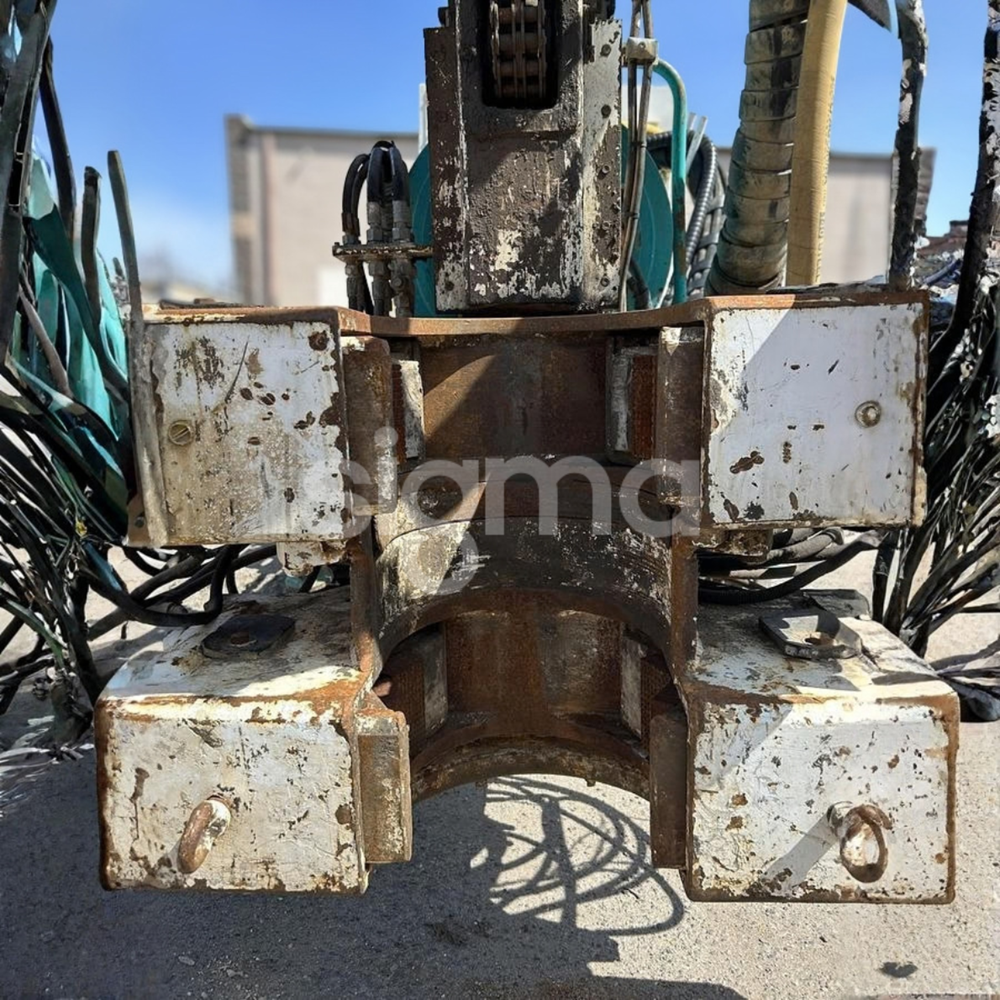

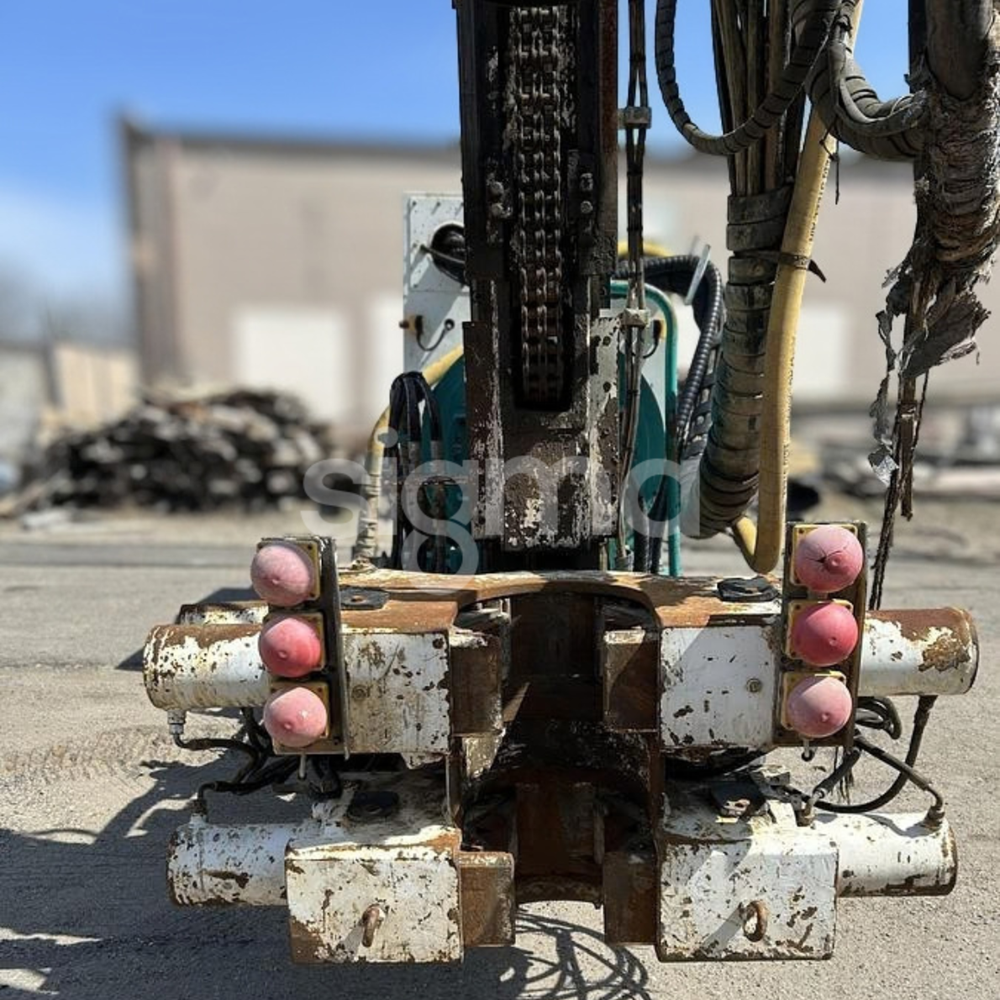

Rod & Casing Handling

• Clamp diameter range: 32 ÷ 324 mm
• Rod length: 3.7m
• Clamping force: 240 kN

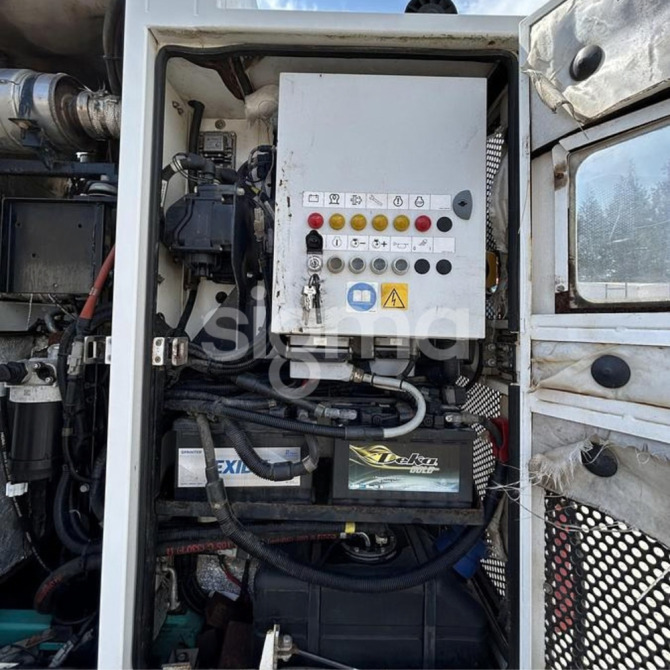

Power Unit

• Engine make & model: CUMMINS F 3.8
• Engine power: 111 kW (148 hp) @ 2,200
• Emission standard: Stage 5 – Tier 4
• Fuel tank capacity: 100l

Hydraulic System

• Max flow: 319 l/min + 2 x 73 l/min
• Max operating pressure (bar): 350 bar
• Hydraulic oil capacity (L): 300l

Dimensions & Weight

• Transport width: 1,220 mm
• Transport height: 2,770mm
• Transport length: 6,585mm
• Operating weight: 10,000 kg
