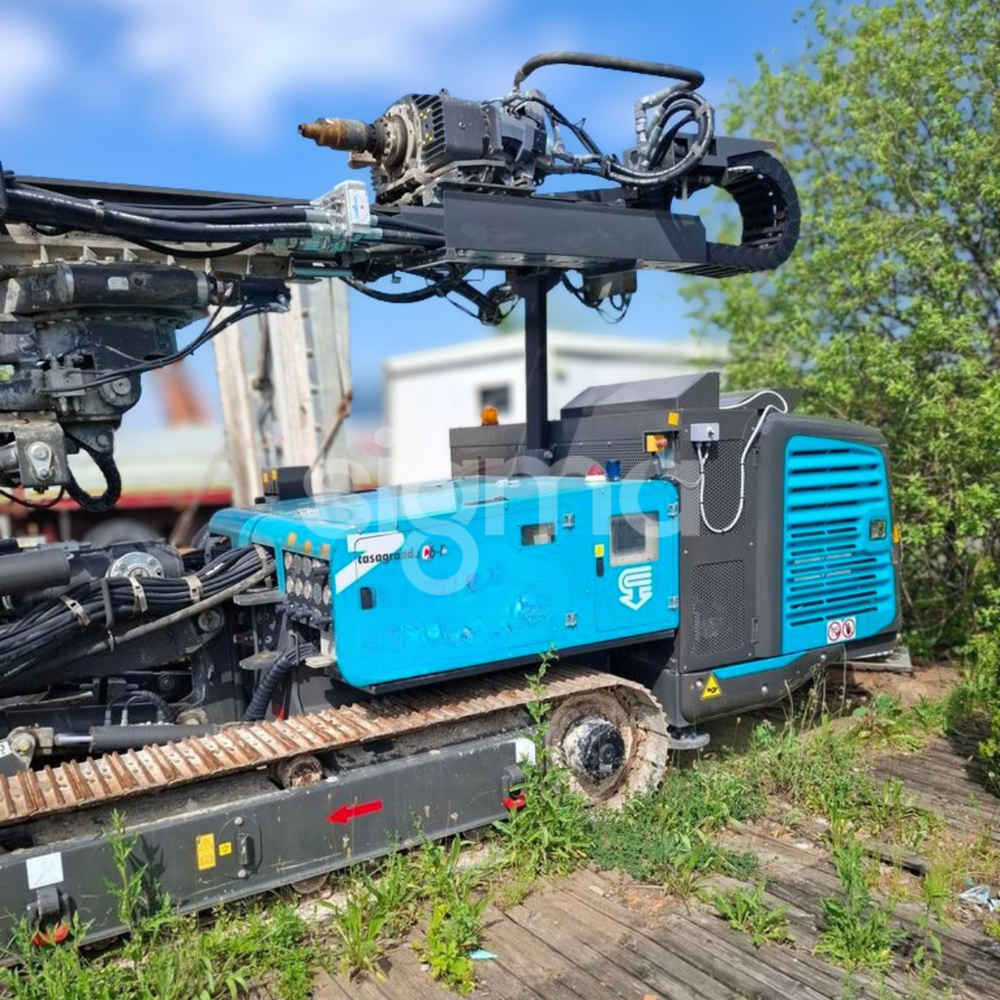

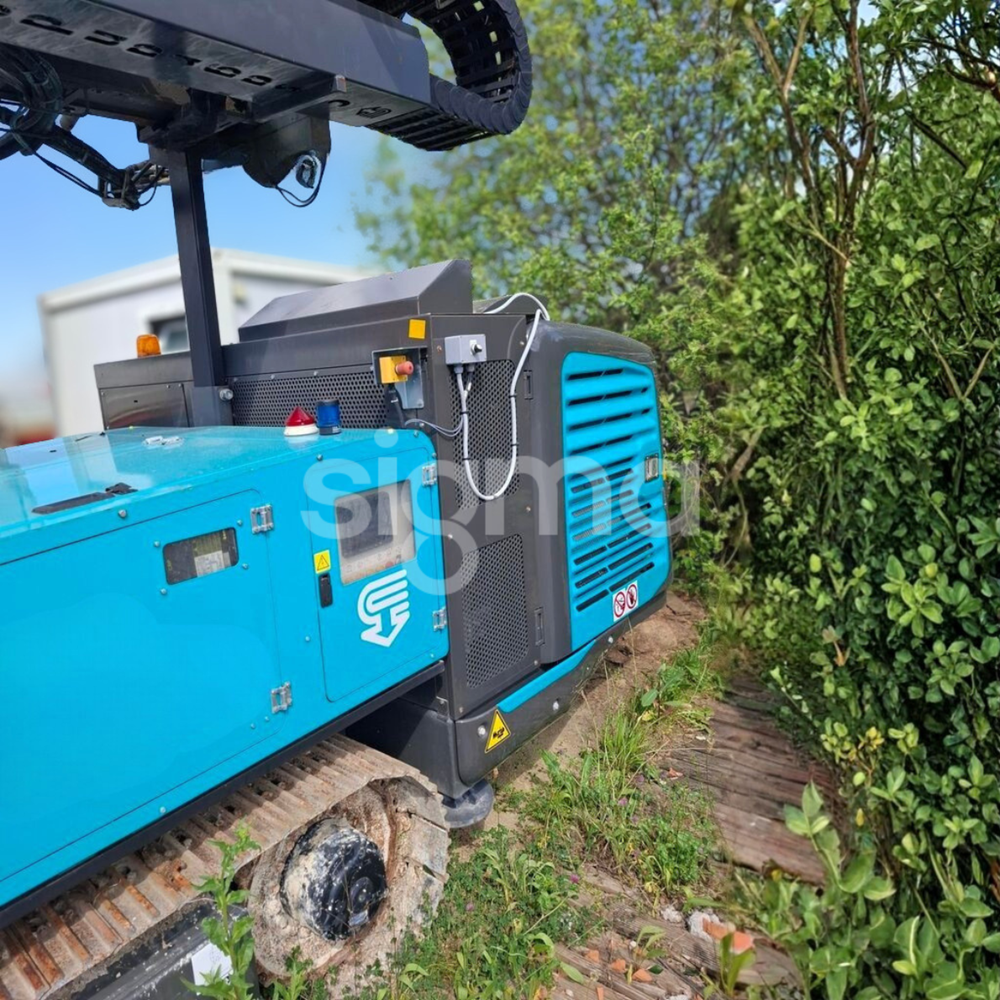

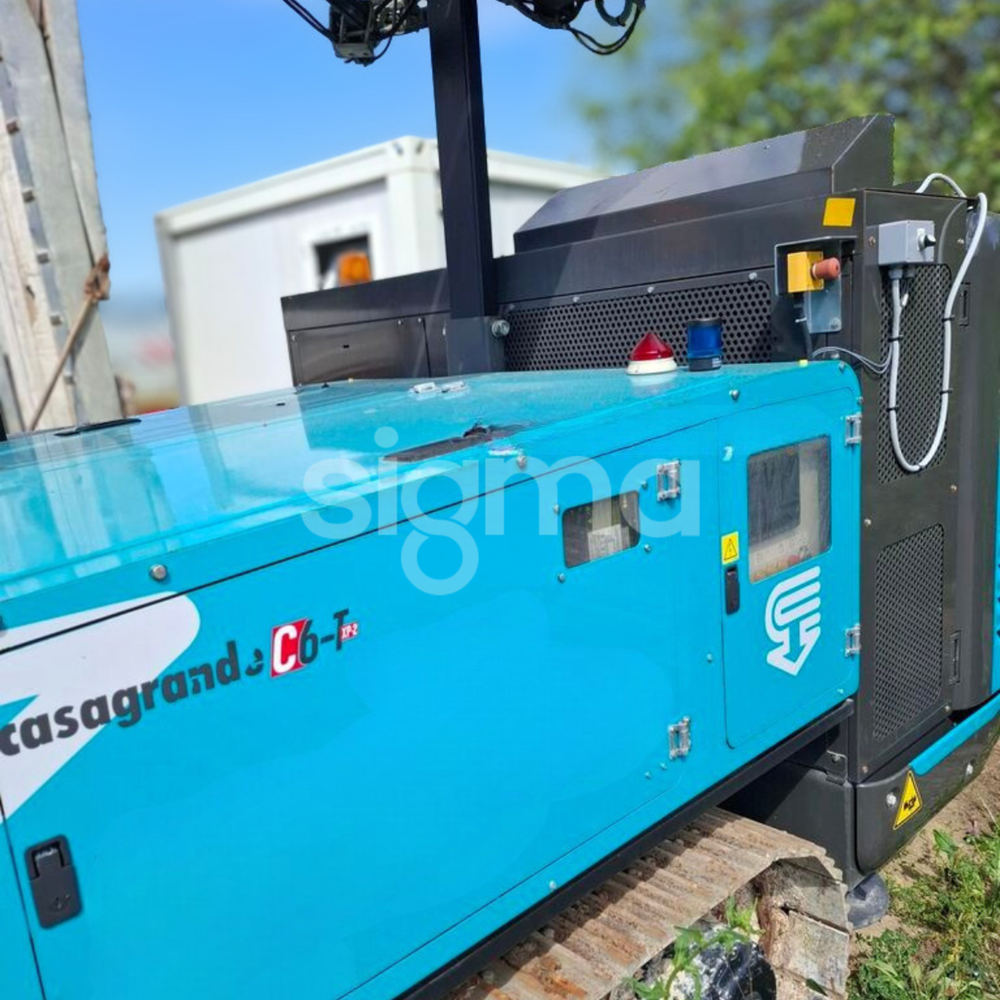

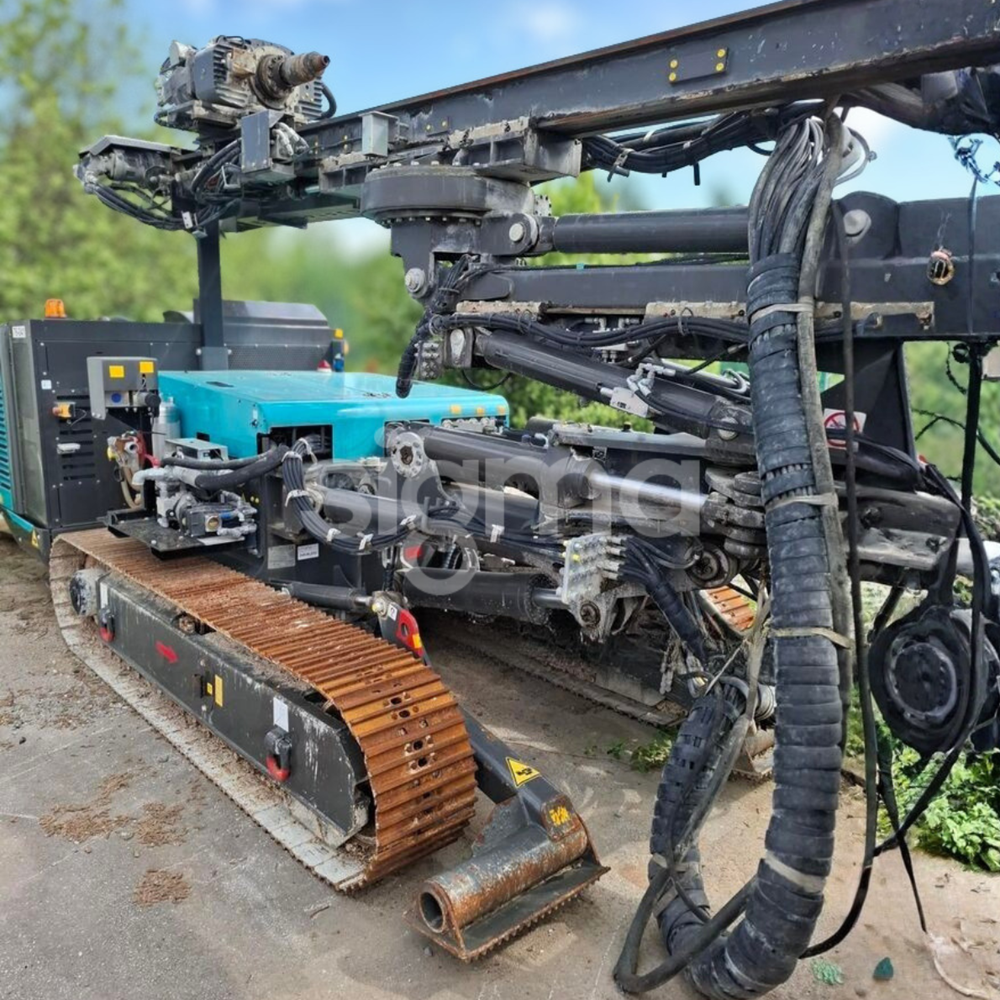

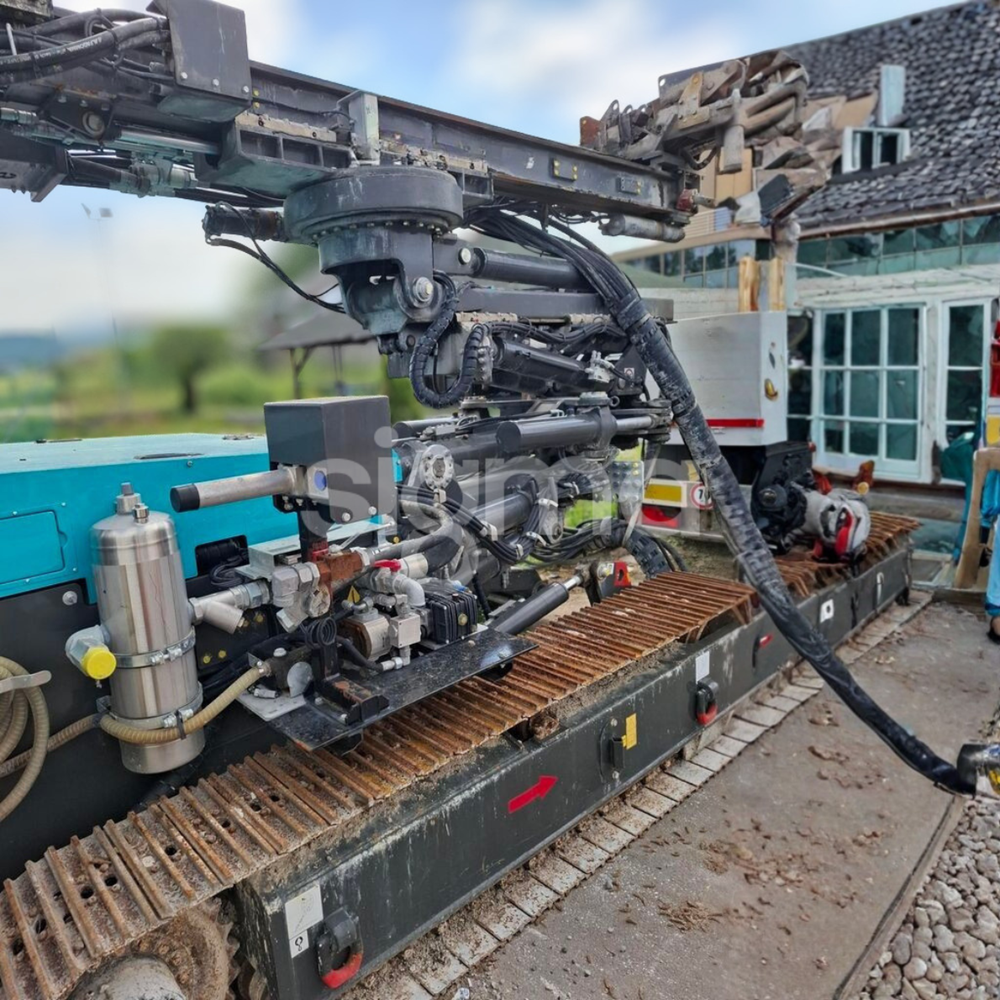

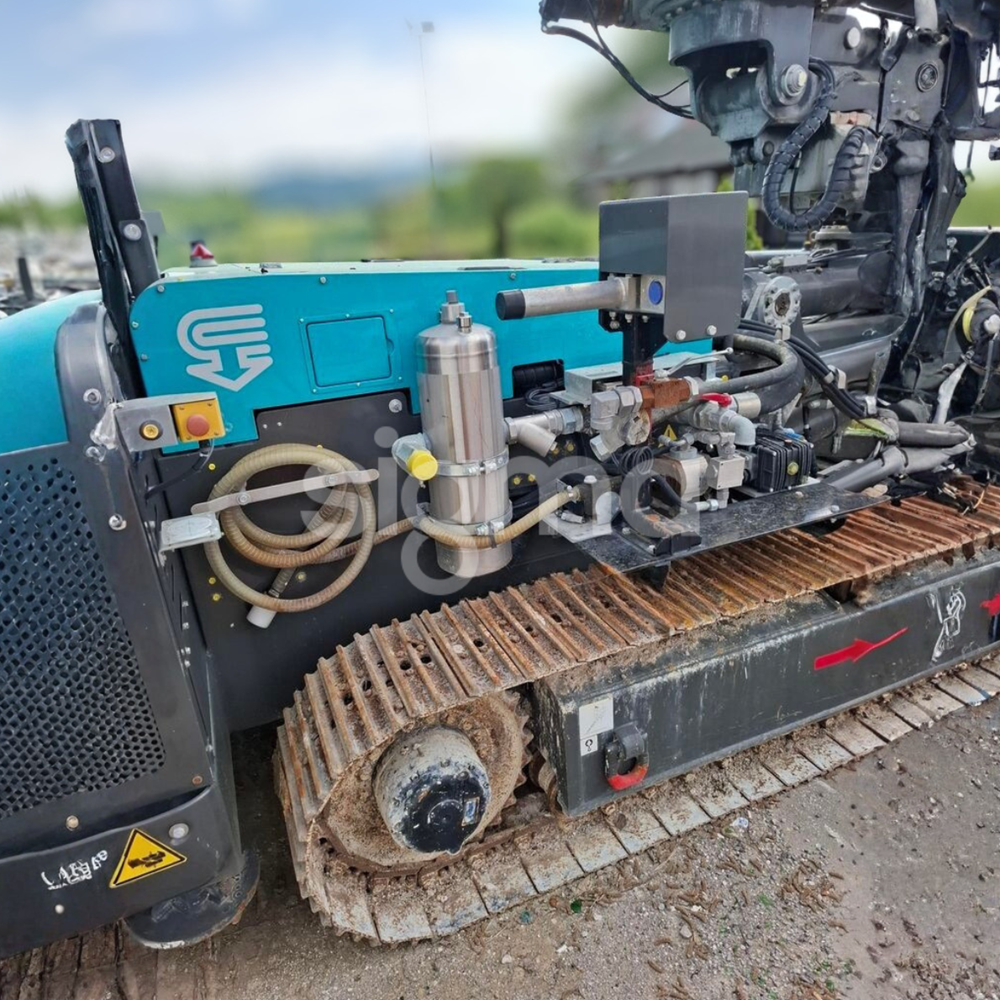

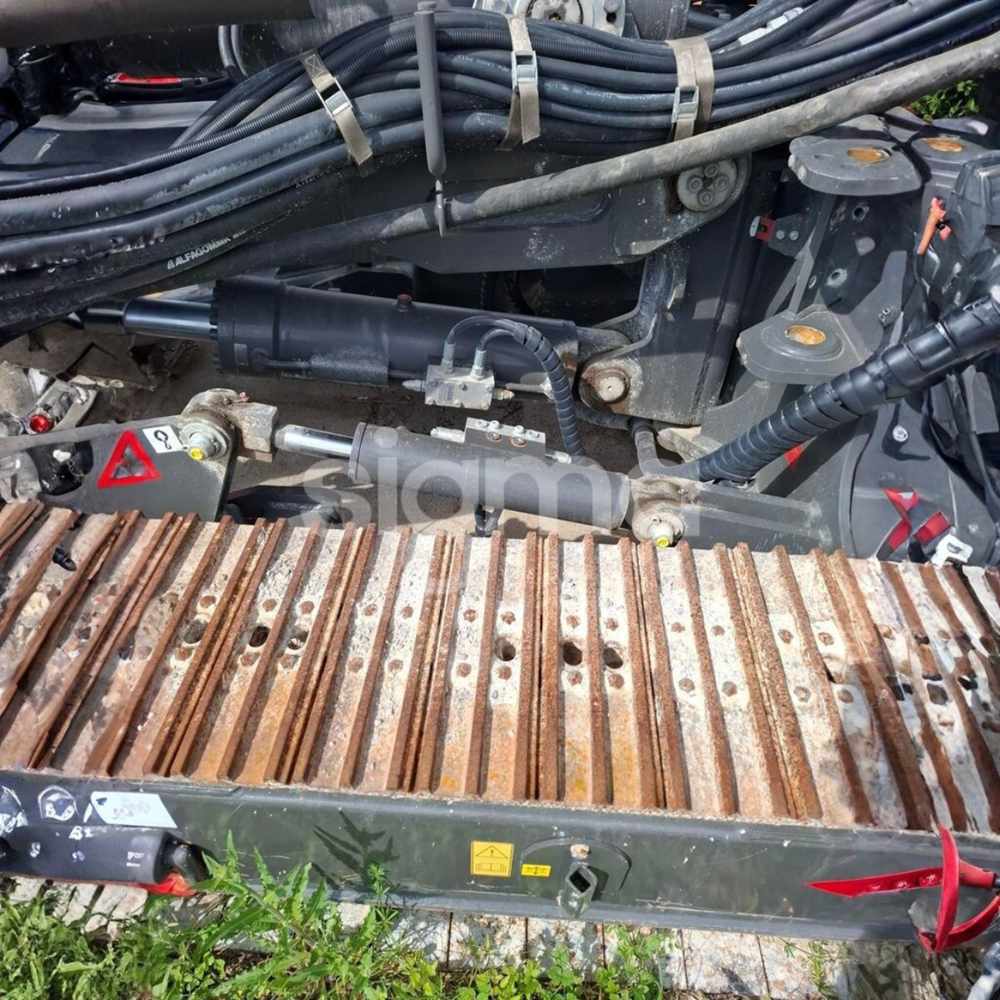

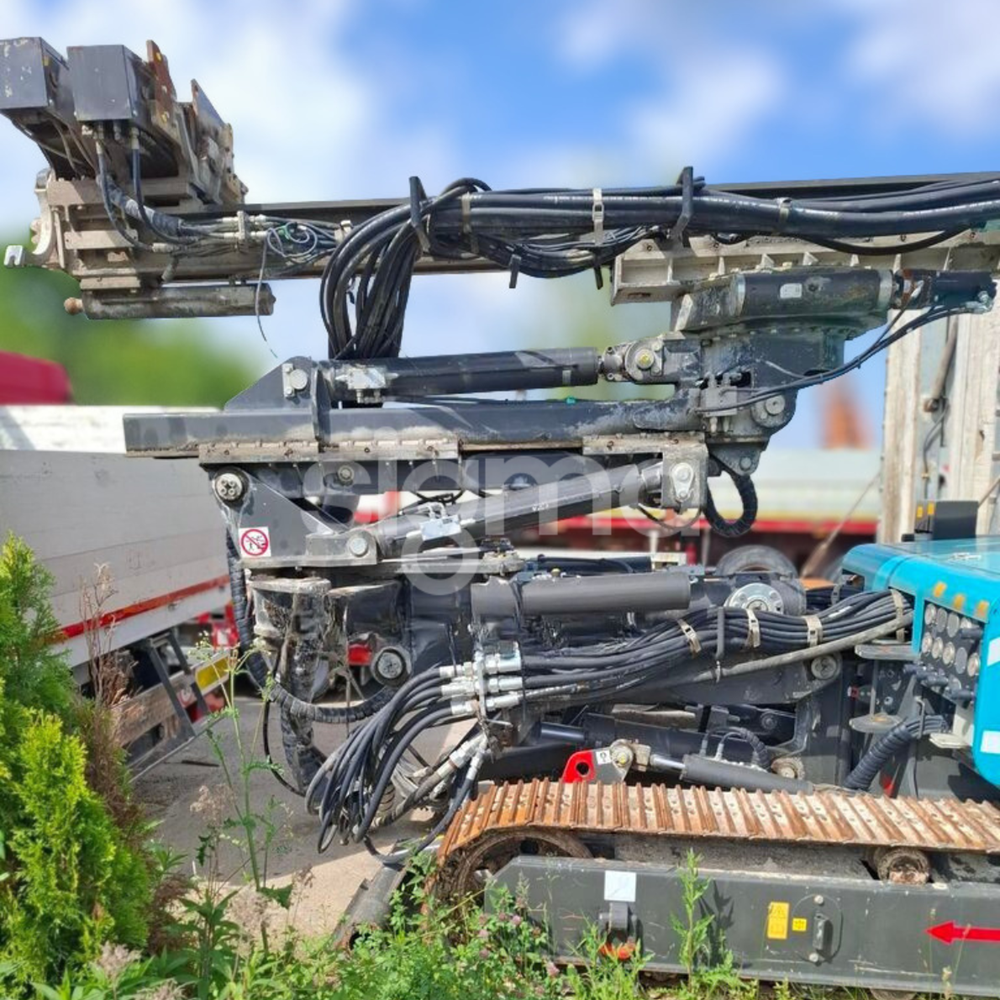

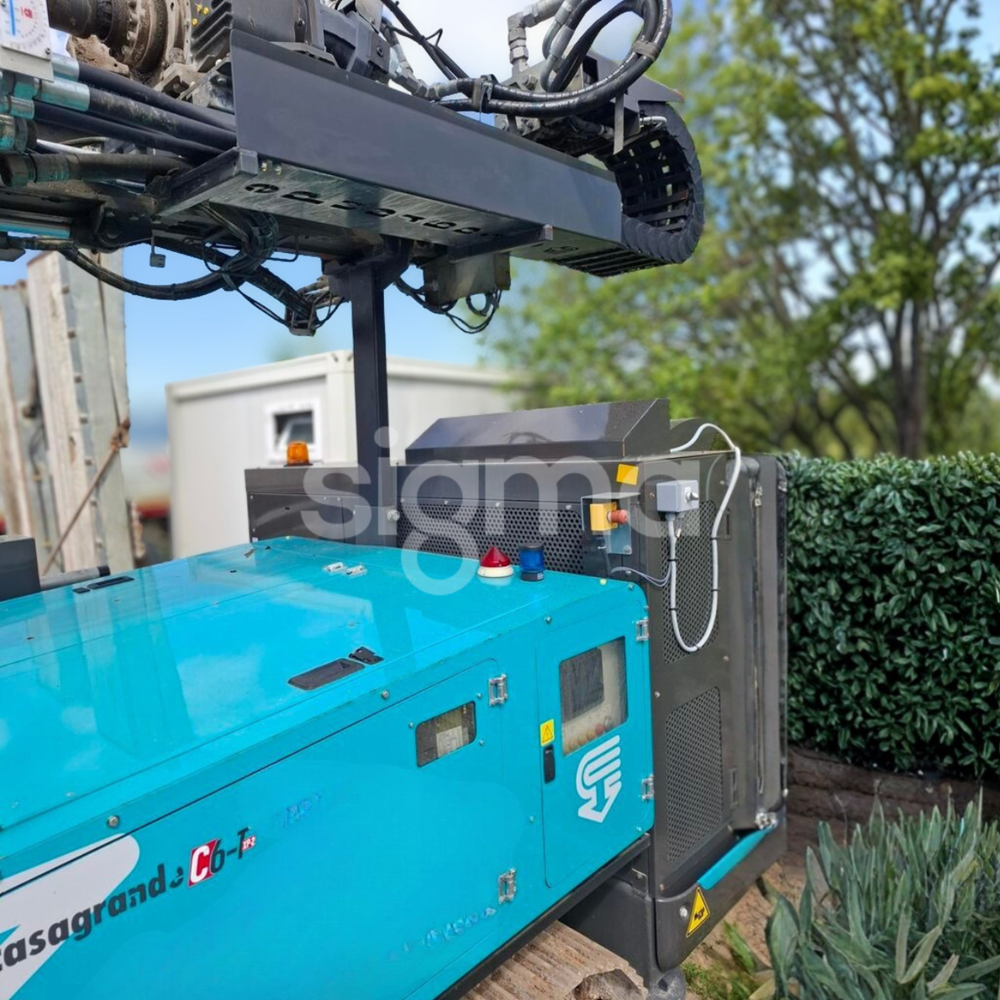

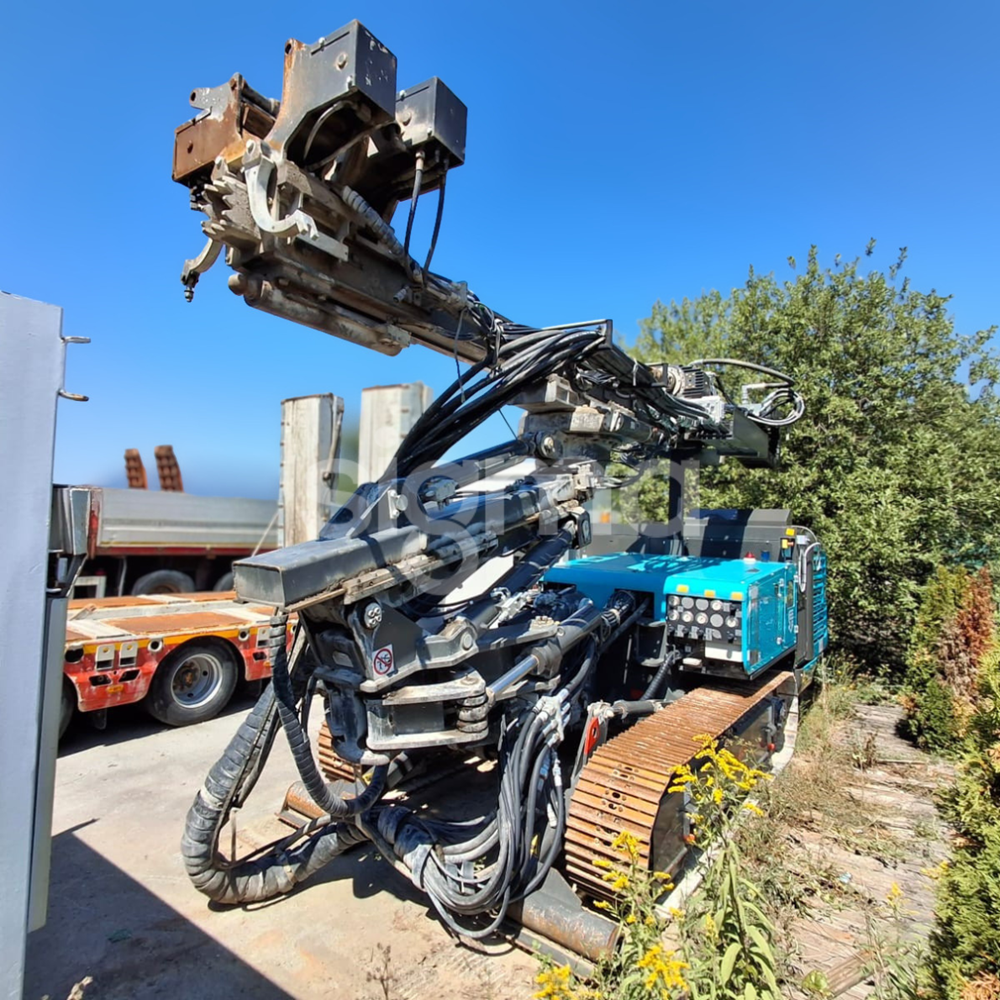

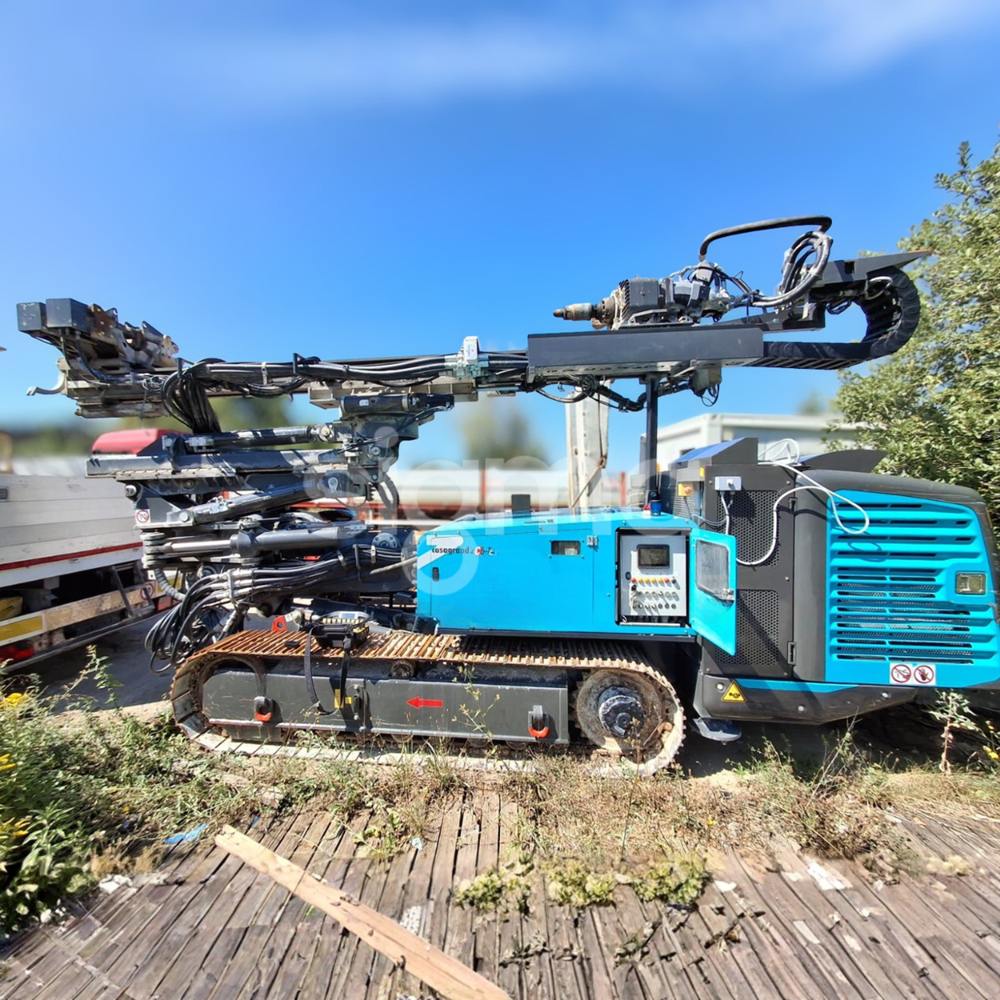

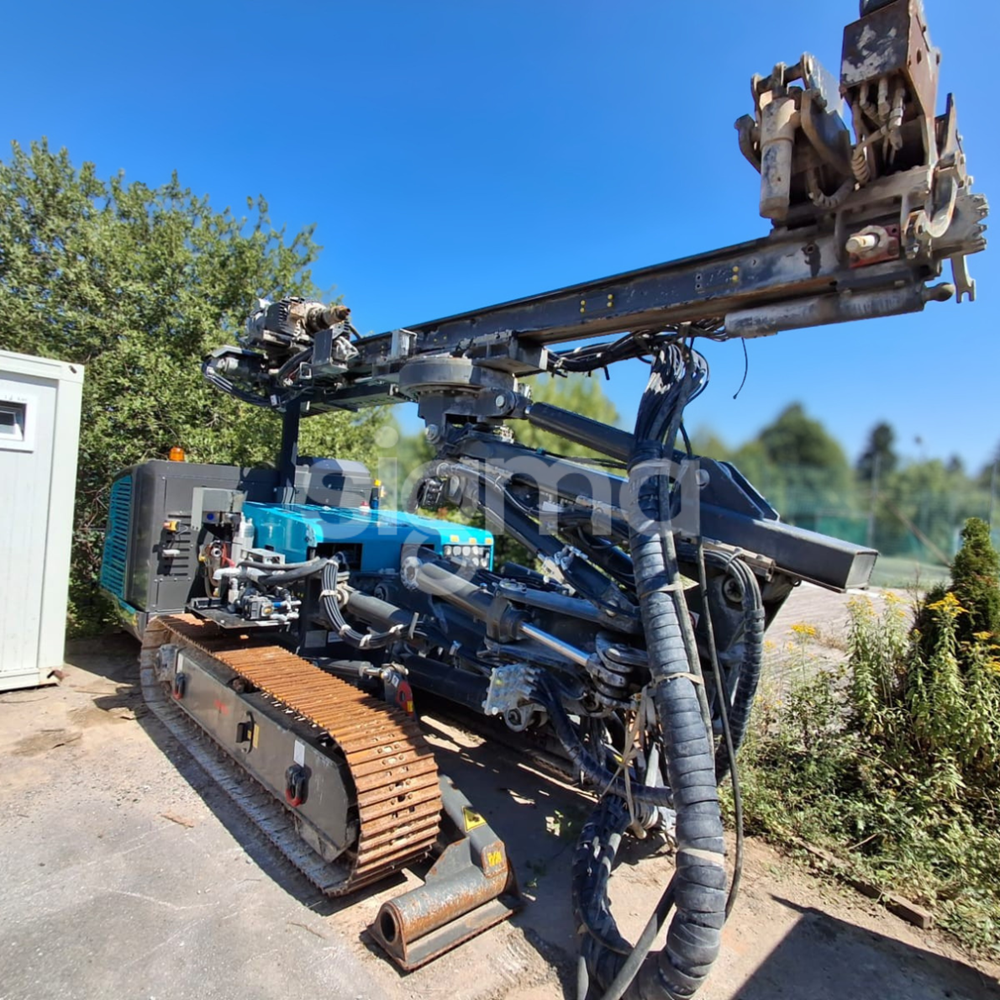

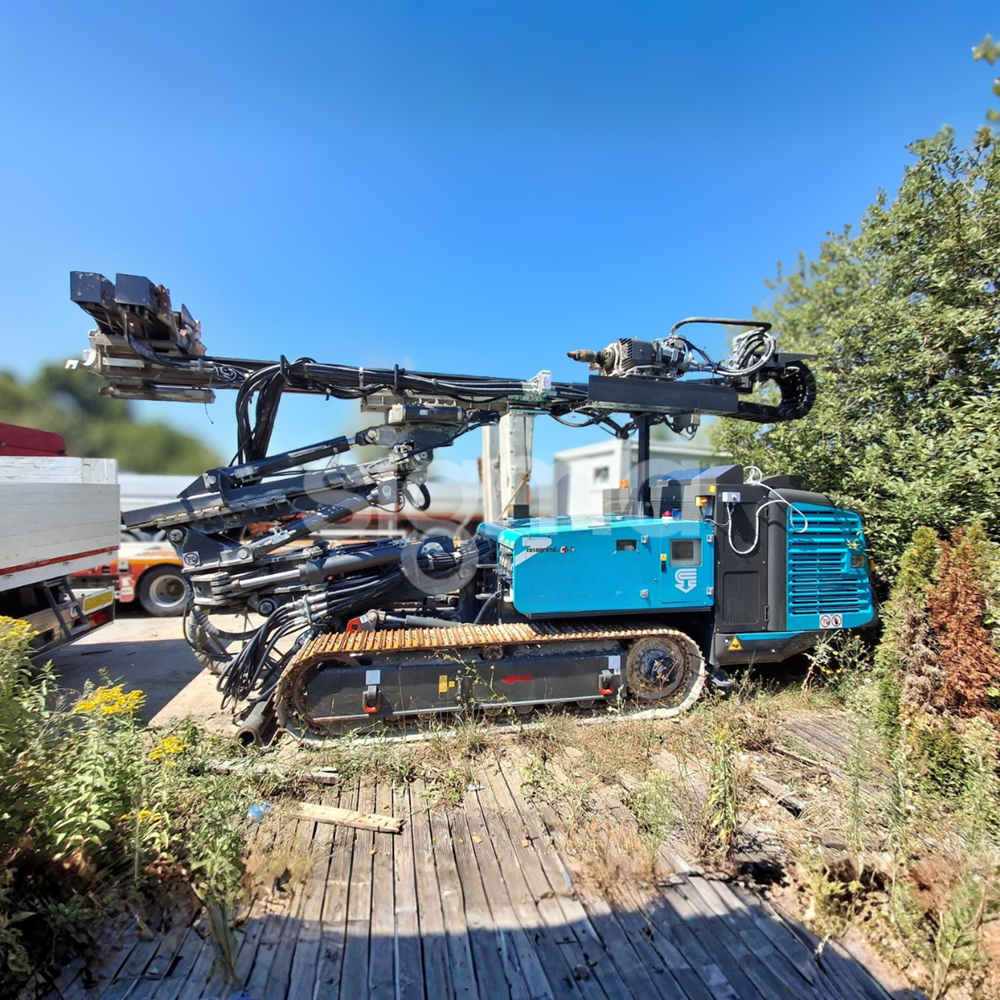

Casagrande C6 T XP-2

Tunnelling rig with 659 hours

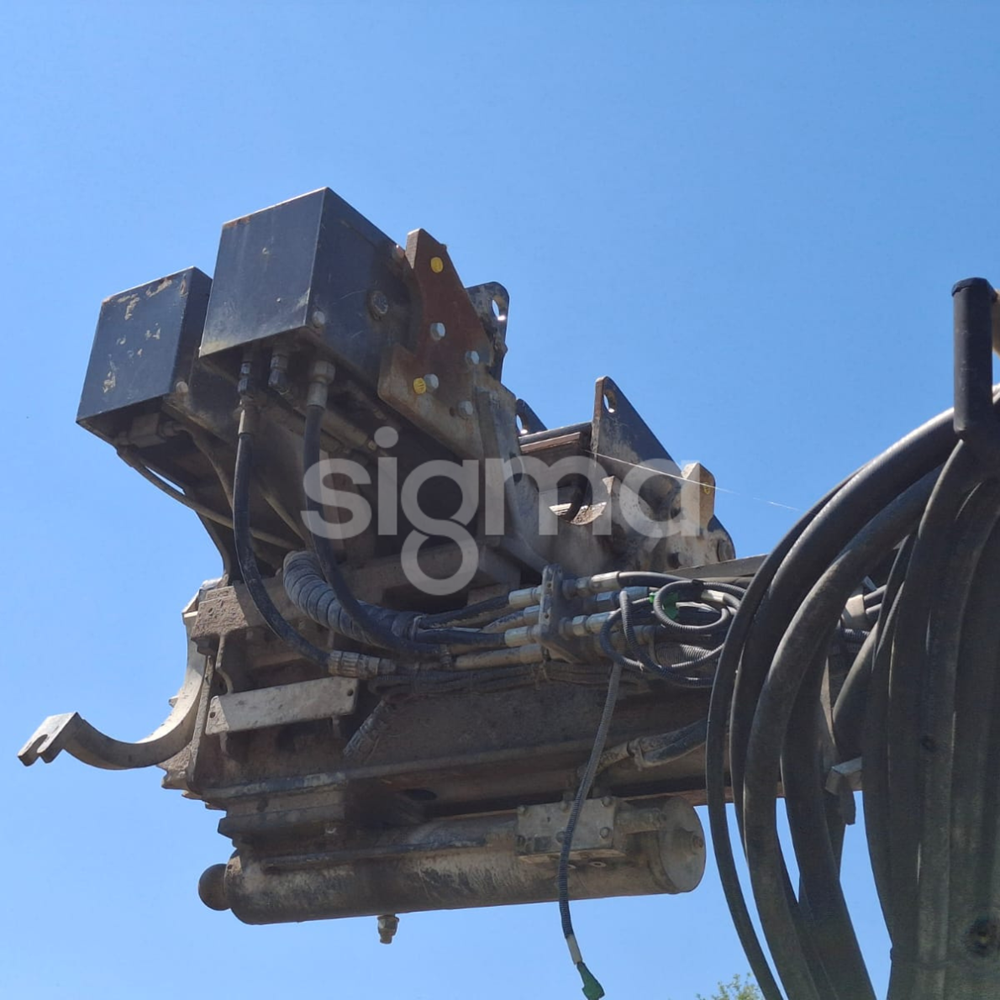

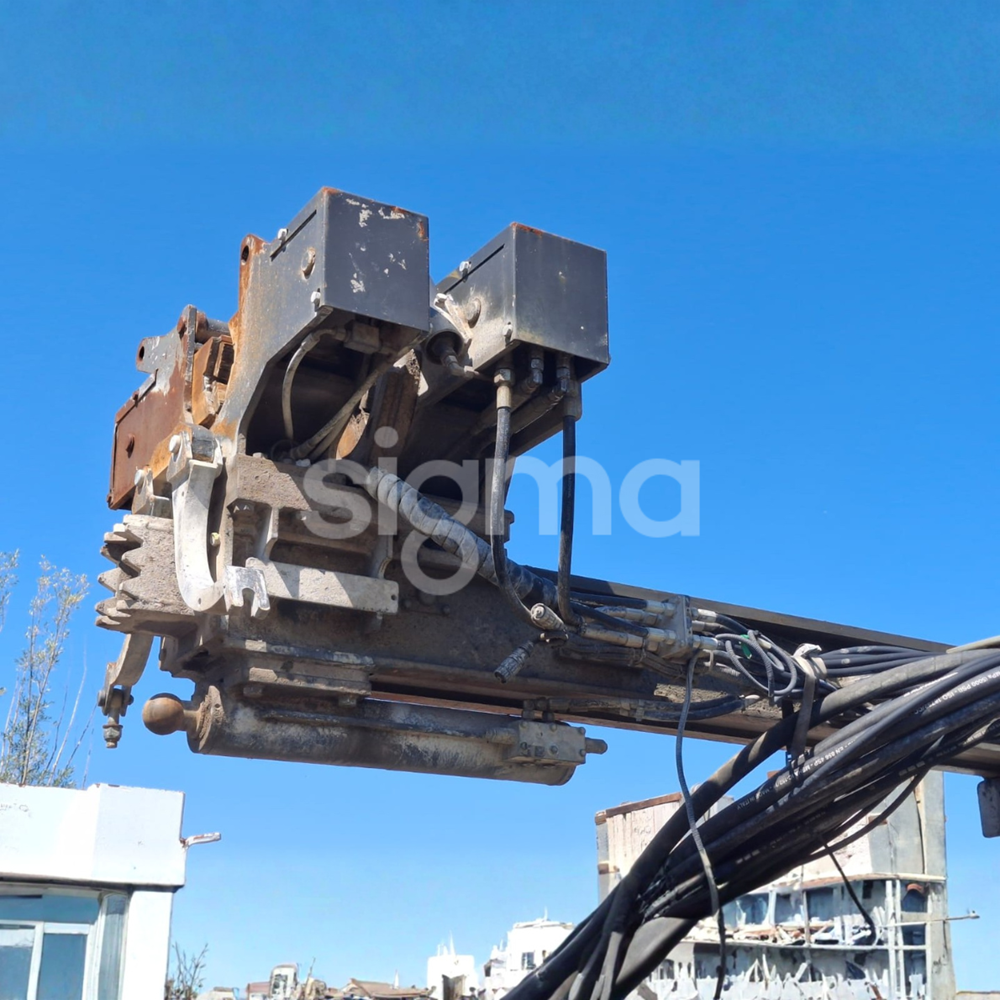

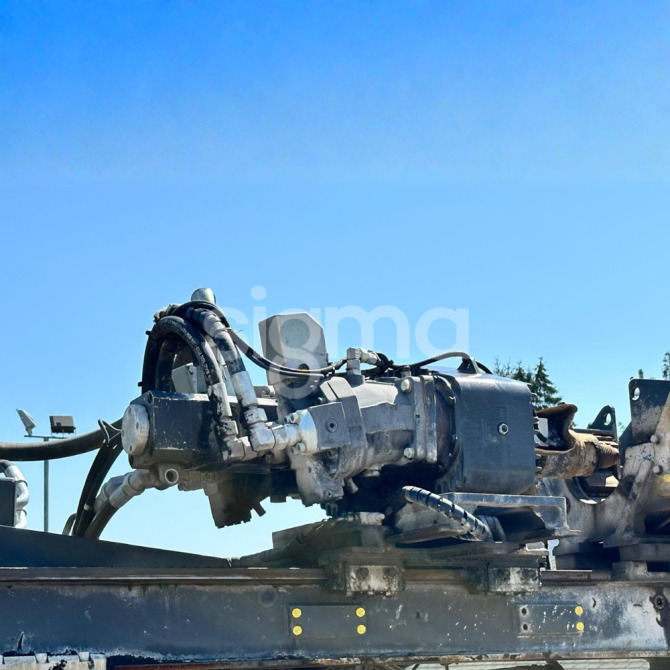

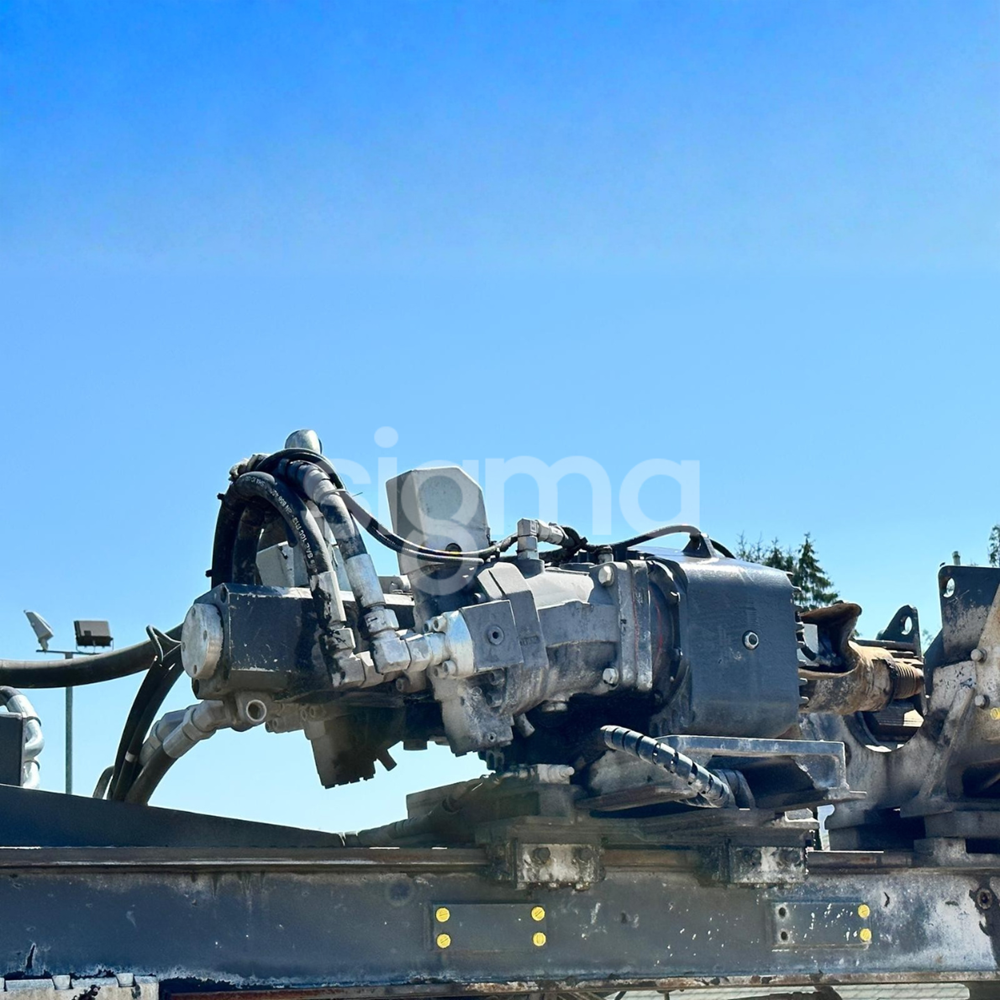

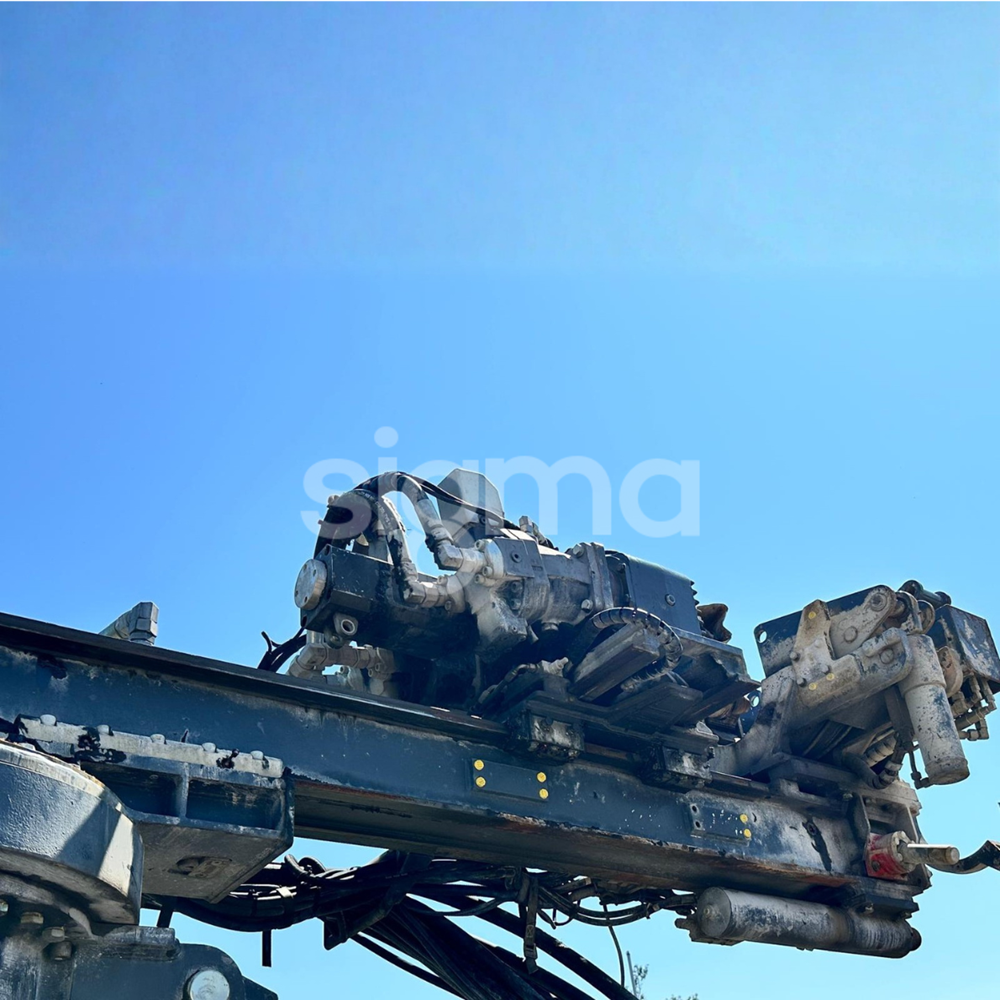

Rotary Head

• Model: T14 EP
• Max torque: 12,200 kNm
• Rotation speed: 500 rpm

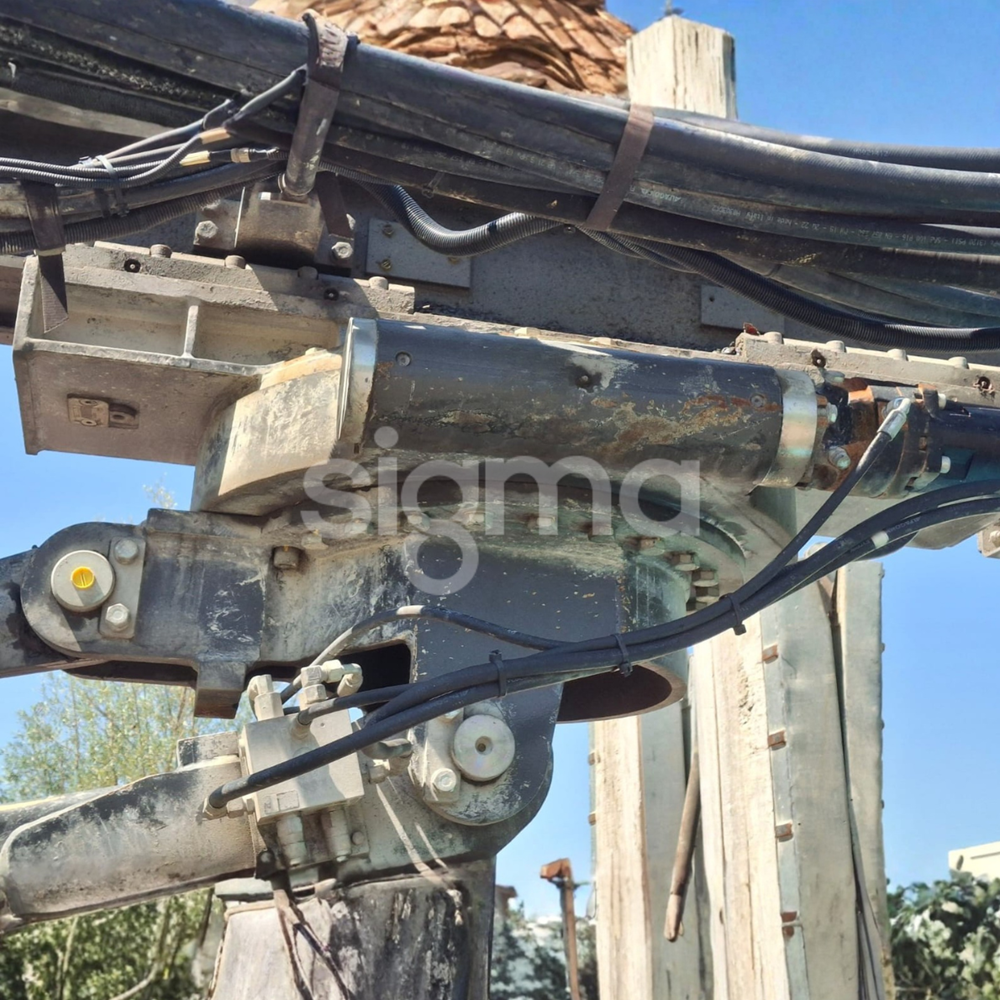

Clamps

• Model: M2Z | M2SZ
• Max clamping force: 159 kN
• Rod diameter range: 32 - 254 mm

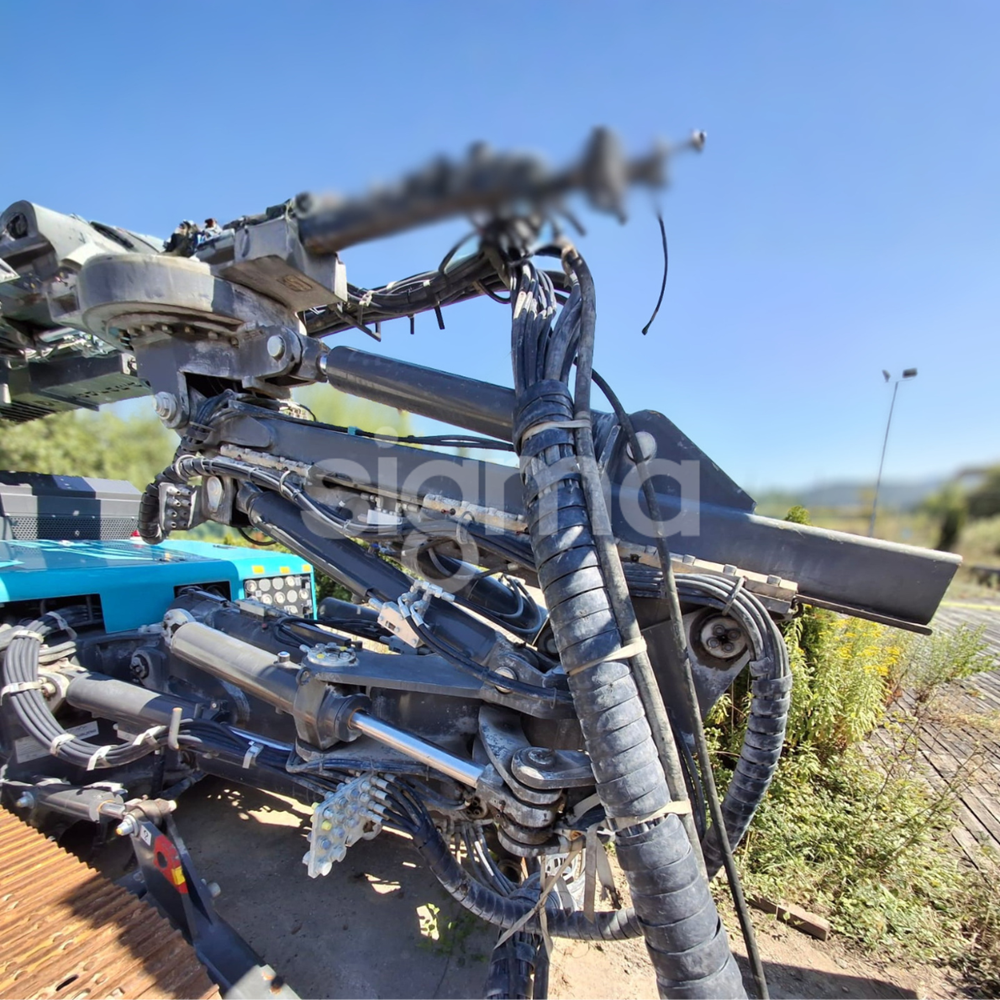

Drilling Performance

• Mast length: 5,500 mm
• Stroke: 4,000 mm
• Crowd force: 50 kN
• Max extraction force: 50 kN
• Max crowd/extraction speed: 55 m/min

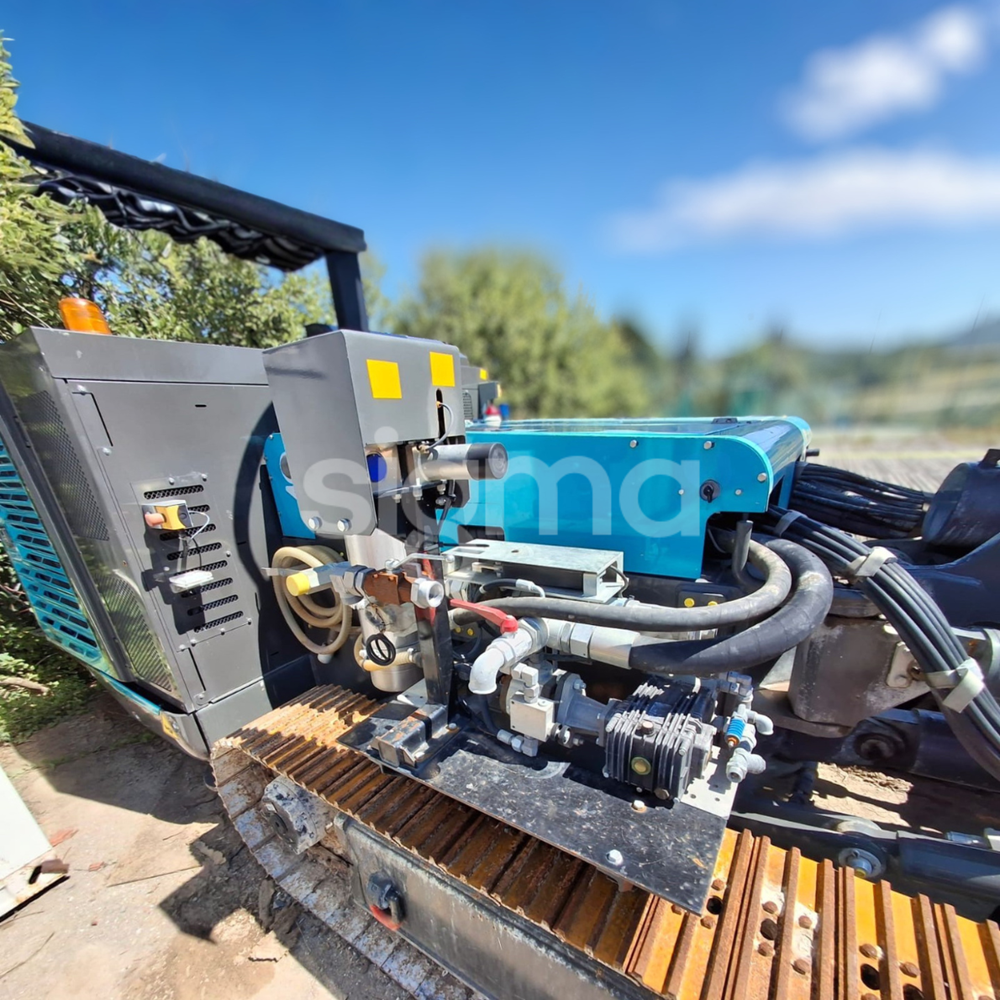

Power Unit

• Electric power: 90 kW @
• Diesel power: 55 kW (74 HP)
• Engine Stage: EU Stage 5 / EPA Tier 4

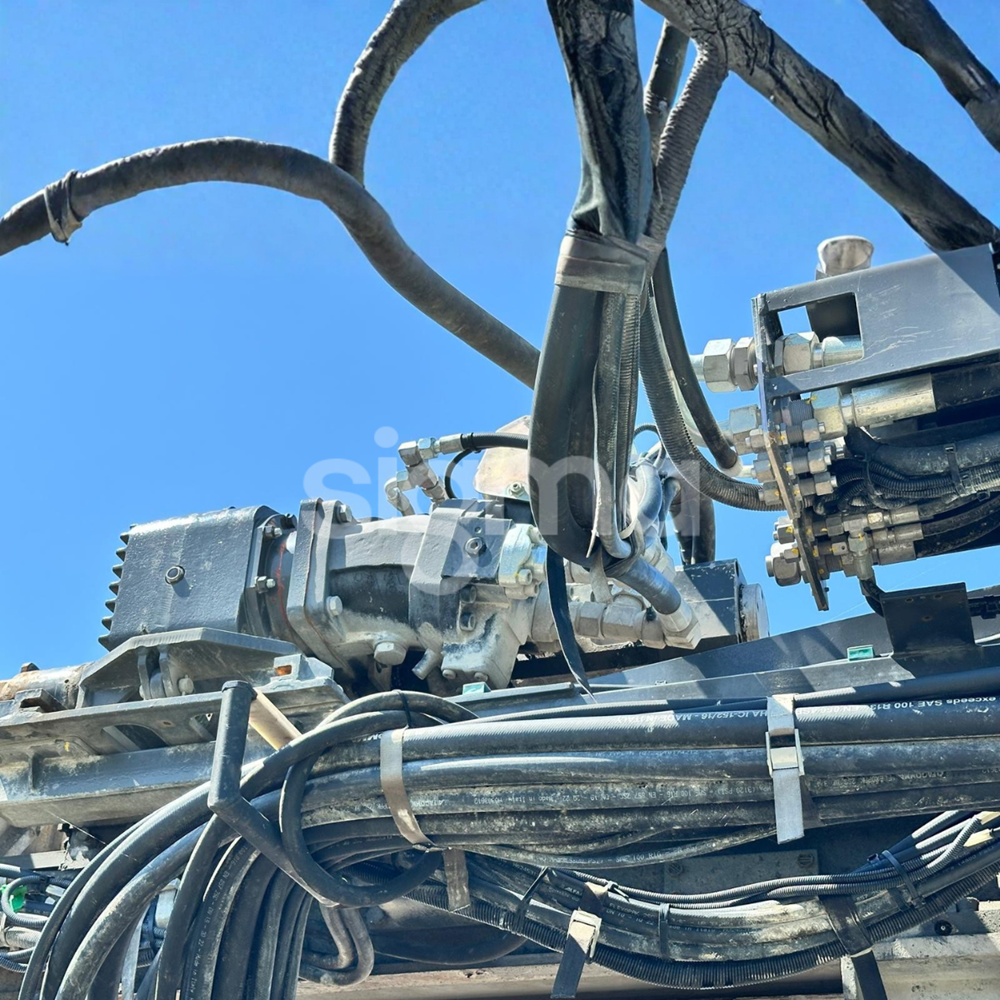

Hydraulic System

• Pump capacity: 1 x 319 l/min
• Max pressure: 350 bar
• Hydraulic oil tank capacity: 490 litres

Transport Dimensions and Weight

• Length: 6,750 mm
• Width: 2,250 mm
• Height: 1,510 mm
• Track shoe width: 400 mm
• Weight: 16,000 kg
