Overview
Machine location:
United States
Stock number:
PF 41040
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Casagrande
Model:
C6 XP-2
Year of manufacture:
2021
Working hours:
1717
Key features

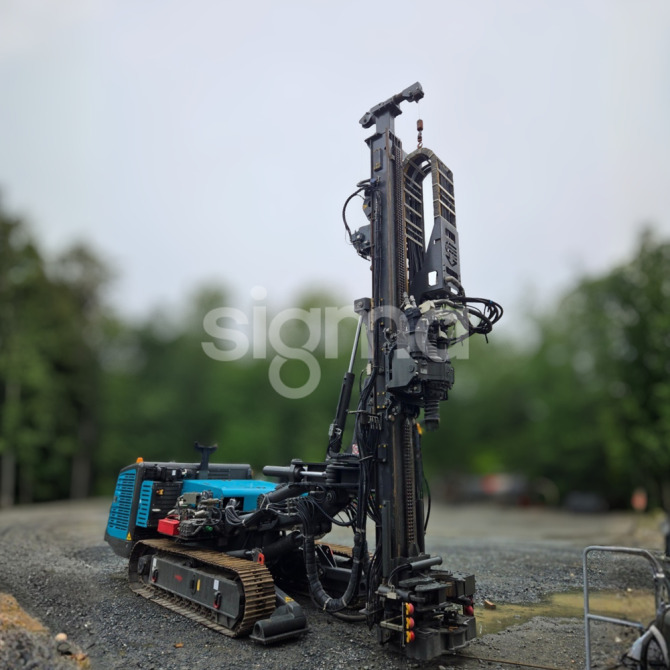

- Mini piling and anchoring rig with 1,717 hours
- Rotary head
- Model: T2500
- Max torque: 22.2 kNm
- Rotation speed: 226 rpm
- Through-hole passage: 200 mm

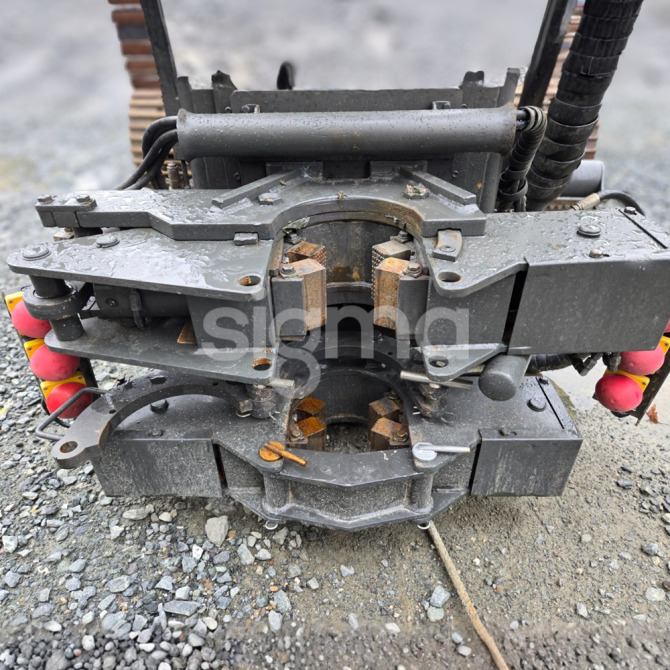

- Clamps
- Model: M2Z-M2SZ
- Max clamping force: 145 kNm
- Breaking torque: 45 kNm
- Stroke of break-out clamp: 3,962 mm
- Rod diameter range: 40 - 254 mm
- Extraction force: 120 kN
- Drilling performance
- Mast length: 6,100 mm
- Stroke: 4,300 mm
- Crowd force: 87 kN
- Max extraction force: 87 kN
- Max crowd/extraction speed: 47 m/min

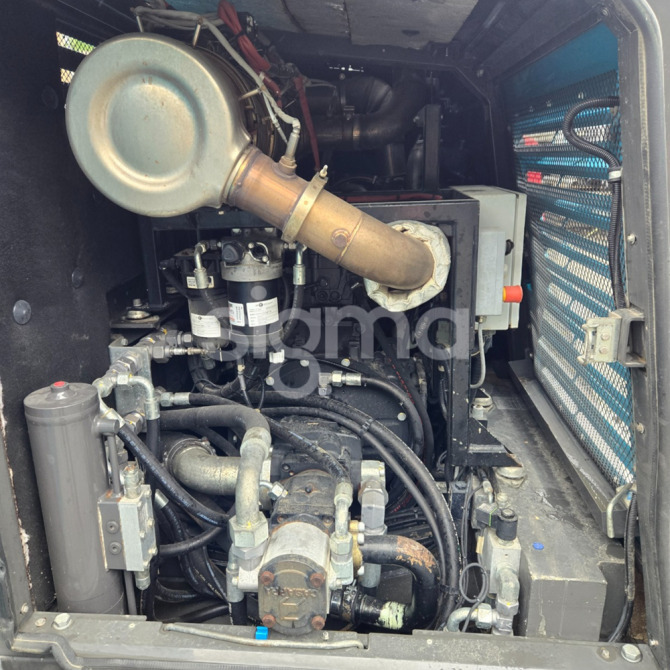

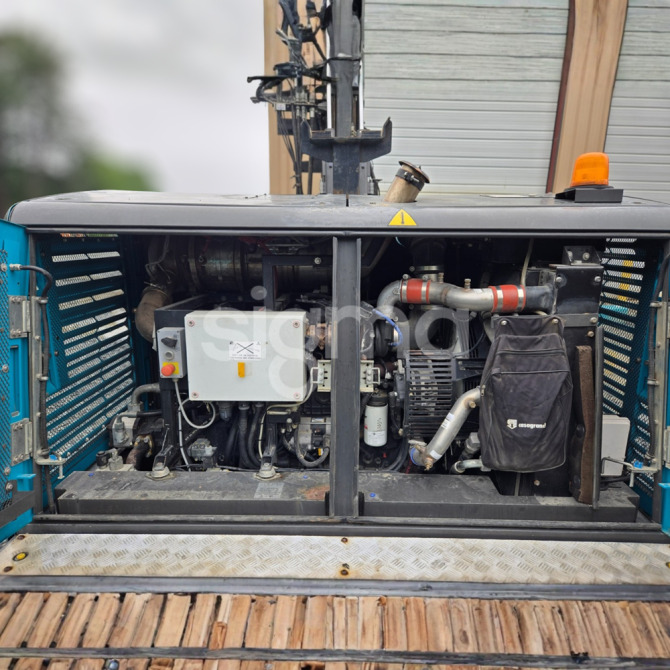

- Engine
- Make: Cummins
- Model: B4.5
- Power: 140 kW (188 HP) @ 2,200 rpm
- Fuel tank: 260 l
- Engine Stage: EU Stage V / EPA Tier 4

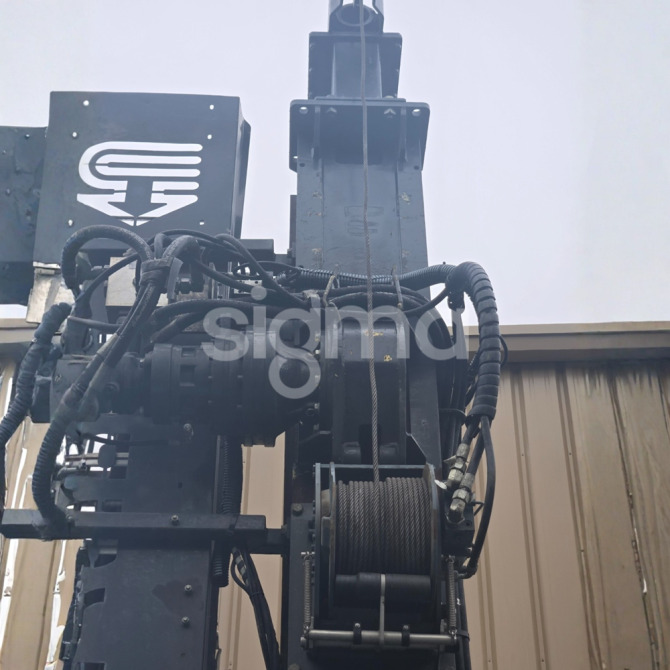

- Winches
- Service winch model: A2
- Line pull: 20 kN
- Rope length: 50 m

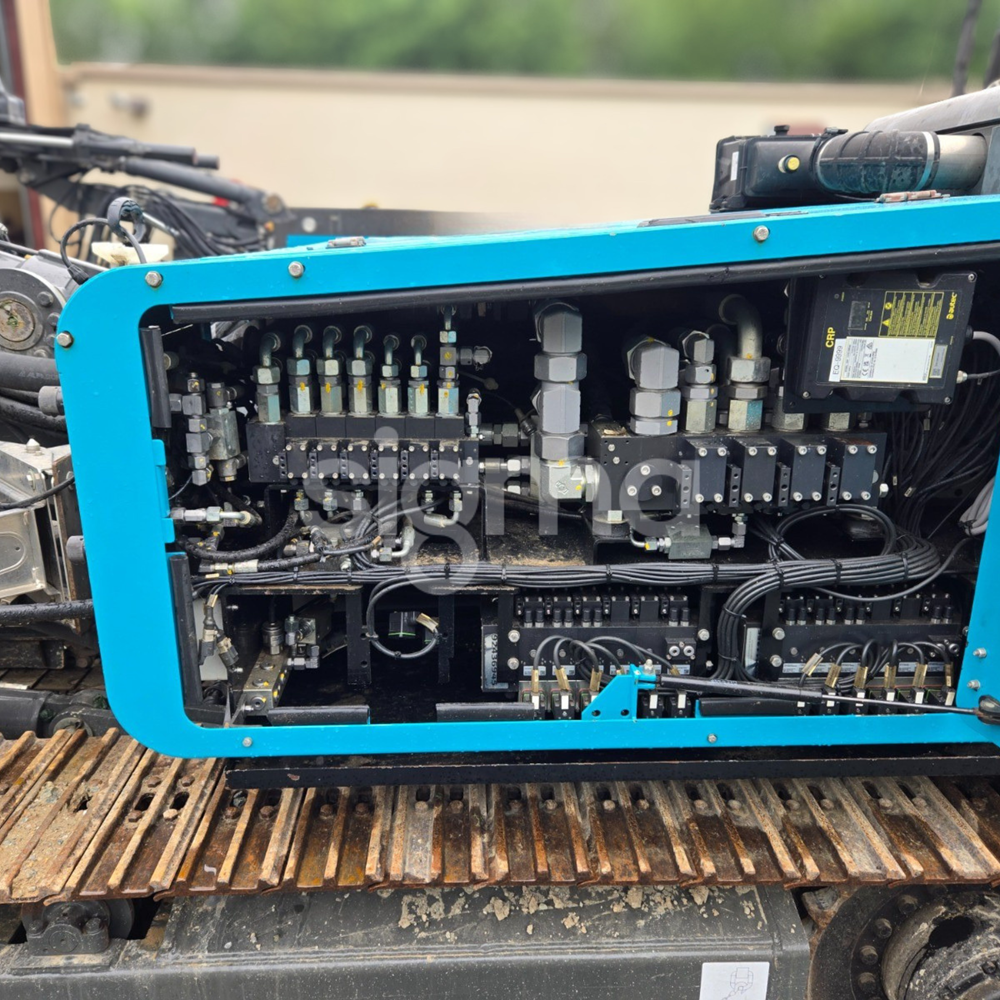

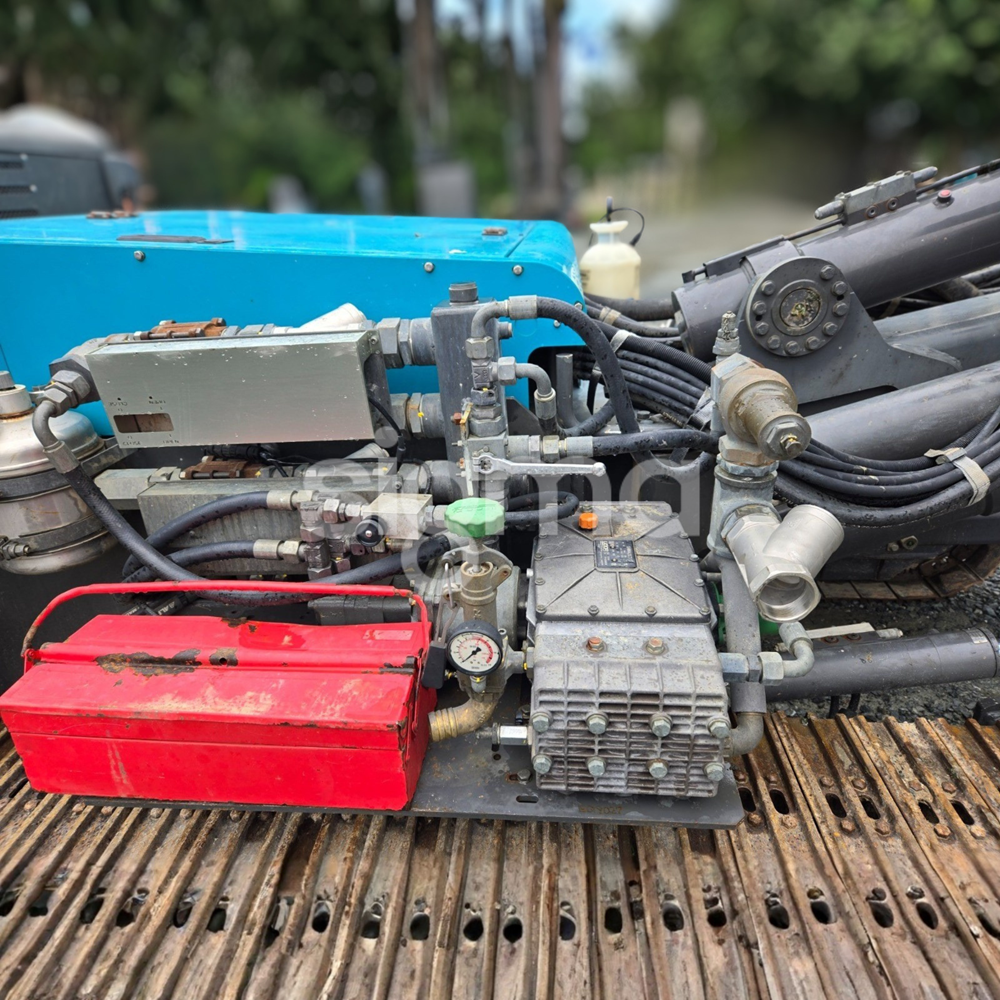

- Hydraulic system
- Pump capacity: 319 l/min
- Max pressure: 350 bar
- Hydraulic oil tank capacity: 580 litres
- Transport Dimensions and weight
- Length: 10,400 mm
- Width: 2,250 mm
- Height: 3,300 mm
- Track shoe width: 400 mm
- Weight: approx. 15,000 kg
