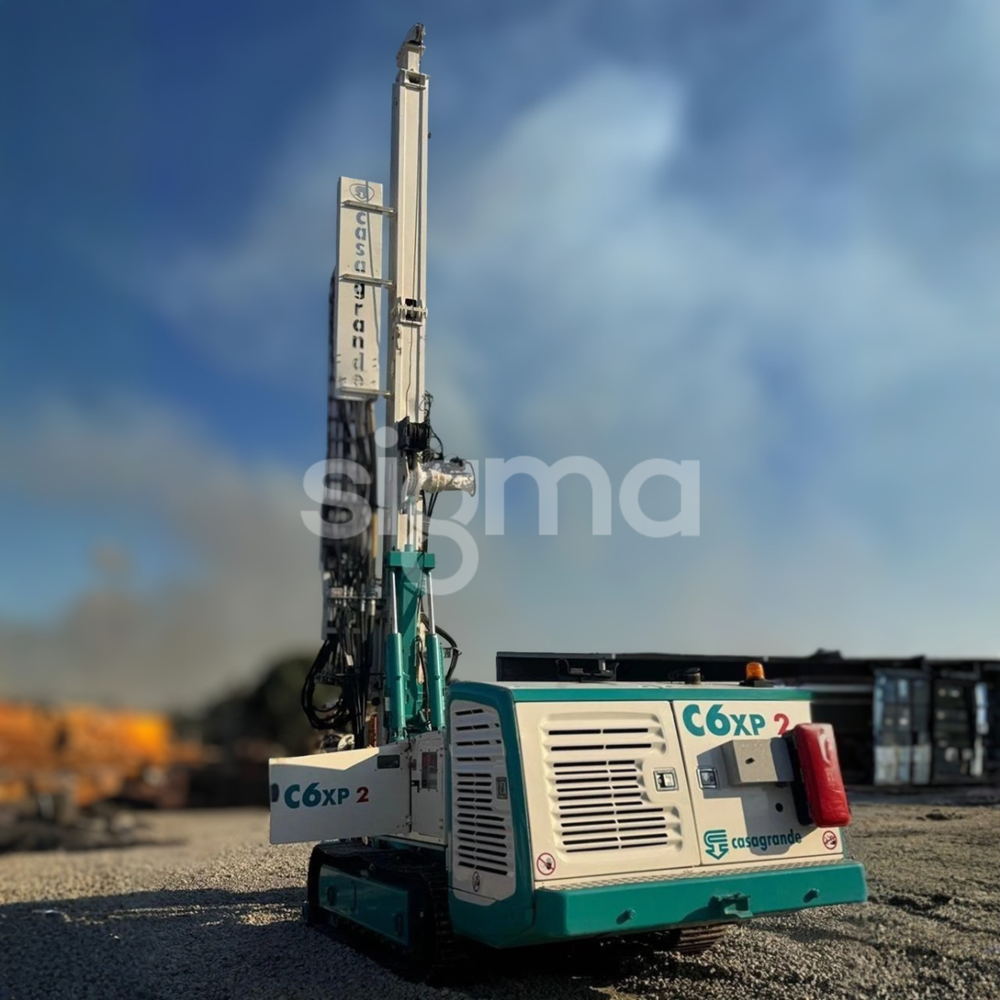

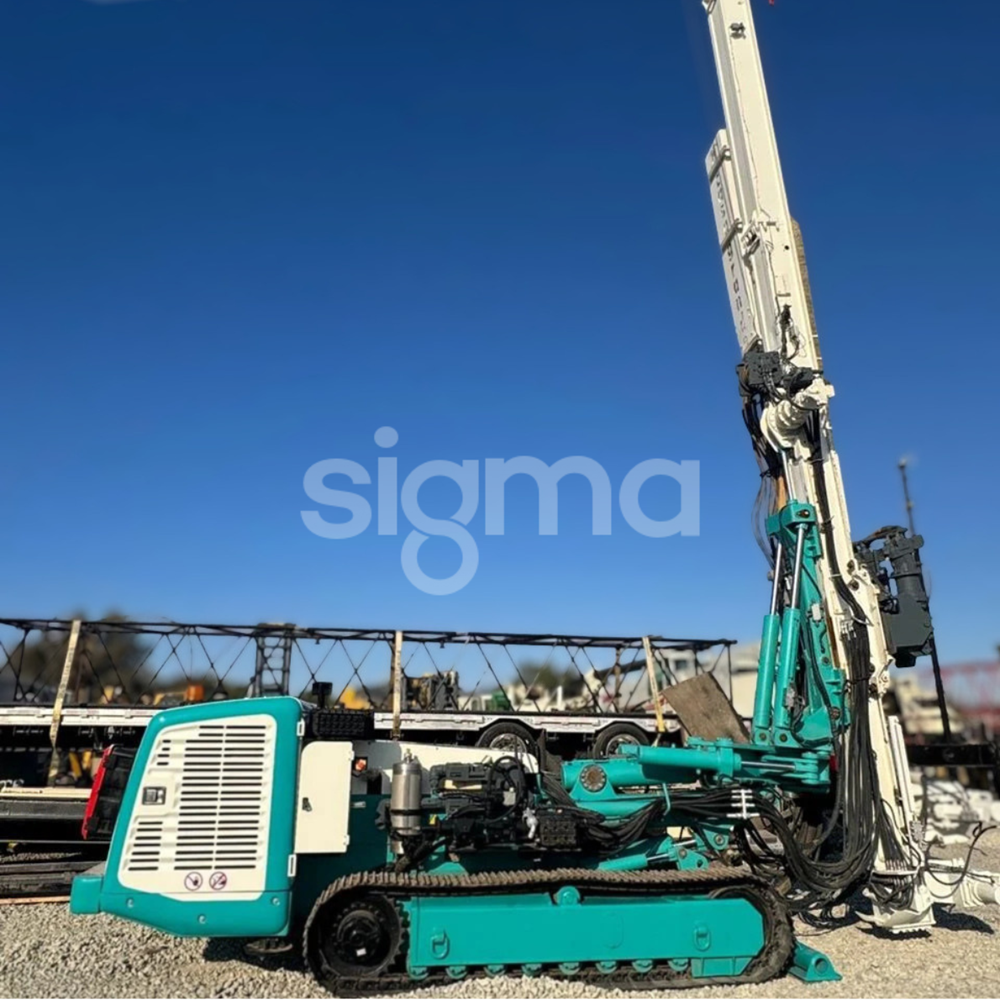

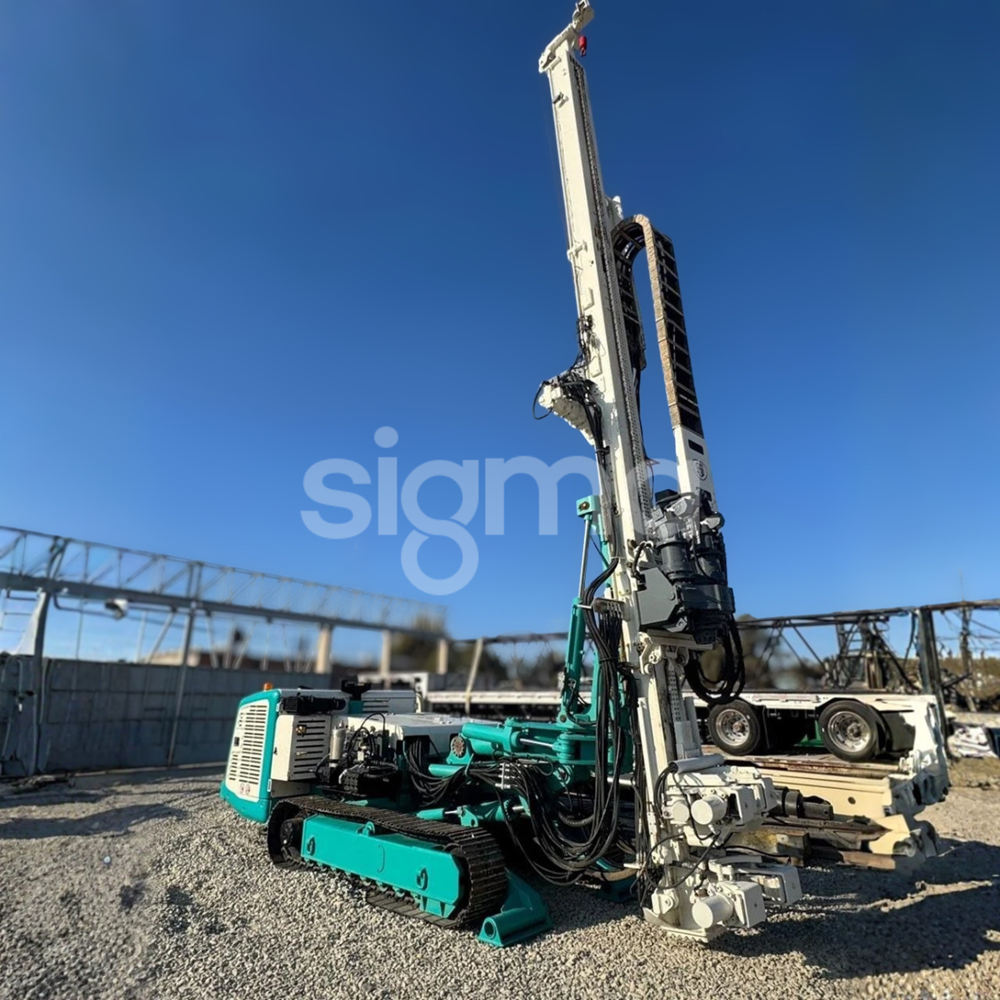

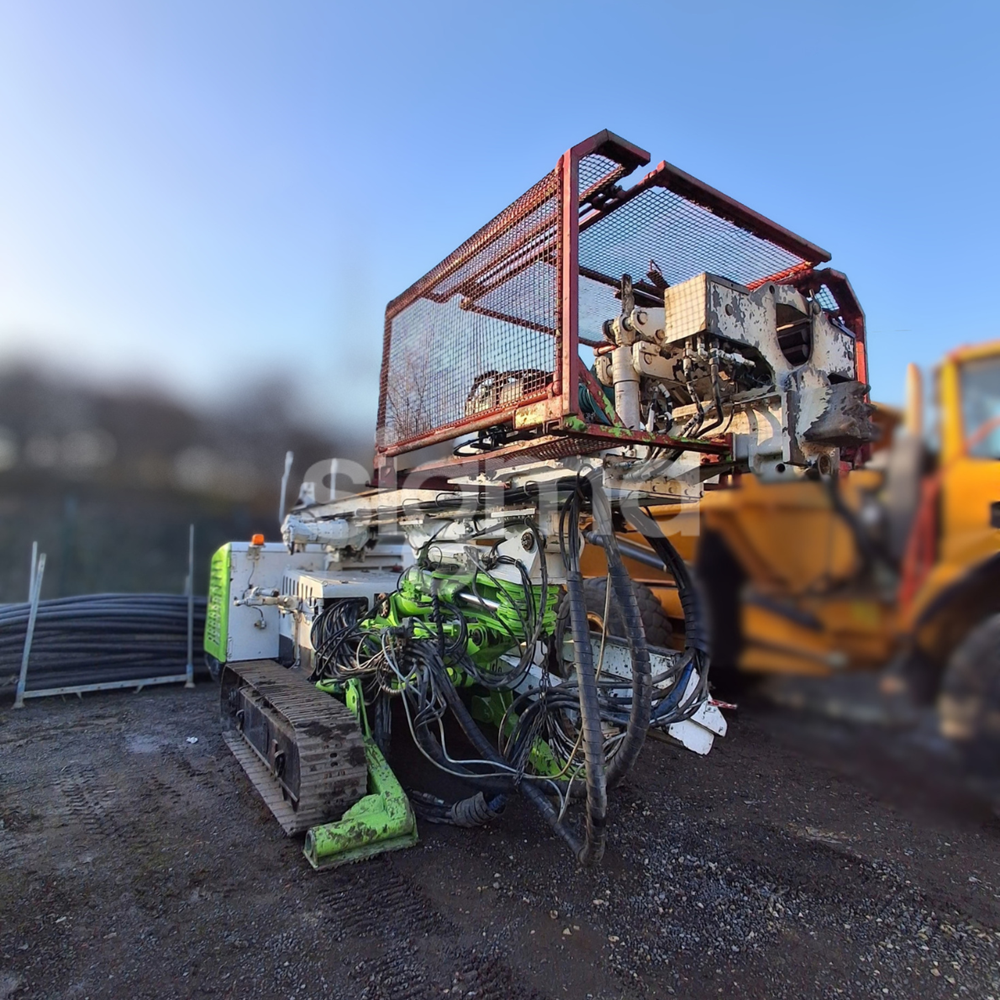

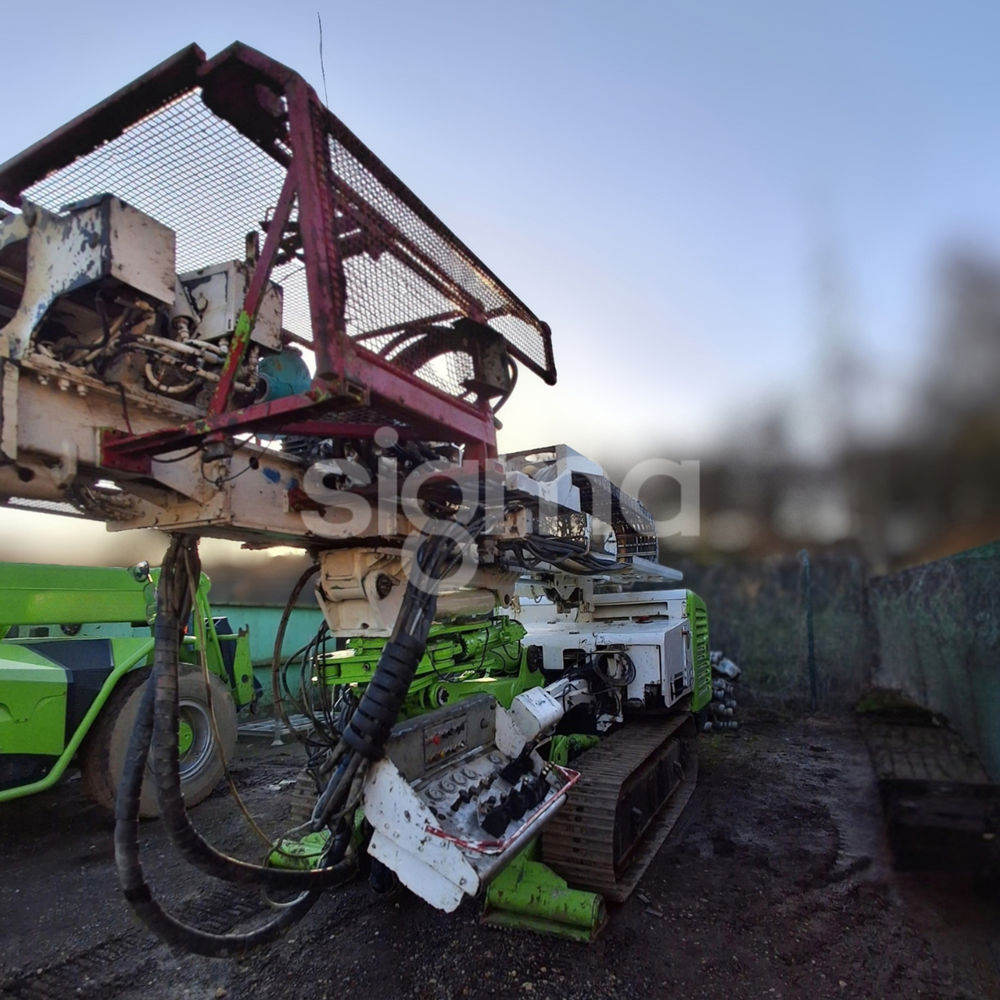

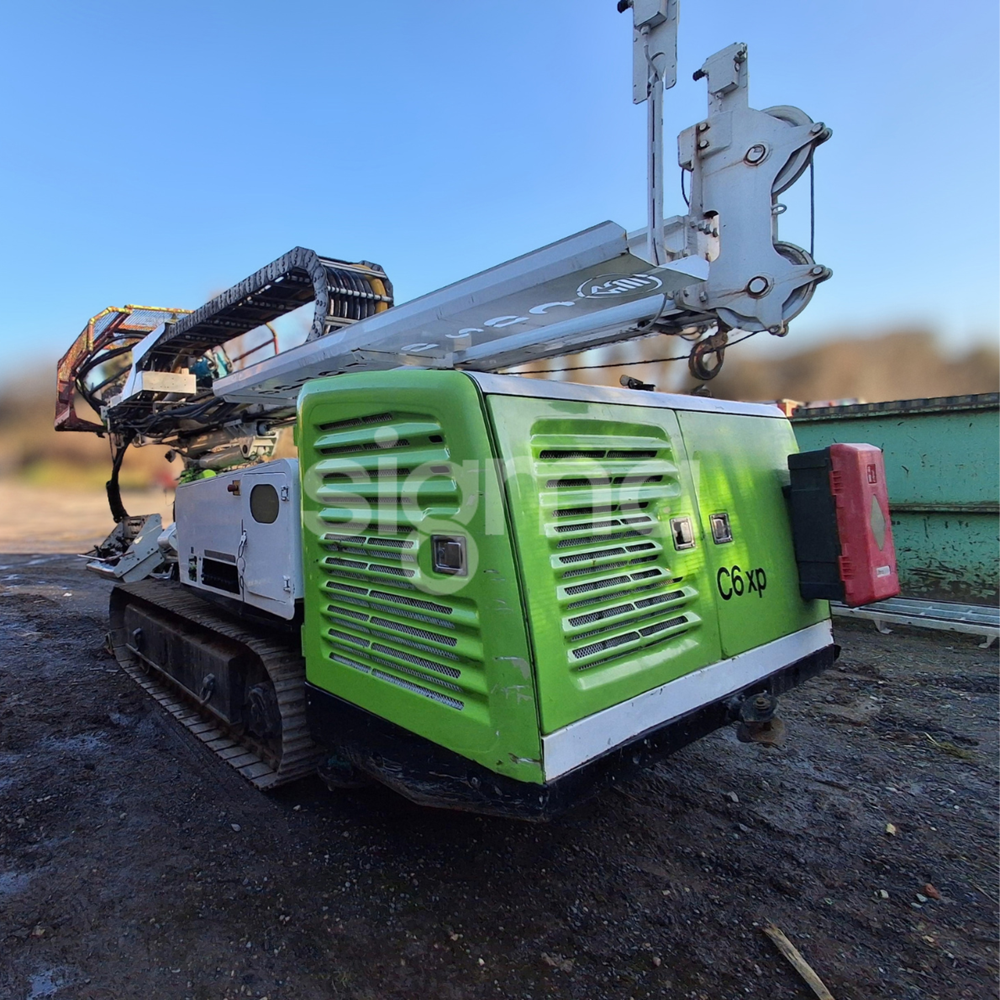

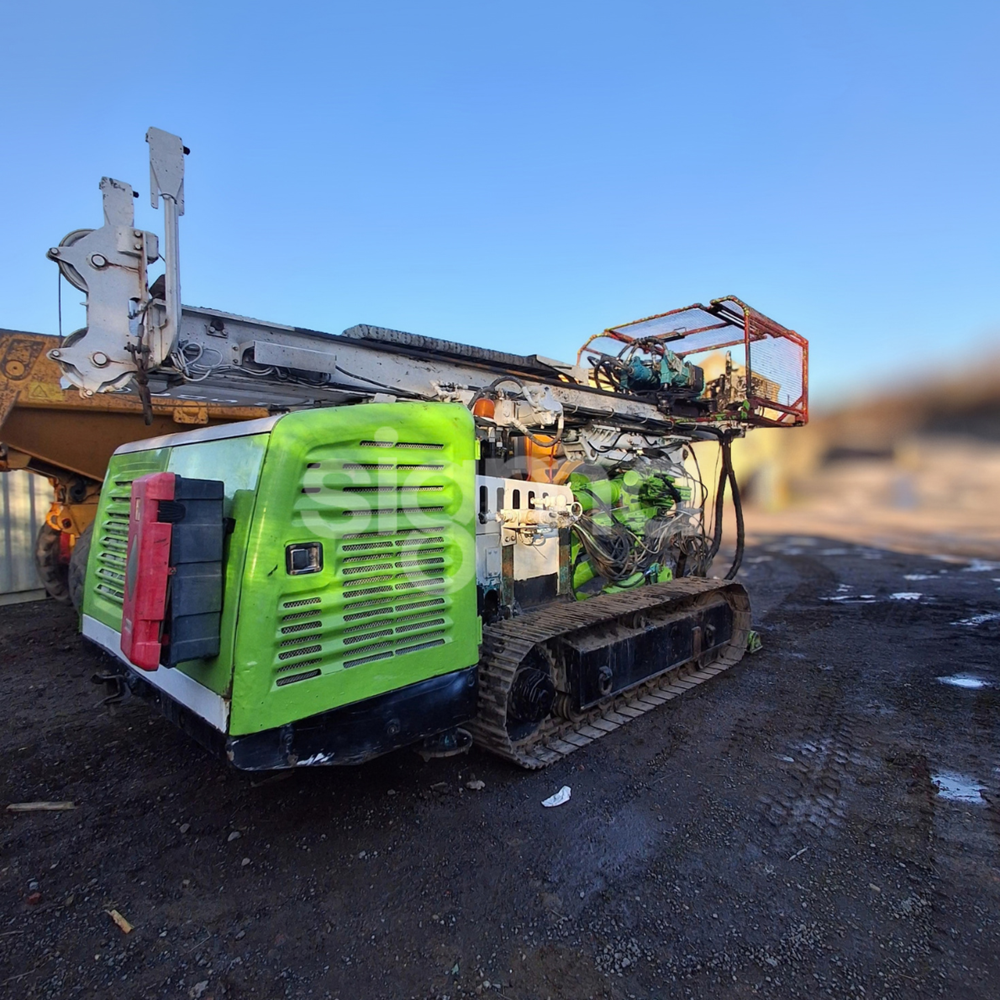

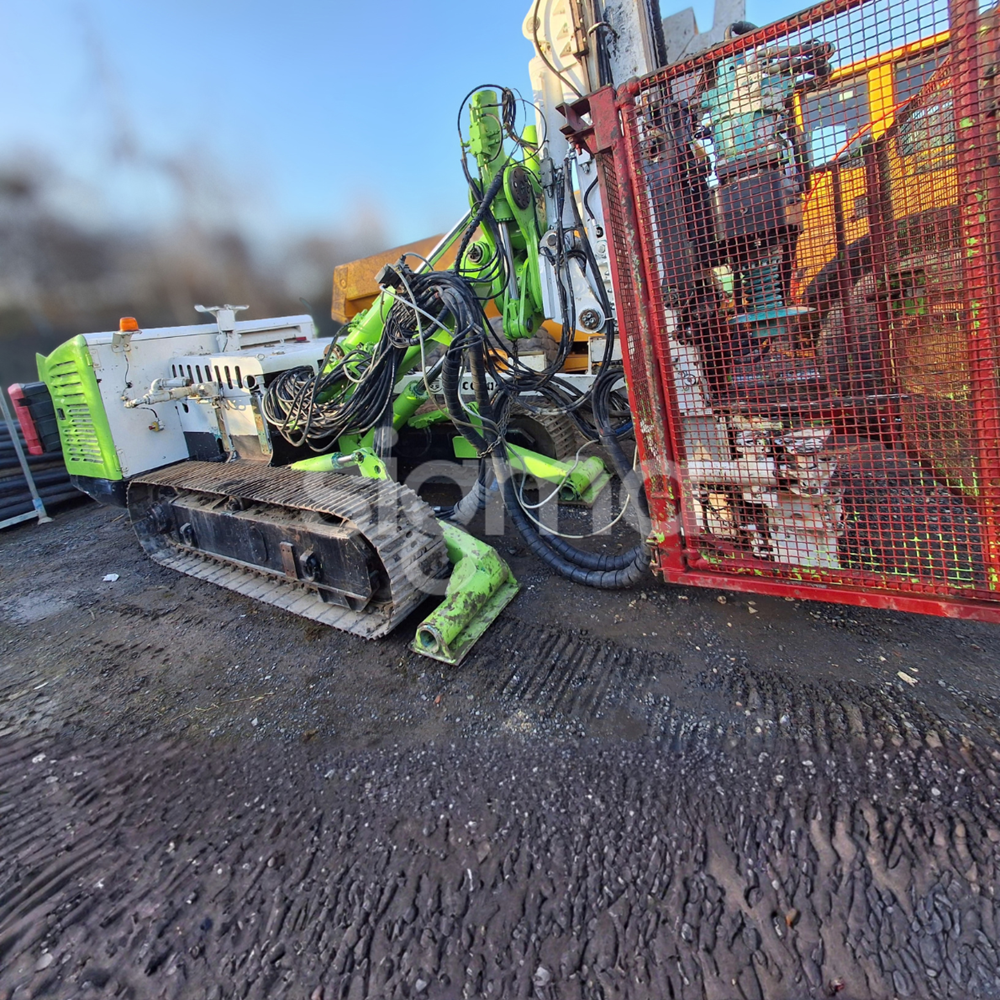

Casagrande C6 XP

Working hours: 12,000

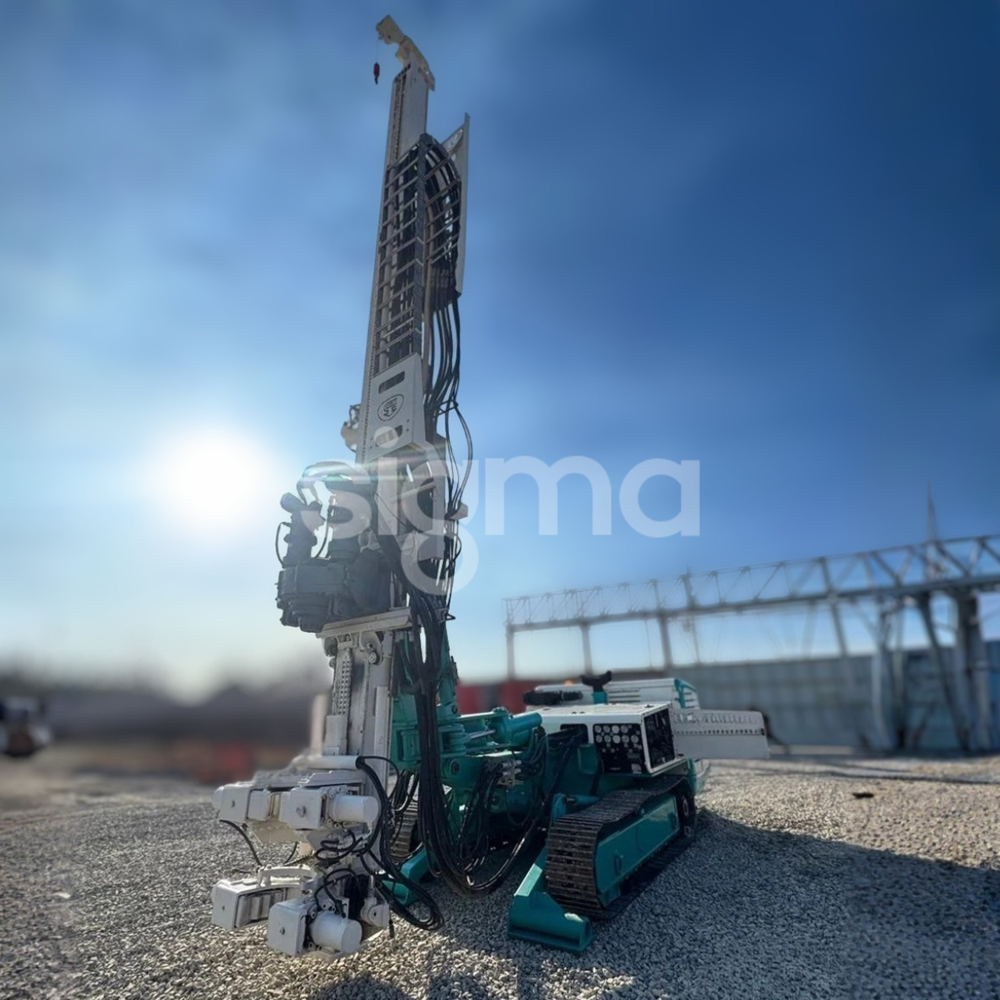

Drilling Configuration

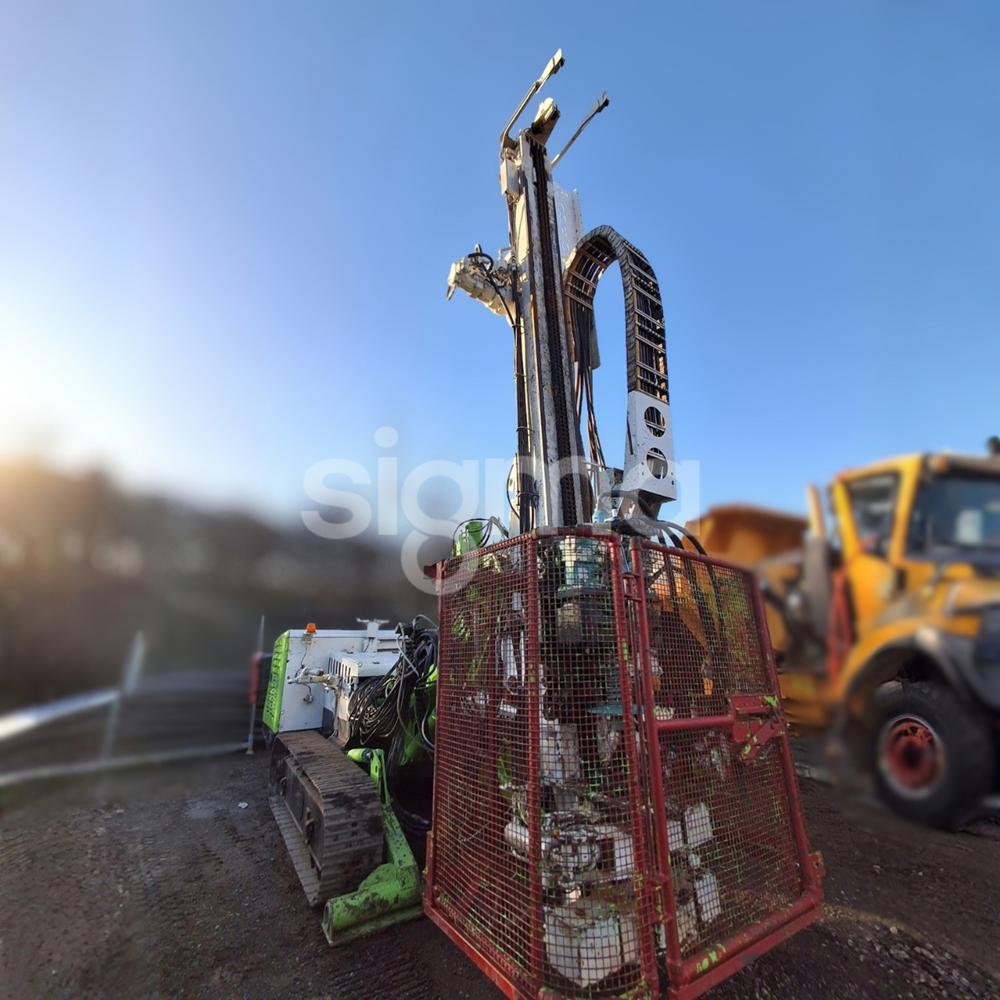

• Mast type: Standard fabricated steel mast
• Mast length: 6,000 mm
• Rotary head stroke: 4,000 mm
• Extraction force: 85 kN
• Crowd force: 85 kN

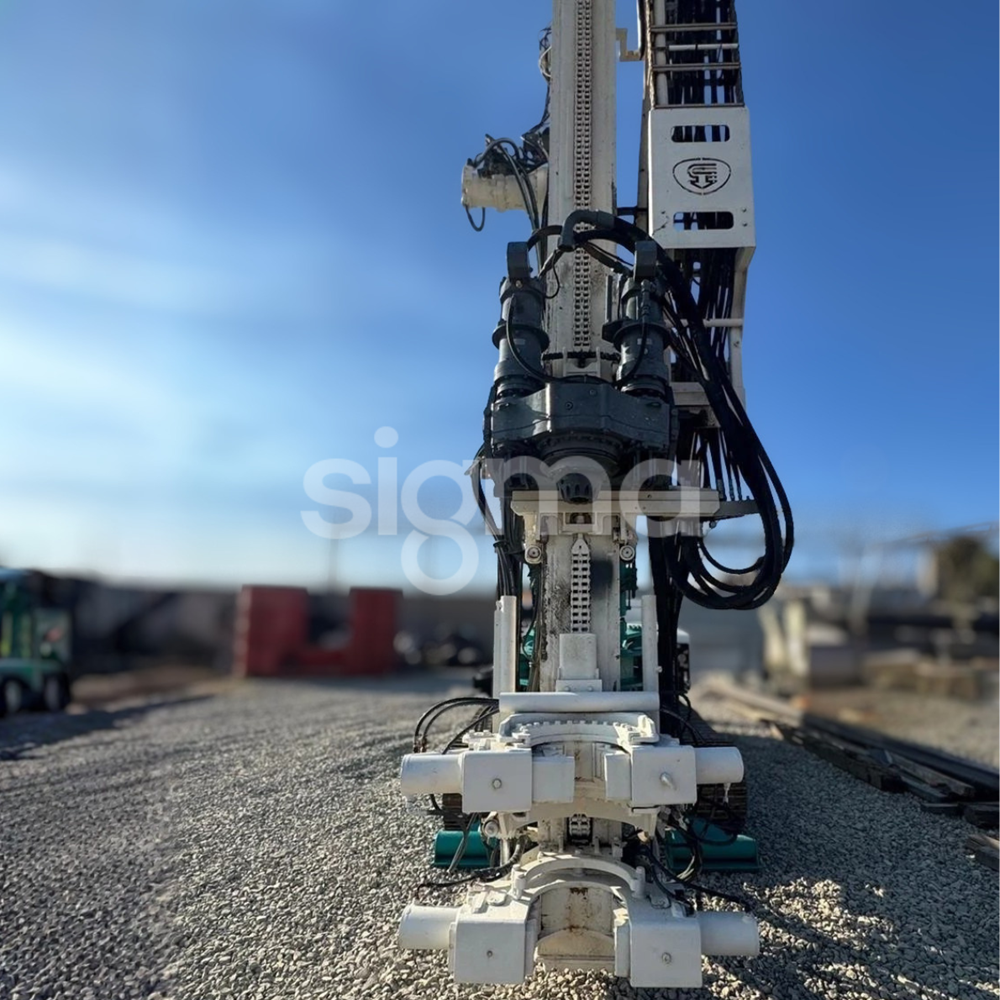

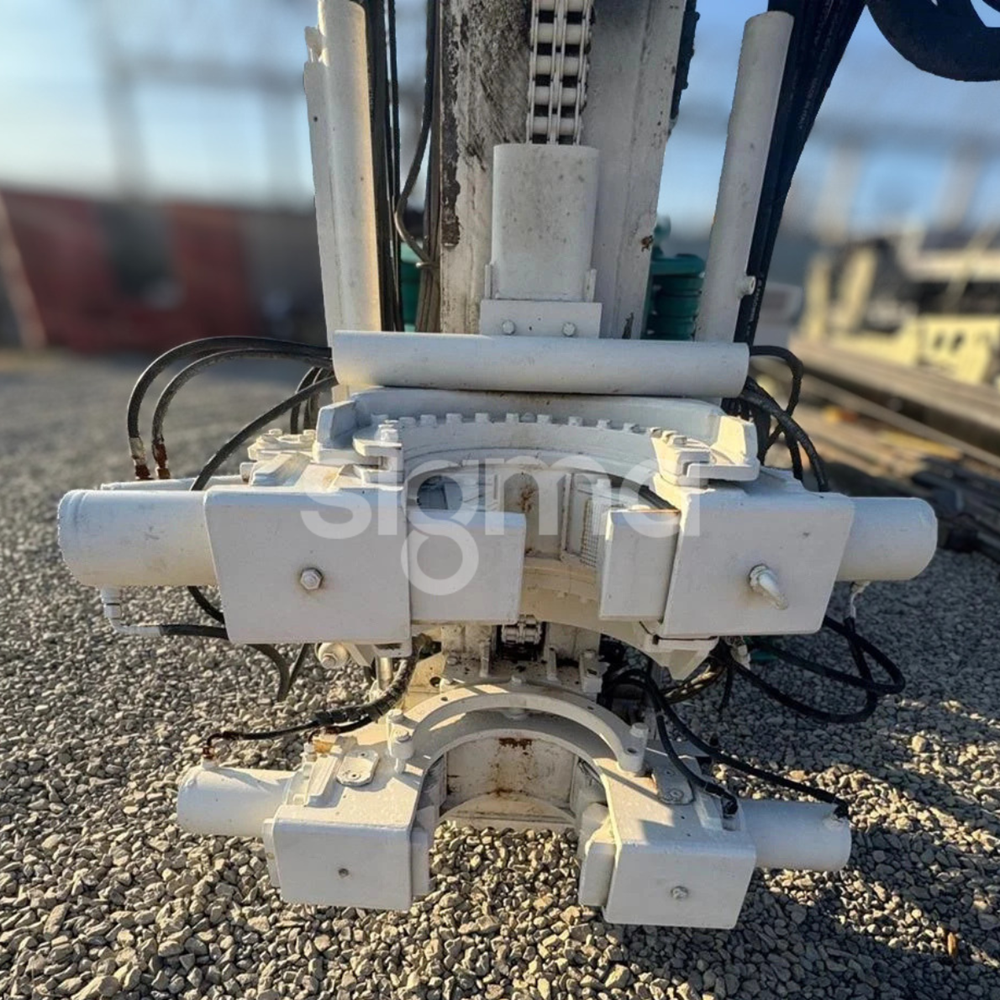

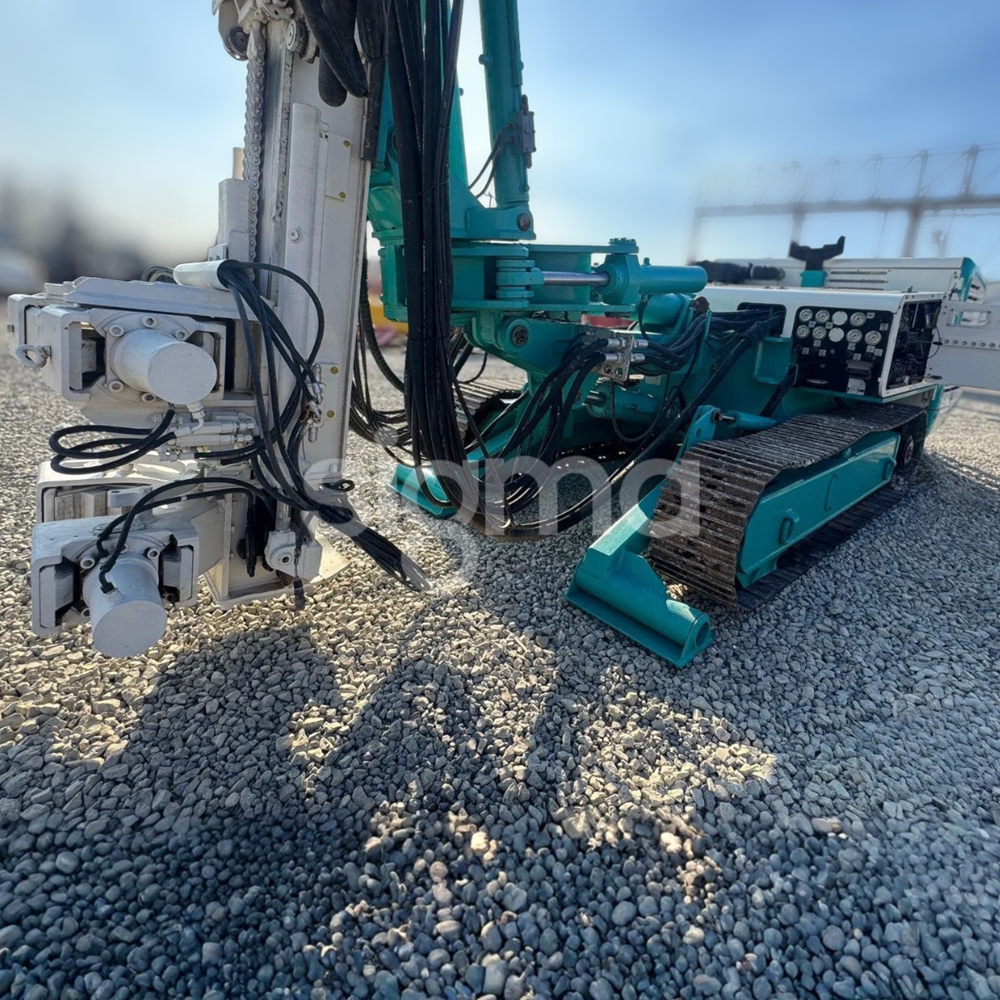

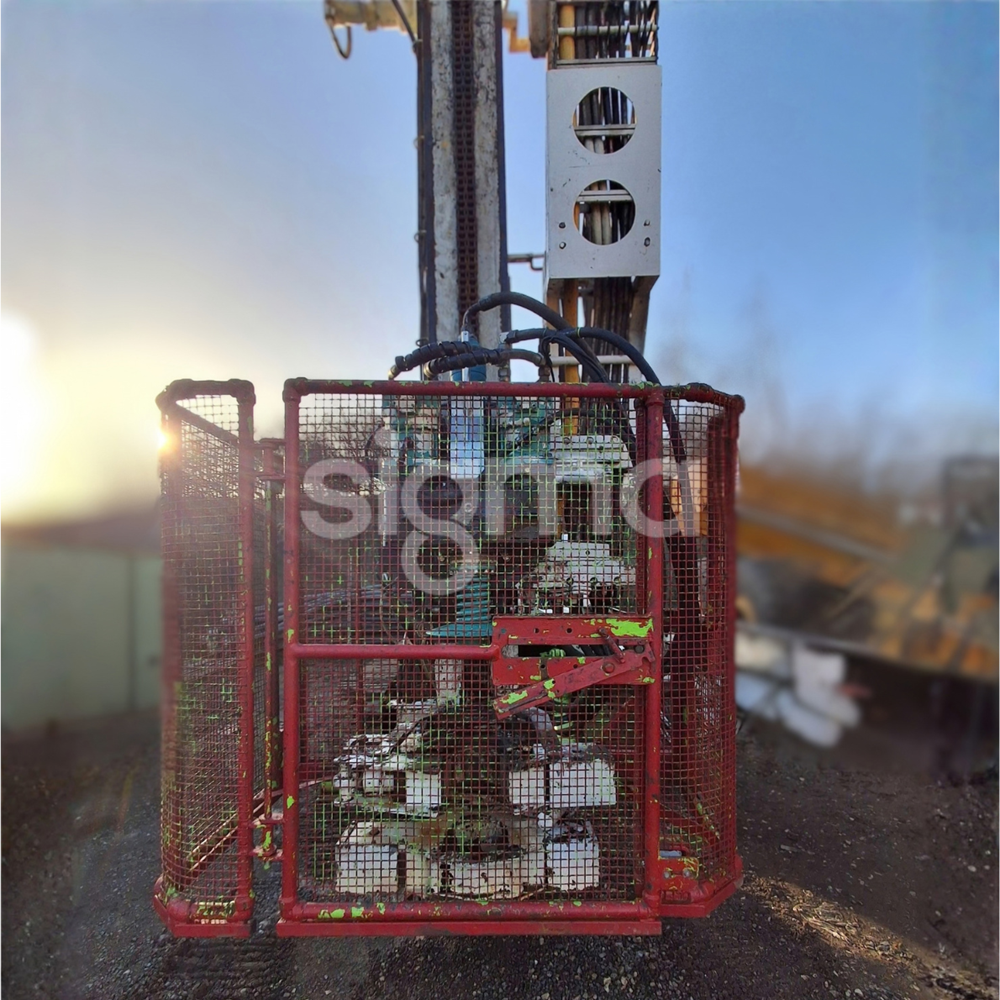

• Clamps: M2 — one fixed clamp and one clamp with breakout facility
• Clamp diameter range: 40–254 mm
• Clamp closing force: 145 kN

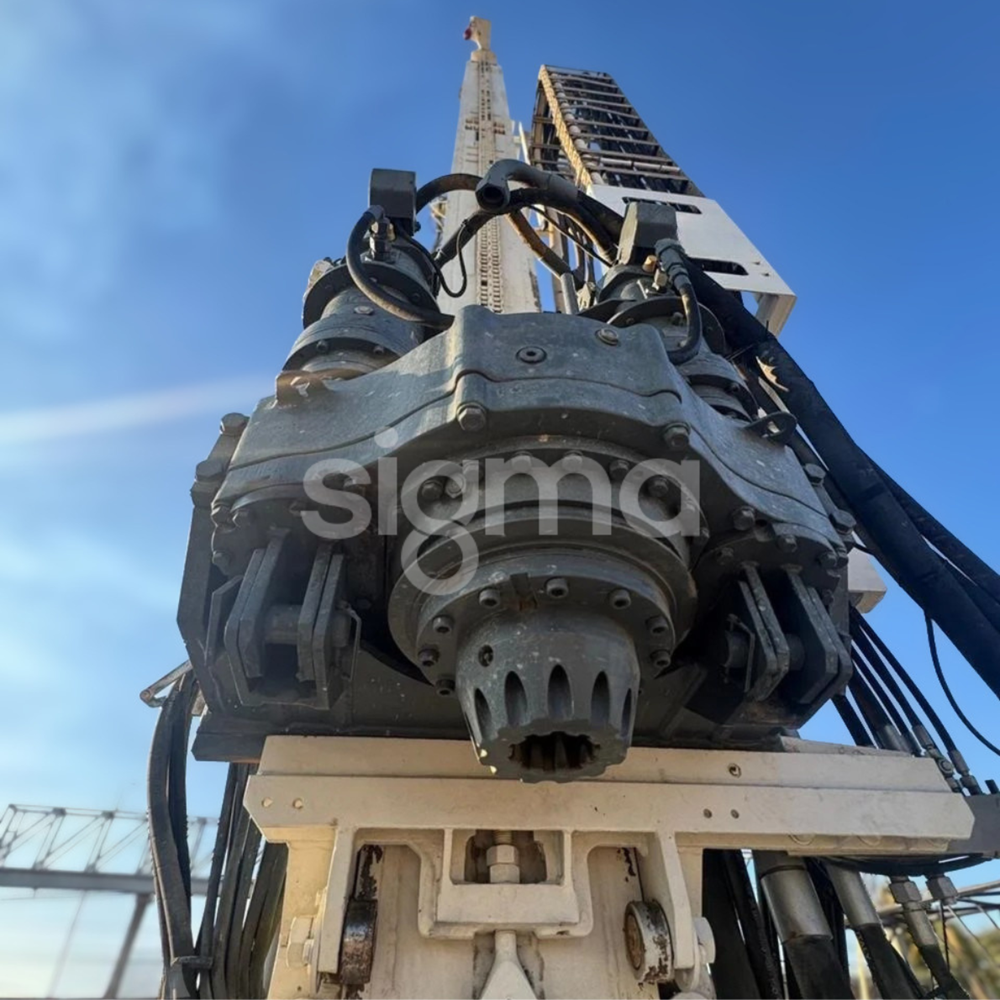

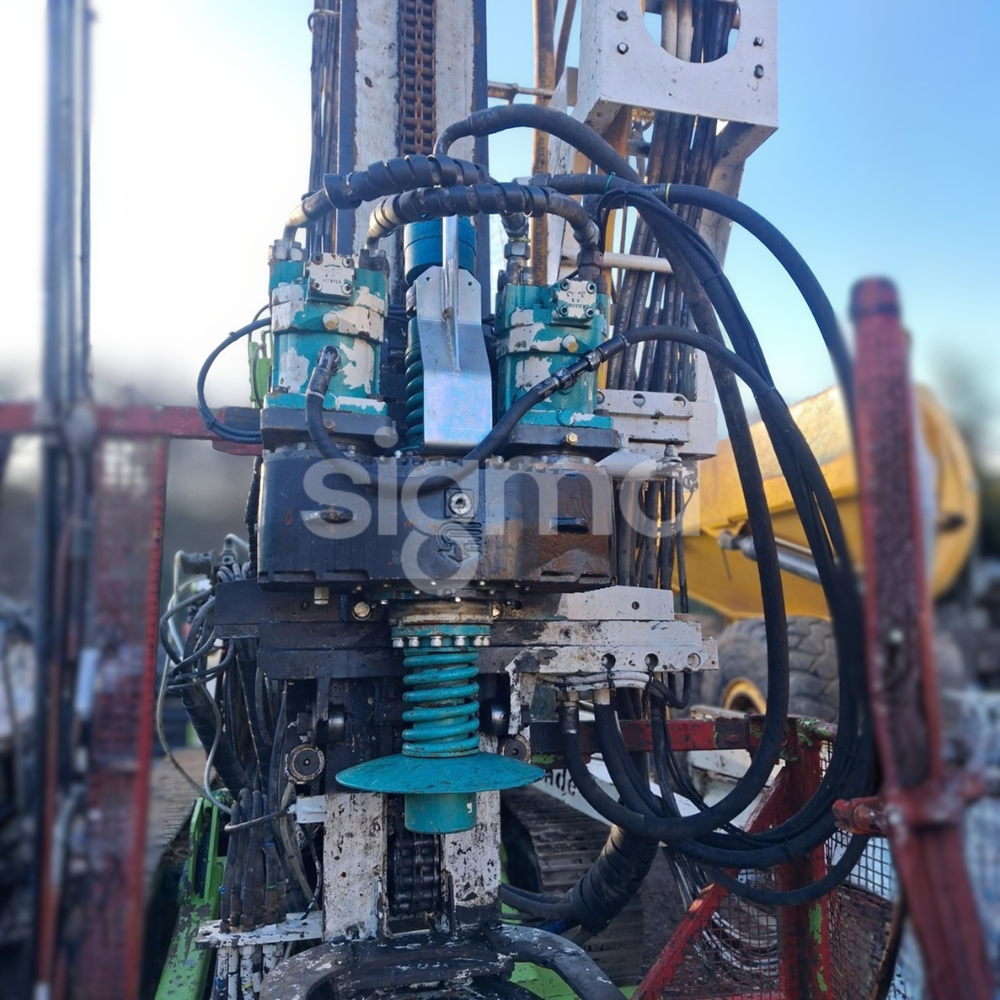

Rotary Head

• Rotary head make & model: Casagrande T20EP
• Rotary head configuration: Standard rotary with floating drill/entrainer shaft
• Output connection: 3½-inch API Reg F/M
• Speed settings: Six, selectable via selector switches
• Max torque: 15,210 Nm
• Max rotation speed: 400 rpm

Winches & Handling

• Service winch: Fitted

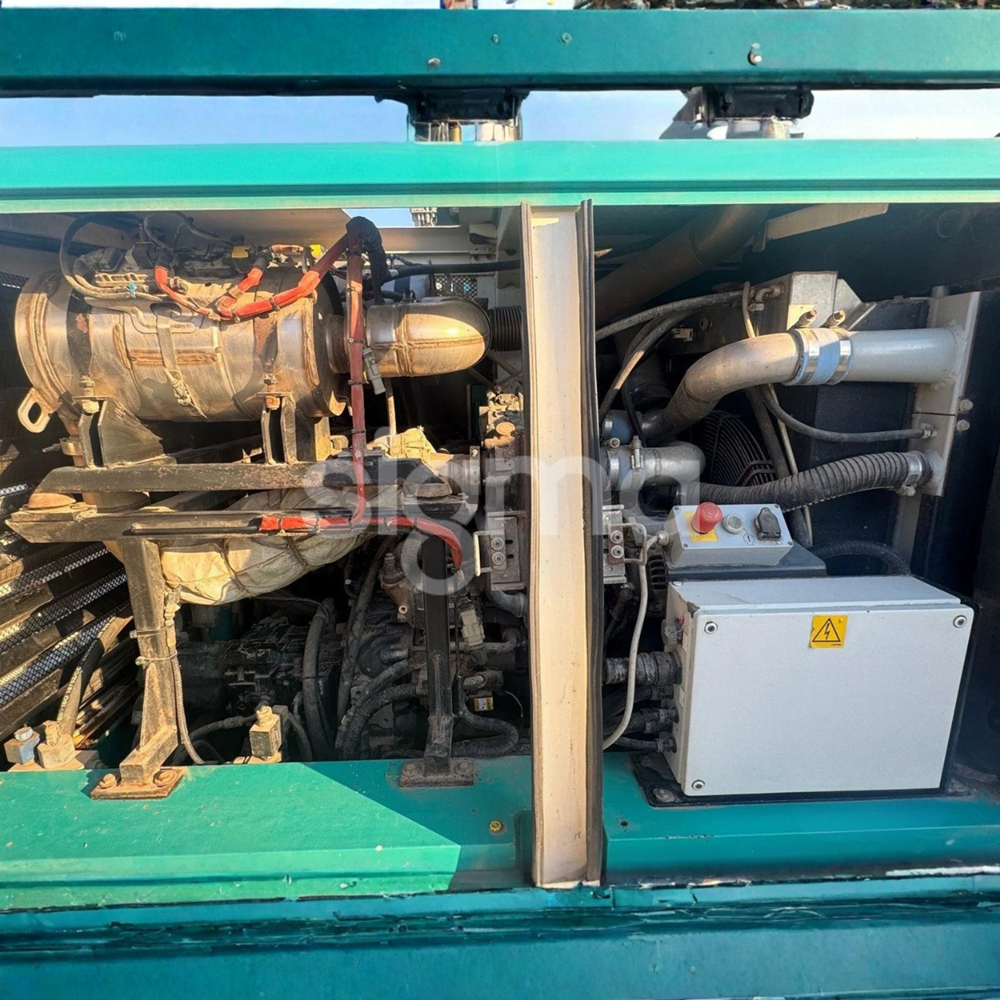

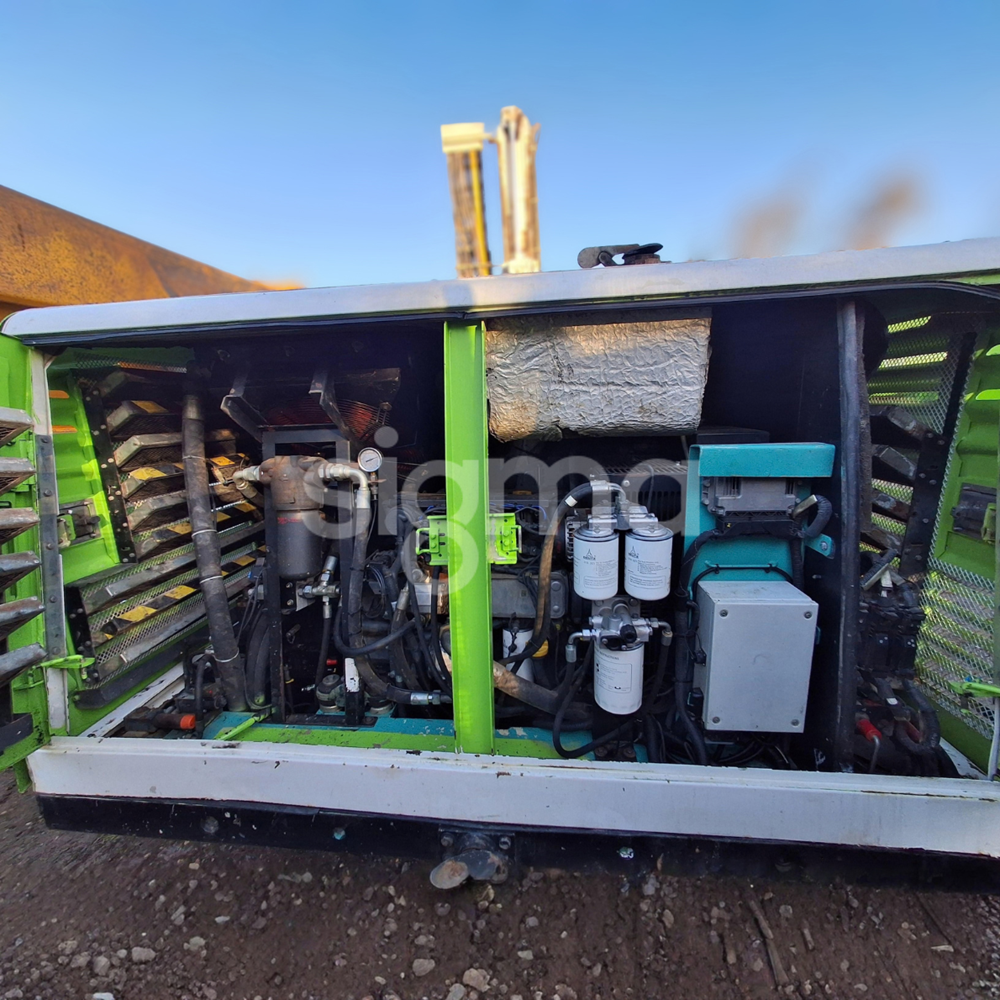

Power Unit

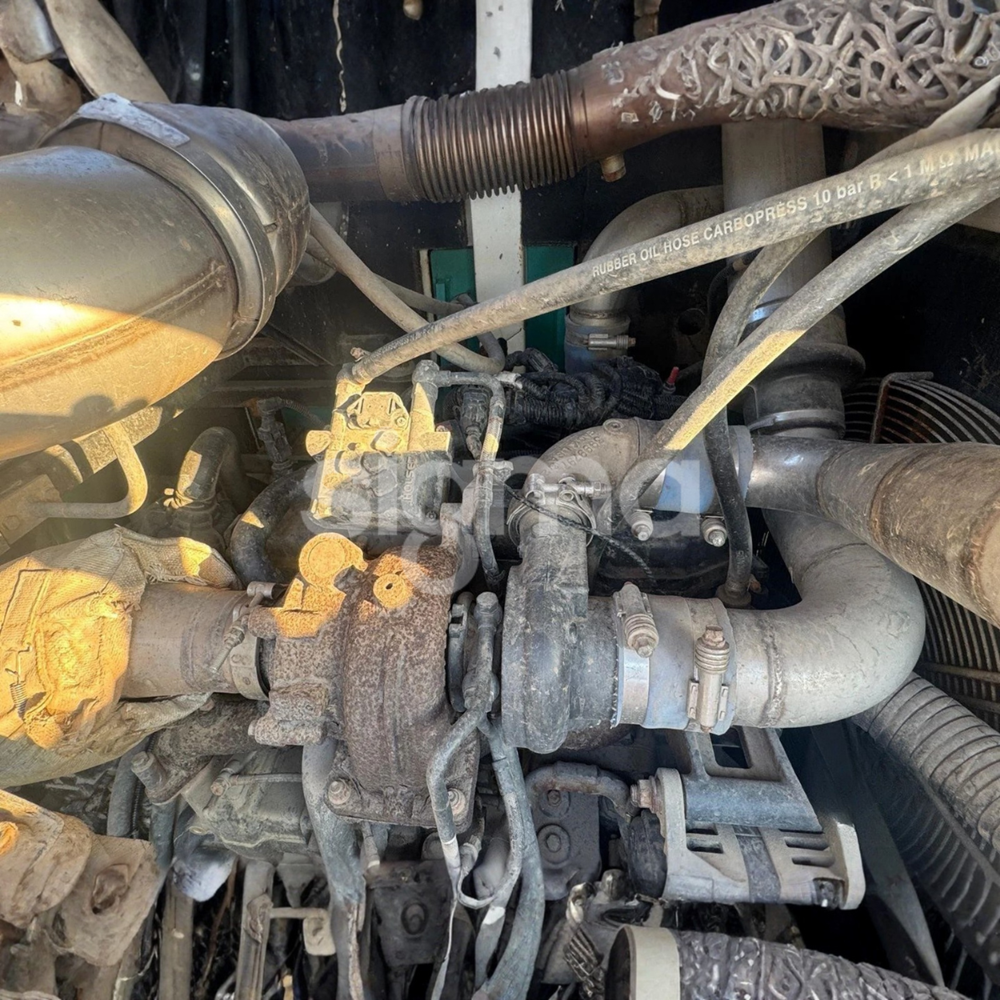

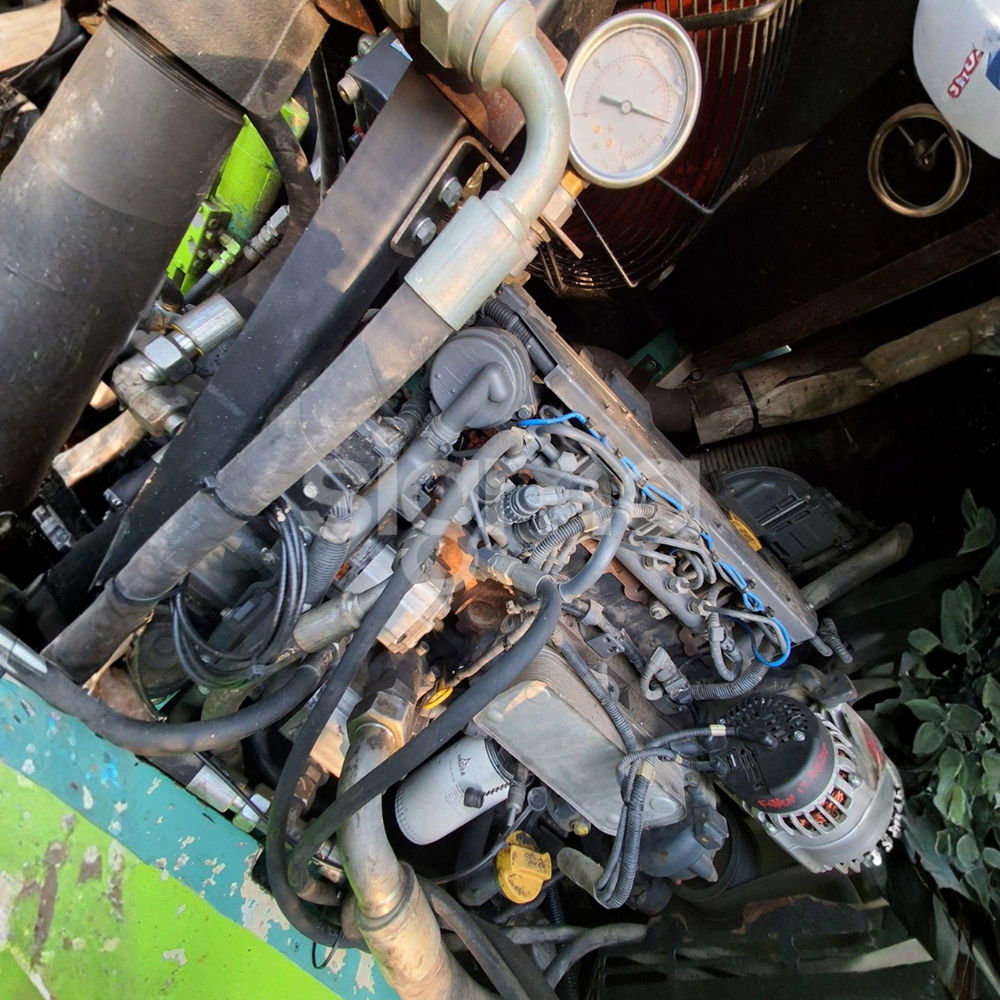

• Engine make & model: Deutz TCD 2012 L04 2V DCR
• Engine power: 103 kW @ 2,400 rpm
• Emission standard: Stage IIIA
• Engine history: Replacement engine supplied and commissioned by Deutz UK approximately 4,500 operating hours ago
• Fuel tank capacity: 210 litres

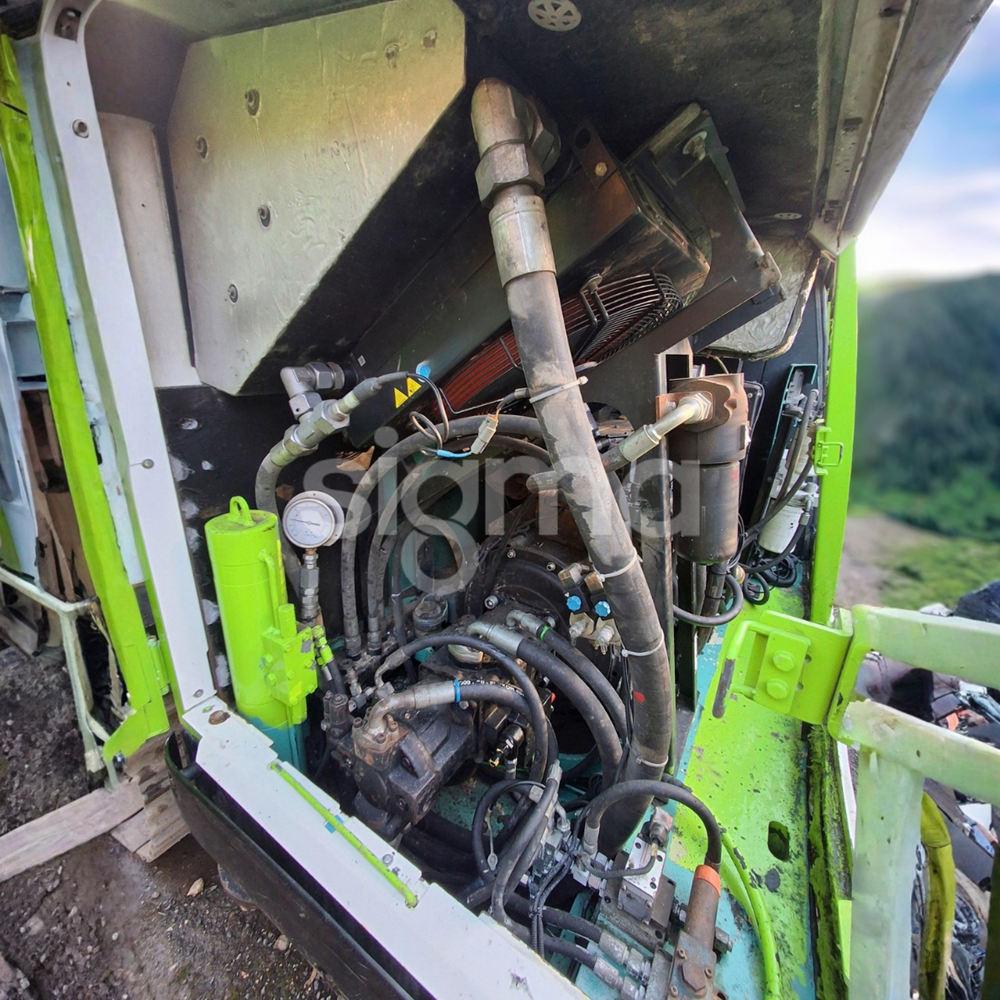

Hydraulic System

• Hydraulic system: Full load-sensing
• Hydraulic oil tank capacity: 400 litres
• Additional equipment: Hydraulics and electrics installed for a Bellin water-flush pump and/or foam pump

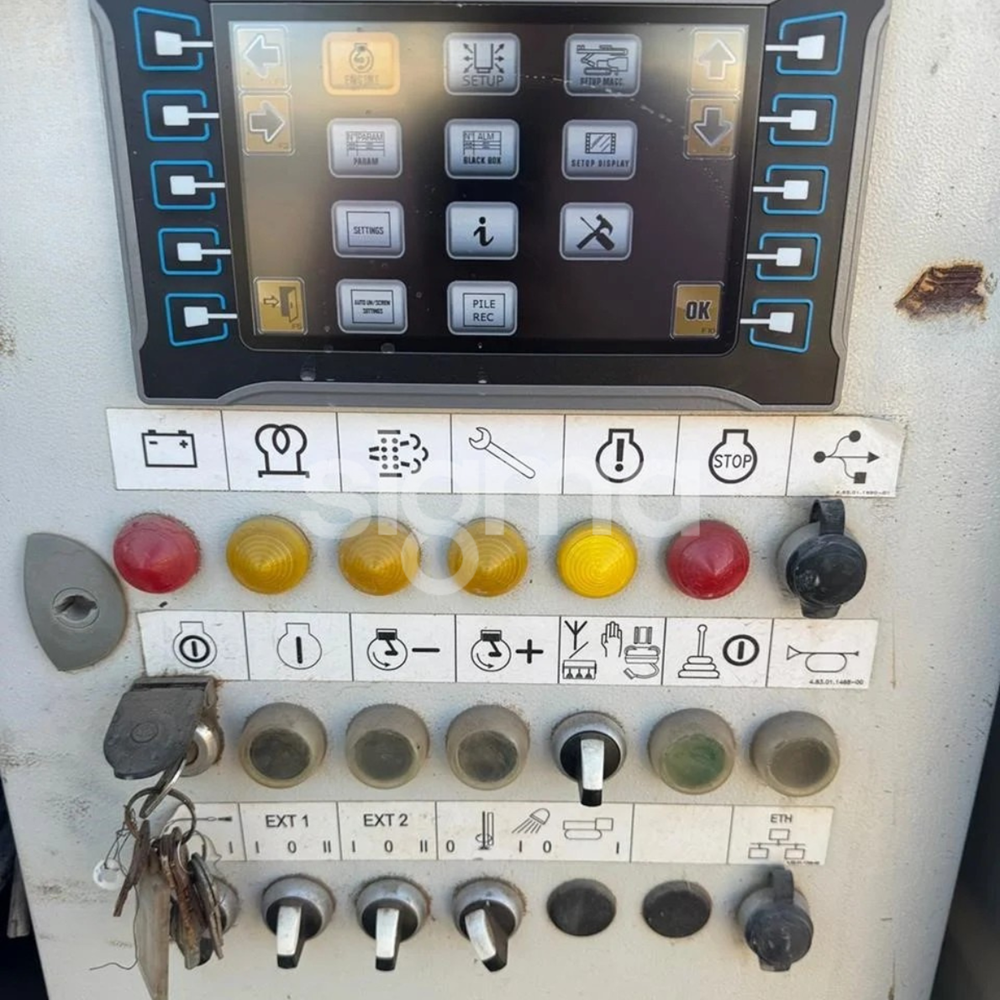

• Drilling controls: Electric/hydraulic controls on a manual control desk

Dimensions & Weight

• Transport width: 2,250 mm
• Transport height: 2,800 mm
• Transport length: 7,200 mm
• Operating weight: Approximately 13,000–14,000 kg, depending on equipment
