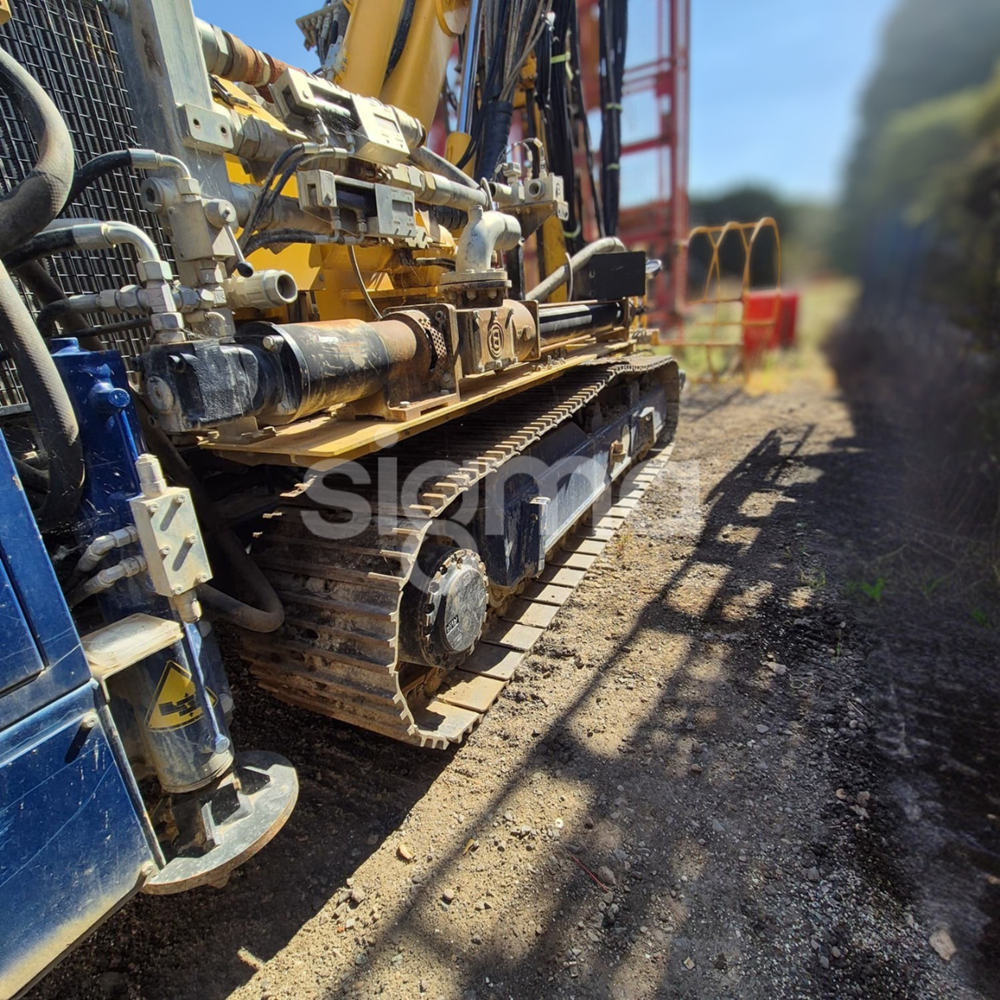

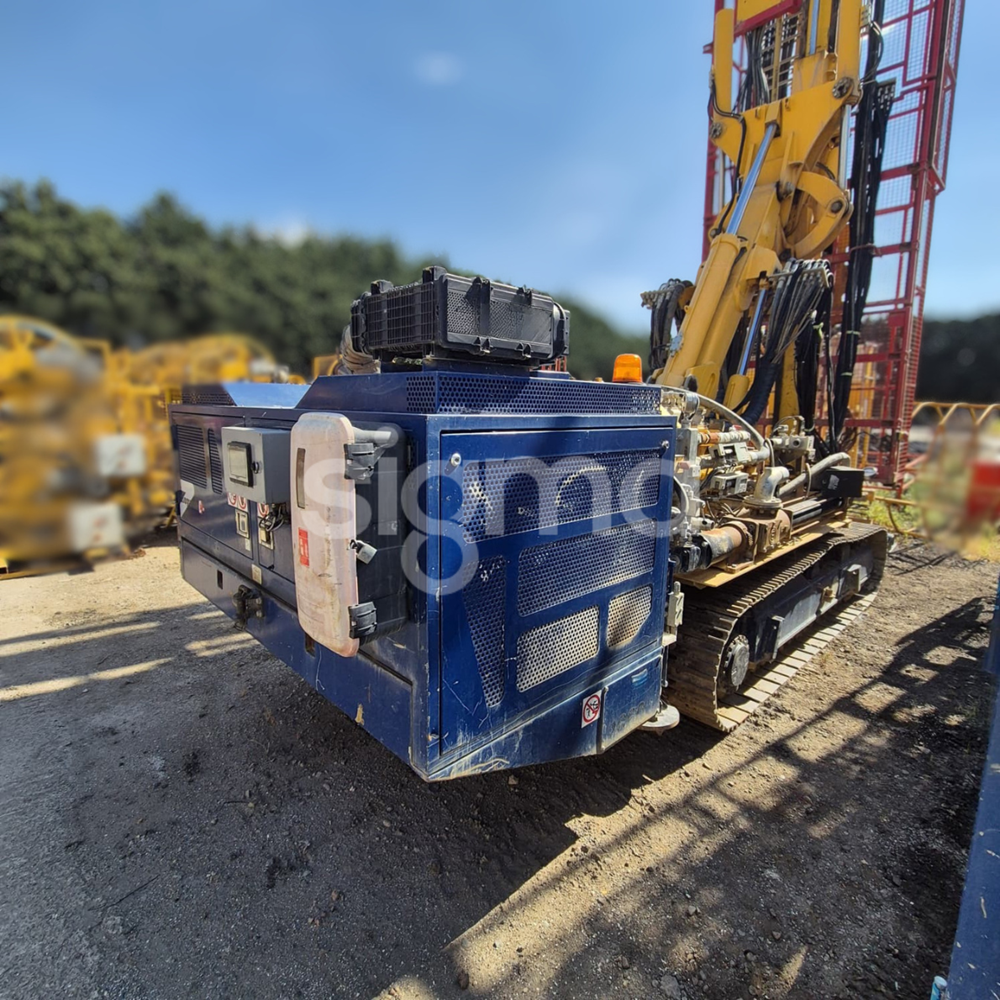

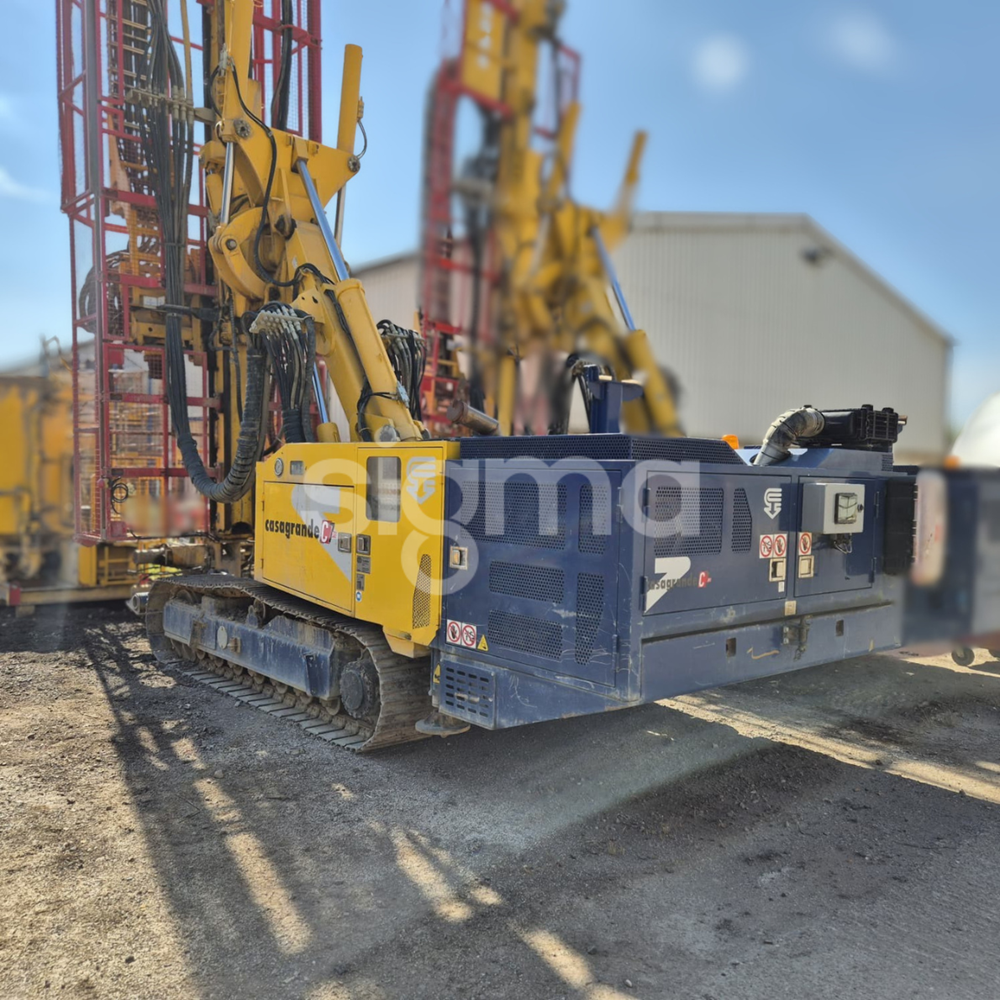

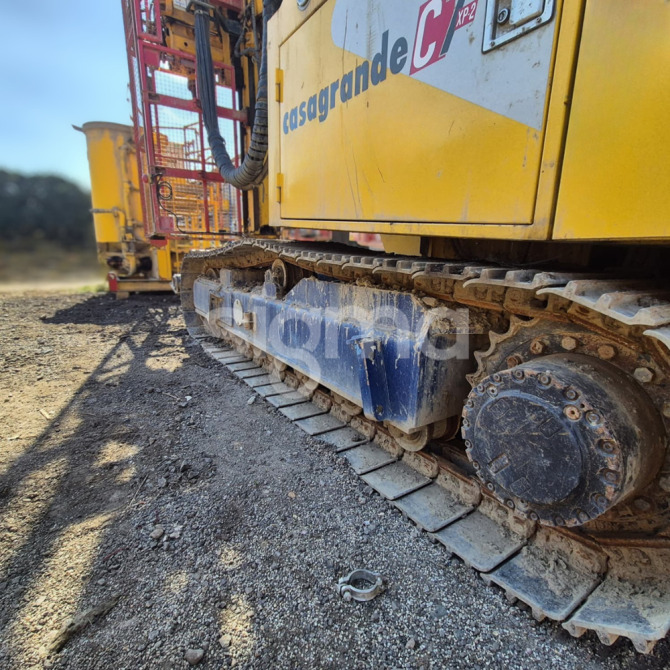

Casagrande C7 XP-2

Mini piling and anchoring rig with 3775 hours

Drilling Capacity

• Max drilling depth (m): Up to 106 m
• Max drilling diameter (mm): 406 mm
• Max torque (kNm): 48 kNm
• Max pull force (kN): 87 kN
• Max push force (kN): 87 kN
• Max rotation speed (rpm): 40 rpm

Mast & Feed System

• Mast stroke (m):10 m
• Mast inclination: ±95° articulation
• Feed system type: Hydraulic

Rod & Casing Handling

• Rod diameter range (mm): 76–406 mm
• Rod length (m): Up to 8.5 m
• Casing diameter range (mm): 406 mm
• Casing handling system: M5/M5S clamps

Power Unit

• Engine make & model: Cummins B6.7
• Engine power (kW / HP): 168 kW / 225 HP
• Emission standard: Stage V
• Fuel tank capacity (L): 400 L

Hydraulic System

• Hydraulic system type: Full load sensing
• Main pumps: 1 × 424 L/min
• Max operating pressure (bar): 350 bar
• Hydraulic oil capacity (L): 630 L

Dimensions & Weight

• Working height (m): Approx. 13.7 m
• Transport width (mm): 2,500 mm
• Transport height (mm): 3,100 mm
• Transport length (mm): 13,730 mm
• Operating weight (kg): 23,000 kg
