Overview
Machine location:
United Kingdom
Stock number:
PF 41126
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Casagrande
Model:
C7 XP-2
Year of manufacture:
2021
Working hours:
3651
Key features

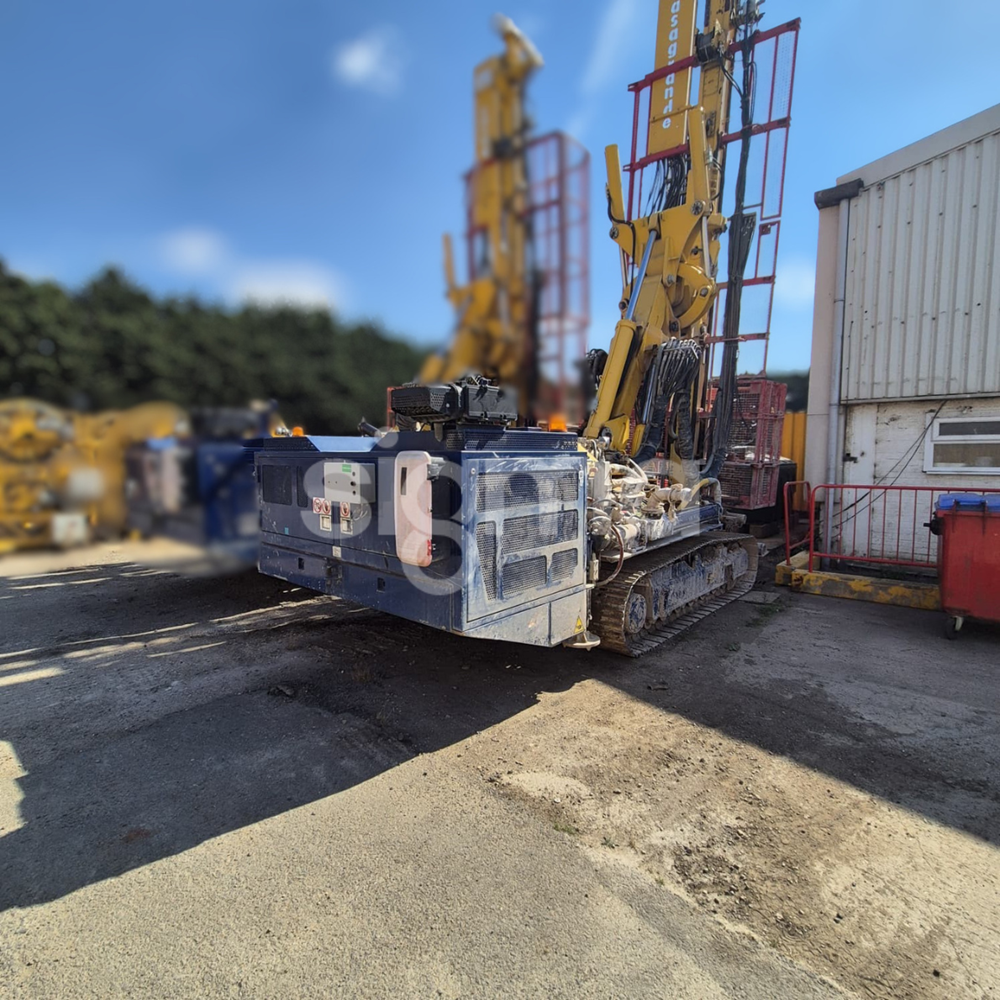

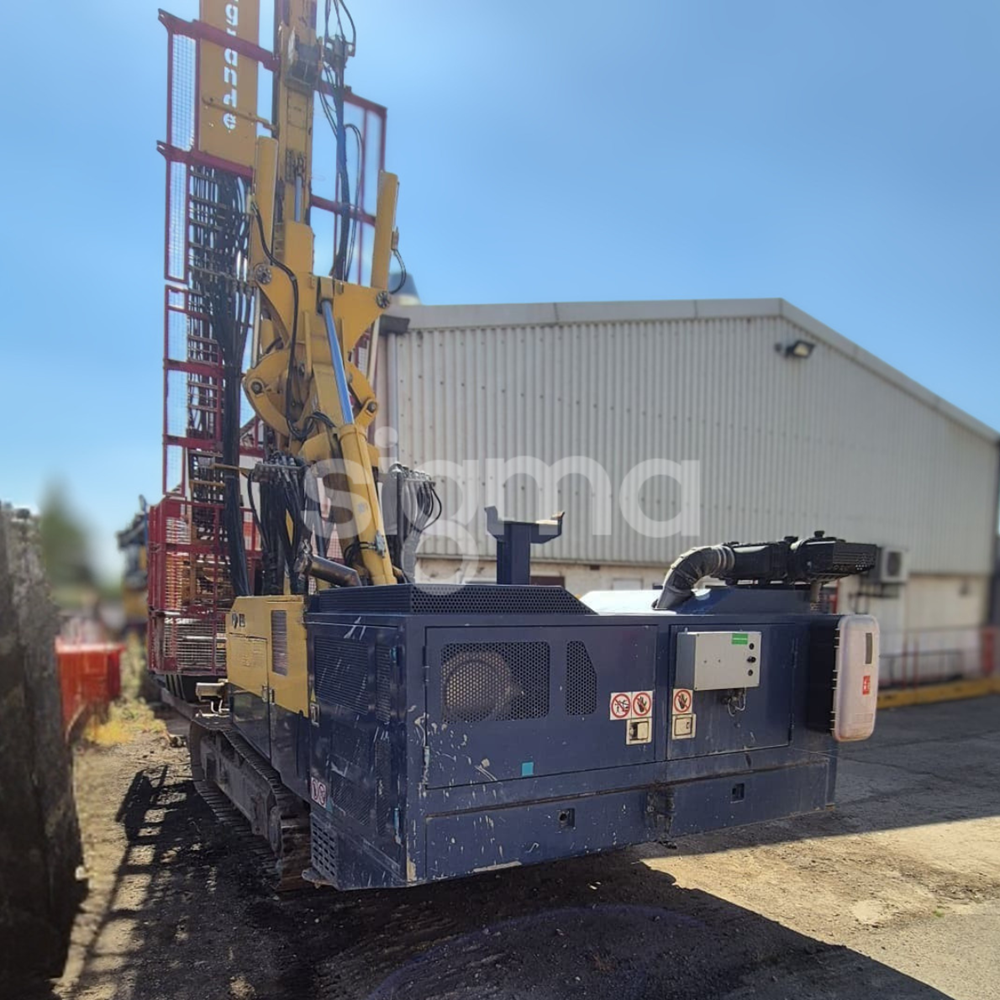

2021 Casagrande C7 XP-2 with 3,651 hours. Fitted with a 12,000 MR mast providing a 10 m rotary head stroke, 87 kN pull/push force and ±95° mast articulation. Equipped with M5/M5S clamps for diameters from 76–406 mm and an HG43 rotary head delivering up to 48 kNm torque and 40 rpm.
Powered by a Cummins B6.7 Stage V / Tier 4 engine, producing 186 kW at 2,000 rpm, with a full load-sensing hydraulic system operating at up to 350 bar. A compact and versatile rig suited to micropiling, anchoring and jet grouting applications.
Machine specs
Drilling Capacity
- Max drilling depth (m): Up to 106 m
- Max drilling diameter (mm): 406 mm
- Max torque (kNm): 48 kNm
- Max pull force (kN): 87 kN
- Max push force (kN): 87 kN
- Max rotation speed (rpm): 40 rpm
Rotary Head

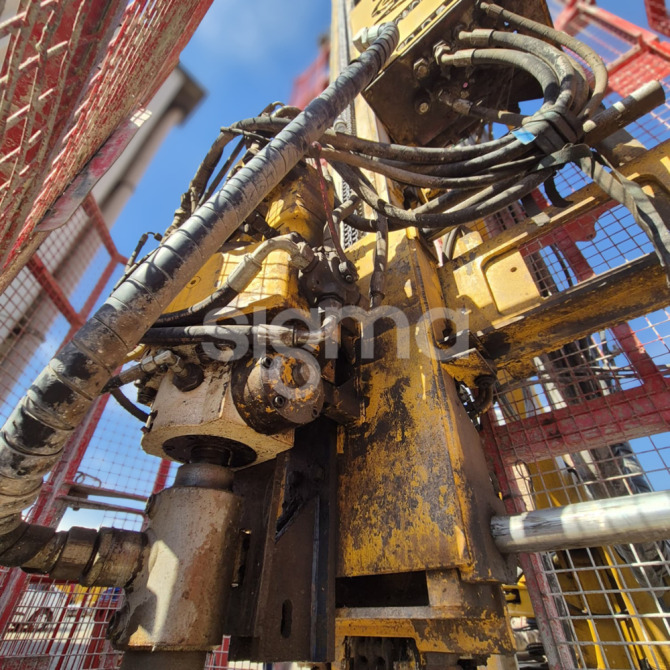

- Rotary head make & model: HG43
- Max torque (kNm): 48 kNm
- Max rotation speed (rpm): 40 rpm

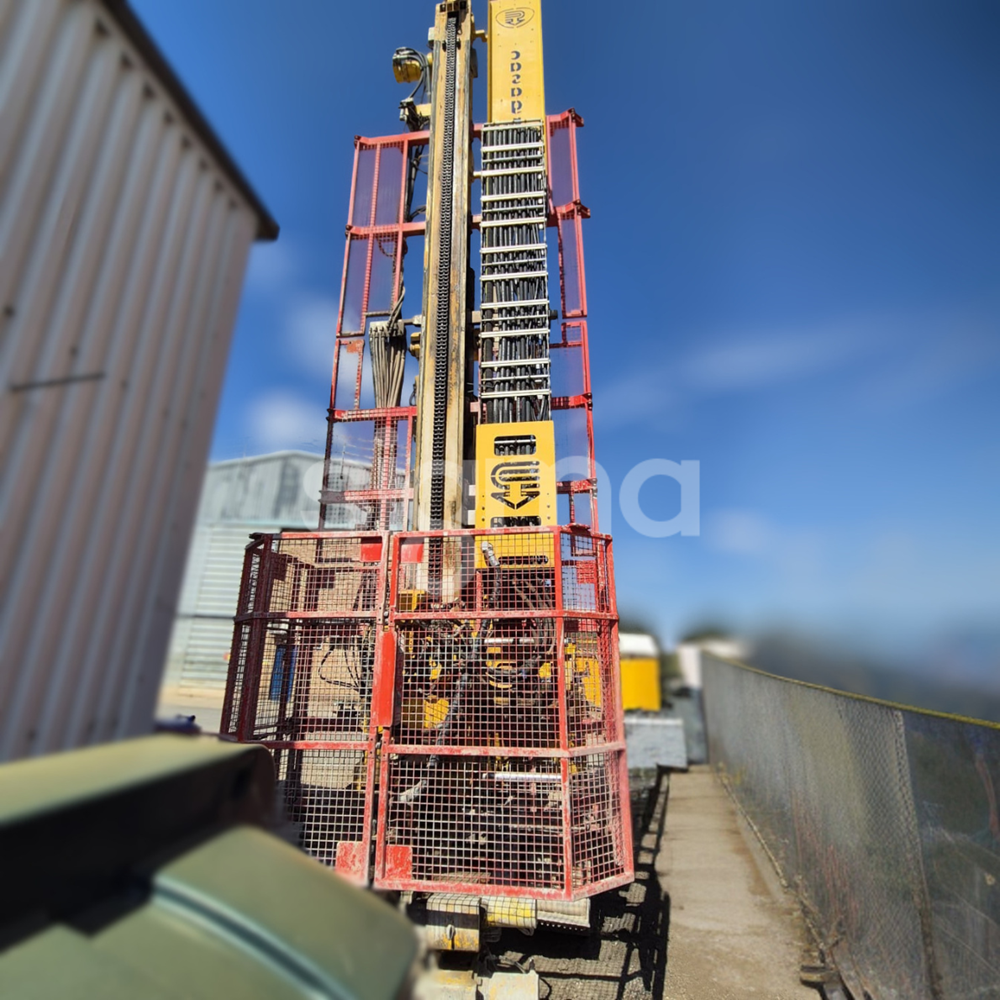

Mast & Feed System
- Mast stroke (m): 10 m
- Mast inclination: ±95° articulation
- Feed system type: Hydraulic
Rod & Casing Handling
- Rod diameter range (mm): 76–406 mm
- Rod length (m): Up to 8.5 m
- Casing diameter range (mm): 406 mm

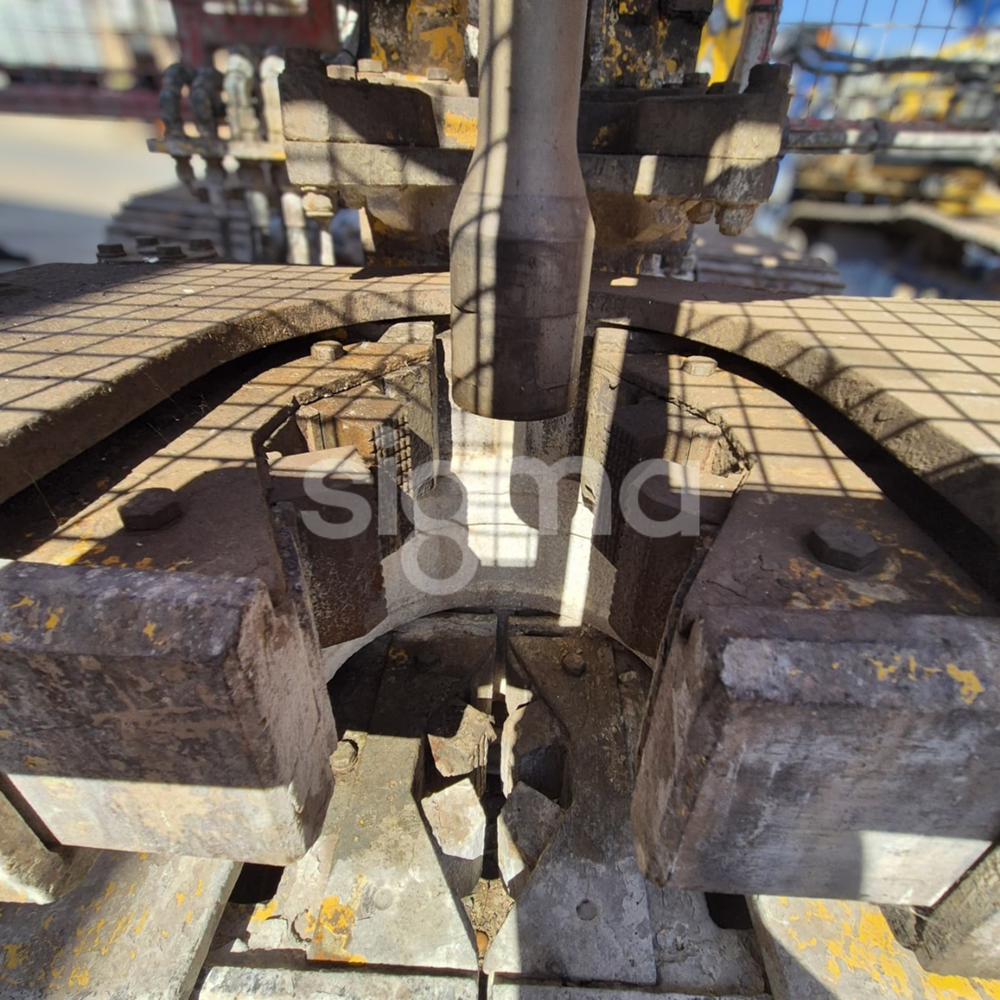

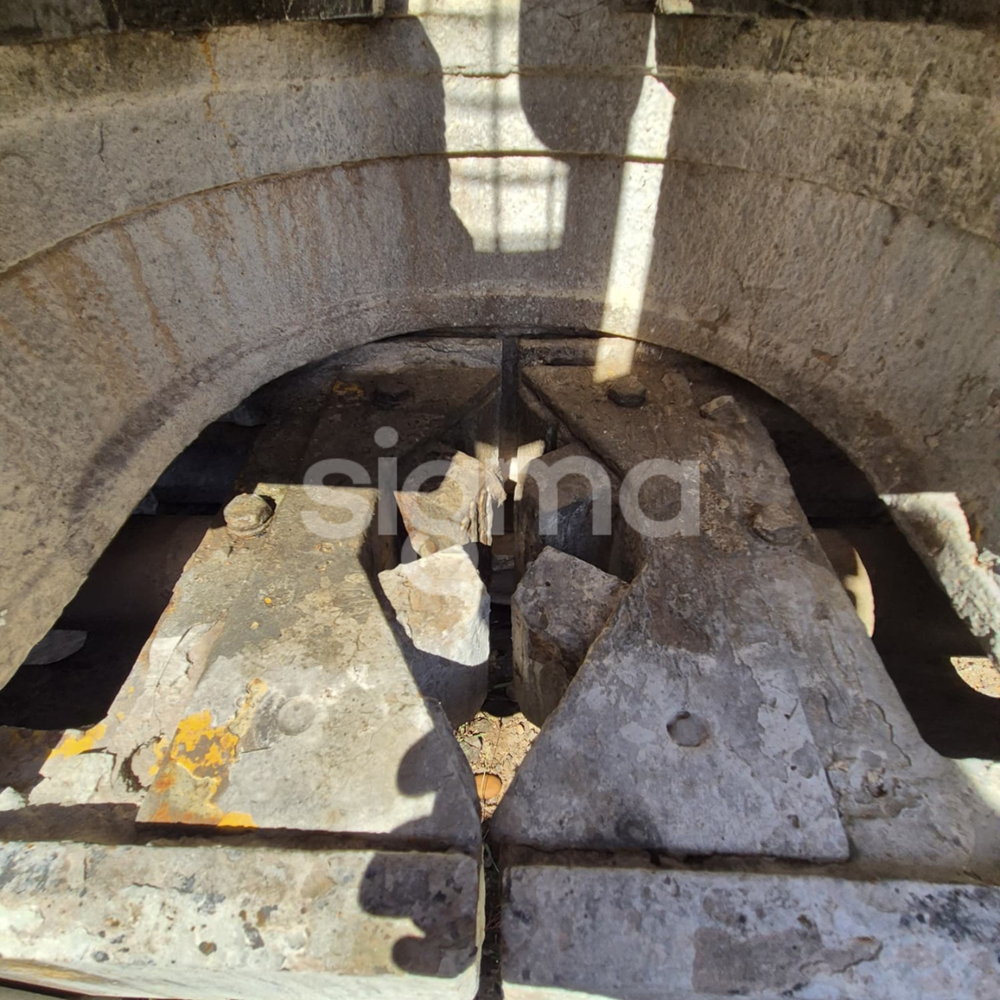

- Clamp make & model: M5 / M5S
- Clamp diameter range (mm): 90 ÷ 406 mm
- Casing handling system: Hydraulic clamps
Power Unit

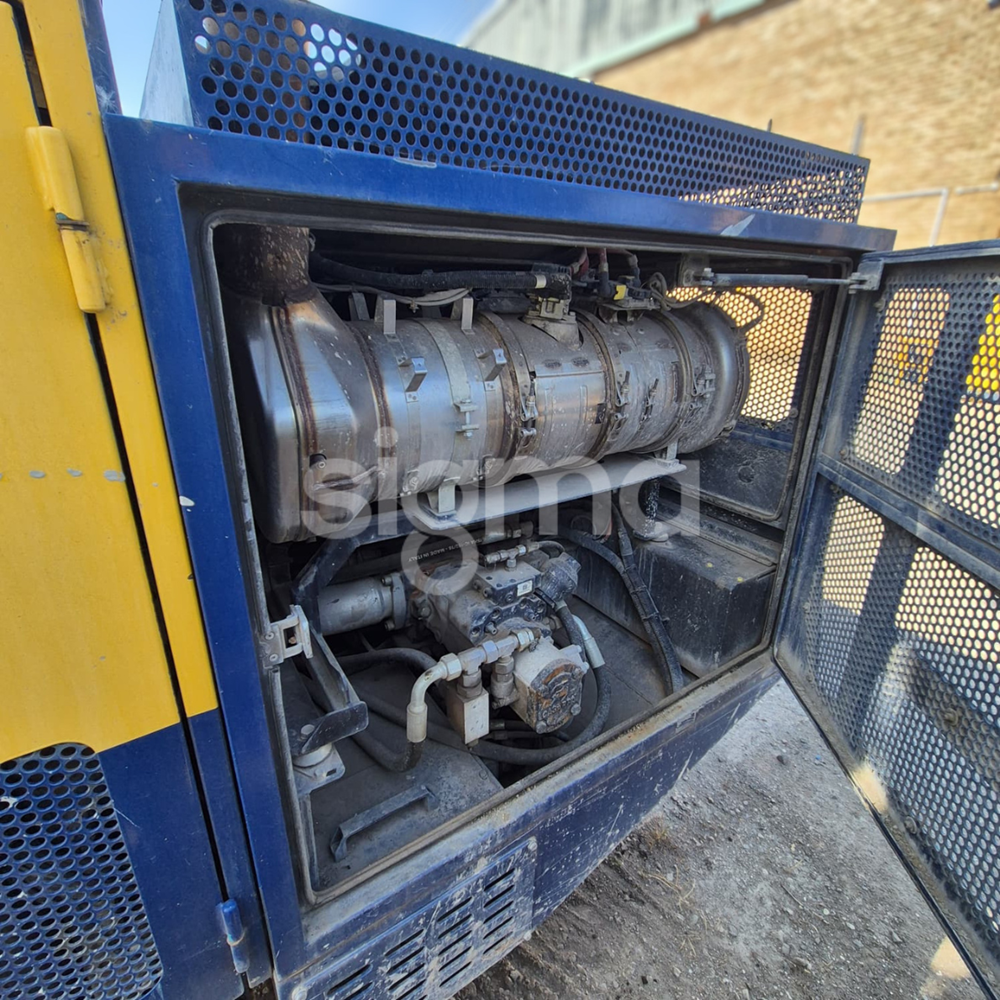

- Engine make & model: Cummins B6.7
- Engine power (kW / HP): 186 kW / 252 HP
- Emission standard: Stage V
- Fuel tank capacity (L): 400 L

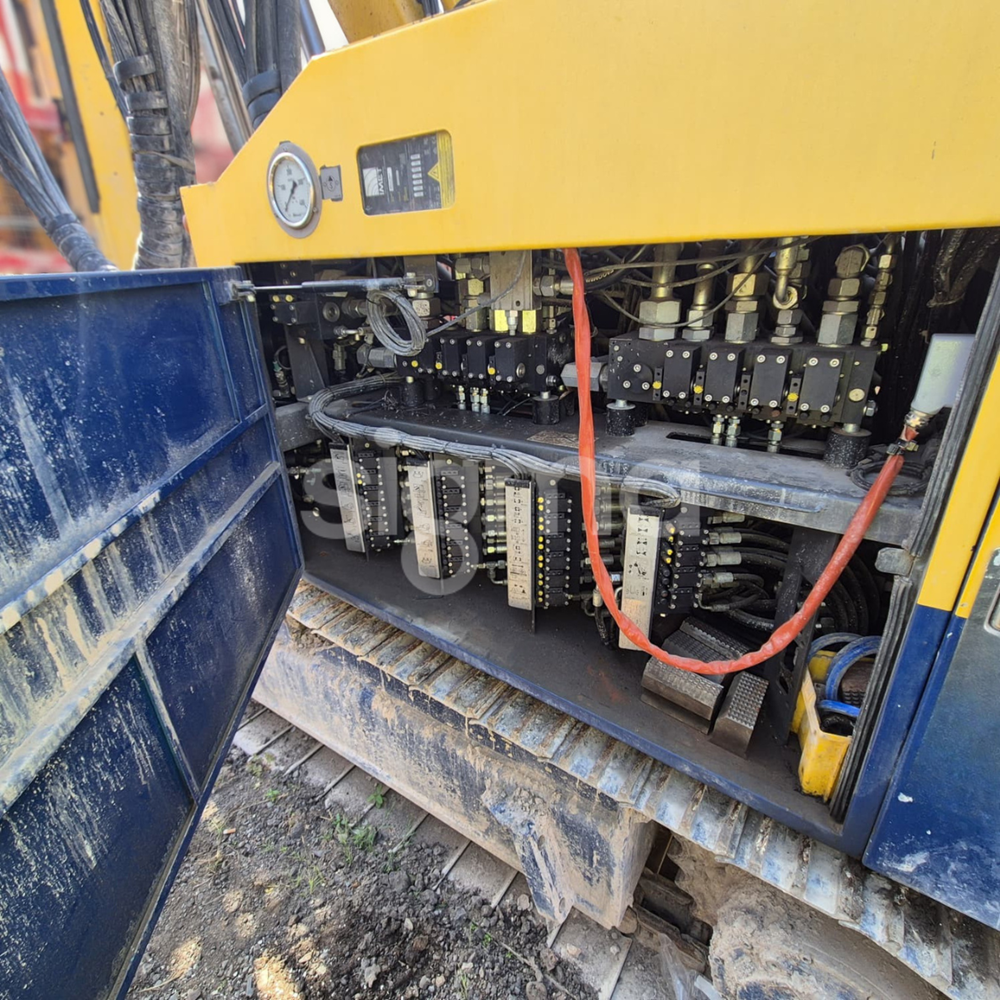

Hydraulic System
- Hydraulic system type: Full load sensing
- Main pumps: 1 × 424 L/min
- Max operating pressure (bar): 350 bar
- Hydraulic oil capacity (L): 630 L
Dimensions & Weight
- Working height (m): Approx. 13.7 m
- Transport width (mm): 2,500 mm
- Transport height (mm): 3,100 mm
- Transport length (mm): 13,730 mm
- Operating weight (kg): 23,000 kg
