Overview
Stock number:
PF 40002
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2012
Working hours:
5039
Key features
- Geotechnical drilling rig with 5039 working hours
- Kubota V 1505T diesel engine (31kW)

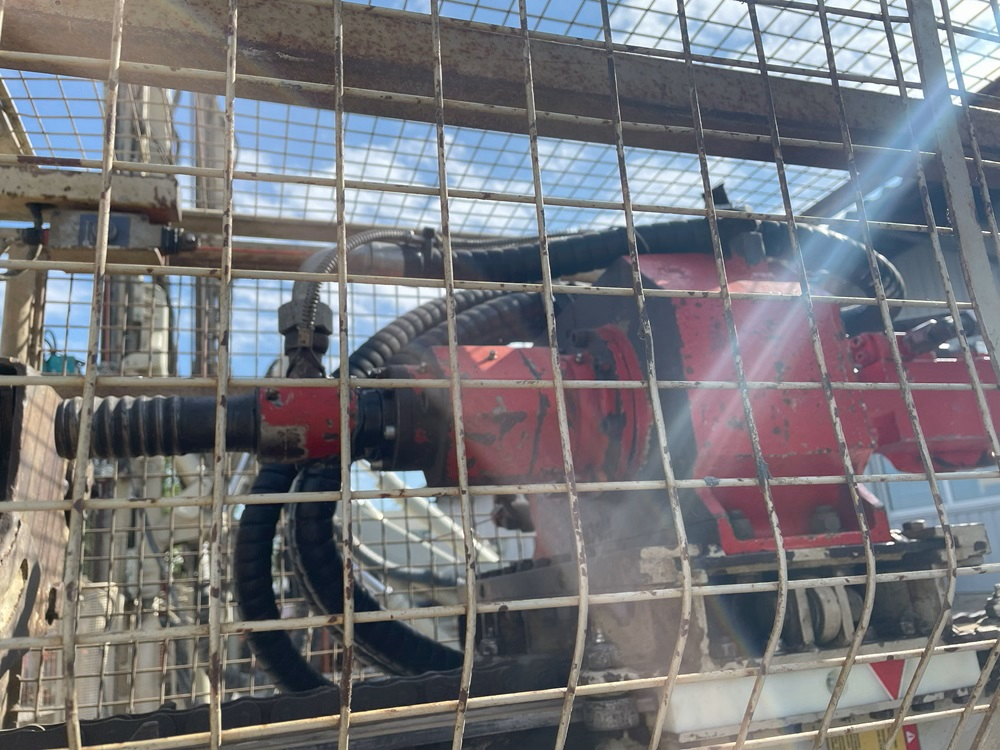

- R400.3 rotary head 4 gears (200/100/66/33 daNm torque)
- Thread type H55 pin
- Feed stroke 2430mm
- Double hydraulic clamps min/max opening 32-220mm
- Clamp force 14,000daN
- Breakout torque 1000daNm
- Working dimensions:
- Height 4300mm
- Length 3870mm
- Width 1150mm

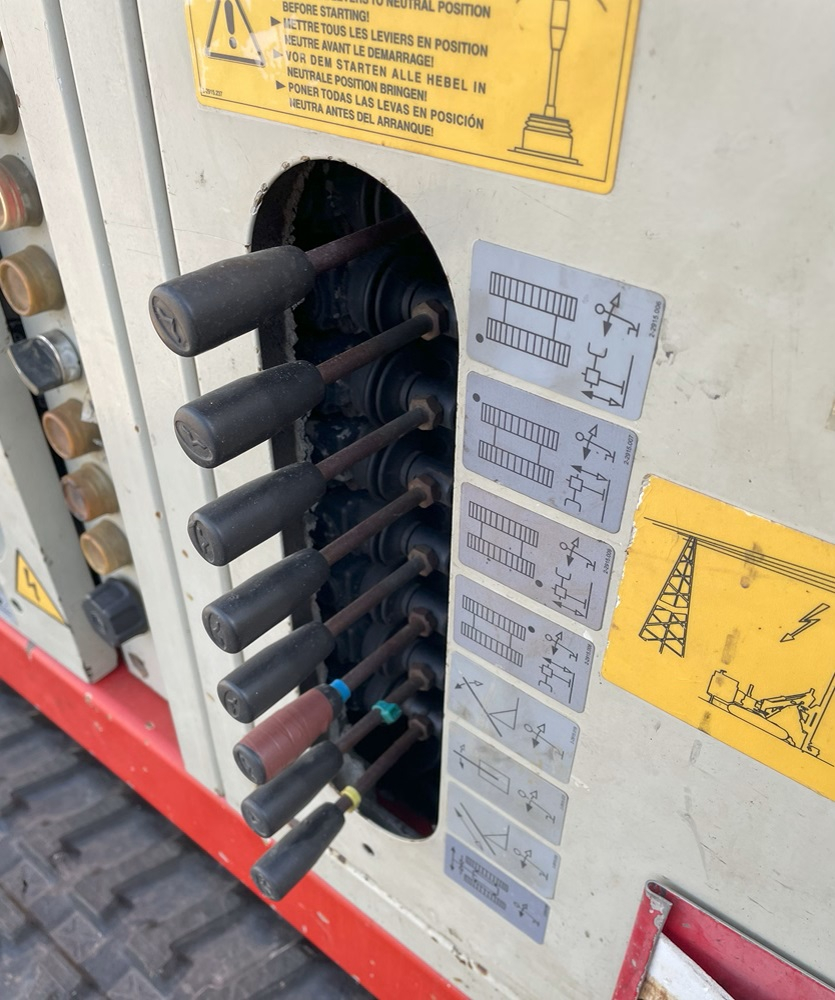

- Remote control with cable
- 500kg winch
- Gamma 80 triplex pump 90L/min max pressure 40bar
