Overview
Stock number:
PF 40036
Categories:
Geothermal Drilling Rigs and Equipment
Manufacturer:
Comacchio

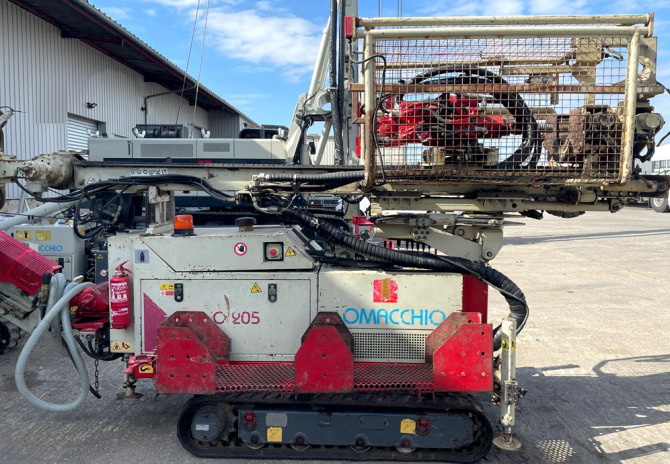

Model:
GEO 205
Year of manufacture:
2012

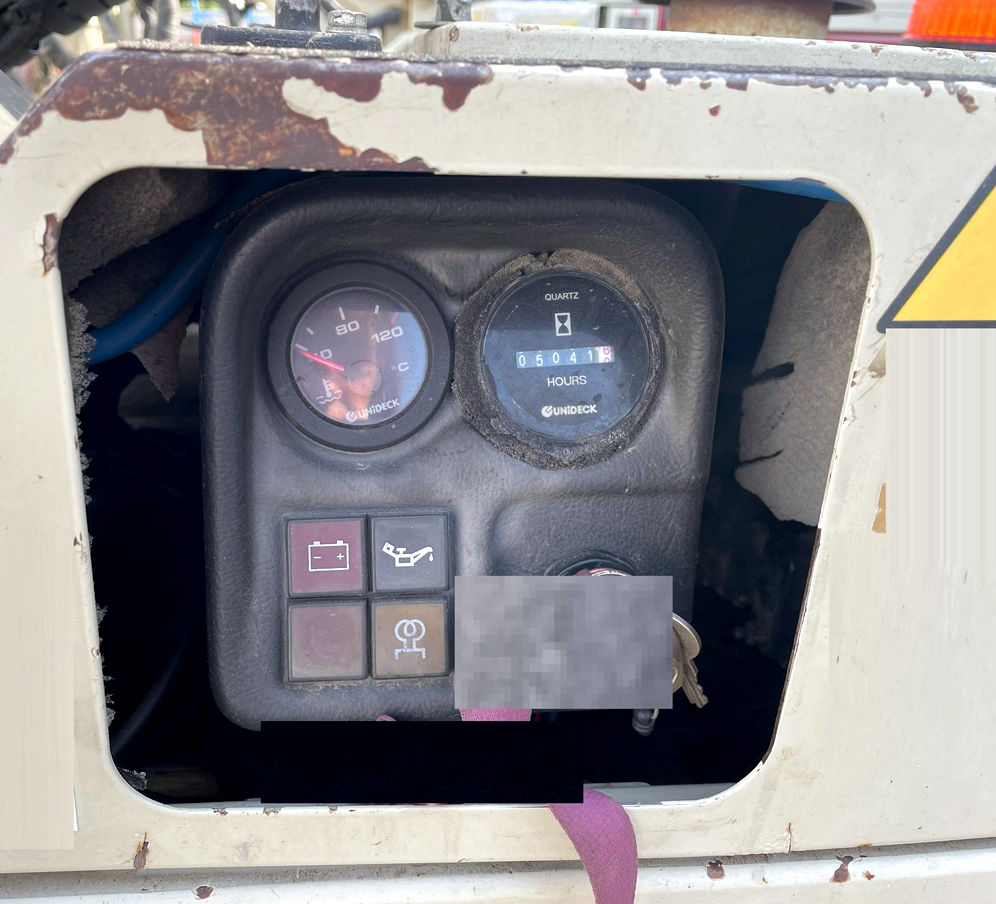

Working hours:
5039
Key features
- 5,039 hours
- Engine Power KUBOTA V 1505T Diesel - 31 kW at 3 000 rpm
- R400 .3 Head
- Torque: 200 / 100 / 66 / 33 daNm
- Speed: 80 / 160 / 250 / 500 rpm
- Blow energy: 180 Nm
- Frequency: 2 700 blows/min
- Thread type : H55 PIN Right - R32 BOX
- Feed Stroke 2,430 mm

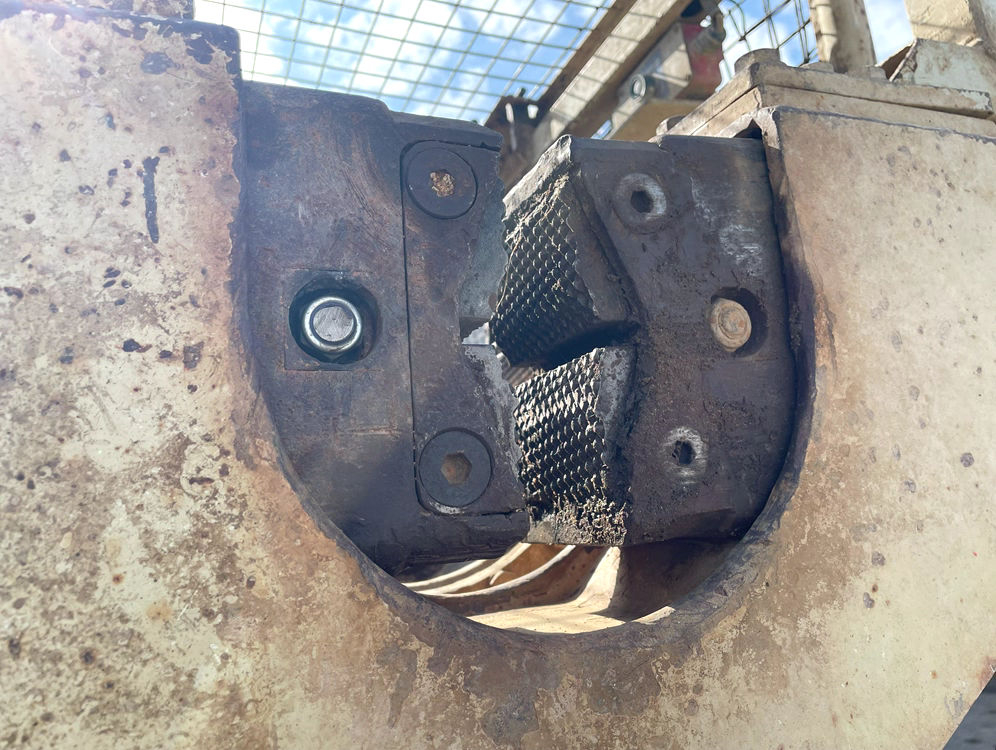

- Double clamps 32 - 220 mm
- Clamping force : 14 000 daN / Breakout torque: 1 000 daNm
- Dimensions
- Working height: 4,300 mm / Transport height: 2,440 mm
- Transport length: 4,300 mm / Working length: 3,870 mm
- Width: 1,150 mm / Weight: 2.8 tonnes

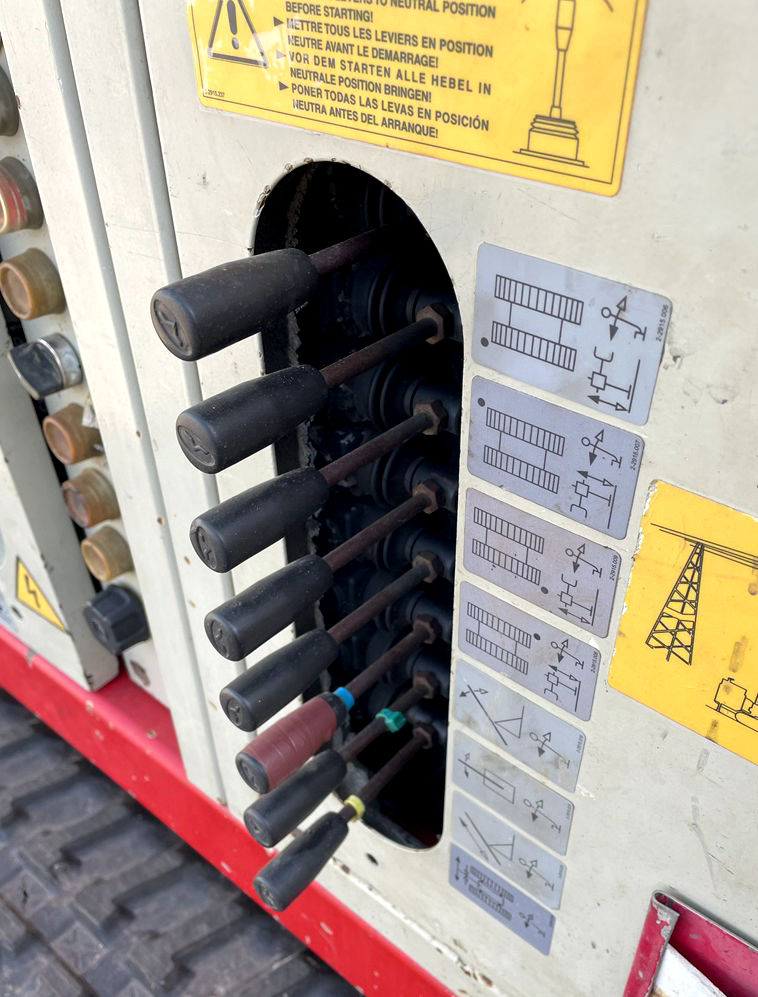

- Driving control
- Remote control with cable
- Rubber crawler tracks
- Winch 500 kg

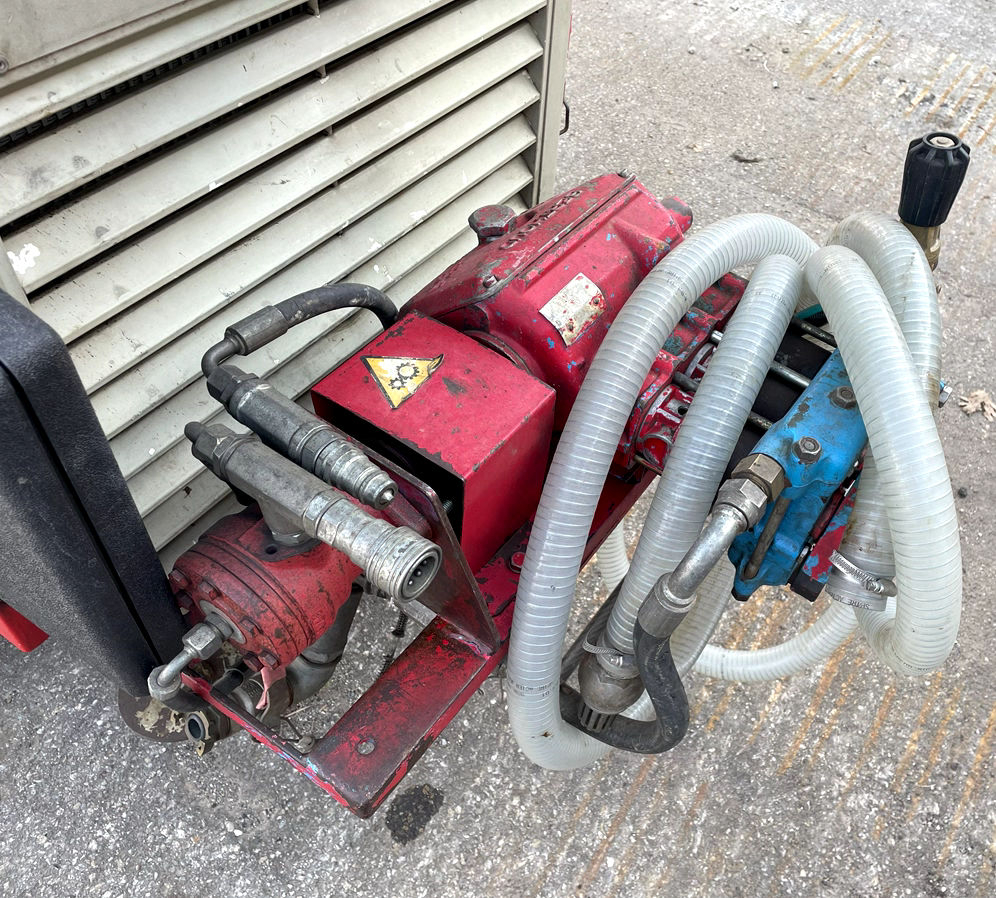

- Triplex pump Gamma 80 90 L/min / max. pressure : 40 bar
