Overview
Stock number:
PF 40256
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2015
Working hours:
3520
Key features

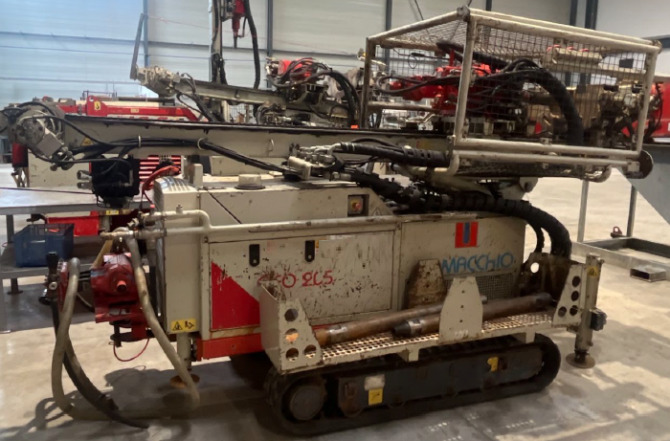

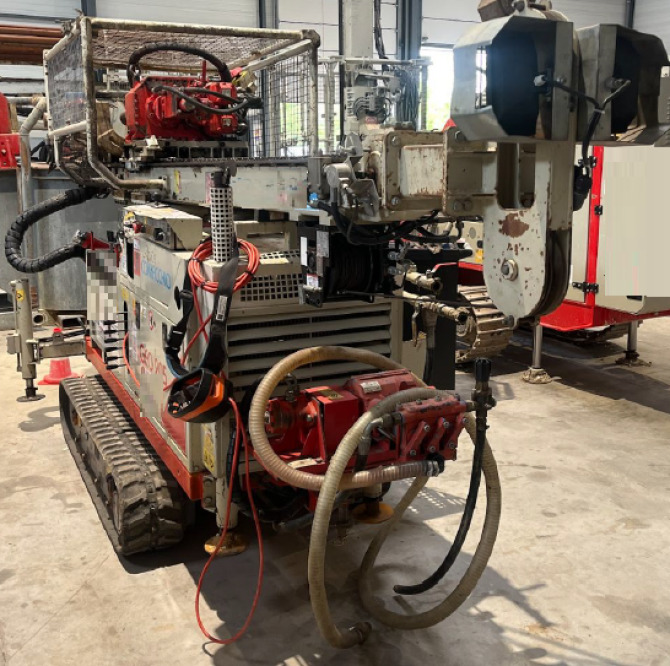

- Geotechnical drilling rig with 3520 working hours
- Kubota V 1505T diesel engine (31kW @ 3000rpm)
- R400.3 head max torque 310daNm,
- Max drill speed 320rpm,
- Blow energy 180Nm,
- Frequency 2700 blows per minute,
- Thread type H55 PIN right R32 box
- Feed stroke 2430mm
- Double clamps (45-220mm), clamping force 13,800daN,
- Break out torque 1500daNm
- Remote control for positioning
- 500kg winch
- Triplex Gamma 80 pump (90L/min max pressure 40bar)
