Overview
Stock number:
PF 40258
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2016
Working hours:
1155
Key features
- Geotechnical drilling rig with 1155 working hours
- Kubota V 1505T diesel engine (31kW @ 3000rpm)

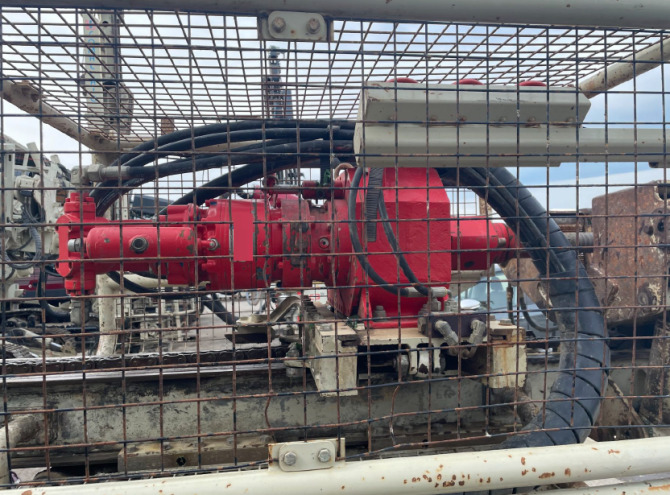

- R400.3 head
- Max torque 480daNm
- Max drill speed 450rpm
- Blow energy 180Nm
- Frequency 2700 blows per minute,
- Thread type H55 PIN right R32 box
- Feed stroke 2430mm
- Double clamps (45-220mm)
- Clamping force 13,800daN
- Break out torque 1500daNm
- Remote control for positioning
- 500kg winch
- Triplex Gamma 80 pump (90L/min max pressure 40bar)
