Overview
Stock number:
PF 39020
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2014

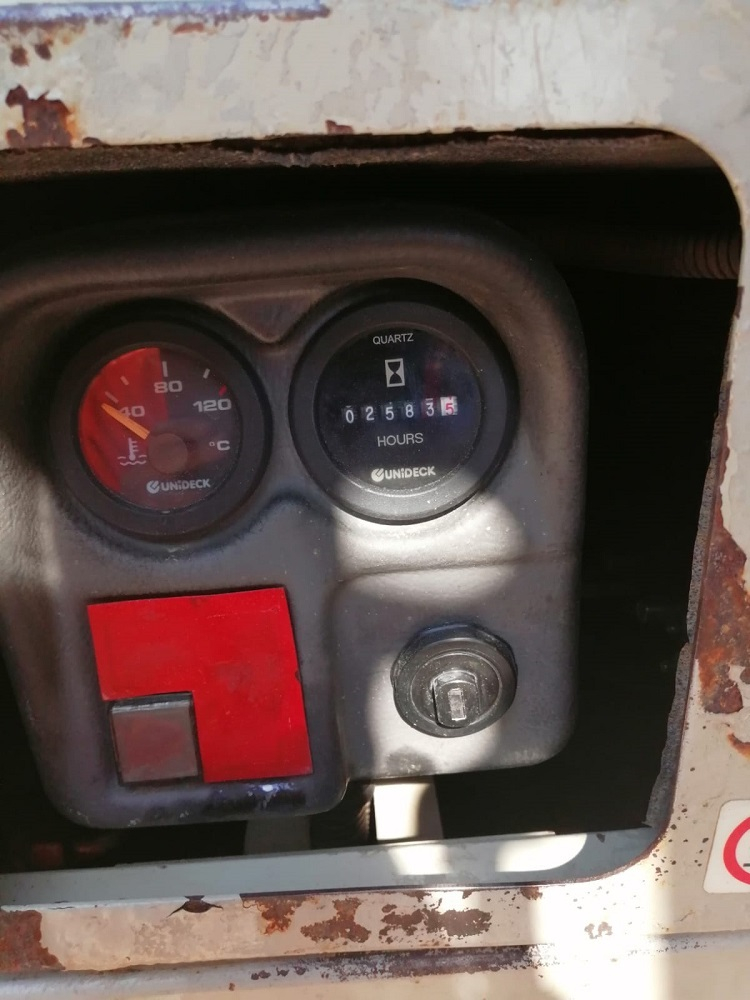

Working hours:
2583
Key features
- 2583 working hours
- Kubota V 1505T diesel engine (31kW at 3000rpm)
- 4 speed R400 rotary head (max torque 310 daNm)
- E10 drifter (250Nm blow energy, 2500 blows/min)
- H55 M/R32 F thread type
- Mast feed stroke 2430mm
- Double clamps (45-170mm)
- Clamping force 13,800daN, breakout torque 1,500daNm
- Remote control with cable
- Retractable rubber crawler tracks
- GAMMA 82 triplex pump max continuous flow 90L/min
- Max pressure 40 bar
- Suction hose & strainer included
