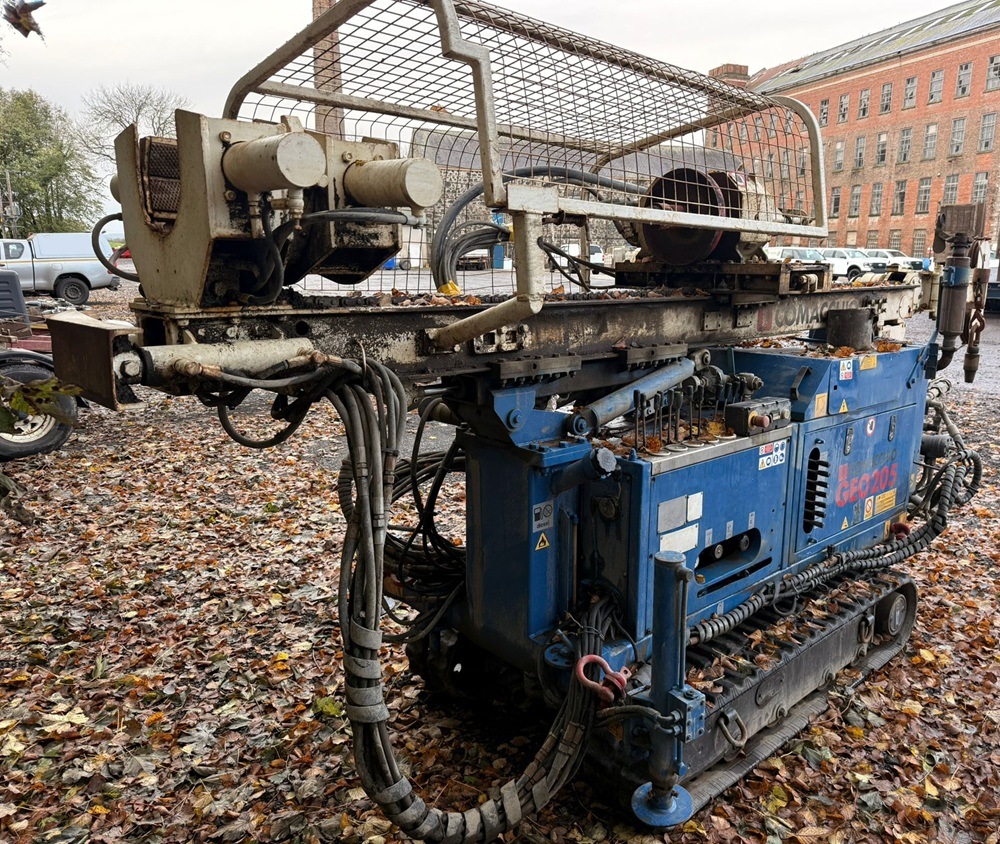

Overview
Machine location:
United Kingdom
Stock number:
PF 40754
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2007
Working hours:
9361
Key features
- 9361 Working hours
- Feed stroke: 2400mm

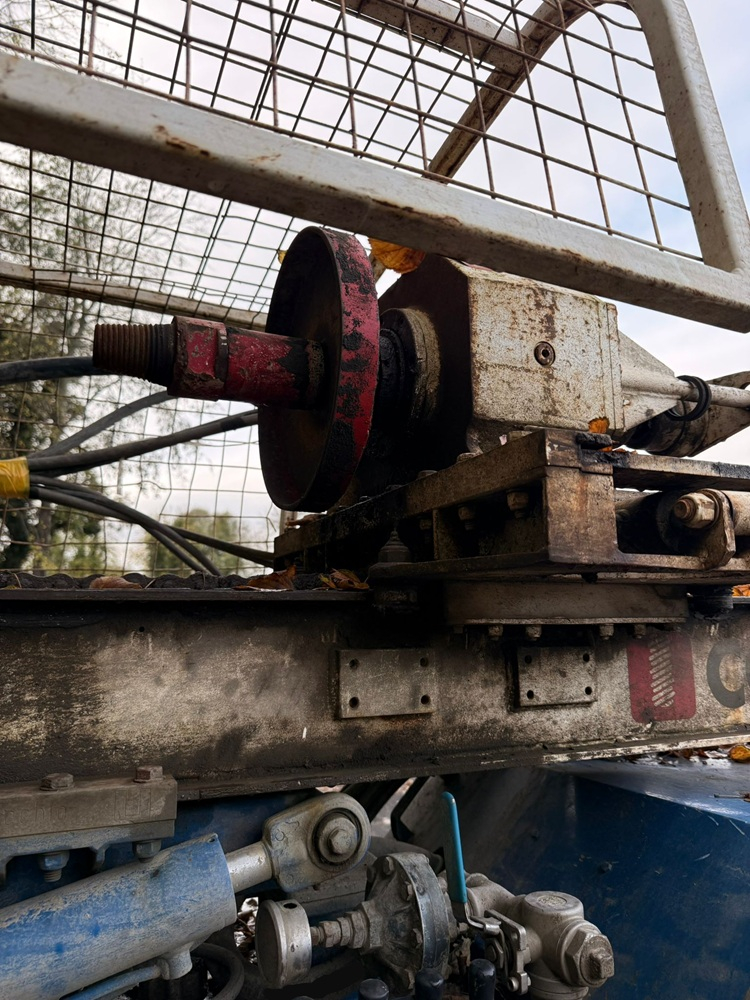

- 4 Speed rotary head
- Max torque: 380daNm (at 40 rpm)
- Max drill speed: 250rpm (60daNm torque)
- Kubota diesel engine (31kW @ 3000rpm)
- Fixed control panel for set up & drilling functions
- Remote controls for tramming
- CE certifies
- Approximate weight: 2650kg
- Rubber type heavy duty tracks, operated by hydraulic motors and reducers, with negative brakes.
- Wheel centre base: 1080 mm (standard type)
- Width, fixed type: 1100 mm
- Pad Width: 230 mm
- Climbing 40%
- Max Speed 1 km/hr
- Triplex type pump
- Max pressure: 50 Bar
- Max flow: 70 litres/minute
- Flow controller, pressure relief valve and gauge
- Double type upper and lower rod/casing holder combined with rod/casing breaker assembly
- Range: 45-220 mm
- Jaw pressure regulator for thin wall casing is provided, includes a split type guide to suit drill rods which locates in the upper clamp : Version “D” OMS 200 : Torque 1o/2o/3o/4o gear (DaN*m), 380 / 190 / 120 / 60 : Speed 1o/2o/3o/4o gear (rpm) : 40 / 80 / 125 / 250
