Overview
Machine location:
Europe
Stock number:
PF 41020
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2021
Working hours:
3060
Key features

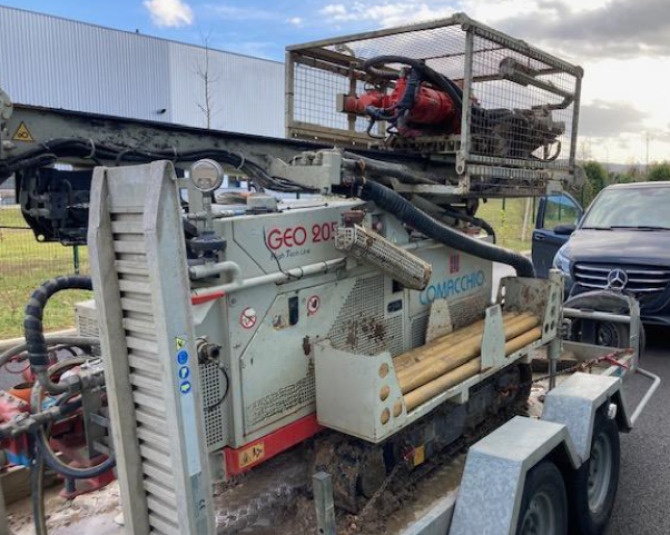

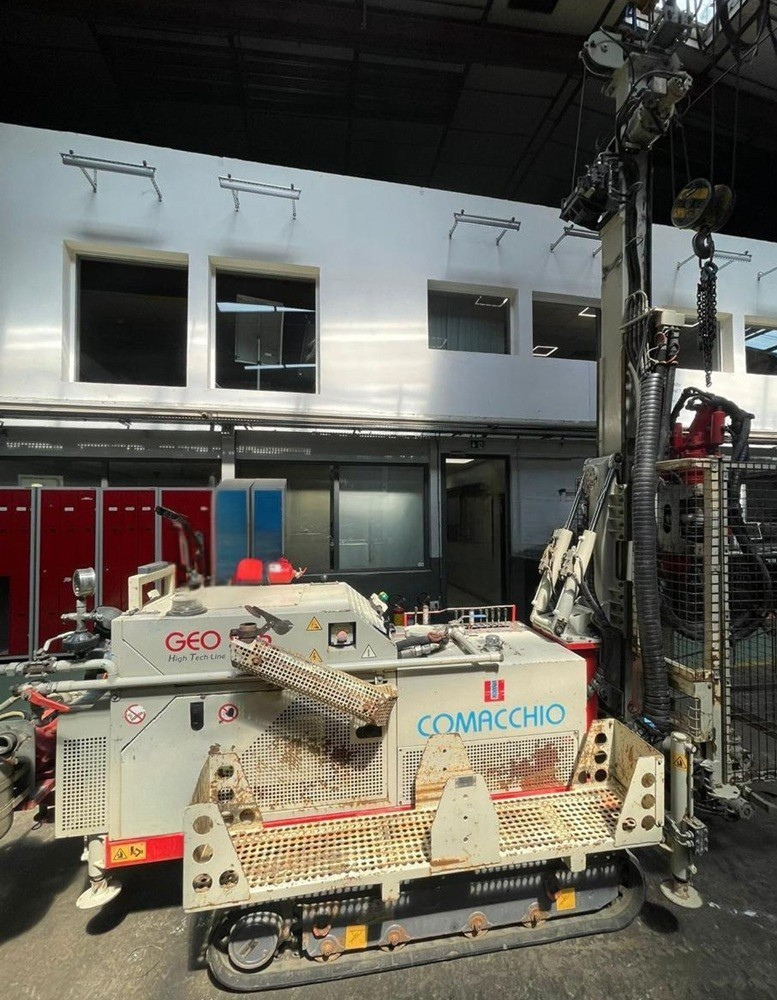

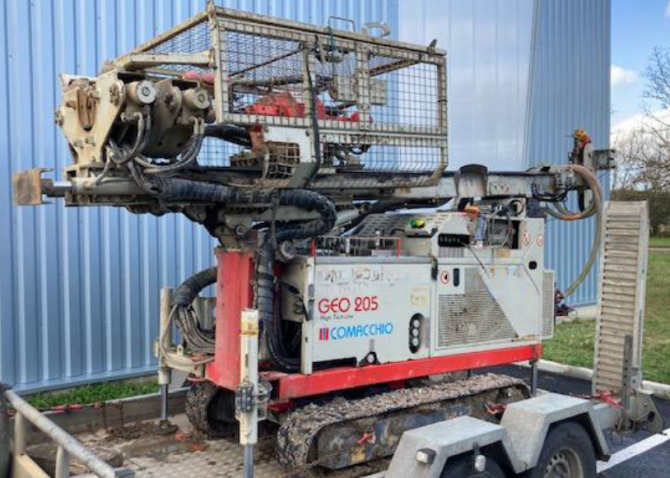

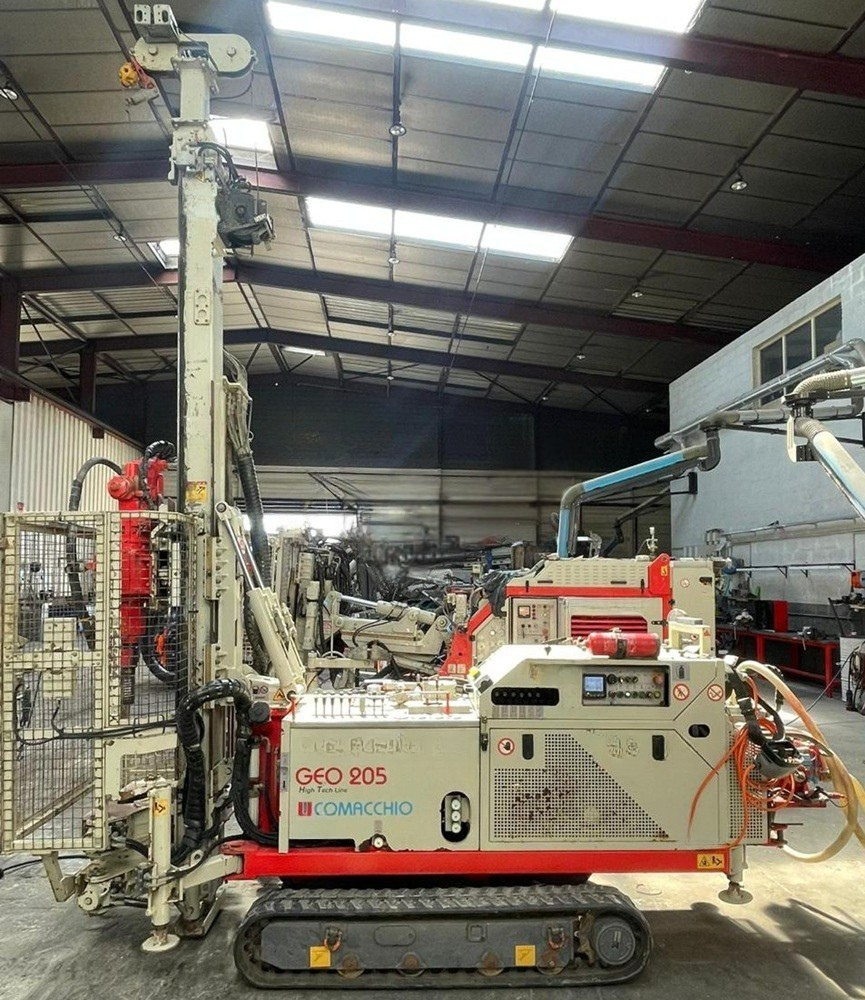

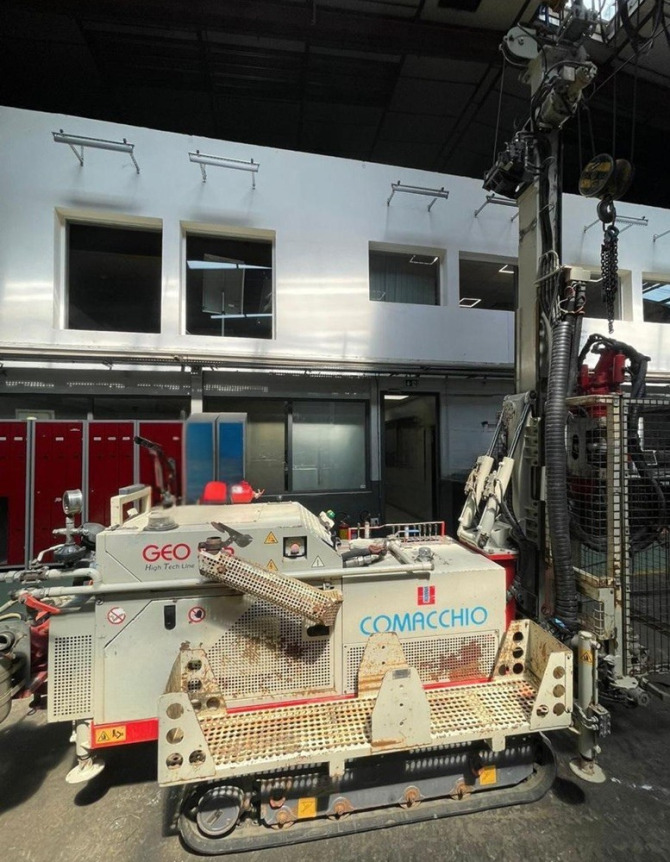

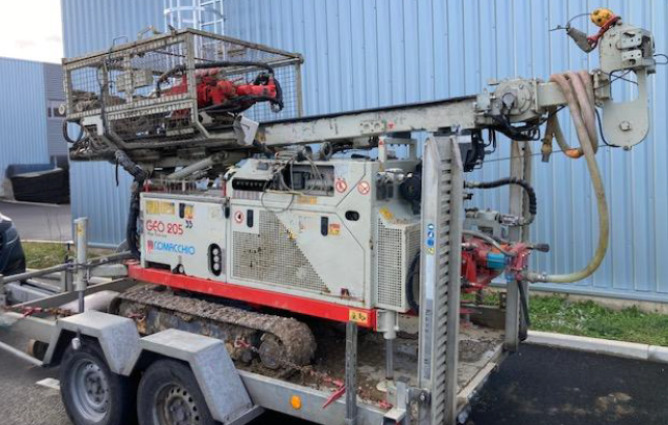

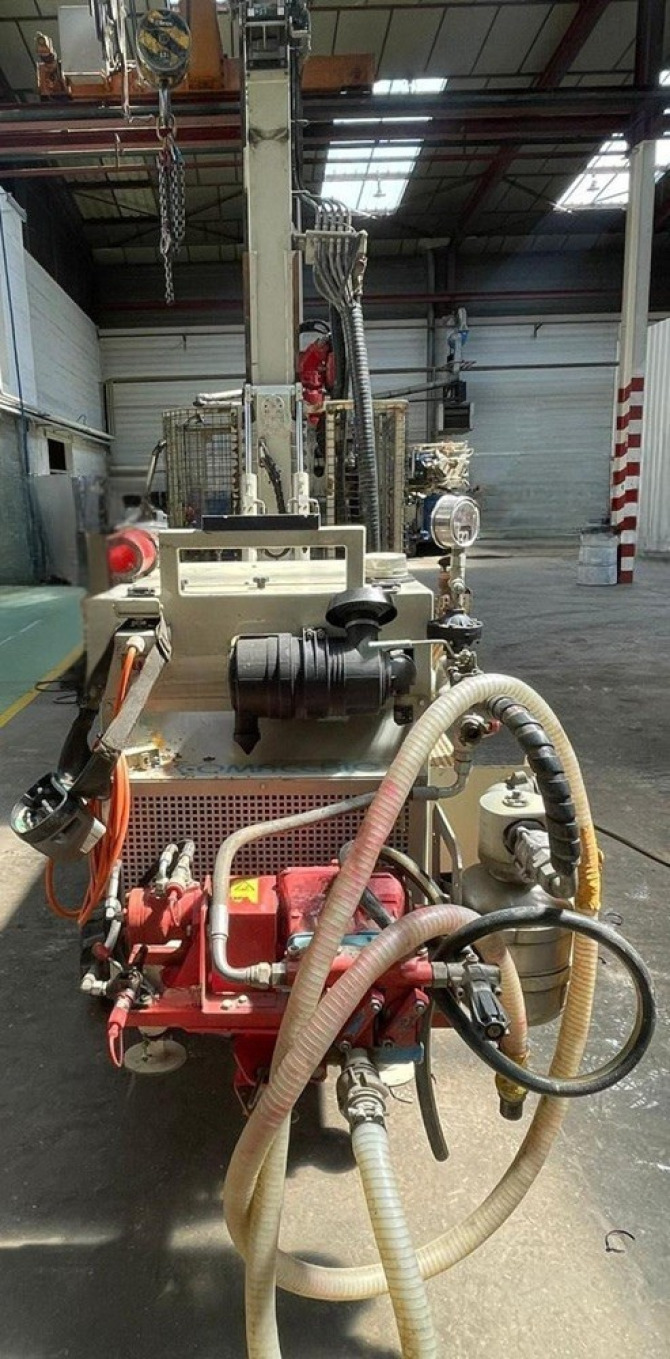

- Geotechnical drilling rig with 3060 working hours

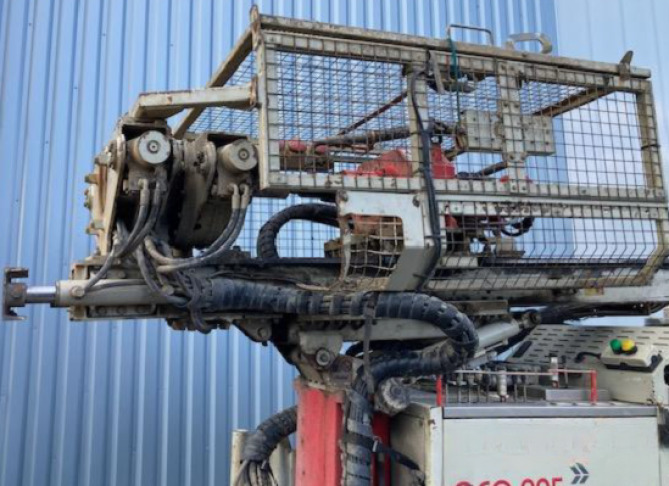

- R350 rotary head
- Max torque 345 daNm,
- Max drill speed 580rpm
- EC10 eurodrill hydraulic drifter
- Impact force 180Nm,
- Frequency 3000cpm,
- Flow 30L/min,
- Max pressure 150bar
- Yanmar 3TNV86CT-DKE engine: 32.4kW power, EU stage 4

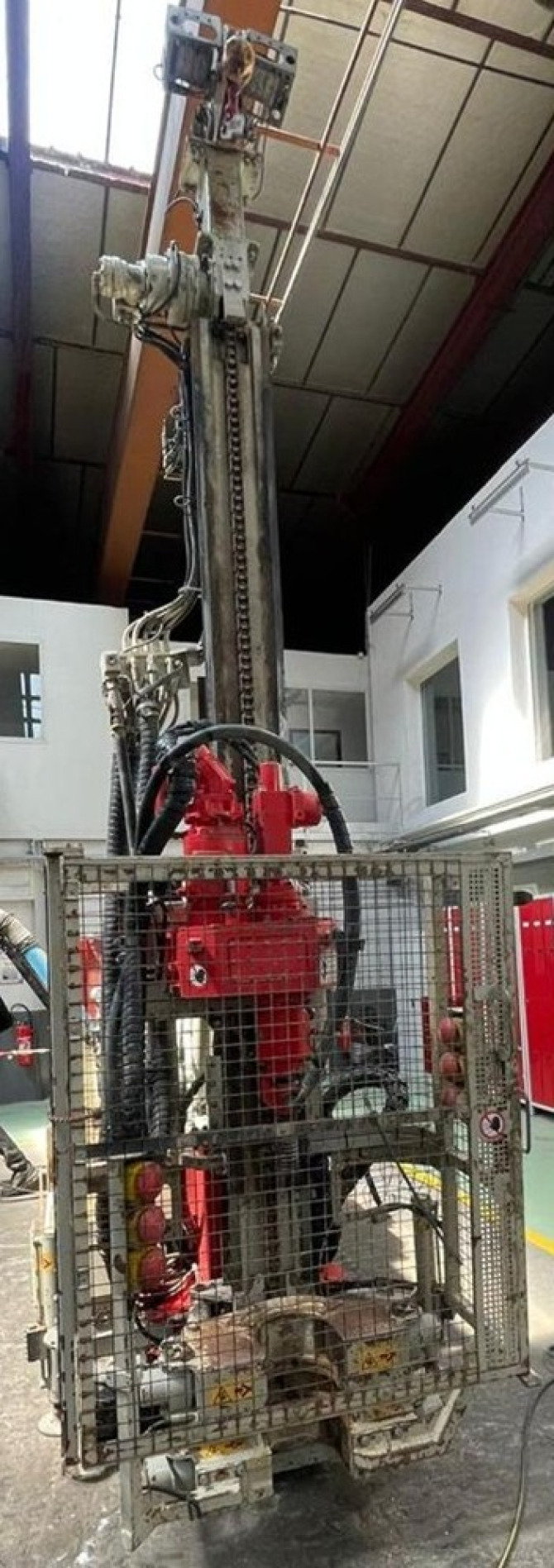

- Mast
- Feed stroke 2430mm,
- Feed/retract force 2500/2500daN
- Rod rack
- Double hydraulic clamps: 32-220mm
- CTD130 pump: 130L/min, 20 bar
- 500kg hydraulic winch
- CE certified
