Overview
Machine location:
United Kingdom
Stock number:
PF 41042
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 205
Year of manufacture:
2013
Working hours:
5800
Key features
- Geotechnical drilling rig with 5,800 working hours.
- Drilling performance
- Max drilling diameter: 220 mm
- Max drilling depth: 100m
- Pull up force: 25 kN
- Pull down force: 25 kN
- Rotary head torque: 2 kNm
- Rotation speed: 450 rpm
- Feed stroke: 2,430 mm
- Mast
- Mast travel: 2,430 mm
- Maximum inclination: 90 °
- Minimum inclination: 45°

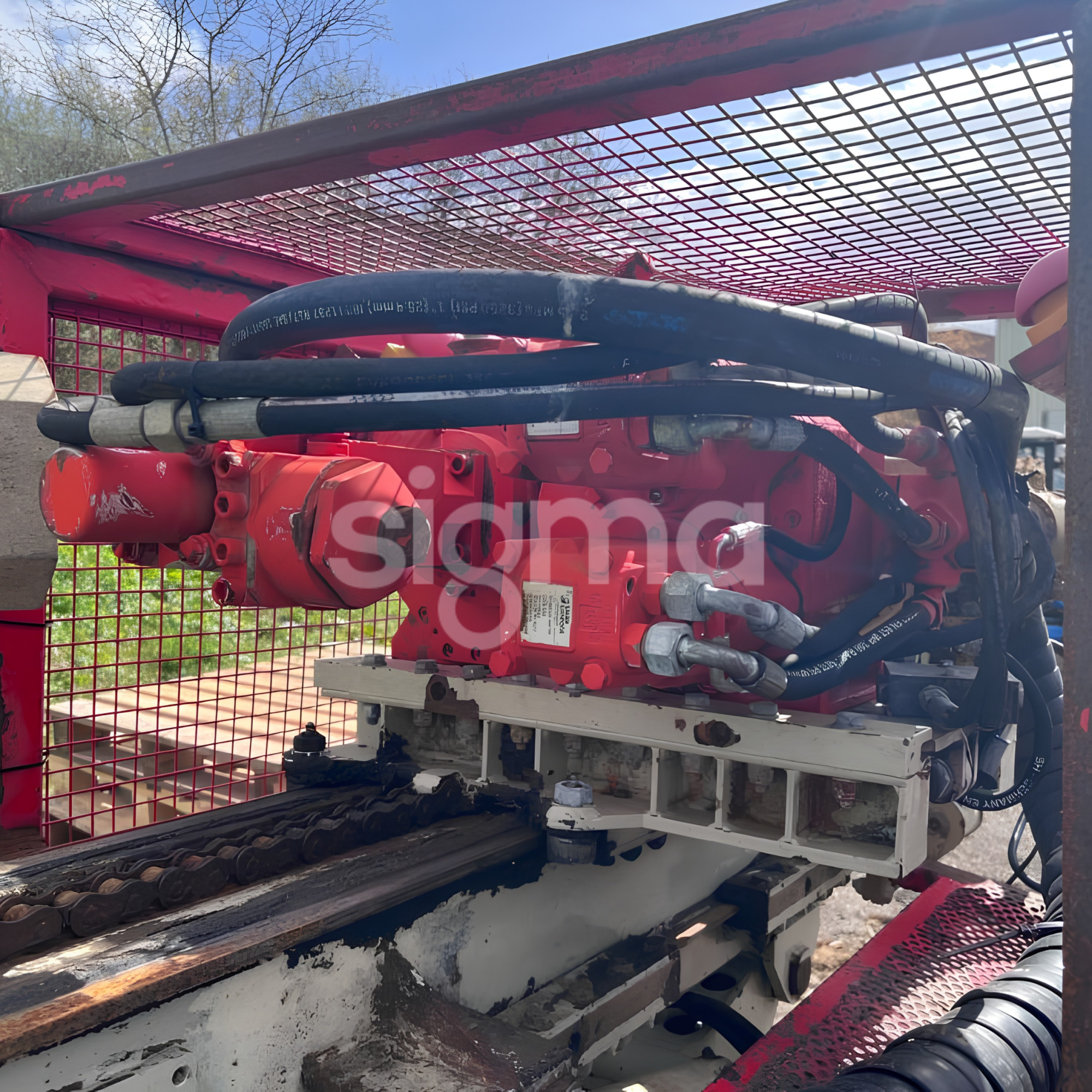

- Rotary Head
- Model: R400
- Max torque: 480 daN
- Rotation speed: 450 rpm
- Flush swivel: Yes
- Clamp & Breakout
- Clamp diameter: 170 mm
- Breakout torque: 10 kNm
- Engine
- Make: Kubota
- Model: V1505-T
- Power: 31 kW (42 HP) @ 3,000 rpm
- Fuel tank: 50l
- Engine Stage: Stage IIIA
- Mud Pump / Water System
- Pump type: Triplex
- Flow rate: 90 l/min
- Pressure: 40 bar
- Winches
- Main winch: 10 kNm
- Service winch: 5 kNm
- Hydraulic system
- Pump capacity: 90 l/min
- Max pressure: 200 bar
- Transport Dimensions and weight
- Length: 4,300 mm
- Width: 1,150 mm
- Height: 2,440 mm
- Weight: 2,800 kg
