Overview
Machine location:
Europe
Stock number:
PF 41132
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 300
Year of manufacture:
2023
Key features

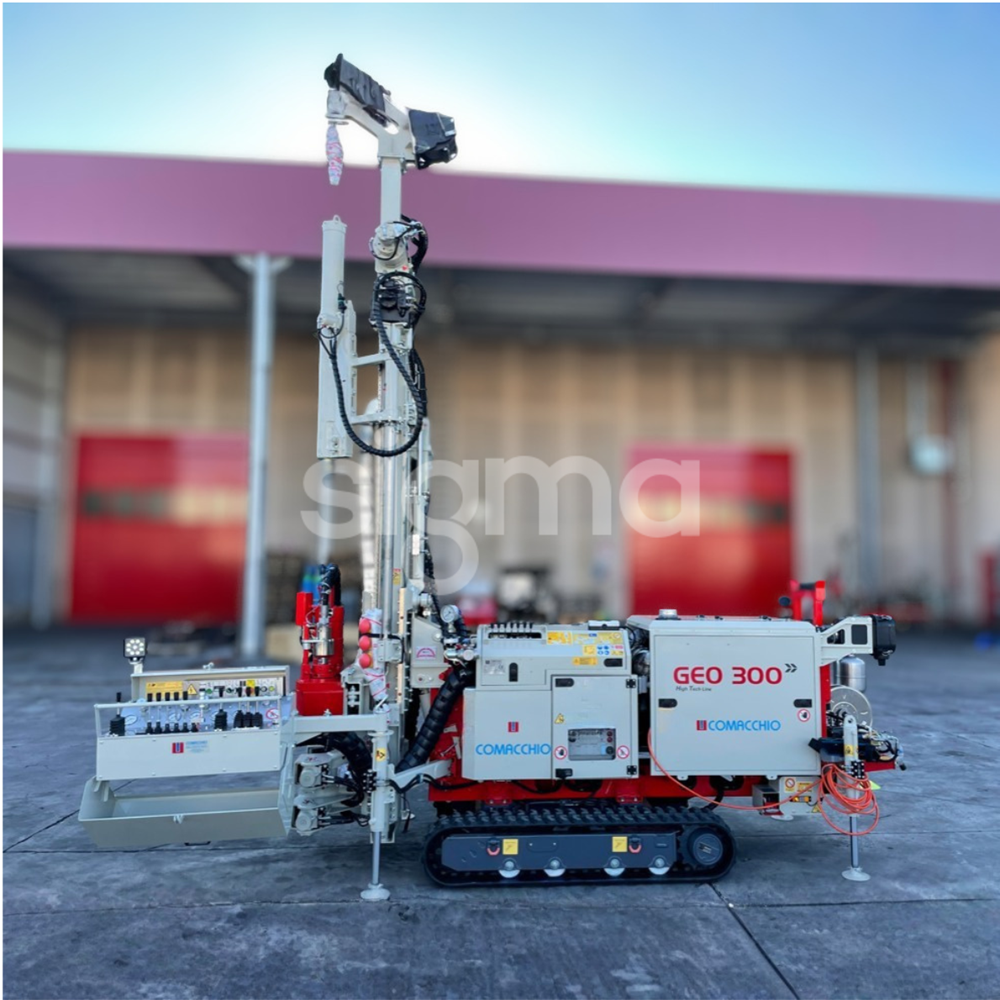

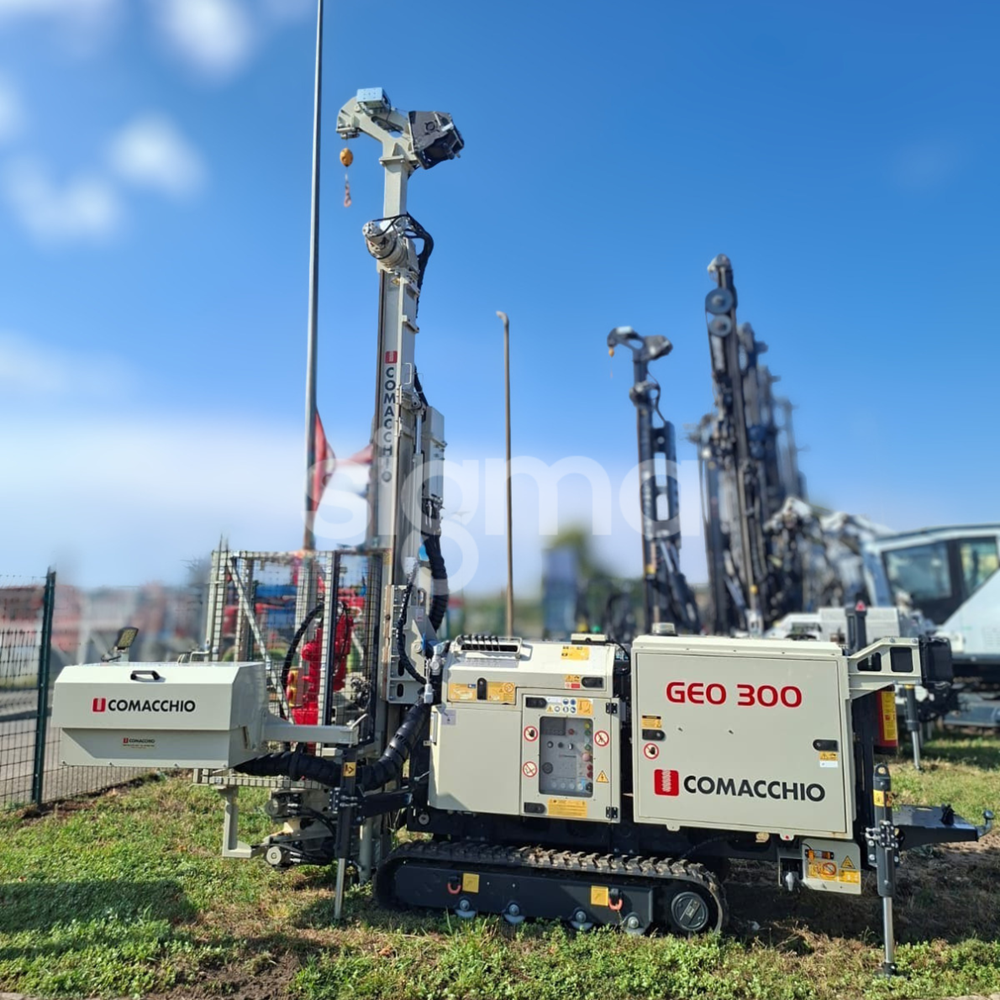

Geotechnical drilling rig with 0 working hours, configured as a monobloc drill for vertical drilling
Machine specs
Rotary head
- Type: R350
- Speeds: 4
- Max torque: 480 daNm
- Max rotation speed: 415 rpm
- Feed / Pull force: 3,500 kg
- Feed stroke: 2,500 mm
Drifter / Hammer
- Make: Eurodrill
- Model: EC 10
- Rotation speed: 2,700 rpm
- Torque: 180 Nm
- Connections: H64 male right-hand / R32 female left-hand
Engine
- Make: Deutz
- Configuration: 4-cylinder
- Power: 74.3 HP
- Engine Stage: Stage 5
- Fuel tank: Not stated
- Winch
- Winch capacity: 1,000 kg
Clamping System
- Double clamp / jaws: 32 × 220 mm
- Jaw control: Dedicated control valve
Hydraulic System
- Hydraulic configuration for Gamma injection pump
- Hydraulic outputs/connections for recorder
- Auxiliary hydraulic outlet for hydraulic attachments
- Hydraulic head retraction
- Extraction cylinders at base of mast
- Length: 4,520 mm
- Width: 1,300 mm
- Height: 2,470 mm
- Weight: Approx. 3,900 kg
Notes
- Monobloc configuration for vertical drilling
- Single-panel tilt-and-slide door
- Advance towards block/rock
- Trolley with hydraulic head retraction
- Work lights
- Safety cage compliant with current standards
- 1,000 kg winch
- R350 4-speed rotary head
- Eurodrill EC 10 hammer
- Hydraulic preparation for Gamma injection pump
- Auxiliary hydraulic connections
