Overview
Stock number:
PF 40253
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 305
Year of manufacture:
2015
Working hours:
5300
Key features

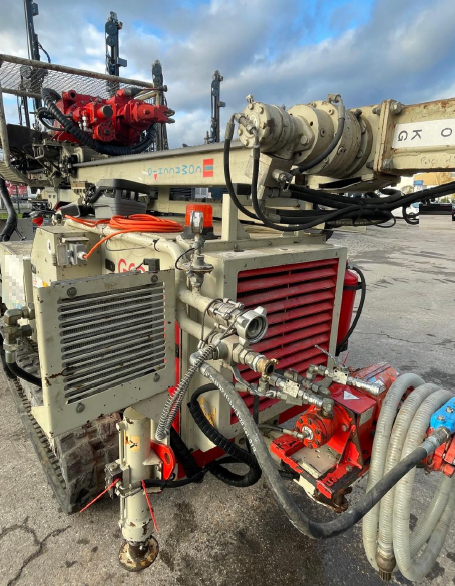

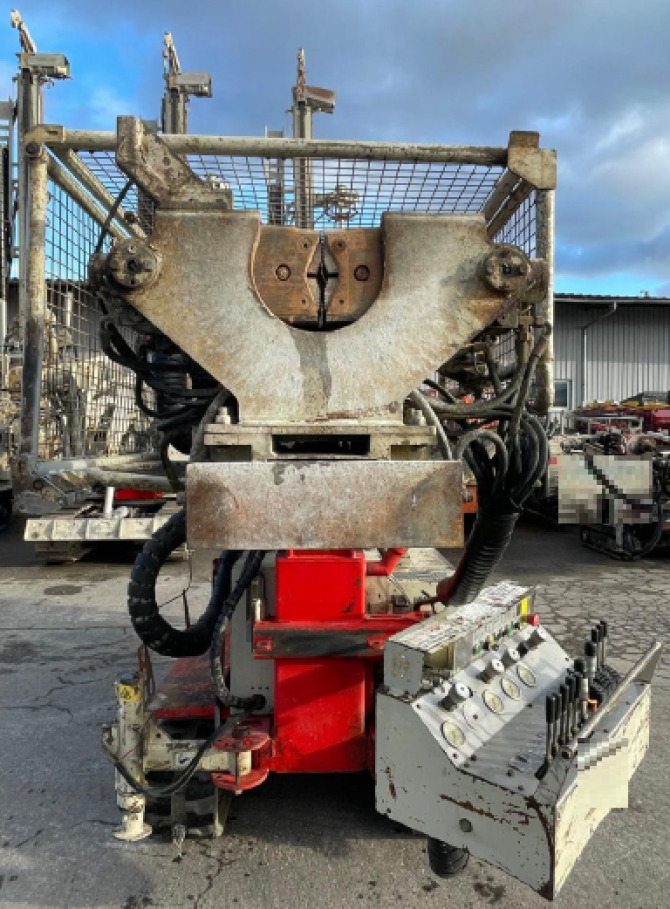

- Geotechnical drilling rig with 5300 working hours
- Deutz TD 2011L04 engine (55kW @ 3000rpm)
- CT110.1 E20 rotary head (max torque 630daNm, max drill speed 540rpm, thread type: H64 PIN right R38 BOX)
- Feed stroke 2800mm
- Double hydraulic clamps 45-220mm
- Clamping force 13,000daN,
- Breakout torque 1000daNm
- Remote control for tracking & positioning, side controls for drilling function
- TN 09 winch (100kg capacity)
- Triplex pump 130l/min (20bar)
