Overview
Machine location:
United Kingdom
Stock number:
PF 41114
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
GEO 602
Year of manufacture:
2026
Working hours:
300
Machine specs

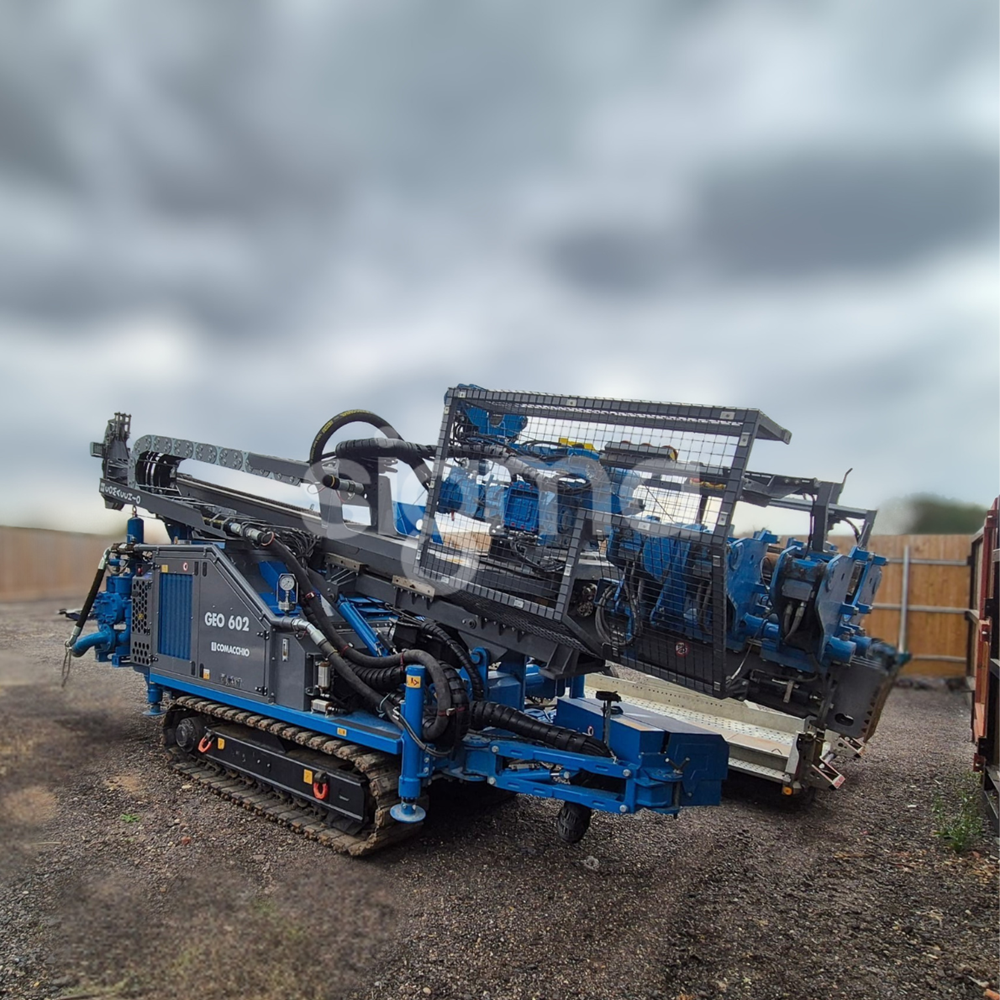

Geotechnical drilling rig with 300 working hours
Drilling Performance
- Max drilling depth (m): 350
- Max drilling diameter (mm): 365
- Max pull force: 120 kN
- Max push force: 76 kN
Rotary Head
- Model: R1000
- Max torque: 11 kNm
- Max RPM: 500rpm
- Hammer model: FX25
- Stroke: 4,000mm
Power Unit
- Engine make & model: Deutz TCD 4.1
- Engine power (kW / HP): 119 kW / 160 HP
- Emission standard: EU Stage 5
Additional Options
- P2 mud pump
- Upgraded 12 t main winch
- 800 kg wireline winch
- R1000 rotary head with FX25 percussive hammer
- Hydraulic rod loading arm
- Rod rack

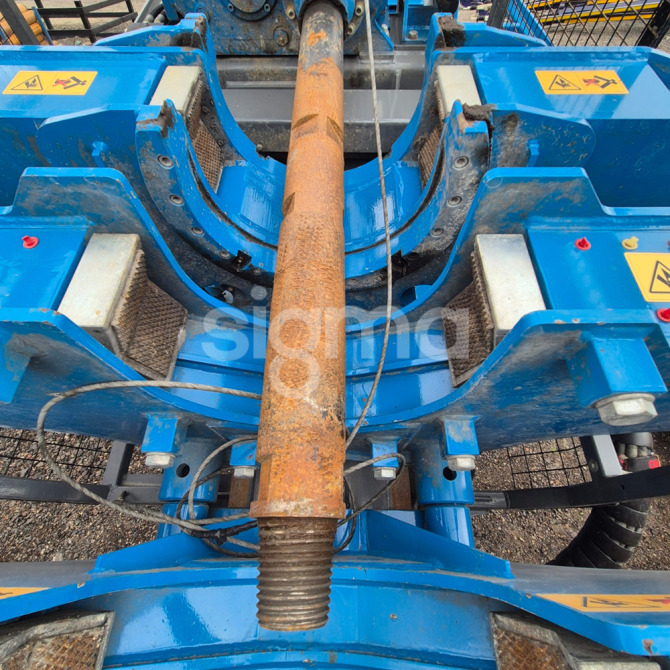

- Triple clamps (45–365 mm)
- Foam/mist pump and wash-down kit
- Sand Guzzler hydraulics
