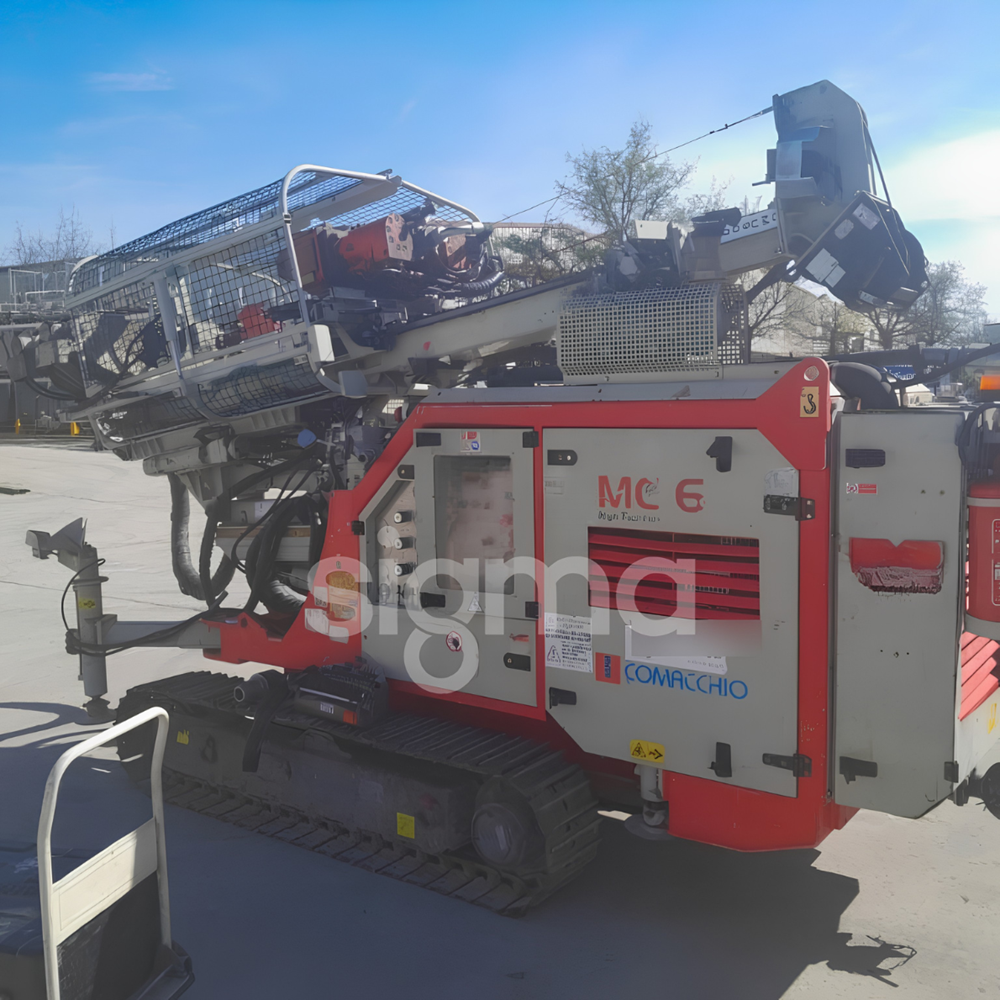

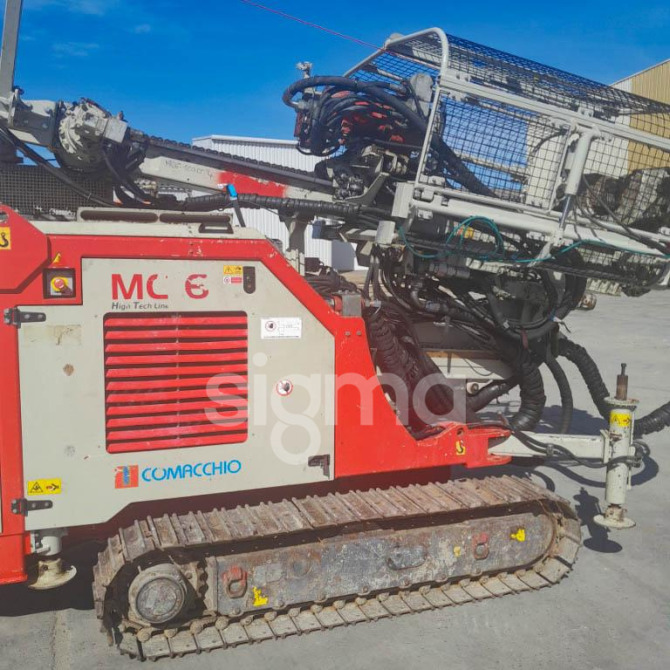

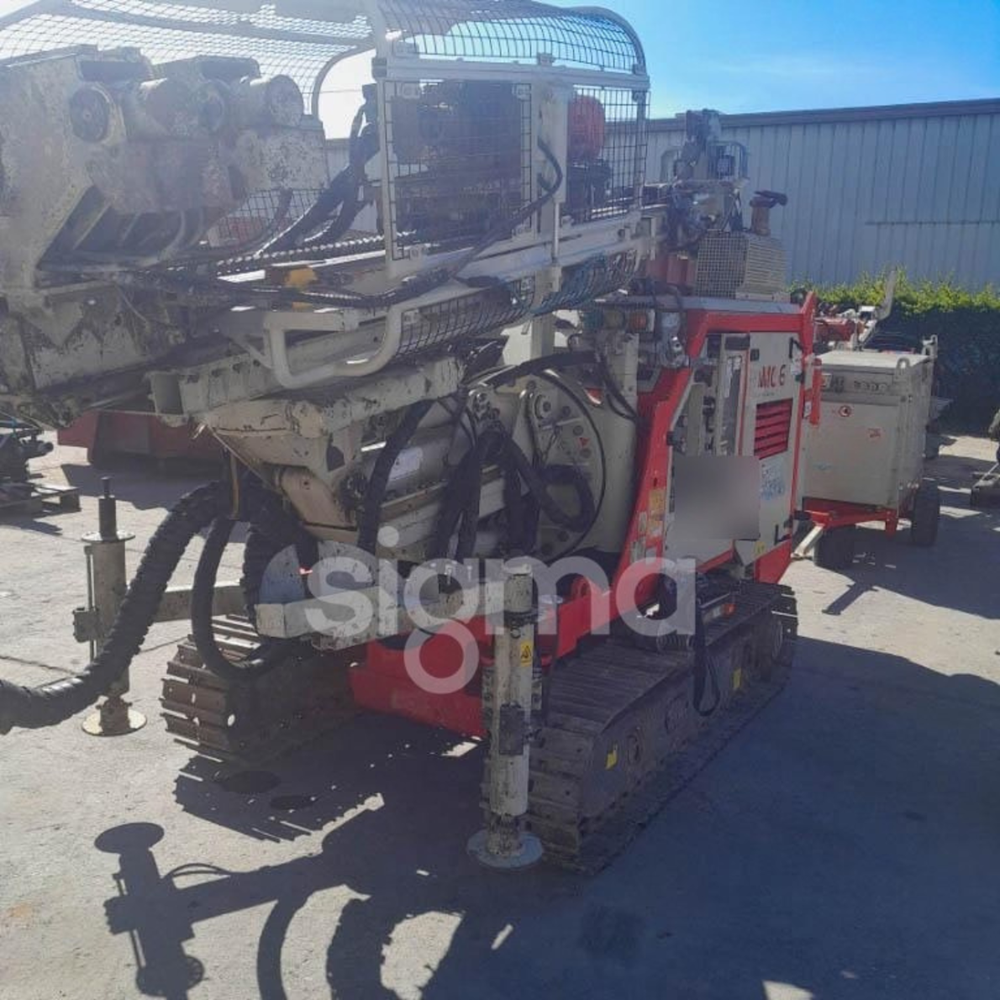

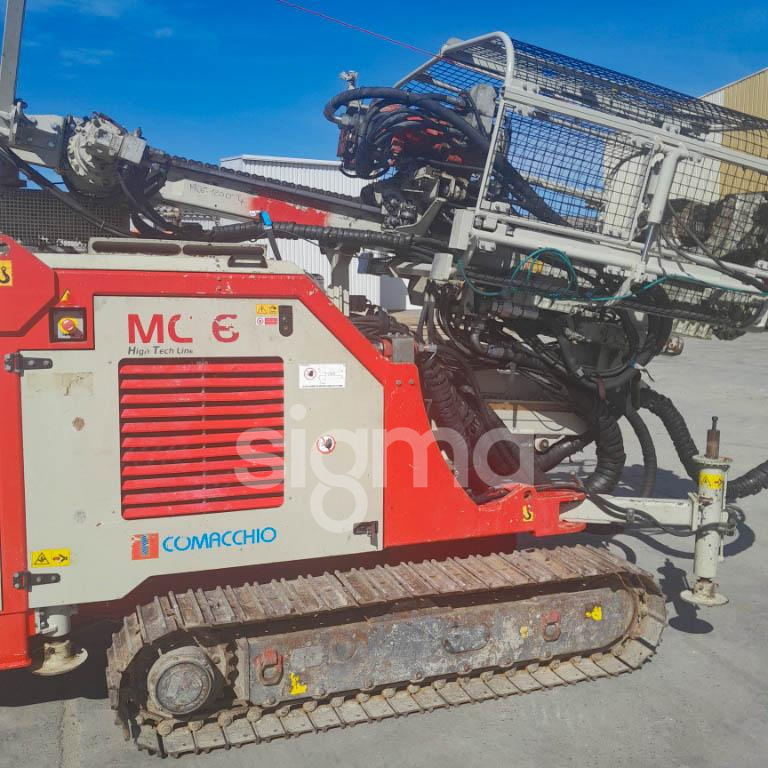

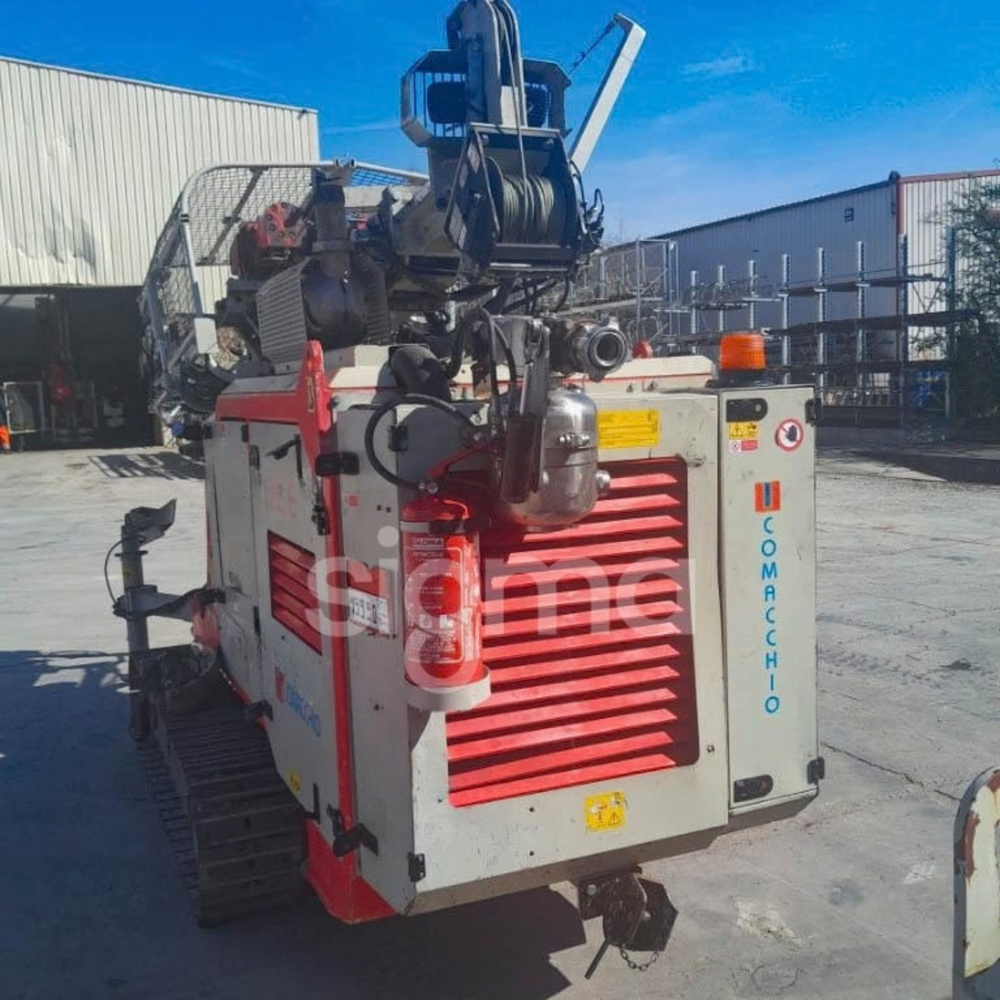

Comacchio MC 6

Working hours: 5,500

Engine: Deutz TCD 3.6 L4 - 85 kW at 2,200 rpm

Rotary head: R900

Torque: 300 / 460 / 600 / 920 daNm

Speed: 170 / 115 / 85 / 60 rpm

Thread: 3 1/2 in box

Feed stroke: 900-2,100 mm

Included mast extension: 1,200 mm

Double clamp range: 45-325 mm

Working height without mast extension or winch: 2,300 mm

Working height with mast extension and winch: 3,450-4,350 mm

Transport height: 2,710 mm

Transport length: 4,350 mm

Working length: 4,600 mm

Width: 1,100-1,600 mm

Weight: 6.55 tonnes

Winch: TN09 - 1,000 kg

DTH lubricator: 8 L - maximum pressure 30 bar

Driving controls: Control console and cable remote control

Crawler type: Steel tracks

Safety cage: Included
