Overview
Machine location:
Europe
Stock number:
PF 40785
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Comacchio
Model:
MC3D
Year of manufacture:
2015
Working hours:
5000
Key features
- Micropiling / anchoring rig with 5000 working hours
- Engine Power : DEUTZ TD 2011 L04 W Diesel - 55kW, 2,300 rpm
- Rotary head R400.3 : Torque: 310 / 155 / 100 / 50 daNm Speed: 50 / 100 / 160 / 320 rpm
- Thread type: 2” 3/8 FE Adapted to set up a drifter
- Feed Stroke : 1,200 / 2,200 mm / Mast extension: 1,000 mm / Thrust force: 2,500 daN -
- Withdrawal force: 2,500 daN
- Safety cage and winch : Not included
- Double clamps : 45 - 220 mm
- Dimensions : Height (without mast extension + winch): 2,580 mm
- Overall height (with extension, without winch): 3,180 / 3,580 mm
- Drill rig transport length: 6,510 mm

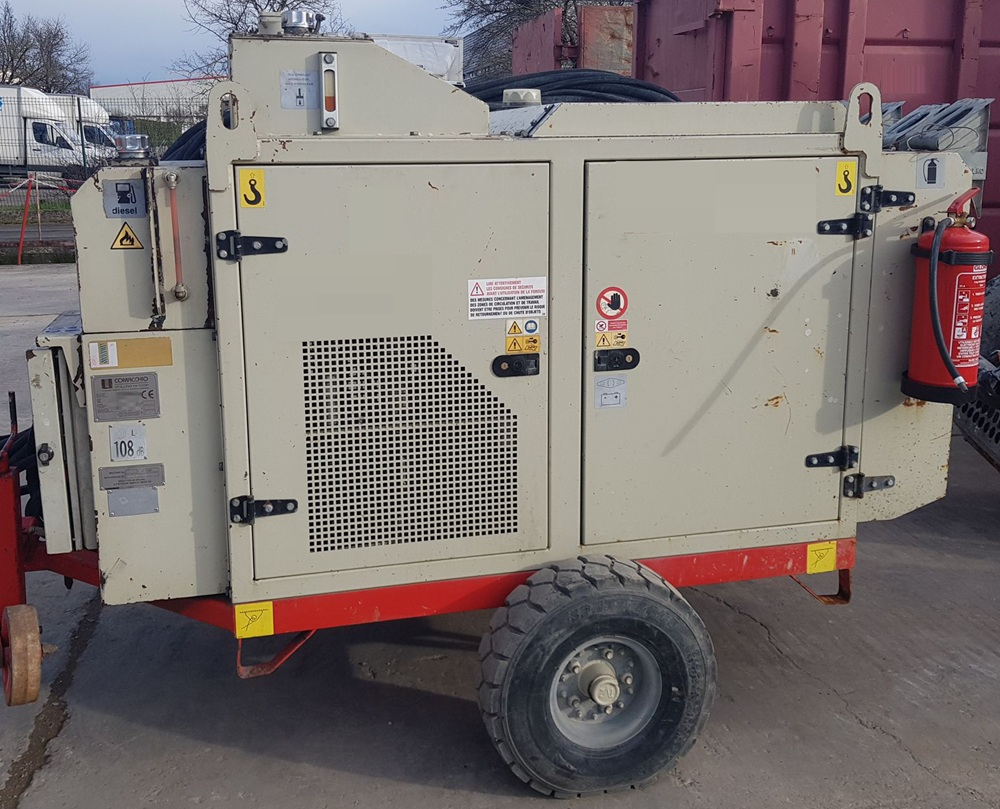

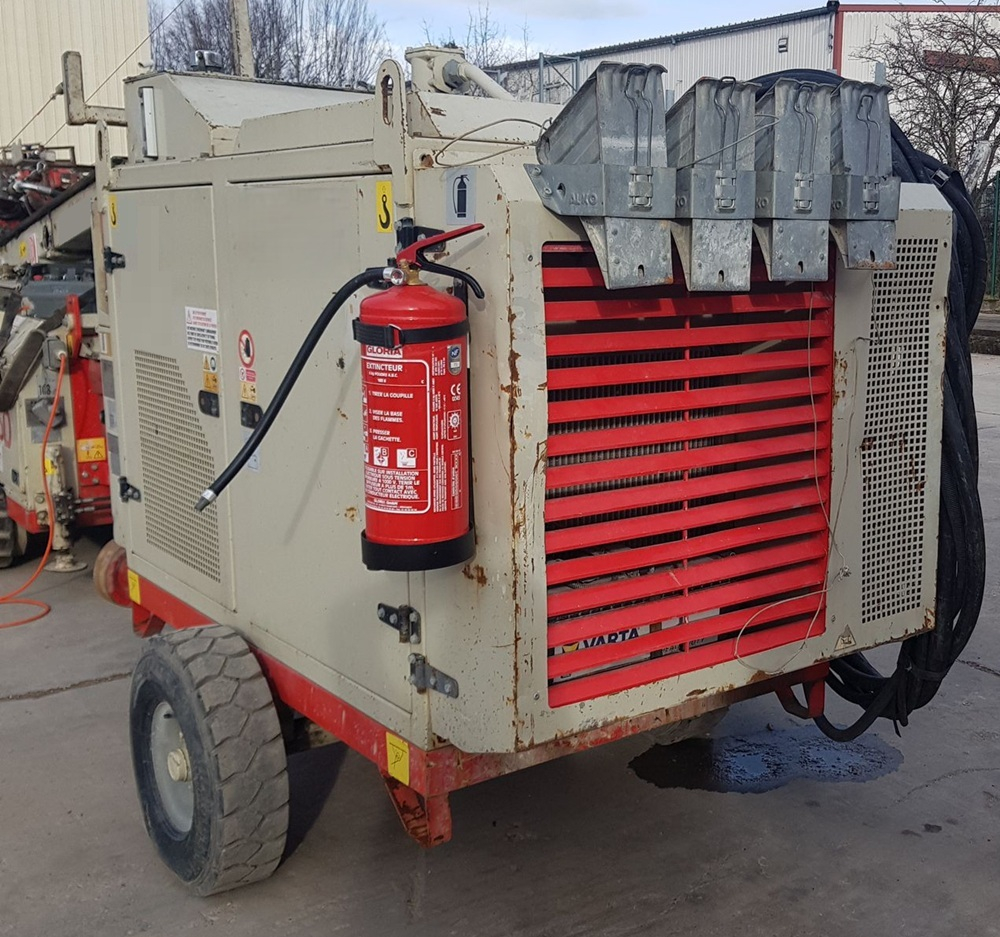

- Remote power pack length: 3,000 mm
- Drill rig width (without safety cage): 1,000 – 1,150 mm
- Remote power pack width: 1,750 mm
- Weight: 4.3 tonnes (Drill rig: 2.6 tonnes / Remote power pack: 1.7 tonnes)
- Hose length between drill rig and powerpack: 20m

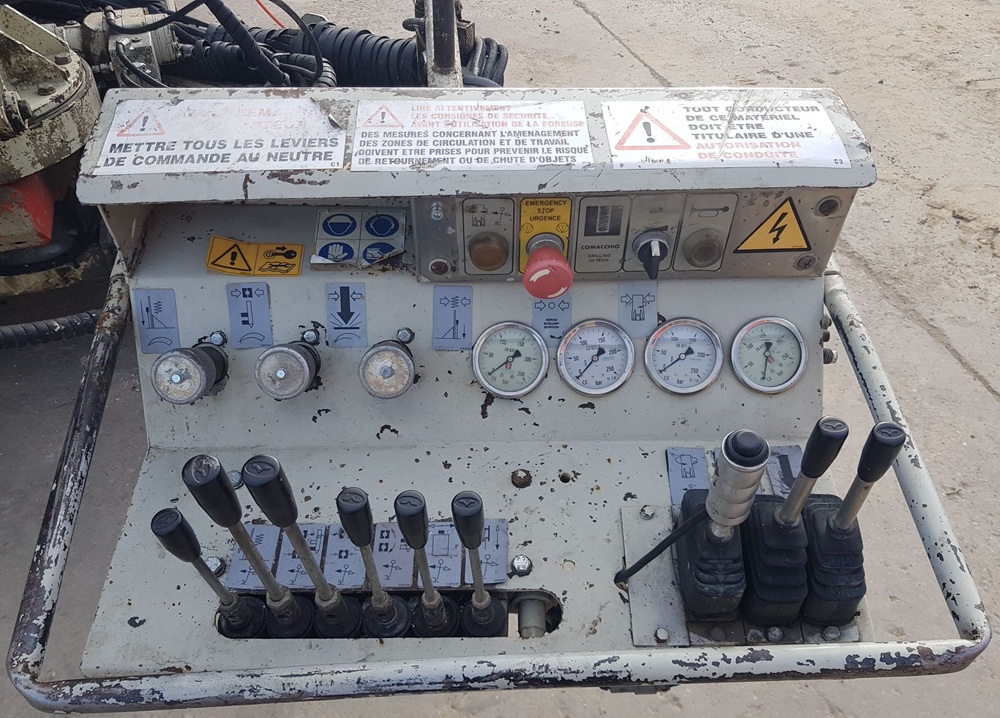

- Driving and drilling control : Control console (drilling) + Cable remote control (driving)
- D.T.H. lubricator : Capacity: 8.5L / Max pressure: 26 bar
