Overview
Stock number:
PF 39764
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Comacchio
Model:
MC450P
Year of manufacture:
2007
Working hours:
11600
Key features

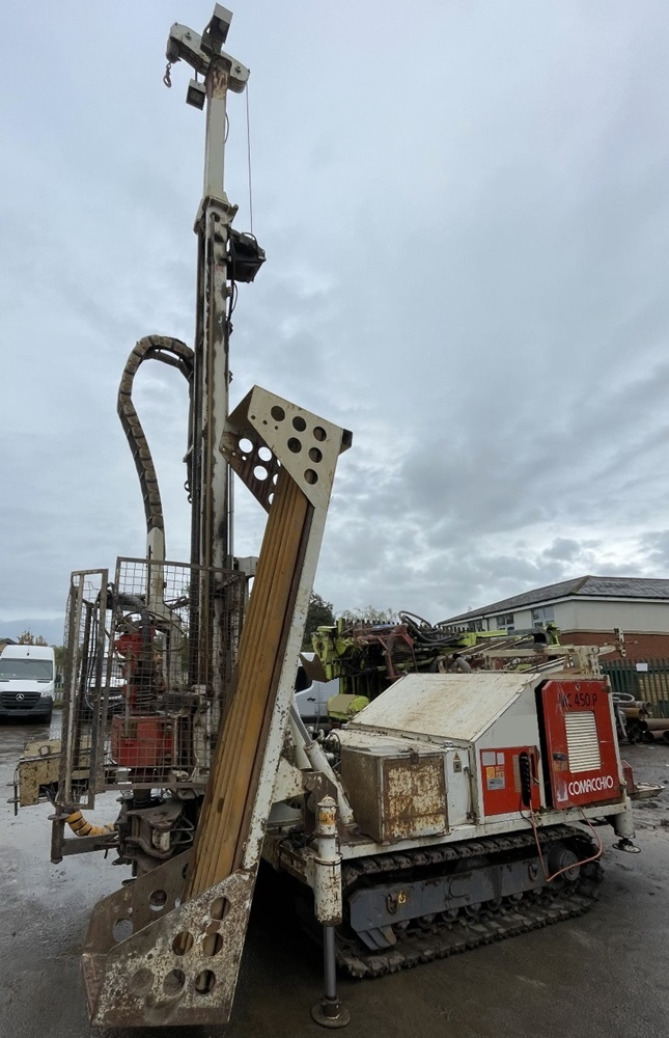

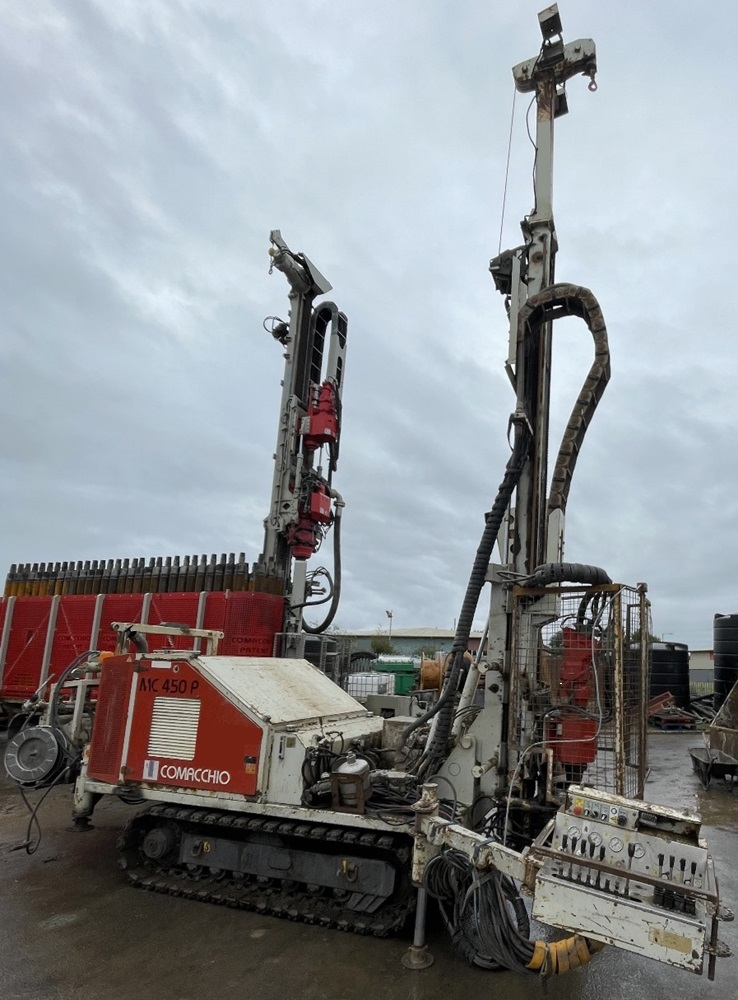

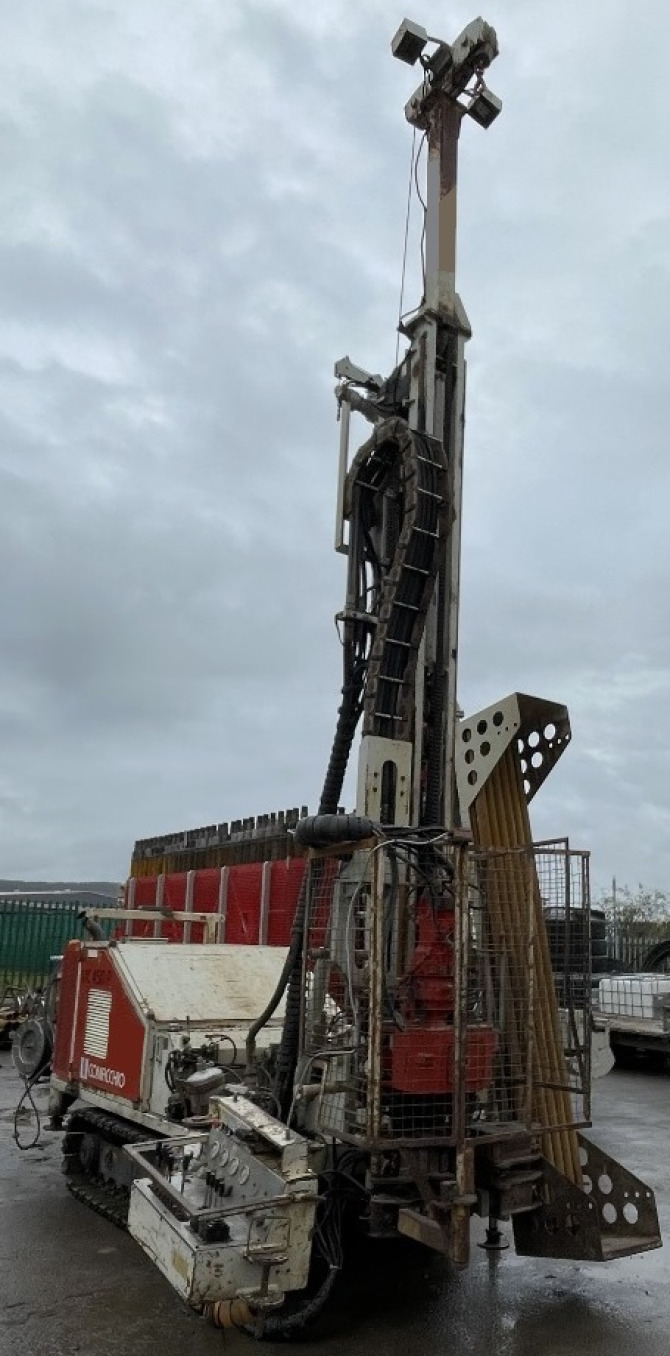

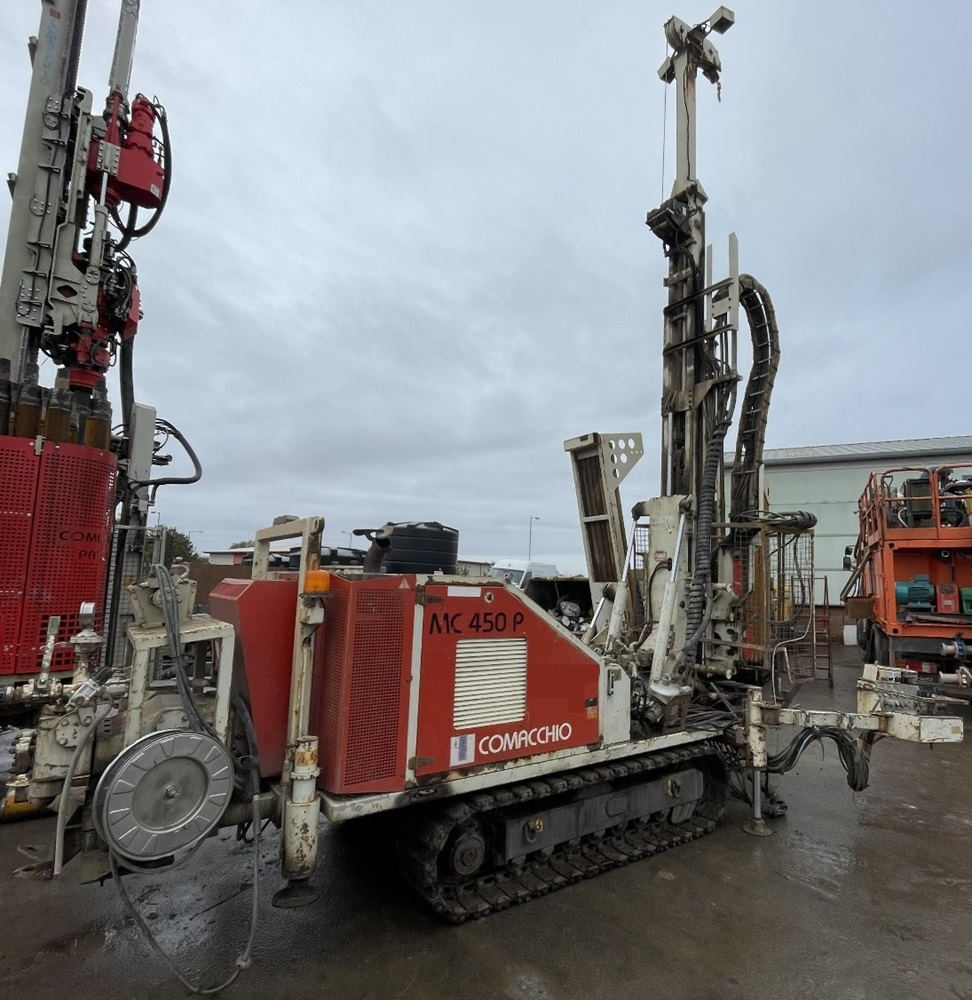

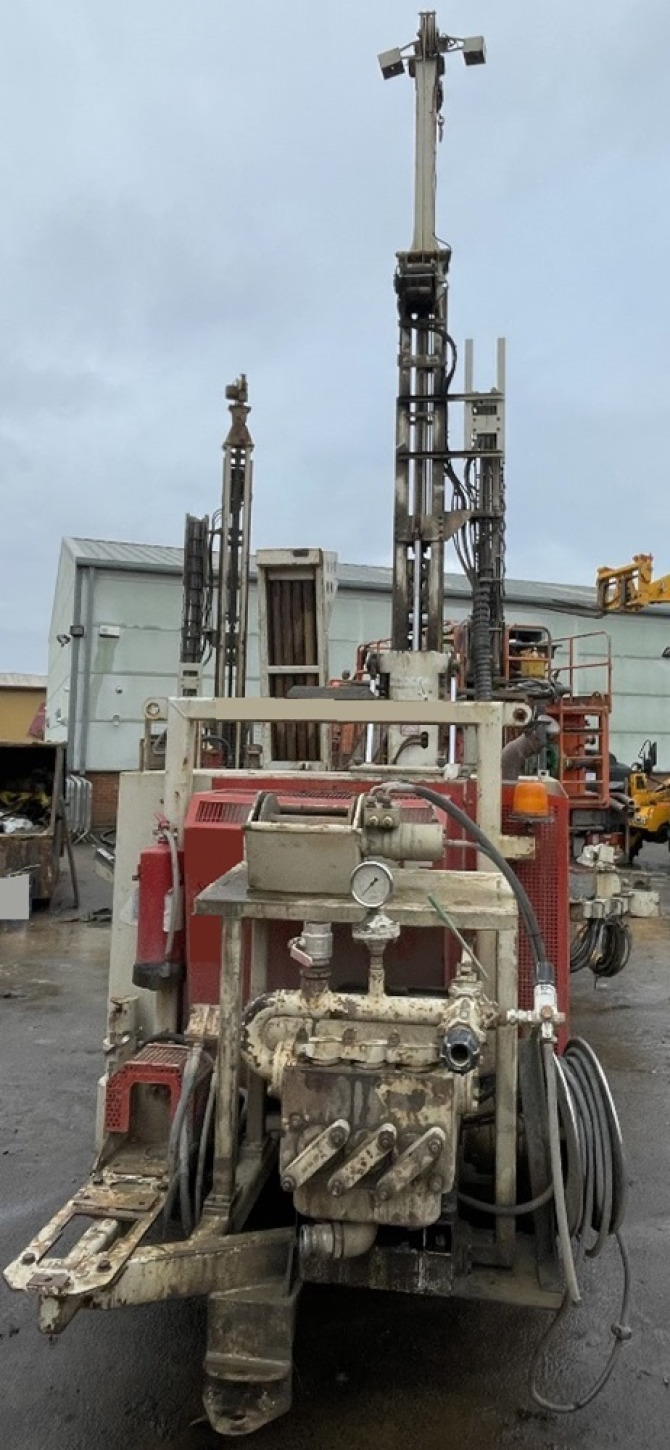

- Geotechnical drilling rig with 11,600 working hours
- Total weight 7900kg
- Deutz BF 4M 2012 diesel engine (70kW @ 2300rpm)
- Mast length 5250mm
- Stroke length 3500mm
- Max feed force 4500daN
- Max pull back 6500daN
- Comacchio CT46.1 rotary head (max torque 820daNm, max drill speed 500rpm, spindle thread connection 3 API REG, swivel passage 1 1/2 )
- Min/max clamp dia 45-300mm
- Max clamping force 18,000daN
- Breaking torque 1800daNm
- Water pump GC30/20T-MI (max delivery 30l/min, max pressure 200bar)
- Mud pump type TR200 (max delivery 200l/min, max pressure 45bar)
- Hydraulic winch type TN18 (max line pull 2000daN, rope capacity 70m, rope diameter 10mm)
