Overview
Stock number:
PF 39528
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Comacchio
Model:

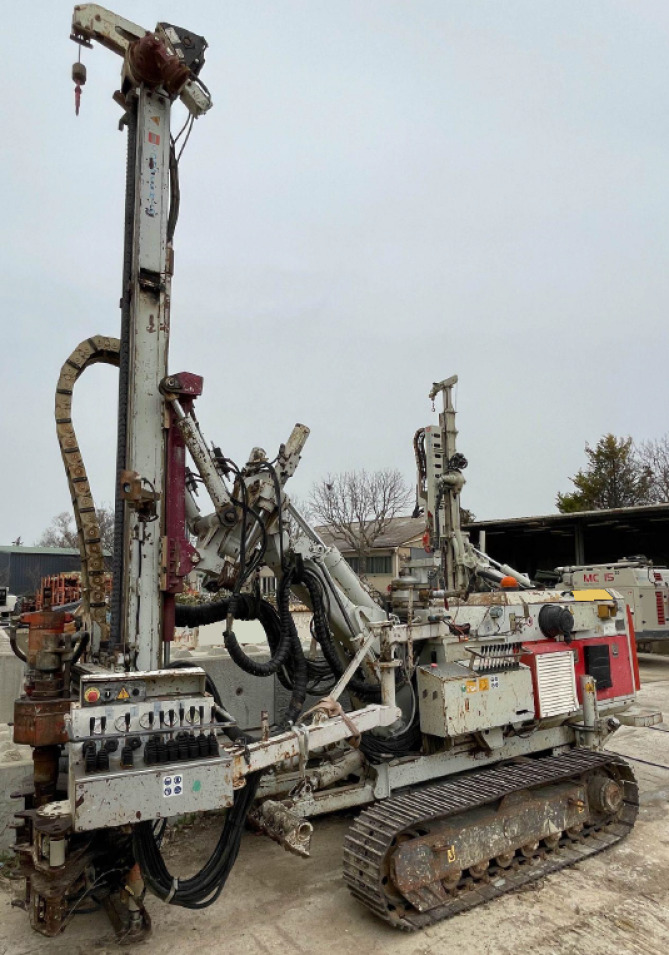

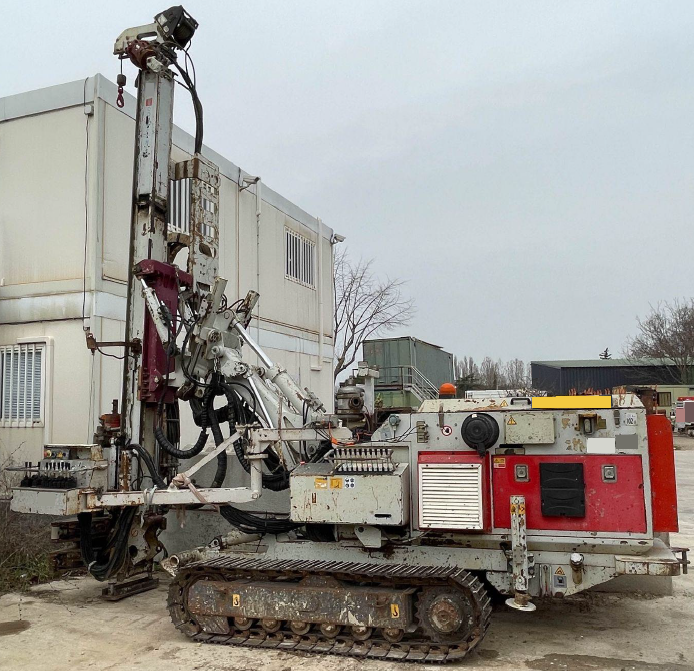

MC600
Year of manufacture:
2004
Working hours:
7600
Key Features:
Key features
- 7600 Working hours

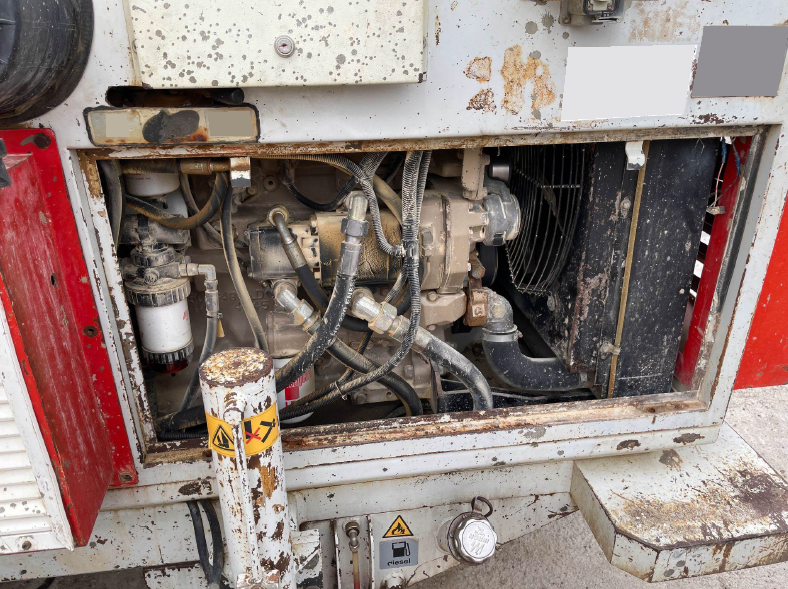

- Engine power: JOHN DEERE
- Type: 4045 TF 275 - 86 KW to 2500 tr/mn

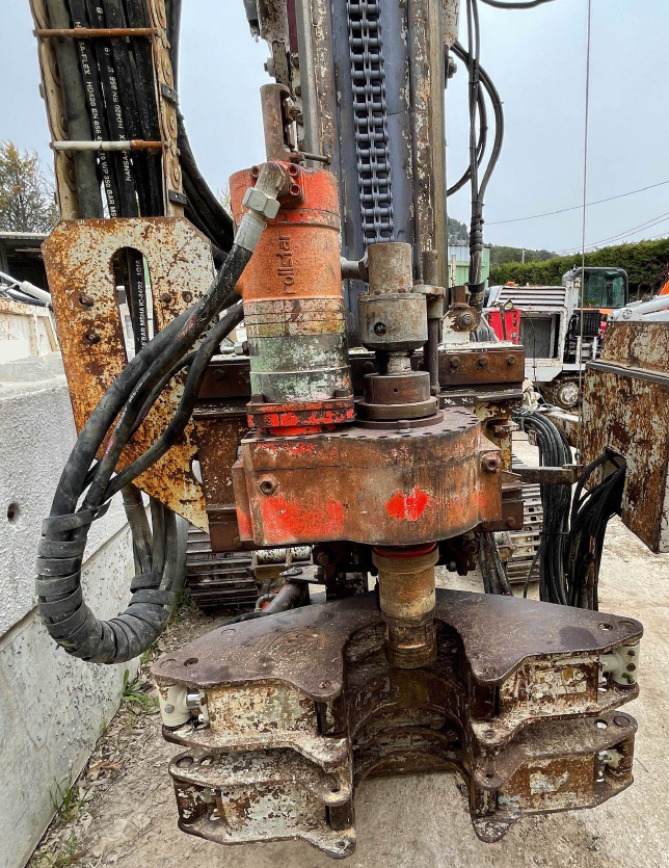

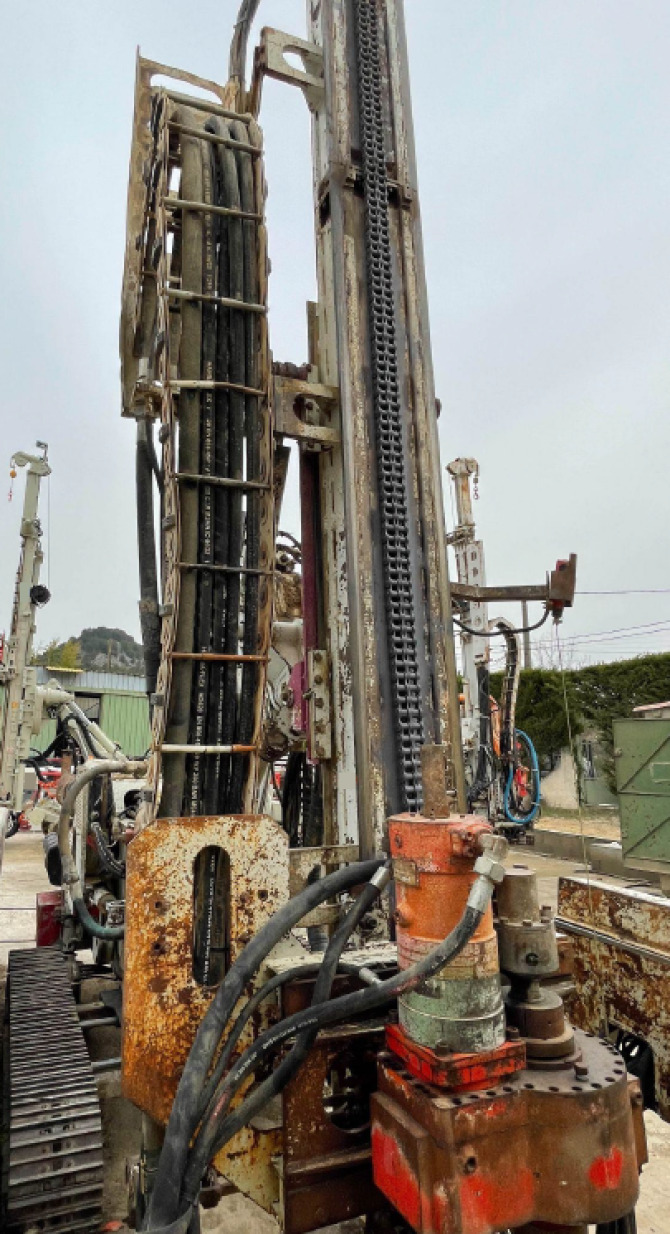

Rotary head: CT 90.2
- Speed 1 : 750 m/kg - 40 tr/mn
- Speed 2 : 280 m/kg - 120 tr/mn
- Speed 3 : 80 m/kg - 410 tr/mn
Horizontal position:
- Length: 5300 / Width: 1200 / Height: 2615
Work position:
- Length: 4800 / Width: 1800 / Height: 5300
- Total height: 3000 mm
- Feed stroke: 3500 mm
- Weight: 7,2 tonnes
- Retract and feed force: 4500 daN
- Extractor cylinder: 10 tonnes
- Extendable crawler
- Winch: 1000 kg
- DTH lubricator: 8,5 L
