Overview
Machine location:
Europe
Stock number:
PF 41088
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
Manufacturer:
Comacchio
Model:
MC9
Year of manufacture:
2022
Working hours:
2735
Key features

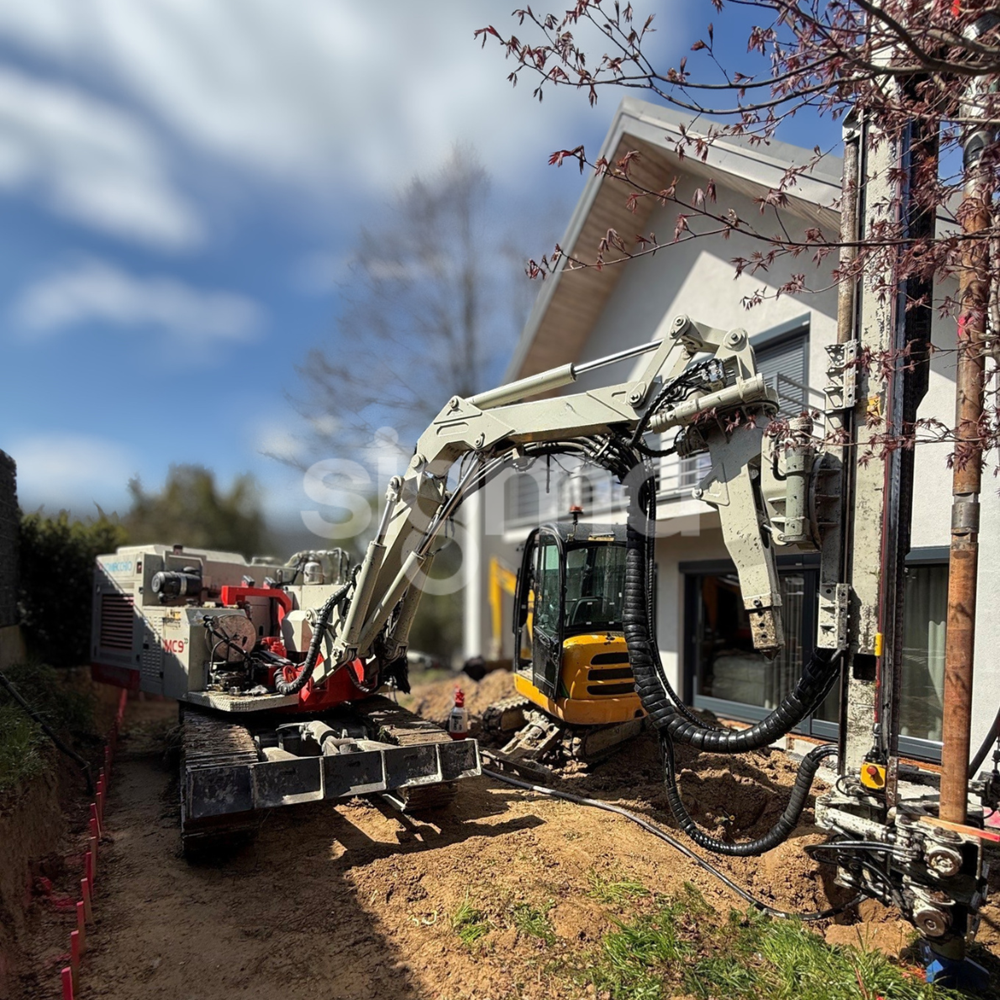

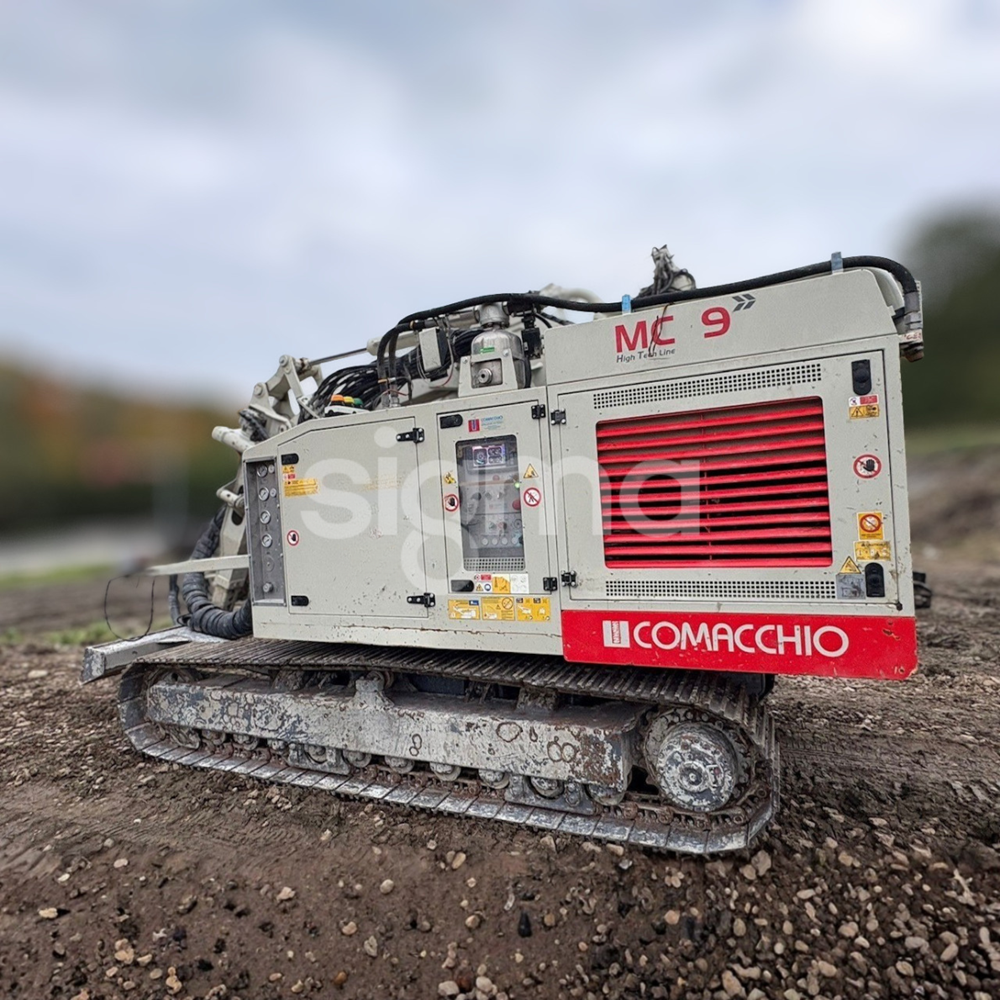

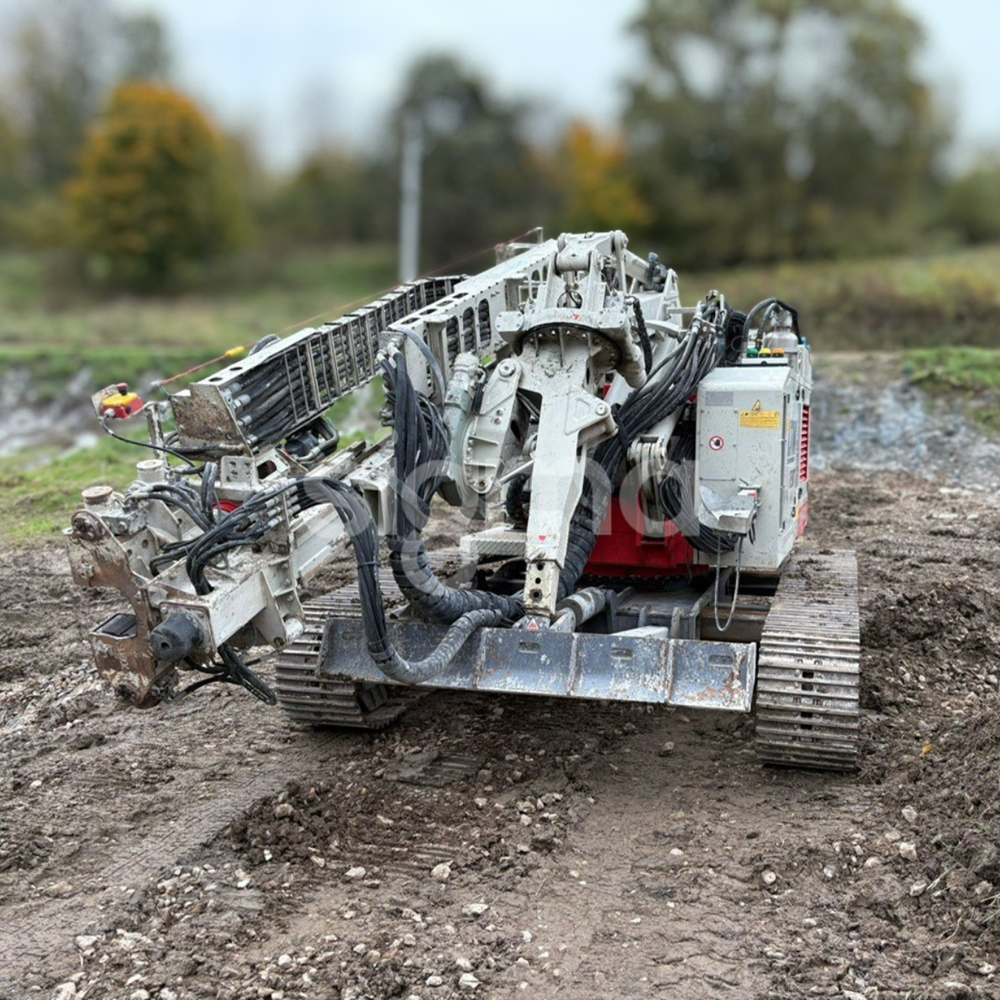

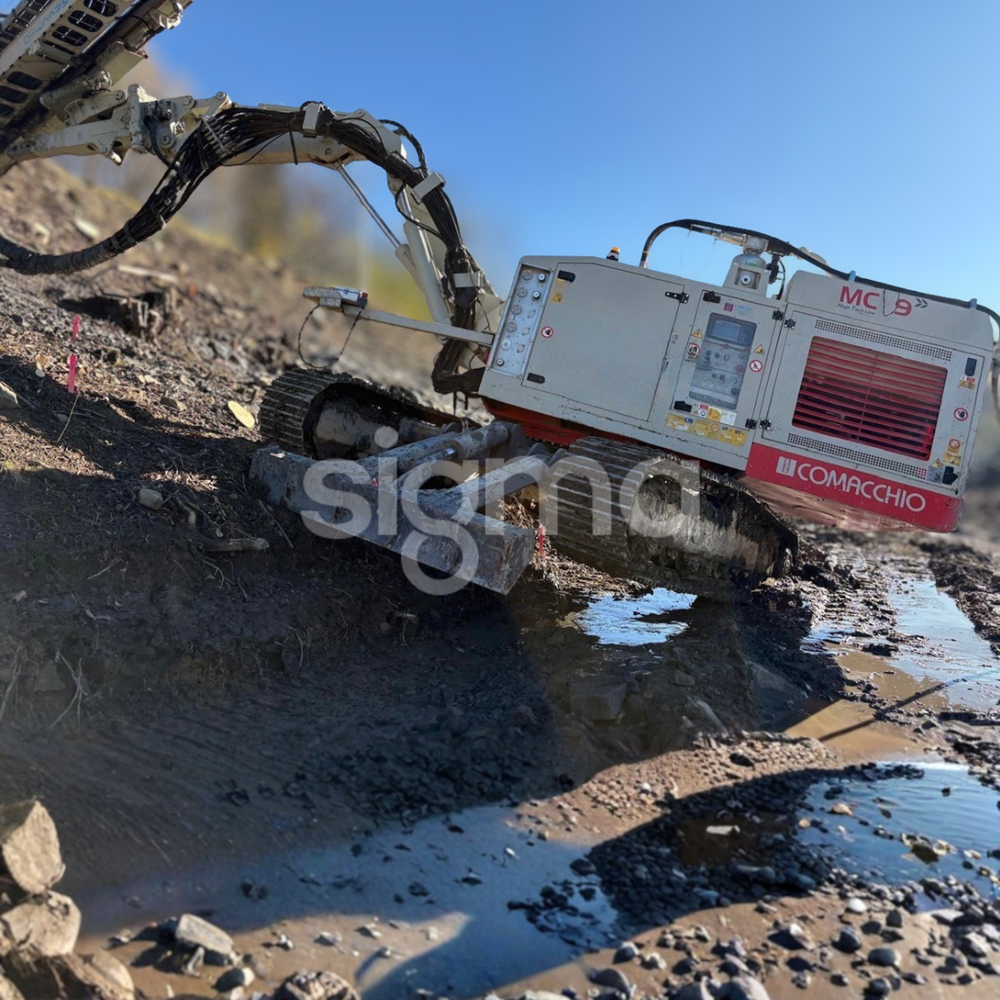

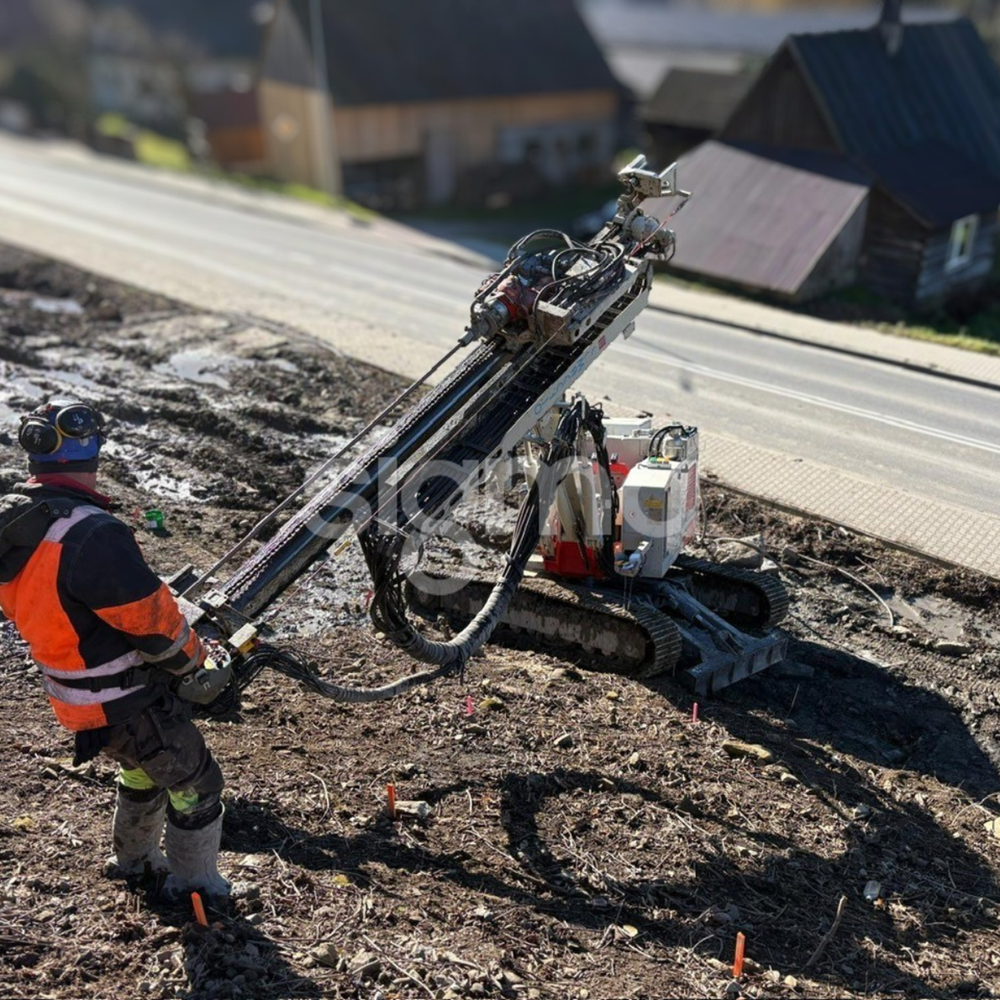

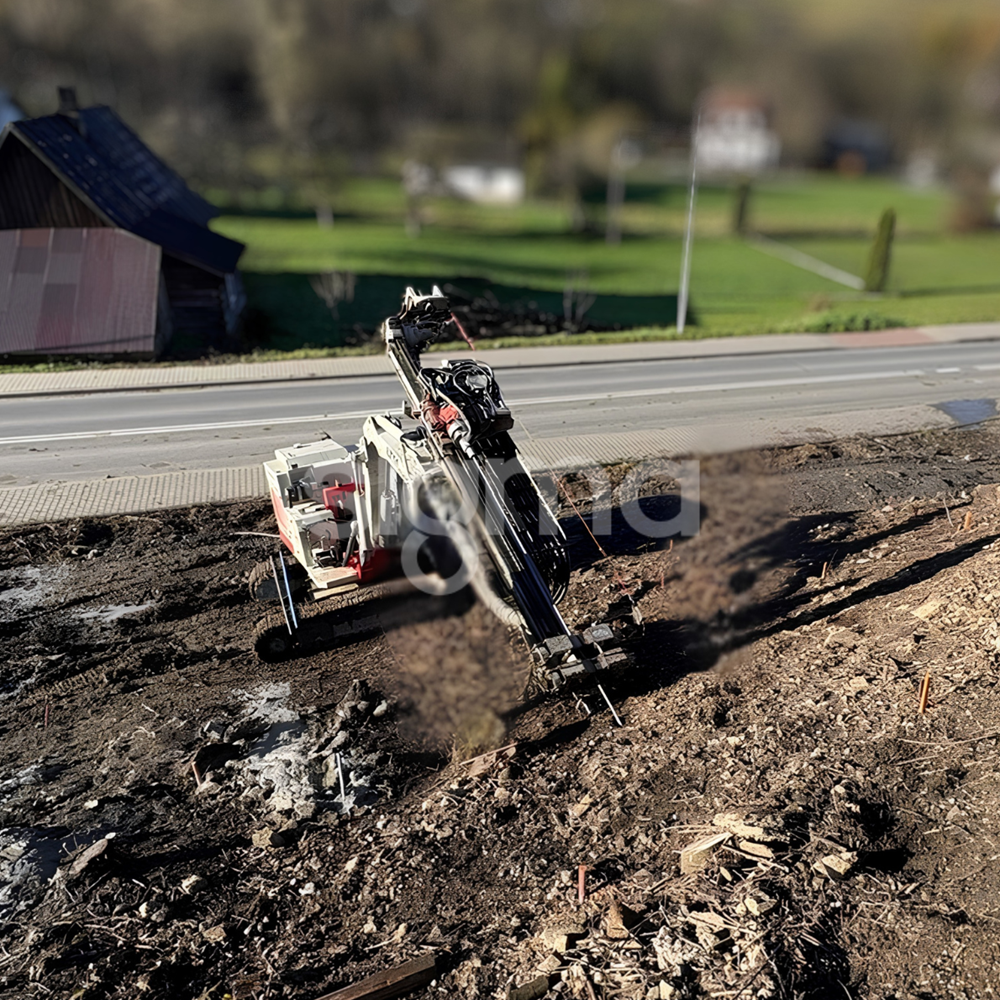

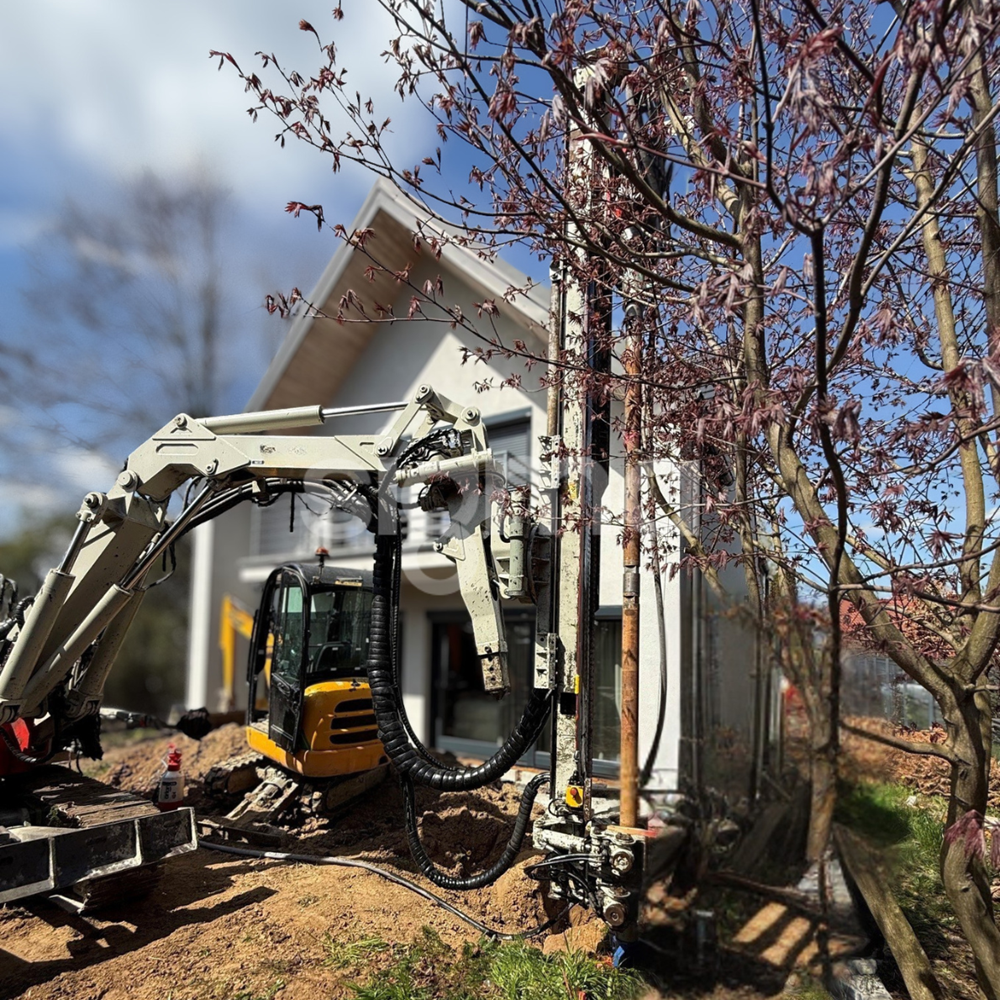

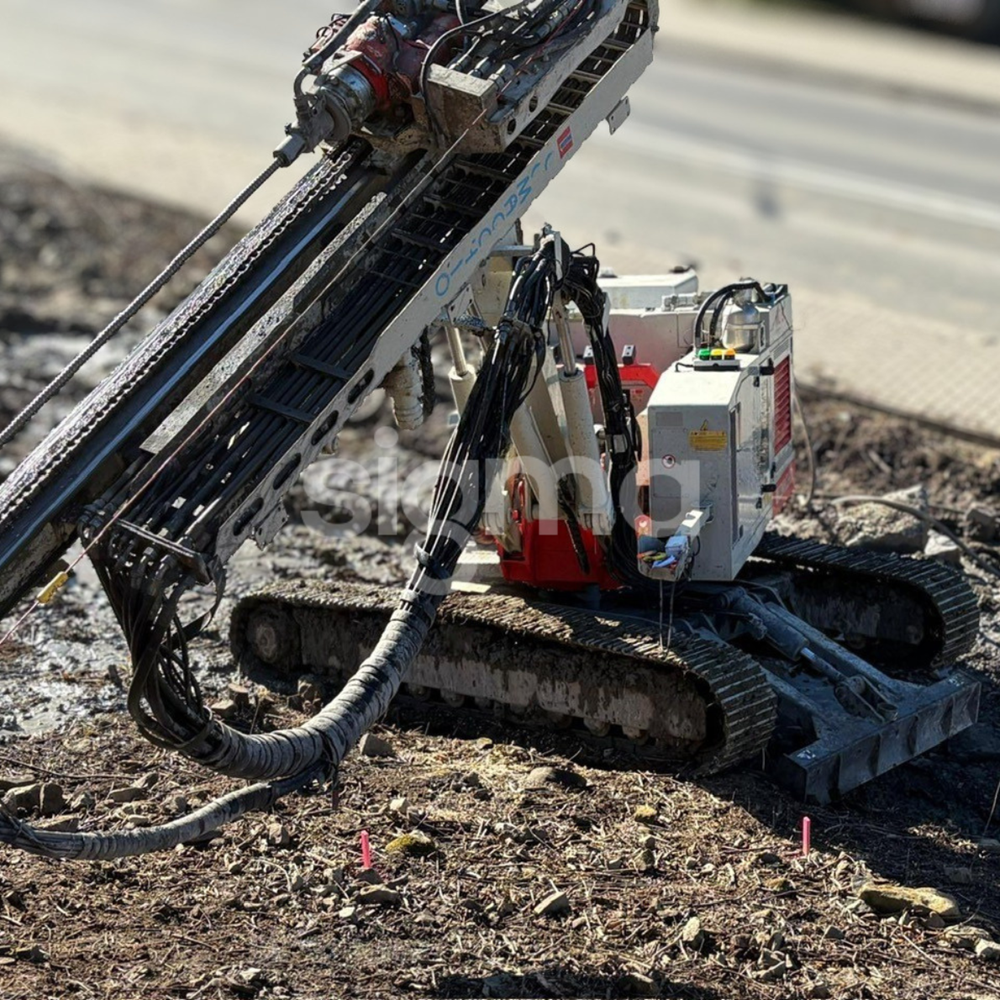

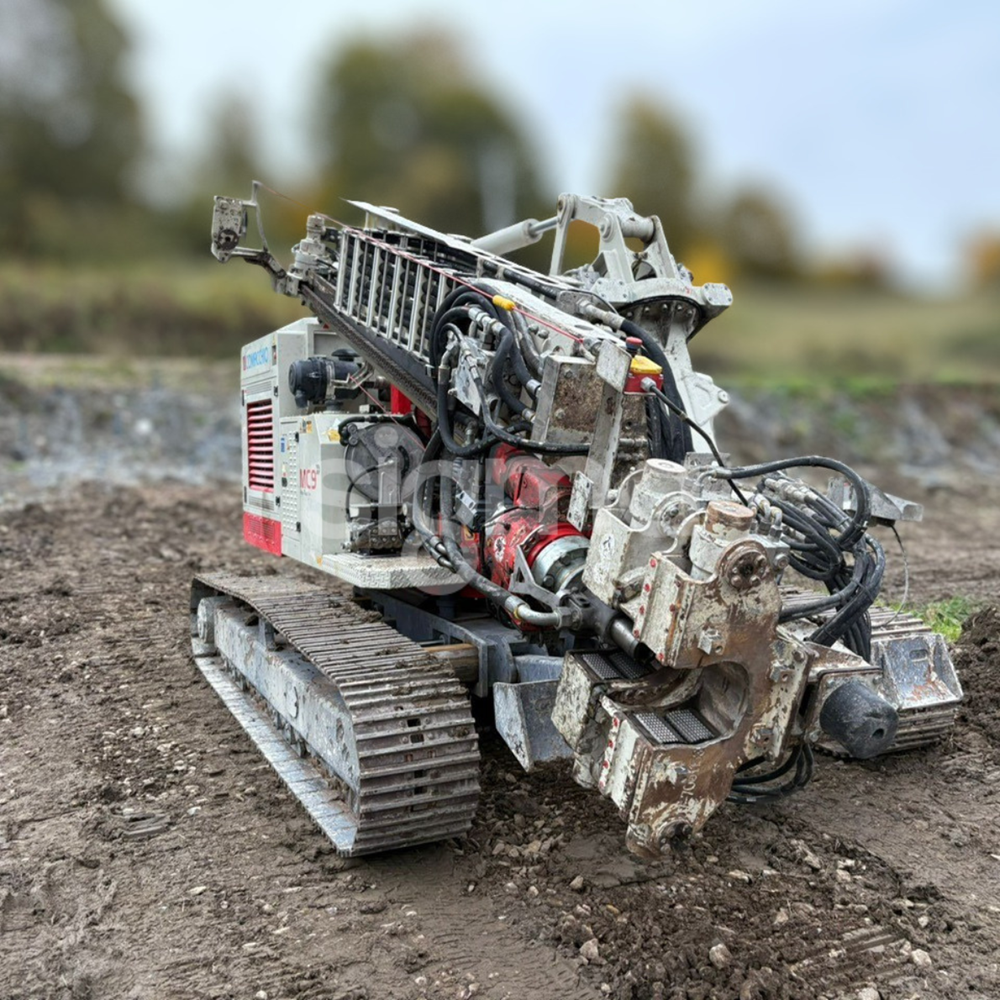

- Micropiling/anchoring rig with 2735 working hours
- CE marking kit

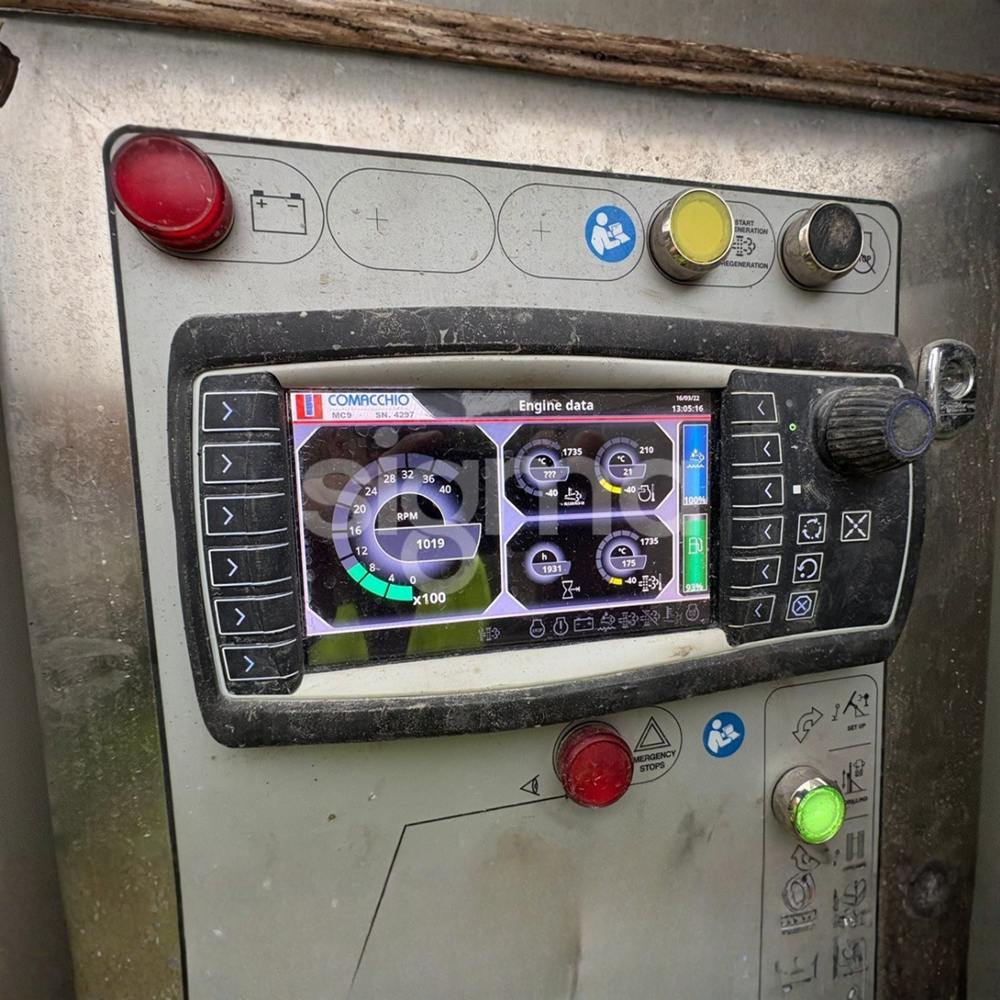

- Hydraulic power pack motor deutz tcd 3.6 100kw - EU stage 5
- Articulation kit - standard boom assembly
- Mast: l. 4.830mm
- Stroke: 3.400mm
- Rotary head carriage for rh4x
- Hydraulic setting for hydraulic drifter
- Rh4x rotary head
- Motor type: 105
- Max torque: 5000Nm
- Max drill speed: 128rpm
- Type 20 percussion kit
- Operating pressure 160-200bar
- Oil capacity 40-55 l/min
- Single blow energy 320Nm
- No. of blows 2500 per minute
- Hydraulic rod holder and combined breaker clamping range 45 – 170mm
- Valve for clamping force regulation
- Rod guiding device
- Foam/water pump udor gc30/15
- Max delivery 20 lt/min
- Max pressure 150 bar
- Hydraulic setting for pump gc 30
- Washing kit
- Dth lubricator
- Electro-hydraulic air gate valve
- Transport dimensions
- Length: 5620mm
- Width: 2225mm
- Height: 2940mm
- Weight: 9500-10,000kg
