Overview
Machine location:
Europe
Stock number:
PF 41021
Manufacturer:
Comacchio
Model:

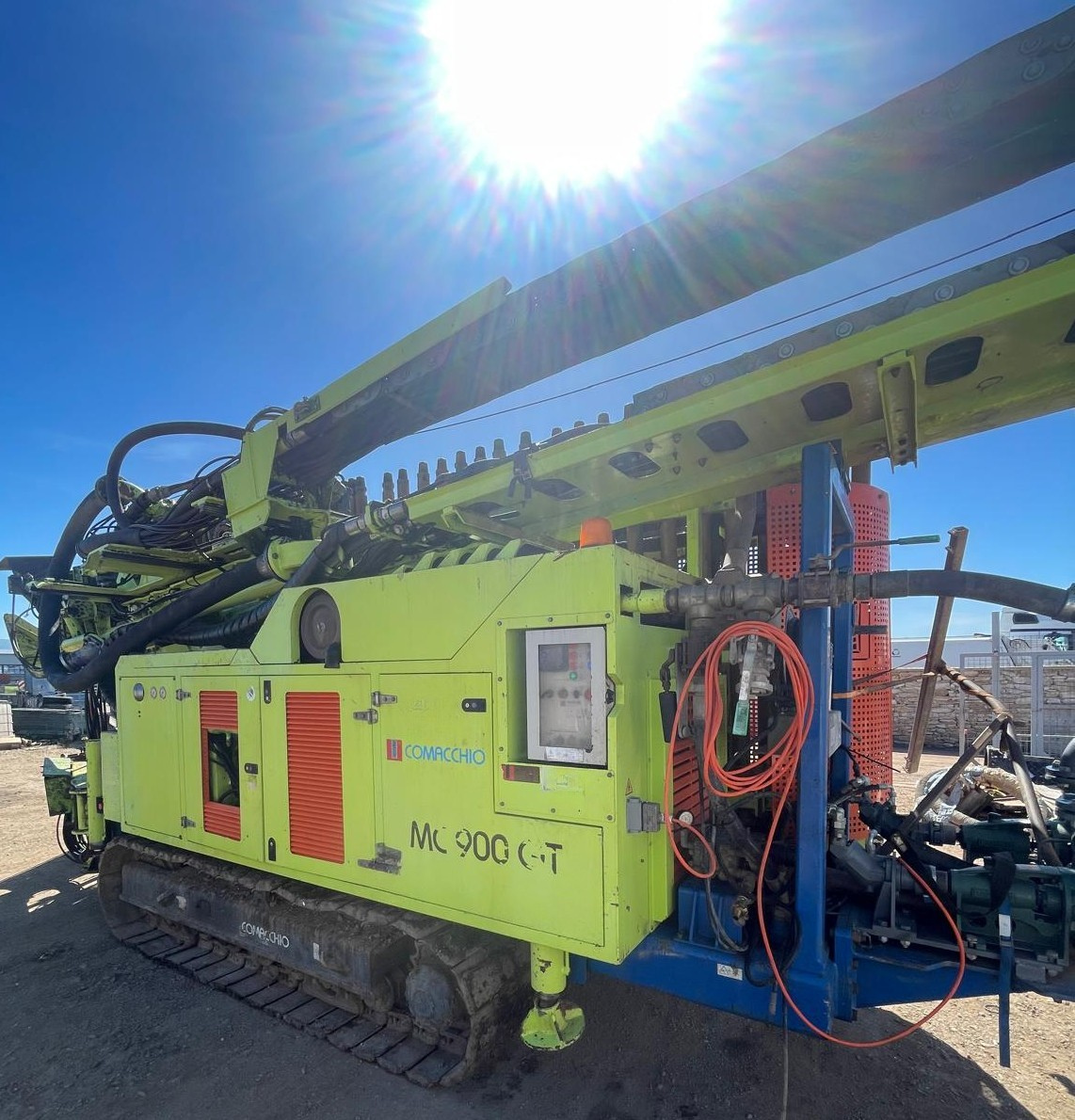

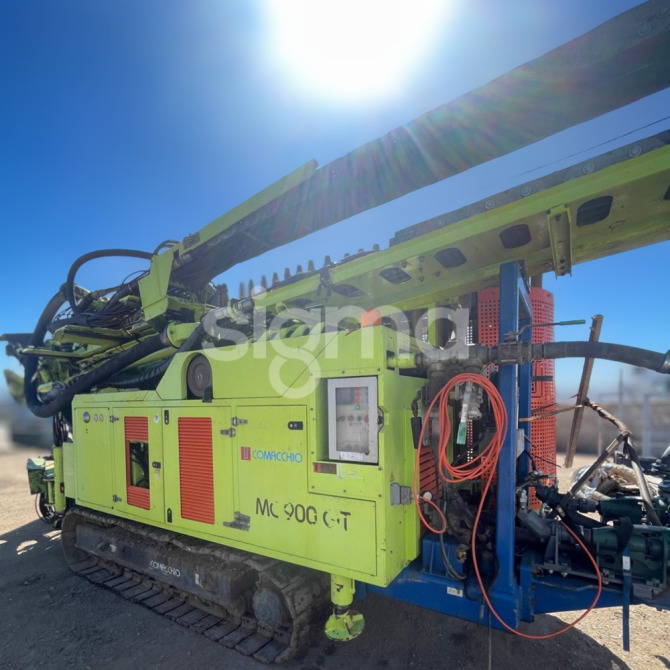

MC900 GT
Year of manufacture:
2011
Working hours:
9600
Key features

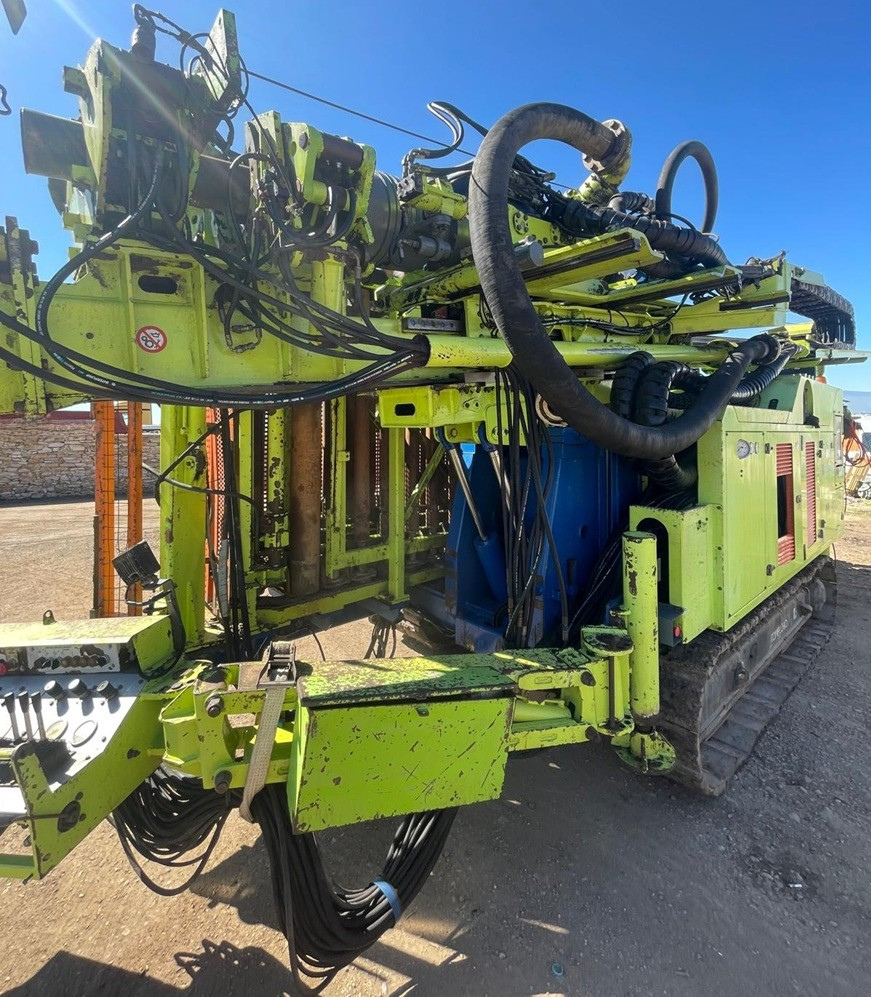

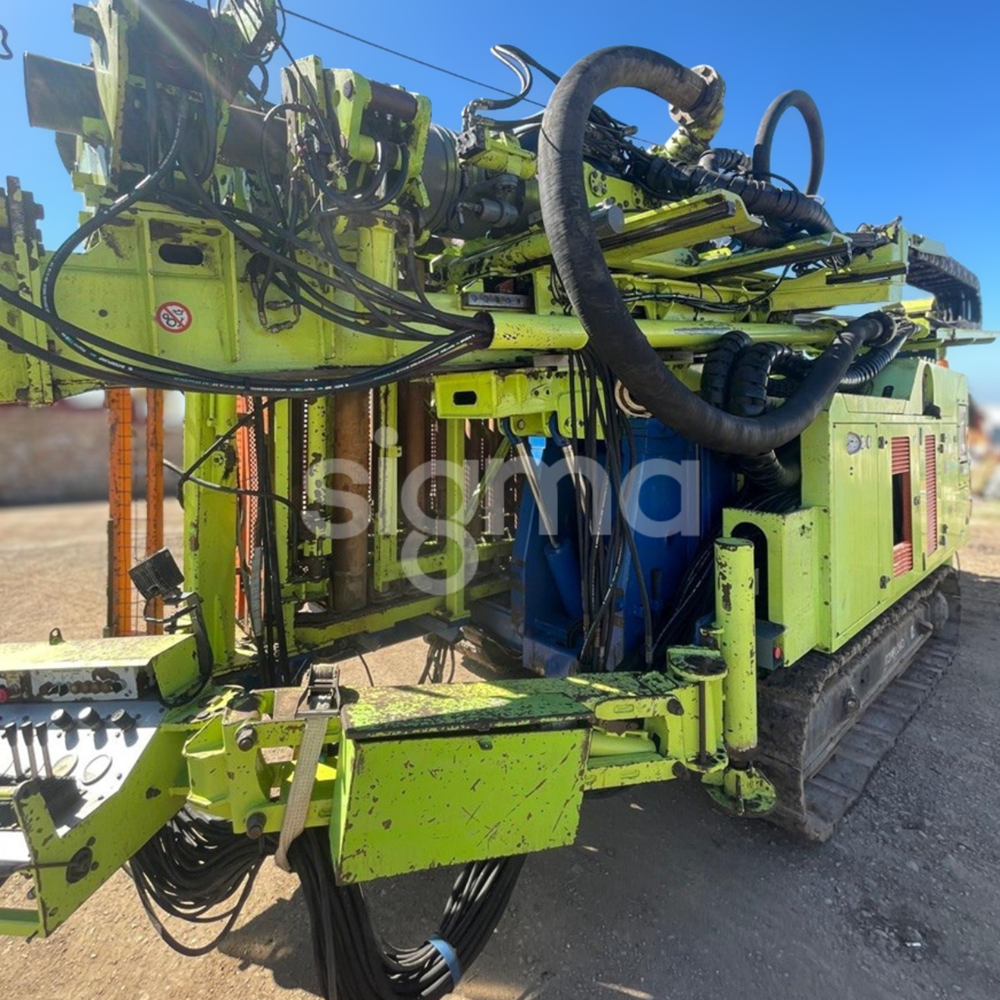

- Geothermal drilling rig with 9600 working hours
- Double rotary head
- Comacchio CT 36E.5
- Char-lynn 480cc motor
- Weight: 430kg
- Max torque: 930daNm
- Max drill speed: 140rpm
- Floating shaft thread 2” 3/8 API reg
- 2” swivel passage
- Max pressure: 200bar
- Eurodrill RH3200
- Max torque: 3600daNm
- Max drill speed: 40rpm

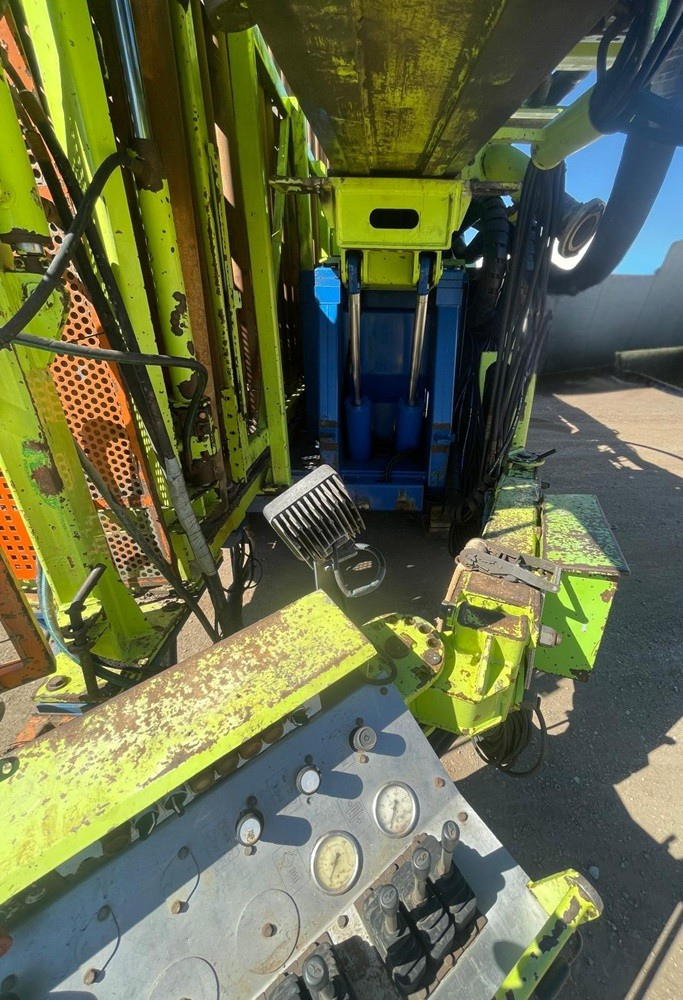

- Upper rod holder
- Minimum clamping diameter: 85mm
- Max clamping diameter: 200mm
- Clamping force: 28,000daN
- Lower rod holder
- Min clamping diameter: 85mm
- Maximum clamping diameter: 200mm
- Clamping force: 28,000daN
- Breaker rod holder
- Minimum clamping diameter: 85mm,
- Maximum clamping diameter: 220mm
- Clamping force: 28,000daN
- Unscrewing torque: 3500daNm
- Machine weight: 20,800kg
- Maximum total weight rods-casings acceptable on the machine: 6400kg
- Max pulldown: 10,000daN
- Max pull up: 20,000daN
- Engine
- Deutz TCD 2012 L06 2V
- Power: 128kW
- Max working pressure: 250bar
- Deutz TCD 2012 L06 2V
- Mast
- Total length: 8900mm
- Feed stroke: 5200kk

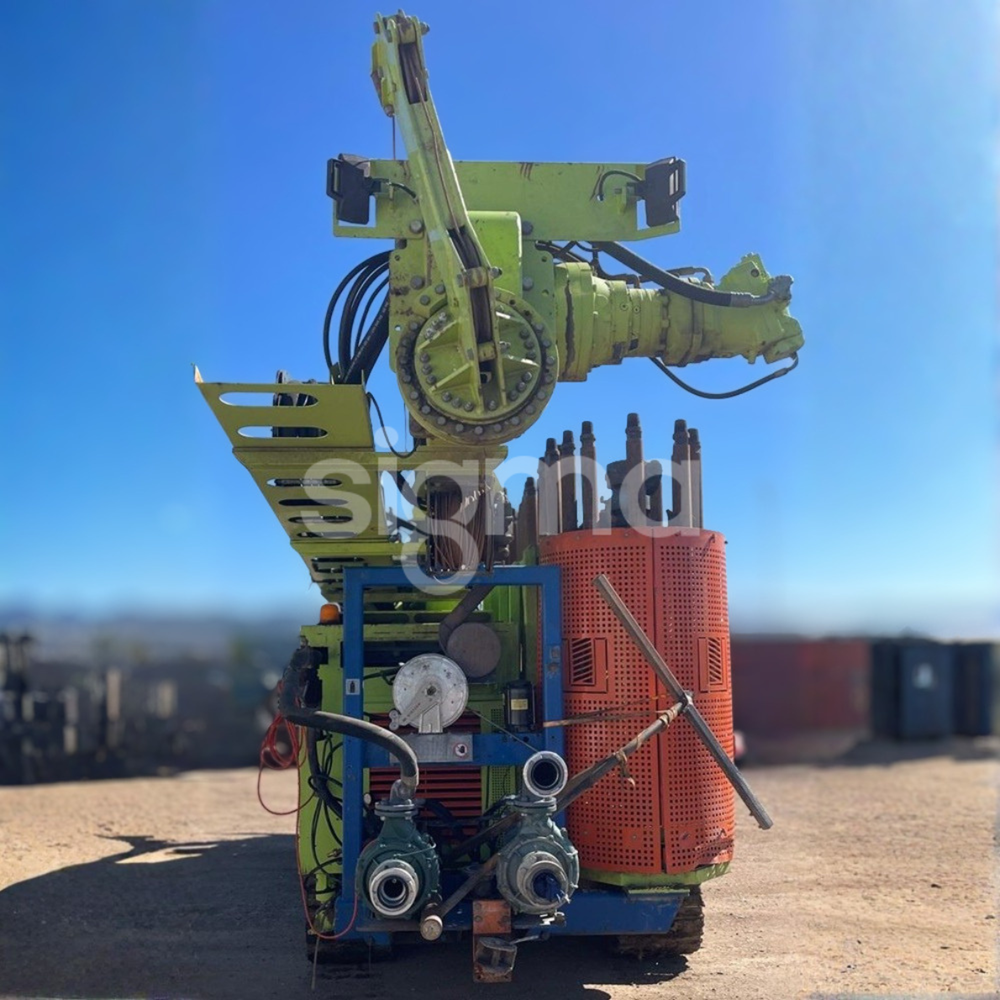

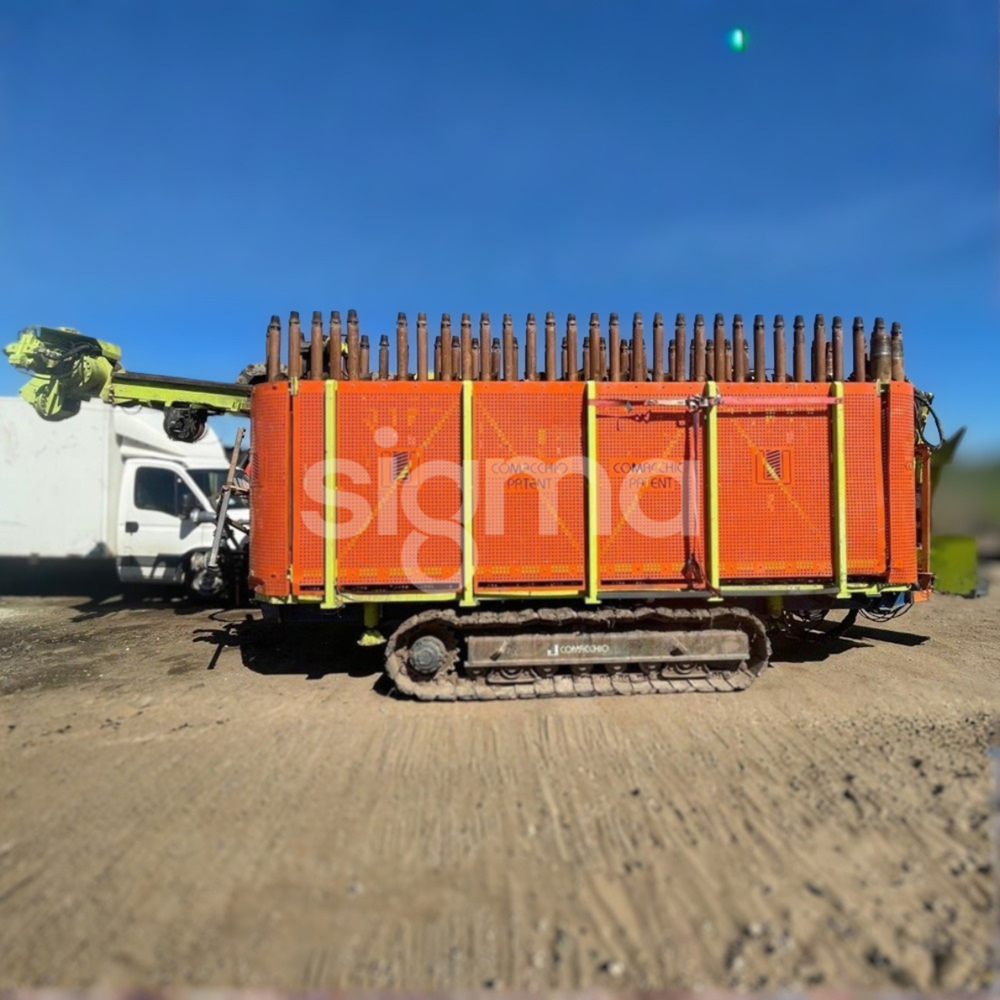

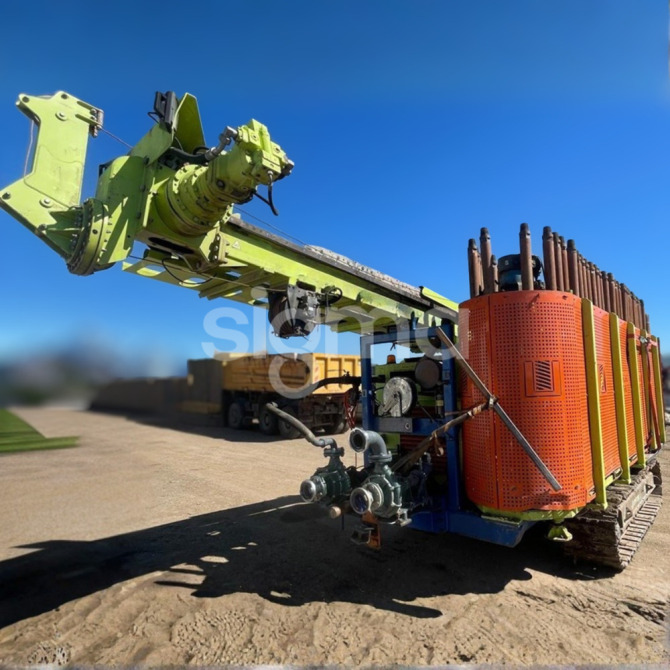

- Rod carousel
- Service winch

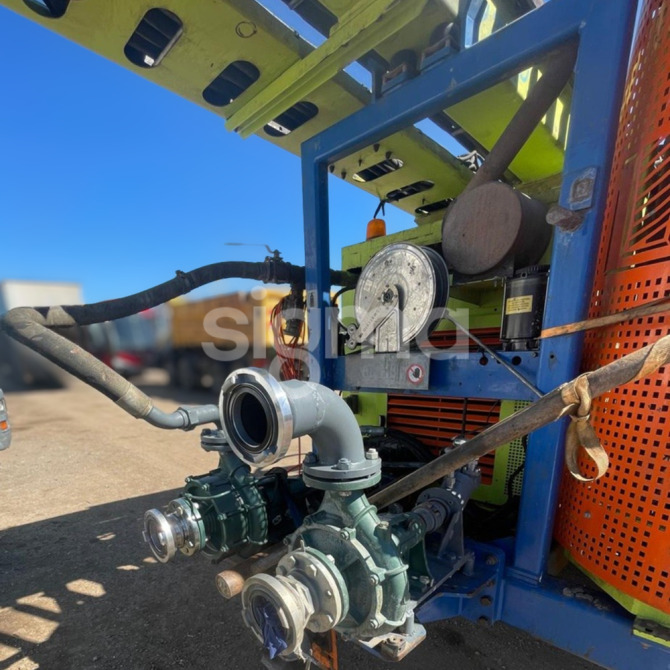

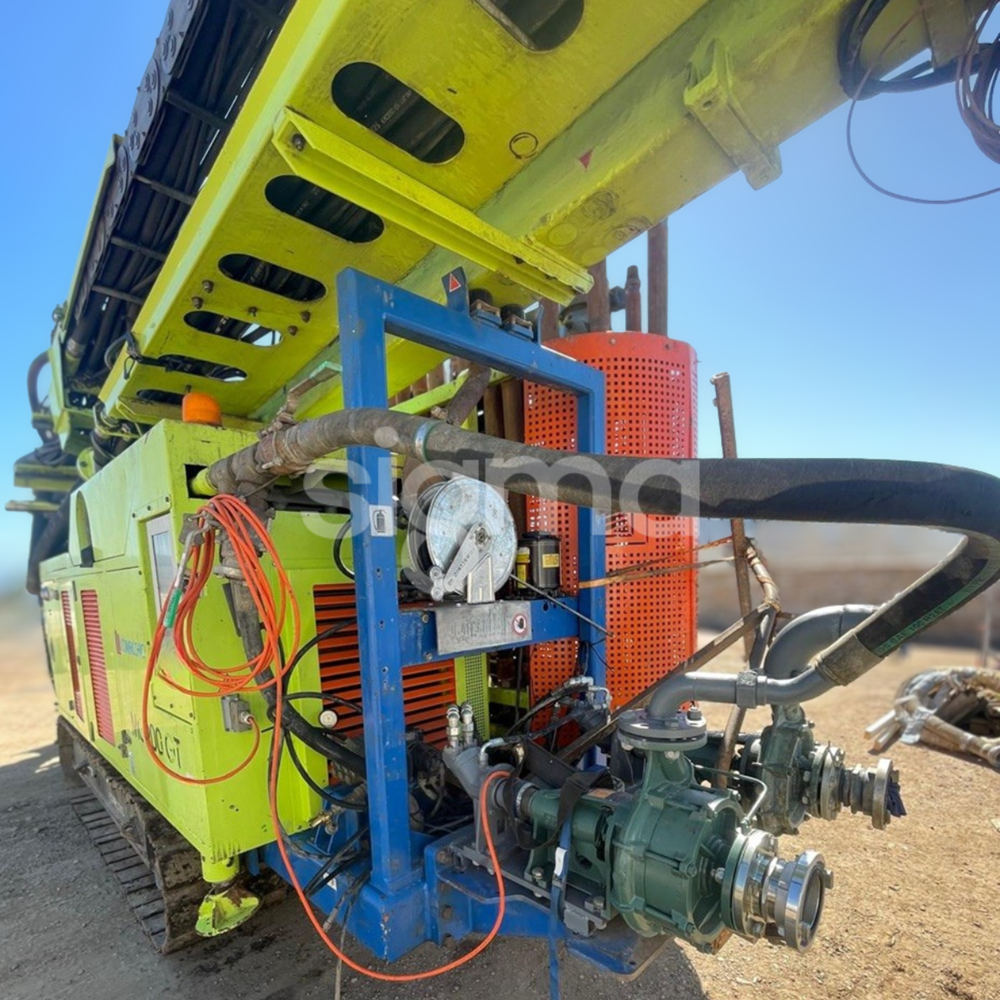

- 2 x Caprari water pumps
- 150m of drill rods (3m x 89mm dia)
- 100m of casings
- Length: 9670mm
- Width: 2400mm
- Height: 2500mm
- CE marked
