Overview
Stock number:
PF 41117
Categories:
Geotechnical Drilling Rigs
Manufacturer:
Dando
Model:
4000
Key features

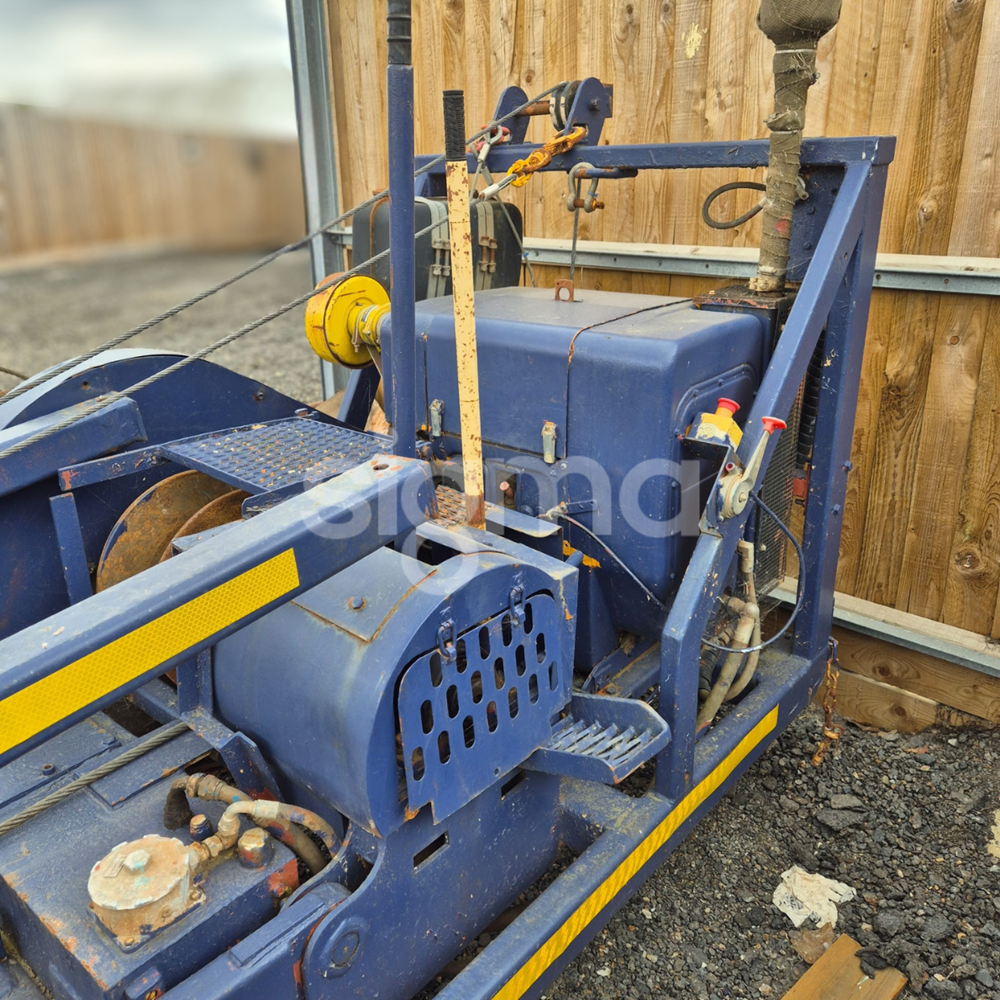

The Dando 4000 is a robust cable percussion drilling rig designed for water well, geotechnical and environmental drilling. Offering a 4,000 kg pullback capacity and a 9-tonne derrick load, it delivers reliable performance while remaining compact and easy to transport.
Machine specs
Drilling Capacity
- 150 mm – 90 m
- 200 mm – 60 m
Specifications
- Engine: HATZ 2L41C
- Engine Power: 19.3 kW @ 1,870 rpm
- Gearbox: 3:1
- Pullback: 4,000 kg
- Winch Pull: 4,000 kg
- Maximum Derrick Load (SWL): 9 tonnes
- Output Torque: 100 Nm @ 1,870 rpm
Transport Dimensions
- Length: 8,500 mm
- Width: 1,800 mm
- Height: 1,380 mm (engine/winch)
- Mast Length: 6,700 mm
- Transport Weight: 2,700 kg
