Overview
Stock number:
PF 39170
Categories:
Mini Piling, Micro Piling and Anchoring Rigs
,Geotechnical Drilling Rigs
,Mining and Exploration Drilling Rigs and Equipment
Manufacturer:
Dando
Model:
Watertec 40
Year of manufacture:
2013
Working hours:
1795
Key features

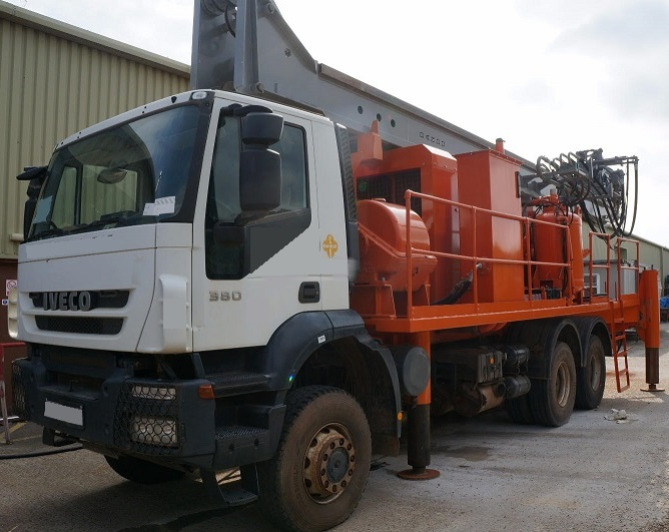

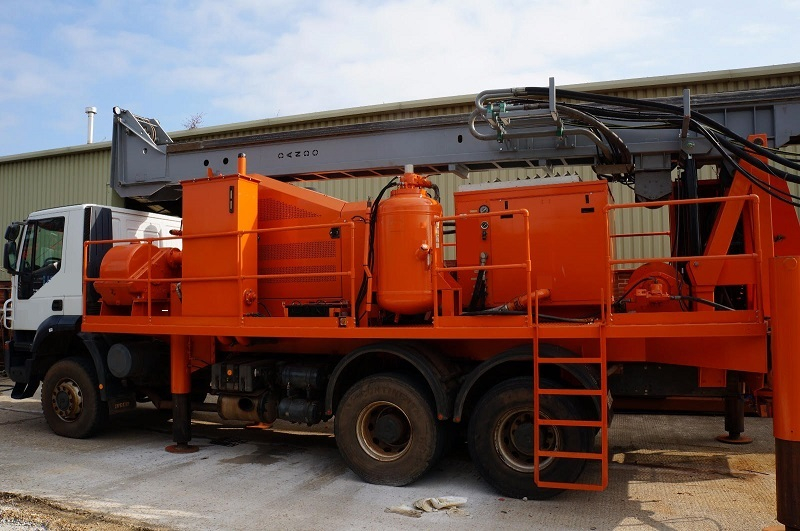

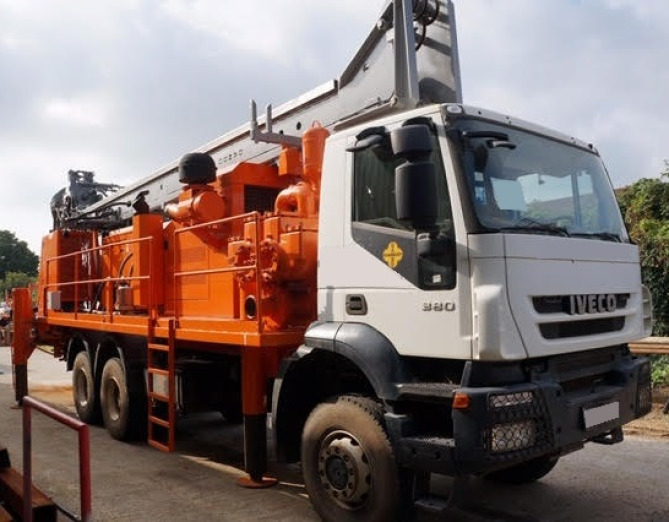

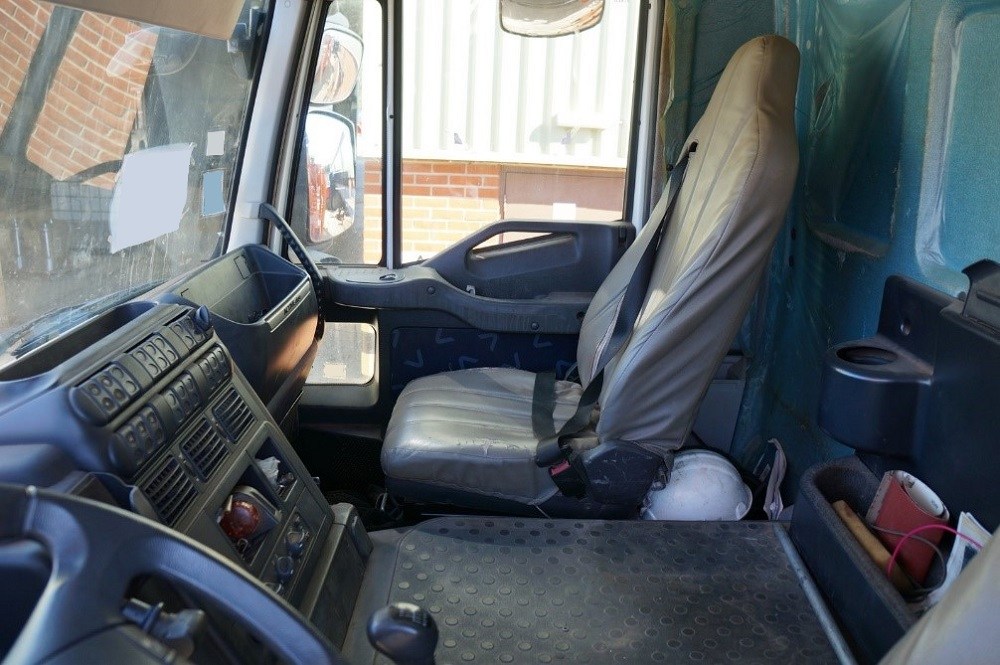

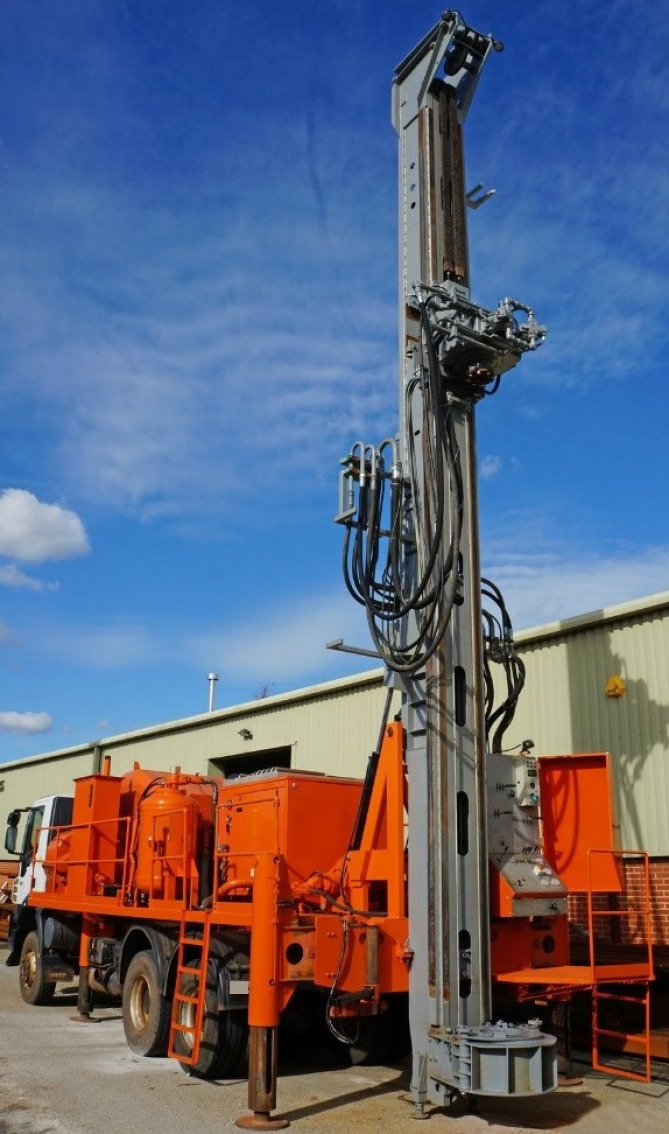

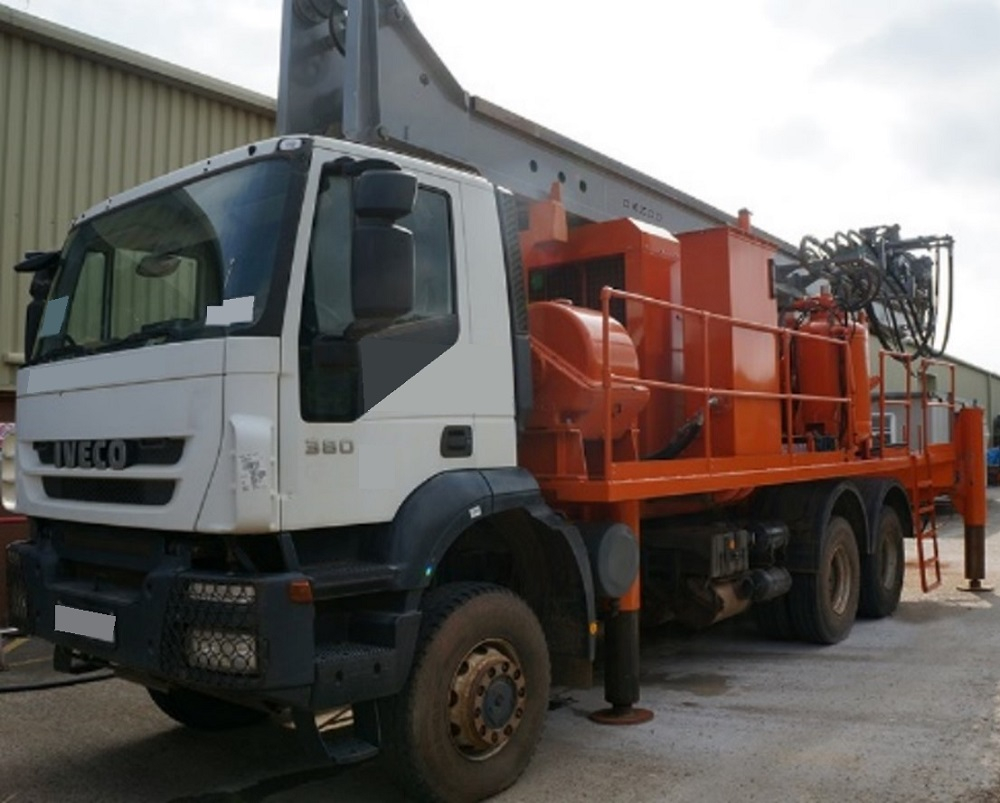

- Heavy duty water well drilling rig for large diameter wells mounted on a left hand drive Iveco Euro Trakker 66 truck
- 1795 Drilling hours
- Fully refurbished
- Capable of mud rotary, air and flooded reverse drilling
- 580HP Caterpillar engine

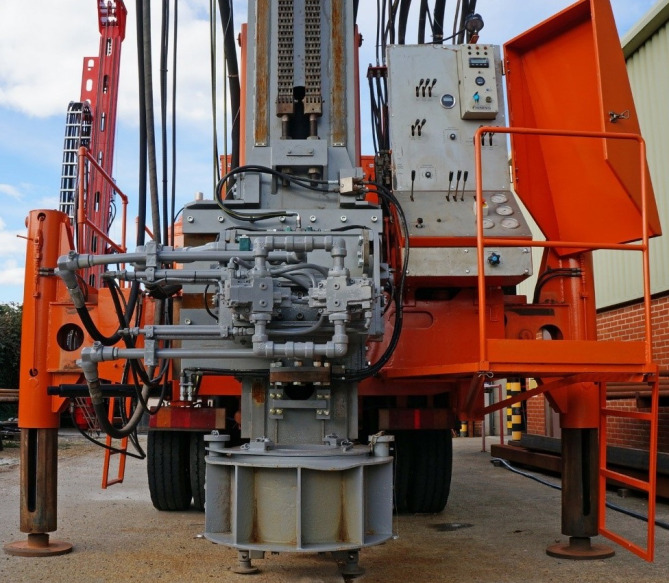

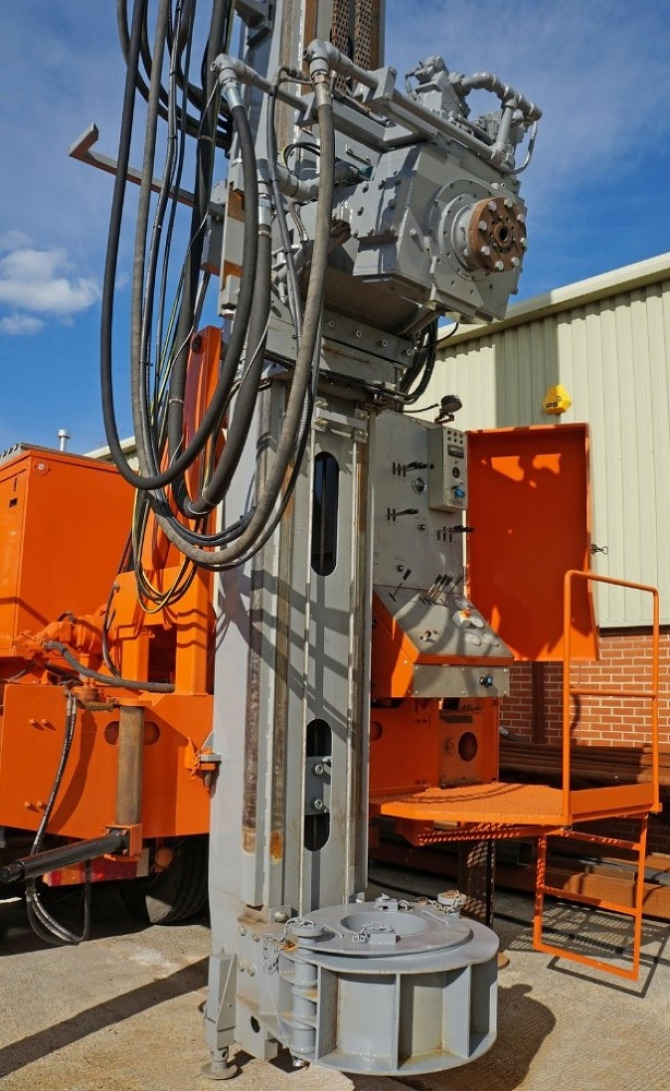

- High torque rotary head
- Pullback: 40,000 KGF
- Working stroke 9m
- Main winch for tools and casing
- Auxiliary winch for tool handling
- XHP900CM 900 cfm
- 350 psi on-board air compressor Gardner Denver 200-FXX-001

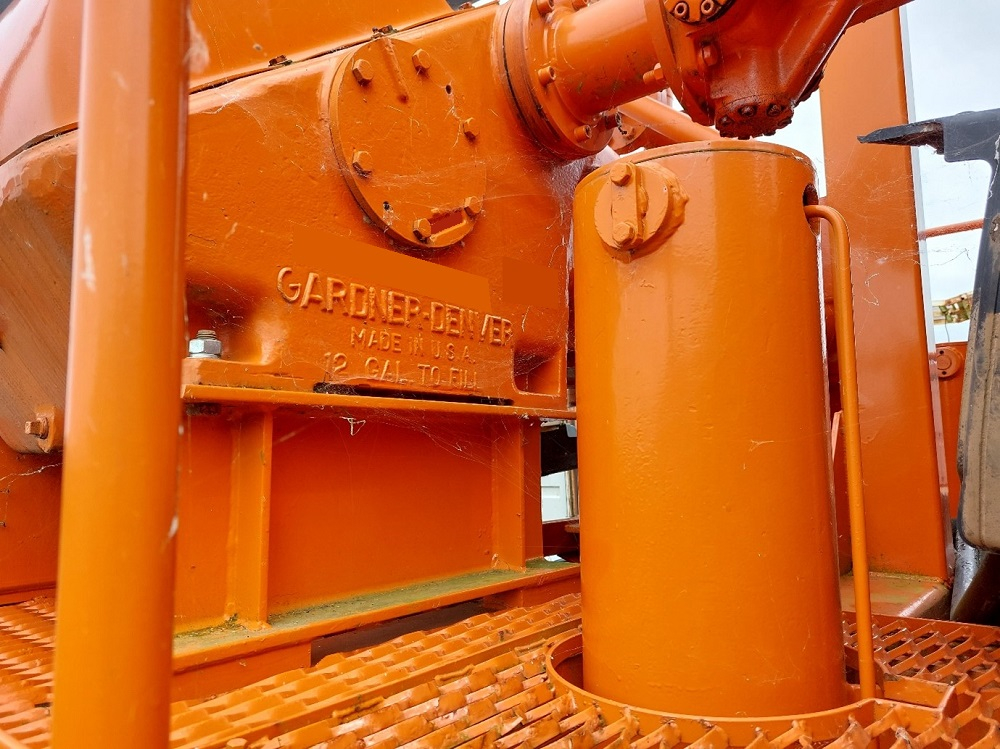

- 420 GPM/1590 LPM duplex piston mud pump
- 60cm guide table
- Drilling capacity of over 1000m with 4 1/2 drill rods including:
- 11 3/4" DRAG BIT x 1
- 4.5" 6M DRILL ROD x 38
- 4.5" DRILL ROD 3M x 2
- 3M 8" CASING x 14
- 1M 8" CASING x 1
- 3M 10.75" CASING x 28
- 2M 10.75" CASING x 2
- 1M 10.75" CASING x 2
- LAY KEYS x 3
- 2 7/8"IF - 4 1/2" API NON RETURN SUB x 1
- 2 7/*2 IF - 10" TRICONE NON RETURN SUB x 1
- CASING PLUG DRIVE HEAD 2 7/8" -10" x 2
- HAMMER BREAKER x 1
- TROLLEY BUGGY AND TRACK FOR LARGE HAMMER x 2
- CASING CLAMP FOR 10 3/4" CASING x 1
- HOIST PLUG - 2 7/8" IF PIN x 2
- 6 5/8" REG BOX- 2 7/8" IF BOX SUB x 3
- 12 3/4" TRICONE BIT WITH 6 5/8" REG THREAD x 1
- 10" TRICONE BIT x 1
- 12" HAMMER BIT x 1
- 40T TRAVEL BLOCK x 1
- REAMER STABILISER 10" x 4
- 13 2/3" DRAG BIT x 1
